CONTENTS

POWER WINDOW CONTROL SYSTEM

BASIC INSPECTION ....................................

DIAGNOSIS AND REPAIR WORKFLOW ..........

Work Flow .................................................................

FUNCTION DIAGNOSIS ...............................

POWER WINDOW SYSTEM ...............................

System Diagram .......................................................

System Description ...................................................

Component Parts Location ......................................

Component Description .............................................

DIAGNOSIS SYSTEM (BCM) .............................

COMMON ITEM ...........................................................

COMMON ITEM : CONSULT-III Function (BCM -
COMMON ITEM) .......................................................

RETAINED PWR .........................................................

RETAINED PWR : CONSULT-III Function (BCM -
RETAINED PWR) ...................................................

COMPONENT DIAGNOSIS .........................

POWER SUPPLY AND GROUND CIRCUIT ......

POWER WINDOW MAIN SWITCH ............................

POWER WINDOW MAIN SWITCH : Description ....

POWER WINDOW MAIN SWITCH : Component
Function Check .......................................................

POWER WINDOW MAIN SWITCH : Diagnosis
Procedure ................................................................

POWER WINDOW MAIN SWITCH : Component
Inspection ................................................................

FRONT POWER WINDOW SWITCH ........................

FRONT POWER WINDOW SWITCH : Descrip-
tion ..........................................................................

FRONT POWER WINDOW SWITCH : Compo-
nent Function Check ...............................................

FRONT POWER WINDOW SWITCH : Diagnosis
Procedure ................................................................

REAR POWER WINDOW SWITCH ...........................

REAR POWER WINDOW SWITCH : Description ....

REAR POWER WINDOW SWITCH : Component
Function Check ........................................................

REAR POWER WINDOW SWITCH : Diagnosis
Procedure ................................................................

REAR POWER WINDOW SWITCH : Component
Inspection ................................................................

POWER WINDOW MOTOR ..............................

DRIVER SIDE .............................................................

DRIVER SIDE : Description .....................................

DRIVER SIDE : Component Function Check ..........

DRIVER SIDE : Diagnosis Procedure .....................

DRIVER SIDE : Component Inspection ...................

PASSENGER SIDE ....................................................

PASSENGER SIDE : Description ............................

PASSENGER SIDE : Component Function Check

PASSENGER SIDE : Diagnosis Procedure ............

PASSENGER SIDE : Component Inspection ..........

REAR LH ....................................................................

REAR LH : Description ............................................

REAR LH : Component Function Check .................

REAR LH : Diagnosis Procedure .............................

REAR LH : Component Inspection ..........................

REAR RH ...................................................................

REAR RH : Description ...........................................

REAR RH : Component Function Check .................

REAR RH : Diagnosis Procedure ............................

REAR RH : Component Inspection .........................

ENCODER .........................................................

DRIVER SIDE .............................................................

DRIVER SIDE : Description .....................................

DRIVER SIDE : Component Function Check ..........

DRIVER SIDE : Diagnosis Procedure .....................

2010 Pathfinder

PWC-2

PASSENGER SIDE ...................................................

PASSENGER SIDE : Description ...........................

PASSENGER SIDE : Component Function Check

...

PASSENGER SIDE : Diagnosis Procedure ...........

DOOR SWITCH .................................................

Description ..............................................................

Component Function Check ...................................

Diagnosis Procedure ..............................................

Component Inspection ............................................

DOOR KEY CYLINDER SWITCH ......................

Description ..............................................................

Component Function Check ...................................

Diagnosis Procedure ..............................................

Component Inspection ............................................

POWER WINDOW SERIAL LINK .....................

POWER WINDOW MAIN SWITCH ...........................

POWER WINDOW MAIN SWITCH : Description ...

POWER WINDOW MAIN SWITCH : Component
Function Check .......................................................

POWER WINDOW MAIN SWITCH : Diagnosis
Procedure ...............................................................

FRONT POWER WINDOW SWITCH ........................

FRONT POWER WINDOW SWITCH : Descrip-
tion ..........................................................................

FRONT POWER WINDOW SWITCH : Compo-
nent Function Check ...............................................

FRONT POWER WINDOW SWITCH : Diagnosis
Procedure ...............................................................

POWER WINDOW LOCK SWITCH ...................

Description ..............................................................

Component Function Check ...................................

ECU DIAGNOSIS ........................................

POWER WINDOW MAIN SWITCH ....................

Reference Value .....................................................

Wiring Diagram .......................................................

Fail Safe .................................................................

FRONT POWER WINDOW SWITCH ................

Reference Value .....................................................

Wiring Diagram .......................................................

Fail Safe .................................................................

BCM (BODY CONTROL MODULE) ..................

Reference Value .....................................................

Terminal Layout ......................................................

Physical Values ......................................................

Wiring Diagram .......................................................

Fail Safe .................................................................

DTC Inspection Priority Chart ..............................

DTC Index ..............................................................

SYMPTOM DIAGNOSIS .............................

NONE OF THE POWER WINDOWS CAN BE
OPERATED USING ANY SWITCH ...................

Diagnosis Procedure ...............................................

DRIVER SIDE POWER WINDOW ALONE
DOES NOT OPERATE ......................................

Diagnosis Procedure ...............................................

FRONT PASSENGER SIDE POWER WIN-
DOW ALONE DOES NOT OPERATE ...............

Diagnosis Procedure ...............................................

REAR LH SIDE POWER WINDOW ALONE
DOES NOT OPERATE ......................................

Diagnosis Procedure ...............................................

REAR RH SIDE POWER WINDOW ALONE
DOES NOT OPERATE ......................................

Diagnosis Procedure ...............................................

ANTI-PINCH SYSTEM DOES NOT OPERATE
NORMALLY (DRIVER SIDE) ............................

Diagnosis Procedure ...............................................

ANTI-PINCH SYSTEM DOES NOT OPERATE
NORMALLY (PASSENGER SIDE) ...................

Diagnosis Procedure ...............................................

AUTO OPERATION DOES NOT OPERATE
BUT MANUAL OPERATES NORMALLY
(DRIVER SIDE) ..................................................

Diagnosis Procedure ...............................................

AUTO OPERATION DOES NOT OPERATE
BUT MANUAL OPERATES NORMALLY
(PASSENGER SIDE) .........................................

Diagnosis Procedure ...............................................

POWER WINDOW RETAINED POWER OP-
ERATION DOES NOT OPERATE PROPERLY

...

Diagnosis Procedure ...............................................

DOES NOT OPERATE BY KEY CYLINDER
SWITCH .............................................................

Diagnosis Procedure ...............................................

KEYLESS POWER WINDOW DOWN DOES
NOT OPERATE .................................................

Diagnosis Procedure ...............................................

POWER WINDOW LOCK SWITCH DOES
NOT FUNCTION ................................................

Diagnosis Procedure ...............................................

PRECAUTION ............................................

PRECAUTIONS .................................................

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

2010 Pathfinder

PWC-3

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ...................................

ON-VEHICLE REPAIR .................................

POWER WINDOW MAIN SWITCH ....................

Removal and Installation .........................................

FRONT POWER WINDOW SWITCH ................

Removal and Installation .........................................

REAR POWER WINDOW SWITCH ..................

Removal and Installation .........................................

2010 Pathfinder

PWC-4

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000005255990

DETAILED FLOW

1.

OBTAIN INFORMATION ABOUT SYMPTOM

Interview the customer to obtain the malfunction information (conditions and environment when the malfunc-

tion occurred) as much as possible when the customer brings the vehicle in.

>> GO TO 2

2.

REPRODUCE THE MALFUNCTION INFORMATION

Check the malfunction on the vehicle that the customer describes.

Inspect the relation of the symptoms and the condition when the symptoms occur.

>> GO TO 3

3.

IDENTIFY THE MALFUNCTIONING SYSTEM WITH “SYMPTOM DIAGNOSIS”

Use “Symptom diagnosis” from the symptom inspection result in step 2 and then identify where to start per-

forming the diagnosis based on possible causes and symptoms.

>> GO TO 4

4.

IDENTIFY THE MALFUNCTIONING PARTS WITH “COMPONENT DIAGNOSIS”

Perform the diagnosis with “Component diagnosis” of the applicable system.

>> GO TO 5

5.

REPAIR OR REPLACE THE MALFUNCTIONING PARTS

Repair or replace the specified malfunctioning parts.

>> GO TO 6

6.

FINAL CHECK

Check that malfunctions are not reproduced when obtaining the malfunction information from the customer,

referring to the symptom inspection result in step 2.
Are the malfunctions corrected?

YES

>> Inspection End.

NO

>> GO TO 3

2010 Pathfinder

POWER WINDOW SYSTEM

PWC-5

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

FUNCTION DIAGNOSIS

POWER WINDOW SYSTEM

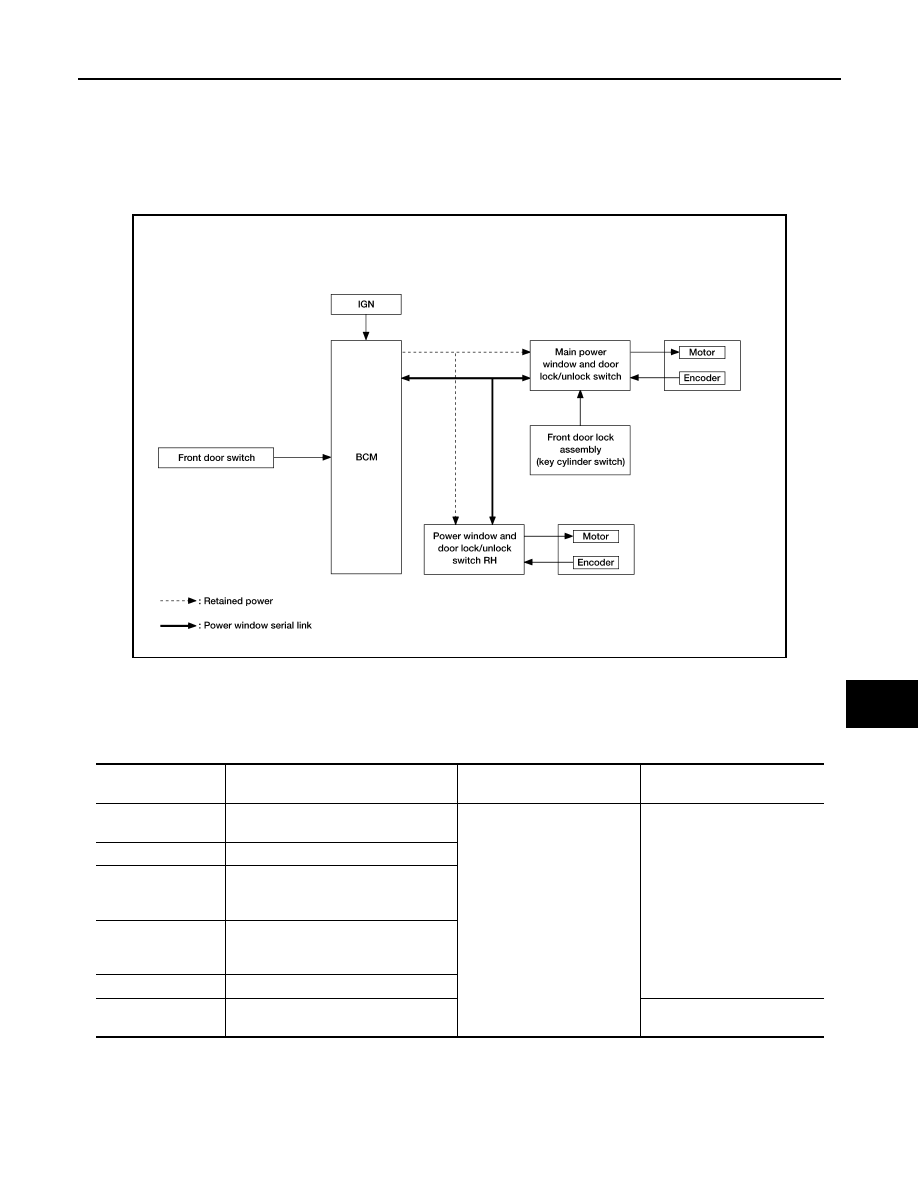

System Diagram

INFOID:0000000005255991

FRONT WINDOW ANTI-PINCH SYSTEM

System Description

INFOID:0000000005255992

POWER WINDOW MAIN SWITCH

INPUT/OUTPUT SIGNAL CHART

POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

INPUT/OUTPUT SIGNAL CHART

ALCIA0038GB

Item

Input signal to main power window and

door lock/unlock switch

Main power window and door

lock/unlock switch function

Actuator

Key cylinder switch

LOCK/UNLOCK signal (more than 1.5
seconds over)

Power window control

Front power window motor

Encoder

Encoder pulse signal

Main power window
and door lock/unlock
switch

Front power window motor LH UP/
DOWN signal

Power window and
door lock/unlock
switch RH

Front power window motor RH UP/
DOWN signal

BCM

RAP signal

Rear power window
switch

Rear power window motor UP/DOWN
signal

Rear power window motor

2010 Pathfinder

PWC-6

< FUNCTION DIAGNOSIS >

POWER WINDOW SYSTEM

POWER WINDOW OPERATION

• Power window system is operable during the retained power operation timer after turning ignition switch ON

and OFF.

• Main power window and door lock/unlock switch can open/close all windows.

• Power window and door lock unlock switch RH & rear power window switches LH and RH can open/close

the corresponding windows.

POWER WINDOW AUTO-OPERATION (FRONT LH & RH)

• AUTO UP/DOWN operation can be performed when main power window and door lock/unlock switch &

power window and door lock/unlock switch RH turns to AUTO.

• Encoder continues detecting the movement of power window motor and transmits to power window switch

as the encoder pulse signal while power window motor is operating.

• Power window switch reads the changes of encoder signal and stops AUTO operation when door glass is at

fully opened/closed position.

• Power window motor is operable in case encoder is malfunctioning.

RETAINED POWER OPERATION

• Retained power operation is an additional power supply function that enables power window system to oper-

ate during the 45 seconds even when ignition switch is turned OFF

Retained power function cancel conditions

• Front door CLOSE (door switch OFF)

→

OPEN (door switch ON).

• When ignition switch is ON.

• When timer time passes. (45 seconds)

POWER WINDOW LOCK

Ground circuit inside main power window and door lock/unlock switch shuts off when power window lock

switch is ON. This inhibits power window switch operation except with the main power window and door lock/

unlock switch.

ANTI-PINCH OPERATION (FRONT LH & RH)

• Pinch foreign material in the door glass during AUTO-UP operation, and it is the anti-pinch function that low-

ers the door glass 150 mm (5.91 in) or 2 seconds when detected.

• Encoder continues detecting the movement of power window motor and transmits to power window switch

as the encoder pulse signal while power window motor is operating.

• Resistance is applied to the power window motor rotation that changes the frequency of encoder pulse sig-

nal if foreign material is trapped in the door glass.

• Power window switch controls to lower the window glass for 150 mm (5.91 in) or 2 seconds after it detects

encoder pulse signal frequency change.

OPERATION CONDITION

• When all door glass AUTO-UP operation is performed (anti-pinch function does not operate just before the

door glass closes and is fully closed)

NOTE:

Depending on environment and driving conditions, if a similar impact or load is applied to the door glass, it

may lower.

KEY CYLINDER SWITCH OPERATION

Hold the driver’s door key cylinder to the LOCK or UNLOCK direction for more than 1 second to OPEN or

CLOSE front power windows when ignition switch is OFF. In addition, it stops when key position is moved to

NEUTRAL when operating.

OPERATION CONDITION

• Ignition switch OFF

Item

Input signal to front power window

switch

Front power window switch

function

Actuator

Power window and
door lock/unlock
switch RH

Front power window motor RH UP/
DOWN signal

Power window control

Front power window motor RH

Encoder

Encoder pulse signal

BCM

RAP signal

2010 Pathfinder

POWER WINDOW SYSTEM

PWC-7

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

• Hold driver’s door key cylinder to LOCK position for more than 1 second to perform CLOSE operation of the

door glass.

• Hold driver’s door key cylinder to UNLOCK position for more than 1 second to perform OPEN operation of

the door glass.

KEYLESS POWER WINDOW DOWN OPERATION (FRONT LH & RH)

Front power windows open when the unlock button on Intelligent Key or keyfob is activated and kept pressed
for more than 3

(NOTE)

seconds with the ignition switch OFF. The windows keep opening if the unlock button is

continuously pressed.

The power window opening stops when the following operations are performed:

• When the unlock button is kept pressed more than 15 seconds.

• When the ignition switch is turned ON while the power window opening is operated.

• When the unlock button is released.

While retained power operation is activated, keyless power window down function cannot be operated.

NOTE:

Keyless power window down operation mode can be changed by “PW DOWN SET” mode in “WORK SUP-

PORT”. Refer to

BCS-25, "INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)"

with

Intelligent Key or

BCS-20, "MULTIREMOTE ENT : CONSULT-III Function (BCM - MULTIREMOTE ENT)"

with

remote keyless entry system.

NOTE:

Use CONSULT-III to change settings.

MODE1 (3sec)/MODE2 (OFF)/MODE3 (5sec)

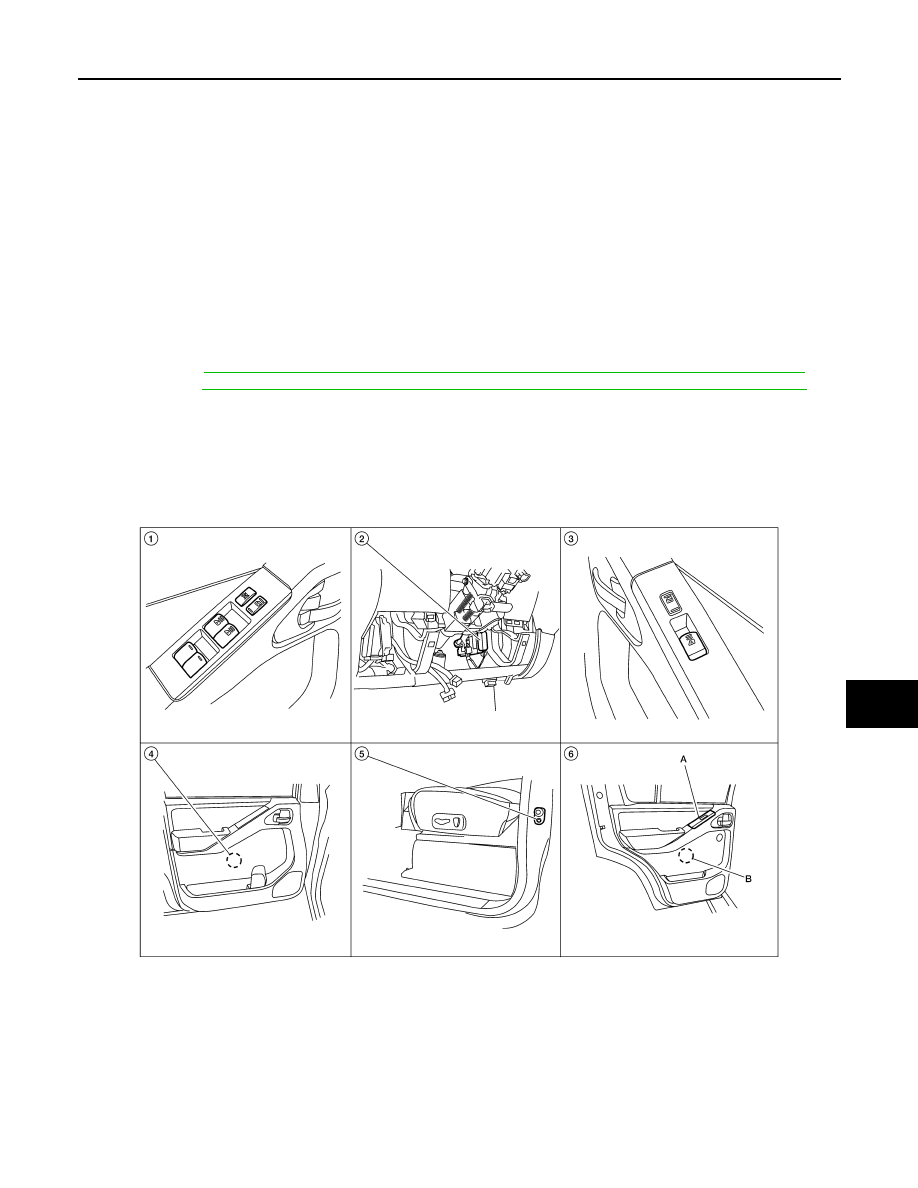

Component Parts Location

INFOID:0000000005255993

LIIA2390E

1.

Main power window and door lock/
unlock switch D7, D8

2.

BCM M18, M19, M20 (view with in-
strument lower panel LH removed)

3.

Power window and door lock/unlock
switch RH D105

4.

Front power window motor LH D9,
RH D104

5.

Front door switch LH B8, RH B108

6.

A. Rear power window switch LH
D203, RH D303
B. Rear power window motor LH
D204, RH D304

2010 Pathfinder

PWC-8

< FUNCTION DIAGNOSIS >

POWER WINDOW SYSTEM

Component Description

INFOID:0000000005255994

FRONT WINDOW ANTI-PINCH SYSTEM

Component

Function

BCM

• Supplies power supply to power window switch.
• Controls retained power.

Main power window and door lock/un-
lock switch

• Directly controls all power window motor of all doors.
• Controls anti-pinch operation of front power window LH.

Power window and door lock/unlock
switch RH

• Controls front power window motor RH.
• Controls anti-pinch operation of front power window RH.

Rear power window switch

• Controls rear power window motors LH and RH.

Front power window motor LH

• Integrates the ENCODER POWER and WINDOW MOTOR.
• Starts operating with signals from main power window and door lock/unlock switch.
• Transmits power window motor rotation as a pulse signal to main power window and

door lock/unlock switch.

Front power window motor RH

Starts operating with signals from main power window and door lock/unlock switch &
power window and door lock/unlock switch RH.

Rear power window motor

Starts operating with signals from main power window and door lock/unlock switch &
rear power window switch.

Front door lock assembly LH (key cylin-
der switch)

Transmits operation condition of key cylinder switch to power window main switch.

Front door switch LH or RH

Detects door open/close condition and transmits to BCM.

2010 Pathfinder

Content .. 529 530 531 532 ..
