PLANETARY CARRIER

DLN-301

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

PLANETARY CARRIER

Disassembly and Assembly

INFOID:0000000005258444

DISASSEMBLY

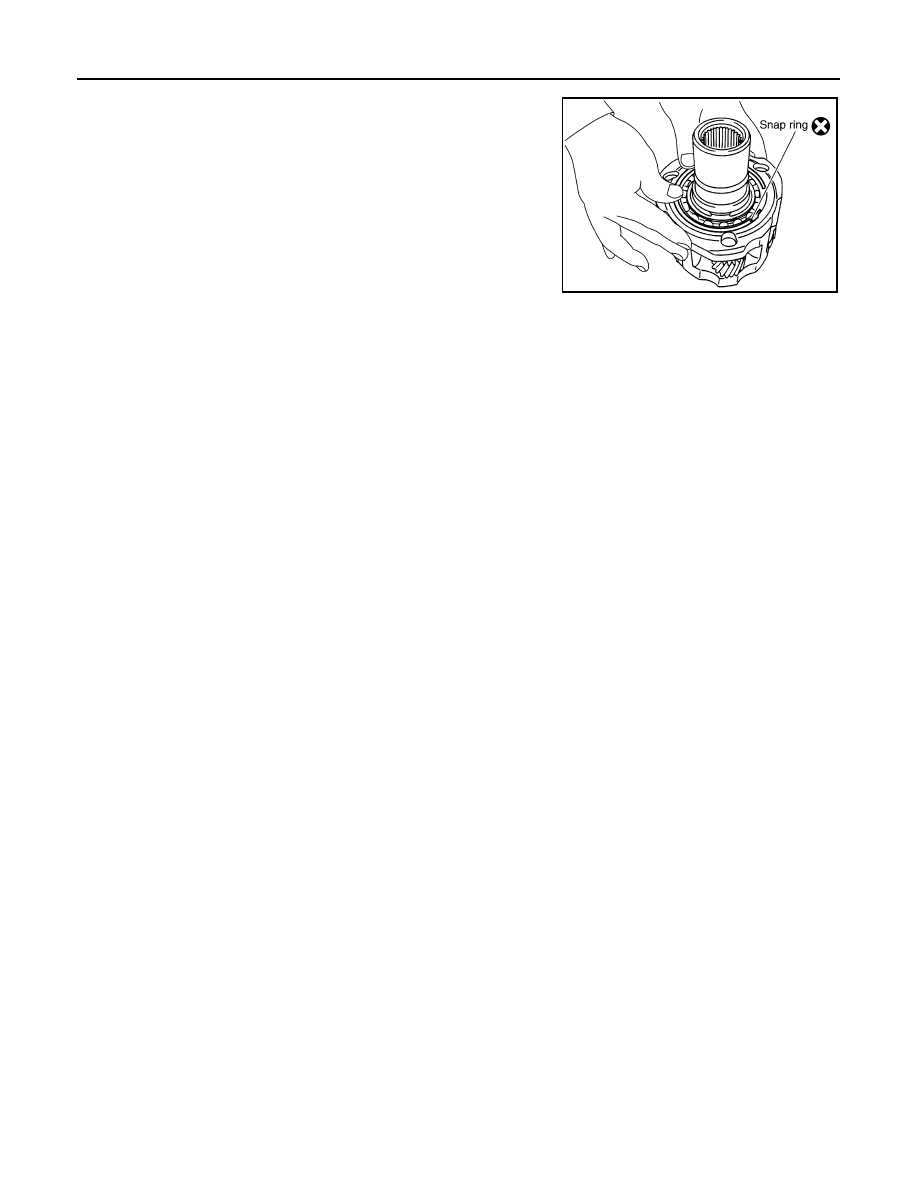

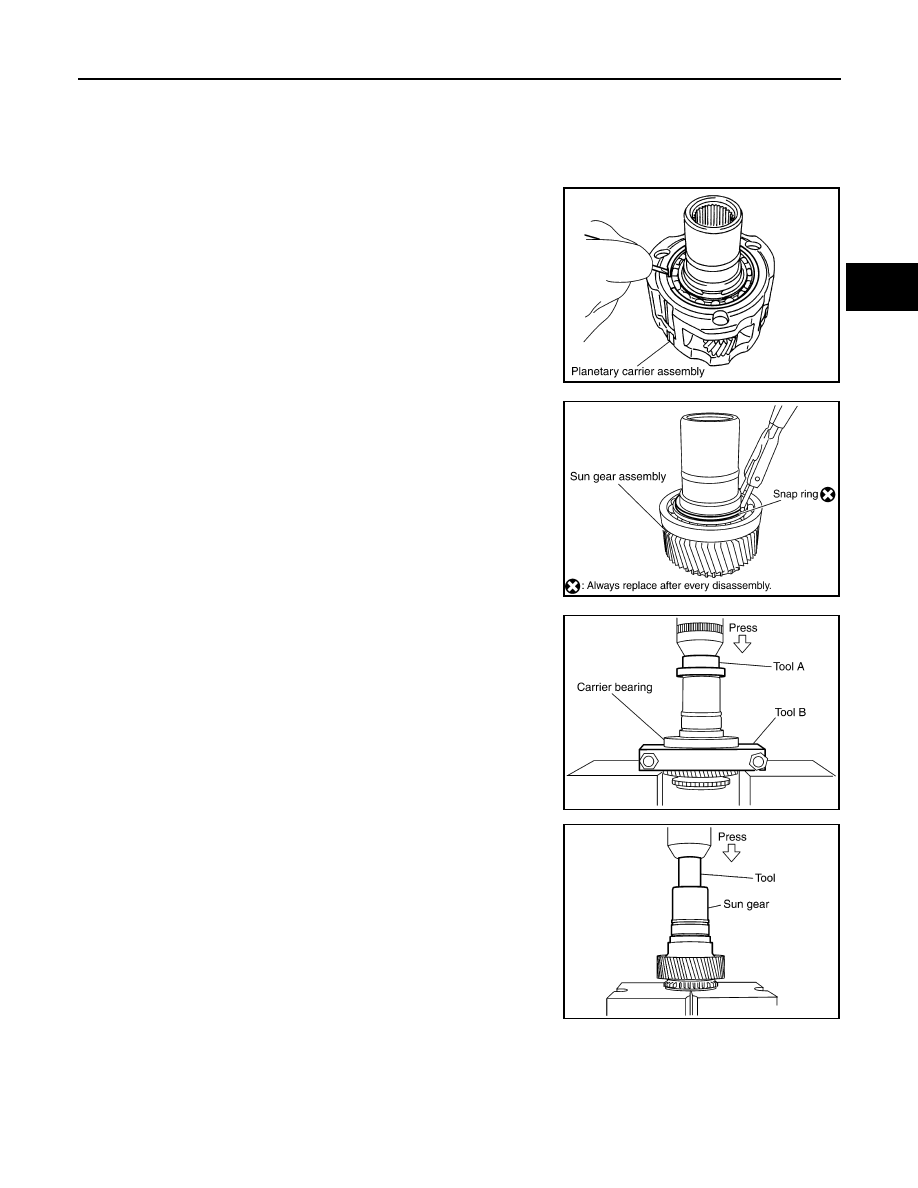

1. Remove the snap ring.
2. Remove the sun gear assembly from the planetary carrier

assembly using suitable tool.

3. Remove the snap ring from the sun gear assembly using suit-

able tool.

4. Remove the carrier bearing from the sun gear using Tools.

5. Remove the needle bearing from the sun gear using Tool.

SDIA2792E

SDIA2353E

Tool number

A: ST35300000 ( — )
B: ST30021000 (J-22912-01)

SDIA2149E

Tool number

: ST33710000 ( — )

SDIA2354E

2010 Pathfinder

DLN-302

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TX15B]

PLANETARY CARRIER

6. Remove the metal bushing from the sun gear using Tools.

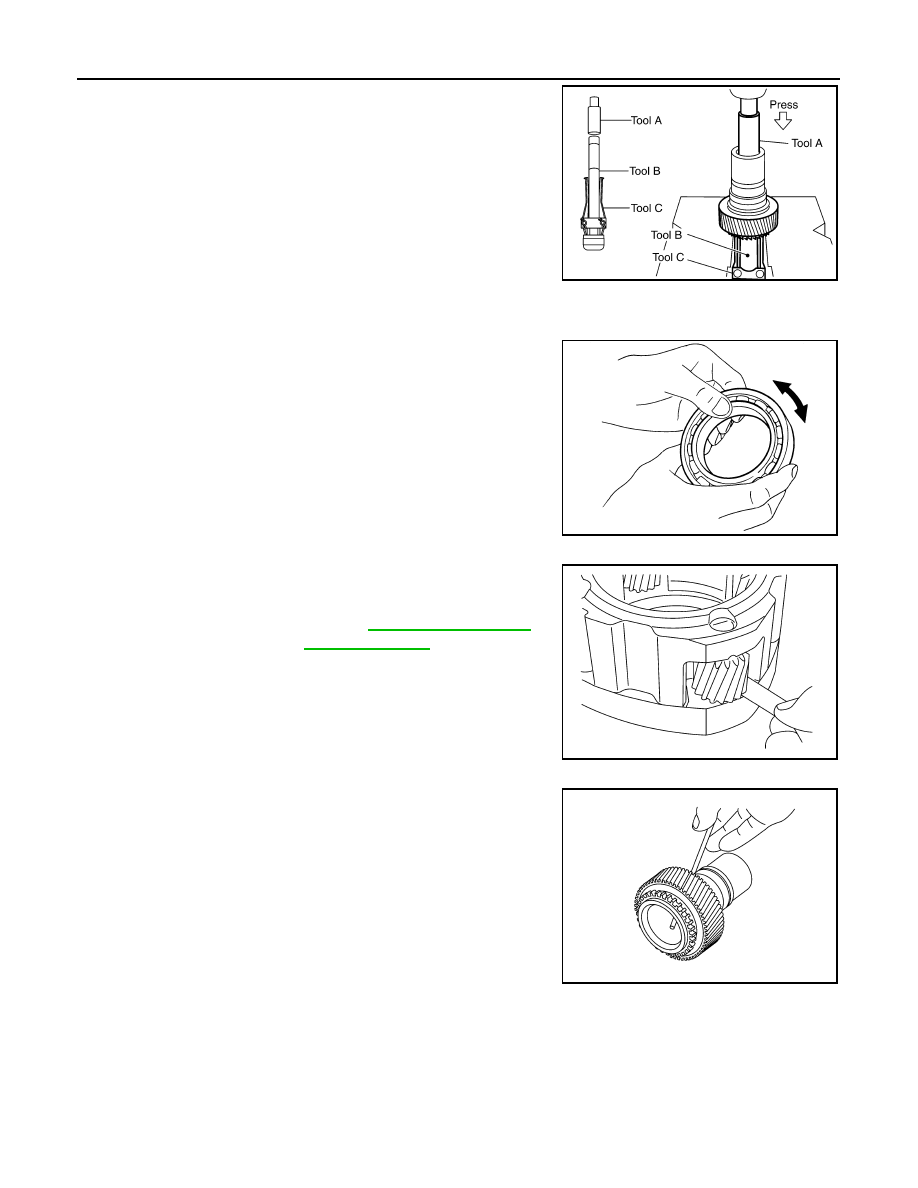

INSPECTION AFTER DISASSEMBLY

Bearing

Check the bearing for damage and rough rotation. If necessary,

replace the bearing with a new one.

Planetary Carrier

• Measure the end play of each pinion gear. If it is out of specifica-

tion, replace the planetary carrier assembly with new one.

• Check the working face of each gear and bearing for damage,

burrs, partial wear, dents and other abnormality. If any is found,

replace the planetary carrier assembly with a new one.

Sun Gear

• Check if the oil passage of the sun gear assembly is clogged. For

this, try to pass a 3.6 mm (0.142 in) dia. wire through the oil pas-

sage as shown.

• Check the sliding and contact surface of each gear and bearing for

damage, burrs, partial wear, dents and other abnormality. If any is

found, replace the sun gear assembly with a new one.

Internal Gear

Tool number

A: ST33710000 ( — )
B: ST35325000 ( — )
C: ST33290001 (J-34286)

SDIA2168E

MTF0041D

Pinion gear end play

Refer to

DLN-309, "Inspection

and Adjustment"

PDIA0146E

PDIA0147E

2010 Pathfinder

PLANETARY CARRIER

DLN-303

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

Check the internal gear teeth for damage, partial wear, dents or

other abnormality. If any is found, replace the internal gear with a

new one.

ASSEMBLY

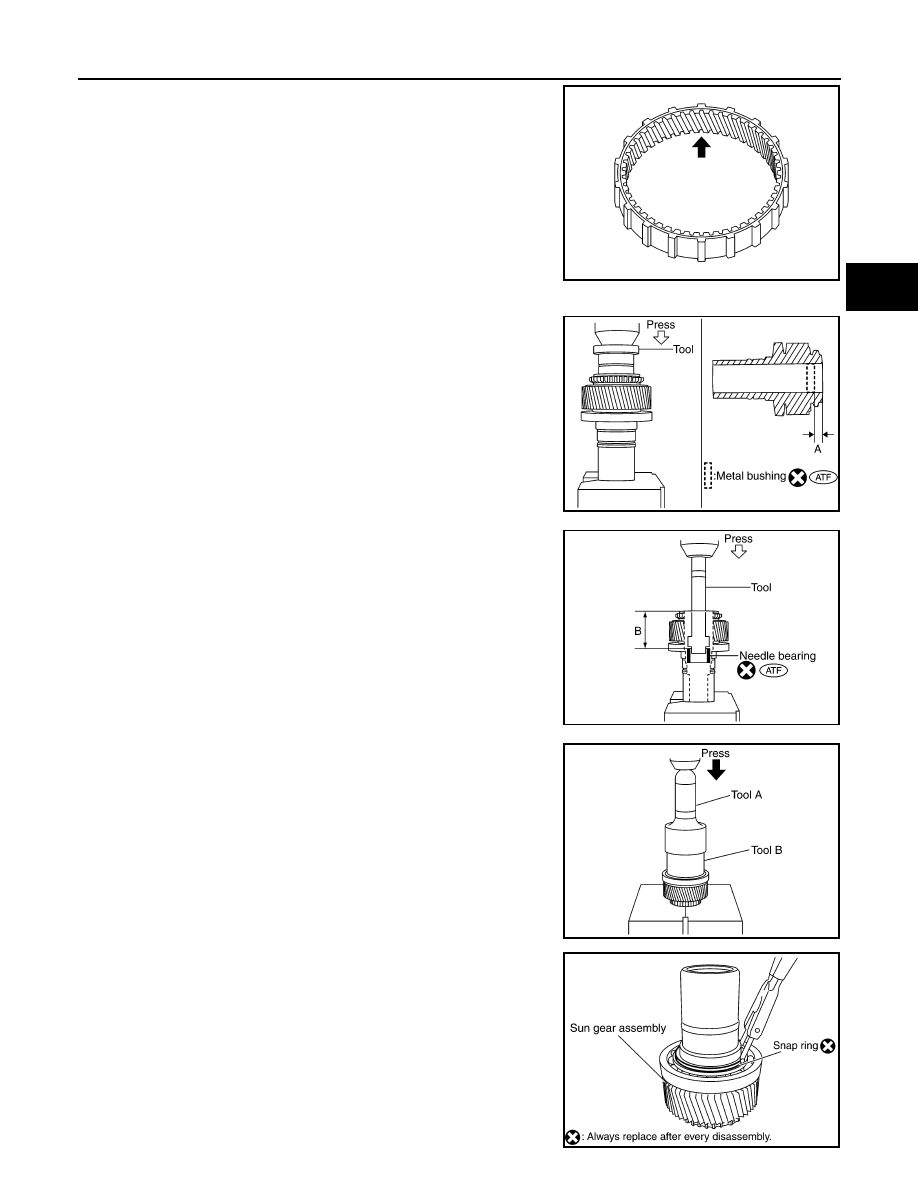

1. Apply ATF to the new metal bushing, then install the new metal

bushing until it becomes (Dimension A) using Tool.

CAUTION:

Do not reuse metal bushing.

2. Apply ATF to the new needle bearing, then install the new nee-

dle bearing until it becomes (Dimension B) using Tool.

CAUTION:

Do not reuse needle bearing.

3. Install the carrier bearing to the sun gear using Tools.

4. Install the new snap ring to the sun gear assembly using suitable

tool.

CAUTION:

Do not reuse snap ring.

PDIA0157E

Tool number

: ST35300000 ( — )

Dimension A

: 7.7 - 8.3mm (0.303 - 0.327in)

SDIA3189E

Tool number

: ST33220000 ( — )

Dimension B

: 62.5 - 63.1mm (2.461 - 2.484in)

SDIA3190E

Tool number

A: ST30720000 (J-25405)
B: ST27863000 ( — )

PDIA0149E

SDIA2353E

2010 Pathfinder

DLN-304

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TX15B]

PLANETARY CARRIER

5. Install the sun gear assembly to the planetary carrier assembly.
6. Install the new snap ring to the planetary carrier assembly.

CAUTION:

Do not reuse snap ring.

SDIA2794E

2010 Pathfinder

FRONT DRIVE SHAFT

DLN-305

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

FRONT DRIVE SHAFT

Disassembly and Assembly

INFOID:0000000005258445

DISASSEMBLY

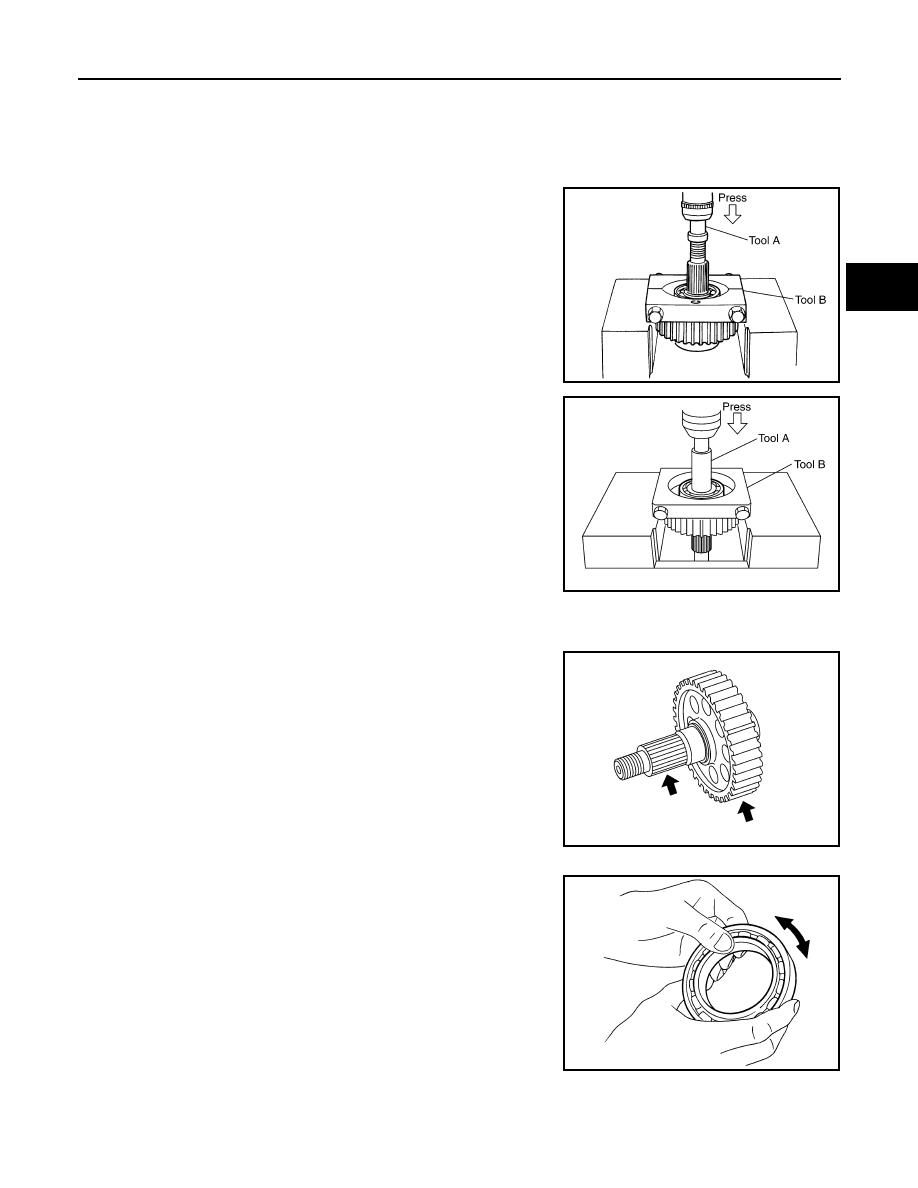

1. Remove the front bearing using Tools.

2. Remove the rear bearing using Tools.

INSPECTION AFTER DISASSEMBLY

Front Drive Shaft

Check the items below. If necessary, replace them with new ones.

• Damage, peeling, dent, uneven wear and bending of the shaft.

• Excessive wear, damage and peeling of the gear.

Bearing

Check the bearing for damage and rough rotation. If necessary,

replace the bearing with a new one.

ASSEMBLY

Tool number

A: ST35300000 ( — )
B: ST30021000 (J-22912-01)

SDIA2106E

Tool number

A: ST33710000 ( — )
B: ST30021000 (J-22912-01)

PDIA0153E

PDIA0154E

MTF0041D

2010 Pathfinder

DLN-306

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TX15B]

FRONT DRIVE SHAFT

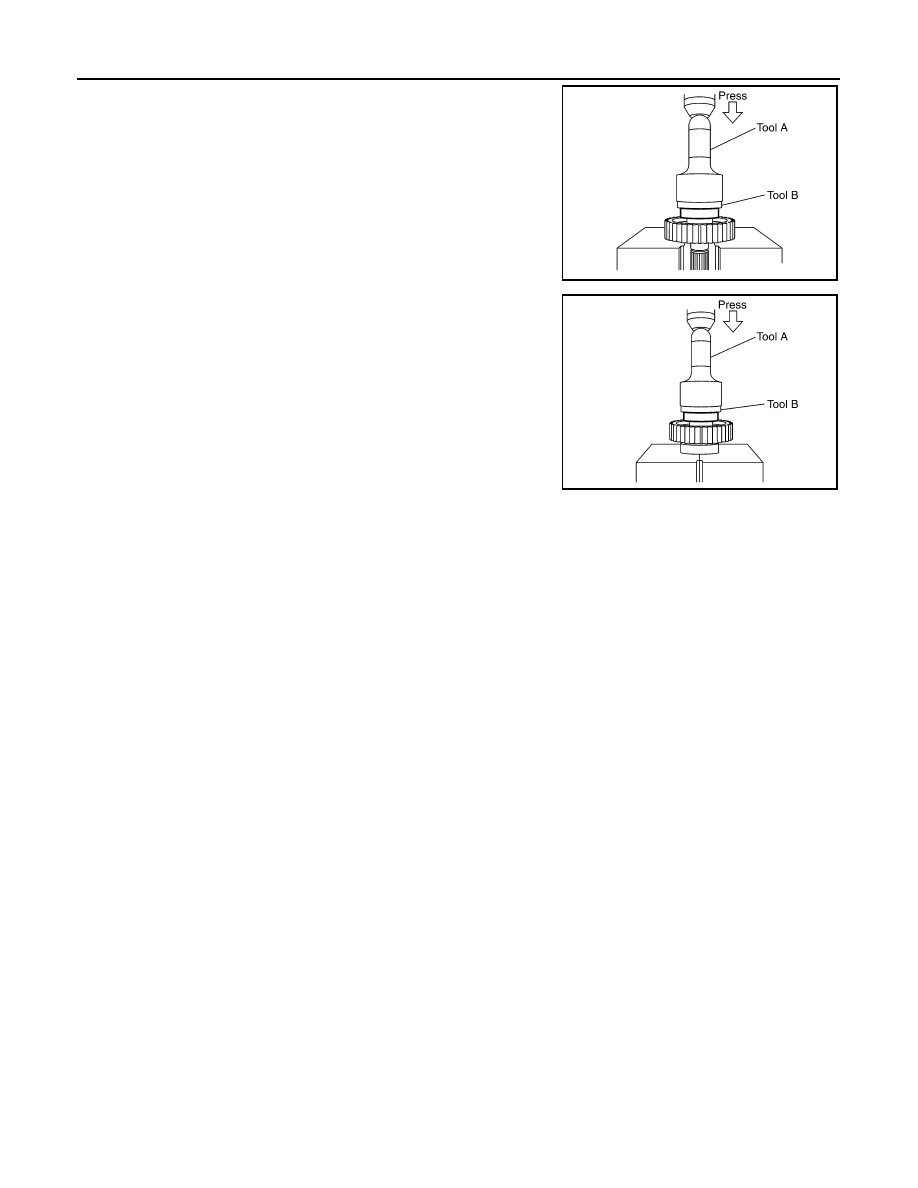

1. Install the rear bearing using Tools.

2. Install the front bearing using Tools.

Tool number

A: KV38100500 ( — )
B: ST30901000 (J-26010-01)

PDIA0155E

Tool number

A: KV38100500 ( — )
B: ST30901000 (J-26010-01)

PDIA0156E

2010 Pathfinder

SHIFT CONTROL

DLN-307

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

SHIFT CONTROL

Disassembly and Assembly

INFOID:0000000005258446

DISASSEMBLY

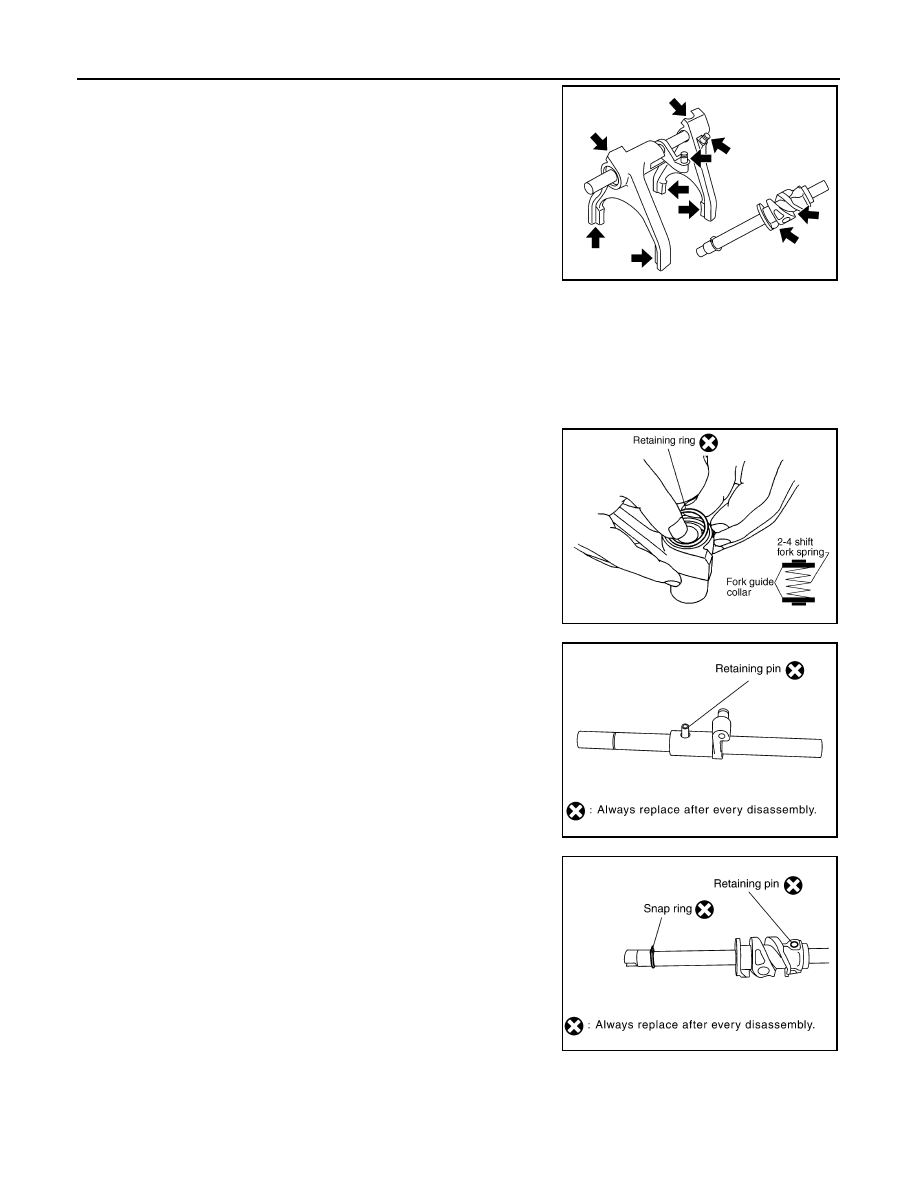

1. Remove the snap ring.
2. Remove the retaining pin.
3. Remove the drum cam from the control shift rod.

4. Remove the retaining pin from the L-H shift rod.
5. Remove the 2-4 shift bracket.

6. Remove the retaining ring from the 2-4 shift fork using suitable

tool.

7. Remove the fork guide collar and 2-4 shift fork spring from the 2-

4 shift fork.

INSPECTION AFTER DISASSEMBLY

Shift Fork

• Measure the clearance between the shift fork and sleeve. If it is out

of specification, replace it with a new one.

Shift Rod and Fork Components

PDIA0122E

PDIA0125E

WDIA0226E

Standard value
2-4

Refer to

DLN-309, "Inspection and Adjust-

ment"

L-H

Refer to

DLN-309, "Inspection and Adjust-

ment"

PDIA0134E

2010 Pathfinder

DLN-308

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TX15B]

SHIFT CONTROL

• Check the working face of the shift rod and fork for wear, partial

wear, abrasion, bending and other abnormality. If any is found,

replace with a new one.

ASSEMBLY

1. Install clevis pin and shift collar to L-H shift fork after assembling them.

CAUTION:

Use caution when installing L-H shift fork, clevis pin or shift collar.

2. Install clevis pin and shift collar to 2-4 shift bracket after assembling them.

CAUTION:

Use caution when installing 2-4 shift bracket.

3. Install guide fork collar and 2-4 shift fork spring to the 2-4 shift

fork, and then secure it with the new retaining ring.

CAUTION:

• Do not reuse retaining ring.

• Be careful with orientation.

4. Install the 2-4shift bracket to the L-H shift rod.
5. Install the new retaining pin evenly to the L-H shift rod.

CAUTION:

Do not reuse retaining pin.

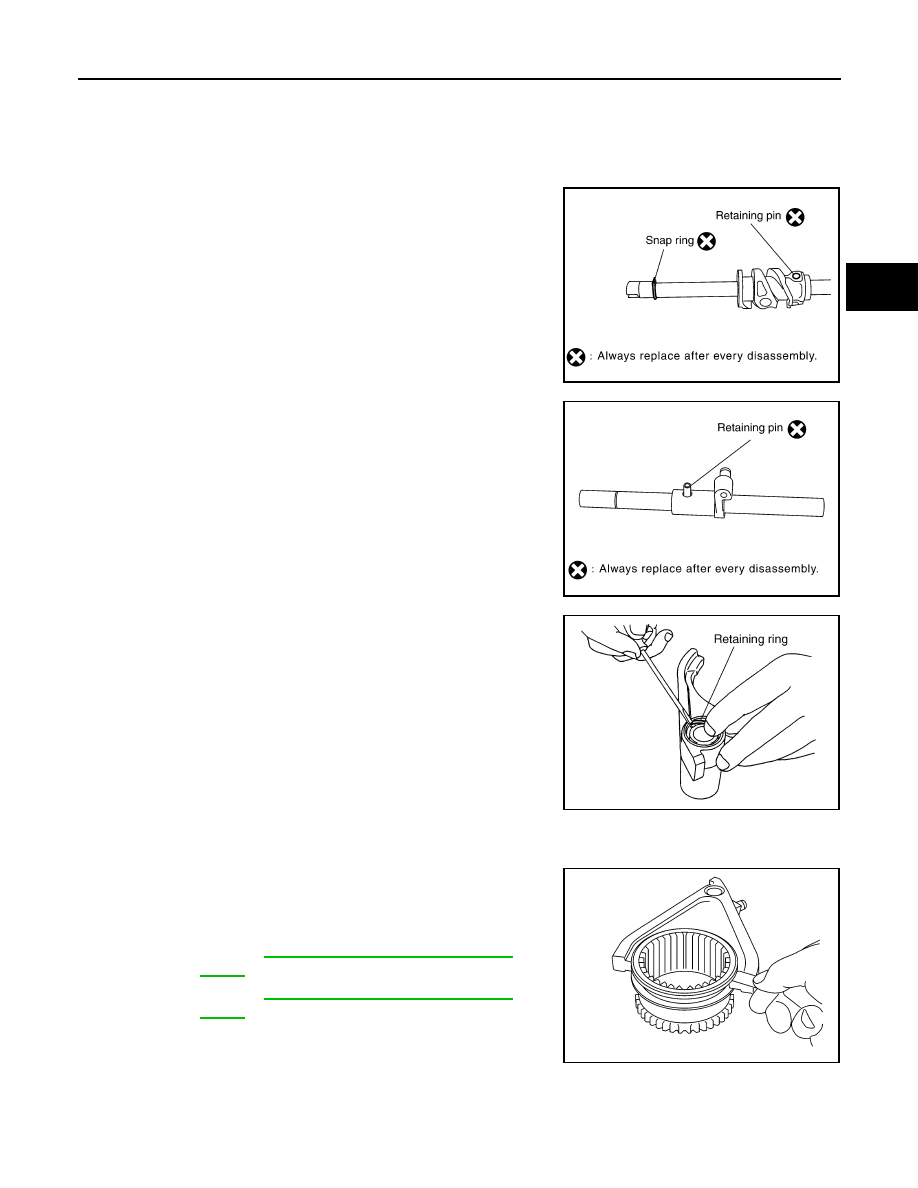

6. Install the drum cam to the control shift rod, and then secure it

with the new retaining pin.

CAUTION:

Do not reuse retaining pin.

7. Install the new snap ring to the control shift rod.

CAUTION:

Do not reuse snap ring.

PDIA0135E

SDIA3391E

PDIA0125E

PDIA0122E

2010 Pathfinder
