SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000005258447

Inspection and Adjustment

INFOID:0000000005258448

PINION GEAR END PLAY

Unit: mm (in)

CLEARANCE BETWEEN SHIFT FORK AND SLEEVE

Unit: mm (in)

Applied model

VQ40DE

Transfer model

TX15B

Gear ratio

High

1.000

Low

2.625

Number of teeth

Planetary gear

Sun gear

56

Internal gear

91

Front drive sprocket

38

Front drive shaft

38

Fluid Capacity (Approx)

 (US qt, Imp qt)

2.0 (2 1/8, 1 3/4)

Item

Standard

Pinion gear end play

0.1 - 0.7 (0.004 - 0.028)

Item

Standard

2-4 shift fork to 2-4 sleeve

Less than 0.46 (0.018)

L-H shift fork to L-H sleeve

Less than 0.46 (0.018)

2010 Pathfinder

DLN-310

< PRECAUTION >

[PROPELLER SHAFT: 2F1310]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000005550701

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000005550702

NOTE:

• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

″

LOCK

″

 position.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-

anism is adopted on the key cylinder.

For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and

steering wheel rotation will become impossible.

If steering wheel rotation is required when battery power is interrupted, follow the procedure below before

starting the repair operation.

OPERATION PROCEDURE

1. Connect both battery cables.

NOTE:

Supply power using jumper cables if battery is discharged.

2. Use the Intelligent Key or mechanical key to turn the ignition switch to the

″

ACC

″

 position. At this time, the

steering lock will be released.

3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be

rotated.

4. Perform the necessary repair operation.

2010 Pathfinder

PRECAUTIONS

DLN-311

< PRECAUTION >

[PROPELLER SHAFT: 2F1310]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

5. When the repair work is completed, return the ignition switch to the

″

LOCK

″

 position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6. Perform a self-diagnosis check of all control units using CONSULT-III.

2010 Pathfinder

DLN-312

< PREPARATION >

[PROPELLER SHAFT: 2F1310]

PREPARATION

PREPARATION

PREPARATION

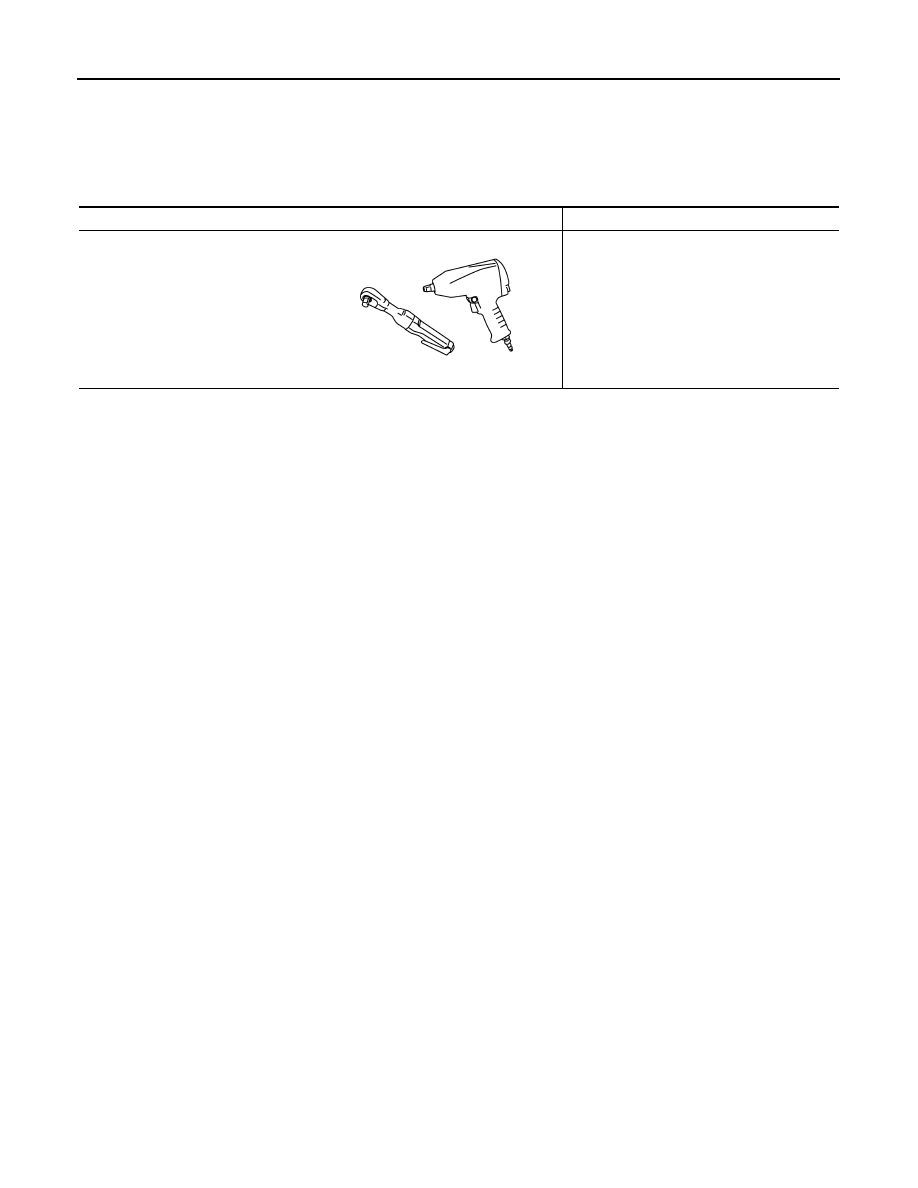

Commercial Service Tool

INFOID:0000000005258449

Tool name

Description

Power tool

Loosening bolts and nuts

PBIC0190E

2010 Pathfinder

NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING

DLN-313

< FUNCTION DIAGNOSIS >

[PROPELLER SHAFT: 2F1310]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

FUNCTION DIAGNOSIS

NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000005258450

Use the chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.

×

: Applicable

Reference page

DLN-314



DLN-314



DLN-314

DL

N-34

6, "

NVH T

rou

bl

es

ho

ot

in

g Ch

art

"

DL

N-38

1, "

NVH T

rou

bl

es

ho

ot

in

g Ch

art

"

DL

N-41

4, "

NVH T

rou

bl

es

ho

ot

in

g Ch

art

"

DL

N-45

2, "

NVH T

rou

bl

es

ho

ot

in

g Ch

art

"

FAX-5, "

NVH T

rou

ble

sh

oo

tin

g Chart

"

RA

X

-5, "

NVH T

rou

bl

es

ho

ot

ing

 Cha

rt

"

FSU-5,

 "

NVH T

ro

ub

les

ho

ot

ing

 Ch

art

"

RS

U-

5

, "

NV

H T

rou

bl

es

ho

oti

ng

 Cha

rt

"

WT

-46, "

NVH T

rou

bl

es

ho

ot

ing

 Cha

rt

"

WT

-46, "

NVH T

rou

bl

es

ho

ot

ing

 Cha

rt

"



DL

N-31

3, "

NVH T

rou

bl

es

ho

ot

in

g Ch

art

"

DL

N-32

3, "

NVH T

rou

bl

es

ho

ot

in

g Ch

art

"

DL

N-33

4, "

NVH T

rou

bl

es

ho

ot

in

g Ch

art

"

BR-6, "

NVH T

rou

bl

es

ho

oti

ng

 Cha

rt

"

ST

-12, "

NVH T

rou

bl

es

ho

oti

ng

 Cha

rt

"

Possible cause and suspected parts

Une

ven

 rot

a

tion

 torq

ue

Rot

ati

on

 im

ba

la

nc

e

Ex

ce

ss

iv

e run

 ou

t

Di

ffere

n

tial

Axle

Su

sp

en

si

on

Ti

re

s

Road wheel

Driv

e sh

af

t

Brak

es

S

tee

ring

Symptom

Noise

×

×

×

×

×

×

×

×

×

×

×

Shake

×

×

×

×

×

×

×

Vibration

×

×

×

×

×

×

×

×

2010 Pathfinder

DLN-314

< ON-VEHICLE REPAIR >

[PROPELLER SHAFT: 2F1310]

PROPELLER SHAFT

ON-VEHICLE REPAIR

PROPELLER SHAFT

On-Vehicle Service

INFOID:0000000005258451

APPEARANCE AND NOISE INSPECTION

• Check the propeller shaft tube surface for dents or cracks. If damaged, replace the propeller shaft assembly.

• Check the bearings for noise and damage. Repair or replace the bearings as necessary.

PROPELLER SHAFT VIBRATION

If a vibration is present at high speed, inspect the propeller shaft runout first.

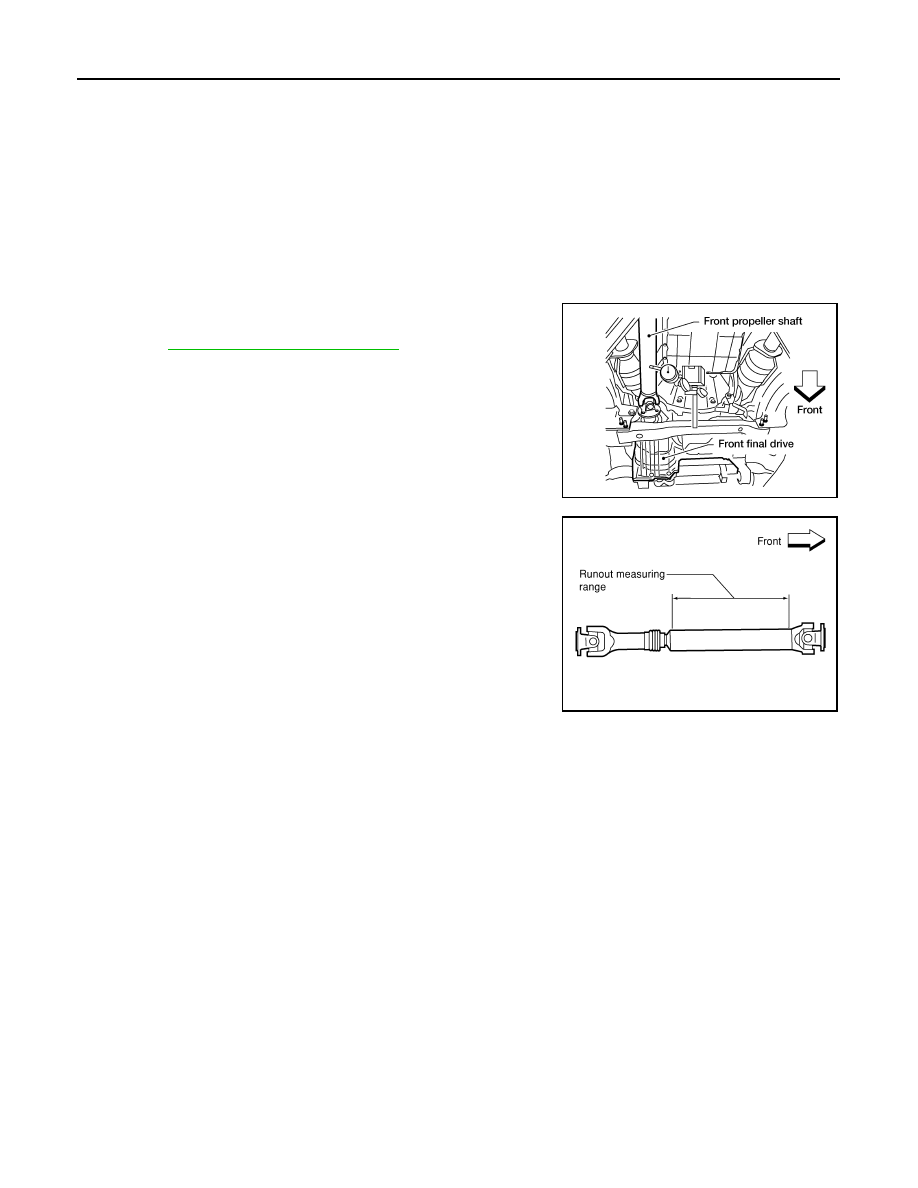

1. Measure the runout of the propeller shaft tube at several points

by rotating the final drive companion flange with your hands.

Refer to

DLN-319, "General Specification"

.

2. If the runout exceeds specifications, disconnect the propeller

shaft at the final drive companion flange; then rotate the com-

panion flange 90

°

, 180

°

 and 270

°

 and reconnect the propeller

shaft.

3. Check the runout again. If the runout still exceeds specifications,

replace the propeller shaft assembly.

4. After installation, check for vibration by driving the vehicle.

LDIA0160E

LDIA0118E

2010 Pathfinder

PROPELLER SHAFT

DLN-315

< REMOVAL AND INSTALLATION >

[PROPELLER SHAFT: 2F1310]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

REMOVAL AND INSTALLATION

PROPELLER SHAFT

Removal and Installation

INFOID:0000000005258452

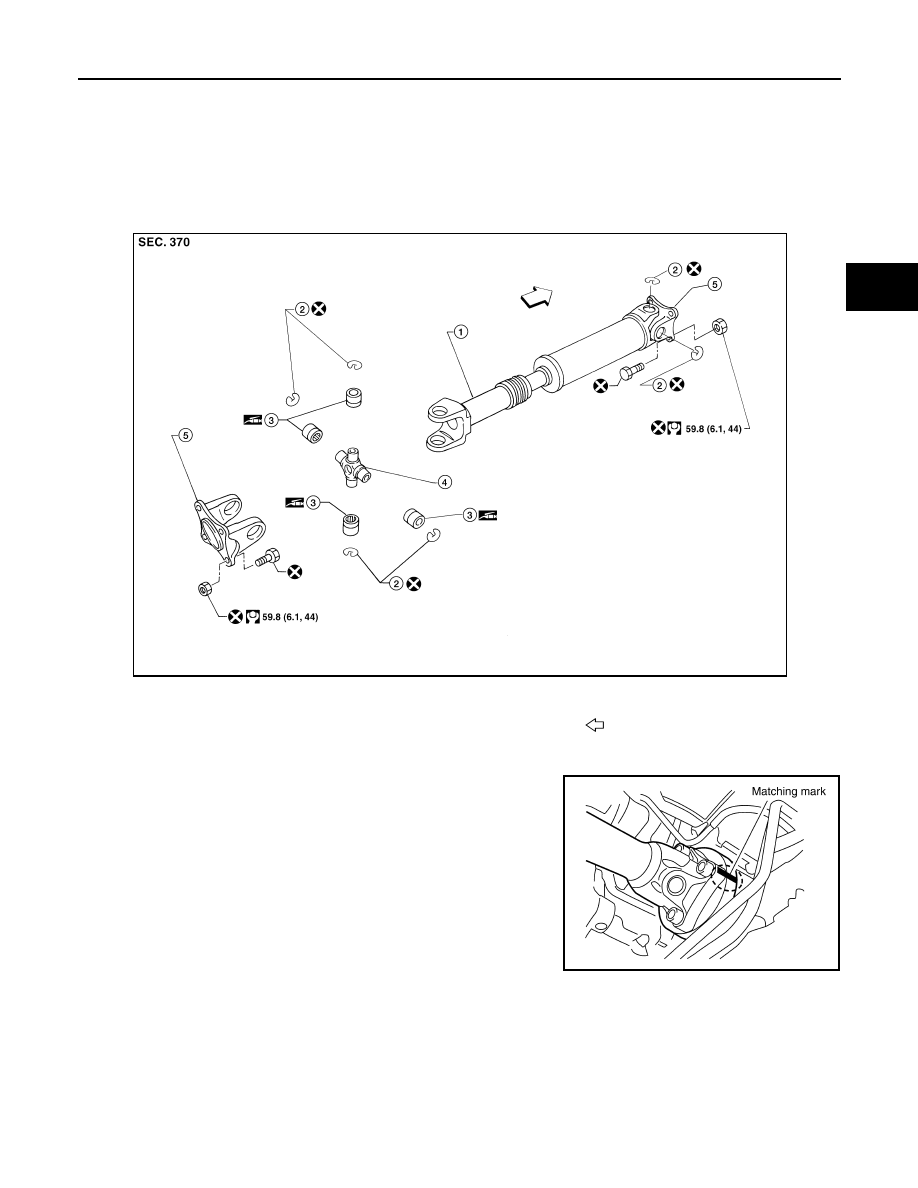

COMPONENTS

REMOVAL

1. Put matching marks on the front propeller shaft flange yoke and

the front final drive companion flange as shown.

CAUTION:

For matching marks, use paint. Never damage the flange

yoke and companion flange of the front final drive.

2. Put matching marks on the front propeller shaft flange yoke and

the transfer companion flange.

CAUTION:

For matching marks, use paint. Never damage the flange

yoke and companion flange of the front final drive.

3. Remove the bolts and then remove the front propeller shaft from

the front final drive and transfer.

INSPECTION

1.

Propeller shaft tube

2.

Snap ring

3.

Journal bearing

4.

Journal

5.

Flange yoke

Front

WDIA0304E

SDIA2046E

2010 Pathfinder

DLN-316

< REMOVAL AND INSTALLATION >

[PROPELLER SHAFT: 2F1310]

PROPELLER SHAFT

• Inspect the propeller shaft runout. If runout exceeds the limit,

replace the propeller shaft assembly. Refer to

DLN-319, "General

Specification"

.

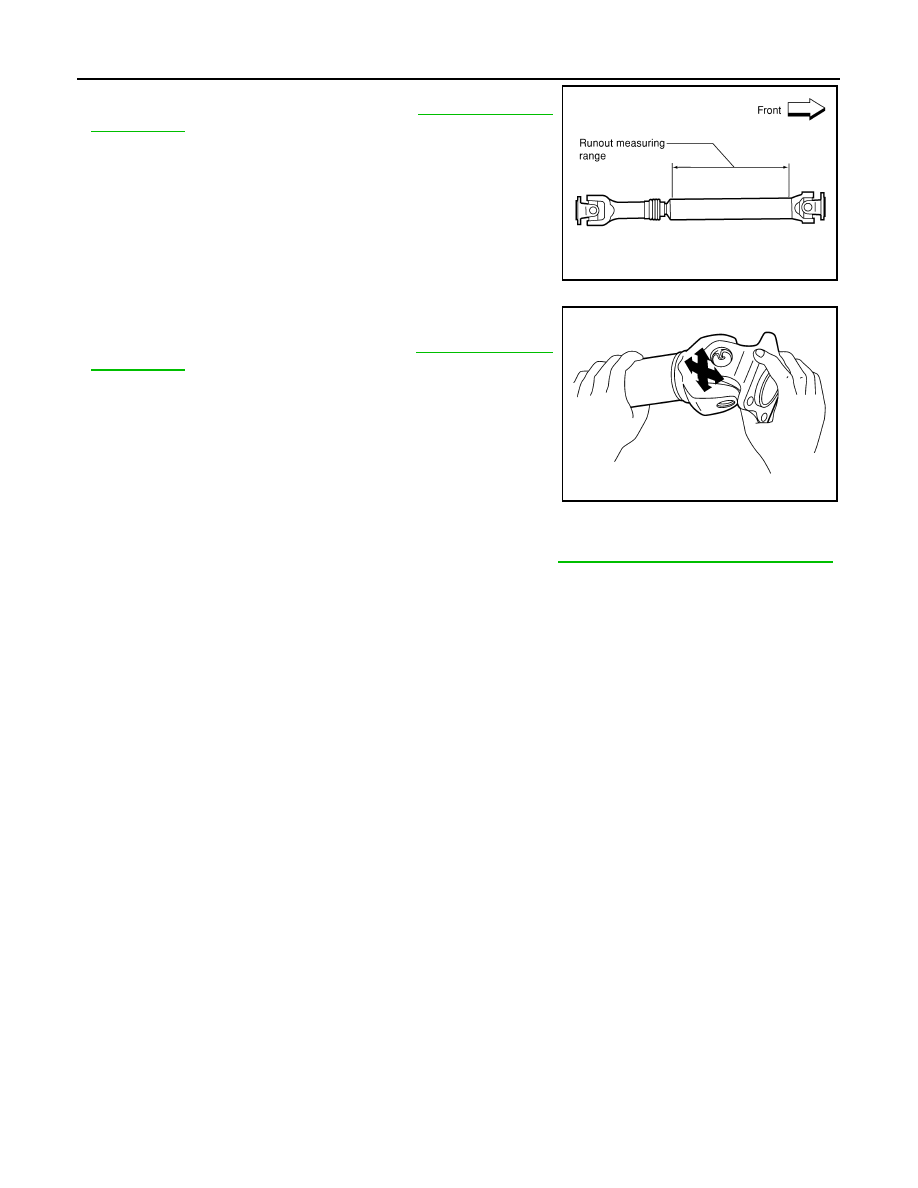

• While holding the flange yoke on one side, check axial play of the
