TRANSFER ASSEMBLY

DLN-173

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

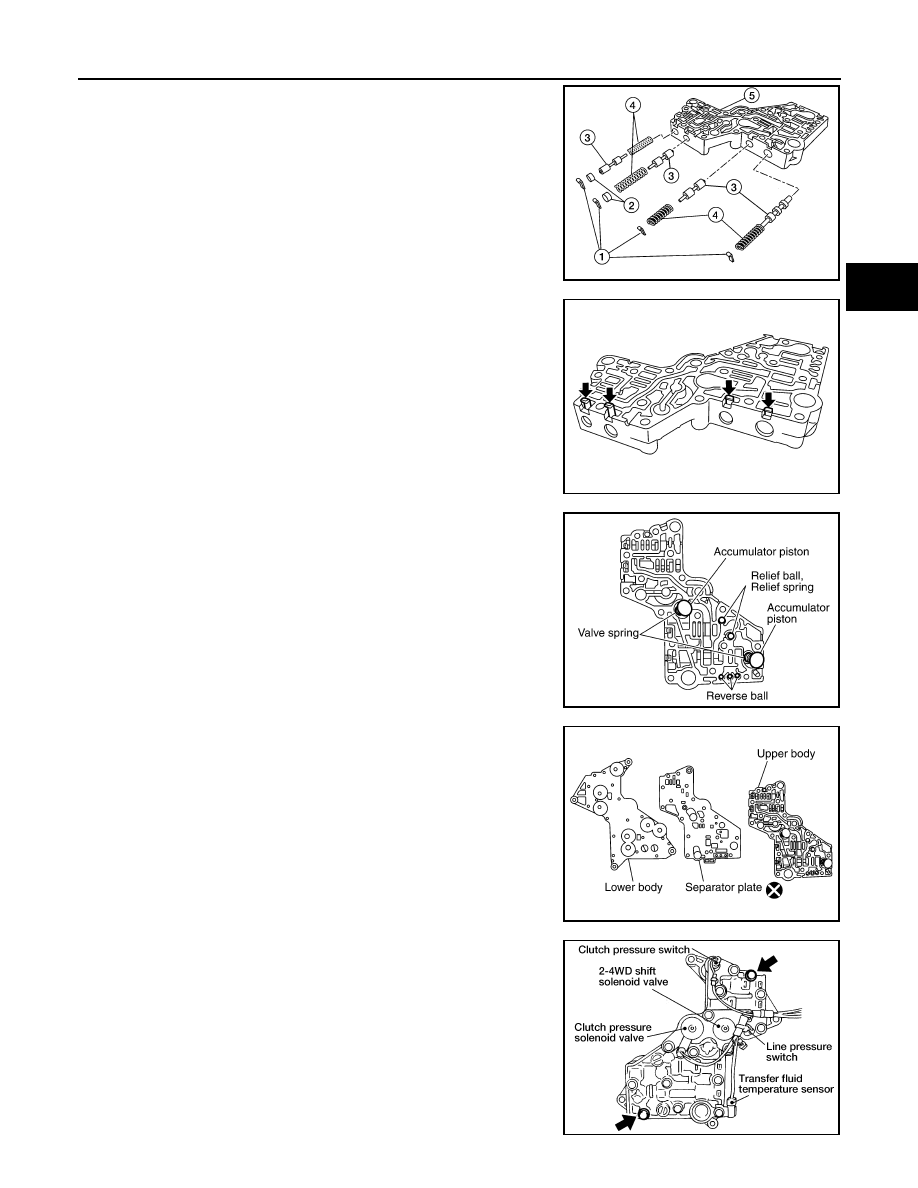

a. Clean the upper body (5), control valves (3) and springs (4) with

cleaning agent, and dry with compressed air.

b. Dip the control valves in ATF, and apply ATF to the valve-mount-

ing area of the upper body.

c. Install each control valve (3), springs (4), and plugs (2) to the

upper body (5), and install retainer plates (1) to hold them in

place.

CAUTION:

• To insert control valves into upper body, place upper

body on a level surface in order to prevent flaw or dam-

age.

• Make sure each control valve is smoothly inserted.

d. Install the reverse balls, relief balls and relief springs, accumula-

tor pistons and valve springs to the upper body.

e. Install the lower body and separator plate to the upper body.

CAUTION:

Do not reuse separator plates.

f.

With the lower body down, tighten the two bolts shown.

g. Apply ATF to the new O-rings, and install them to each solenoid

valve, switch and terminal body.

CAUTION:

Do not reuse O-rings.

h. Install the following to the control valve assembly:

• Clutch pressure solenoid valve

• Clutch pressure switch

• 2-4WD shift solenoid valve

• Line pressure switch

• Transfer fluid temperature sensor

WDIA0284E

SDIA2127E

SDIA2126E

WDIA0200E

WDIA0198E

2010 Pathfinder

DLN-174

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: ATX14B]

TRANSFER ASSEMBLY

Center Case

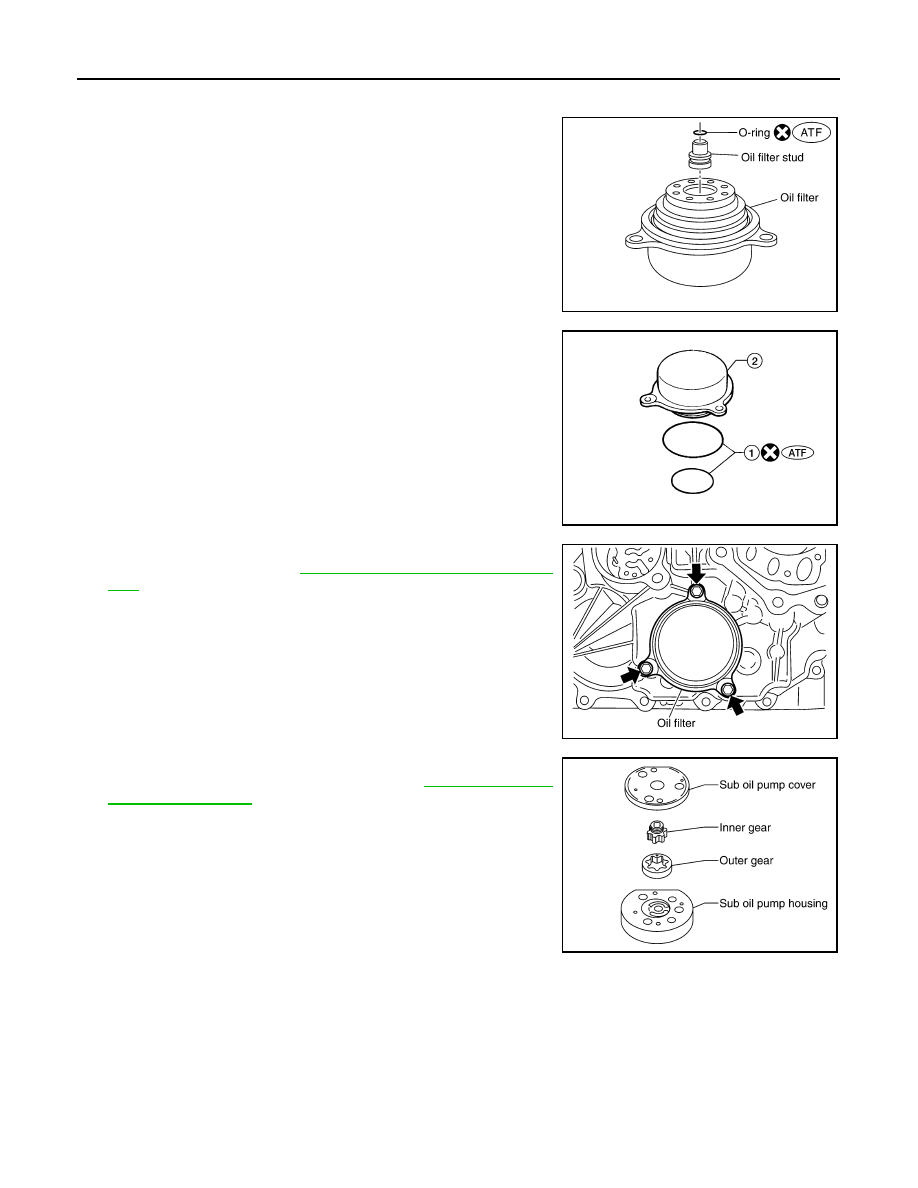

1. Apply ATF to the new O-ring, and install it on the oil filter stud.

CAUTION:

Do not reuse O-rings.

2. Install the oil filter stud to the oil filter.

3. Apply ATF to the two new O-rings (1), and install them on the oil

filter (2).

CAUTION:

Do not reuse O-rings.

4. Install the oil filter to the center case. Tighten the bolts to the

specified torque. Refer to

DLN-152, "Component Parts Loca-

tion"

.

CAUTION:

• Do not damage oil filter.

• Attach oil filter and tighten bolts evenly.

5. Install the outer gear and inner gear into the sub oil pump hous-

ing, and measure the side clearance. Refer to

DLN-189, "Inspec-

tion and Adjustment"

.

SDIA3180E

WDIA0285E

SDIA2136E

SDIA2135E

2010 Pathfinder

TRANSFER ASSEMBLY

DLN-175

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

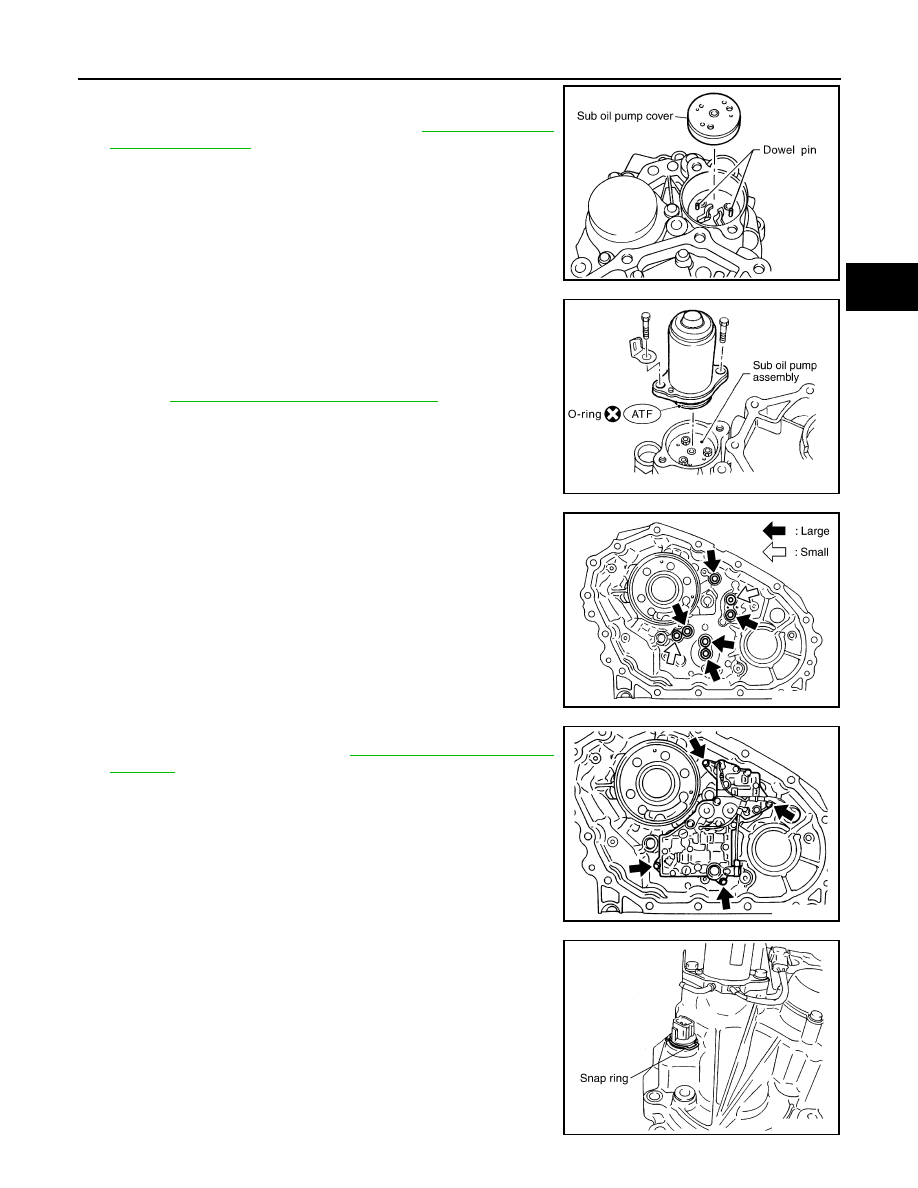

6. Align the dowel pin hole and bolt hole of the sub oil pump

assembly with the center case. Install the sub oil pump cover.

Then tighten to the specified torque. Refer to

DLN-152, "Compo-

nent Parts Location"

.

7. Apply ATF to the new O-ring and install it to the transfer motor.

CAUTION:

Do not reuse O-rings.

8. Fit the double-flat end of the transfer motor shaft into the slot of

the sub-oil pump assembly. Then tighten to the specified torque.

Refer to

DLN-152, "Component Parts Location"

.

CAUTION:

Be sure to install connector bracket.

9. Apply ATF to the new lip seals, and install them to the center

case.

CAUTION:

• Do not reuse lip seals.

• There are 2 kinds of lip seals (lip seal of large inner diam-

eter: 5 pieces, lip seal of small inner diameter: 2 pieces).

Confirm their position for installation.

10. Install the control valve assembly to the center case, and tighten

to the specified torque. Refer to

DLN-152, "Component Parts

Location"

.

CAUTION:

• Do not reuse any part that has been dropped or damaged.

• Make sure valve is assembled in the proper direction.

• Do not use a magnet because residual magnetism stays

during assembly.

11. Install the connector assembly into the center case, and secure

with a snap ring.

SDIA2328E

SDIA2787E

SDIA2123E

SDIA2121E

SDIA2122E

2010 Pathfinder

DLN-176

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: ATX14B]

TRANSFER ASSEMBLY

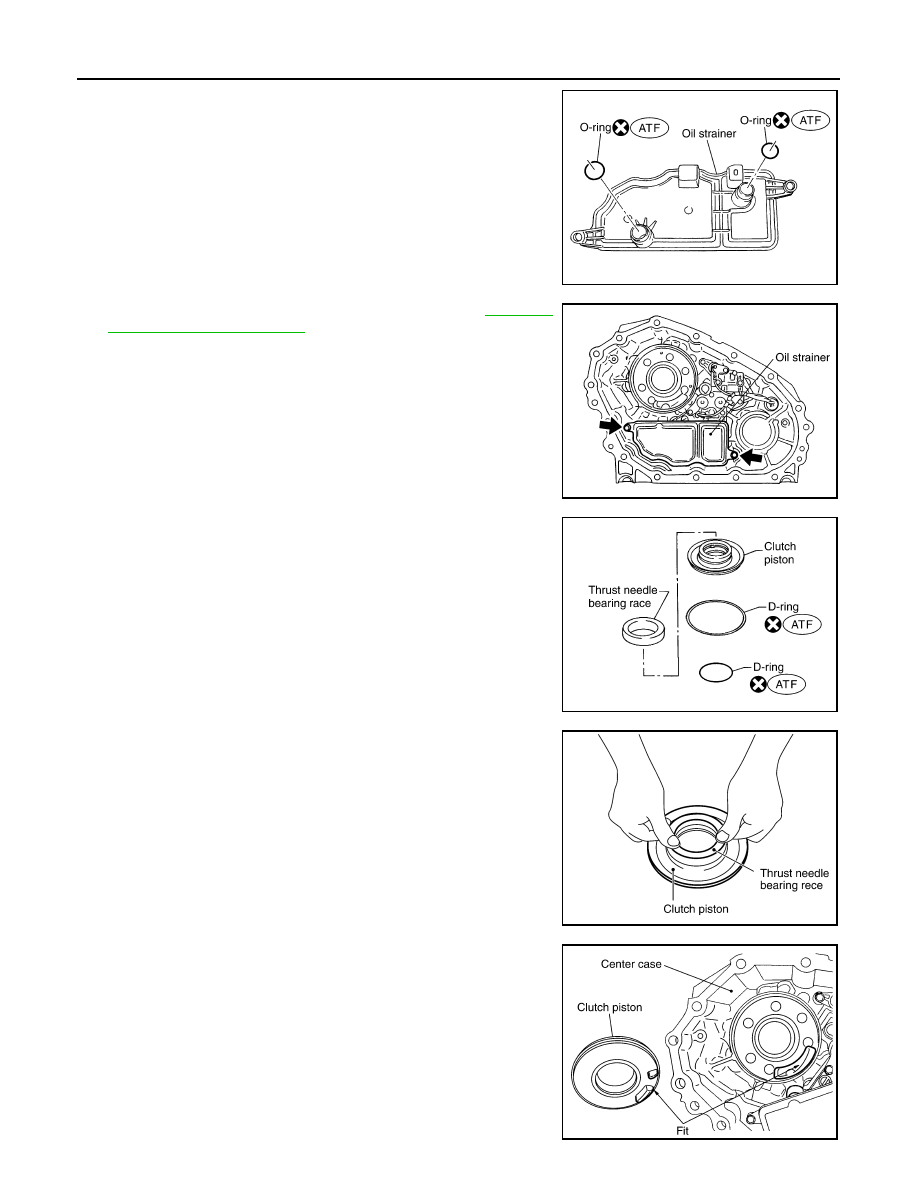

12. Apply ATF to the new O-rings, and install them on the oil

strainer.

CAUTION:

Do not reuse O-rings.

13. Install the oil strainer to the control valve assembly.

14. Tighten the bolts to the specified torque. Refer to

DLN-152,

"Component Parts Location"

.

15. Apply ATF to the new D-rings, and install them to the clutch pis-

ton.

CAUTION:

Do not reuse D-rings.

16. Install the thrust needle bearing race to the clutch piston.

17. Install the clutch piston to the center case as shown.

CAUTION:

Install so the fitting protrusion of clutch piston aligns with

the dent of center case.

SDIA2782E

SDIA2119E

SDIA2781E

SDIA2189E

SDIA2190E

2010 Pathfinder

TRANSFER ASSEMBLY

DLN-177

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

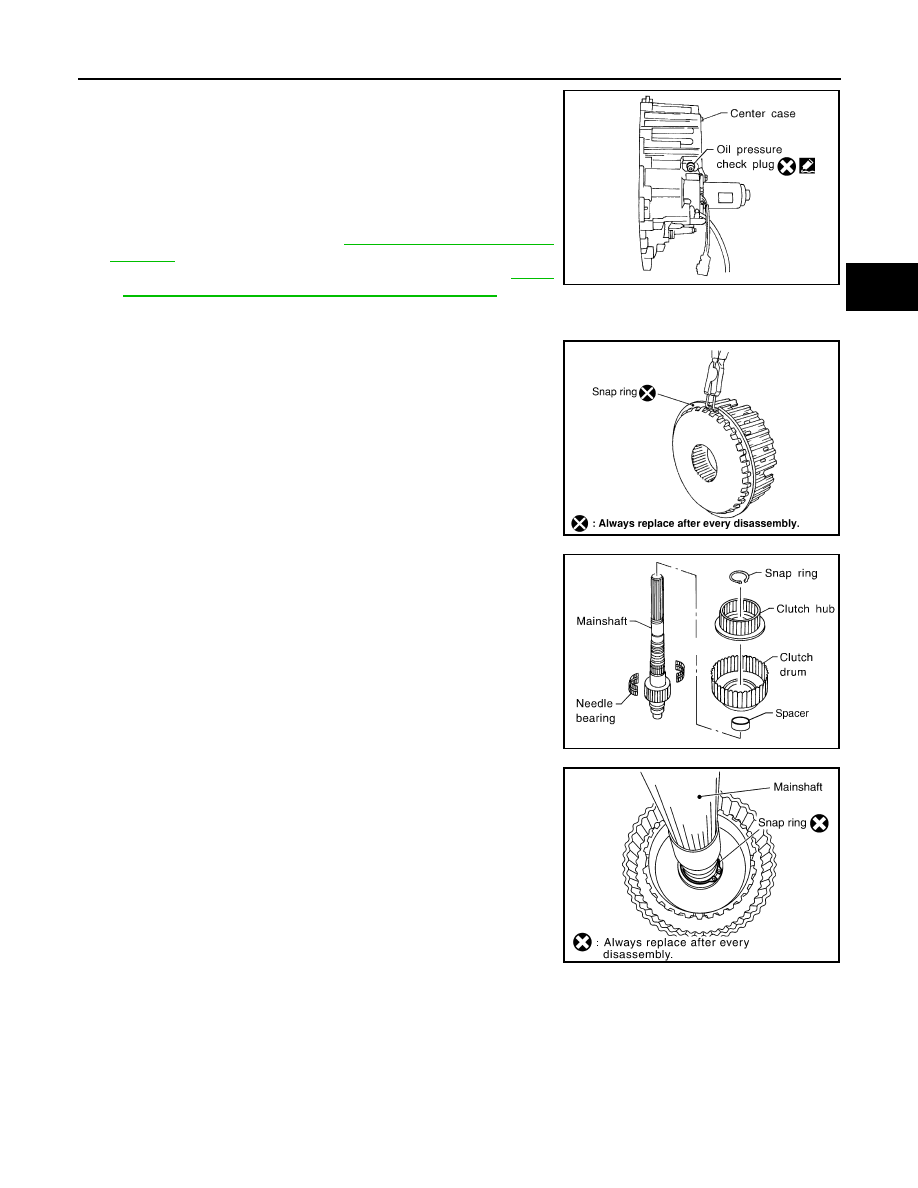

18. Remove all the sealant from the oil pressure check port and

inside the center case.

CAUTION:

Remove old sealant adhering to mating surfaces. Also

remove any moisture, oil, or foreign material adhering to

application and mating surfaces.

19. Thread the new oil pressure check plug in 1 or 2 pitches and

apply sealant to the oil pressure check plug threads. Tighten to

the specified torque. Refer to

DLN-152, "Component Parts

Location"

.

Use Genuine Silicone RTV or equivalent. Refer to

GI-14,

"Recommended Chemical Products and Sealants"

.

CAUTION:

Do not reuse oil pressure check plug.

20. Install the new snap ring to the clutch hub using suitable tool.

CAUTION:

Do not reuse snap ring.

21. Apply petroleum jelly to the needle bearing, and install the nee-

dle bearing, spacer, clutch drum and clutch hub to the main-

shaft.

22. Install the new snap ring to the mainshaft.

CAUTION:

Do not reuse snap rings.

SDIA3188E

WDIA0101E

WDIA0129E

SDIA2192E

2010 Pathfinder

DLN-178

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: ATX14B]

TRANSFER ASSEMBLY

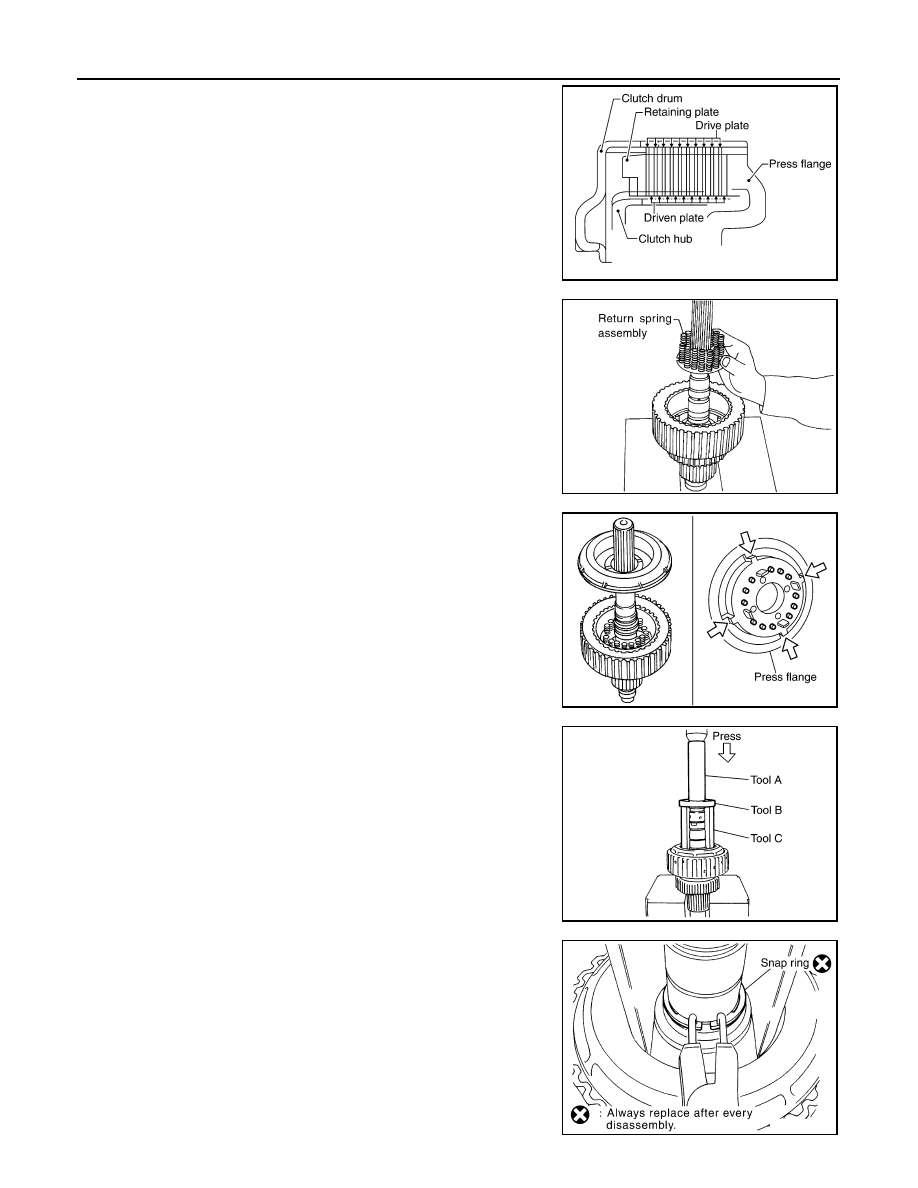

23. Apply ATF each plate, then install them into the clutch drum as

shown.

24. Install the return spring assembly into the clutch hub.

25. Install the press flange by aligning the notches to the clutch hub

as shown.

26. Press the press flange to install the new snap ring into snap ring

groove on mainshaft using Tools.

CAUTION:

Do not reuse snap ring.

27. Install the new snap ring to the mainshaft using suitable tool.

CAUTION:

Do not reuse snap ring.

SDIA2193E

SMT911C

SDIA2194E

Tool number

A: ST22452000 (J-34335)
B: ST30911000 ( — )
C: KV31103300 ( — )

SDIA2111E

SDIA2112E

2010 Pathfinder

TRANSFER ASSEMBLY

DLN-179

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

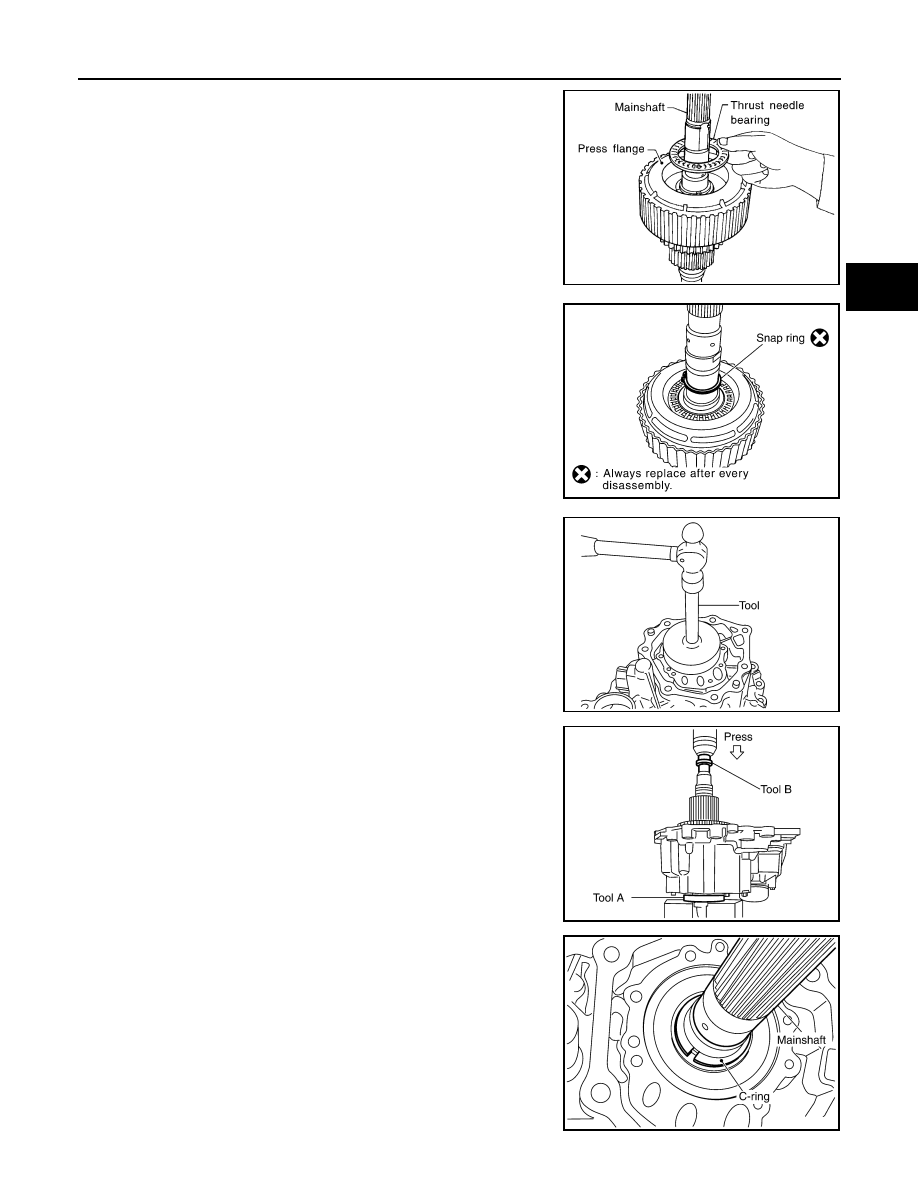

28. Apply ATF to the thrust needle bearing and install it on the press

flange.

29. Install the new snap ring to the main shaft.

CAUTION:

Do not reuse snap ring.

30. Install the mainshaft rear bearing to the center case using Tool.

31. Install the mainshaft assembly using a press.

• Press the mainshaft into the center case using Tools.

32. Install the C-rings to the mainshaft.

SDIA2109E

SDIA2195E

Tool number

: ST15310000 (J-25640-B)

SDIA2196E

Tool number

A: ST30911000 ( — )
B: ST35300000 ( — )

SDIA2197E

SDIA2201E

2010 Pathfinder

DLN-180

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: ATX14B]

TRANSFER ASSEMBLY

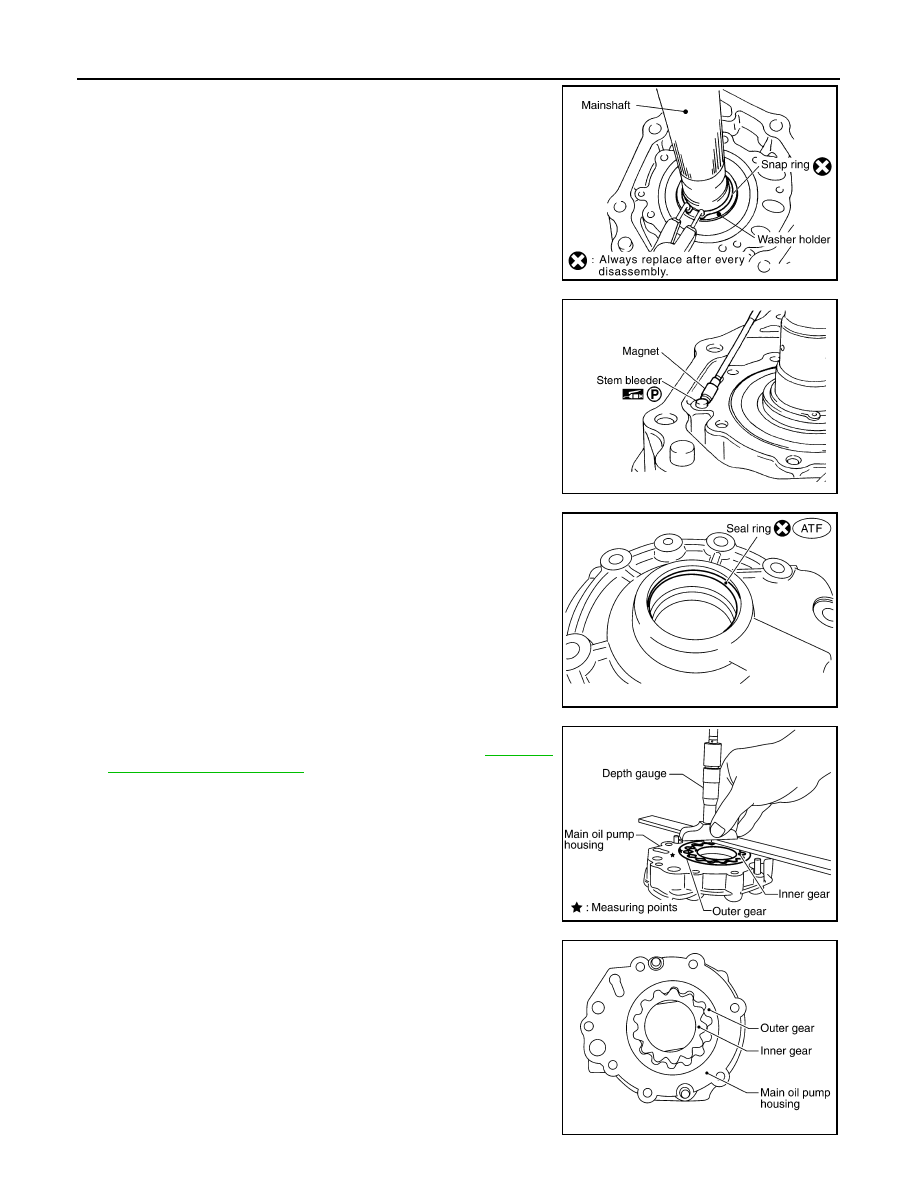

33. Set the washer holder on the mainshaft, and secure it with a

new snap ring.

CAUTION:

Do not reuse snap ring.

34. Apply petroleum jelly to the stem bleeder and install it to the cen-

ter case.

35. Apply ATF to the new seal ring and install it to the main oil pump

cover.

CAUTION:

Do not reuse seal ring.

36. Install the inner gear and outer gear in the main oil pump hous-

ing. Then, measure the side clearance. Refer to

DLN-189,

"Inspection and Adjustment"

.

37. Install the main oil pump housing, outer gear and inner gear to

the center case.

SDIA2104E

SDIA2780E

SDIA2783E

SDIA2174E

SDIA2188E

2010 Pathfinder
