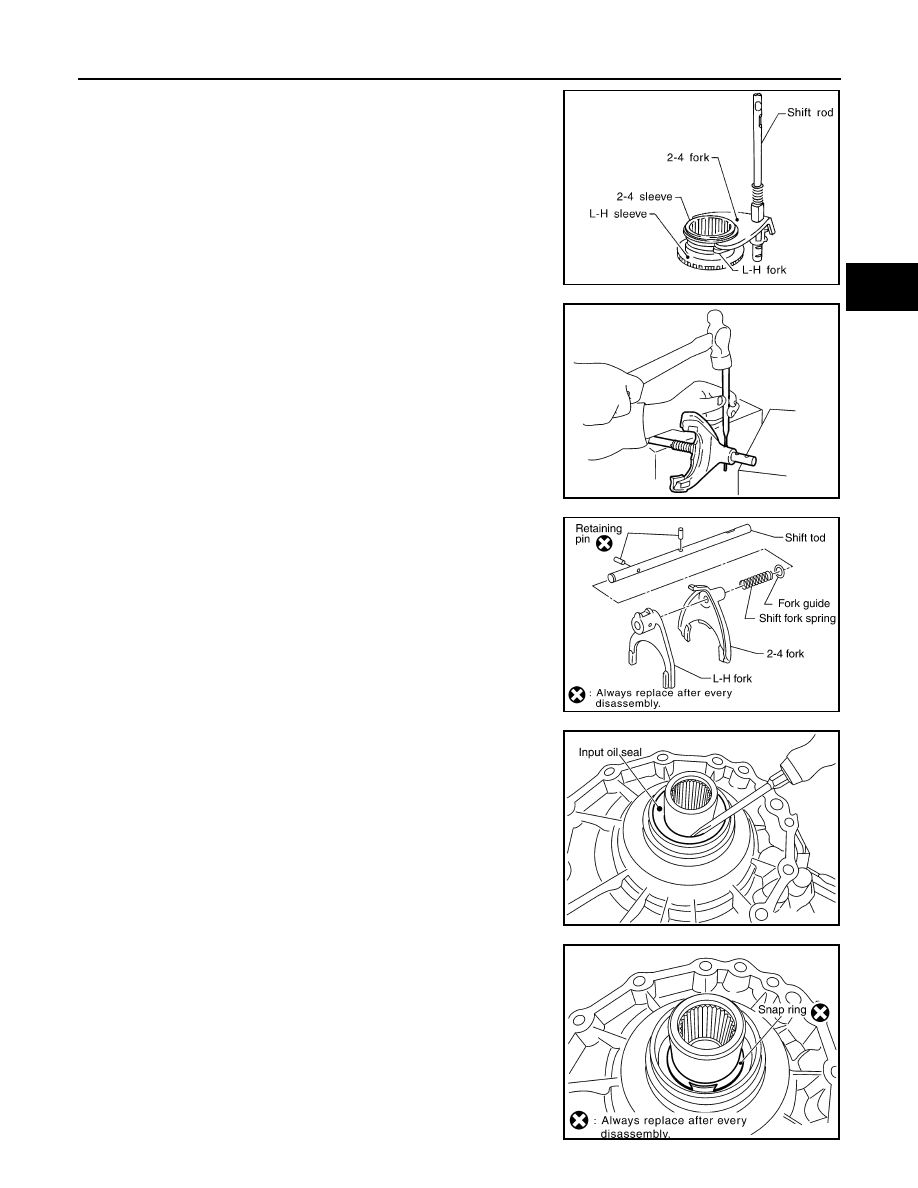

16. Remove the 2-4 sleeve and L-H sleeve from the 2-4 fork and L-

H fork respectively.

17. Drive out the retaining pin from the shift rod using suitable tool.

18. Remove the L-H fork, 2-4 fork, shift fork spring and fork guide

from the shift rod.

19. Remove the input oil seal from the front case using suitable tool.

CAUTION:

Do not damage front case or sun gear.

20. Remove the snap ring from the sun gear.

CAUTION:

Do not damage front case or sun gear.

SMT992C

WDIA0134E

SDIA2142E

SDIA3382E

SDIA2144E

2010 Pathfinder

DLN-158

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: ATX14B]

TRANSFER ASSEMBLY

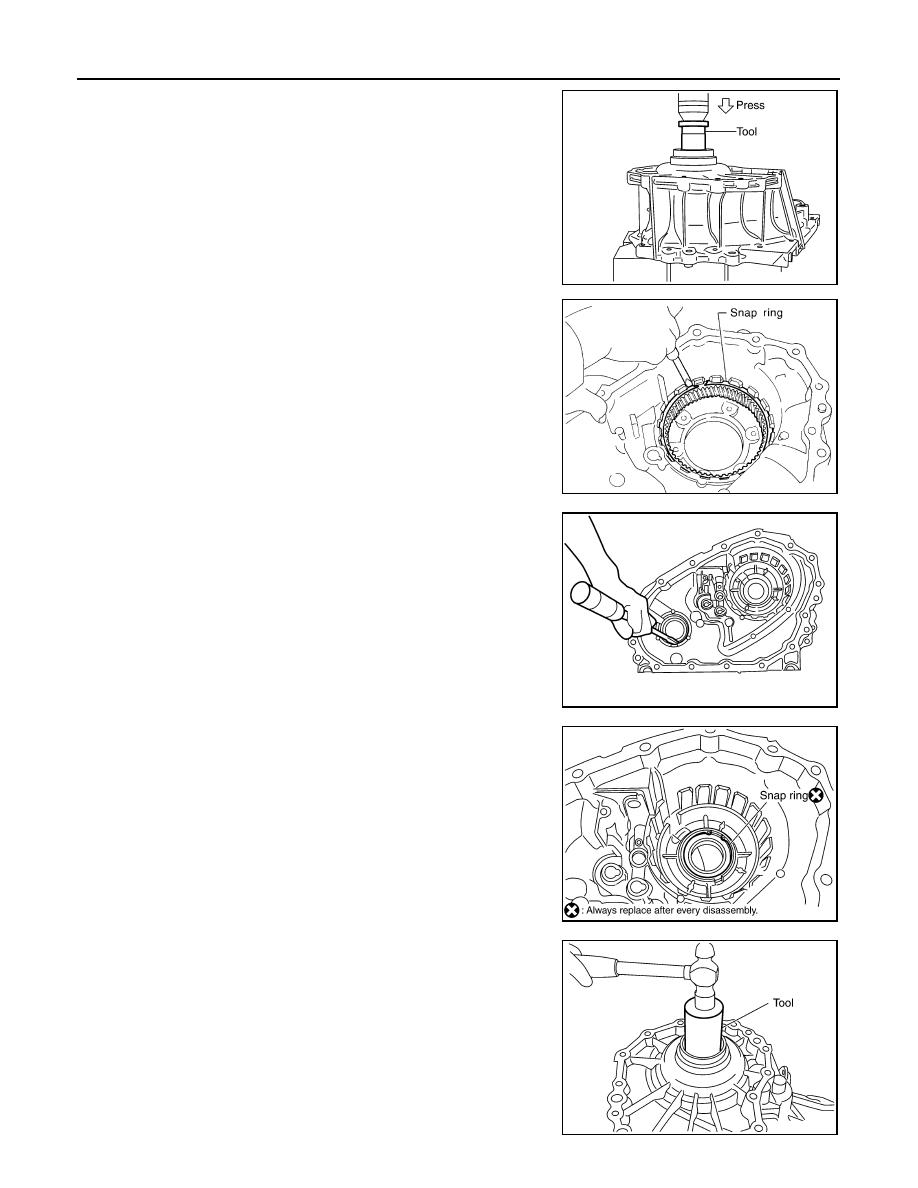

21. Remove the sun gear assembly and planetary carrier assembly

from the front case using Tool.

22. Remove the snap ring and internal gear using suitable tool.

23. Remove the front oil seal using suitable tool.

CAUTION:

Do not damage front case.

24. Remove the snap ring from the front case.

25. Remove the input bearing from the front case using Tool.

Tool number

: ST35300000 ( — )

SDIA2145E

SMT004D

SDIA2170E

SDIA2171E

Tool number

: ST33200000 (J-26082)

SDIA2178E

2010 Pathfinder

TRANSFER ASSEMBLY

DLN-159

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

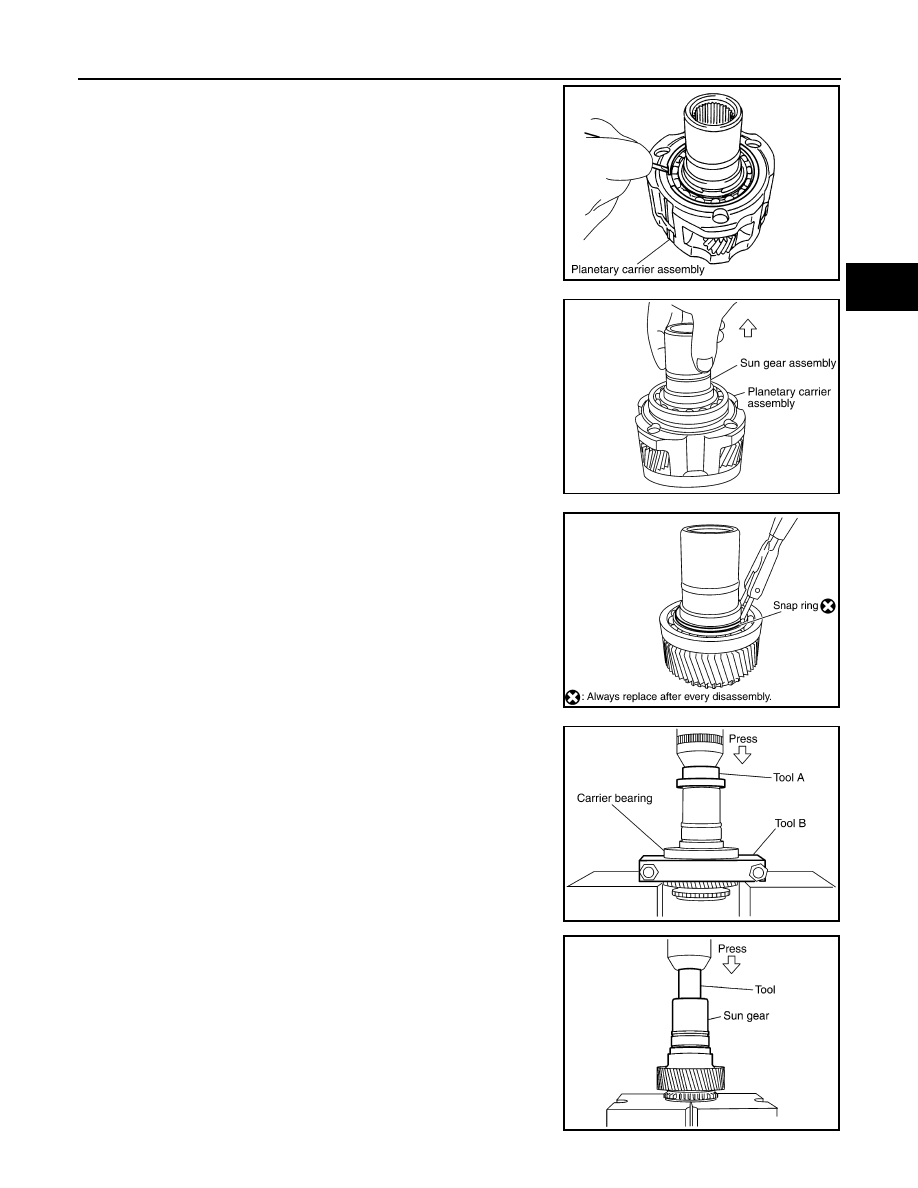

26. Remove the snap ring from the planetary carrier assembly using

suitable tool.

27. Remove the sun gear assembly from the planetary carrier

assembly.

28. Remove the snap ring from the sun gear assembly using suit-

able tool.

29. Remove the carrier bearing from the sun gear using Tools.

30. Remove the needle bearing from the sun gear using Tool.

SDIA2792E

SDIA2147E

SDIA2148E

Tool number

A: ST35300000 ( — )
B: ST30031000 ( — )

SDIA2149E

Tool number

: ST33710000 ( — )

SDIA2354E

2010 Pathfinder

DLN-160

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: ATX14B]

TRANSFER ASSEMBLY

31. Remove the metal bushing from the sun gear using Tools.

Center Case

1. Remove the rear case assembly. Refer to

DLN-154, "Disassembly and Assembly"

.

2. Remove the front case assembly. Refer to

DLN-154, "Disassembly and Assembly"

.

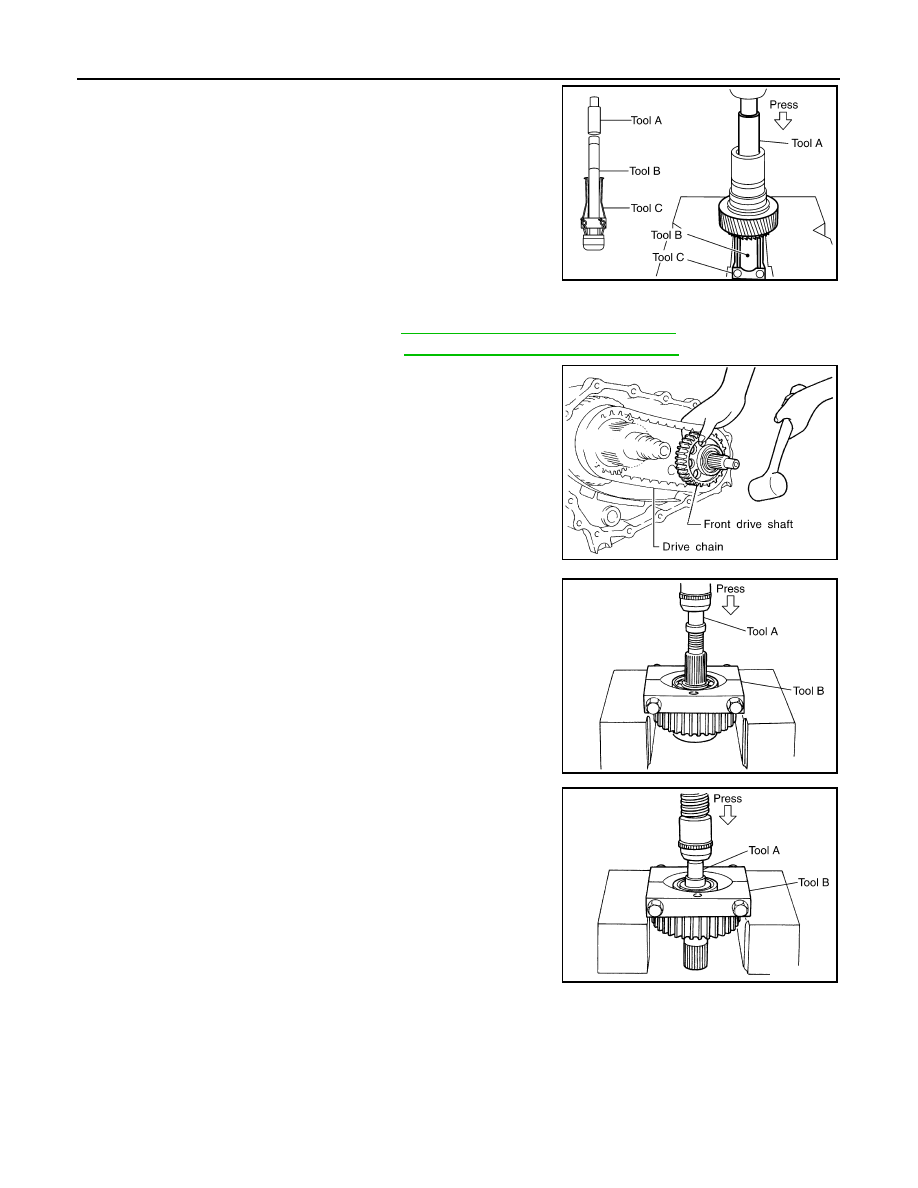

3. Hold the front drive shaft with one hand and tap to remove the

front drive shaft with the drive chain.

CAUTION:

Do not tap drive chain.

4. Remove the front drive shaft front bearing using Tools.

5. Remove the front drive shaft rear bearing using suitable tools.

Tool number

A: ST33710000 ( — )
B: ST35325000 ( — )
C: ST3329000 (J-34286)

SDIA2168E

SMT900C

Tool number

A: ST33052000 ( — )
B: ST30031000 ( — )

SDIA2106E

Tool number

A: ST33052000 ( — )
B: ST30031000 ( — )

SDIA2107E

2010 Pathfinder

TRANSFER ASSEMBLY

DLN-161

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

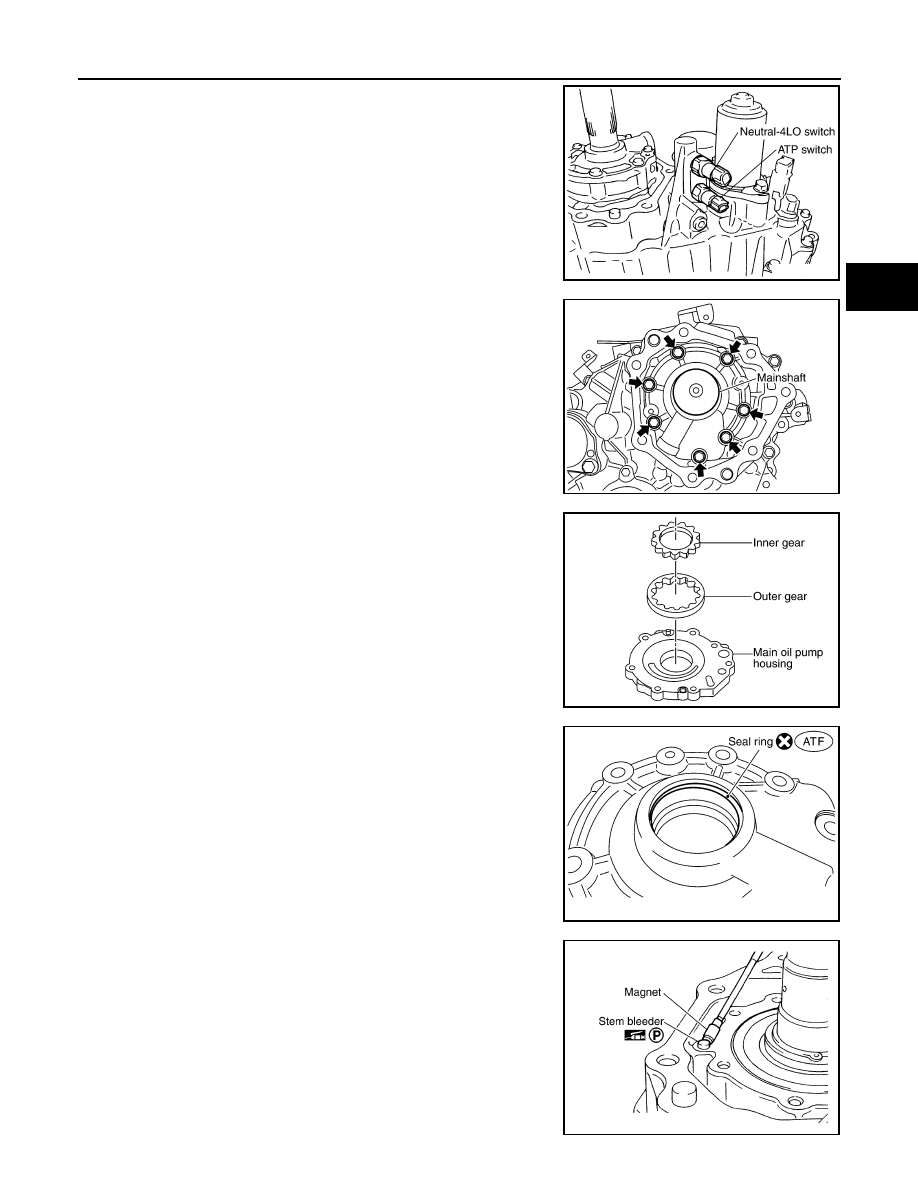

6. Remove the neutral-4LO and ATP switches.

7. Remove the bolts and main oil pump cover.

8. Remove the outer gear, inner gear and main oil pump housing

from the center case.

9. Remove the seal ring from the main oil pump cover.

10. Remove the stem bleeder from the bleed hole.

SDIA2096E

SDIA2130E

SDIA2131E

SDIA2783E

SDIA2780E

2010 Pathfinder

DLN-162

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: ATX14B]

TRANSFER ASSEMBLY

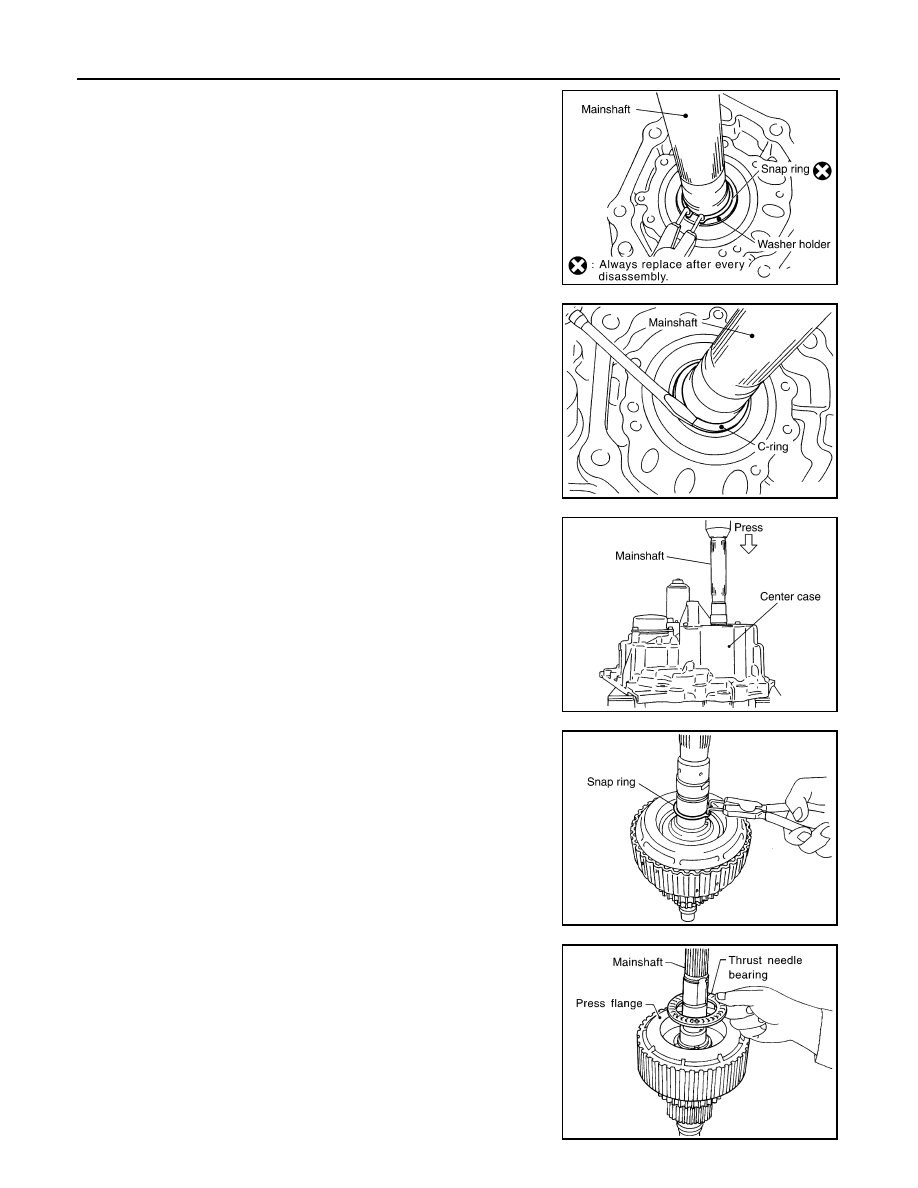

11. Remove the snap ring and washer holder from the mainshaft.

12. Remove the C-rings from the mainshaft using suitable tool.

13. Set the center case on the press stand. Remove the mainshaft

from the center case.

14. Remove the snap ring from the mainshaft using suitable tool.

15. Remove the thrust needle bearing from the press flange.

SDIA2104E

SDIA2105E

SDIA2108E

SDIA2110E

SDIA2109E

2010 Pathfinder

TRANSFER ASSEMBLY

DLN-163

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

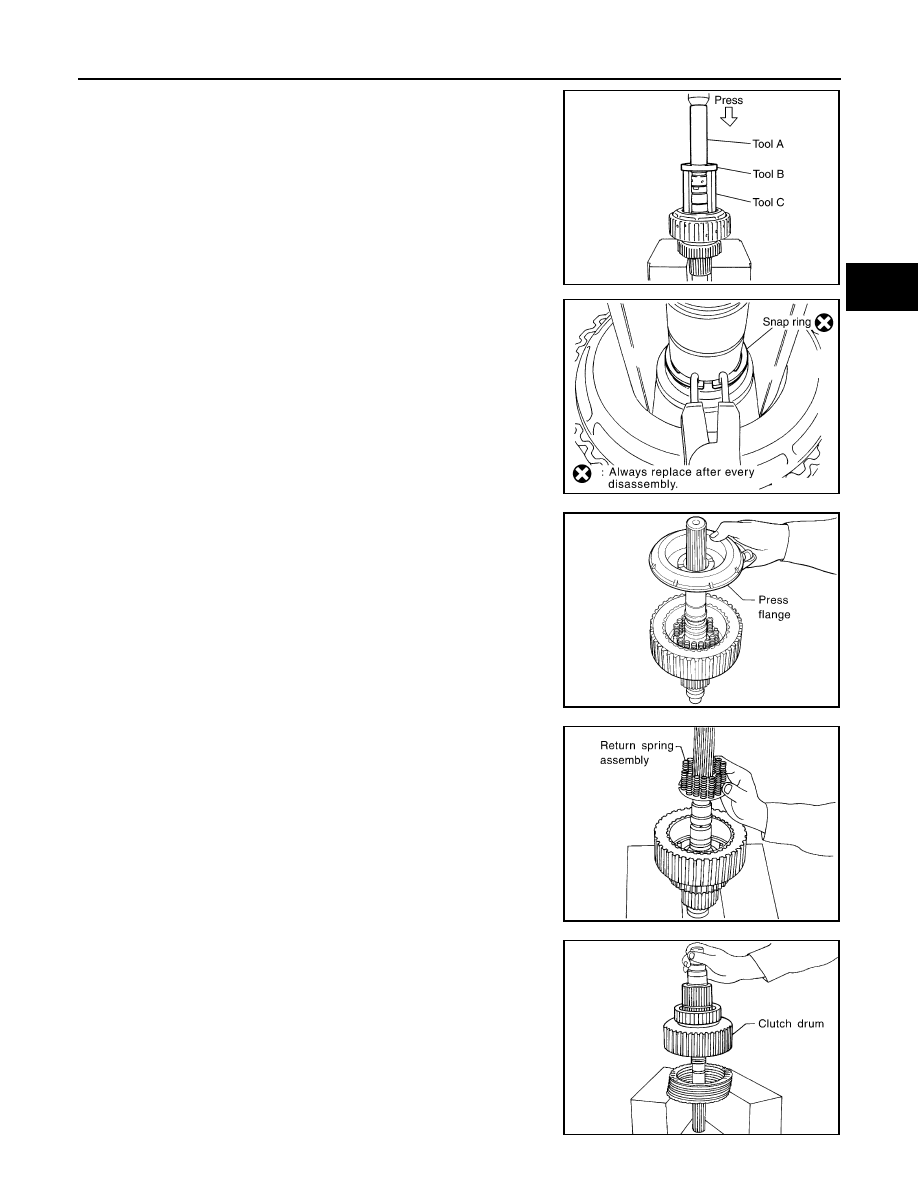

16. Press the press flange until the snap ring is out of place using

Tools.

17. Remove the snap ring from the mainshaft using suitable tool.

18. Remove the press flange from the mainshaft.

19. Remove the return spring assembly from the clutch hub.

20. Remove each plate from the clutch drum.

Tool number

A: ST22452000 (J-34335)
B: ST30911000 ( — )
C: KV31103300 ( — )

SDIA2111E

SDIA2112E

SMT910C

SMT911C

SMT912C

2010 Pathfinder

DLN-164

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: ATX14B]

TRANSFER ASSEMBLY

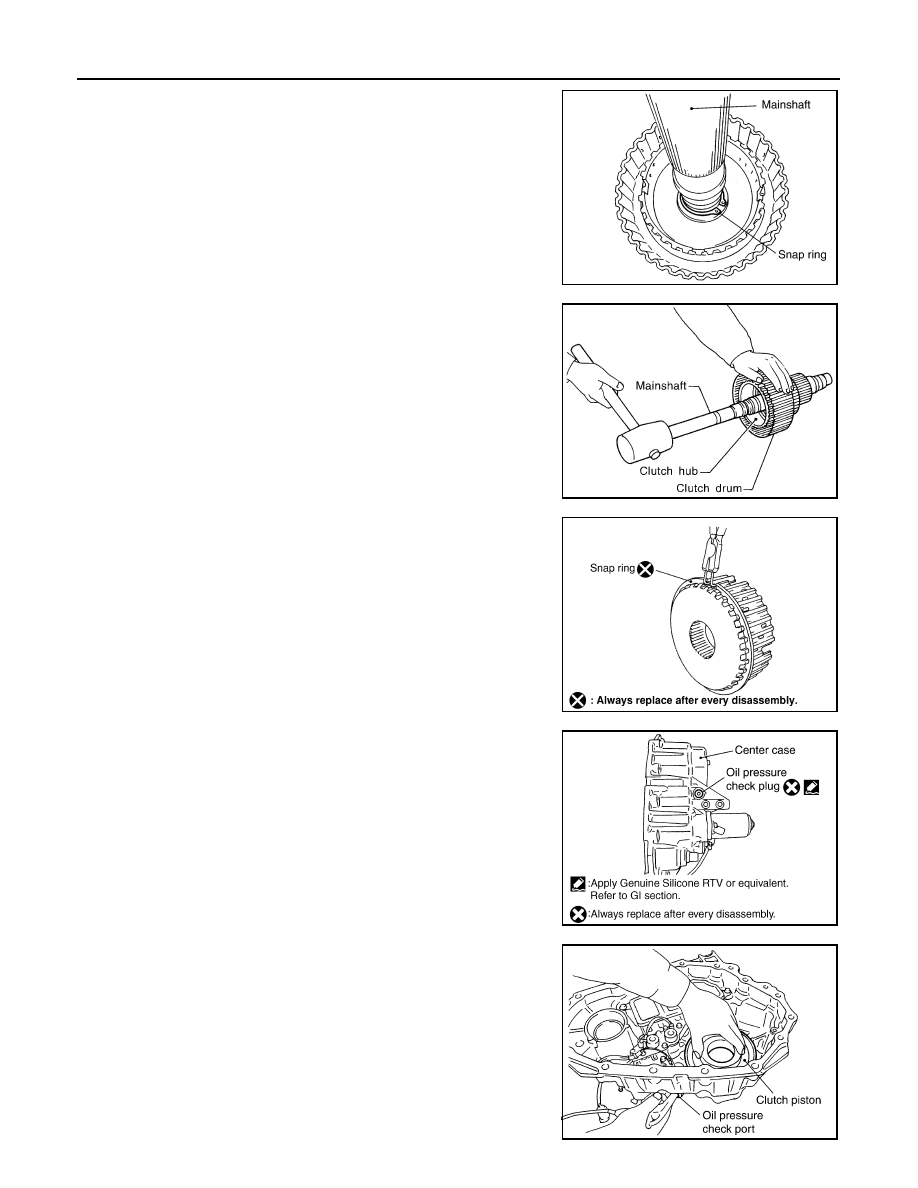

21. Remove the snap ring from the mainshaft.

22. Remove the mainshaft from the clutch drum and clutch hub

using suitable tool.

23. Remove the needle bearing and spacer from the mainshaft.

24. Remove the snap ring from the clutch hub using suitable tool.

25. Remove the oil pressure check plug from the oil pressure check

port.

26. Apply air gradually from the oil pressure check port, and remove

the clutch piston assembly from the center case.

SDIA2113E

SMT914C

WDIA0101E

WDIA0227E

SDIA2116E
