REAR OIL SEAL

DLN-141

< ON-VEHICLE REPAIR >

[TRANSFER: ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

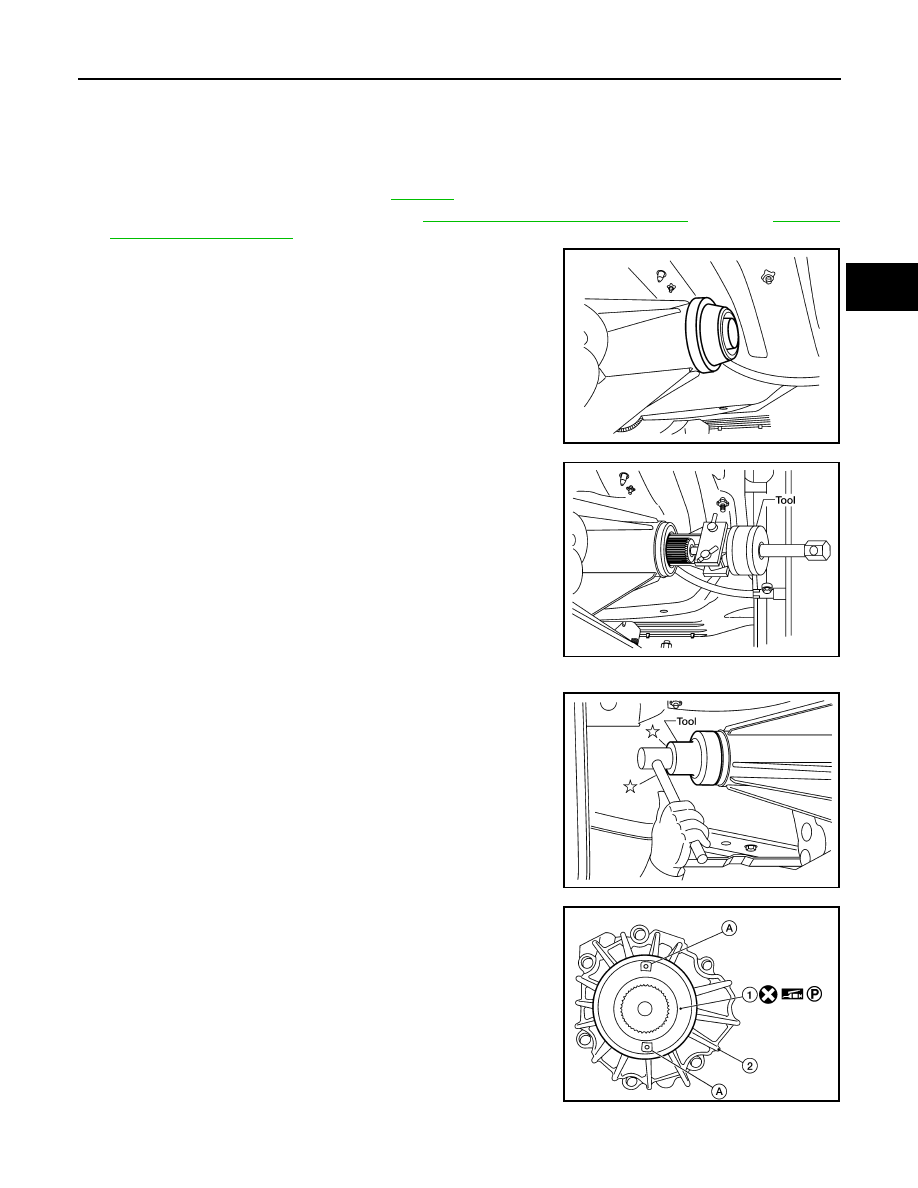

REAR OIL SEAL

Removal and Installation

INFOID:0000000005258350

REMOVAL

1. Partially drain the transfer fluid. Refer to

DLN-135

.

2. Remove the rear propeller shaft. Refer to

DLN-325, "Removal and Installation"

 (2S1330),

DLN-336,

"Removal and Installation"

 (2S1350).

3. Remove the dust cover from the rear case.

CAUTION:

Do not damage the rear case.

4. Remove the rear oil seal from the rear case using Tool.

CAUTION:

Do not damage the rear case.

INSTALLATION

1. Install the new rear oil seal until it is flush with the end face of the

rear case using Tool.

CAUTION:

• Do not reuse oil seal.

• Apply petroleum jelly to oil seal.

2. Apply petroleum jelly to the circumference of the new dust cover.

Position the new dust cover as shown.

CAUTION:

• Do not reuse dust cover.

• Position the protursion at the position shown.

• 1: Dust cover

• 2: Rear case assembly

• A: Protrusions

WDIA0127E

Tool number

: ST33290001 (J-34286)

LDIA0139E

Tool number

: ST30720000 (J-25405)

LDIA0140E

AWDIA0550GB

2010 Pathfinder

DLN-142

< ON-VEHICLE REPAIR >

[TRANSFER: ATX14B]

REAR OIL SEAL

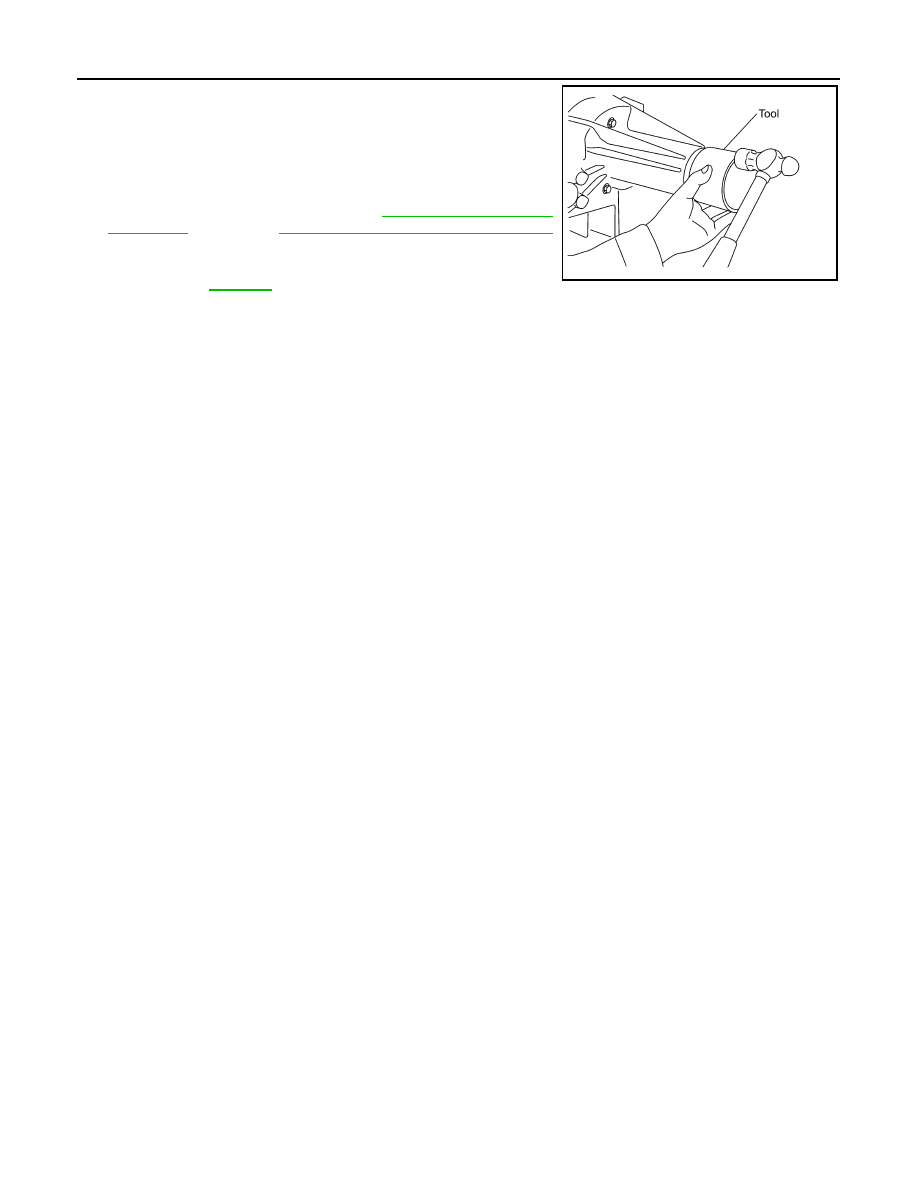

3. Install the new dust cover to the rear case using Tool.

CAUTION:

• Do not reuse dust cover.

• Apply petroleum jelly to dust cover.

4. Install the rear propeller shaft. Refer to

DLN-325, "Removal and

Installation"

 (2S1330),

DLN-336, "Removal and Installation"

(2S1350).

5. Refill the transfer with fluid and check for fluid leakage and fluid

level. Refer to

DLN-135

.

Tool number

: KV40105310 ( — )

PDIA0116E

2010 Pathfinder

SIDE OIL SEAL

DLN-143

< ON-VEHICLE REPAIR >

[TRANSFER: ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

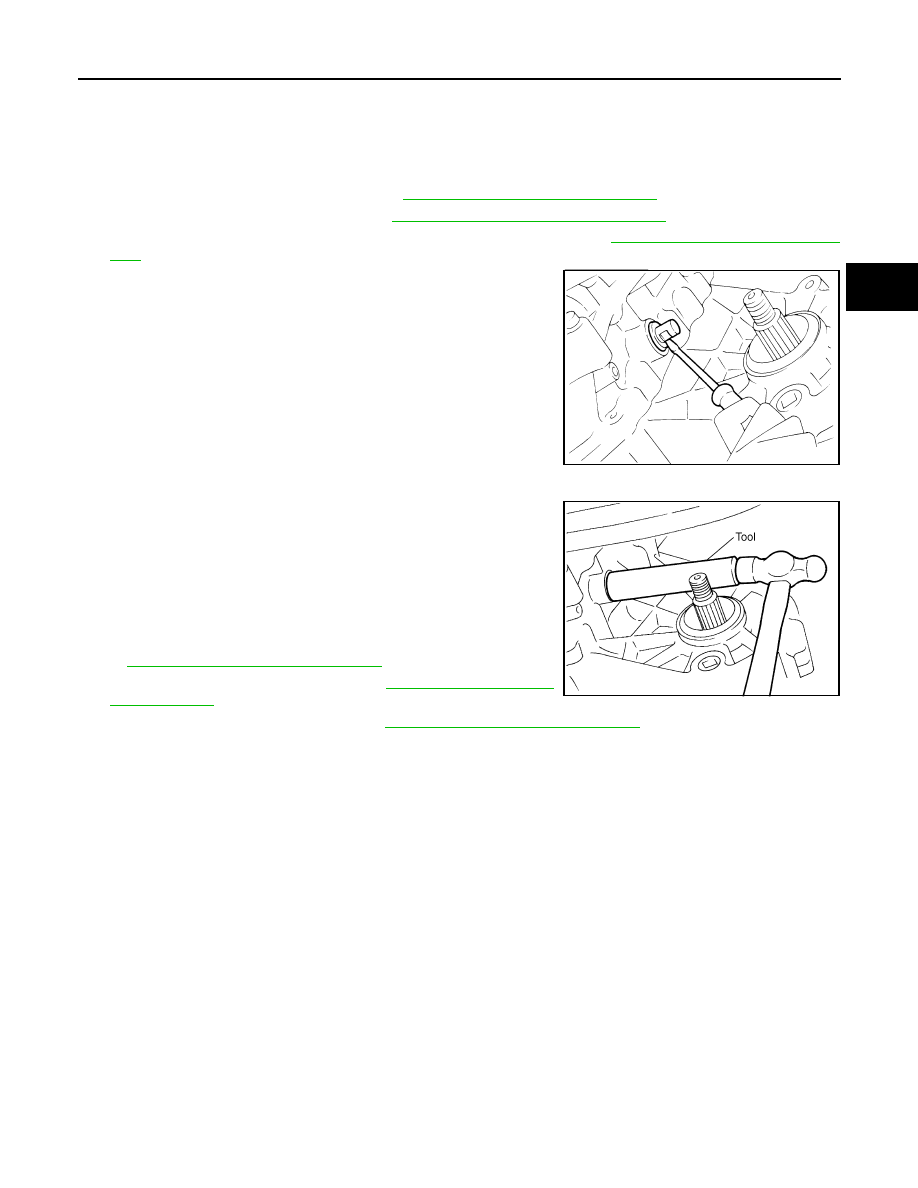

SIDE OIL SEAL

Removal and Installation

INFOID:0000000005258351

REMOVAL

1. Remove the front propeller shaft. Refer to

DLN-315, "Removal and Installation"

.

2. Remove the companion flange. Refer to

DLN-283, "Disassembly and Assembly"

.

3. Remove the transfer control device from the transfer assembly. Refer to

DLN-277, "Removal and Installa-

tion"

.

4. Remove the side oil seal using suitable tool.

CAUTION:

Do not damage shift cross.

INSTALLATION

1. Install the new side oil seal until it is flush with the end face of

case using Tool.

CAUTION:

• Do not reuse oil seal.

• Apply petroleum jelly to oil seal.

2. Install the transfer control device to the transfer assembly. Refer

to

DLN-277, "Removal and Installation"

.

3. Install the companion flange. Refer to

DLN-283, "Disassembly

and Assembly"

.

4. Install the front propeller shaft. Refer to

DLN-315, "Removal and Installation"

.

SDIA2666E

Tool number

: ST22360002 (J-25679-01)

SDIA2665E

2010 Pathfinder

DLN-144

< ON-VEHICLE REPAIR >

[TRANSFER: ATX14B]

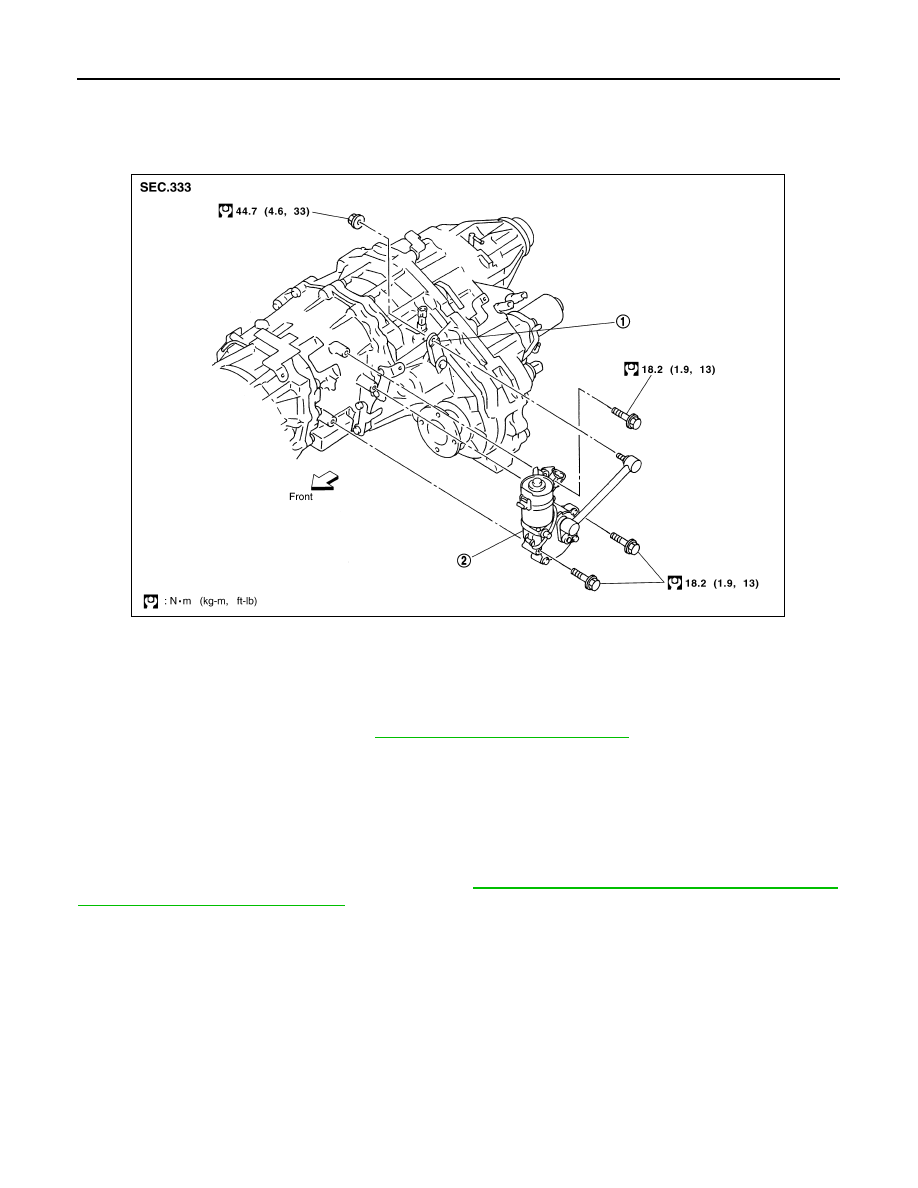

TRANSFER CONTROL DEVICE

TRANSFER CONTROL DEVICE

Removal and Installation

INFOID:0000000005258352

REMOVAL

CAUTION:

Change vehicle state to 2WD, and then remove and install transfer control device.

1. Remove front propeller shaft. Refer to

DLN-315, "Removal and Installation"

.

2. Disconnect transfer control device connector.
3. Remove transfer control lever.
4. Disconnect vacuum line.
5. Remove transfer control device.

INTSTALLATION

CAUTION:

Check 4WD shift indicator after installation. Refer to

DLN-129, "Precaution for Transfer Assembly and

Transfer Control Unit Replacement"

.

Installation is in the reverse order of removal.

1.

Shift lever

2.

Actuator

SDIA2654E

2010 Pathfinder

AIR BREATHER HOSE

DLN-145

< ON-VEHICLE REPAIR >

[TRANSFER: ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

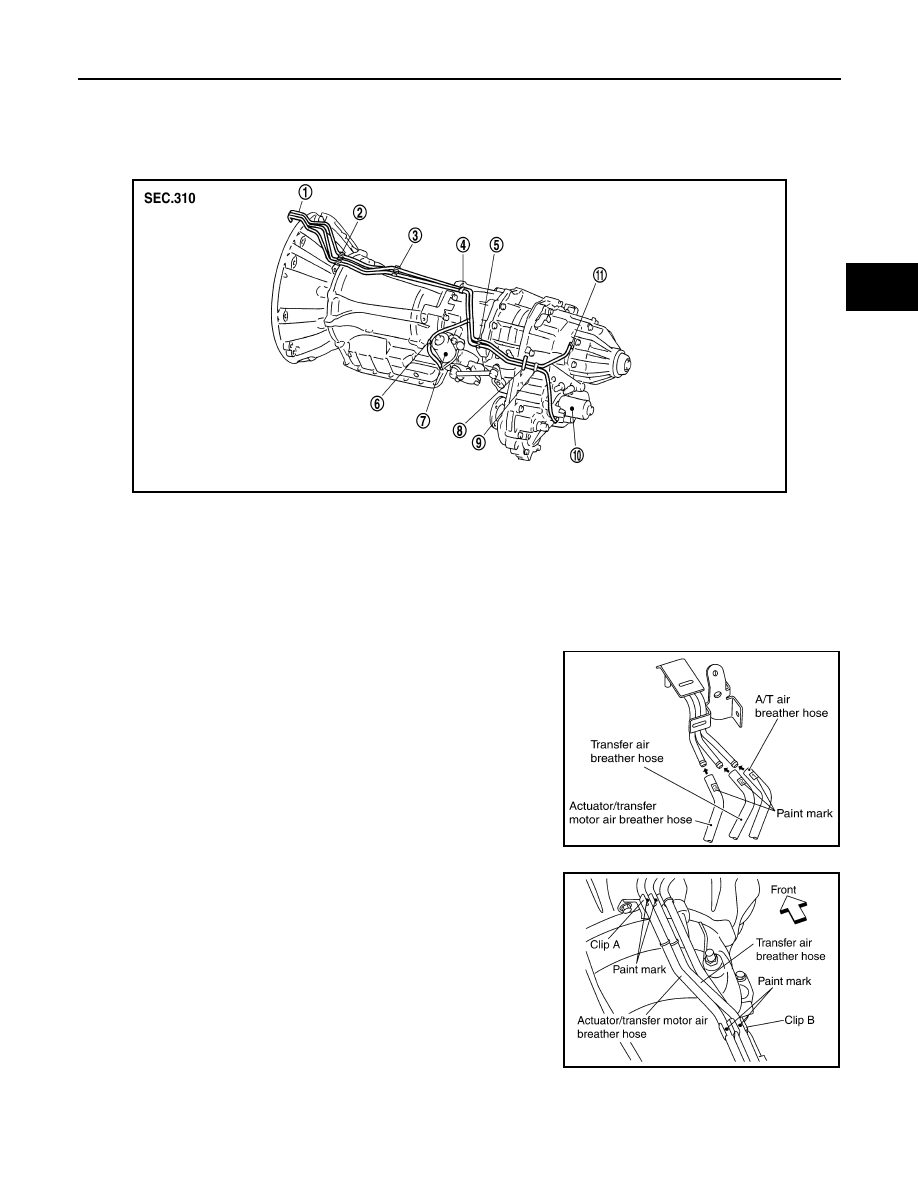

AIR BREATHER HOSE

Removal and Installation

INFOID:0000000005258353

VQ40DE

CAUTION:

• Make sure there are no pinched or restricted areas on each air breather hose caused by folding or

bending when installing it.

• Install each air breather hose into the breather tube (metal

connector) until the hose end reaches the end of the curve

section. Set each air breather hose with paint mark facing

upward.

• Install actuator/transfer motor air breather hose and transfer

air breather hose on clip A with the paint mark facing upward.

SDIA3339E

1.

Breather tube

2.

Clip A

3.

Clip B

4.

Clip C

5.

Clip D

6.

Clip E

7.

Actuator

8.

Air breather hose clamp

9.

Clip F

10. Transfer motor

11. Breather tube (transfer)

SDIA3340E

SDIA3342E

2010 Pathfinder

DLN-146

< ON-VEHICLE REPAIR >

[TRANSFER: ATX14B]

AIR BREATHER HOSE

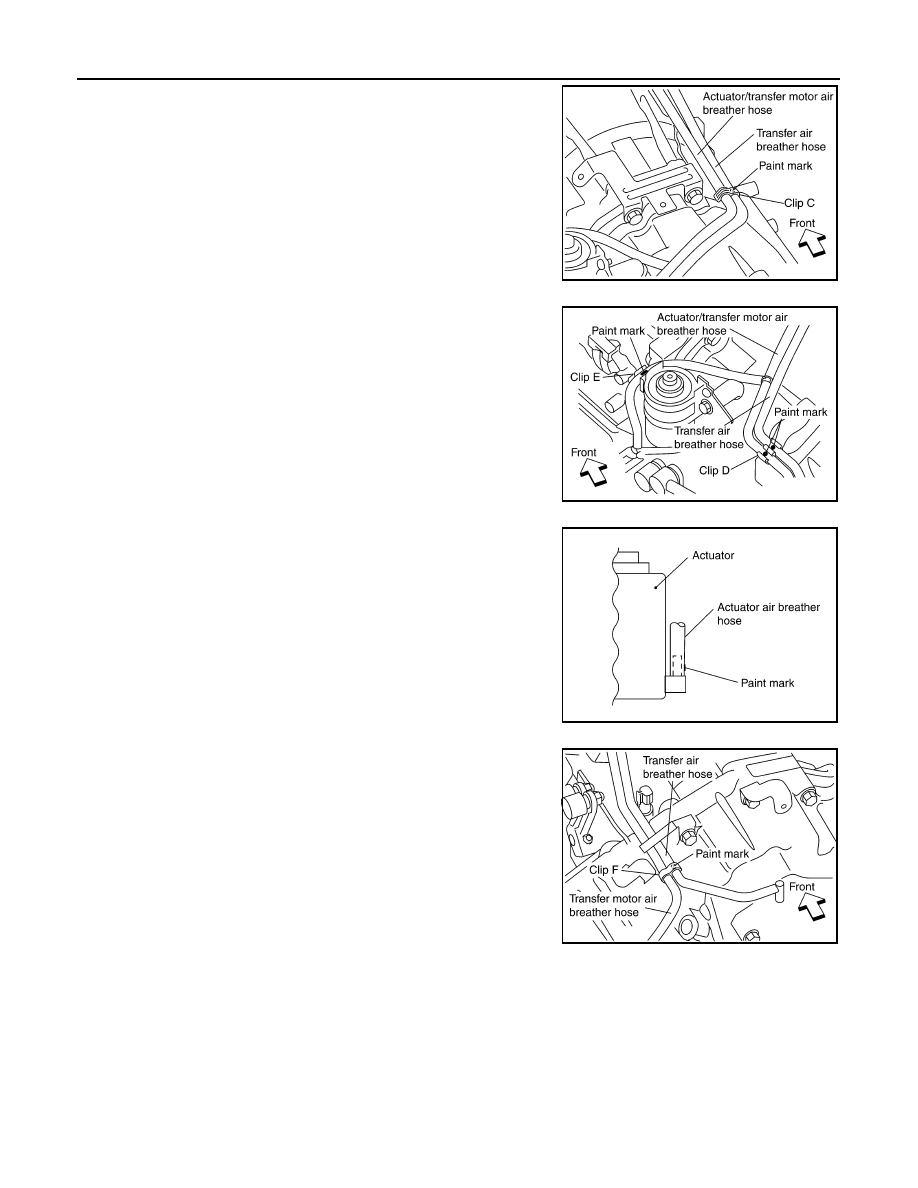

• Install clip C on actuator/transfer motor air breather hose and

transfer air breather hose with the paint mark matched.

• Install actuator/transfer motor air breather hose and transfer

air breather hose on clip D and clip E with the paint mark fac-

ing upward.

• Install the actuator air breather hose into the actuator (case

connector) until the hose end reaches the base of the tube.

Set actuator air breather hose with paint mark facing leftward.

• Install clip F on transfer motor air (control device) breather

hose and transfer air breather hose with the paint mark

matched.

SDIA3343E

SDIA3344E

SDIA3226E

SDIA3345E

2010 Pathfinder

AIR BREATHER HOSE

DLN-147

< ON-VEHICLE REPAIR >

[TRANSFER: ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

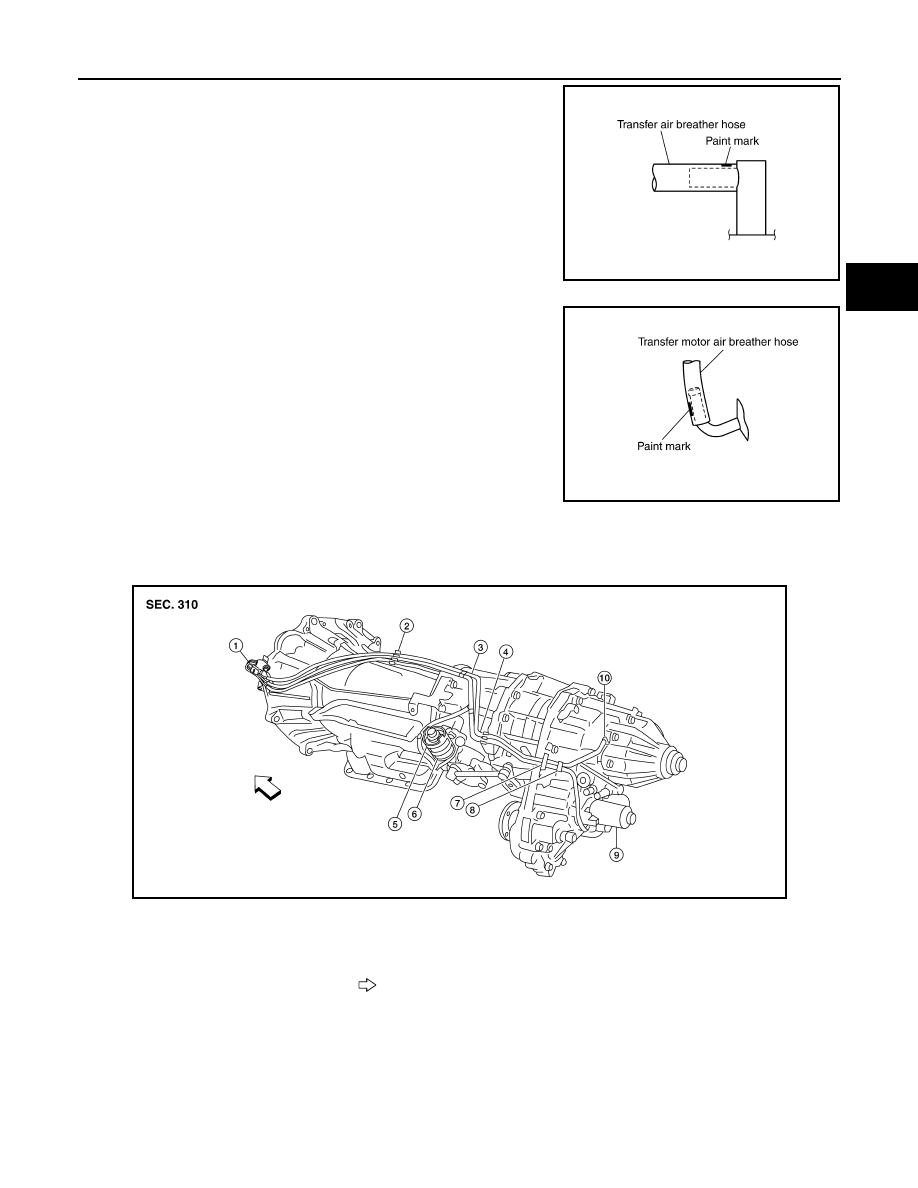

• Install the transfer air breather hose into the breather tube

(transfer, metal connector) until the hose end reaches the

base of the tube. Set transfer air breather hose with paint

mark facing upwards.

• Install the transfer motor air breather hose into the transfer

motor (case connector) until the hose end reaches the end of

the curved section. Set transfer motor air breather hose with

paint mark facing leftward.

REMOVAL AND INSTALLATION

VK56DE

CAUTION:

• Make sure there are no pinched or restricted areas on each air breather hose caused by folding or

bending when installing it.

SDIA3196E

SDIA3194E

AWDIA0010ZZ

1.

Breather tube

2.

Clip A

3.

Clip B

4.

Clip C

5.

Clip D

6.

Actuator

7.

Air breather hose clamp

8.

Clip E

9.

Transfer motor

10. Breather tube (transfer)

Vehicle front

2010 Pathfinder

DLN-148

< ON-VEHICLE REPAIR >

[TRANSFER: ATX14B]

AIR BREATHER HOSE

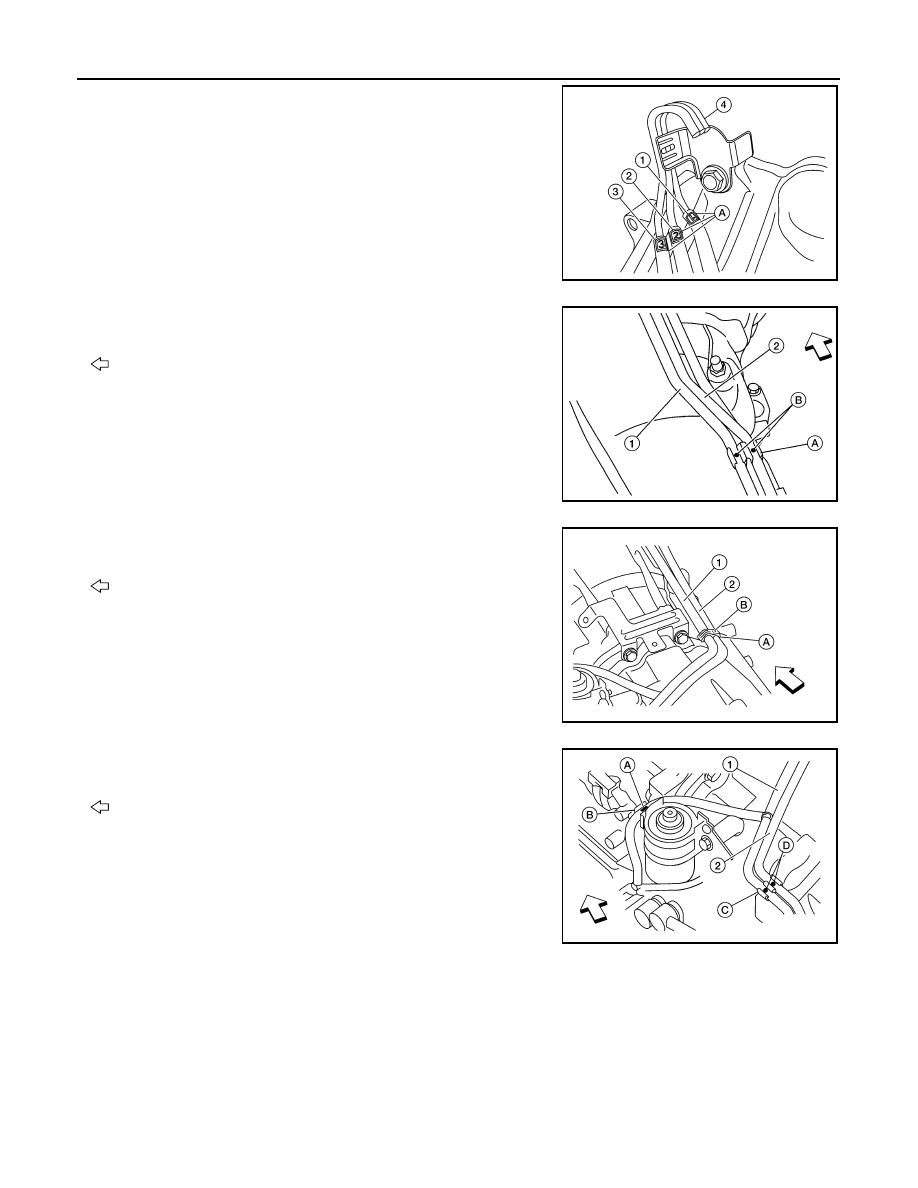

• Install each air breather hose into the breather tube (4). Set

each air breather hose with paint mark facing upward.

- A: Paint marks

- 1: A/T breather hose

- 2: Transfer air breather hose

- 3: Actuator/transfer motor air breather hose

• Install actuator/transfer motor air breather hose (1) and trans-

fer air breather hose (2) on clip (A) with the paint mark (B) fac-

ing upward.

: Front

• Install clip (A) on actuator/transfer motor air breather hose (1)

and transfer air breather hose (2) with the paint mark (B)

matched.

: Front

• Install actuator/transfer motor air breather hose (1) and trans-

fer air breather hose (2) on clip (C) and clip (B) with the paint

mark (A) and (D) facing upward.

: Front

ALDIA0110ZZ

ALDIA0111ZZ

AWDIA0011ZZ

AWDIA0012ZZ
