DIAGNOSIS SYSTEM (BCM)

DLK-219

< FUNCTION DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK)

INFOID:0000000005483720

WORK SUPPORT

DATA MONITOR

1: With remote keyless entry system
2: With Intelligent Key

ACTIVE TEST

MULTIREMOTE ENT

Work Item

Description

DOOR LOCK-UNLOCK SET

• ON
• OFF

ANTI-LOCK OUT SET

• ON
• OFF

AUTOMATIC DOOR LOCK SELECT

• SHIFT OUT OF P
• VH SPD

AUTOMATIC DOOR UNLOCK SE-
LECT

• MODE1
• MODE2
• MODE3
• MODE4
• MODE5
• MODE6

AUTOMATIC LOCK/UNLOCK SE-
LECT

• ON
• OFF

Monitor Item

[Unit}

Description

IGN ON SW [ON/OFF]

Indicates condition of ignition switch in ON position

KEY ON SW [ON/OFF]

Indicates condition of key switch

CDL LOCK SW [ON/OFF]

Indicates condition of door lock and unlock switch

CDL UNLOCK SW [ON/OFF]

Indicates condition of door lock and unlock switch

DOOR SW-DR [ON/OFF]

Indicates condition of front door switch LH

DOOR SW-AS [ON/OFF]

Indicates condition of front door switch RH

DOOR SW-RR [ON/OFF]

Indicates condition of rear door switch RH

DOOR SW-RL [ON/OFF]

Indicates condition of rear door switch LH

BACK DOOR SW [ON/OFF]

Indicates condition of back door switch

KEY CYL LK-SW [ON/OFF]

Indicates condition of lock signal from door key cylinder switch

KEY CYL UN-SW [ON/OFF]

Indicates condition of unlock signal from door key cylinder switch

KEYLESS LOCK

1

 [ON/OFF]

Indicates condition of lock signal from keyfob

KEYLESS UNLOCK

1

 [ON/OFF]

Indicates condition of unlock signal from keyfob

I-KEY LOCK

2

 [ON/OFF]

Indicates condition of lock signal from Intelligent Key

I-KEY UNLOCK

2

 [ON/OFF]

Indicates condition of unlock signal from Intelligent Key

Test Item

Description

DOOR LOCK

This test is able to check door lock operation [ALL LOCK/ALL UNLOCK/DR UNLOCK/
OTHER UNLOCK].

2010 Pathfinder

DLK-220

< FUNCTION DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (BCM)

MULTIREMOTE ENT : CONSULT-III Function (BCM - MULTIREMOTE ENT)

INFOID:0000000005483721

WORK SUPPORT

Hazard and horn reminder mode

Auto locking function mode

Panic alarm operation mode

Back door open operation mode

Keyless power window down operation mode

DATA MONITOR

Test Item

Description

REMO CONT ID REGIST

Keyfob ID code can be registered.

REMO CONT ID ERASUR

Keyfob ID code can be erased.

REMO CONT ID CONFIR

It can be checked whether keyfob ID code is registered or not in this mode.

HORN CHIRP SET

Horn chirp function mode can be changed in this mode. The function mode will be changed when
"CHANG SETT" on CONSULT-III screen is touched.

HAZARD LAMP SET

Hazard lamp function mode can be changed in this mode. The function mode will be changed when
"CHANG SETT" on CONSULT-III screen is touched.

MULTI ANSWER BACK SET

Hazard and horn reminder mode can be changed in this mode. The reminder mode will be changed
when “CHANG SETT” on CONSULT-III screen is touched.

AUTO LOCK SET

Auto locking function mode can be changed in this mode. The function mode will be changed when
"CHANG SETT" on CONSULT-III screen is touched.

PANIC ALRM SET

Panic alarm operation mode can be changed in this mode. The operation mode will be changed when
"CHANG SETT" on CONSULT-III screen is touched.

PW DOWN SET

Keyless power window down (open) operation mode can be changed in this mode. The operation
mode will be changed when "CHANG SETT" on CONSULT-III screen is touched.

MODE 1

(C mode)

MODE 2

(S mode)

MODE  3

MODE  4

MODE  5

MODE  6

Keyfob
operation

Lock

Unlock

Lock

Unlock

Lock

Unlock

Lock

Unlock

Lock

Unlock

Lock

Unlock

Hazard warning
lamp flash

Twice

Once

Twice

Twice

Once

Twice

Once

Horn  sound

Once

Once

Once

MODE 1

MODE 2

MODE 3

Auto locking function

5 minutes

Nothing

1 minute

MODE 1

MODE 2

MODE 3

Keyfob operation

0.5 seconds

Nothing

1.5 seconds

MODE 1

MODE 2

MODE 3

Keyfob operation

0.5 seconds

Nothing

0.5 seconds

MODE  1

MODE  2

MODE  3

Keyfob operation

3 seconds

Nothing

5 seconds

Monitored Item

Description

DOOR SW-AS

Indicates [ON/OFF] condition of front door switch RH.

DOOR SW-RR

Indicates [ON/OFF] condition of rear door switch RH.

DOOR SW-RL

Indicates [ON/OFF] condition of rear door switch LH.

DOOR SW-DR

Indicates [ON/OFF] condition of front door switch LH.

KEY ON SW

Indicates [ON/OFF] condition of key switch.

ACC ON SW

Indicates [ON/OFF] condition of ignition switch in ACC position.

2010 Pathfinder

DIAGNOSIS SYSTEM (BCM)

DLK-221

< FUNCTION DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ACTIVE TEST

TRUNK
TRUNK : CONSULT-III Function (BCM - TRUNK)

INFOID:0000000005483722

DATA MONITOR

ACTIVE TEST

IGN ON SW

Indicates [ON/OFF] condition of ignition switch in ON position.

KEYLESS PANIC

Indicates [ON/OFF] condition of panic signal from keyfob.

KEYLESS UNLOCK

Indicates [ON/OFF] condition of unlock signal from keyfob.

KEYLESS LOCK

Indicates [ON/OFF] condition of lock signal from keyfob.

KEY CYL LK-SW

Indicates [ON/OFF] condition of lock signal from door key cylinder switch.

KEY CYL UN-SW

Indicates [ON/OFF] condition of unlock signal from door key cylinder switch.

CDL UNLOCK SW

Indicates [ON/OFF] condition of unlock signal from lock/unlock switch.

CDL LOCK SW

Indicates [ON/OFF] condition of lock signal from lock/unlock switch.

DOOR SW-RL

Indicates [ON/OFF] condition of rear door switch LH.

DOOR SW-RR

Indicates [ON/OFF] condition of rear door switch RH.

RKE LCK-UNLCK

Indicates [ON/OFF] condition of lock/unlock signal at the same time from keyfob.

RKE KEEP UNLK

Indicates [ON/OFF] condition of unlock signal from keyfob.

Monitored Item

Description

Test Item

Description

FLASHER

This test is able to check right and left hazard reminder operation. The right hazard lamp turns on
when “RH” on CONSULT-III screen is touched and the left hazard lamp turns on when "LH" on CON-
SULT-III screen is touched.

POWER WINDOW DOWN

This test is able to check power window down operation. The windows are lowered when “ON” on
CONSULT-III screen is touched.

HORN

This test is able to check panic alarm and horn reminder operations. The alarm activate for 0.5 sec-
onds after “ON” on CONSULT-III screen is touched.

DOOR LOCK

This test is able to check door lock operation. The doors lock and unlock based on the item on CON-
SULT-III screen touched.

Monitor Item

[Unit]

Contents

IGN ON SW [ON/OFF]

Indicates condition of ignition switch in ON position

I-KEY TRUNK [ON/OFF]

Indicates condition of Intelligent Key back door opening operation

TRNK OPNR SW [ON/OFF]

Indicates condition of back door opener switch.

VEHICLE SPEED [ON/OFF]

Indicates condition of vehicle speed signal from combination meter

Test Item

Description

TRUNK/BACK DOOR

This test is able to check back door open operation.
Back door open when “OPEN” on CONSULT-III screen is touched.

2010 Pathfinder

DLK-222

< COMPONENT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

U1000 CAN COMM CIRCUIT

COMPONENT DIAGNOSIS

U1000 CAN COMM CIRCUIT

Description

INFOID:0000000005260036

CAN (Controller Area Network) is a serial communication line for real time applications. It is an on-vehicle mul-

tiplex communication line with high data communication speed and excellent error detection ability. Modern

vehicle is equipped with many electronic control unit, and each control unit shares information and links with

other control units during operation (not independent). In CAN communication, control units are connected

with 2 communication lines (CAN H-line, CAN L-line) allowing a high rate of information transmission with less

wiring. Each control unit transmits/receives data but selectively reads required data only.

CAN Communication Signal Chart. Refer to

LAN-53, "CAN Communication Signal Chart"

.

DTC Logic

INFOID:0000000005260037

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000005260038

1.

PERFORM SELF DIAGNOSTIC

1. Turn ignition switch ON and wait for 2 second or more.

2. Check “Self Diagnostic Result”.
Is “CAN COMM CIRCUIT” displayed?

YES

>> Refer to

LAN-5, "CAN Communication Control Circuit"

.

NO

>> Refer to

GI-37, "Intermittent Incident"

.

DTC

CONSULT-III display

description

DTC Detection Condition

Possible cause

U1000

CAN COMM CIRCUIT

When BCM cannot communicate CAN com-
munication signal continuously for 2 sec-
onds or more.

In CAN communication system, any item (or items)
of the following listed below is malfunctioning.
• Transmission
• Receiving (ECM)
• Receiving (VDC/TCS/ABS)
• Receiving (METER/M&A)
• Receiving (TCM)

2010 Pathfinder

U1010 CONTROL UNIT (CAN)

DLK-223

< COMPONENT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

U1010 CONTROL UNIT (CAN)

DTC Logic

INFOID:0000000005260039

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000005260040

1.

REPLACE BCM

When DTC [U1010] is detected, replace BCM. Refer to

BCS-59, "Removal and Installation"

.

>> Replace BCM.

Special Repair Requirement

INFOID:0000000005260041

1.

REQUIRED WORK WHEN REPLACING BCM

The BCM must be initialized when replaced. Refer to

BCS-59, "Removal and Installation"

 for BCM configura-

tion.

Initialize NVIS by CONSULT-III. For the details of initialization refer to CONSULT-III Operation Manual.

>> Work End.

DTC

CONSULT-III display de-

scription

DTC Detection Condition

Possible cause

U1010

CONTROL UNIT (CAN)

BCM detected internal CAN communication circuit malfunction.

BCM

2010 Pathfinder

DLK-224

< COMPONENT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

POWER SUPPLY AND GROUND CIRCUIT

POWER SUPPLY AND GROUND CIRCUIT

BCM (BODY CONTROL MODULE)
BCM (BODY CONTROL MODULE) : Diagnosis Procedure

INFOID:0000000005485386

Regarding Wiring Diagram information, refer to

BCS-50, "Wiring Diagram"

.

1.

 CHECK FUSES AND FUSIBLE LINK

Check that the following fuses and fusible link are not blown.

Is the fuse blown?

YES

>> Replace the blown fuse or fusible link after repairing the affected circuit.

NO

>> GO TO 2

2.

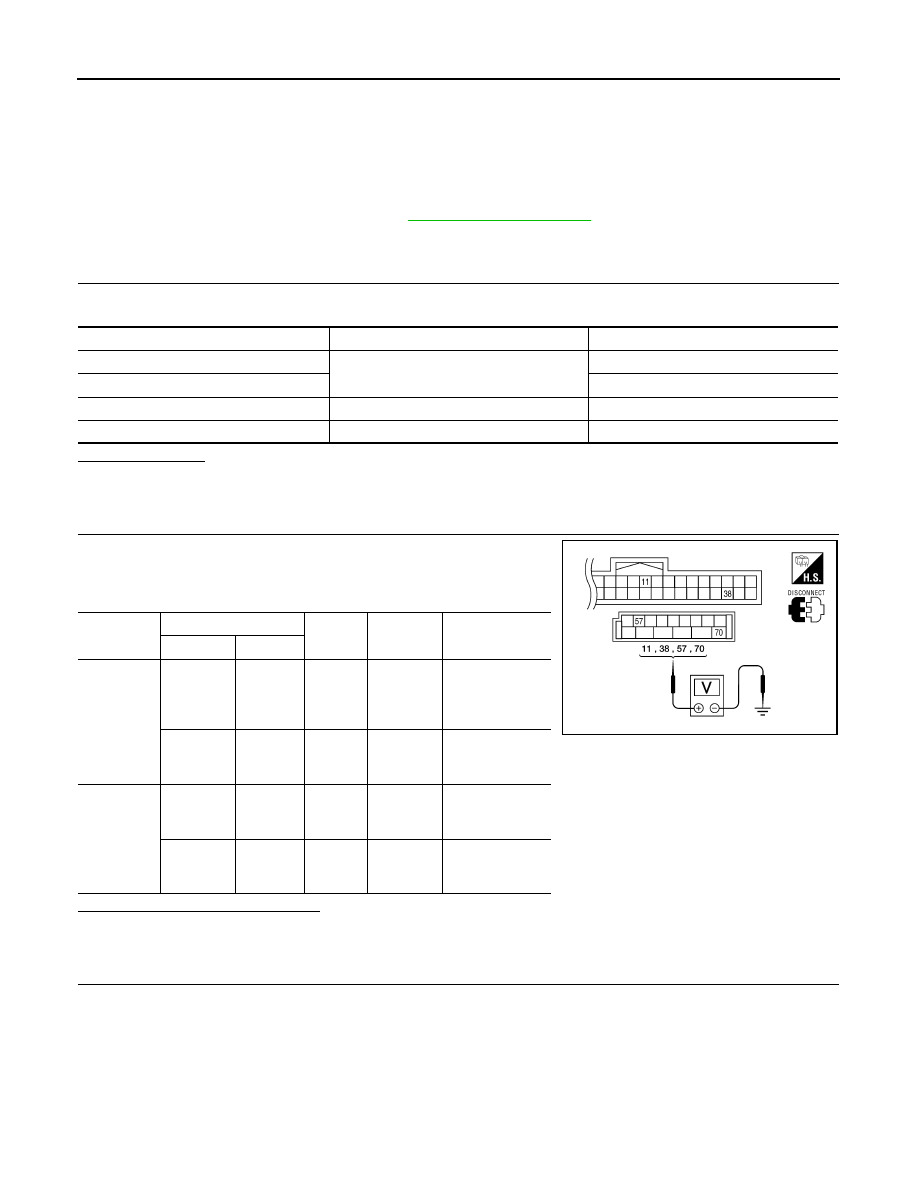

 CHECK POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect BCM.

3. Check voltage between BCM harness connector and ground.

Is the measurement value normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

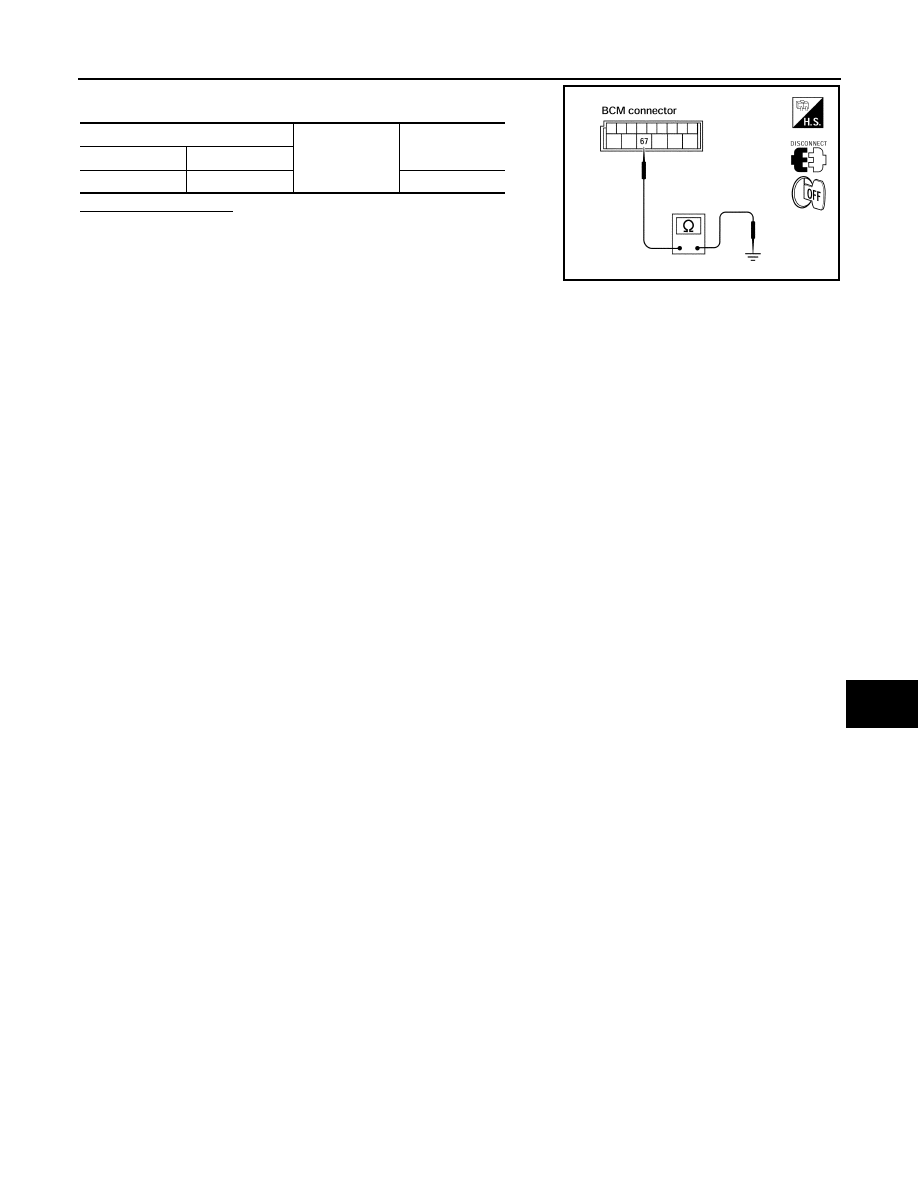

3.

 CHECK GROUND CIRCUIT

Terminal No.

Signal name

Fuses and fusible link No.

57

Battery power supply

18 (10A)

70

G (50A)

11

Ignition ACC or ON

4 (10A)

38

Ignition ON or START

1 (10A)

Connector

Terminals

Power

source

Condition

Voltage (V) (Ap-

prox.)

(+)

(-)

M18

11

Ground

ACC

power

supply

Ignition

switch

ACC or

ON

Battery voltage

38

Ground

Ignition

power

supply

Ignition

switch ON

or START

Battery voltage

M20

57

Ground

Battery

power

supply

Ignition

switch

OFF

Battery voltage

70

Ground

Battery

power

supply

Ignition

switch

OFF

Battery voltage

LIIA2415E

2010 Pathfinder

POWER SUPPLY AND GROUND CIRCUIT

DLK-225

< COMPONENT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Check continuity between BCM harness connector and ground.

Does continuity exist?

YES

>> Inspection End.

NO

>> Repair or replace harness.

BCM

Ground

Continuity

Connector

Terminal

M20

67

Yes

LIIA0915E

2010 Pathfinder

DLK-226

< COMPONENT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

DOOR SWITCH

DOOR SWITCH

Description

INFOID:0000000005260043

Detects door open/close condition.

Component Function Check

INFOID:0000000005260044

1.

CHECK FUNCTION

With CONSULT-III

Check door switches in data monitor mode with CONSULT-III.

Is the inspection result normal?

YES

>> Door switch is OK.

NO

>> Refer to

DLK-226, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000005260045

Regarding Wiring Diagram information, refer to

DLK-275, "Wiring Diagram — POWER DOOR LOCK SYS-

TEM —"

.

1.

CHECK DOOR SWITCHES INPUT SIGNAL

With CONSULT-III

Check door switches ("DOOR SW-DR", "DOOR SW-AS", "DOOR SW-RL", "DOOR SW-RR", "BACK DOOR

SW") in DATA MONITOR mode with CONSULT–III.

• When doors are open:

• When doors are closed:

Without CONSULT-III

Check voltage between BCM connector M18 or M19 terminals 12, 13, 43, 47, 48 and ground.

Monitor item

Condition

DOOR SW-DR

CLOSE

 OPEN: OFF

 ON

DOOR SW-AS

DOOR SW-RL

DOOR SW-RR

BACK DOOR SW

DOOR SW-DR

:ON

DOOR SW-AS

:ON

DOOR SW-RL

:ON

DOOR SW-RR

:ON

BACK DOOR SW

:ON

DOOR SW-DR

:OFF

DOOR SW-AS

:OFF

DOOR SW-RL

:OFF

DOOR SW-RR

:OFF

BACK DOOR SW

:OFF

2010 Pathfinder















Content      ..     163      164      165      166     ..
