AUTOMATIC DOOR LOCKS

DLK-211

< FUNCTION DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

DLK

Door switch

Input door open/close condition to BCM.

Door key cylinder switch

• Input lock or unlock signal to main power window and door lock/unlock switch.
• Main power window and door lock/unlock switch transmits door lock/unlock signal to BCM.

Combination meter

• Receive buzzer signal from BCM via CAN communication line, and sounds the buzzer.
• Transmits vehicle speed signal to CAN communication line.

Item

Function

2010 Pathfinder

DLK-212

< FUNCTION DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

DOOR LOCK FUNCTION

DOOR LOCK FUNCTION

DOOR LOCK AND UNLOCK SWITCH

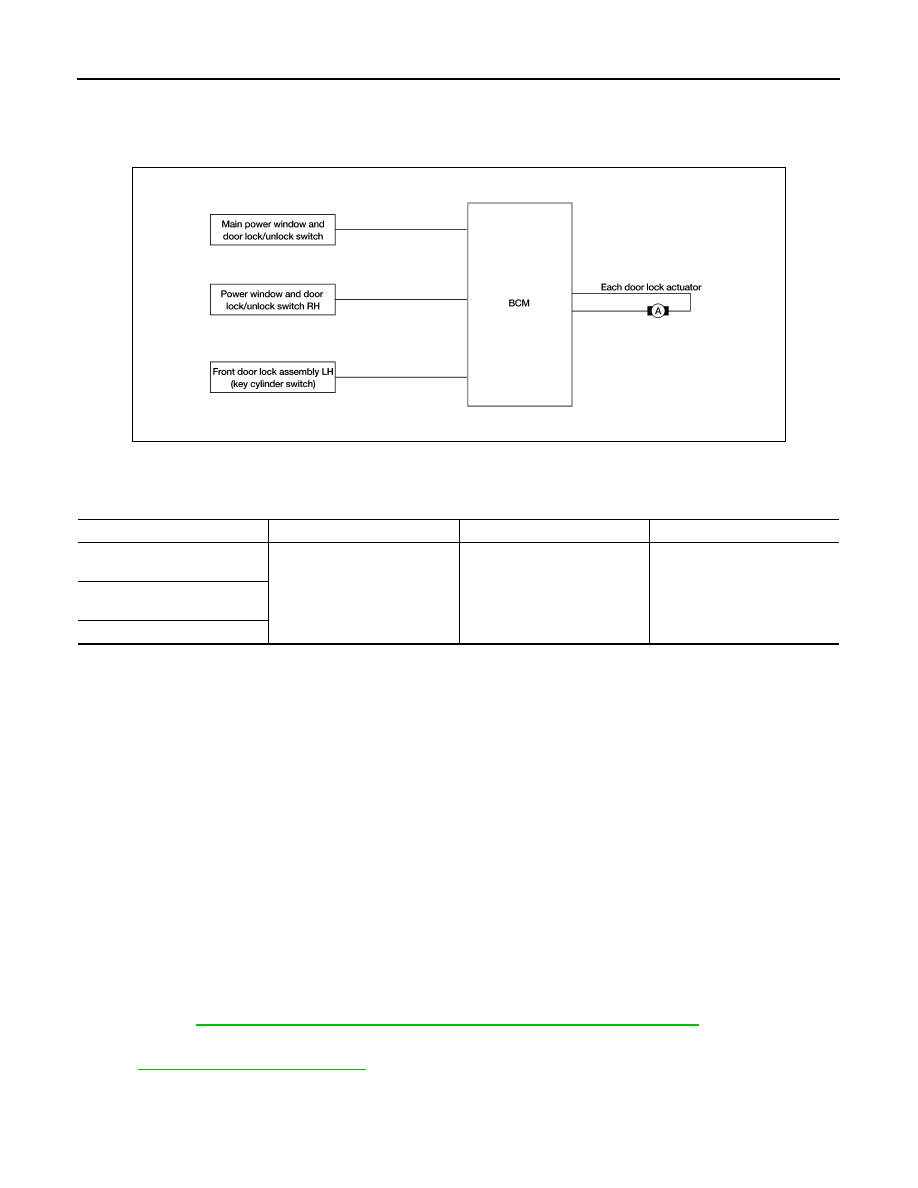

DOOR LOCK AND UNLOCK SWITCH : System Diagram

INFOID:0000000005260023

DOOR LOCK AND UNLOCK SWITCH : System Description

INFOID:0000000005260024

DOOR LOCK FUNCTION

Functions Available by Operating the Door Lock and Unlock Switches on Driver Door and Passenger Door

• Interlocked with the locking operation of door lock and unlock switch, door lock actuators of all doors are

locked, back door opener switch is disabled, and mechanical glass hatch switch is disabled.

• Interlocked with the unlocking operation of door lock and unlock switch, door lock actuators of all doors are

unlocked, back door opener switch is enabled, and mechanical glass hatch switch is enabled.

• Provided the passenger front door is unlocked, when the back door opener switch is pressed, the BCM ter-

minal 30 receives signal from the back door opener switch terminal 1, through terminal 2, to front door lock

assembly RH (door unlock sensor) terminal 1, through terminal 3, to ground.

• When the BCM receives the signal, if the back door operating enable conditions are met, it sends a signal

through terminal 53 to open the back door latch.

Functions Available by Operating the Key Cylinder Switch on Driver Door

• Interlocked with the locking operation of door key cylinder, door lock actuators of all doors are locked, back

door opener switch is disabled, and mechanical glass hatch switch is disabled.

Selective Unlock Operation

• When door key cylinder is unlocked, door lock actuator driver side is unlocked.

• When door key cylinder is unlocked for the second time within 5 seconds after the first operation, door lock

actuators on all doors are unlocked.

Select unlock operation mode can be changed using DOOR LOCK-UNLOCK SET mode in “WORK SUP-

PORT”. Refer to

DLK-219, "DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK)"

Key Reminder System

Refer to

DLK-256, "Diagnosis Procedure"

ALKIA0178GB

Switch

Input/output signal to BCM

BCM function

Actuator

Main power window and door
lock/unlock switch

Door lock/unlock signal

Door lock/unlock control

Door lock actuator

Power window and door lock/
unlock switch

Door key cylinder switch

2010 Pathfinder

DOOR LOCK FUNCTION

DLK-213

< FUNCTION DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

DLK

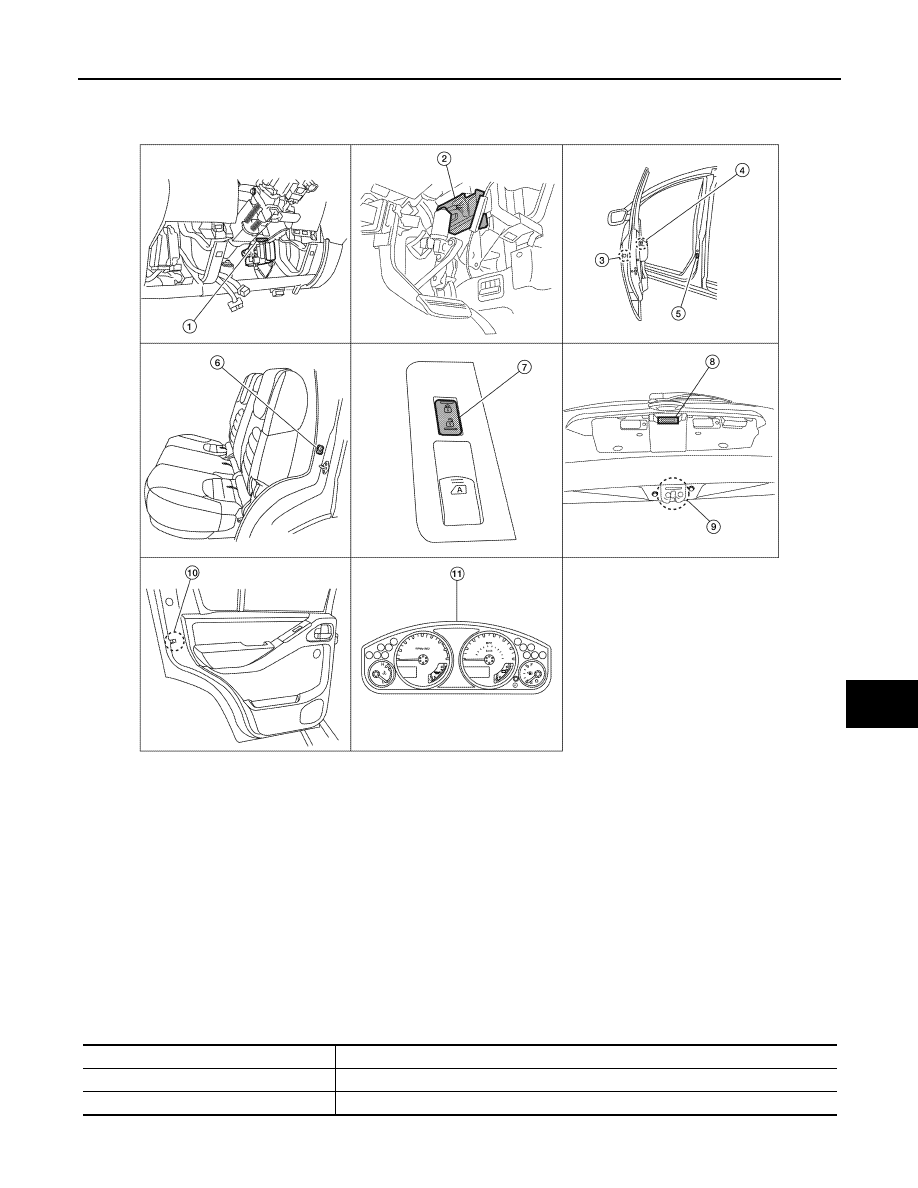

DOOR LOCK AND UNLOCK SWITCH : Component Parts Location

INFOID:0000000005260025

DOOR LOCK AND UNLOCK SWITCH : Component Description

INFOID:0000000005260026

Key switch M27

BCM M18, M19, M20

Front door lock assembly LH (key
cylinder switch) D14
Front door lock assembly RH (door
lock actuator) D119
Front door lock assembly RH (door
unlock sensor) D103

Main power window and door lock/un-
lock switch D7, D8

Front door switch LH B8
RH B108

Rear door switch LH B18
RH B116

Power window and door lock/unlock
switch RH D105

Back door opener switch D510

Back door latch (door ajar switch)
D502

10. Rear door lock actuator LH D205

RH D305

11. Combination meter M24

ALKIA1700ZZ

Item

Function

BCM

Controls the door lock function and room lamp function.

Door lock and unlock switch

Transmits lock or unlock signal to BCM.

2010 Pathfinder

DLK-214

< FUNCTION DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

DOOR LOCK FUNCTION

REMOTE KEYLESS ENTRY

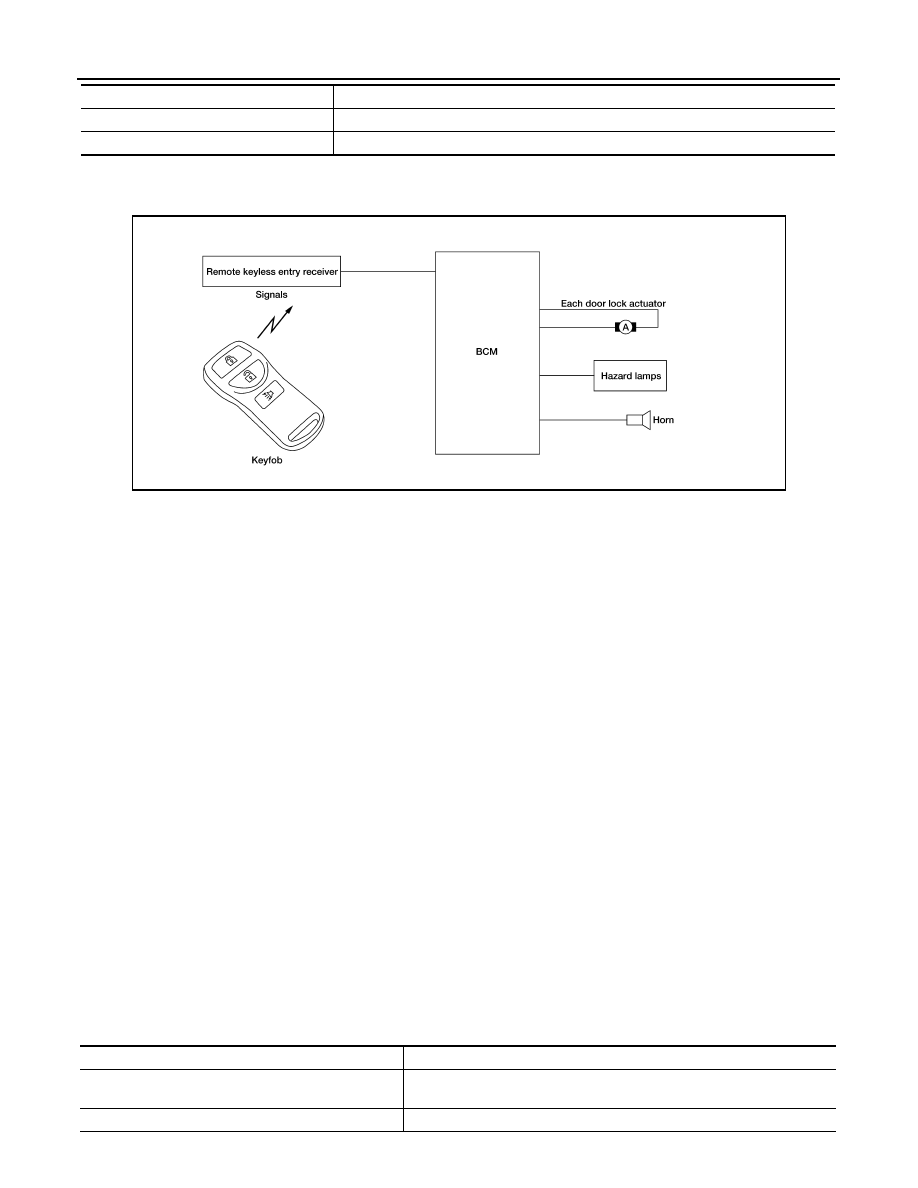

REMOTE KEYLESS ENTRY : System Diagram

INFOID:0000000005260027

REMOTE KEYLESS ENTRY : System Description

INFOID:0000000005260028

OPERATED PROCEDURE

• When the keyfob is operated, the signal from the keyfob is sent and the remote keyless entry receiver

receives the signal and sends it to the BCM. The BCM only locks/unlocks the doors if the ID number

matches. (Remote control entry functions)

• Using the keyfob, the transmitter sends radio waves to the remote keyless entry receiver, which then sends

the received waves to the BCM. Only if the ID number matches does the BCM lock/unlock the doors.

(Remote control door function)

• Unless the key is inserted into the ignition key cylinder or one of the doors is opened within 1 minute after the

UNLOCK switch on the keyfob is pressed, all the doors are automatically locked. (Auto lock function)

• When a door is locked or unlocked, the vehicle turn signal lamps flash and the horn sounds to verify opera-

tion. (Active check function)

• When the key is in the ignition key cylinder (when the key switch is ON) and one of the doors is open, the

door lock function does not work even when the door lock is operated with the keyfob.

• Keyfob ID set up is available.

• If a keyfob is lost, a new keyfob can be set up. A maximum of 5 IDs can be set up simultaneously.

REMOTE CONTROL ENTRY FUNCTIONS

• When a button on the keyfob is operated, the signal is sent from the keyfob and received by the remote key-

less entry receiver.

• The received signal is sent to the BCM and compared with the registered ID number.

• If the ID number matches, the BCM sends the lock/unlock signal to each door lock actuator.

• When the door lock actuators receive this signal, each operates to lock/unlock its door.

• BCM locks all doors with input of LOCK signal from keyfob.

• When an UNLOCK signal is sent from keyfob once, driver's door will be unlocked.

• Then, if an UNLOCK signal is sent from keyfob again within 5 seconds, all other doors will be unlocked.

REMOTE CONTROL ENTRY OPERATION CONDITIONS

Door lock actuator

Receives lock/unlock signal from BCM and locks/unlocks each door.

Door switch

Transmits door open/close condition to BCM.

Item

Function

ALKIA1171GB

Keyfob operation

Operation condition

Door lock operation (locking)

• With key removed (key switch: OFF)
• Closing all doors (door switch: OFF)

Door lock operation (unlocking)

With key removed (key switch: OFF)

2010 Pathfinder

DOOR LOCK FUNCTION

DLK-215

< FUNCTION DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

DLK

AUTO RELOCK FUNCTION

Operation Description

• Unless the key is inserted into the ignition key cylinder, one of the doors is opened, or the keyfob is operated

within 1 minute after a door lock is unlocked by keyfob operation, all the doors are automatically locked.

The 1 minute timer count is executed by the BCM and after 1 minute, the BCM sends the lock signal to all

doors.

Lock operations are the same as for the remote control entry function.

ACTIVE CHECK FUNCTION

Operation Description

When a door is locked or unlocked by keyfob operation, the vehicle turn signals flash and the horn sounds to

verify operation.

• When a button on the keyfob is operated, the signal is sent from the remote controller and received by the

keyless remote entry receiver.

• The received signal is sent to the BCM and compared with the registered ID number.

• If the ID number matches, the BCM uses communication to send the turn signal flashing and horn signal to

the IPDM E/R.

• The IPDM E/R flashes the turn signal lamps and sounds the horn for each keyfob operation.

Operating function of hazard and horn reminder

HAZARD AND HORN REMINDER

BCM output to IPDM E/R for horn reminder signal as DATA LINE (CAN-H line and CAN-L line).

The hazard and horn reminder has C mode (horn chirp mode) and S mode (non-horn chirp mode).

How to change hazard and horn reminder mode

With CONSULT-III

Hazard and horn reminder can be changed using “WORK SUPPORT” mode in “MULTI ANSWER BACK SET".

Without CONSULT-III

Refer to Owner's Manual for instructions.

INTERIOR LAMP OPERATION

When the following input signals are both supplied:

• all door switches are in the OFF position. (when all the doors are closed);

• interior lamp switch is in DOOR position.

Remote keyless entry system turns on interior lamp and ignition keyhole illumination (for 30 seconds) with

input of UNLOCK signal from keyfob.

PANIC ALARM OPERATION

When key switch is OFF (when ignition key is not inserted in key cylinder), remote keyless entry system turns

on and off horn and headlamp intermittently with input of PANIC ALARM signal from keyfob.

The alarm automatically turns off after 25 seconds or when BCM receives any signal from keyfob.

KEYLESS POWER WINDOW DOWN (OPEN) OPERATION

When keyfob unlock switch is turned ON with ignition switch OFF, and the switch is detected to be ON contin-

uously for more than 3 second, the driver's door and passenger's door power windows are simultaneously

opened.

Power window is operated to open and the operation continues as long as the keyfob unlock switch is

pressed.

C mode

S mode

Keyfob operation

Lock

Unlock

Lock

Unlock

Hazard warning lamp
flash

Twice

Once

Twice

—

Horn sound

Once

—

2010 Pathfinder

DLK-216

< FUNCTION DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

DOOR LOCK FUNCTION

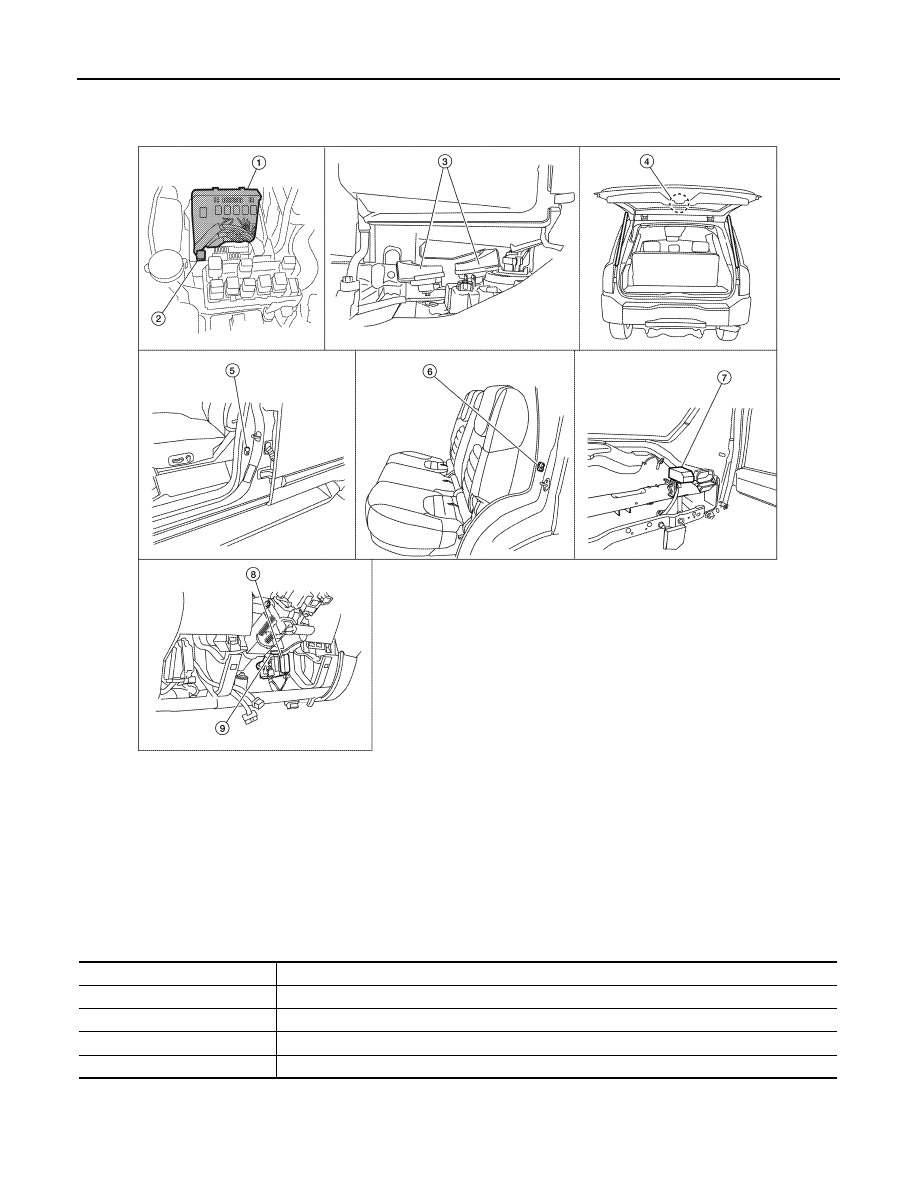

REMOTE KEYLESS ENTRY : Component Parts Location

INFOID:0000000005260029

REMOTE KEYLESS ENTRY : Component Description

INFOID:0000000005260030

1. IPDM E/R E122, E124

2. Horn relay H-1

(view with cover removed)

3. Horn E3 (behind front combination

lamp LH)

4. Back door cinching latch unit (door ajar

switch) D502

5. Front door switch LH B8

RH B108

6. Rear door switch LH B18

RH B116

7. Remote keyless entry receiver M120

(view with instrument panel RH re-
moved)

8. BCM M18, M19, M20

(view with instrument panel LH removed)

9. Key switch M27

ALKIA1172ZZ

Item

Function

BCM

Controls the door lock function and room lamp function.

Door lock and unlock switch

Transmits lock or unlock signal to BCM.

Door switch

Transmits door open/close condition to BCM.

Remote keyless entry receiver

Receives lock/unlock signal from the keyfob, and then transmits to BCM.

2010 Pathfinder

HOMELINK UNIVERSAL TRANSCEIVER

DLK-217

< FUNCTION DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

DLK

HOMELINK UNIVERSAL TRANSCEIVER

Component Description

INFOID:0000000005260031

Item

Function

Reference page

Homelink universal transceiver

A maximum of 3 radio signals can be stored and transmitted to operate
the garage door, etc.

Refer to Owner's

Manual

2010 Pathfinder

DLK-218

< FUNCTION DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000005483719

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.

NOTE:

It can perform the diagnosis modes except the following for all sub system selection items.

1: With remote keyless entry system
2: With Intelligent Key

DOOR LOCK

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function.

SELF-DIAG RESULTS

Displays the diagnosis results judged by BCM. Refer to

BCS-54, "DTC Index"

CAN DIAG SUPPORT MNTR

Monitors the reception status of CAN communication viewed from BCM.

DATA MONITOR

The BCM input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM.

ECU IDENTIFICATION

The BCM part number is displayed.

CONFIGURATION

• Enables to read and save the vehicle specification.
• Enables to write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

WORK SUPPORT

DATA MONITOR

ACTIVE TEST

BCM

Door lock

DOOR LOCK

Rear window defogger

REAR DEFOGGER

Warning chime

BUZZER

Interior room lamp timer

INT LAMP

Remote keyless entry system

MULTI REMOTE ENT

Exterior lamp

HEAD LAMP

Wiper and washer

WIPER

Turn signal and hazard warning lamps FLASHER

Air conditioner

AIR CONDITONER

Intelligent Key system

INTELLIGENT KEY

Combination switch

COMB SW

Immobilizer

IMMU

Interior room lamp battery saver

BATTERY SAVER

Back door open

TRUNK

RAP (retained accessory power)

RETAINED PWR

Signal buffer system

SIGNAL BUFFER

TPMS (tire pressure monitoring sys-
tem)

AIR PRESSURE MONITOR

Vehicle security system

THEFT ALM

Panic alarm

PANIC ALARM

2010 Pathfinder

Content .. 162 163 164 165 ..
