Nissan Pathfinder (2010 year). Manual - part 162





DOOR

DLK-195

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

1. Open and support the back door.
2. Slightly loosen the hinge nuts.
3. Reposition the door as necessary and tighten the nuts.
4. Confirm the adjustment. Repeat as necessary to obtain the desired fit.

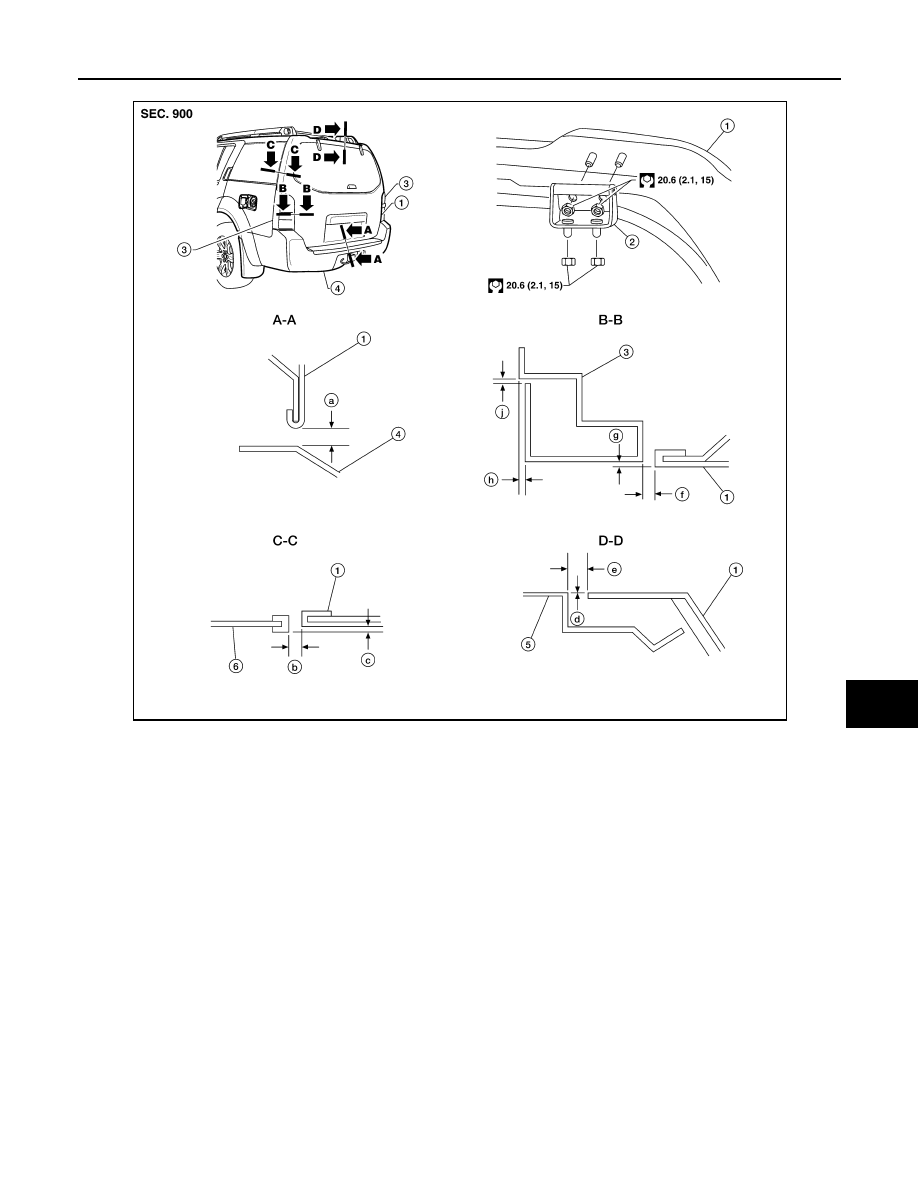

Striker adjustment

BODY SIDE DOORS

1.

Back door assembly

2.

Back door hinge

3.

Tail lamp assembly

4.

Rear bumper fascia

5.

Roof

6.

Side window glass

a.

7.2

±

 2.0 mm (0.28

±

 0.06 in)

b.

6.0

±

 1.5 mm (0.24

±

 0.06 in)

c.

2.0

±

  2.0 mm ( 0.08

±

 0.08 in)

d.

1.0

±

 1.5 mm (0.04

±

 0.06 in)

e.

8.0

±

 1.5 mm (0.31

±

 0.06 in)

f.

5.3

±

  2.0 mm (0.21

±

 0.08 in)

g.

0.8

±

 2.0 mm (0.03

±

 0.08 in)

h.

0.8

±

 1.0 mm (0.03

±

 0.04 in)

j.

2.0

±

 1.0 mm (0.08

±

  0.04 in)

WIIA0733E

2010 Pathfinder

DLK-196

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

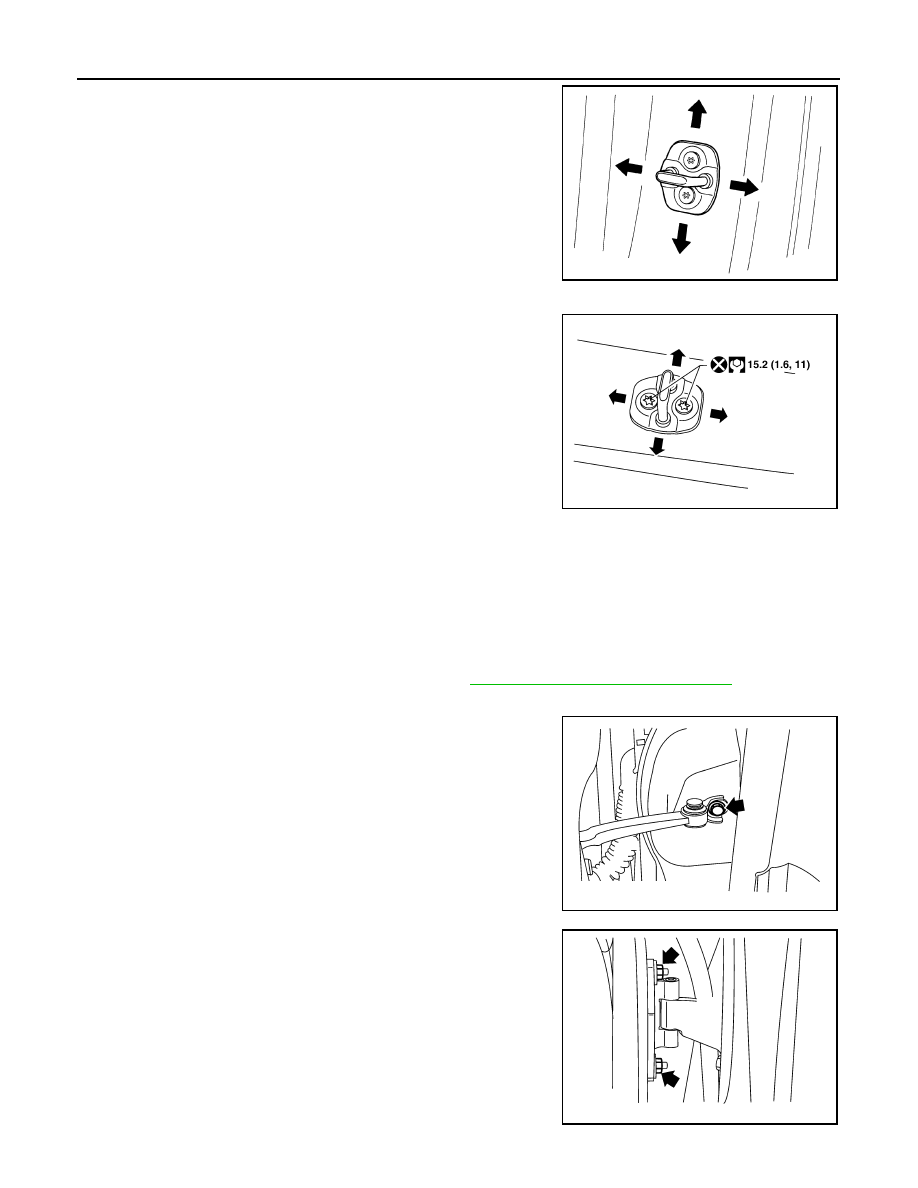

DOOR

1. Adjust the striker so that it becomes parallel with the lock inser-

tion direction.

BACK DOOR

1. Adjust the striker so that it becomes parallel with the lock inser-

tion direction.

Removal and Installation

INFOID:0000000005260009

FRONT DOOR

CAUTION:

• When removing and installing the door assembly, support the door with a jack and shop cloth to pro-

tect the door and body.

• When removing and installing door assembly, be sure to carry out the fitting adjustment.

• Check the hinge rotating part for poor lubrication. If necessary, apply "body grease".

1. Remove the front door glass and regulator. Refer to

GW-15, "Front Door Glass Regulator"

.

2. Remove the door harness.
3. Remove the check link bolt from the hinge pillar.

4. Remove the door-side hinge nuts, and the door assembly.
Installation is in the reverse order of removal.

PIIB2804J

WIIA0735E

LIIA1726E

LIIA1727E

2010 Pathfinder

DOOR

DLK-197

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

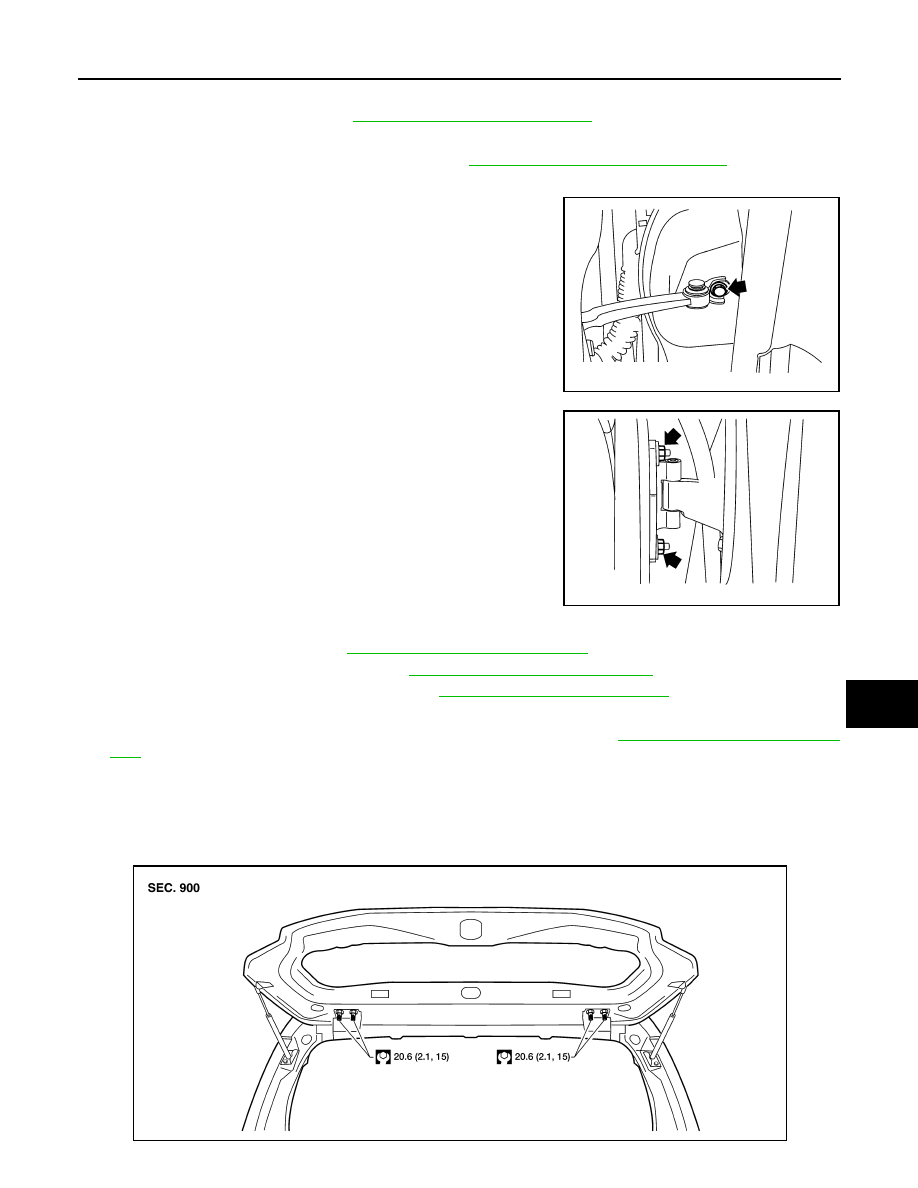

REAR DOOR

1. Remove the door finisher. Refer to

INT-14, "Removal and Installation"

.

2. Remove the inner seal.
3. Remove the rear door glass and regulator. Refer to

GW-19, "Rear Door Glass Regulator"

.

4. Remove the door harness.
5. Remove the check link bolt from the hinge pillar.

6. Remove the door-side hinge nuts, and remove the door assem-

bly.

Installation is in the reverse order of removal.

BACK DOOR

1. Remove the glass hatch. Refer to

GW-24, "Removal and Installation"

.

2. Remove the license lamp finisher. Refer to

EXT-21, "Removal and Installation"

.

3. Remove the back door lock assembly. Refer to

DLK-203, "Component Structure"

.

4. Remove the back door wire harness.
5. Remove the rear washer nozzle and hose from the back door. Refer to

WW-83, "Removal and Installa-

tion"

CAUTION:

Two technicians should be used to avoid damaging the back door during removal.

6. Support the back door.
7. Remove the back door stays.
8. Remove the door side nuts and the back door assembly.

LIIA1726E

LIIA1727E

WIIA1056E

2010 Pathfinder

DLK-198

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

DOOR

Installation is in the reverse order of removal.

• Align the back door. Refer to

DLK-194, "Fitting Adjustment"

.

2010 Pathfinder

FRONT DOOR LOCK

DLK-199

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

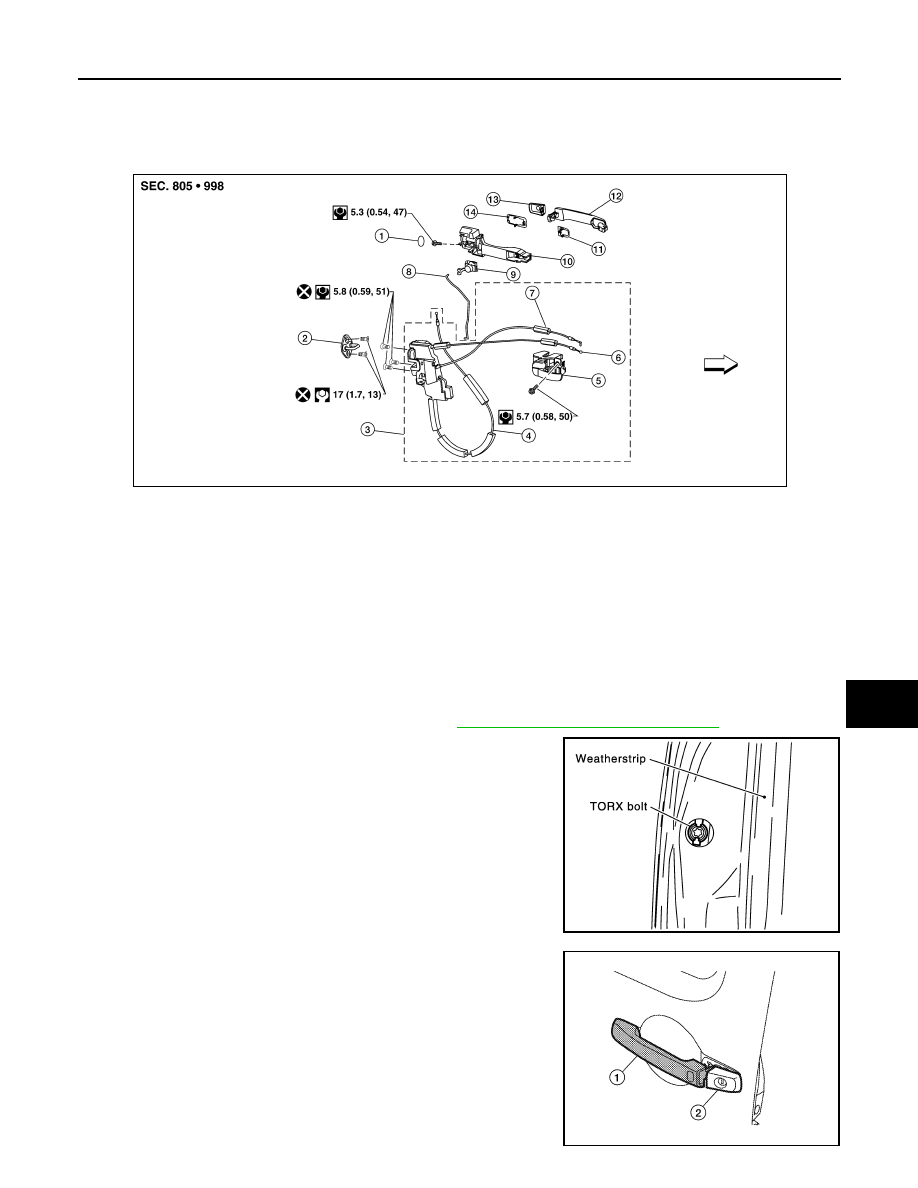

FRONT DOOR LOCK

Component Structure

INFOID:0000000005260010

Removal and Installation

INFOID:0000000005260011

REMOVAL

1. Remove the front door window regulator. Refer to

GW-15, "Front Door Glass Regulator"

.

2. Remove door side grommet, and remove door key cylinder

assembly (driver side) or outside handle escutcheon (passenger

side) bolts (TORX T30) from grommet hole.

3. While pulling the outside handle (1), remove door key cylinder

assembly or escutcheon (2).

1.

Grommet

2.

Front door striker

3.

Door lock assembly

4.

Outside handle cable

5.

Inside handle assembly

6.

Inside handle cable

7.

Door lock cable

8.

Key cylinder rod (Driver side only)

9.

Door key cylinder

10. Outside handle bracket

11. Front gasket

12. Outside handle

13. Door key cylinder assembly (Driver

side) Outside handle escutcheon
(Passenger side)

14. Rear gasket

⇐

Vehicle front

WIIA0736E

PIIA3553E

ALKIA0922ZZ

2010 Pathfinder

DLK-200

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

FRONT DOOR LOCK

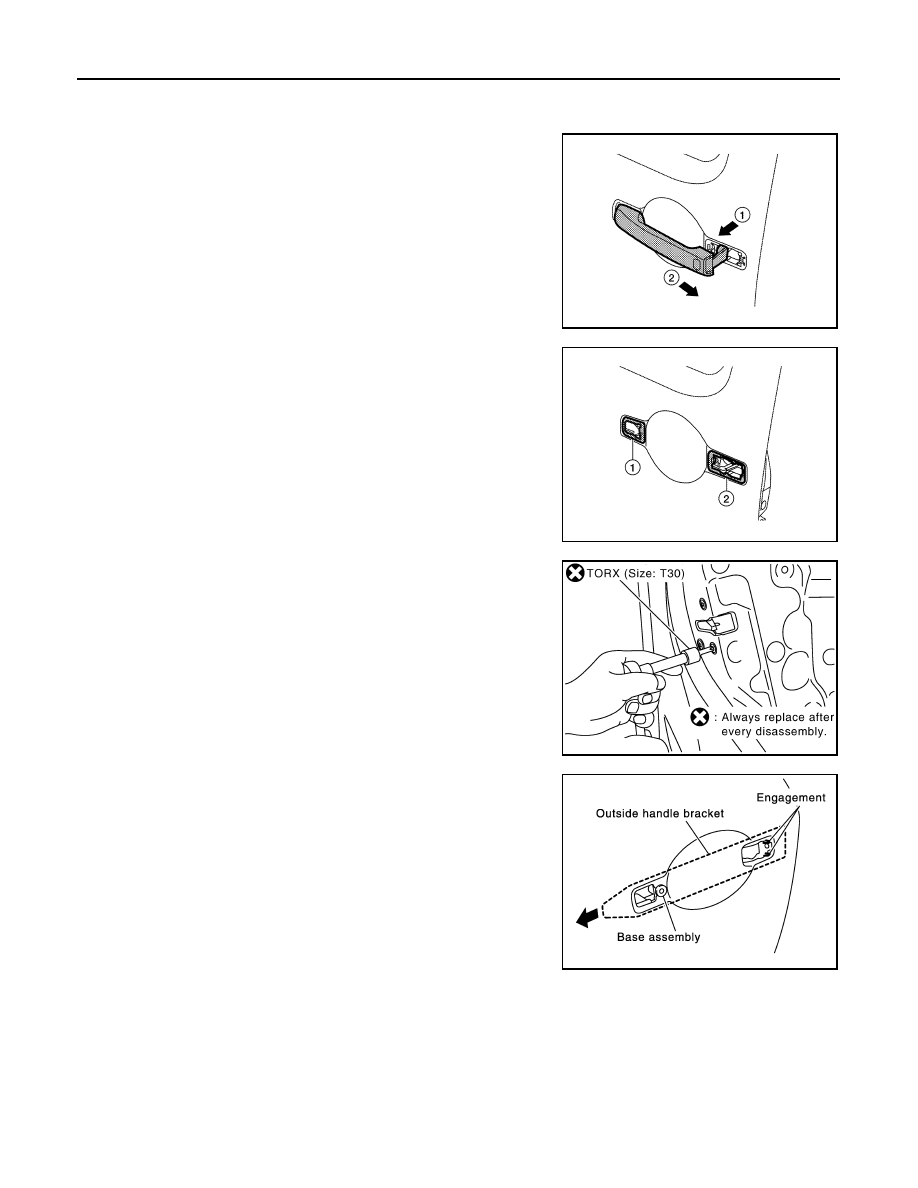

4. If equipped, separate the door key cylinder rod from the door key cylinder assembly.
5. Disconnect the intelligent key electrical connectors.
6. While pulling outside handle (1), slide toward rear of vehicle (2)

to remove outside handle.

7. Remove the front gasket (1) and rear gasket (2).

8. Remove the TORX bolts (T30), remove the door lock assembly.

9. While pulling outside handle bracket, slide toward rear of vehicle

to remove outside handle bracket and door lock assembly as

shown.

10. Disconnect the door lock actuator electrical connector.

ALKIA0923ZZ

ALKIA0924ZZ

PIIA1090E

PIIA3558E

2010 Pathfinder

FRONT DOOR LOCK

DLK-201

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

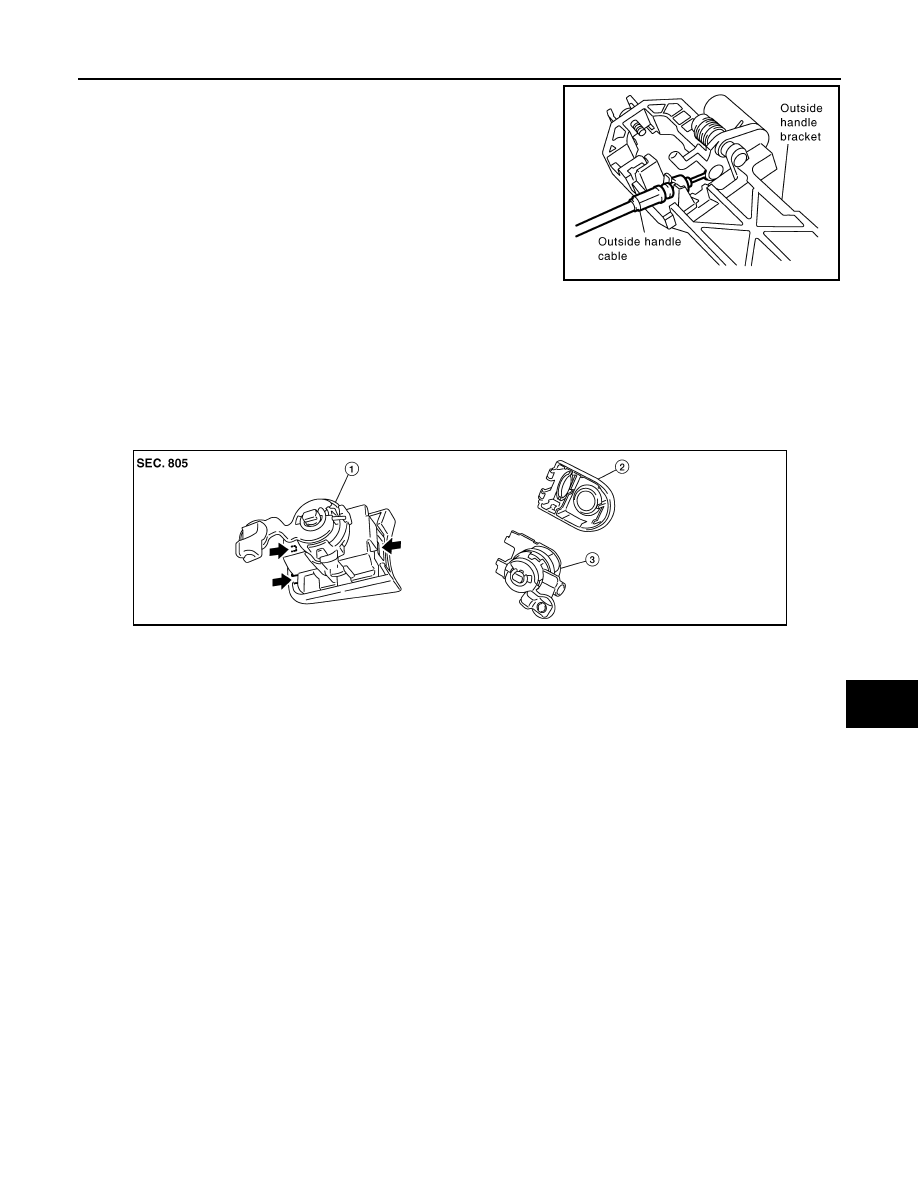

11. Separate the outside handle cable connection from the outside

handle bracket.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

To install the key cylinder rod, be sure to rotate the key cylinder rod holder until a click is felt.

Disassembly and Assembly

INFOID:0000000005260012

DOOR KEY CYLINDER ASSEMBLY

Release the key cylinder escutcheon pawls to remove the door key cylinder.

PIIA5059E

1.

Door key cylinder assembly

2.

Door key cylinder escutcheon

3.

Door key cylinder

⇐

Pawl

WIIA1057E

2010 Pathfinder

DLK-202

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

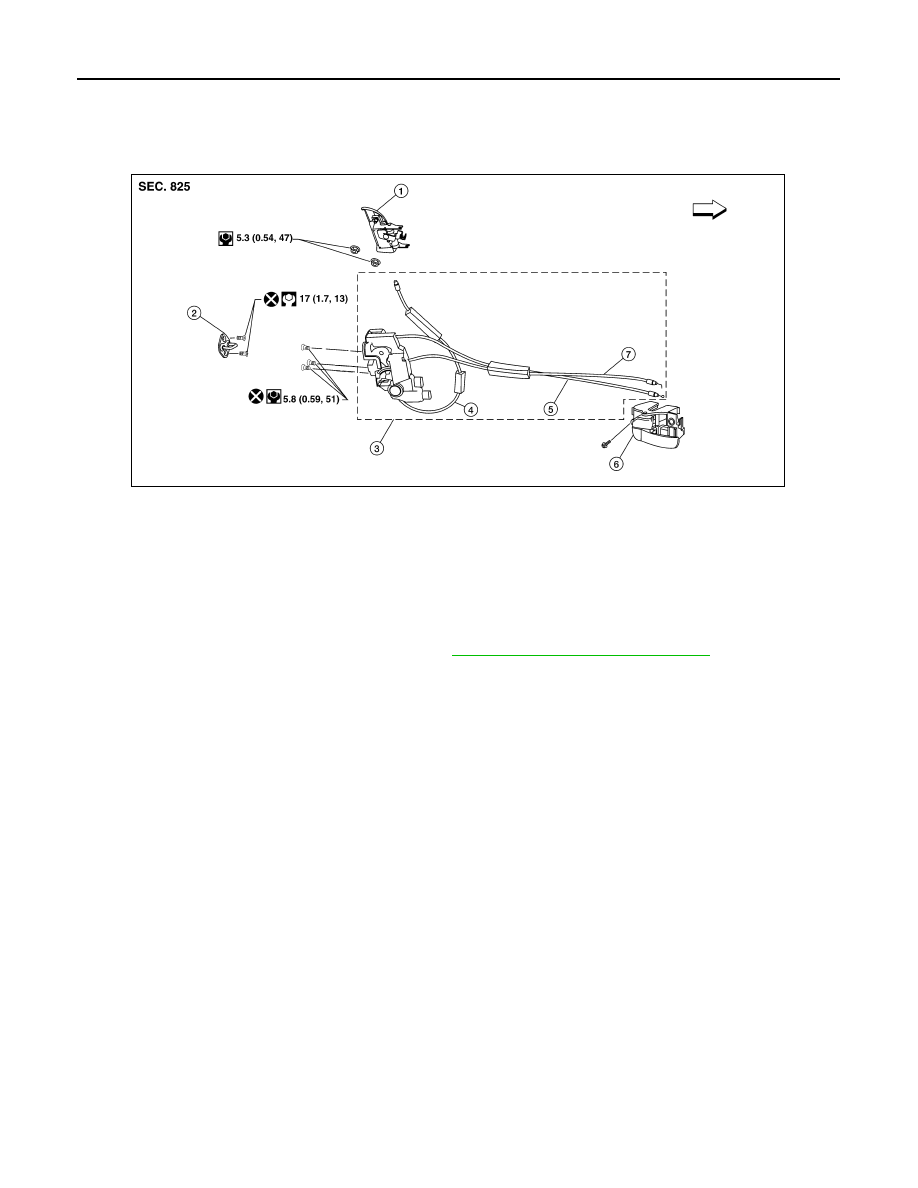

REAR DOOR LOCK

REAR DOOR LOCK

Component Structure

INFOID:0000000005260013

Removal and Installation

INFOID:0000000005260014

REMOVAL

1. Remove the rear door window regulator. Refer to

GW-19, "Rear Door Glass Regulator"

.

2. Remove door grommets, and remove outside handle nuts from the hole.
3. Remove outside handle.
4. Disconnect the outside handle cable connection.
5. Remove the inside door handle.
6. Disconnect the door lock and inside door handle cables from the inside door handle.
7. Disconnect the door lock actuator connector and remove the assembly.

INSTALLATION

Installation is in the reverse order of removal.

1.

Outside door handle

2.

Rear door striker

3.

Rear door lock assembly

4.

Outside door handle cable

5.

Inside door handle cable

6.

Inside door handle assembly

7.

Door lock cable

⇐

Vehicle front

WIIA0737E
