PRECAUTIONS

DLK-187

< PRECAUTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

5. When the repair work is completed, return the ignition switch to the

″

LOCK

″

 position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6. Perform a self-diagnosis check of all control units using CONSULT-III.

Precaution for work

INFOID:0000000005260001

• After removing and installing the opening/closing parts, be sure to carry out fitting adjustments to check their

operation.

• Check the lubrication level, damage, and wear of each part. If necessary, grease or replace it.

2010 Pathfinder

DLK-188

< PREPARATION >

[WITH INTELLIGENT KEY SYSTEM]

PREPARATION

PREPARATION

PREPARATION

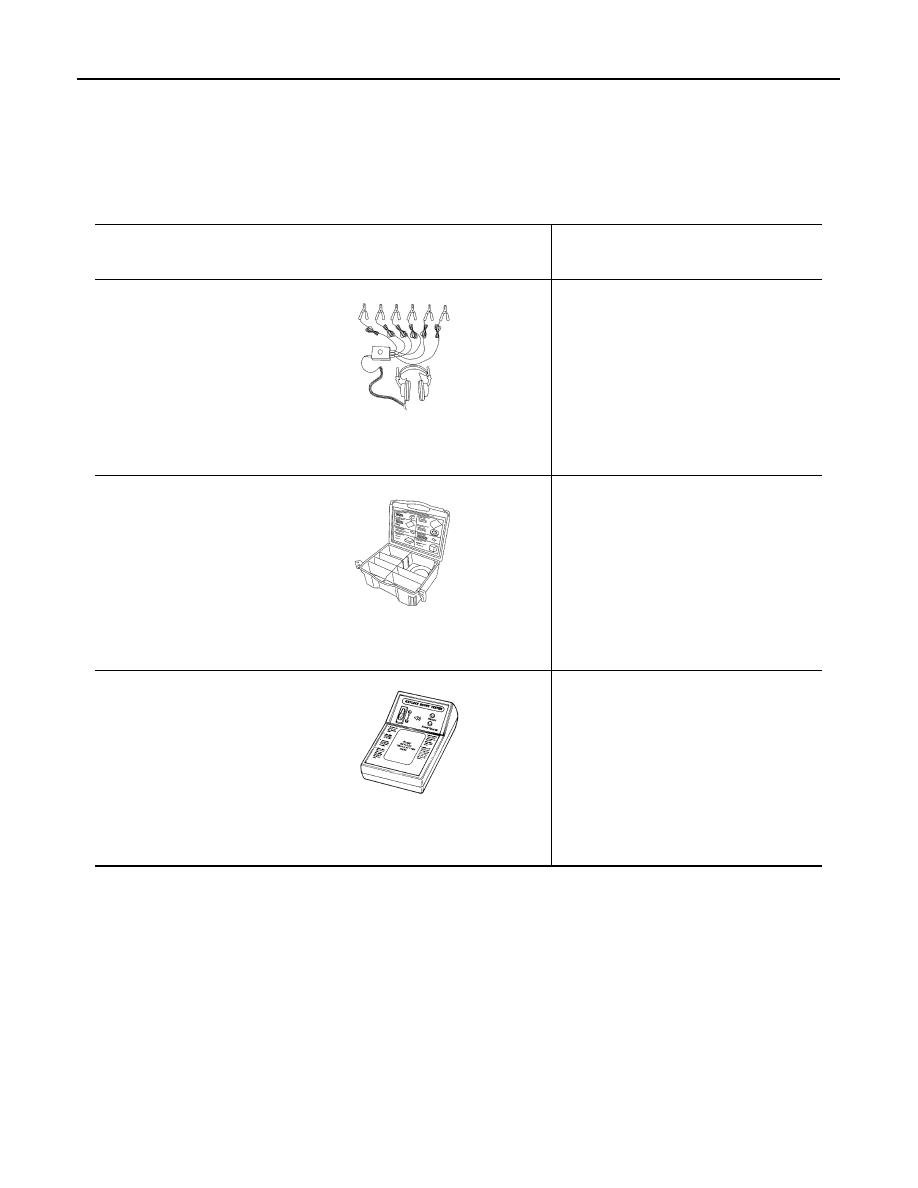

Special Service Tool

INFOID:0000000005260002

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-39570)
Chassis ear

Locating the noise

—

(J-43980)
NISSAN Squeak  and Rat-
tle  Kit

Repairing the cause of noise

—

(J-43241)
Remote Keyless Entry
Tester

Used to test keyfobs

SIIA0993E

SIIA0994E

LEL946A

2010 Pathfinder

PREPARATION

DLK-189

< PREPARATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Commercial Service Tool

INFOID:0000000005260003

(Kent-Moore No.)
Tool name

Description

(J-39565)
Engine ear

Locating the noise

SIIA0995E

2010 Pathfinder

DLK-190

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

HOOD

ON-VEHICLE REPAIR

HOOD

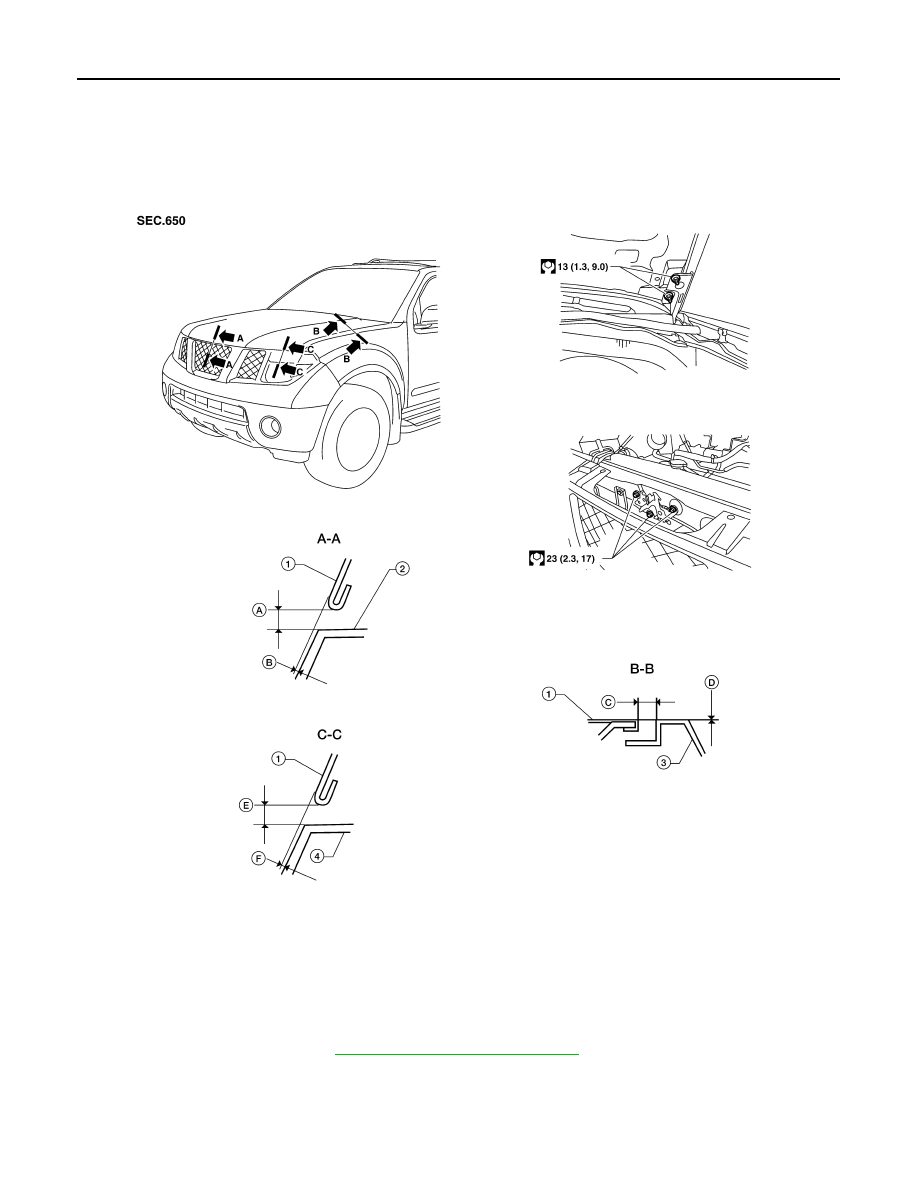

Fitting Adjustment

INFOID:0000000005260004

CLEARANCE AND SURFACE HEIGHT ADJUSTMENT

1. Remove the front grille. Refer to

EXT-18, "Removal and Installation"

.

2. Loosen the hood lock assembly and adjust the rubber bumpers until the surface height of the hood

becomes 1 mm (0.04 in) lower than the fender.

3. Engage the hood striker and temporarily tighten.
4. Check the lock and striker for looseness.

1.

Hood

2.

Front grille

3.

Front fender

4.

Headlamp assembly

A.

6.0 mm (0.24 in)

B.

0.7 mm (0.03 in)

C.

4.5 mm (0.18 in)

D.

 0.0 mm (0.0 in)

E.

6.0 mm (0.24 in)

F.

0.7 mm (0.03 in)

WIIA0774E

2010 Pathfinder

HOOD

DLK-191

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

5. Tighten the bolts to specification.
6. Adjust the surface height of the hood according to the fitting standard dimension by rotating right and left

rubber bumpers.

7. Install the front grille. Refer to

EXT-18, "Removal and Installation"

.

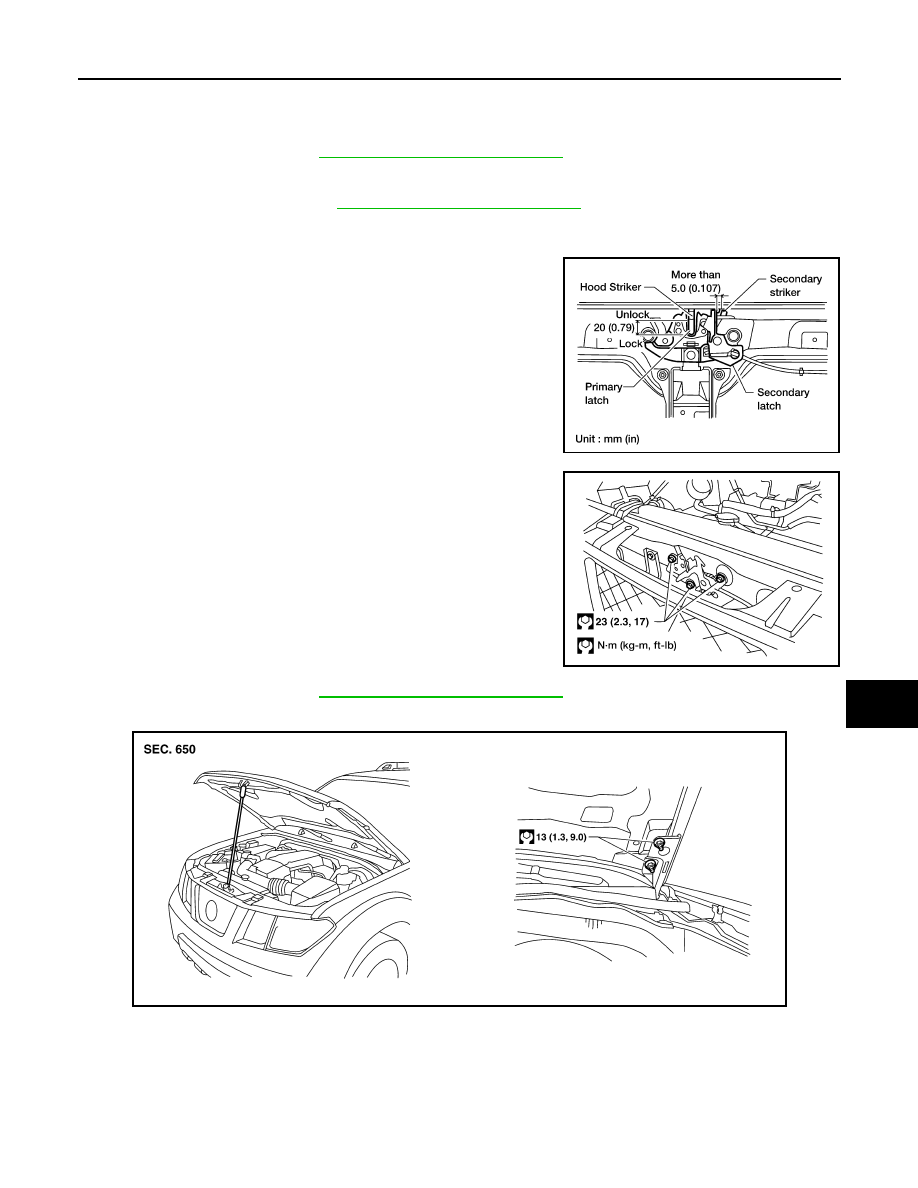

HOOD LOCK ADJUSTMENT

1. Remove the front grille. Refer to

EXT-18, "Removal and Installation"

.

2. Move the hood lock to the left or right so that striker center is vertically aligned with hood lock center

(when viewed from vehicle front).

3. Make sure the secondary latch is properly engaged with the sec-

ondary striker with hood's own weight by dropping it from

approx. 200 mm (7.87 in) height or by pressing it lightly approx.

3 kg (29 N, 7lb).

CAUTION:

Do not drop the hood from 300 mm (11.81 in) height or

higher.

4. After adjusting hood lock, tighten the lock bolts to the specified

torque.

5. Install the front grille. Refer to

EXT-18, "Removal and Installation"

.

Removal and Installation of Hood Assembly

INFOID:0000000005260005

1. Support the hood striker with suitable tool to prevent it from falling.
2. Remove the hinge nuts from the hood to remove the hood assembly.

CAUTION:

Operate with two workers, because of its heavy weight.

Installation is in the reverse order of removal.

LIIA1696E

LIIA1701E

WIIA1055E

2010 Pathfinder

DLK-192

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

HOOD

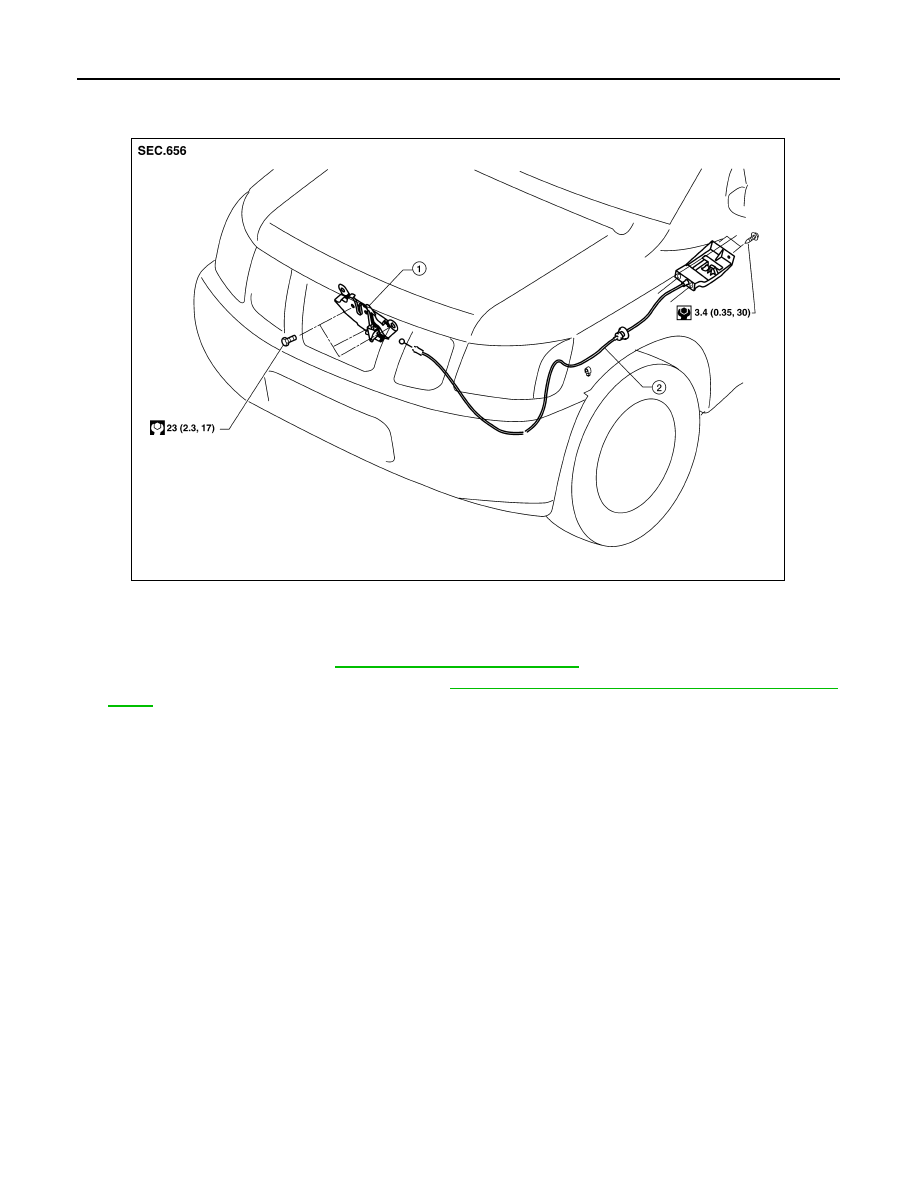

Removal and Installation of Hood Lock Control

INFOID:0000000005260006

REMOVAL

1. Remove the front grille. Refer to

EXT-18, "Removal and Installation"

.

2. Remove the front fender protector (LH). Refer to

EXT-23, "Removal and Installation of Front Fender Pro-

tector"

.

3. Disconnect the hood lock cable from the hood lock, and unclip it from the radiator core support upper and

hoodledge.

4. Remove the bolts, and the hood release handle.
5. Separate the grommet from the lower dash panel. Pull the hood lock cable out through the passenger

compartment.

CAUTION:

While pulling, be careful not to damage the outside of the hood lock cable.

INSTALLATION

1. Pull the hood lock cable through the lower dash panel hole into the engine room.

1.

Hood lock assembly

2.

Hood lock cable

WIIA0775E

2010 Pathfinder

HOOD

DLK-193

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

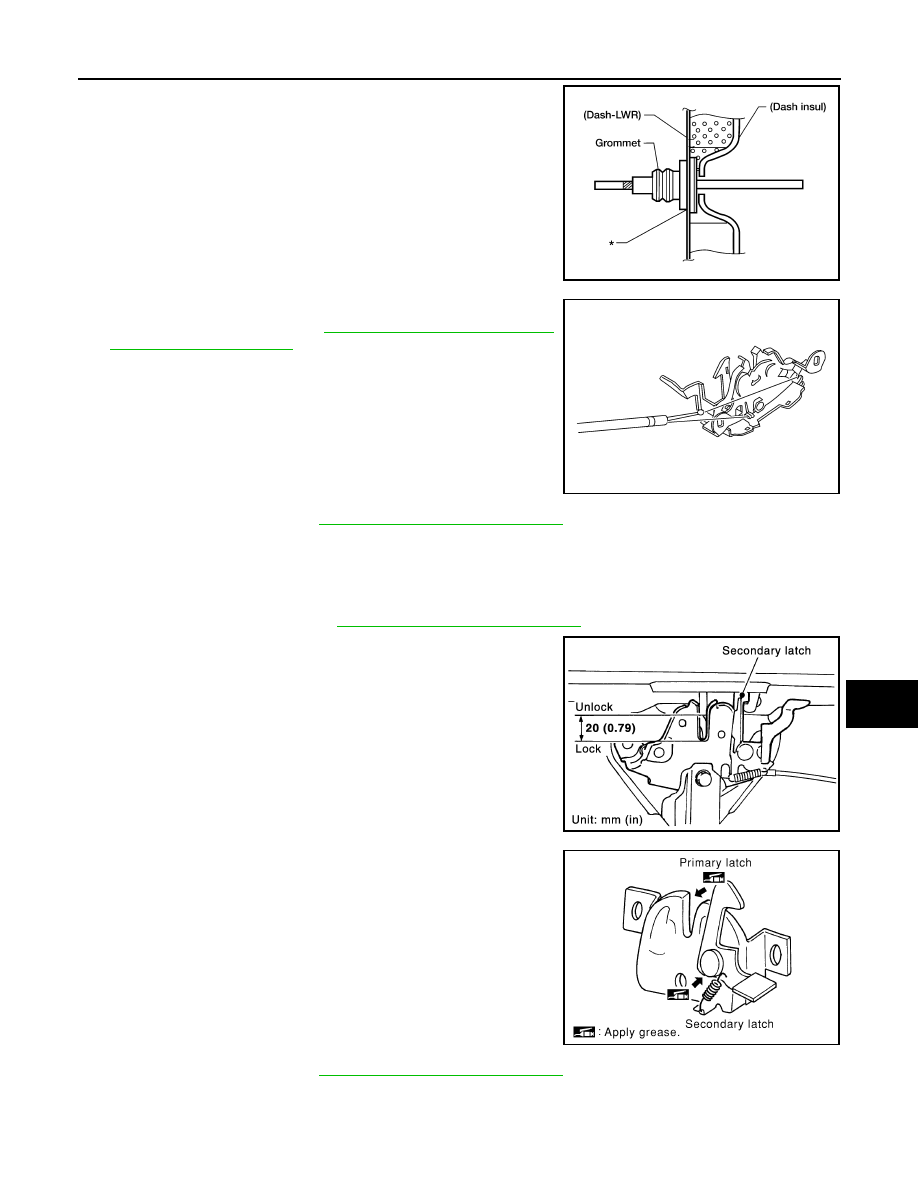

Be careful not to bend the cable too much, keep the radius

100mm (3.94 in) or more.

2. Make sure the cable is not offset from the grommet, and push

the grommet into the lower dash panel hole securely.

3. Apply sealant around the grommet at * mark.

4. Install the cable securely to the lock.
5. Adjust the hood lock. Refer to

DLK-192, "Removal and Installa-

tion of Hood Lock Control"

.

6. Install the front grille. Refer to

EXT-18, "Removal and Installation"

.

Hood Lock Control Inspection

INFOID:0000000005260007

CAUTION:

If the hood lock cable is bent or deformed, replace it.

1. Remove the front grille. Refer to

EXT-18, "Removal and Installation"

.

2. Make sure the secondary latch is properly engaged with the sec-

ondary striker with hood's own weight by dropping it from

approx. 200 mm (7.87 in) height.

3. While operating the hood opener, carefully make sure the front

end of the hood is raised by approx. 20 mm (0.79 in). Also make

sure the hood opener returns to the original position.

4. Check the hood lock lubrication condition. If necessary, apply

“body grease” to the points shown.

5. Install the front grille. Refer to

EXT-18, "Removal and Installation"

.

LIIA1698E

LIIA1699E

PIIA1086E

PIIA0176E

2010 Pathfinder

DLK-194

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

DOOR

DOOR

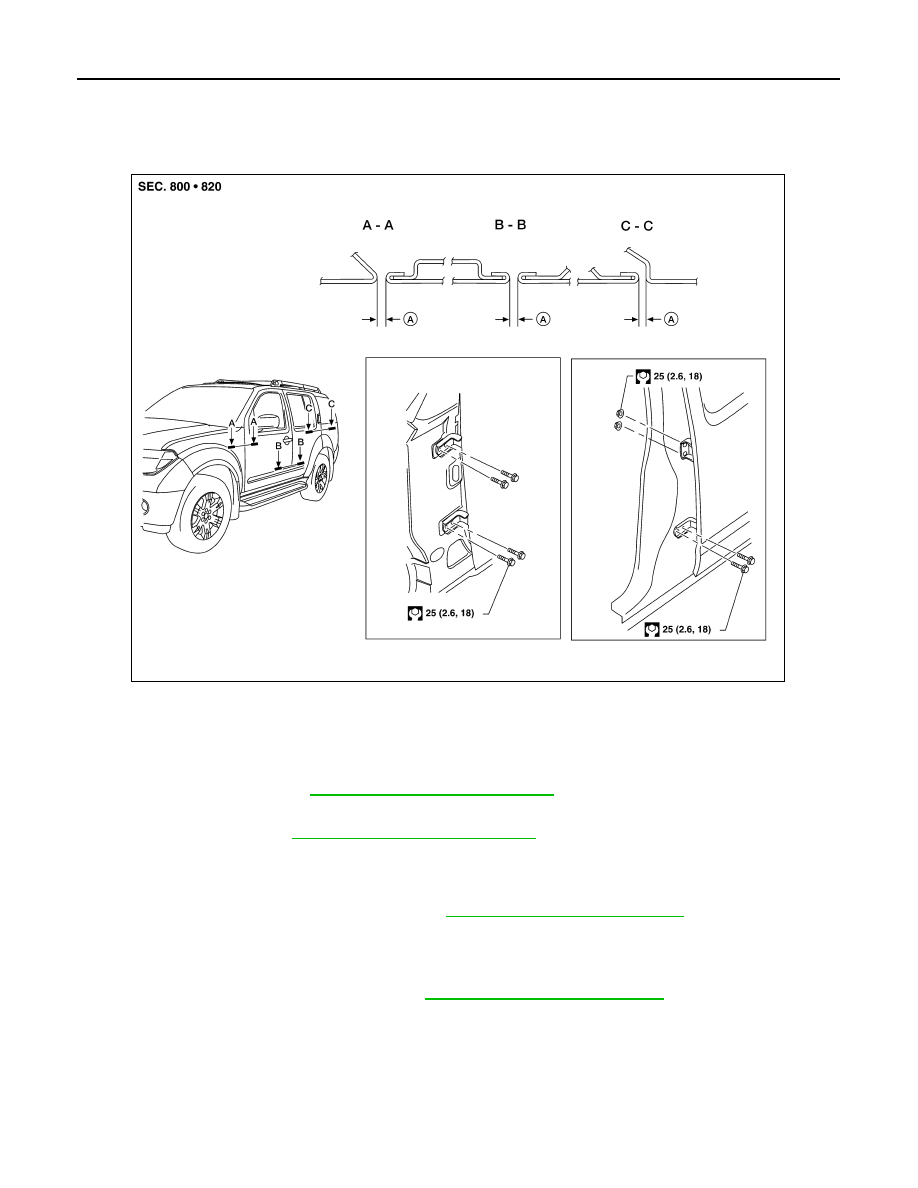

Fitting Adjustment

INFOID:0000000005260008

Front door

Longitudinal clearance and surface height adjustment at front end

1. Remove the fender. Refer to

EXT-20, "Removal and Installation"

.

2. Loosen the hinge bolts. Raise or lower the front door at rear end to adjust.
3. Install the fender. Refer to

EXT-20, "Removal and Installation"

.

Rear door

Longitudinal clearance and surface height adjustment at front end

1. Remove the center pillar upper finisher. Refer to

INT-17, "Removal and Installation"

.

2. Loosen the lower hinge bolts.
3. From inside the vehicle, loosen the upper hinge nuts. Open the door, and raise or lower the rear end of the

door to adjust.

4. Install the center pillar lower finisher. Refer to

INT-17, "Removal and Installation"

.

Back door

Longitudinal clearance and surface height adjustment

A.

4.5

±

 1.0 mm (0.177

±

 0.039 in)

WIIA0732E
