FRONT TWEETER

Description

INFOID:0000000005259601

The AV control unit sends audio signals to the BOSE speaker amp. The BOSE speaker amp. amplifies the

audio signals before sending them to the tweeters using the audio signal circuits.

Diagnosis Procedure

INFOID:0000000005259602

Regarding Wiring Diagram information, refer to

AV-414, "Wiring Diagram"

.

1.

HARNESS CHECK

1. Disconnect BOSE speaker amp. connector B75 and suspect

tweeter connector.

2. Check continuity between BOSE speaker amp. harness connec-

tor B75 (A) and suspect tweeter harness connector (B).

3. Check continuity between BOSE speaker amp. harness connec-

tor B75 (A) and ground.

Are continuity test results as specified?

YES

>> GO TO 2

NO

>> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

2.

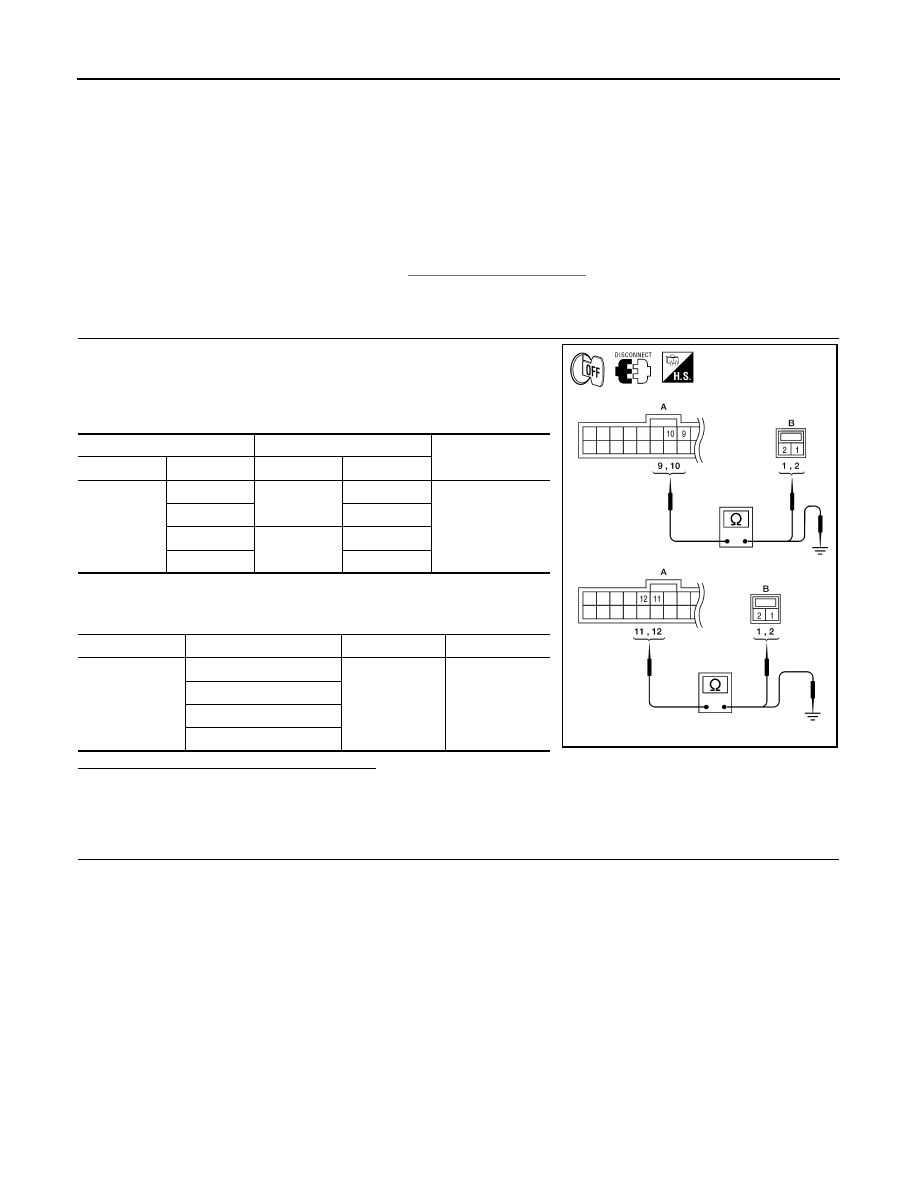

FRONT TWEETER SIGNAL CHECK

A B

Continuity

Connector

Terminal

Connector

Terminal

B75

13

M109

1

Yes

14

2

15

M111

1

16

2

A

Continuity

Connector

Terminal

B75

13

Ground

No

14

15

16

ALNIA0530GB

2010 Pathfinder

2010 Pathfinder

AV-392

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

FRONT TWEETER

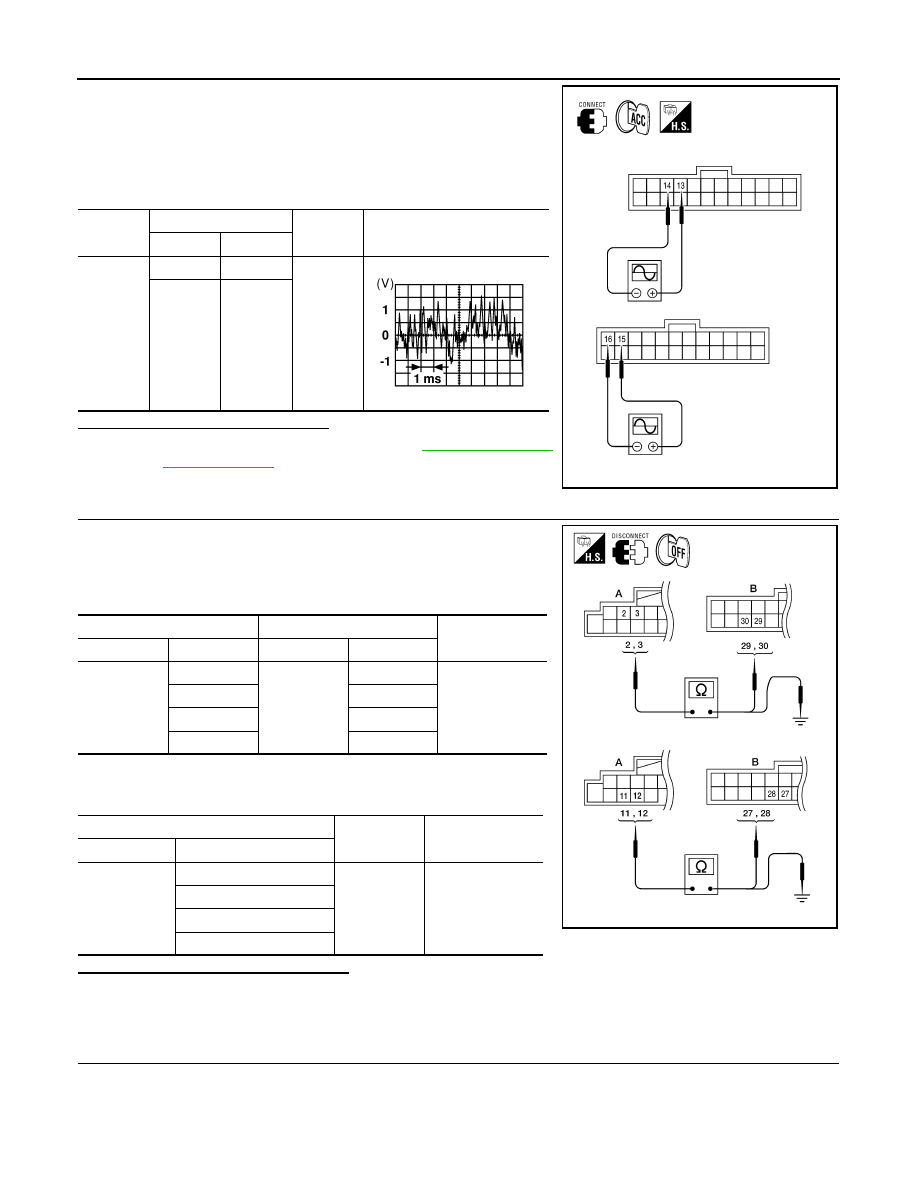

1. Connect BOSE speaker amp. connector B75 and suspect

tweeter connector.

2. Turn ignition switch to ACC.

3. Push “POWER” switch.

4. Check the signal between BOSE speaker amp. harness connec-

tor B75 terminals with CONSULT-III or oscilloscope.

Is audio signal voltage as specified?

YES

>> Replace suspect tweeter. Refer to

AV-463, "Removal

and Installation"

.

NO

>> GO TO 3

3.

HARNESS CHECK

1. Disconnect AV control unit connector M39 and BOSE speaker

amp. connector B75.

2. Check continuity between AV control unit harness connector

M39 (A) and BOSE speaker amp. harness connector B75 (B).

3. Check continuity between AV control unit harness connector

M39 (A) and ground.

Are continuity test results as specified?

YES

>> GO TO 4

NO

>> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

4.

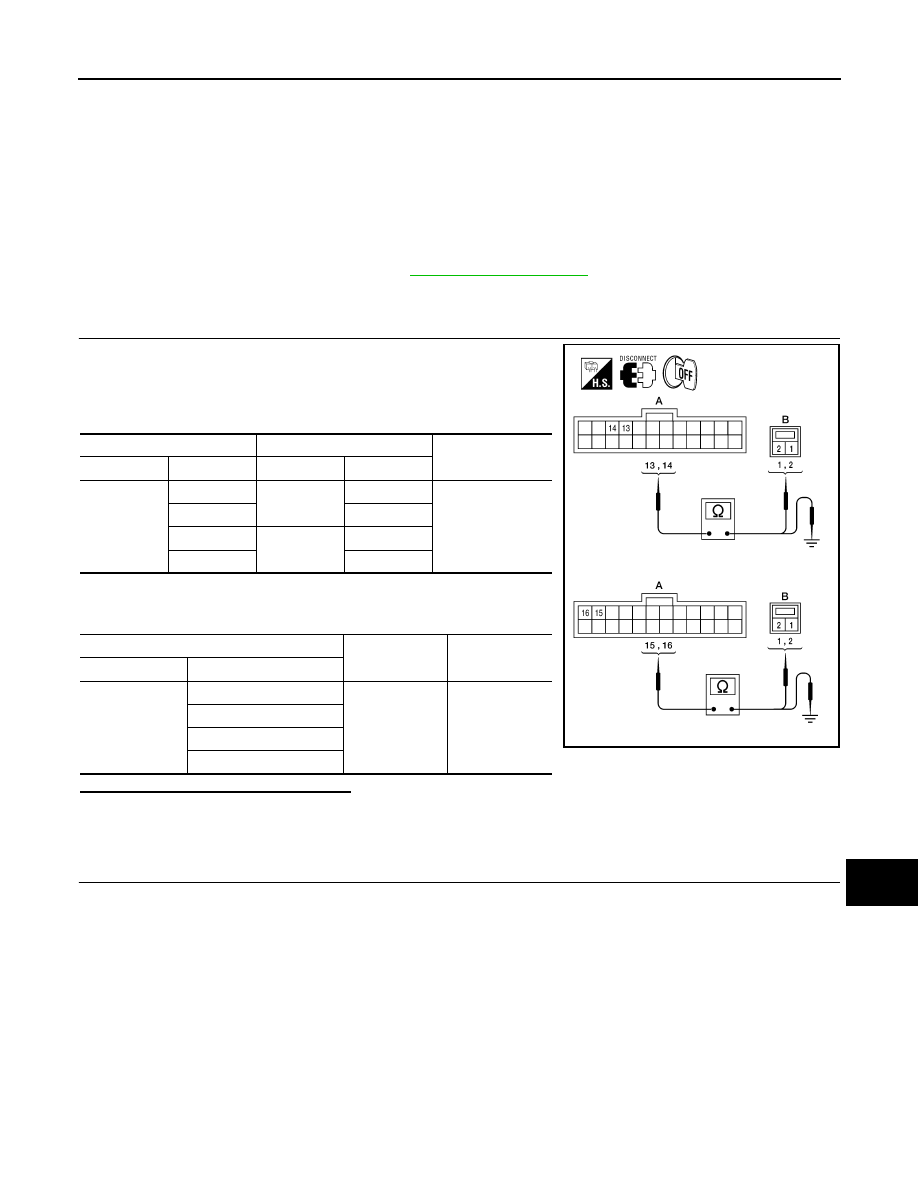

FRONT TWEETER SIGNAL CHECK

Connec-

tor

Terminal

Condition

Reference

signal

(+)

(-)

B75

13

14

Receive
audio sig-
nal

15

16

ALNIA0531GB

SKIA0177E

A

B

Continuity

Connector

Terminal

Connector

Terminal

M39

2

B75

30

Yes

3

29

11

28

12

27

Continuity

Connector

Terminal

M39

2

Ground

No

3

11

12

ALNIA0550GB

2010 Pathfinder

2010 Pathfinder

AV

FRONT TWEETER

AV-393

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

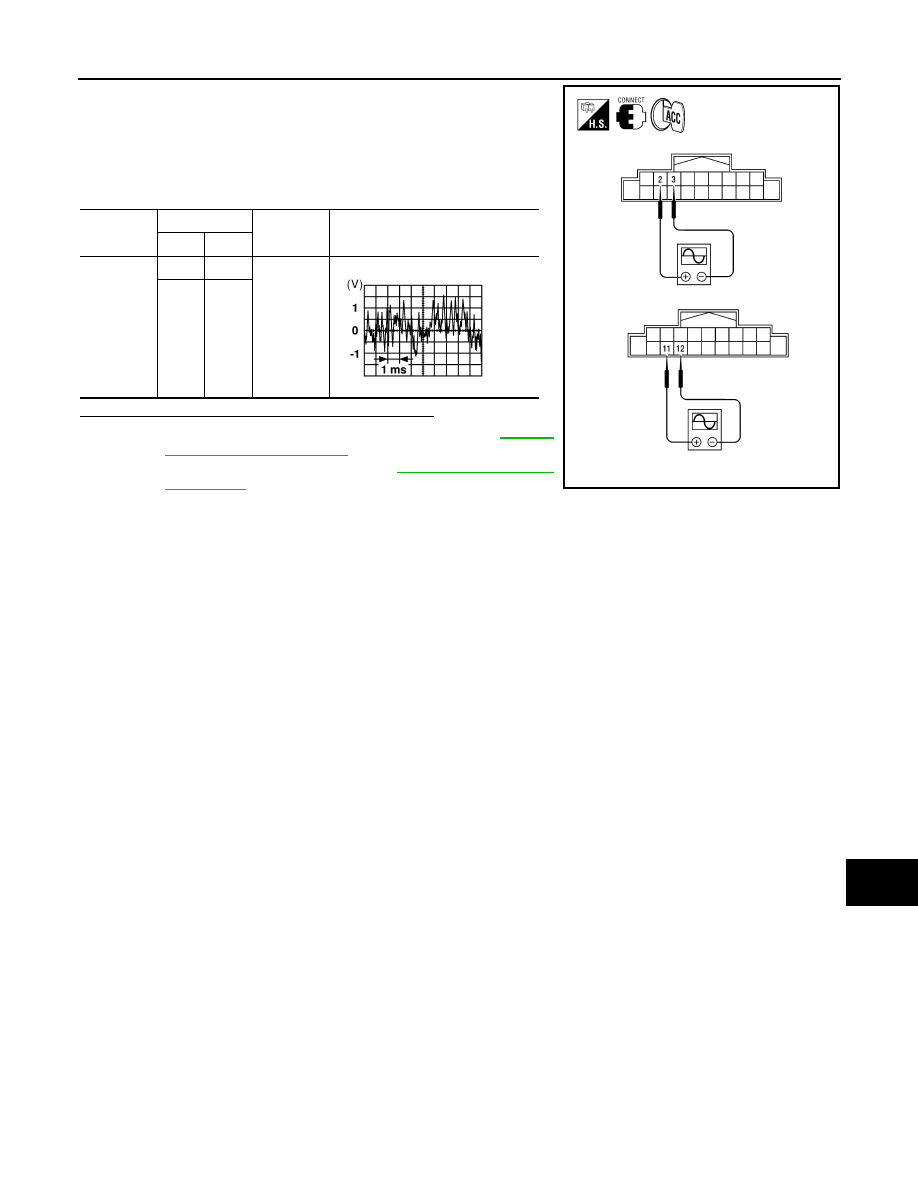

1. Connect AV control unit connector and BOSE speaker amp.

connector.

2. Turn ignition switch ACC.

3. Push “POWER” switch.

4. Check the signal between AV control unit harness connector

M39 terminals with CONSULT-III or oscilloscope.

Are the audio signal voltage readings as specified?

YES

>> Replace BOSE speaker amp. Refer to

AV-466,

"Removal and Installation"

.

NO

>> Replace AV control unit. Refer to

AV-460, "Removal and

Installation"

.

Connector

Terminals

Condition

Reference

signal

(+)

(-)

M39

2

3

Receive
audio sig-
nal

11

12

AWNIA0032ZZ

SKIA0177E

2010 Pathfinder

2010 Pathfinder

AV-394

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

REAR DOOR SPEAKER

REAR DOOR SPEAKER

Description

INFOID:0000000005259603

The AV control unit sends audio signals to the BOSE speaker amp. The BOSE speaker amp. amplifies the

audio signals before sending them to the rear door speakers using the audio signal circuits.

Diagnosis Procedure

INFOID:0000000005259604

Regarding Wiring Diagram information, refer to

AV-414, "Wiring Diagram"

.

1.

HARNESS CHECK

1. Disconnect BOSE speaker amp. connectors B75 and suspect

speaker connector.

2. Check continuity between BOSE speaker amp. harness connec-

tors B75 (A) and  suspect speaker harness connector (B).

3. Check continuity between BOSE speaker amp. harness connec-

tors B75 (A) and ground.

Are the continuity test results as specified?

YES

>> GO TO 2

NO

>> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

2.

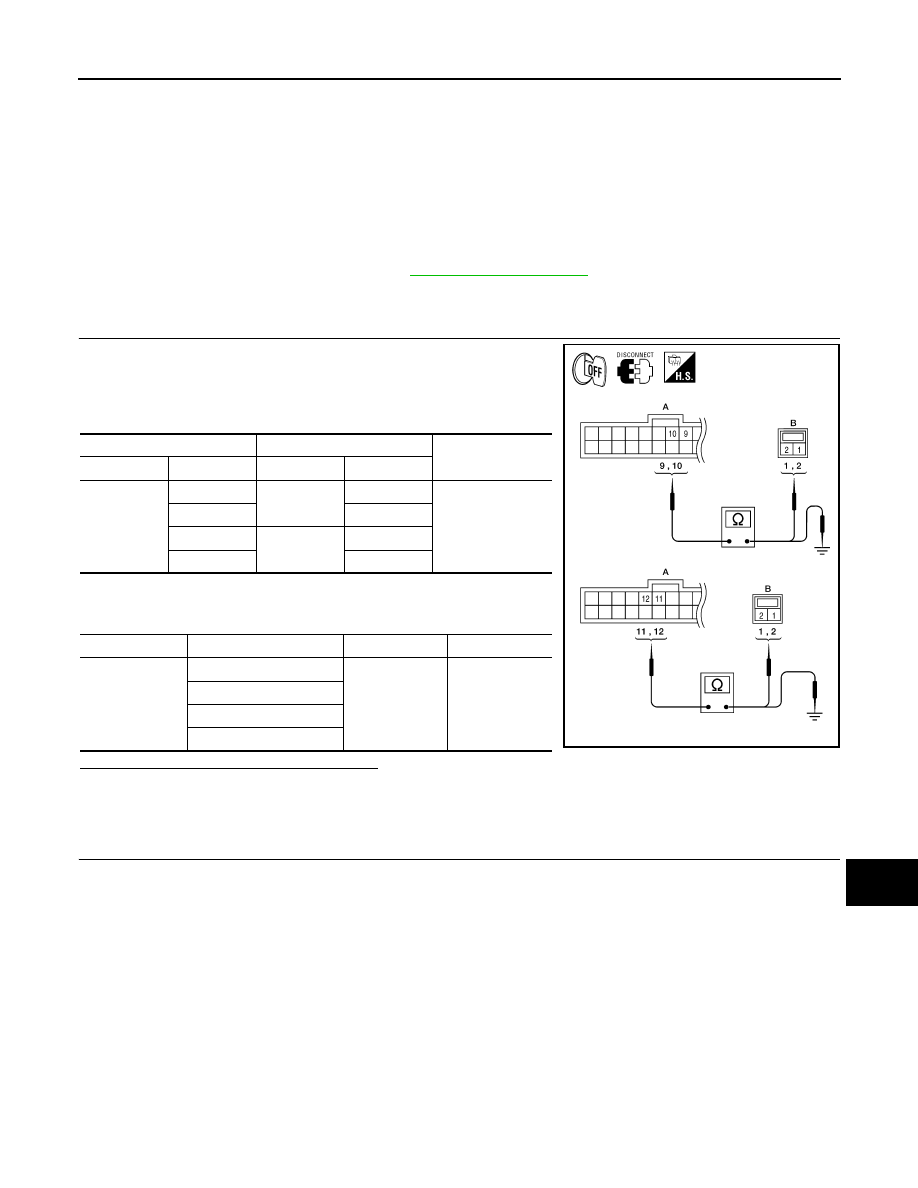

REAR DOOR SPEAKER SIGNAL CHECK

A

B

Continuity

Connector

Terminal

Connector

Terminal

B75

9

D207

1

Yes

10

2

11

D307

1

12

2

Connector

Terminal

-

Continuity

B75

9

Ground

No

10

11

12

ALNIA0533GB

2010 Pathfinder

2010 Pathfinder

AV

REAR DOOR SPEAKER

AV-395

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

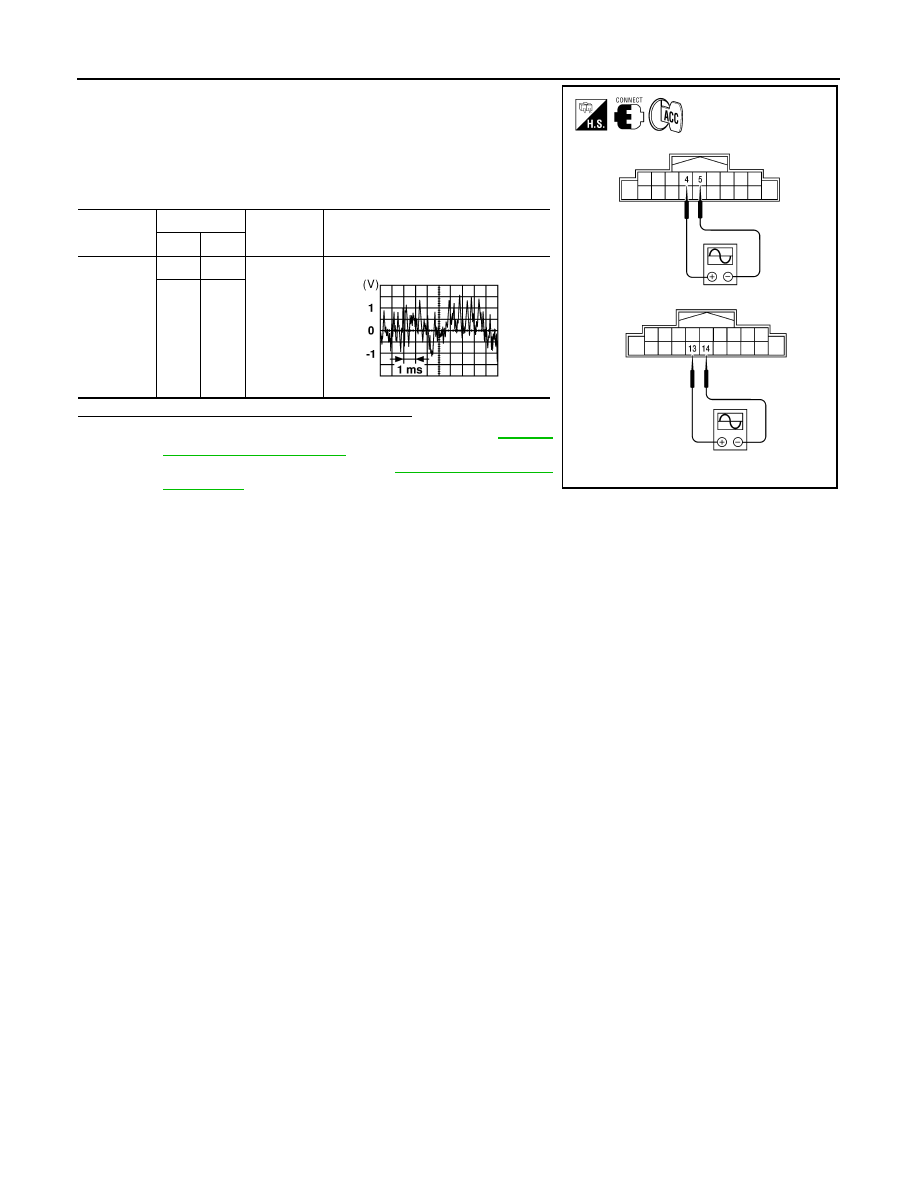

1. Connect BOSE speaker amp. connectors and suspect speaker

connector.

2. Turn ignition switch to ACC.

3. Push “POWER” switch.

4. Check the signal between BOSE speaker amp. harness connec-

tors B75 terminals with CONSULT-III or oscilloscope.

Are audio signal voltage readings as specified?

YES

>> Replace suspect speaker. Refer to

AV-464, "Removal

and Installation"

.

NO

>> GO TO 3

3.

HARNESS CHECK

1. Disconnect AV control unit connector M39 and BOSE speaker

amp. connector B75.

2. Check continuity between AV control unit harness connector

M39 (A) and BOSE speaker amp. harness connector B75 (B).

3. Check continuity between AV control unit harness connector

M39 (A) and ground.

Are the continuity test results as specified?

YES

>> GO TO 4

NO

>> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

4.

REAR DOOR SPEAKER SIGNAL CHECK

Connector

Terminals

Condition

Reference

signal

(+)

(-)

B75

9

10

Receive
audio sig-
nal

11

12

ALNIA0534GB

SKIA0177E

A

Continuity

Connector

Terminal

Connector

Terminal

M39

4

B75

26

Yes

5

25

13

24

14

23

A

Continuity

Connector

Terminal

M39

4

Ground

No

5

13

14

ALNIA0551GB

2010 Pathfinder

2010 Pathfinder

AV-396

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

REAR DOOR SPEAKER

1. Connect AV control unit connector M39 and BOSE speaker

amp. connector B75.

2. Turn ignition switch to ACC.

3. Push “POWER” switch.

4. Check the signal between AV control unit harness connector

M39 terminals with CONSULT-III or oscilloscope.

Is the audio signal voltage reading as specified?

YES

>> Replace BOSE speaker amp. Refer to

AV-466,

"Removal and Installation"

.

NO

>> Replace AV control unit. Refer to

AV-460, "Removal and

Installation"

.

Connector

Terminals

Condition

Reference

signal

(+)

(-)

M39

4

5

Receive
audio sig-
nal

13

14

AWNIA0034ZZ

SKIA0177E

2010 Pathfinder

2010 Pathfinder

AV

REAR TWEETER

AV-397

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR TWEETER

Description

INFOID:0000000005259605

The AV control unit sends audio signals to the BOSE speaker amp. The BOSE speaker amp. amplifies the

audio signals before sending them to the rear tweeters using the audio signal circuits.

Diagnosis Procedure

INFOID:0000000005259606

Regarding Wiring Diagram information, refer to

AV-414, "Wiring Diagram"

.

1.

HARNESS CHECK

1. Disconnect BOSE speaker amp. connectors B75 and suspect

tweeter connector.

2. Check continuity between BOSE speaker amp. harness connec-

tors B75 (A) and  suspect tweeter harness connector (B).

3. Check continuity between BOSE speaker amp. harness connec-

tors B75 (A) and ground.

Are the continuity test results as specified?

YES

>> GO TO 2

NO

>> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

2.

REAR TWEETER SIGNAL CHECK

A

B

Continuity

Connector

Terminal

Connector

Terminal

B75

9

D208

1

Yes

10

2

11

D308

1

12

2

Connector

Terminal

-

Continuity

B75

9

Ground

No

10

11

12

ALNIA0533GB

2010 Pathfinder

2010 Pathfinder

AV-398

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

REAR TWEETER

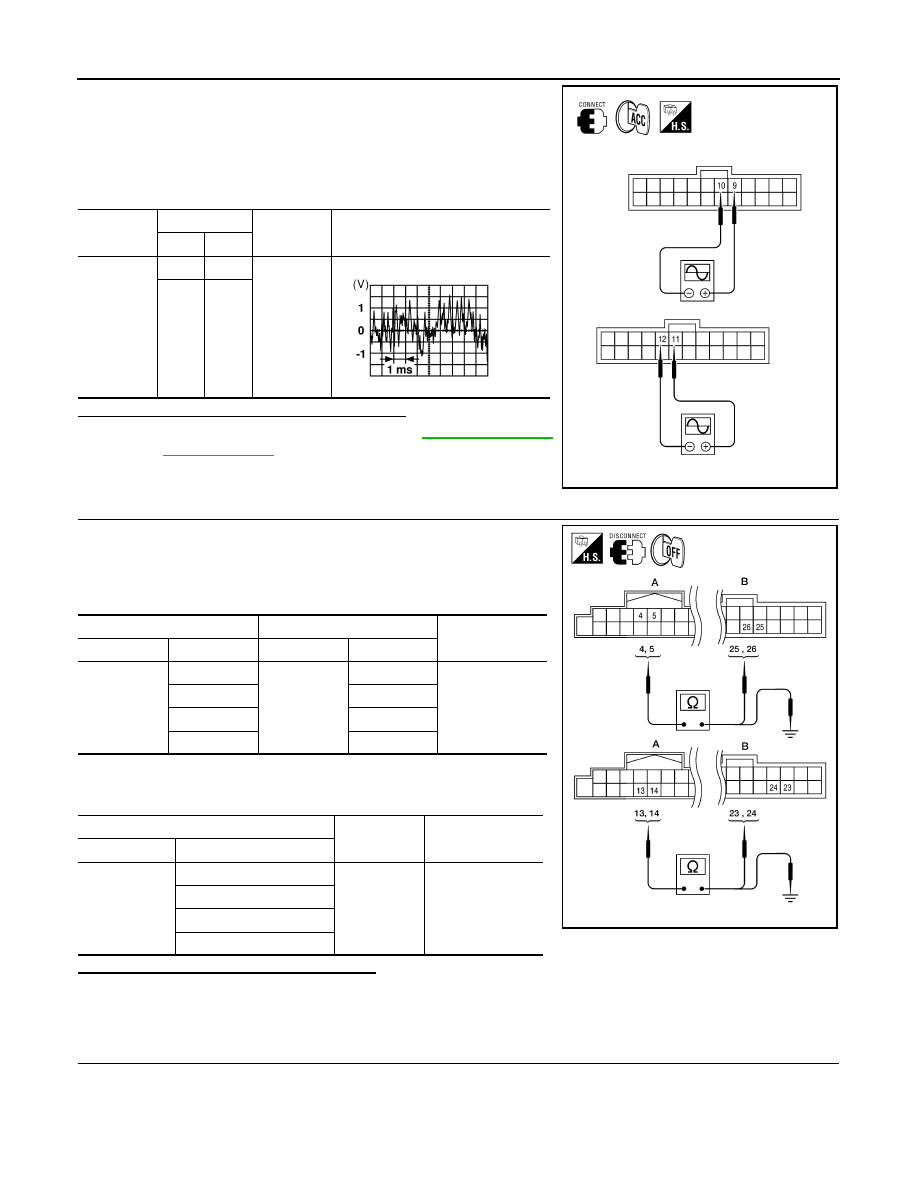

1. Connect BOSE speaker amp. connectors and suspect tweeter

connector.

2. Turn ignition switch to ACC.

3. Push “POWER” switch.

4. Check the signal between BOSE speaker amp. harness connec-

tors B75 terminals with CONSULT-III or oscilloscope.

Are audio signal voltage readings as specified?

YES

>> Replace suspect tweeter. Refer to

AV-465, "Removal

and Installation"

.

NO

>> GO TO 3

3.

HARNESS CHECK

1. Disconnect AV control unit connector M39 and BOSE speaker

amp. connector B75.

2. Check continuity between AV control unit harness connector

M39 (A) and BOSE speaker amp. harness connector B75 (B).

3. Check continuity between AV control unit harness connector

M39 (A) and ground.

Are the continuity test results as specified?

YES

>> GO TO 4

NO

>> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

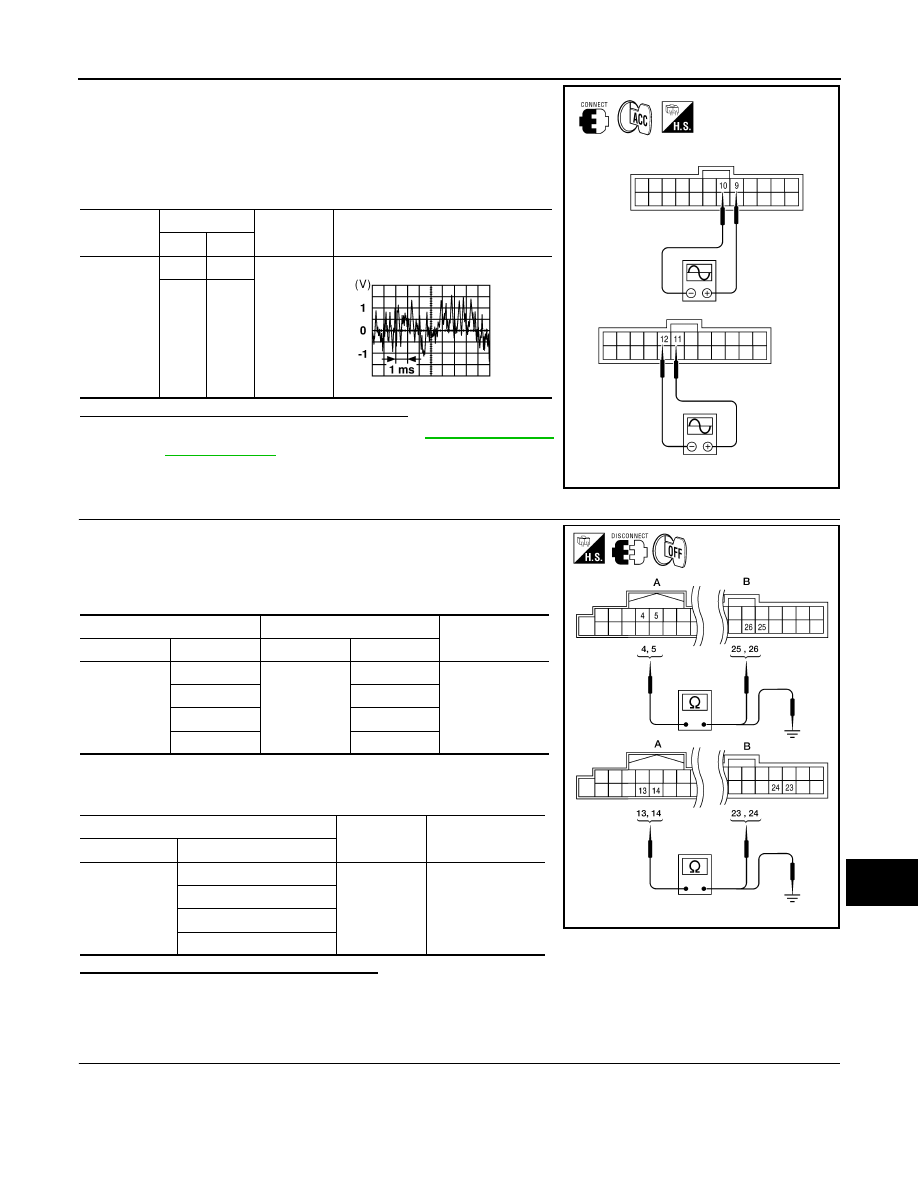

4.

REAR TWEETER SIGNAL CHECK

Connector

Terminals

Condition

Reference

signal

(+)

(-)

B75

9

10

Receive
audio sig-
nal

11

12

ALNIA0534GB

SKIA0177E

A

Continuity

Connector

Terminal

Connector

Terminal

M39

4

B75

26

Yes

5

25

13

24

14

23

A

Continuity

Connector

Terminal

M39

4

Ground

No

5

13

14

ALNIA0551GB
