Nissan Pathfinder (2010 year). Manual - part 61

AV

STEERING SWITCH

AV-295

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

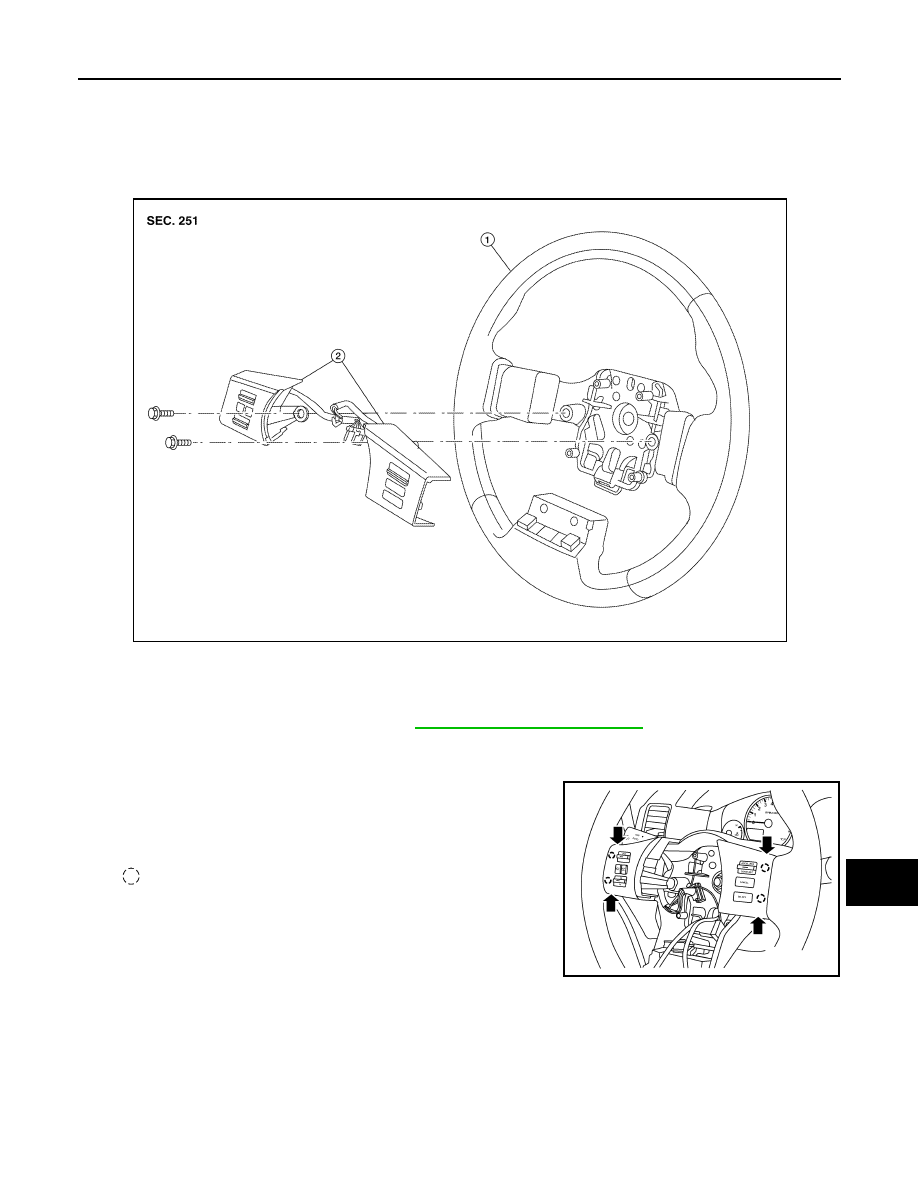

STEERING SWITCH

Removal and Installation

INFOID:0000000005520631

Removal and Installation

REMOVAL

1. Remove the driver air bag module. Refer to

SR-5, "Removal and Installation"

.

2. Remove the steering wheel audio control switch assembly screws.
3. Disconnect the steering wheel audio control switches connector.
4. Remove the steering wheel audio control switches by pulling on

steering wheel audio control switches to release the pawls.

CAUTION:

Do not tilt steering wheel audio control switches during

removal or damage may occur to the pawls.

•

:Pawl

INSTALLATION

Installation is in the reverse order of removal.

1. Steering wheel

2.

Steering wheel audio control switches

ALNIA0357ZZ

ALNIA1214ZZ

2010 Pathfinder

2010 Pathfinder

AV-296

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

MICROPHONE

MICROPHONE

Removal and Installation

INFOID:0000000005259482

REMOVAL

1. Remove the front roof console finisher. Refer to

INT-19, "Removal and Installation"

.

2. Detach the microphone (1) from the front console finisher tabs

(A).

3. Detach the microphone connector (B) and remove the micro-

phone (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0379ZZ

2010 Pathfinder

2010 Pathfinder

AV

TEL ANTENNA

AV-297

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

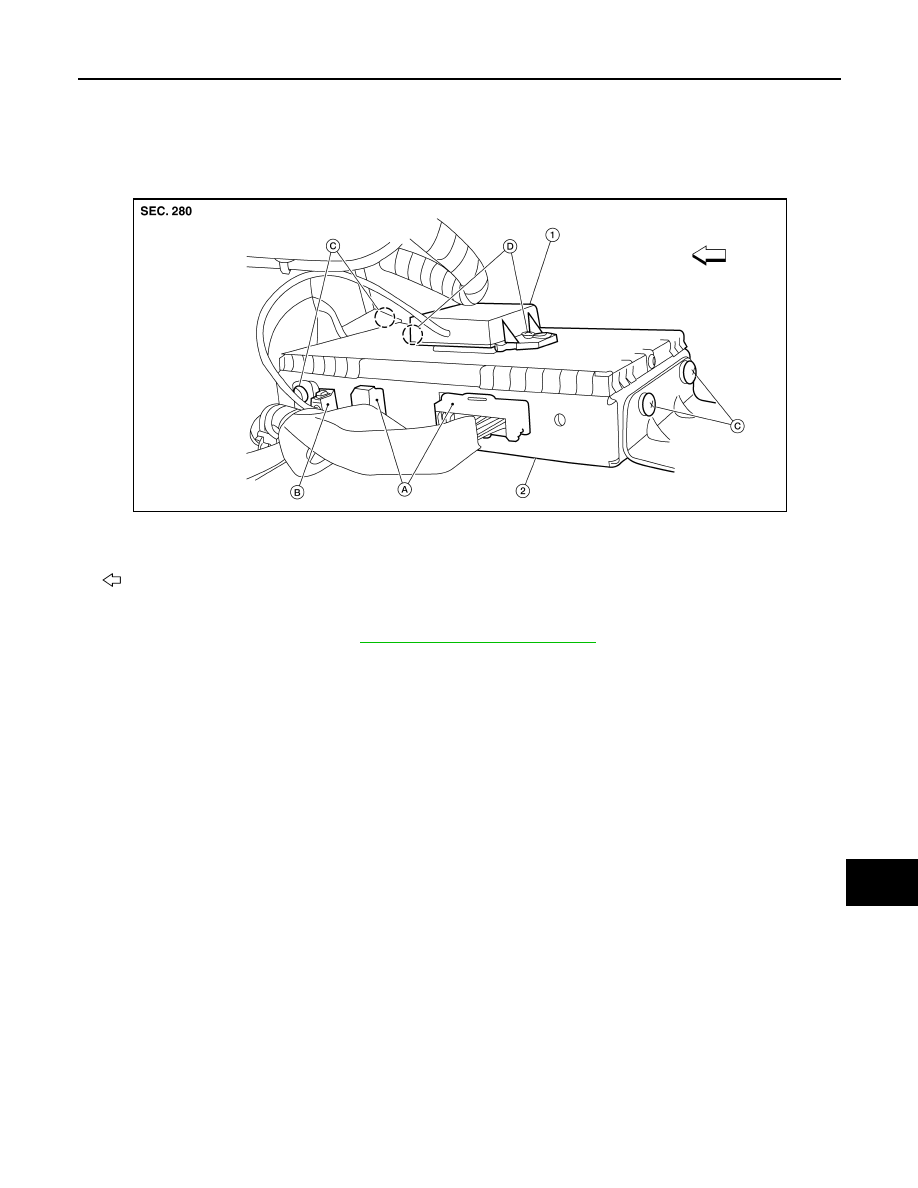

TEL ANTENNA

Removal and Installation

INFOID:0000000005259483

BLUETOOTH ANTENNA

REMOVAL

1. Remove the RH front seat. Refer to

SE-30, "Removal and Installation"

.

2. Disconnect the Bluetooth antenna connector.
3. Remove the Bluetooth antenna screws and remove the Bluetooth antenna.

INSTALLATION

Installation is in the reverse order of removal.

1.

Bluetooth antenna

2.

Bluetooth control unit

A.

Bluetooth control unit connectors

B.

Bluetooth antenna connector

C.

Bluetooth control unit screws

D.

Bluetooth antenna screws

Vehicle front

ALNIA1183ZZ

2010 Pathfinder

2010 Pathfinder

AV-298

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

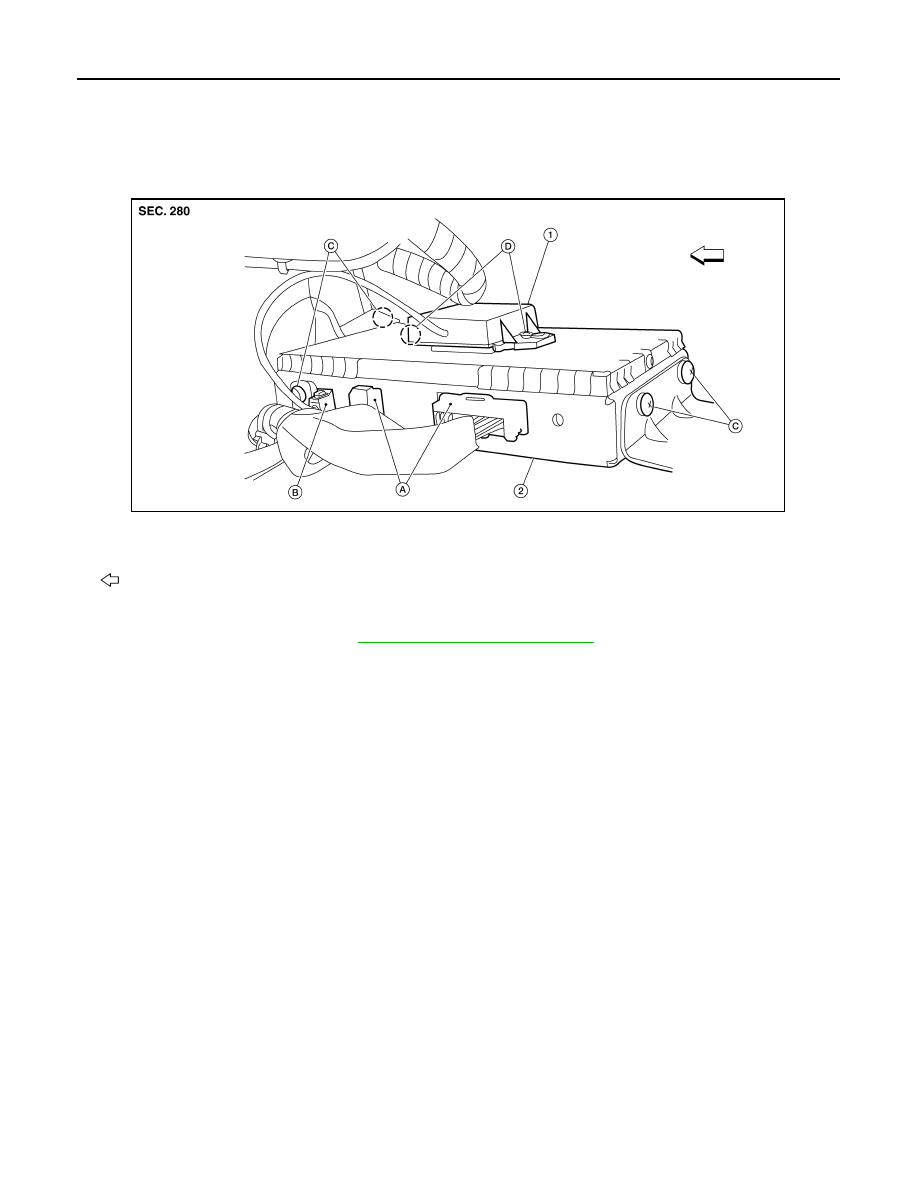

BLUETOOTH CONTROL UNIT

BLUETOOTH CONTROL UNIT

Removal and Installation

INFOID:0000000005259484

BLUETOOTH CONTROL UNIT

REMOVAL

1. Remove the RH front seat. Refer to

SE-30, "Removal and Installation"

.

2. Disconnect the Bluetooth control unit connectors.
3. Remove the Bluetooth control unit bracket screws and remove the Bluetooth control unit assembly.
4. Remove the Bluetooth control unit screws.
5. Transfer the Bluetooth antenna to the new Bluetooth control unit.

INSTALLATION

Installation is in the reverse order of removal.

1.

Bluetooth antenna

2.

Bluetooth control unit

A.

Bluetooth control unit connectors

B.

Bluetooth antenna connector

C.

Bluetooth control unit screws

D.

Bluetooth antenna screws

Vehicle front

ALNIA1183ZZ

2010 Pathfinder

2010 Pathfinder

AV

BOSE SPEAKER AMP

AV-299

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

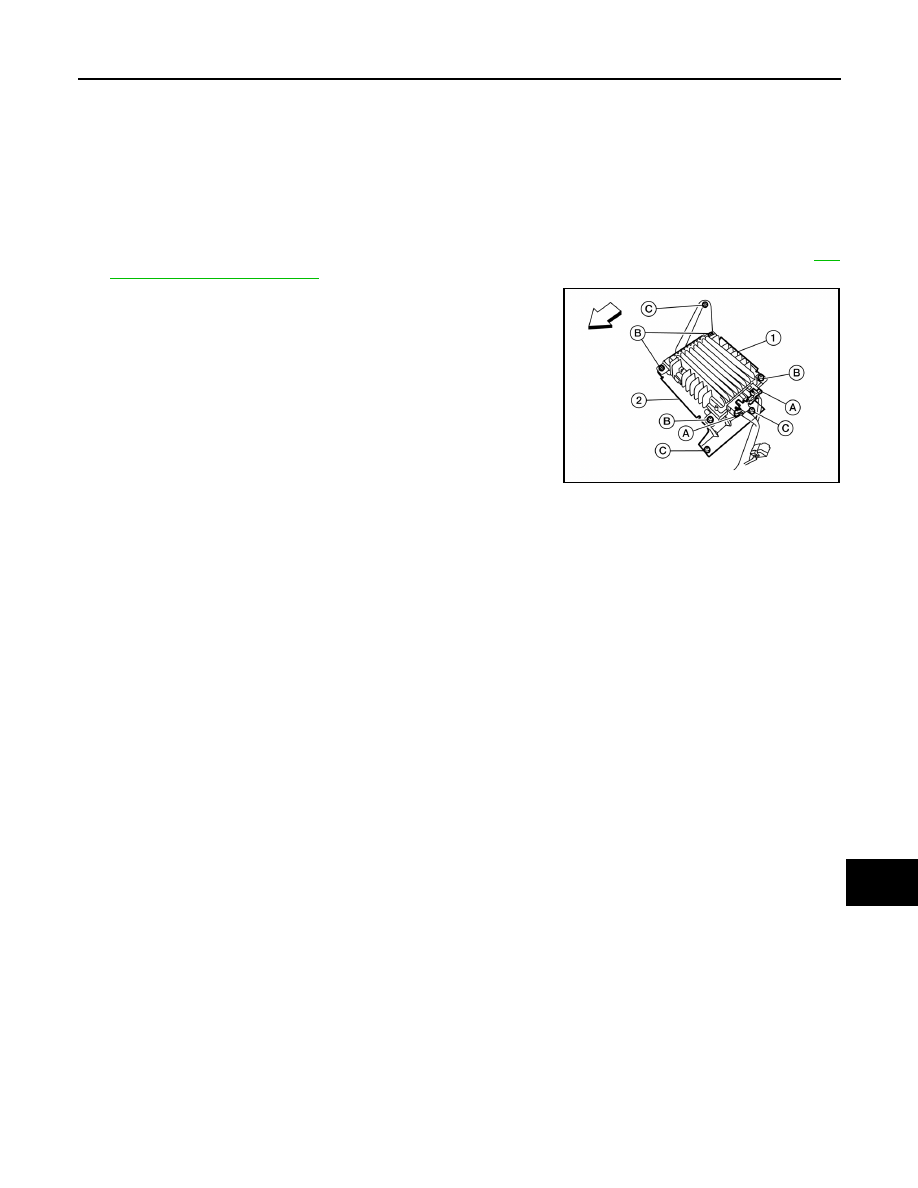

BOSE SPEAKER AMP

Removal and Installation

INFOID:0000000005259485

BOSE SPEAKER AMP.

Removal

NOTE:

Do not remove the LH front seat from the vehicle.
1. Remove LH front seat bolts, disconnect the LH front seat electrical harness connector. Refer to

SE-

30, "Removal and Installation"

.

2. Tilt the LH front seat back to access the BOSE speaker amp.

(1), then remove the BOSE speaker amp. screws (B).

•

⇒

: Vehicle front

3. Disconnect the Bose speaker amp. connectors (A) and remove

Bose speaker amp. (1) from the bracket (2).

4. Then remove the BOSE speaker amp. bracket screws (C) and

remove bracket (2).

Installation

Installation is in the reverse order of removal.

ALNIA1249ZZ

2010 Pathfinder

AV-300

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

SUBWOOFER

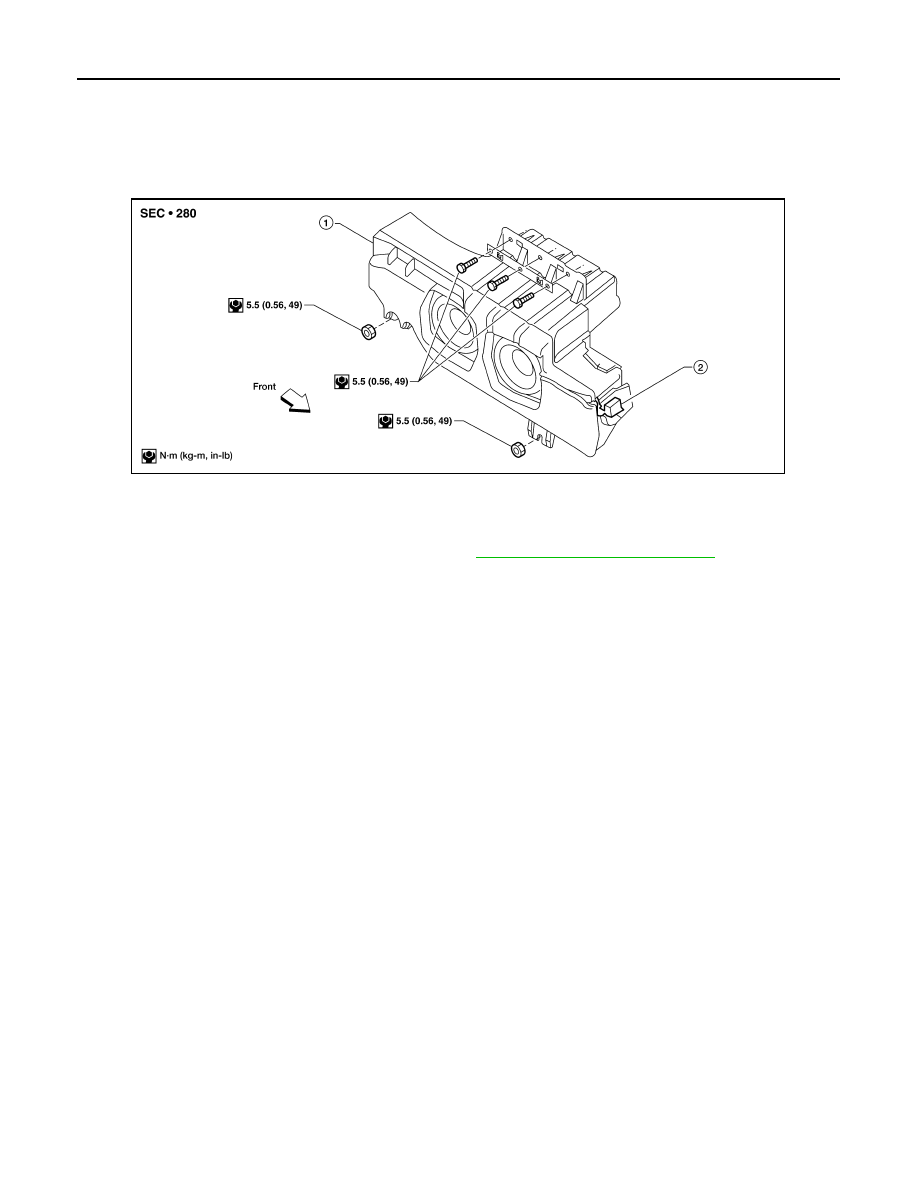

SUBWOOFER

Removal and Installation

INFOID:0000000005259486

SUBWOOFER (BOSE SYSTEM)

Removal

1. Remove the luggage side lower finisher LH. Refer to

INT-22, "Removal and Installation"

.

2. Remove subwoofer bolts and nuts.
3. Disconnect the subwoofer connector and remove the subwoofer.

Installation

Installation is in the reverse order of removal.

1.

Subwoofer (BOSE system)

2.

Subwoofer (BOSE system) connector

WKIA3712E

2010 Pathfinder

2010 Pathfinder

AV

DVD ENTERTAINMENT SYSTEM

AV-301

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

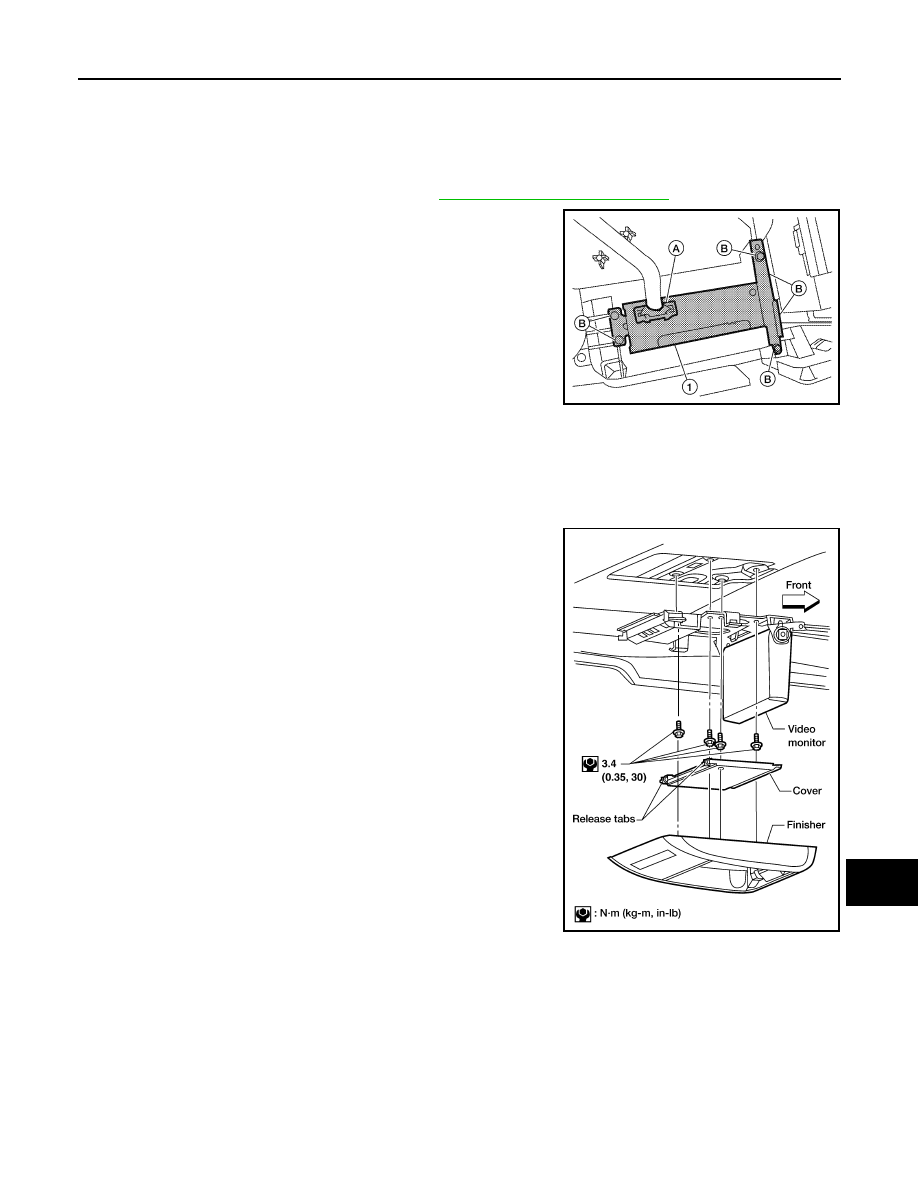

DVD ENTERTAINMENT SYSTEM

Removal and Installation of DVD Player

INFOID:0000000005259487

REMOVAL

1. Remove the center console assembly. Refer to

IP-12, "Removal and Installation"

.

2. Disconnect the DVD player connector (A).
3. Remove the DVD player screws (B), then remove the DVD

player (1).

4. Remove the DVD player bracket screws and then remove DVD

player brackets.

INSTALLATION

Installation is in reverse order of removal.

Removal and Installation of Video Monitor

INFOID:0000000005259488

REMOVAL

1. Release the clips and remove the video monitor finisher from

headlining.

2. Press the release tabs and remove the cover.
3. Remove the video monitor screws.
4. Gently lower the assembly and disconnect the connector, then

remove the video monitor from the headlining.

INSTALLATION

Installation is in reverse order of removal.

ALNIA0360ZZ

WKIA3714E

2010 Pathfinder

2010 Pathfinder

AV-302

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

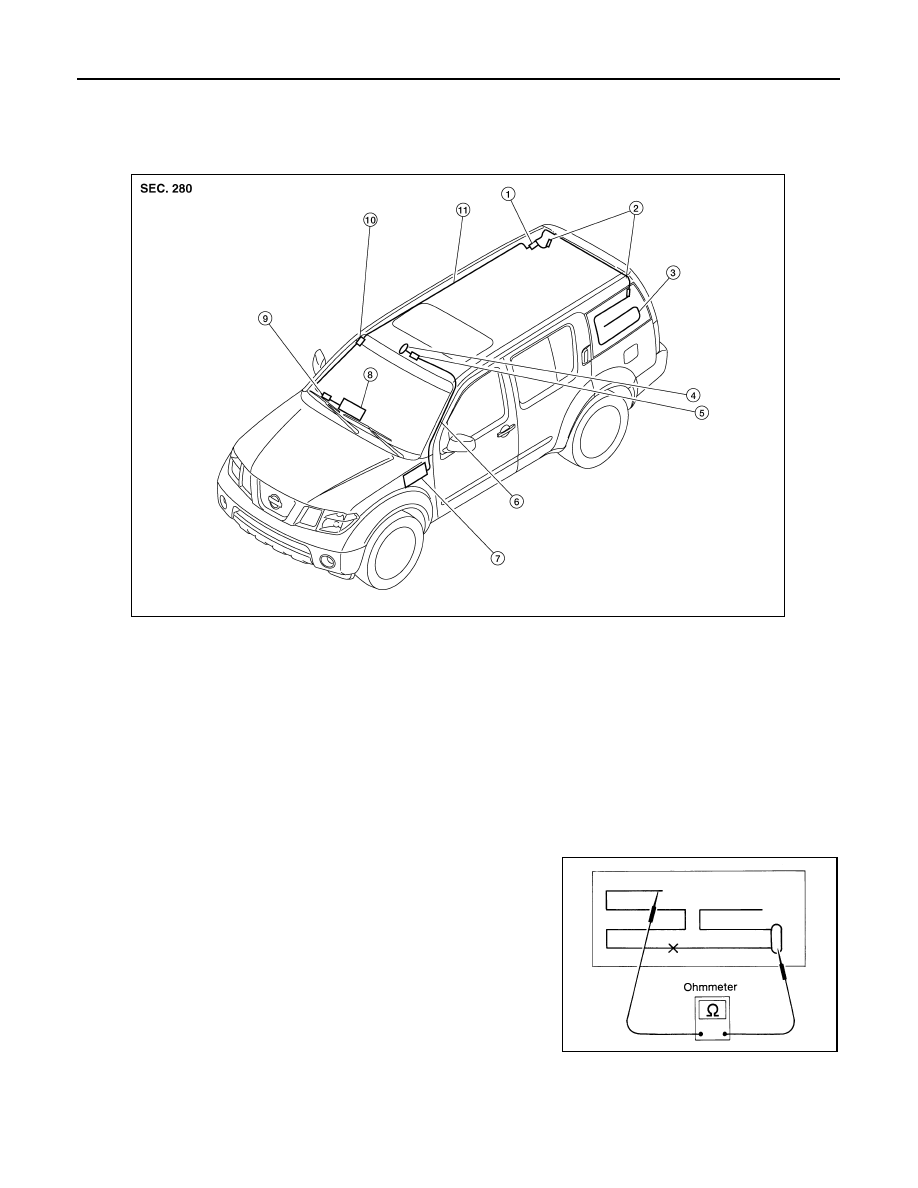

AUDIO ANTENNA

AUDIO ANTENNA

Location of Antenna

INFOID:0000000005259489

Window Antenna Repair

INFOID:0000000005259490

ELEMENT CHECK

1. Attach probe circuit tester (ohm setting) to antenna terminal on

each side.

1.

Antenna amp.
M602

2.

Window antenna grid connector bracket

3.

Window antenna grid

4.

Satellite antenna
M351

5.

Harness connector
M73, M350

6.

Satellite antenna feeder

7.

Satellite radio tuner
M41, M129

8.

AV control unit M43, M44

9.

Harness connector
M78, M501

10. Harness connector

M502, M601

11. Antenna feeder

WKIA4984E

SEL250I
