AV

PRECAUTIONS

AV-287

< PRECAUTION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

5. When the repair work is completed, return the ignition switch to the

LOCK

 position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6. Perform a self-diagnosis check of all control units using CONSULT-III.

2010 Pathfinder

2010 Pathfinder

AV-288

< PREPARATION >

[BOSE AUDIO WITHOUT NAVIGATION]

PREPARATION

PREPARATION

PREPARATION

Commercial Service Tools

INFOID:0000000005259474

Tool name

Description

Power tool

Loosening bolts and nuts

PBIC0191E

2010 Pathfinder

2010 Pathfinder

AV

AV CONTROL UNIT

AV-289

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ON-VEHICLE REPAIR

AV CONTROL UNIT

Removal and Installation

INFOID:0000000005259475

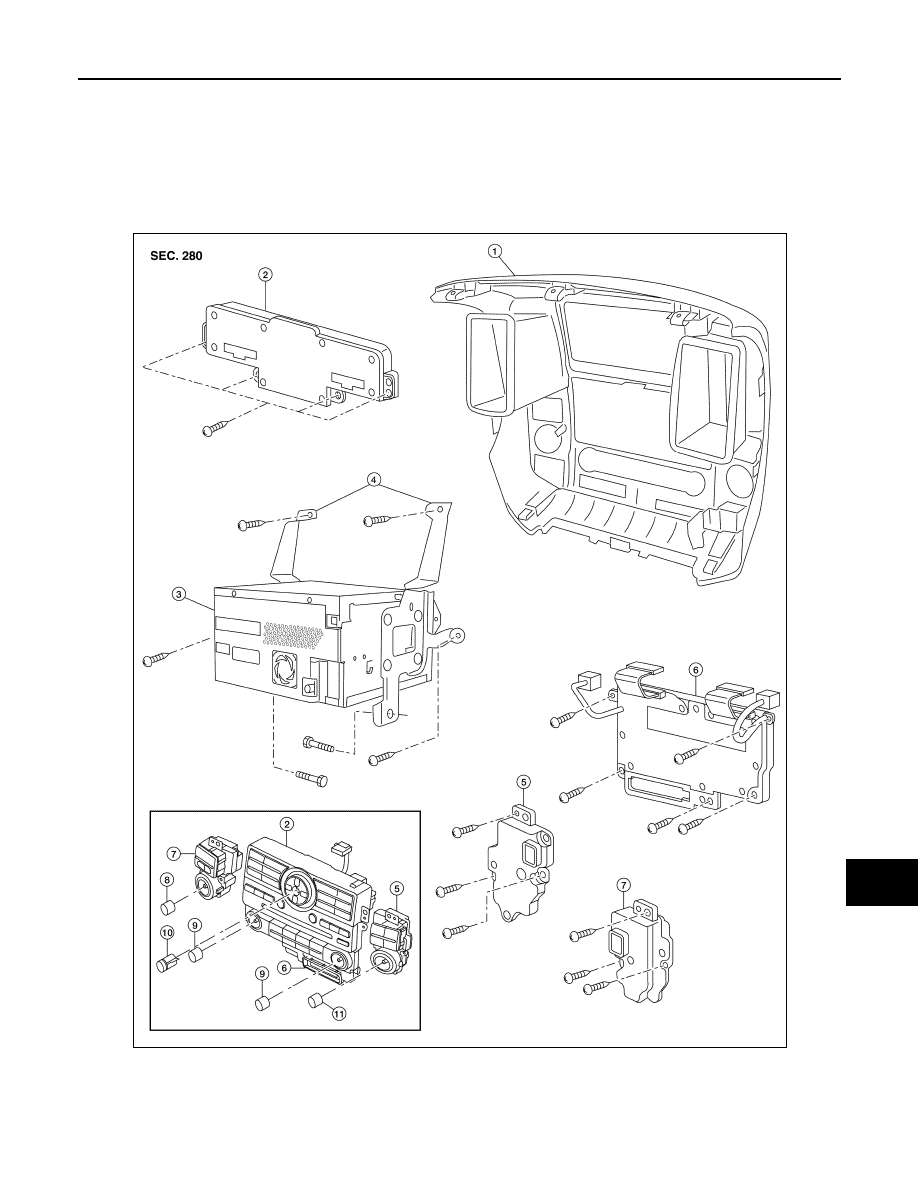

AUDIO UNIT - WITHOUT NAVI

1.

Cluster lid C

2.

AV switch assembly

3.

AV control unit

4.

AV control unit brackets

5.

Tuner knob switch

6.

A/C and AV switch assembly

7.

Volume knob switch

8.

Volume knob

9.

Temp knobs RH and LH

10. Enter button

11. Tuner knob

ALNIA0361ZZ

2010 Pathfinder

2010 Pathfinder

AV-290

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

AV CONTROL UNIT

CAUTION:

Only remove and replace the A/C or AV switch assembly knobs if damaged or missing. The knobs

must not be removed from switches when removing and installing the A/C or AV switch assembly to

prevent damage to the switch assembly.

REMOVAL

1. Disconnect the battery negative terminal.
2. Remove the cluster lid C. Refer to

IP-12, "Removal and Installation"

.

3. Remove the AV control unit screws, using a power tool.
4. Remove the AV control unit.
5. Remove the A/C and AV switch assembly screws, then remove the A/C and AV switch assemblies as nec-

essary.

INSTALLATION

Installation is in the reverse order of removal.

2010 Pathfinder

2010 Pathfinder

AV

DISPLAY UNIT

AV-291

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

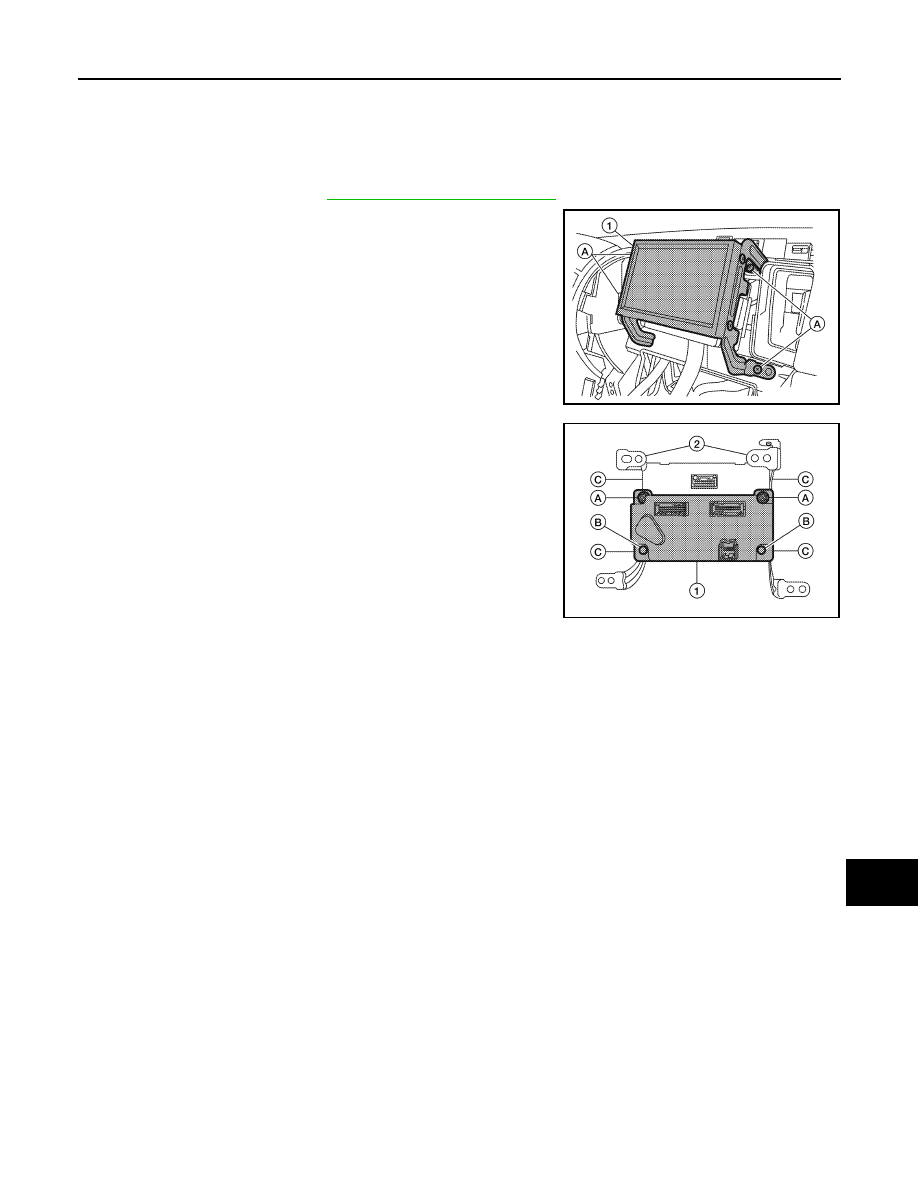

DISPLAY UNIT

Removal and Installation

INFOID:0000000005259476

REMOVAL

1. Remove Cluster lid C. Refer to

IP-12, "Removal and Installation"

.

2. Remove the display unit screws (A).
3. Pull out the display unit (1), then disconnect the display unit con-

nectors and remove the display unit (1).

4. Remove the A/C auto amp.screws (A), remove the (C103) fas-

teners (B) from the display unit assembly brackets and remove

the A/C auto amp. (1).

5. Remove the display unit bracket unit screws (C) and remove the

display unit brackets (2).

INSTALLATION

Installation is in reverse order of removal.

ALNIA0358ZZ

ALNIA0359ZZ

2010 Pathfinder

2010 Pathfinder

AV-292

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

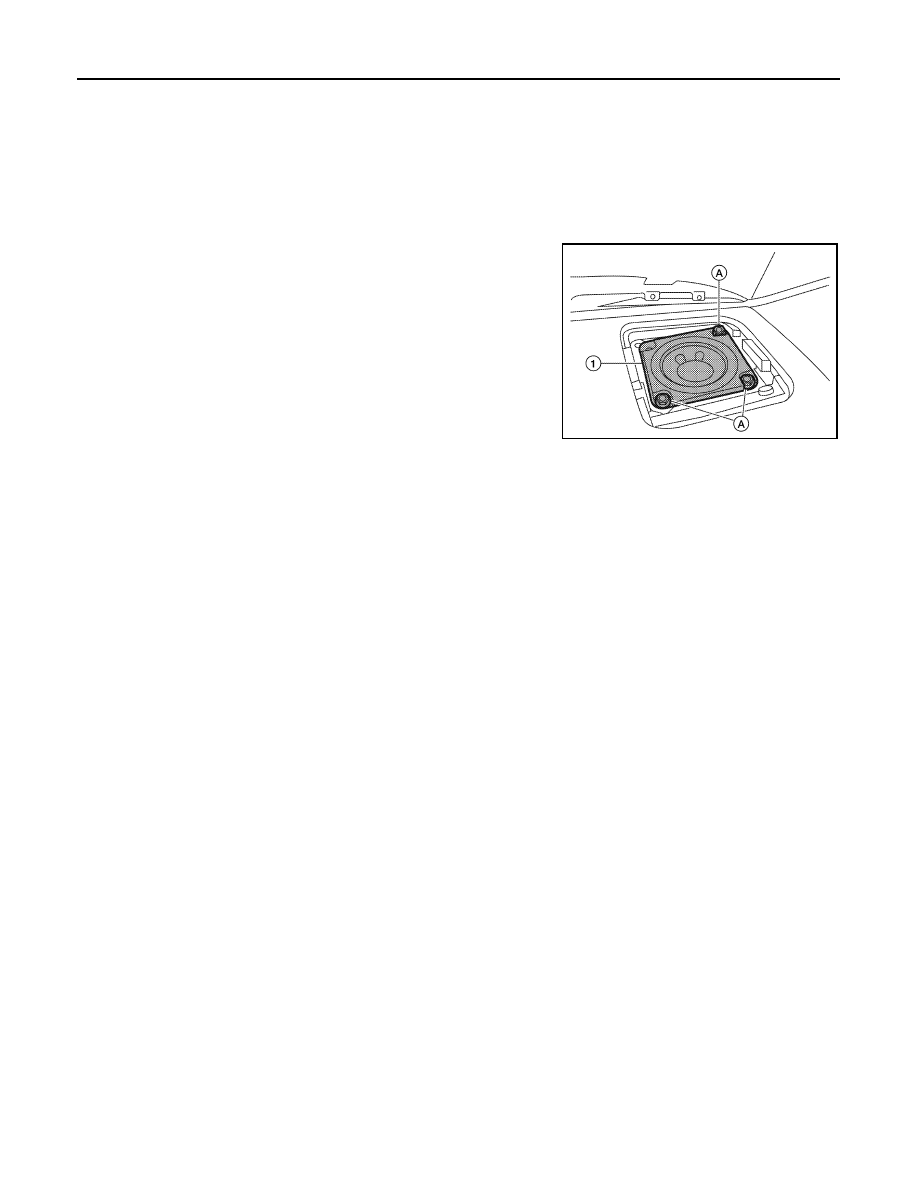

FRONT TWEETER

FRONT TWEETER

Removal and Installation

INFOID:0000000005259477

REMOVAL

CAUTION:

Use a suitable tool to prevent damage to the front tweeter speaker grille trim and the instrument panel.

1. Remove the front tweeter grille.
2. Remove the front tweeter screws (A).
3. Pull out the front tweeter speaker (1) and disconnect front

tweeter connector, then remove the front tweeter speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0344ZZ

2010 Pathfinder

2010 Pathfinder

AV

FRONT DOOR SPEAKER

AV-293

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

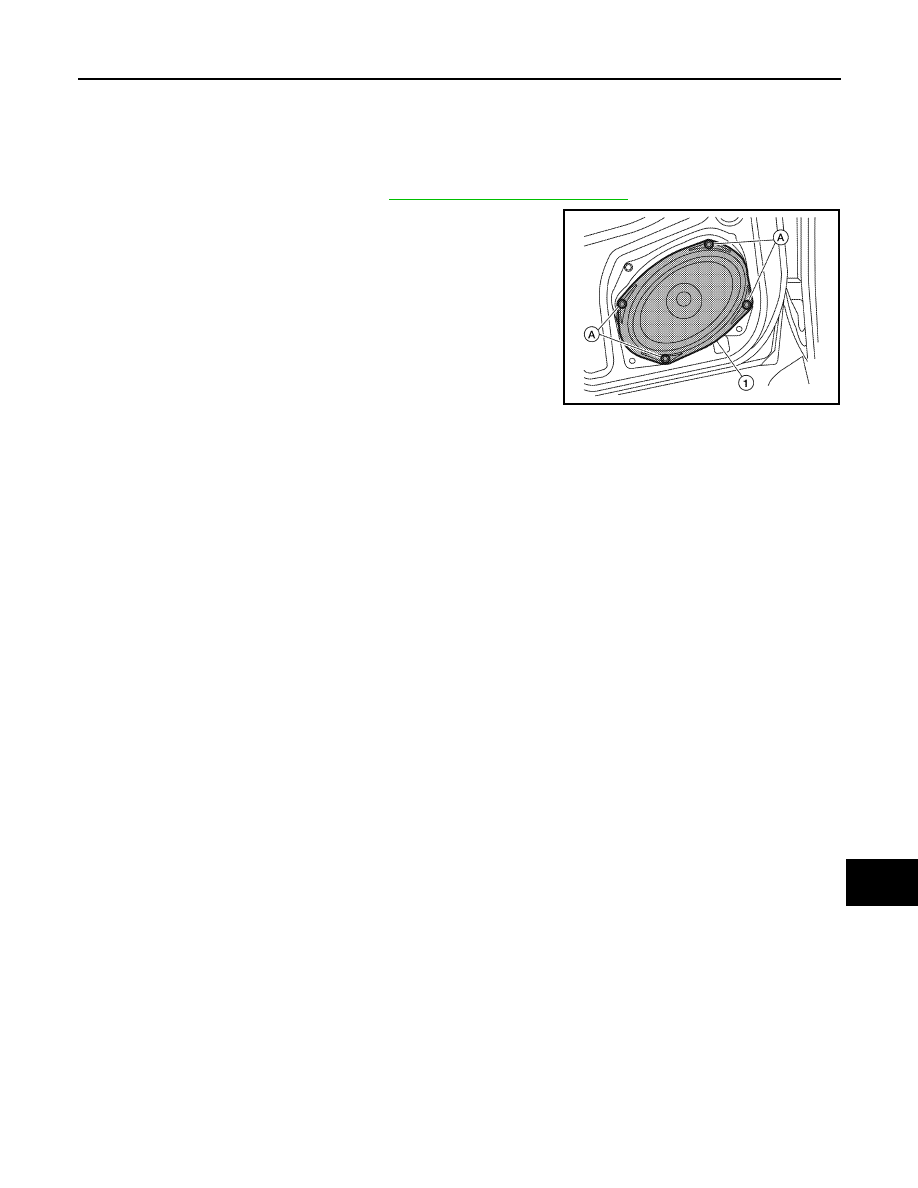

FRONT DOOR SPEAKER

Removal and Installation

INFOID:0000000005259478

REMOVAL

1. Remove the front door finisher. Refer to

INT-14, "Removal and Installation"

.

2. Remove the front door speaker screws (A).
3. Pull out the front door speaker (1), and disconnect the front door

speaker connector and remove the front door speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0347ZZ

2010 Pathfinder

2010 Pathfinder

AV-294

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

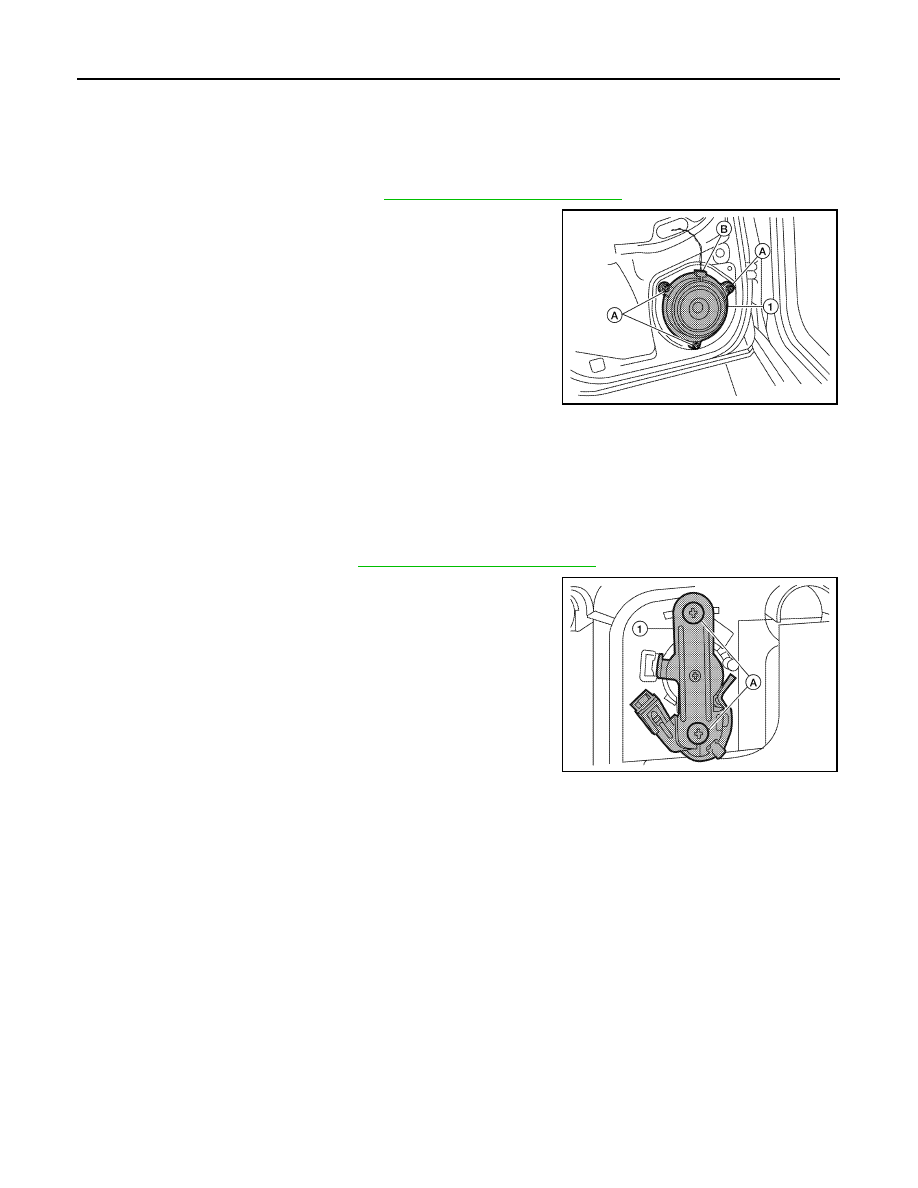

REAR DOOR SPEAKER

REAR DOOR SPEAKER

Removal and Installation

INFOID:0000000005259479

REMOVAL

1. Remove the rear door finisher. Refer to

INT-14, "Removal and Installation"

.

2. Remove the rear door speaker screws (A).
3. Disconnect the rear door speaker connector (B) and remove

rear door speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

Removal and Installation

INFOID:0000000005259480

REAR TWEETER

Removal

1. Remove rear door finisher. Refer to

INT-14, "Removal and Installation"

.

2. Remove the rear tweeter screws (A) and remove the rear

tweeter (1).

Installation

Installation is in the reverse order of removal.

ALNIA0348ZZ

ALNIA0351ZZ

2010 Pathfinder

2010 Pathfinder
