SIDE OIL SEAL

RFD-13

C

E

F

G

H

I

J

K

L

M

A

B

RFD

2007 Pathfinder

CAUTION:

Check the differential gear oil level after installation. Refer to

RFD-9, "Checking Differential Gear

Oil"

 .

RFD-14

CARRIER COVER

2007 Pathfinder

CARRIER COVER

PFP:38351

Removal and Installation

EDS00428

REMOVAL

1.

Remove the rear final drive assembly. Refer to

RFD-15, "Removal and Installation"

 .

2.

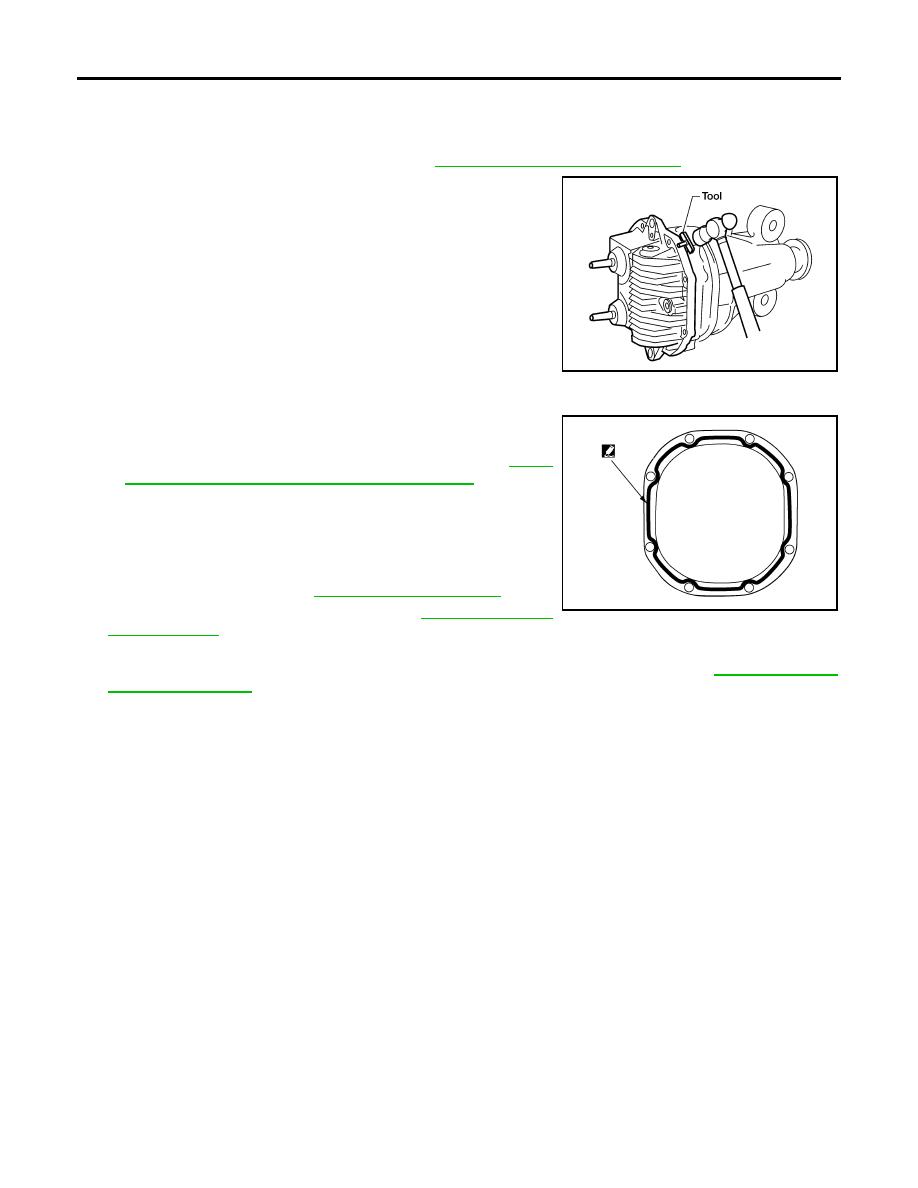

Remove the carrier cover bolts and separate the carrier cover
from the gear carrier using Tool.

CAUTION:

●

Do not damage the mating surface.

●

Do not insert flat-bladed screwdriver, this will damage the
mating surface.

INSTALLATION

1.

Apply a 3 mm (0.12 in) bead of sealant to the mating surface of
the carrier cover as shown.

●

Use Genuine Silicone RTV or equivalent. Refer to

GI-47,

"Recommended Chemical Products and Sealants"

 .

CAUTION:

Remove any old sealant adhering to the mating surfaces.
Also remove any moisture, oil, or foreign material adhering
to the application and mating surfaces.

2.

Install the carrier cover to the gear carrier. Tighten the bolts to
the specified torque. Refer to

RFD-18, "COMPONENTS"

 .

3.

Install the rear final drive assembly. Refer to

RFD-15, "Removal

and Installation"

 .

CAUTION:

Fill the rear final drive assembly with recommended differential gear oil. Refer to

RFD-9, "DIFFER-

ENTIAL GEAR OIL"

 .

Tool number

: KV10111100 (J-37228)

WDIA0123E

WDIA0282E

REAR FINAL DRIVE ASSEMBLY

RFD-15

C

E

F

G

H

I

J

K

L

M

A

B

RFD

2007 Pathfinder

REAR FINAL DRIVE ASSEMBLY

PFP:38300

Removal and Installation

EDS003A3

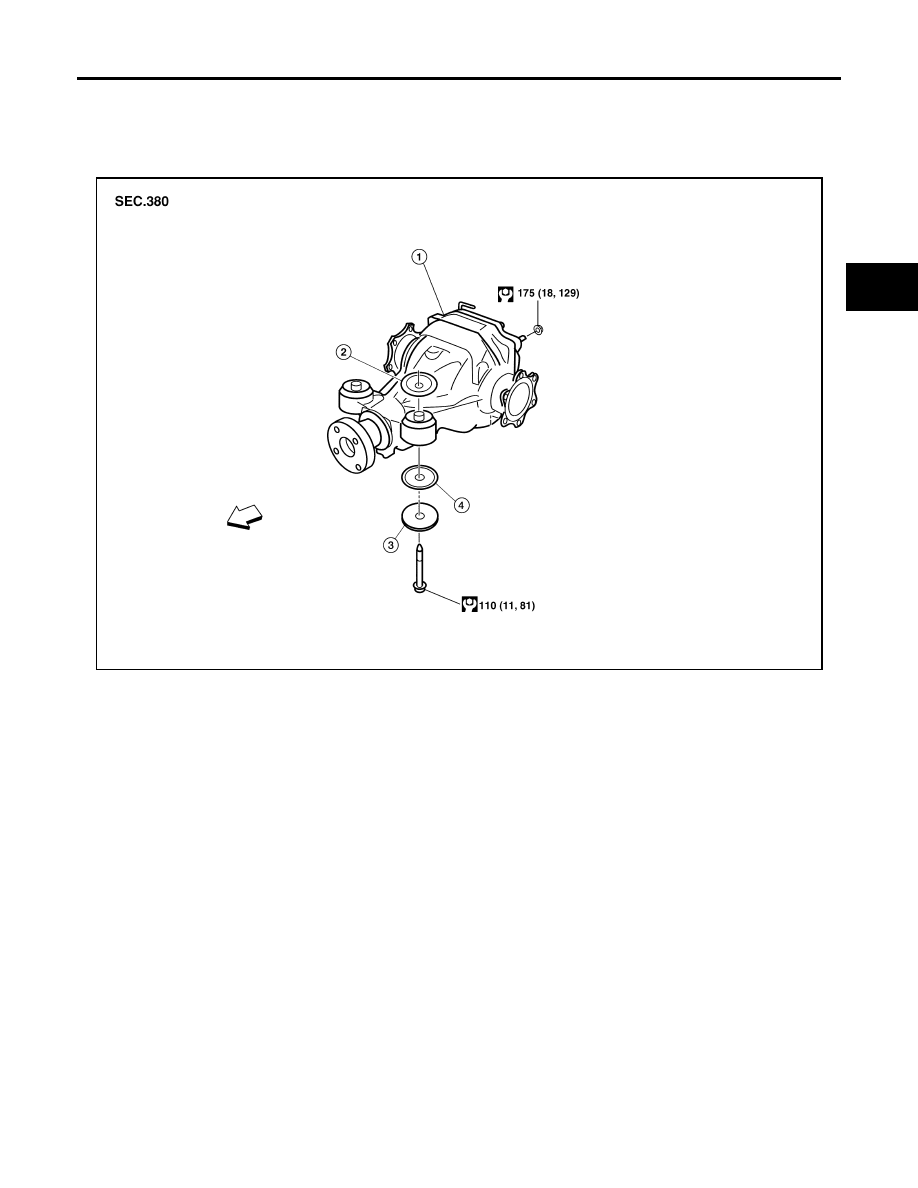

COMPONENTS

Rear Final Drive

WDIA0383E

1.

Rear final drive assembly

2.

Upper stopper

3.

Washer

4.

Lower stopper

⇐

:

Front

RFD-16

REAR FINAL DRIVE ASSEMBLY

2007 Pathfinder

Rear Final Drive Breather Hose

REMOVAL

1.

Remove the spare tire.

2.

Drain the differential gear oil. Refer to

RFD-9, "DIFFERENTIAL GEAR OIL"

 .

3.

Remove the rear stabilizer bar. Refer to

RSU-20, "Removal and Installation"

 .

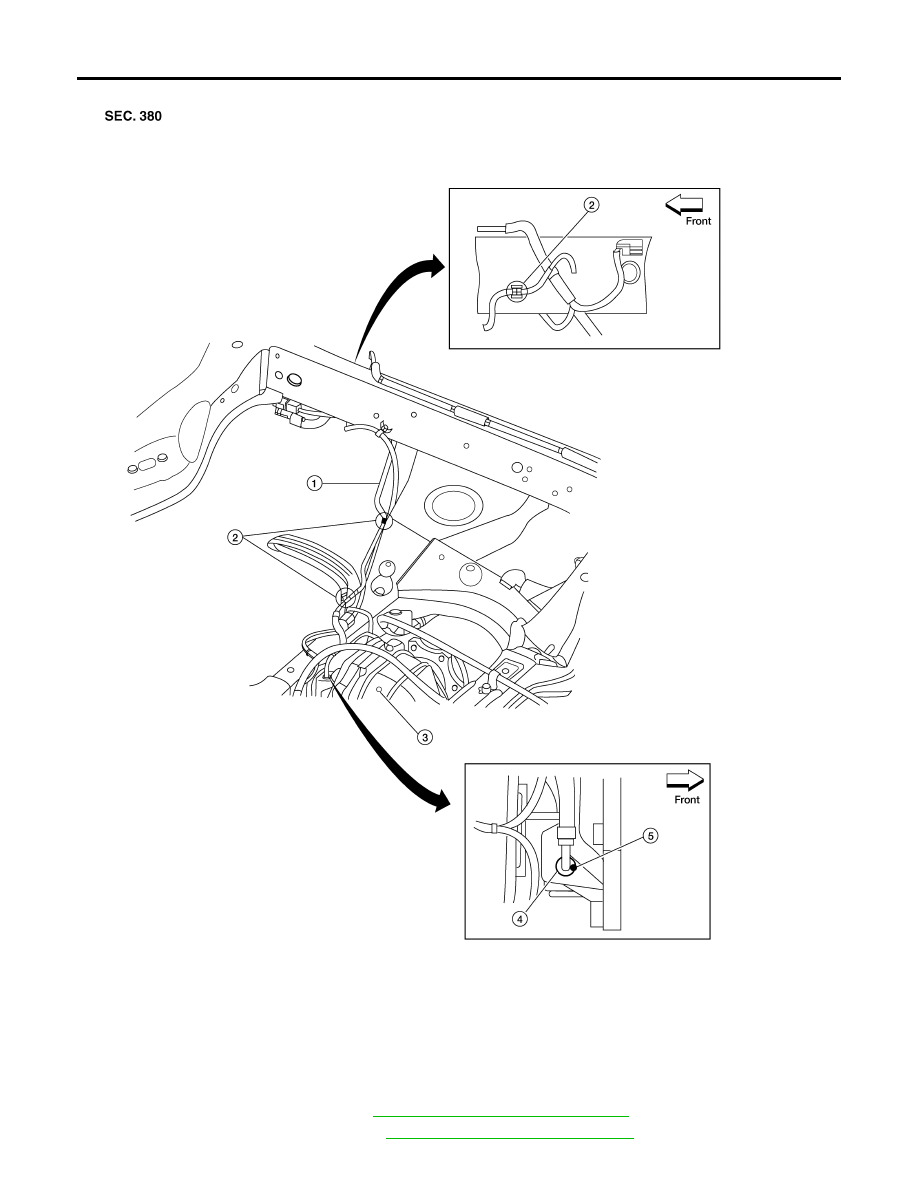

LDIA0166E

1.

Breather hose

2.

Plastic connectors

3.

Rear final drive assembly

4.

Metal connector

5.

Paint mark

REAR FINAL DRIVE ASSEMBLY

RFD-17

C

E

F

G

H

I

J

K

L

M

A

B

RFD

2007 Pathfinder

4.

Remove the rear propeller shaft. Refer to

PR-10, "Removal and Installation"

 .

5.

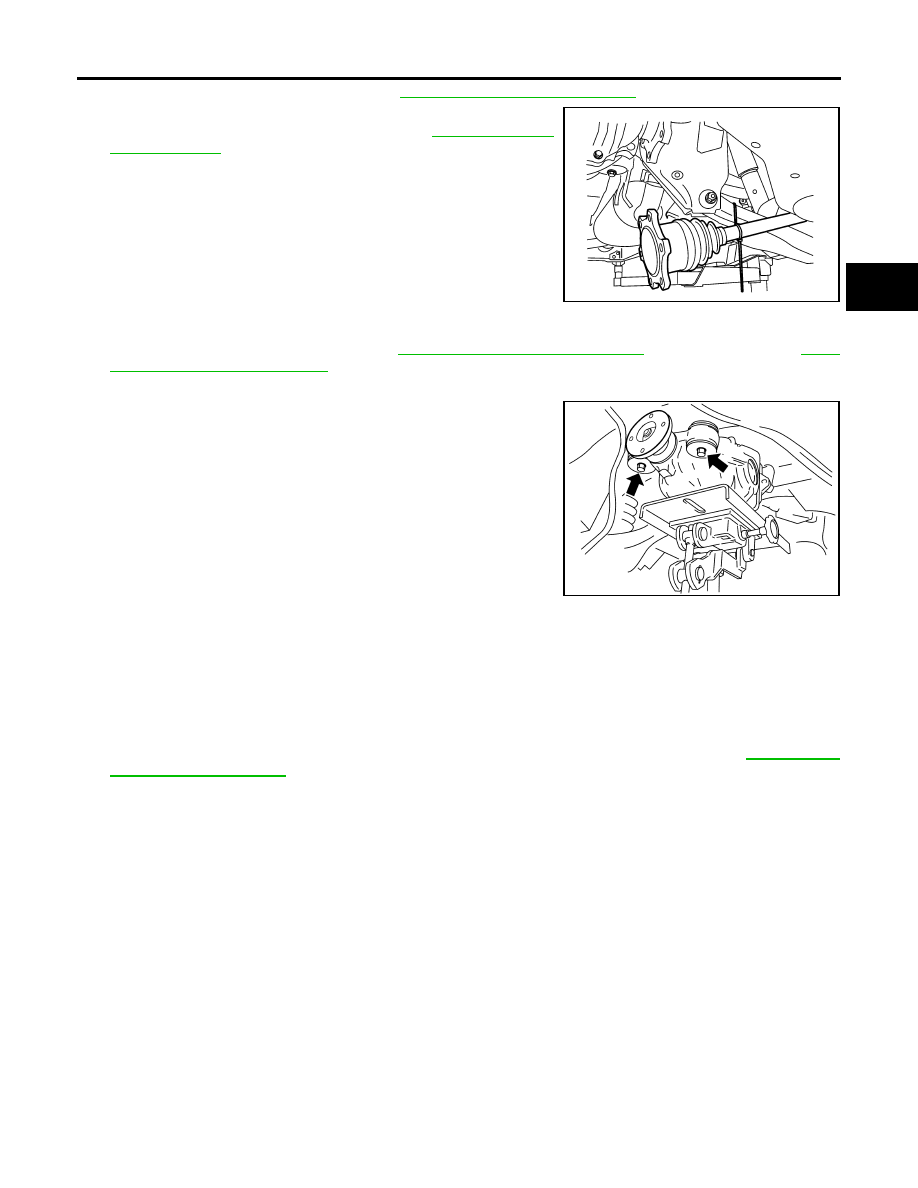

Remove the rear drive shafts from the rear final drive assembly
and support them using suitable wire. Refer to

RAX-7, "Removal

and Installation"

 .

6.

Disconnect the breather hose from the rear final drive assembly.

7.

Remove the rear wheel sensors. Refer to

BRC-59, "Removal and Installation"

  for VDC/TCS/ABS or

BRC-

128, "Removal and Installation"

  for HDC/HSA/VDC/TCS/ABS.

8.

Place a suitable jack under the rear final drive assembly.

CAUTION:

Do not place the jack on the carrier cover.

9.

Remove the nuts and bolts and remove the rear final drive
assembly.

CAUTION:

Secure rear final drive assembly to the jack while removing
it.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

●

When installing the breather hose make sure the painted marking on the metal end of breather
hose is to the front of the vehicle and there are no pinched or restricted areas on the breather
hose caused by folding or bending when installing it.

●

Make sure the breather hose plastic connectors are in the appropriate holes.

●

Fill the front final drive assembly with differential gear oil after installation. Refer to

RFD-9, "DIF-

FERENTIAL GEAR OIL"

 .

LDIA0164E

WDIA0117E

RFD-18

REAR FINAL DRIVE ASSEMBLY

2007 Pathfinder

Disassembly and Assembly

EDS003A4

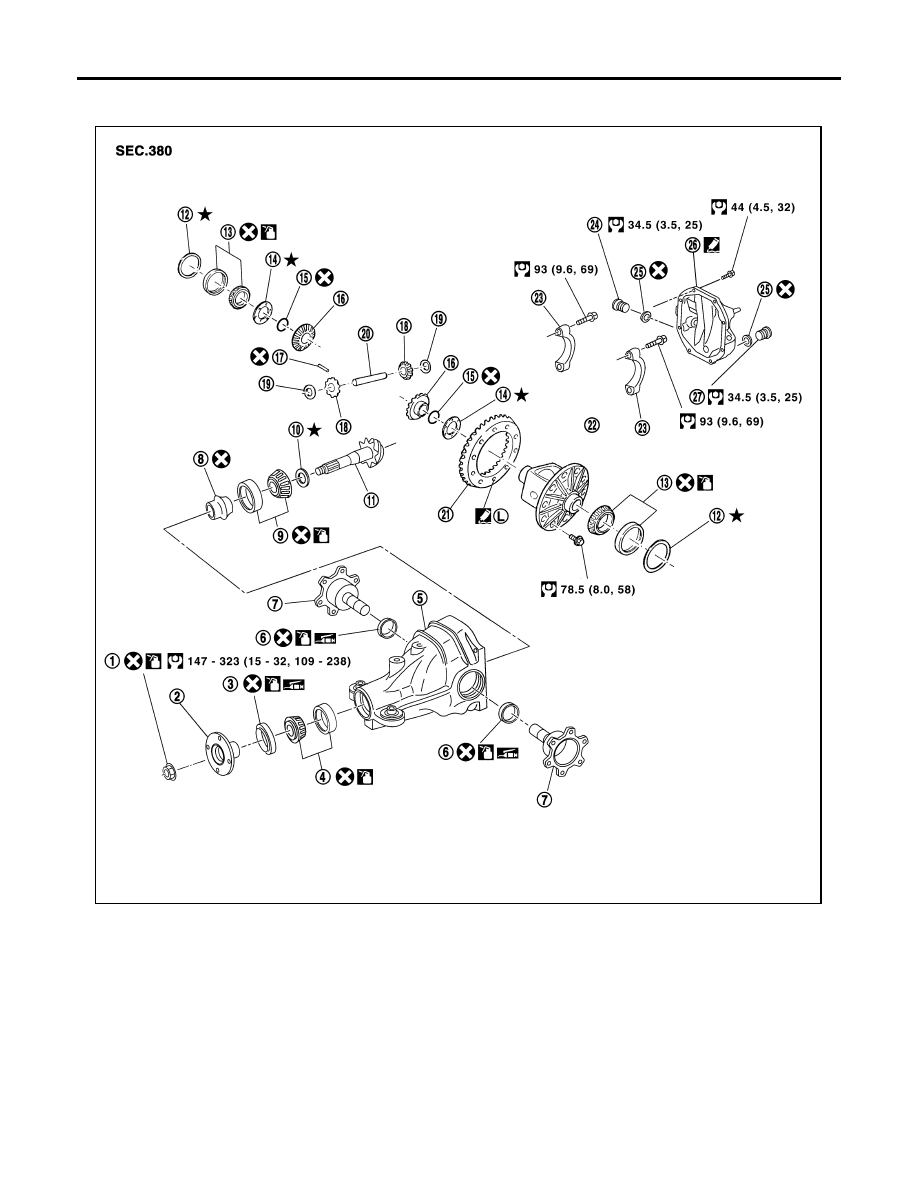

COMPONENTS

1.

Drive pinion lock nut

2.

Companion flange

3.

Front oil seal

4.

Drive pinion front bearing

5.

Gear carrier

6.

Side oil seal

7.

Side flange

8.

Collapsible spacer

9.

Drive pinion rear bearing

10. Drive pinion height adjusting washer 11.

Drive pinion

12. Side bearing adjusting washer

13. Side bearing

14. Side gear thrust washer

15. Circular clip

16. Side gear

17. Lock pin

18. Pinion mate gear

19. Pinion mate thrust washer

20. Pinion mate shaft

21. Drive gear

22. Differential case

23. Side bearing cap

24. Filler plug

25. Gasket

26. Carrier cover

27. Drain plug

WDIA0295E

REAR FINAL DRIVE ASSEMBLY

RFD-19

C

E

F

G

H

I

J

K

L

M

A

B

RFD

2007 Pathfinder

ASSEMBLY INSPECTION AND ADJUSTMENT

●

Drain the differential gear oil before inspection and adjustment. Refer to

RFD-9, "DIFFERENTIAL GEAR

OIL"

 .

●

Remove and install the carrier cover as necessary for inspection and adjustment. Refer to

RFD-14, "CAR-

RIER COVER"

 .

Total Preload Torque

1.

Remove the side flanges if necessary. Refer to

RFD-21, "Side Flange"

 .

CAUTION:

The side flanges shaft must removed in order to measure total preload torque.

2.

Rotate the drive pinion back and forth 2 to 3 times to check for unusual noise and rotation malfunction.

3.

Rotate the drive pinion at least 20 times to check for smooth operation of the bearings.

4.

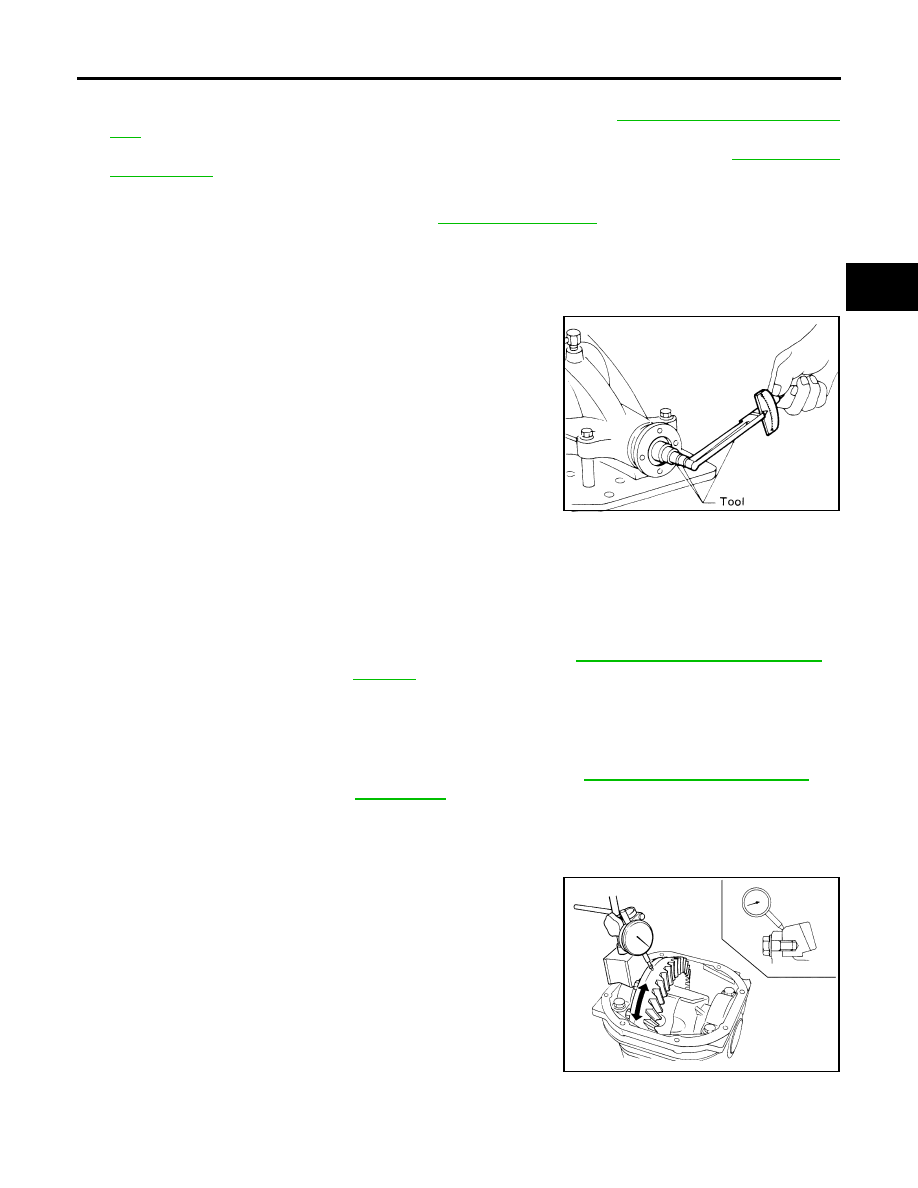

Measure total preload torque using Tool.

NOTE:
Total preload torque = Drive pinion bearing preload torque +
Side bearing preload torque

●

If the measured value is out of the specification, check and adjust each part. Adjust the drive pinion
bearing preload torque first, then adjust the side bearing preload torque.

CAUTION:

Select a side bearing adjusting washer for right and left individually.

Drive Gear Runout

1.

Fit a dial indicator to the drive gear back face.

2.

Rotate the drive gear to measure runout.

●

If the runout is outside of the limit, check the condition of the
drive gear assembly. Foreign material may be caught between
the drive gear and differential case, or the differential case or
drive gear may be deformed.

CAUTION:

Replace drive gear and drive pinion as a set.

Tool number

: ST3127S000 (J-25765-A)

Total preload torque:

2.84 - 3.75 N·m (0.29 - 0.38 kg-m, 26 - 33 in-lb)

SPD884

If the total preload torque is greater than specification

On drive pinion bearings:

Replace the collapsible spacer.

On side bearings:

Use thinner side bearing adjusting washers by the same
amount on each side. Refer to

RFD-39, "Side Bearing Adjusting

Washer"

 .

If the total preload torque is less than specification

On drive pinion bearings:

Tighten the drive pinion lock nut.

On side bearings:

Use thicker side bearing adjusting washers by the same
amount on each side. Refer to

RFD-39, "Side Bearing Adjust-

ing Washer"

 .

Runout limit

: 0.05 mm (0.0020 in) or less

SPD886

RFD-20

REAR FINAL DRIVE ASSEMBLY

2007 Pathfinder

Tooth Contact

1.

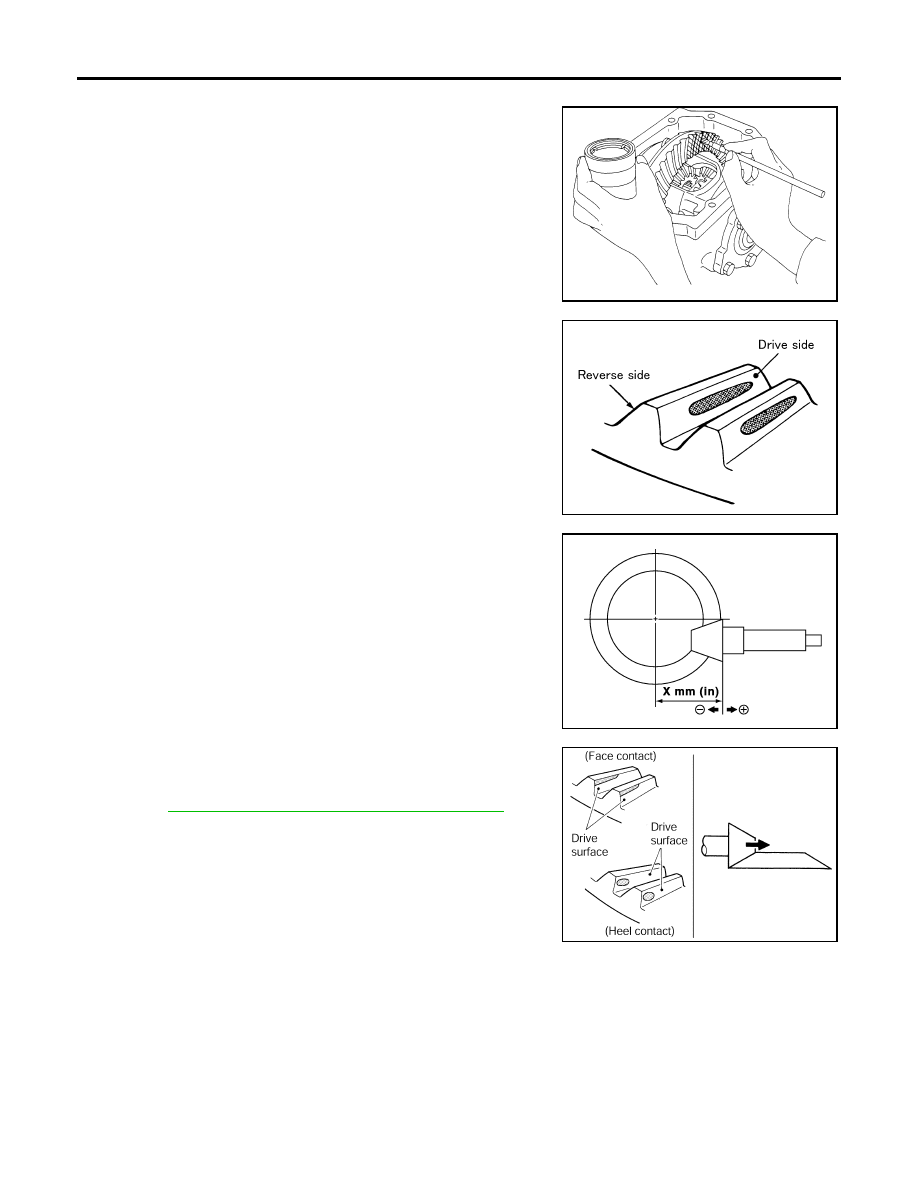

Apply red lead to the drive gear.
