PREPARATION

RFD-5

C

E

F

G

H

I

J

K

L

M

A

B

RFD

2007 Pathfinder

ST30613000
(J-25742-3)

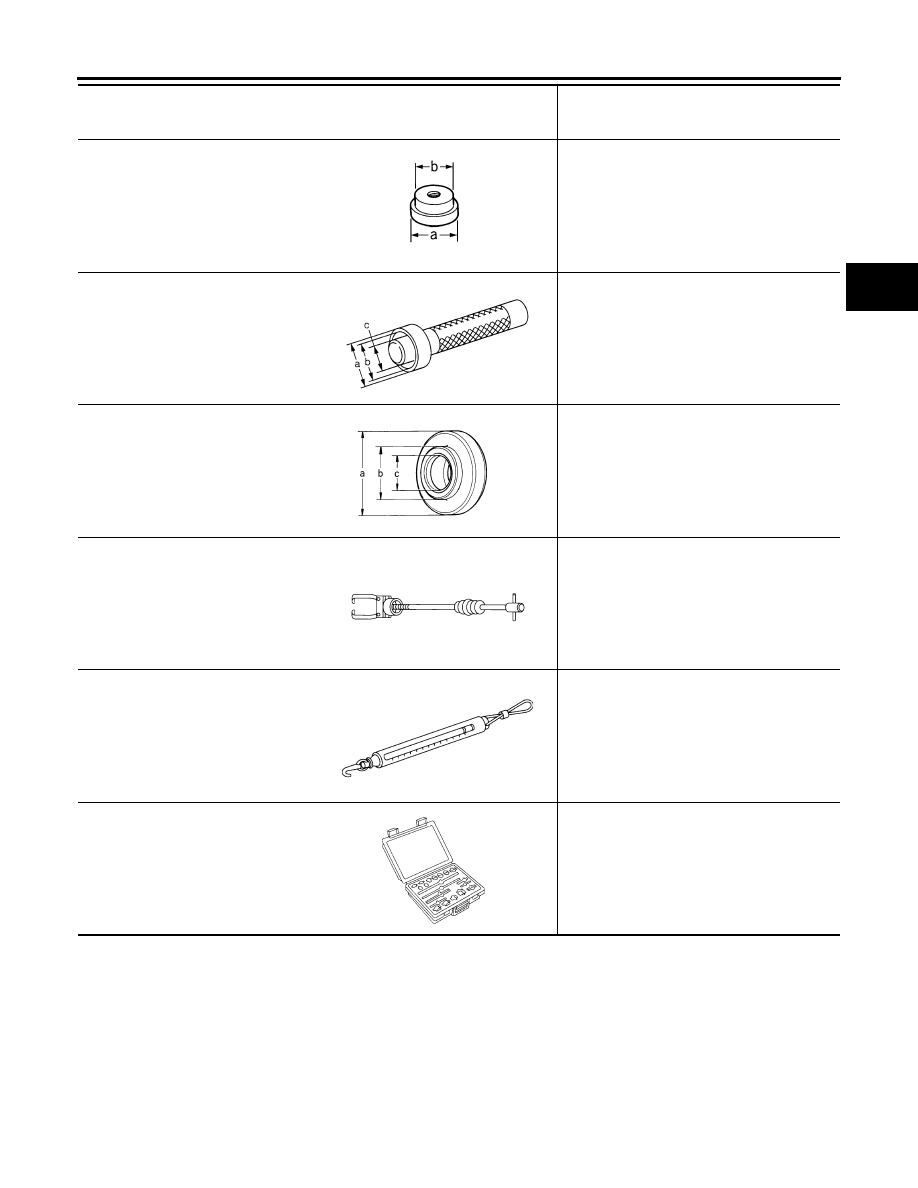

Drift

Installing drive pinion front bearing outer race
a: 72 mm (2.83 in) dia.
b: 48 mm (1.89 in) dia.

KV38100300
(J-25523)
Drift

Installing side bearing inner race
a: 54 mm (2.13 in) dia.
b: 46 mm (1.81 in) dia.
c: 32 mm (1.26 in) dia.

ST30901000
(J-26010-01)
Drift

Installing drive pinion rear bearing inner race
a: 79 mm (3.11 in) dia.
b: 45 mm (1.77 in) dia.
c: 35.2 mm (1.386 in) dia.

HT72400000
(

—

)

Slide hammer

Removing differential case assembly

—

(J-8129)
Spring gauge

Measuring turning torque

—

(J-34309)
Differential shim selector tool

Adjusting drive pinion bearing preload and
drive pinion height

Tool number
(Kent-Moore No.)
Tool name

Description

ZZA1000D

ZZA1046D

ZZA0978D

S-NT125

NT127

NT134

RFD-6

PREPARATION

2007 Pathfinder

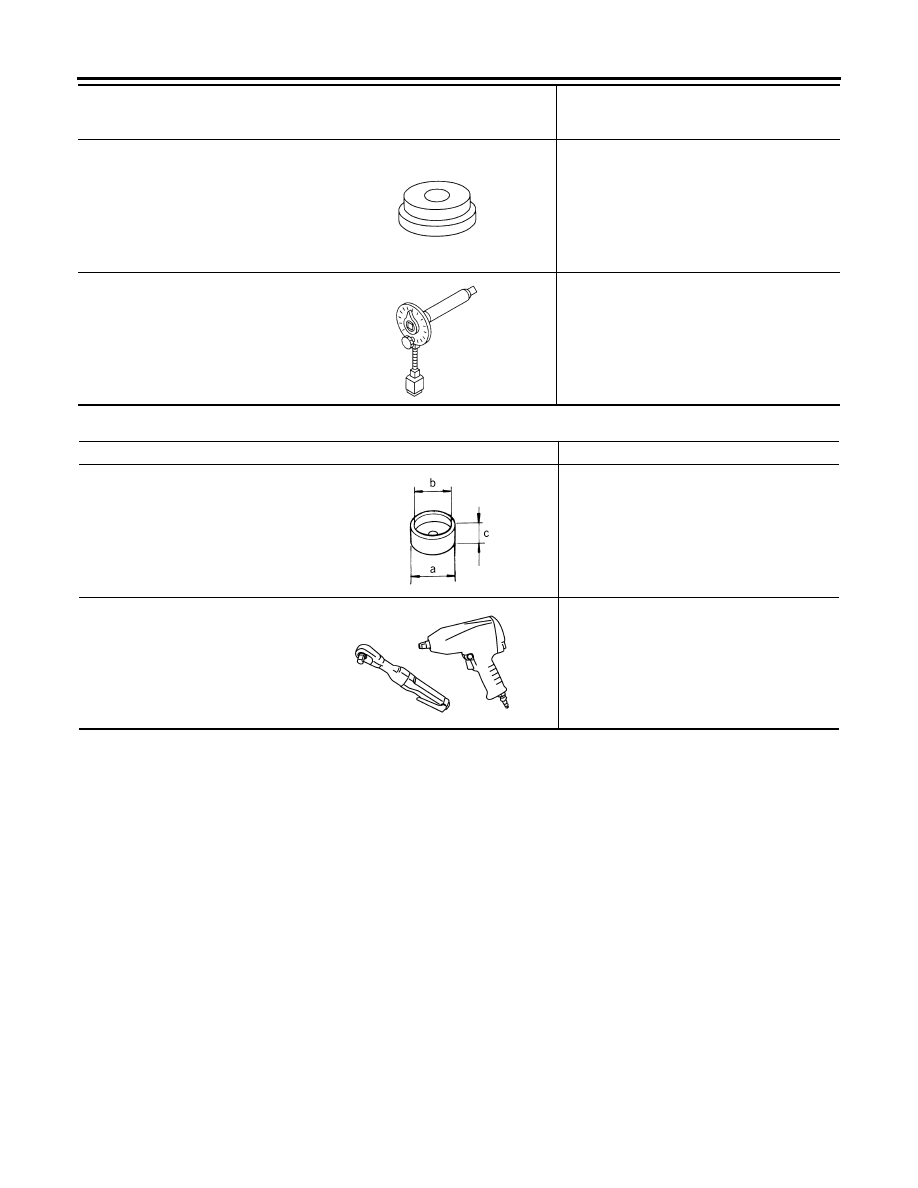

Commercial Service Tools

EDS0039W

—

(J-25269-4)
Side bearing disc (2 Req'd)

Selecting drive pinion height adjusting washer

KV10112100
(BT-8653-A)
Angle wrench

Tightening bolts for drive gear

Tool number
(Kent-Moore No.)
Tool name

Description

NT136

NT014

Tool name

Description

Spacer

Installing drive pinion front bearing inner race
a: 60 mm (2.36 in) dia.
b: 36 mm (1.42 in) dia.
c: 30 mm (1.18 in)

Power tool

Loosening nuts and bolts

ZZA1133D

PBIC0190E

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

RFD-7

C

E

F

G

H

I

J

K

L

M

A

B

RFD

2007 Pathfinder

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

PFP:00003

NVH Troubleshooting Chart

EDS0039X

Use the chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.

×

: Applicable

Reference page

RF

D-

2

6

RF

D-

2

0

RF

D-

2

6

RF

D-

2

1

RF

D-

2

1

RF

D-

9

PR

-3

, "

N

V

H

 T

rou

bl

e

s

ho

ot

ing

C

h

a

rt

"

RA

X-

4

, "

N

V

H

 T

ro

ubl

esh

oot

in

g

 C

h

ar

t"

RS

U-

4

, "

N

V

H

 T

ro

ubl

esh

oot

in

g

 C

h

ar

t"

WT

-4

, "

N

V

H

 T

rou

bl

e

s

ho

ot

ing

C

h

a

rt

"

WT

-4

, "

N

V

H

 T

rou

bl

e

s

ho

ot

ing

C

h

a

rt

"

RA

X-

4

, "

N

V

H

 T

ro

ubl

esh

oot

in

g

 C

h

ar

t"

BR

-5

, "

N

V

H

 T

rou

bl

e

s

ho

ot

ing

C

h

a

rt

"

PS

-5

, "

N

V

H

 T

rou

bl

e

s

ho

ot

ing C

h

a

rt

"

Possible cause and SUSPECTED PARTS

G

ear

 t

o

o

th r

oug

h

G

ear

 con

tact

 i

m

p

rop

er

T

o

ot

h

 su

rf

ac

es

 w

o

rn

Ba

ck

la

sh

 i

n

cor

rec

t

C

o

m

p

a

n

io

n f

lang

e e

xce

ss

iv

e

ru

n

out

G

ear

 oi

l

im

p

rop

er

PR

O

PEL

LE

R S

H

A

F

T

R

EAR

 A

X

LE

RE

A

R

 SU

SP

EN

SI

O

N

TI

RE

S

RO

AD

 W

H

EE

L

DR

IV

E

 SH

AF

T

BR

AK

ES

ST

EE

RI

NG

Symptom

Noise

×

×

×

×

×

×

×

×

×

×

×

×

×

RFD-8

DESCRIPTION

2007 Pathfinder

DESCRIPTION

PFP:00000

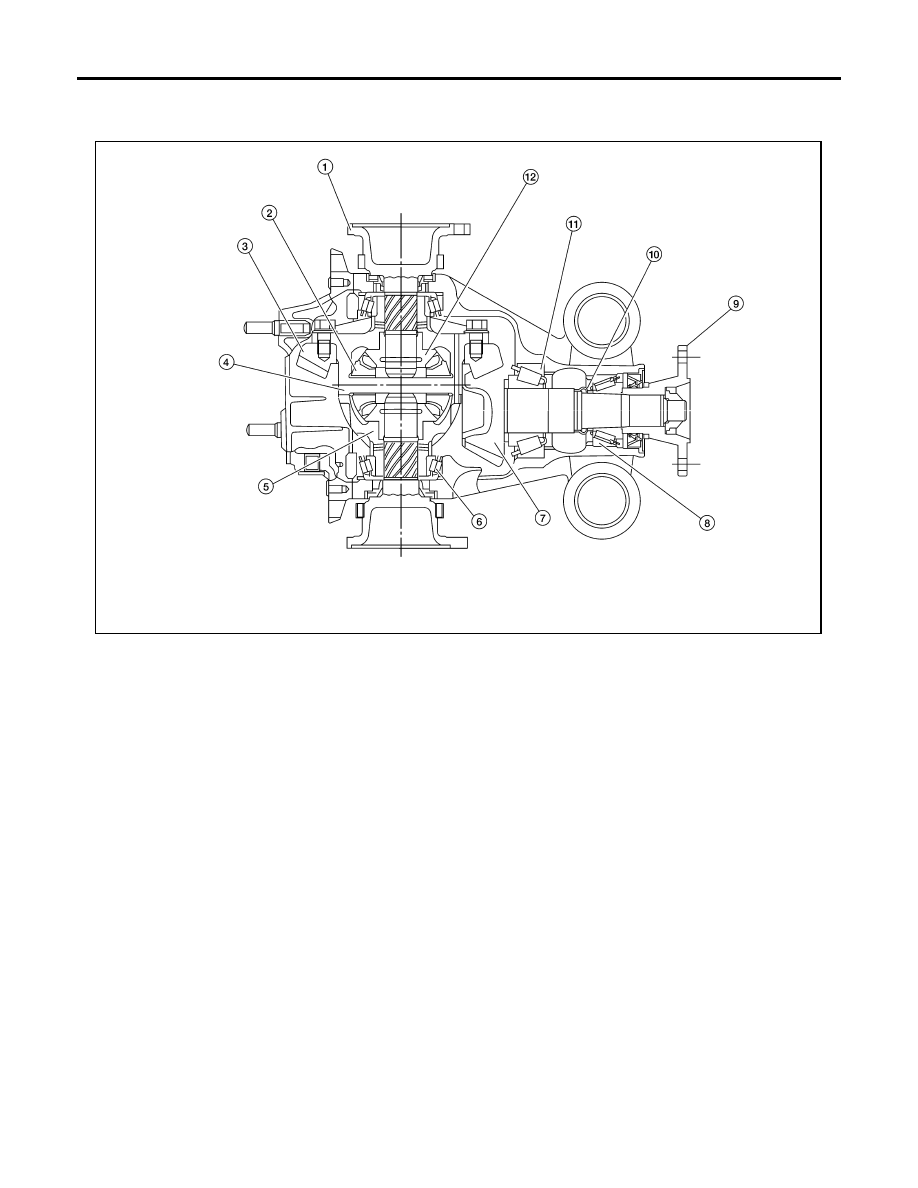

Cross-Sectional View

EDS0039Y

1.

Side flange

2.

Pinion mate gear

3.

Drive gear

4.

Pinion mate shaft

5.

Differential case

6.

Side bearing

7.

Drive pinion

8.

Drive pinion front bearing

9.

Companion flange

10. Collapsible spacer

11.

Drive pinion rear bearing

12. Side gear

WDIA0119E

DIFFERENTIAL GEAR OIL

RFD-9

C

E

F

G

H

I

J

K

L

M

A

B

RFD

2007 Pathfinder

DIFFERENTIAL GEAR OIL

PFP:KLD30

Changing Differential Gear Oil

EDS0039Z

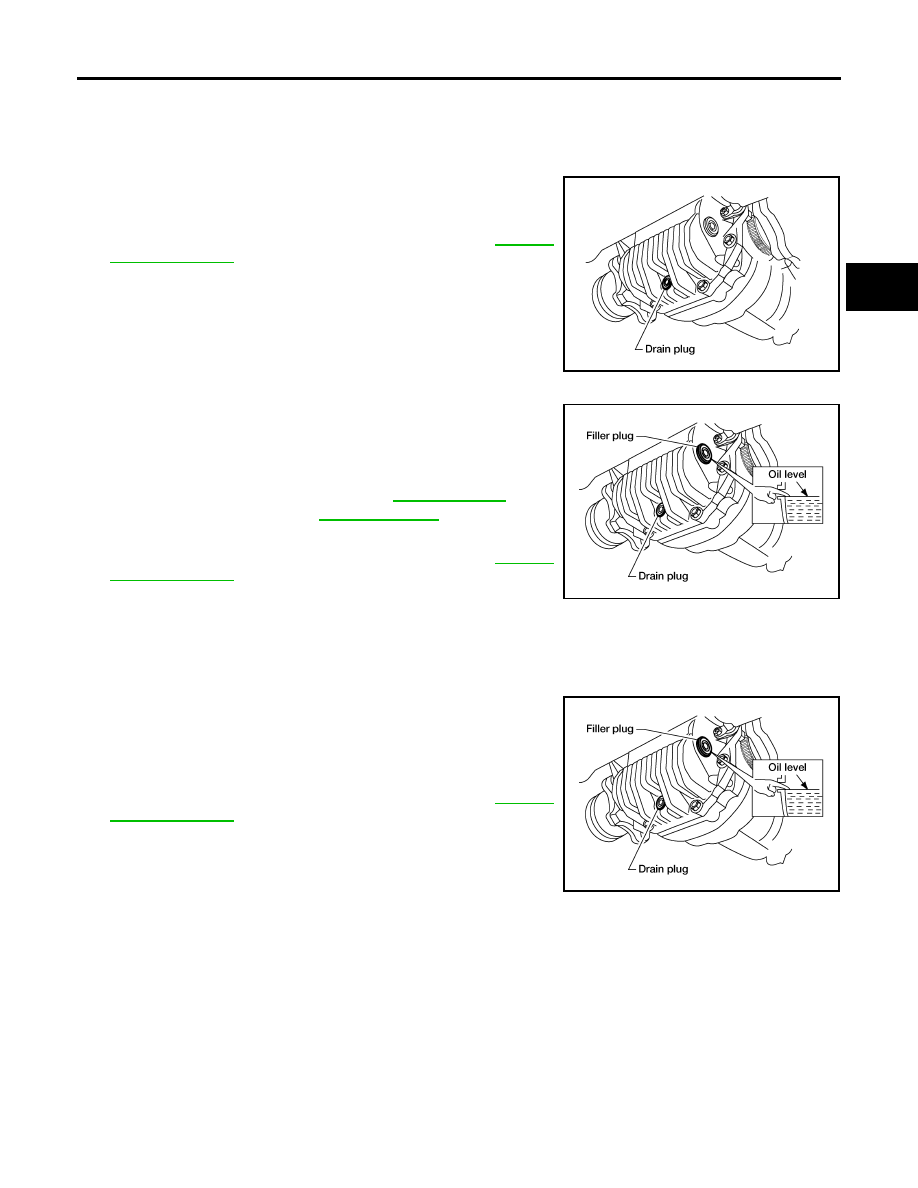

DRAINING

1.

Stop the engine.

2.

Remove the drain plug and gasket from the rear final drive
assembly to drain the differential gear oil.

3.

Install the drain plug with a new gasket to the rear final drive
assembly. Tighten to the specified torque. Refer to

RFD-18,

"COMPONENTS"

 .

CAUTION:

Do not reuse gasket.

FILLING

1.

Remove the filler plug and gasket from the rear final drive ass-
mebly.

2.

Fill the rear final drive assembly with new differential gear oil
until the level reaches the specified level near the filler plug hole.

3.

Install the filler plug with a new gasket on it to the rear final drive
assembly. Tighten to the specified torque. Refer to

RFD-18,

"COMPONENTS"

 .

CAUTION:

Do not reuse gasket.

Checking Differential Gear Oil

EDS003A0

OIL LEAKAGE AND OIL LEVEL

1.

Make sure that differential gear oil is not leaking from the rear final drive assembly or around it.

2.

Check the differential gear oil level from the filler plug hole as
shown.

CAUTION:

Do not start engine while checking differential gear oil level.

3.

Install the filler plug with a new gasket on it to the rear final drive
assembly. Tighten to the specified torque. Refer to

RFD-18,

"COMPONENTS"

 .

CAUTION:

Do not reuse gasket.

LDIA0162E

Differential gear oil
grade and capacity

: Refer to

MA-11, "Fluids

and Lubricants"

 .

LDIA0163E

LDIA0163E

RFD-10

FRONT OIL SEAL

2007 Pathfinder

FRONT OIL SEAL

PFP:38189

Removal and Installation

EDS003A1

REMOVAL

1.

Remove the drive shafts from the rear final drive assembly. Refer to

RAX-7, "Removal and Installation"

 .

2.

Remove the side flanges and side oil seals. Refer to

RFD-12, "Removal and Installation"

 .

3.

Remove the rear propeller shaft. Refer to

PR-10, "Removal and Installation"

 .

4.

Measure the total preload torque. Refer to

RFD-19, "Total Preload Torque"

 .

NOTE:
Record the total preload torque measurement.

5.

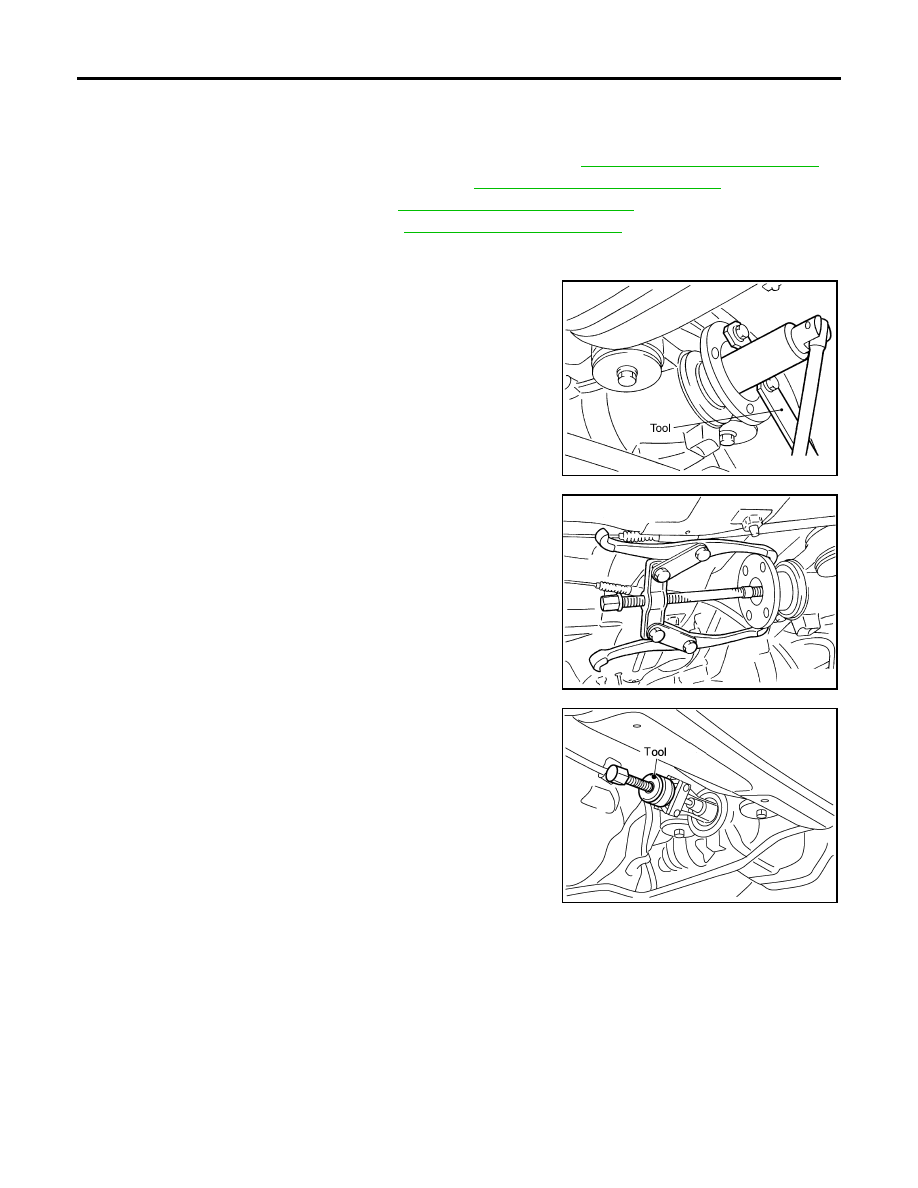

Remove the drive pinion lock nut using Tool.

6.

Put matching marks on the companion flange and drive pinion
using paint.

CAUTION:

Use paint to make the matching marks. Do not damage the
companion flange or drive pinion.

7.

Remove the companion flange using suitable tool.

8.

Remove the front oil seal using Tool.

Tool number

: KV40104000 (

—

)

SDIA1142E

SDIA1054E

Tool number

: KV381054S0 (J-34286)

SDIA0485E

FRONT OIL SEAL

RFD-11

C

E

F

G

H

I

J

K

L

M

A

B

RFD

2007 Pathfinder

INSTALLATION

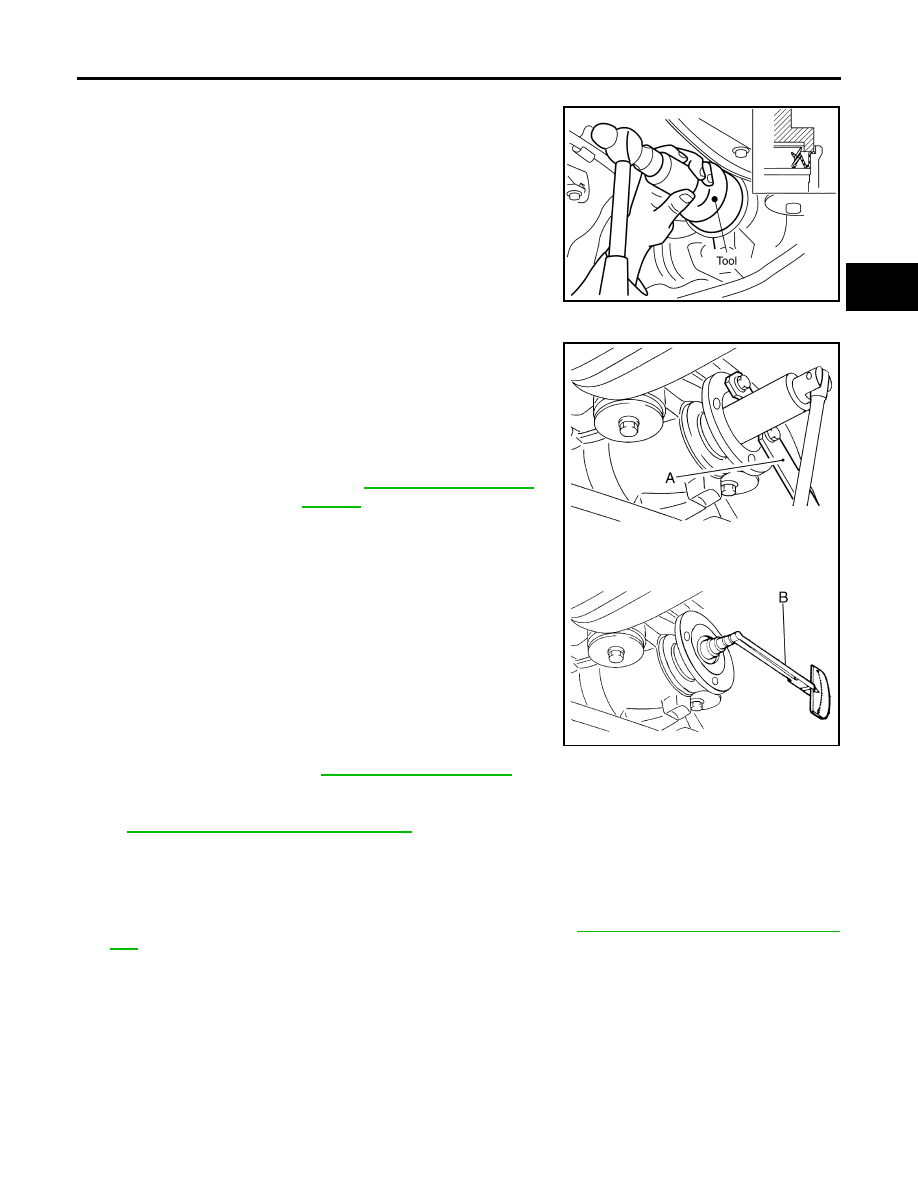

1.

Apply multi-purpose grease to the lips and differential gear oil to
the circumference of the new front oil seal. Then drive the new
front oil seal in evenly until it becomes flush with the gear carrier
using Tool.

CAUTION:

●

Do not reuse front oil seal.

●

Do not incline the new front oil seal when installing.

●

Apply multi-purpose grease to the lips and differential
gear oil to the circumference of the new front oil seal.

2.

Install the companion flange to the drive pinion while aligning the matching marks.

3.

Apply anti-corrosive oil to the threads of the drive pinion and the
seating surface of the new drive pinion lock nut. Then adjust the
drive pinion lock nut tightening torque using Tool A, and check
the total preload torque using Tool B.

●

The total preload torque should be within the total preload
torque specification. When not replacing the collapsible
spacer, it should also be equal to the measurement taken dur-
ing removal plus an additional 0.56 N·m (0.06 Kg-m, 5 in-lb).

●

If the total preload torque is low, tighten the drive pinion lock
nut in 6.8 N·m (0.69 Kg-m, 5ft-lb) increments until the total
preload torque is met.

CAUTION:

●

Do not reuse drive pinion lock nut.

●

Apply anti-corrosive oil to the threads of the drive pinion
and the seating surface of the new drive pinion lock nut.

●

Adjust the drive pinion lock nut tightening torque to the
lower limit first. Do not exceed the drive pinion lock nut
specified torque. Refer to

RFD-18, "COMPONENTS"

 .

●

Do not loosen drive pinion lock nut to adjust the total preload torque. If the total preload torque
exceeds the specifications, replace the collapsible spacer and tighten it again to adjust. Refer to

RFD-18, "Disassembly and Assembly"

 .

●

After adjustment, rotate drive pinion back and forth 2 to 3 times to check for unusual noise, rota-
tion malfunction, and other malfunctions.

4.

Installation of the remaining components is in the reverse order of removal.

CAUTION:

Check the differential gear oil level after installation. Refer to

RFD-9, "Checking Differential Gear

Oil"

 .

Tool number

: ST30720000 (J-25405)

PDIA0565E

Tool number

A: KV40104000 (

—

)

B: ST3127S000 (J-25765-A)

Total preload torque:

Refer to

RFD-19, "Total Preload

Torque"

 .

WDIA0380E

RFD-12

SIDE OIL SEAL

2007 Pathfinder

SIDE OIL SEAL

PFP:33142

Removal and Installation

EDS003A2

REMOVAL

1.

Remove the rear wheel sensor. Refer to

BRC-59, "Removal and Installation"

  for VDC/TCS/ABS or

BRC-

128, "Removal and Installation"

  for HDC/HSA/VDC/TCS/ABS.

2.

Remove the drive shaft from the rear final drive assembly. Refer to

RAX-7, "Removal and Installation"

 .

3.

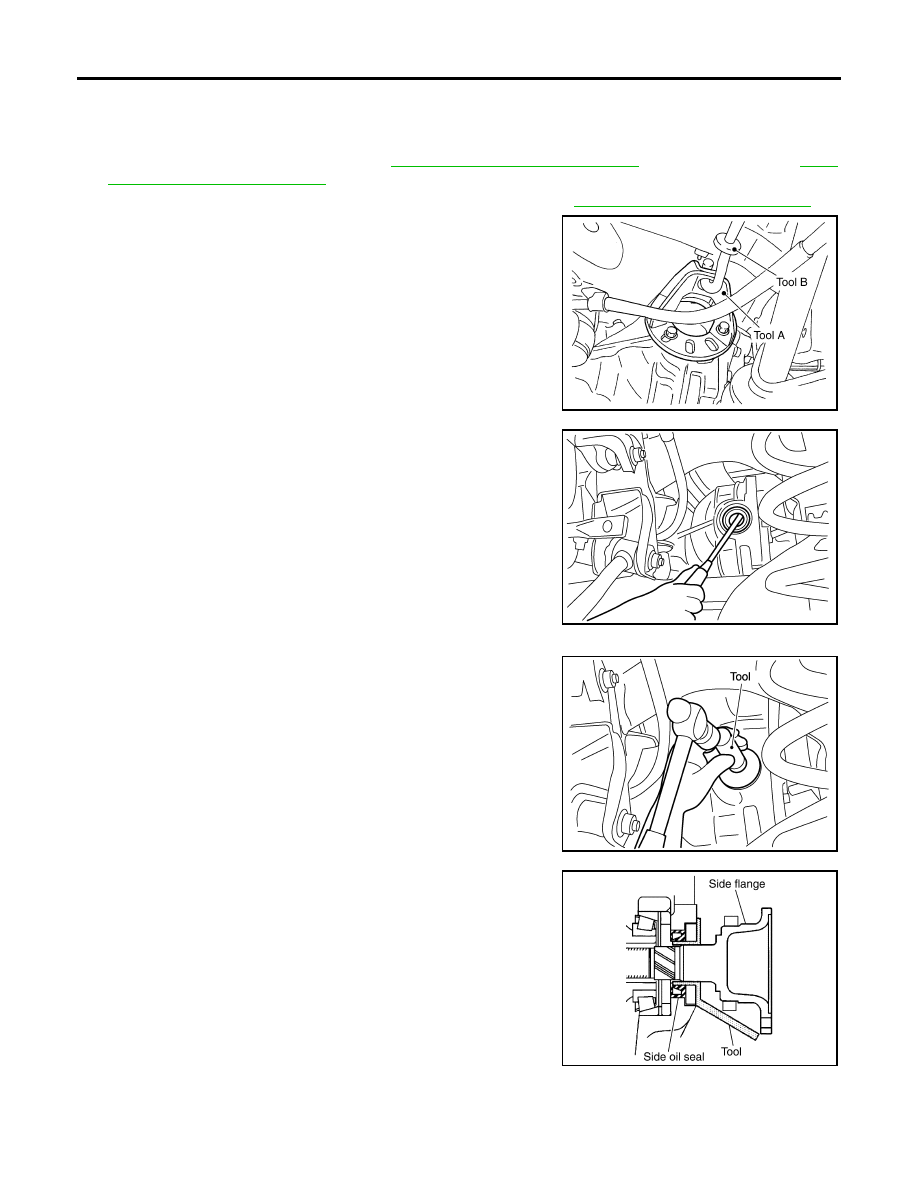

Remove the side flange using Tools.

NOTE:
Circular clip installation position: Rear final drive side

4.

Remove the side oil seal using suitable tool.

CAUTION:

Do not to damage gear carrier.

INSTALLATION

1.

Apply multi-purpose grease to the lips and differential gear oil to
the circumference of the new side oil seal. Then drive the new
side oil seal in evenly until it becomes flush with the gear carrier
using Tool.

CAUTION:

●

Do not reuse side oil seal.

●

Do not incline the new side oil seal when installing.

●

Apply multi-purpose grease to the lips and differential
gear oil to the circumference of the new side oil seal.

2.

Install the side flange using Tool.

a.

Install the Tool to the side oil seal as shown.

b.

Insert the side flange until the serrated part of the side flange
has engaged the serrated part of the side gear and remove the
Tool.

c.

Drive in the side flange using suitable tool.

NOTE:
Installation is completed when the driving sound of the side
flange turns into a sound which seems to affect the whole rear
final drive assembly.

3.

Installation of the remaining components is in the reverse order of removal.

Tool numbers

A: KV40104100 (

—

)

B: ST36230000 (J-25840-A)

WDIA0115E

SDIA0495E

Tool number

: KV38100200 (J-26233)

SDIA0496E

Tool number

: KV38107900 (J-39352)

SDIA0822E
