SIDE GUARD MOLDING

EI-25

C

D

E

F

G

H

J

K

L

M

A

B

EI

2007 Pathfinder

SIDE GUARD MOLDING

PFP:76840

Removal and Installation

EIS00AO5

REMOVAL

CAUTION:

Never apply tack-paper adhesive remover to body panel surface finished with lacquer-based paints.

Original side guard molding is affixed to body panel with double-faced adhesive tape.

1.

Heat molding to between 30

°

 and 40

°

C (86

°

 to 104

°

F) with a heat gun.

2.

Raise end of molding to release clips, then cut away tape to remove molding. Remove all traces of tape.

INSTALLATION

On vehicles coated with Hard Clear Coat, use double-faced 3M adhesive tape Product No. 4210 or equiv-
alent, after priming with 3M primer Product No. N200 or C-100 or equivalent.

The repair parts are also affixed with double-faced adhesive tape.

To re-use existing molding, clean all traces of double-faced adhesive tape from the molding and apply
new double-faced adhesive tape to the molding.

1.

Clean the panel surface with isopropyl alcohol or equivalent to degrease the surface.

2.

Heat the panel and molding tape surface to 30

°

 to 40

°

C (86

°

 to 104

°

F).

3.

Apply the side guard molding.

Remove the backing sheet from the tape surface.

Align the locating pin into the hole in the outer door.

Continue aligning the pins into their corresponding holes in the outer door during installation.

4.

Press ends by hand and use a roller to apply 5 kg-f (11 lbs-f) to press molding to door surface.

Apply even pressure along molding to insure proper wet out.

CAUTION:

To secure contact, do not wash vehicle for 24 hours after installation.

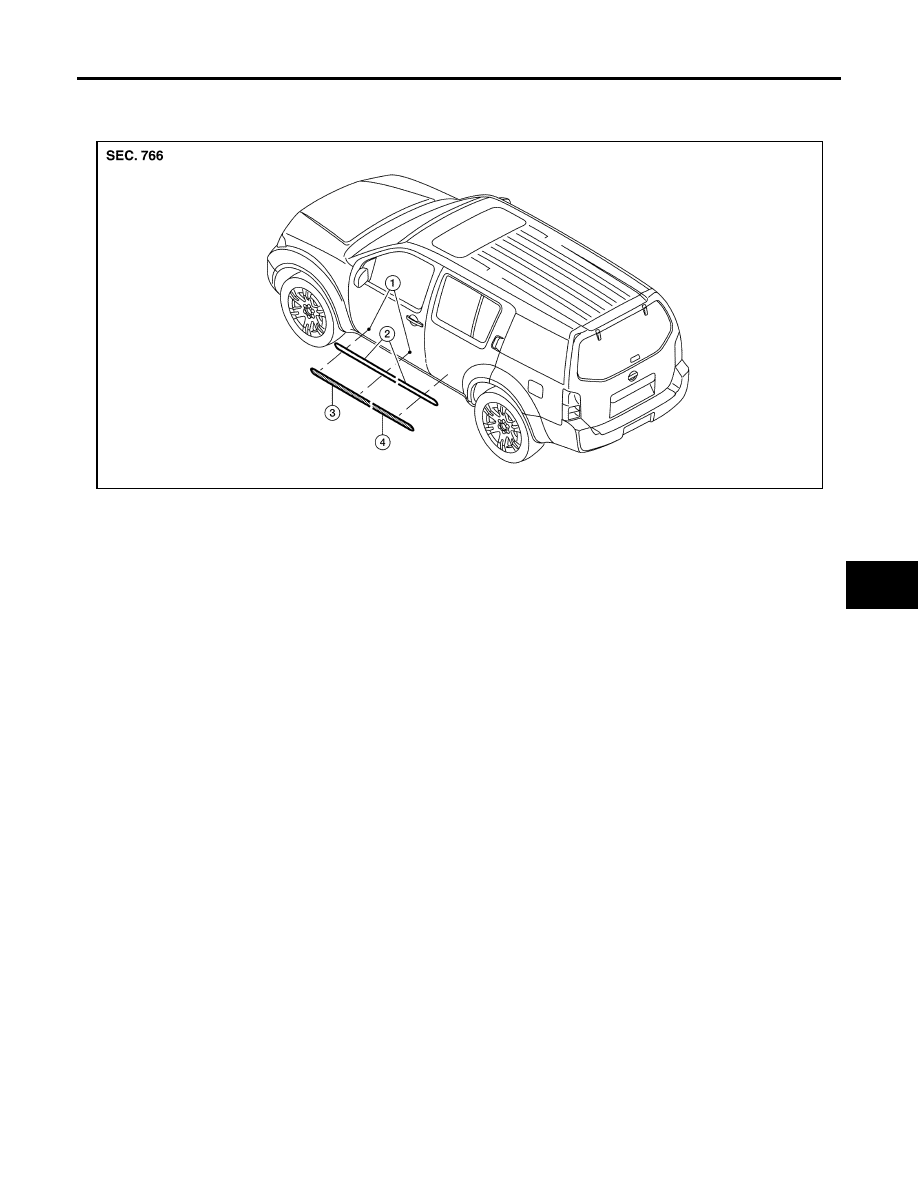

1.

Alignment hole

2.

Double-faced adhesive tape

3.

Front door side guard molding

4.

Rear door side guard molding

LIIA2724E

EI-26

DOOR FINISHER

2007 Pathfinder

DOOR FINISHER

PFP:80900

Removal and Installation

EIS007U3

FRONT DOOR

Removal

1.

Remove power window switch assembly.

Disconnect harness connectors.

2.

Remove pull handle escutcheon.

3.

Remove pull handle cover and remove screw.

4.

Lift armrest upward to release clips and remove armrest.

Remove screws behind armrest.

5.

Remove memory seat switch (if equipped).

Disconnect harness connector.

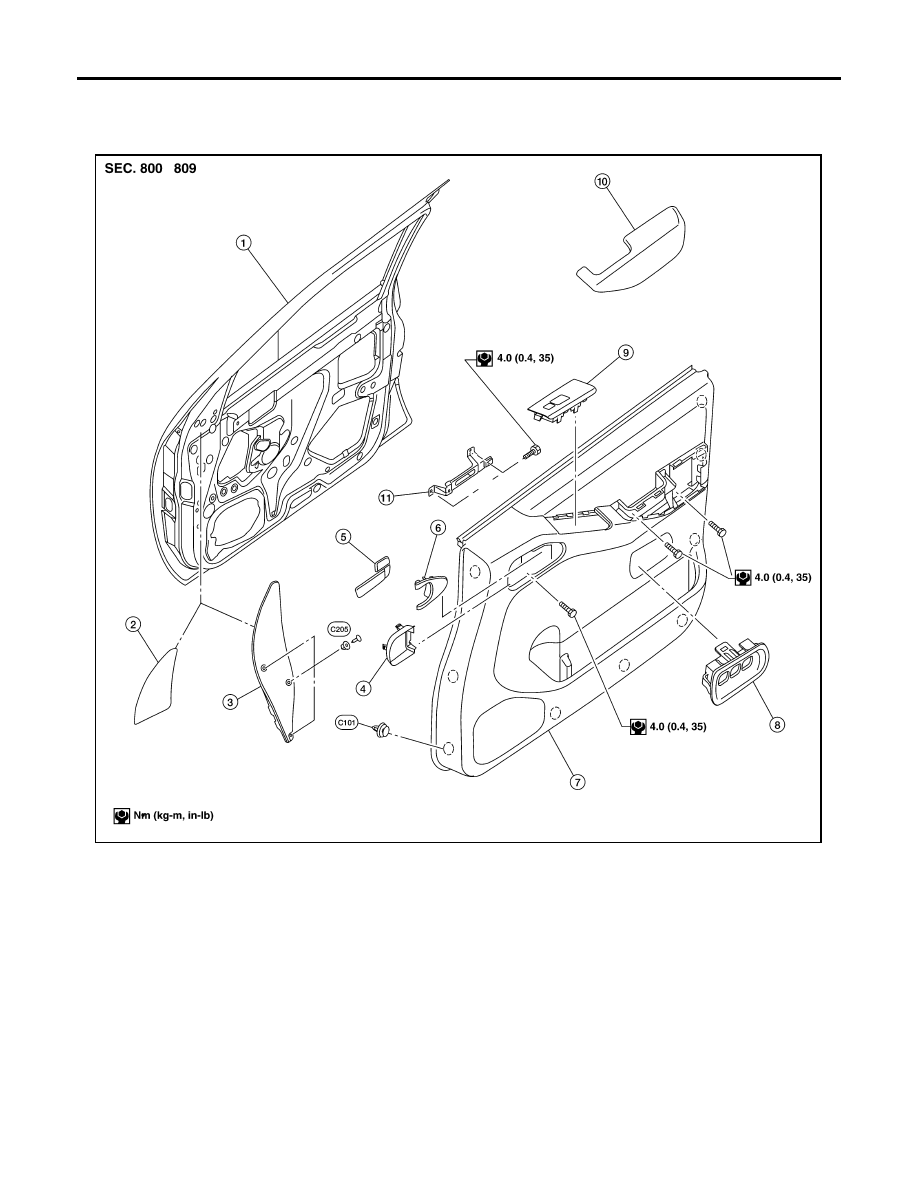

1.

Front door

2.

Mirror bolt cover LH

3.

Mirror bolt cover RH

4.

Pull handle escutcheon

5.

Pull handle/lock lever assembly

6.

Pull handle cover

7.

Front door finisher (RH shown)

8.

Seat memory switch (if equipped)

9.

Power window/lock switch assembly

10. Armrest

11.

Front door handle bracket

LIIA1782E

DOOR FINISHER

EI-27

C

D

E

F

G

H

J

K

L

M

A

B

EI

2007 Pathfinder

6.

Release clips and remove door finisher.

Disconnect lock cable and handle cable from door handle assembly. Refer to

BL-89, "FRONT DOOR

LOCK"

 .

7.

Remove pull handle/lock lever assembly.

Installation

Installation is in the reverse order of removal.

REAR DOOR

Removal

1.

Remove power window switch assembly.

Disconnect harness connector.

2.

Remove pull handle cover.

Remove screw behind pull handle cover.

3.

Remove pull handle escutcheon.

4.

Lift upward to release clips and remove armrest.

Remove screws behind armrest.

5.

Release the clips and remove rear door finisher.

Disconnect the rear door tweeter.

Installation

Installation is in the reverse order of removal.

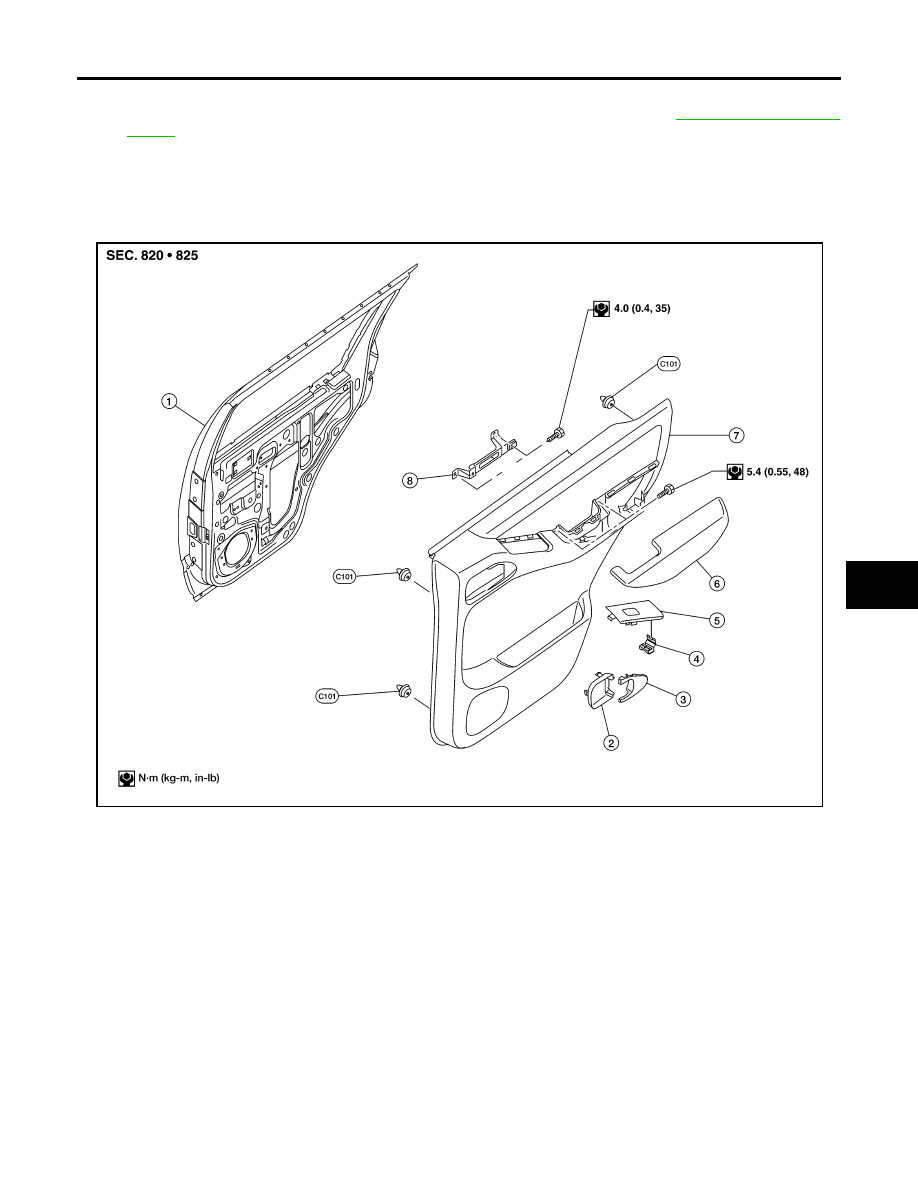

1.

Rear door

2.

Pull handle escutcheon

3.

Pull handle cover

4.

Metal clip

5.

Power window switch assembly

6.

Armrest

7.

Rear door finisher

8.

Rear door handle bracket

LIIA1785E

EI-28

BODY SIDE TRIM

2007 Pathfinder

BODY SIDE TRIM

PFP:76913

Components

EIS007U4

CAUTION:

Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from finishers.

When removing or installing body side welts, do not allow butyl seal to come in contact with pillar
finisher.

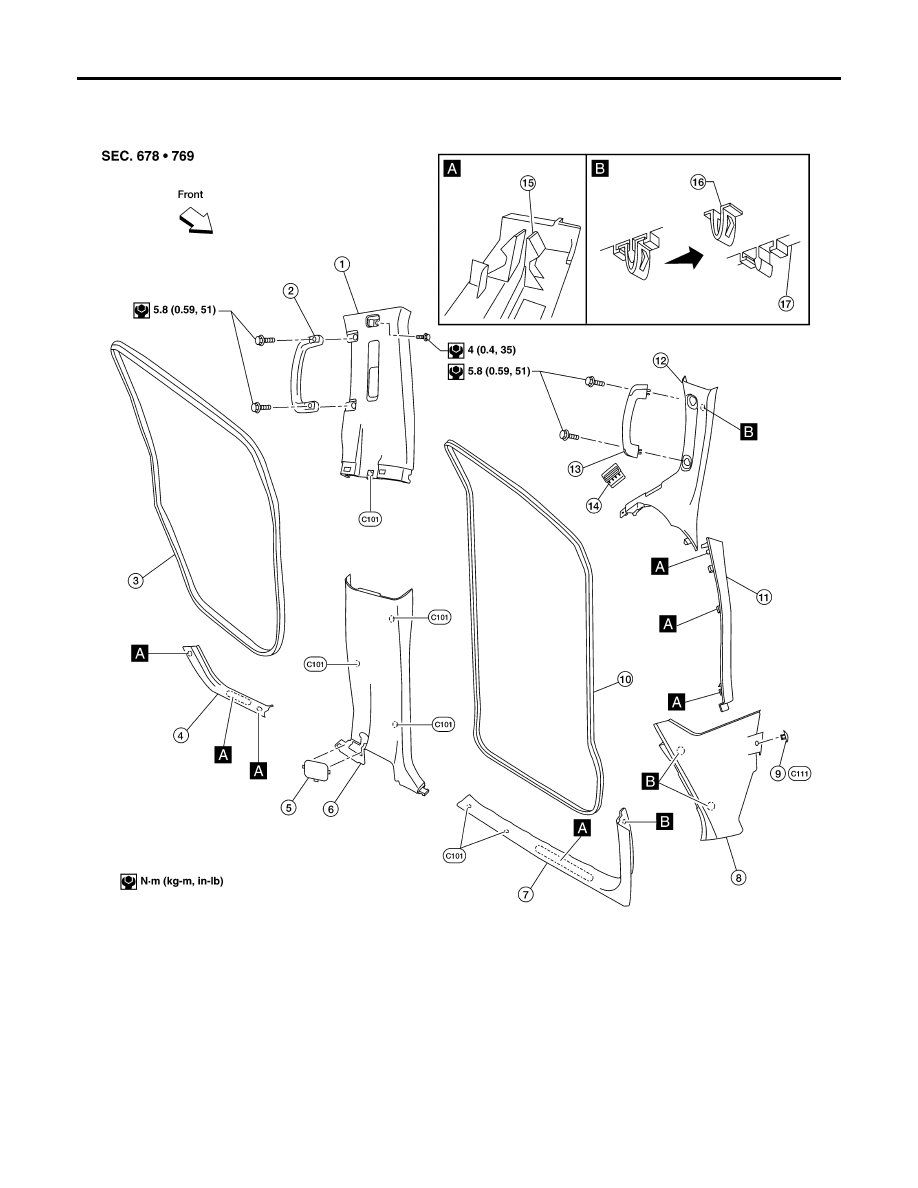

1.

Center pillar upper finisher

2.

Center pillar assist grip

3.

Rear door welt

4.

Rear kick plate

5.

Access cover (Passenger side only)

6.

Center pillar lower finisher

7.

Front kick plate

8.

Lower dash side finisher

9.

Clip

10. Front door welt

11.

 Front pillar lower finisher

12.

Front pillar upper finisher

13. Front pillar assist grip

14.

RH side demister grille

15.

Molded plastic clip

16. Metal clip

17.

Garnish

LIIA1786E

BODY SIDE TRIM

EI-29

C

D

E

F

G

H

J

K

L

M

A

B

EI

2007 Pathfinder

Removal and installation

EIS007U5

LOWER DASH SIDE FINISHER
Removal

1.

Remove push pin from lower dash side finisher.

2.

Remove front kick plate from center pillar lower finisher.

3.

Remove lower dash side finisher and front kick plate together.

4.

Remove lower dash side finisher from front kick plate.

Installation

Installation is in the reverse order of removal.

CENTER PILLAR LOWER FINISHER
Removal

1.

Remove seat belt anchor. Refer to

SB-3, "Removal and Installation of Front Seat Belt"

 .

On RH side, disconnect seat belt tension sensor.

2.

Remove front and rear kick plates. Refer to

EI-29, "KICK PLATES"

 .

3.

Remove center pillar lower finisher.

Installation

Installation is in the reverse order of removal.

CENTER PILLAR UPPER FINISHER
Removal

1.

Remove front and rear door welts.

2.

Remove seat belt shoulder anchor and D-ring. Refer to

SB-3, "Removal and Installation of Front Seat

Belt"

 .

3.

Remove front and rear kick plates. Refer to

EI-29, "KICK PLATES"

 .

4.

Remove center pillar lower finisher.

5.

Remove assist grip.

6.

Remove center pillar upper finisher.

Installation

Installation is in the reverse order of removal.

FRONT PILLAR UPPER FINISHER
Removal

1.

Remove the front pillar assist grip.

2.

Remove the front pillar upper finisher bolt.

3.

Remove the front pillar upper finisher.

Installation

Installation is in the reverse order of removal.

FRONT PILLAR LOWER FINISHER
Removal

1.

Remove the lower dash side finisher. Refer to

EI-29, "LOWER DASH SIDE FINISHER"

 .

2.

Remove the front pillar lower finisher.

Installation

Installation is in the reverse order of removal.

KICK PLATES
Removal

Release clips and remove front and/or rear kick plates.

Installation

Installation is in the reverse order of removal.

EI-30

FLOOR TRIM

2007 Pathfinder

FLOOR TRIM

PFP:74902

Removal and Installation

EIS007U6

Front and Rear Floor Carpet

REMOVAL
Front Carpet

1.

Remove front seats. Refer to

SE-84, "FRONT SEAT"

 .

2.

Remove lower seat belt anchors. Refer to

SB-3, "SEAT BELTS"

 .

3.

Remove lower body side trim panels. Refer to

EI-28, "BODY SIDE TRIM"

 .

4.

Remove center console. Refer to

IP-16, "CENTER CONSOLE"

 .

5.

Remove floor mat hook from front carpet.

6.

Remove front carpet.

Rear Carpet

1.

Remove 3rd row seats. Refer to

SE-95, "Third Row"

 .

2.

Remove luggage side lower finisher RH and LH. Refer to

EI-35, "Removal and Installation"

 .

3.

Remove flipper doors and floor tray. Refer to

EI-35, "Removal and Installation"

 .

4.

Remove the bolts and the storage box. Refer to

EI-35, "Removal and Installation"

 .

5.

Remove the rear carpet.

INSTALLATION

Installation is in the reverse order of removal.

LIIA1770E

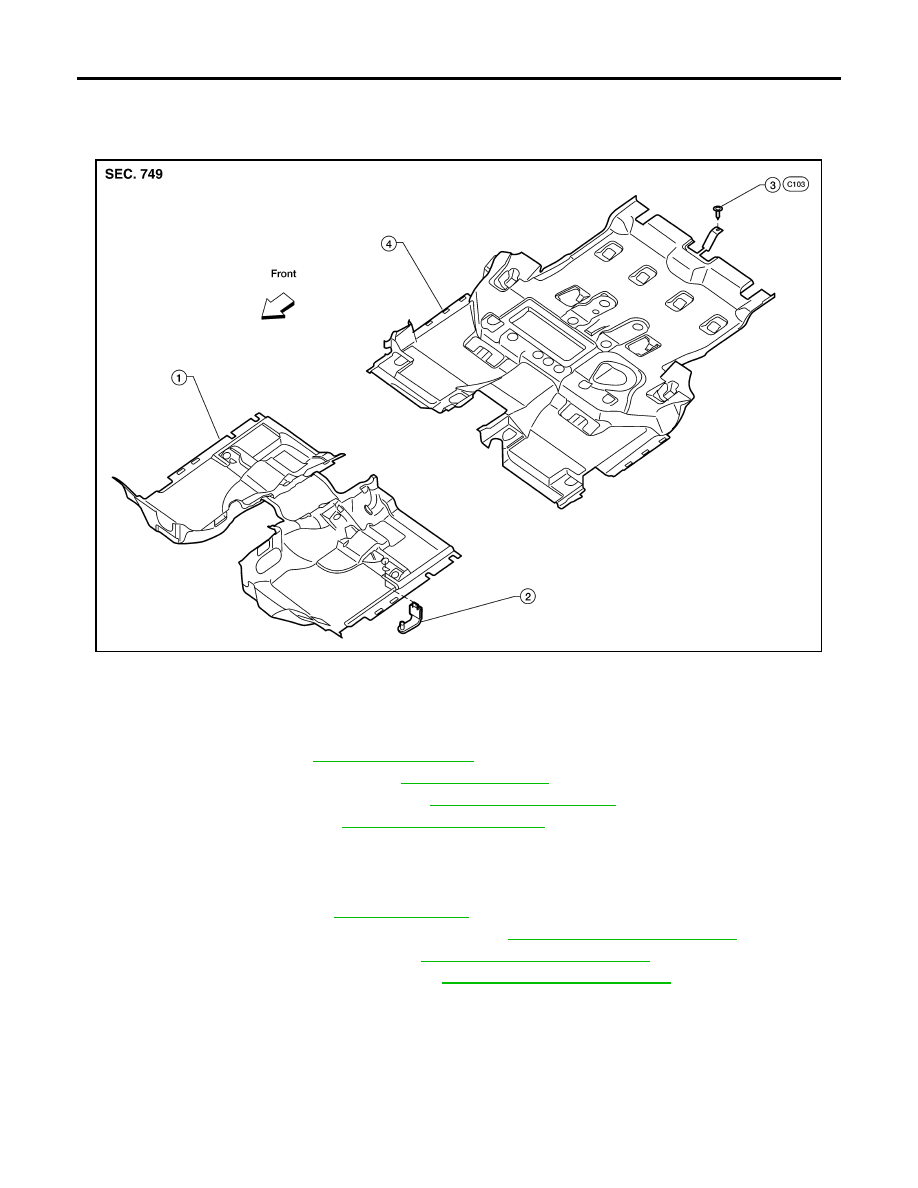

1.

Front carpet

2.

Floor mat hook

3.

Clip

4.

Rear carpet

HEADLINING

EI-31

C

D

E

F

G

H

J

K

L

M

A

B

EI

2007 Pathfinder

HEADLINING

PFP:73910

Removal and Installation

EIS007U7

REMOVAL

CAUTION:

Disconnect both the negative and positive battery terminals in advance.

1.

Disconnect the negative and positive battery terminals, then wait at least 3 minutes.

2.

Remove body side trim panels. Refer to

EI-28, "BODY SIDE TRIM"

 .

3.

Remove luggage floor trim upper panels. Refer to

EI-33, "LUGGAGE FLOOR TRIM"

 .

4.

Remove sun visor assemblies, both LH and RH.

5.

Remove sun visor holders LH and RH.

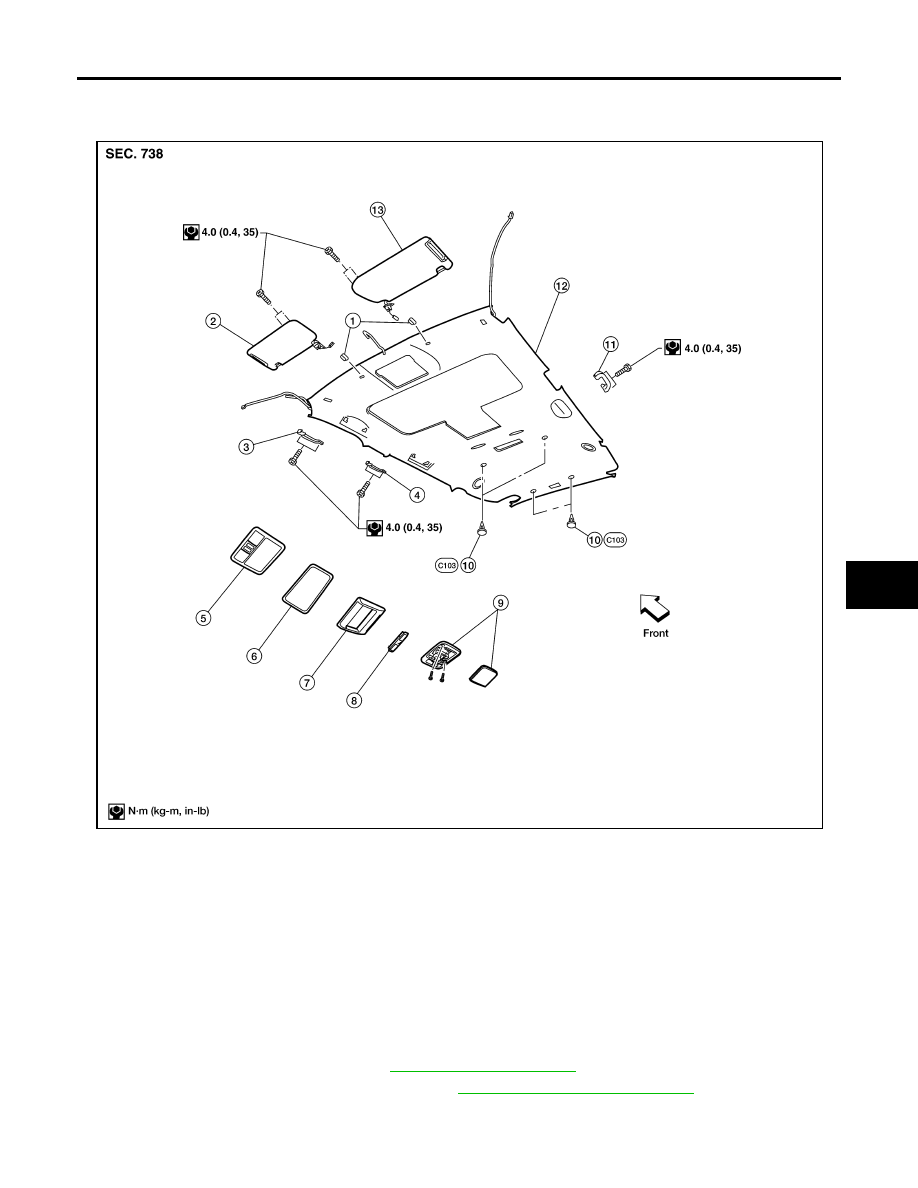

1.

Sun visor holder LH/RH

2.

Sun visor assembly RH

3.

Front assist grip RH

4.

Rear assist grip LH

5.

Front roof console with front room
lamp assembly and sunglass bin

6.

Sunroof welt (if equipped)

7.

DVD video monitor finisher (if
equipped)

8.

Center room lamp assembly

9.

Rear room lamp assembly

10.

Clip

11.

Rear assist grip LH

12. Headlining

13.

Sun visor assembly LH

LIIA1778E

EI-32

HEADLINING

2007 Pathfinder

6.

Remove sunroof welt (if equipped).

7.

Remove DVD video monitor assembly (if equipped). Refer to

AV-77, "VIDEO MONITOR"

 .

Disconnect harnesses.

8.

Remove assist grips.

9.

Remove the screws and the front roof console.

Disconnect harness.

10. Remove the center room and rear room lamp assemblies.

11. Remove rear upper overhead duct (if equipped). Refer to

ATC-156, "REAR OVERHEAD DUCTS"

 .

12. Remove headlining.

NOTE:
Use an assistant to steady the headlining while lowering from roof.

Remove clips from center of headlining.

Remove clips from rear of headlining.

Disconnect rear washer tube at front connection, allow to drain.

Disconnect harnesses and rear washer tube rear connections.

13. Remove assist grip brackets from roof.

INSTALLATION

Installation is in the reverse order of removal.
