EI

2007 Pathfinder

COWL TOP

PFP:66100

Removal and Installation

EIS007TU

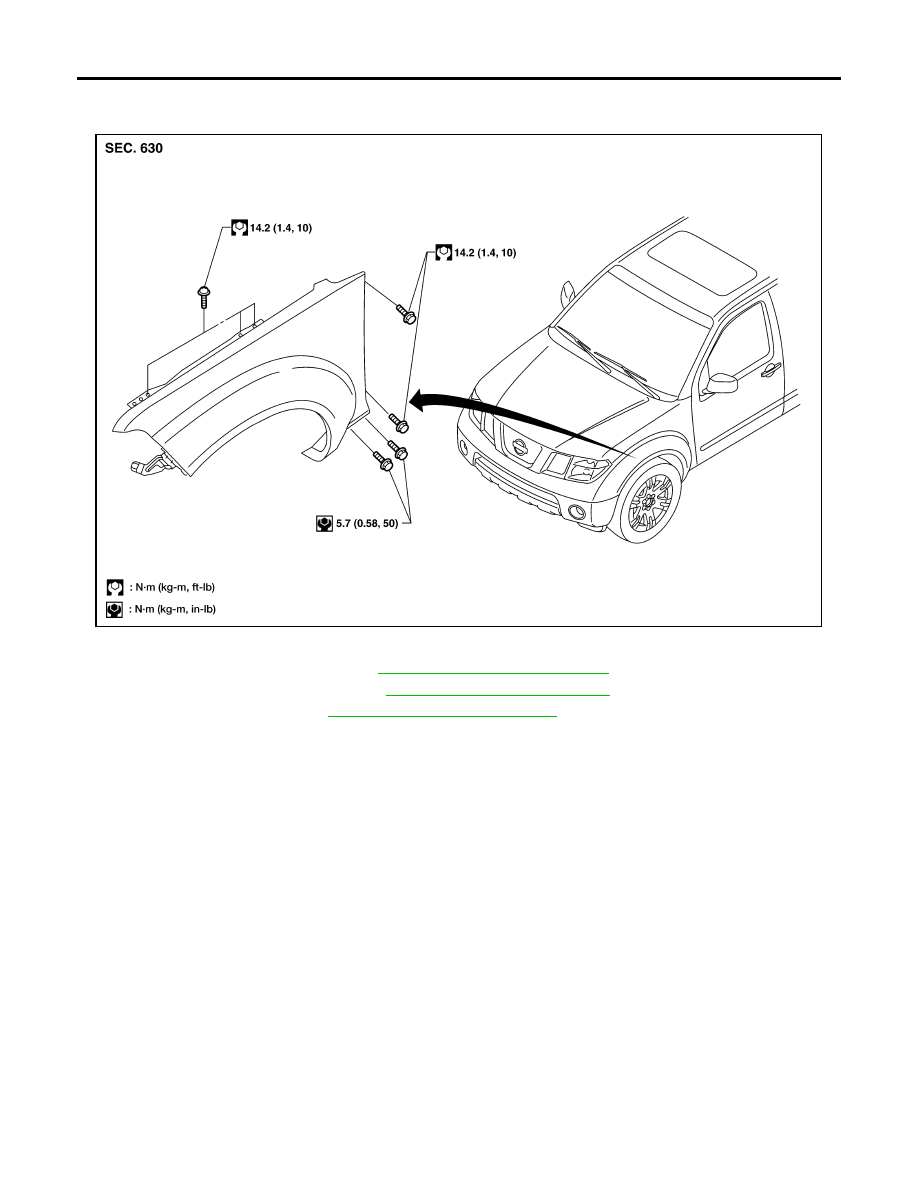

REMOVAL

1.

Remove the front wiper arms. Refer to

WW-23, "FRONT WIPER ARMS"

 .

2.

Remove cowl top seal.

3.

Release clips and remove LH and RH cowl top extensions.

4.

Disconnect washer tubes from washer nozzles.

5.

Remove cowl top clips and remove cowl top from the cowl.

INSTALLATION

Installation is in the reverse order of removal.

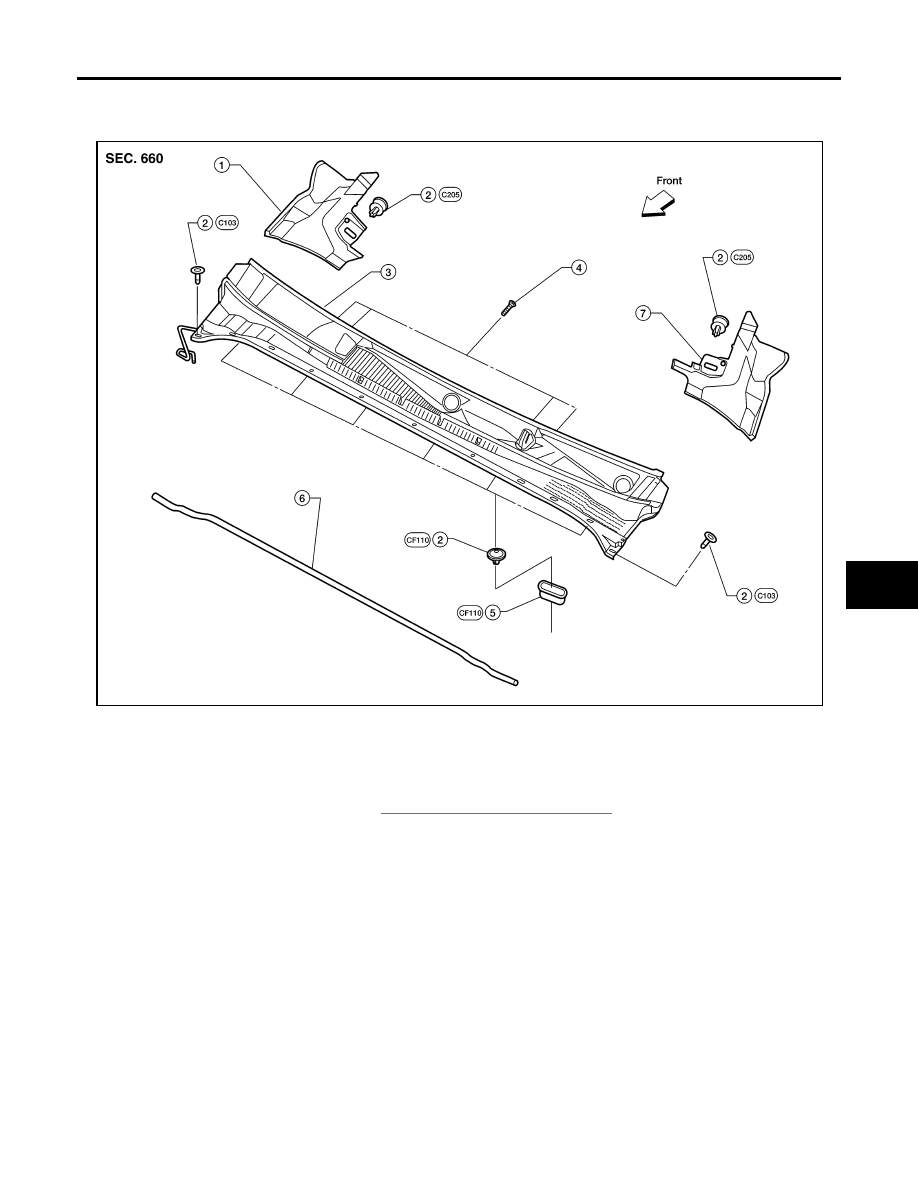

1.

Cowl top extension RH

2.

Clips

3.

Cowl top

4.

Washer nozzle screws

5.

Grommet

6.

Cowl top seal

7.

Cowl top extension LH

LIIA1761E

EI-18

FRONT FENDER

2007 Pathfinder

FRONT FENDER

PFP:63100

Removal and Installation

EIS007TV

REMOVAL

1.

Remove headlamp assembly. Refer to

LT-25, "Removal and Installation"

 .

2.

Remove front fender protector. Refer to

EI-20, "FENDER PROTECTOR"

 .

3.

Remove front bumper. Refer to

EI-14, "Removal and Installation"

 .

4.

Remove front fender bolts from hoodledge and dash panel.

5.

Remove front fender bolts from rocker panel and radiator core support member.

6.

Remove front fender.

INSTALLATION

Installation is in the reverse order of removal.

LIIA1752E

LICENSE LAMP FINISHER

EI-19

C

D

E

F

G

H

J

K

L

M

A

B

EI

2007 Pathfinder

LICENSE LAMP FINISHER

PFP:84810

Removal and Installation

EIS007TW

REMOVAL

1.

Remove back door finisher. Refer to

EI-36, "BACK DOOR TRIM"

 .

2.

Remove nuts and license lamp finisher.

INSTALLATION

Installation is in the reverse order of removal.

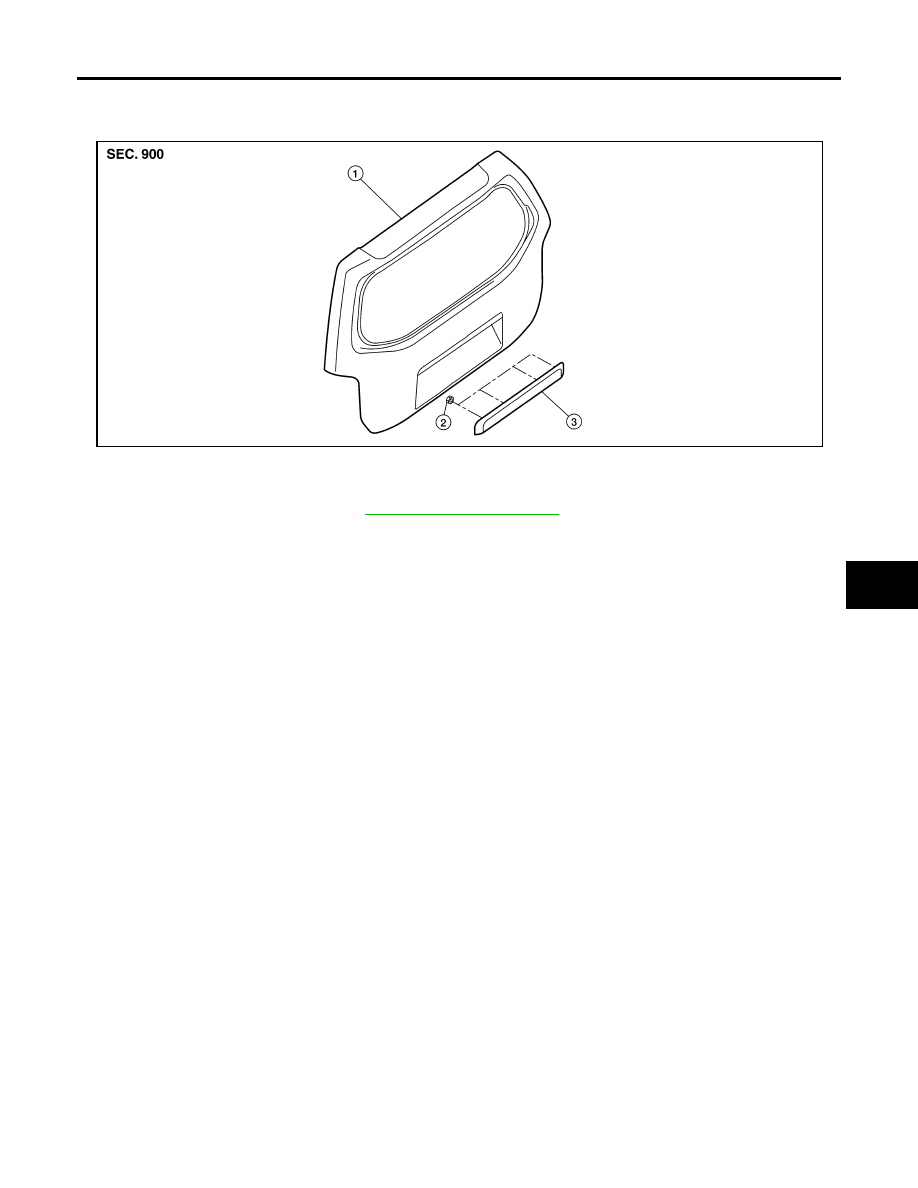

1.

Back door

2.

Nut

3.

License lamp finisher

LIIA1781E

EI-20

FENDER PROTECTOR

2007 Pathfinder

FENDER PROTECTOR

PFP:63840

Components

EIS007TX

Front Fender Protector

Rear Fender Protector

WIIA1078E

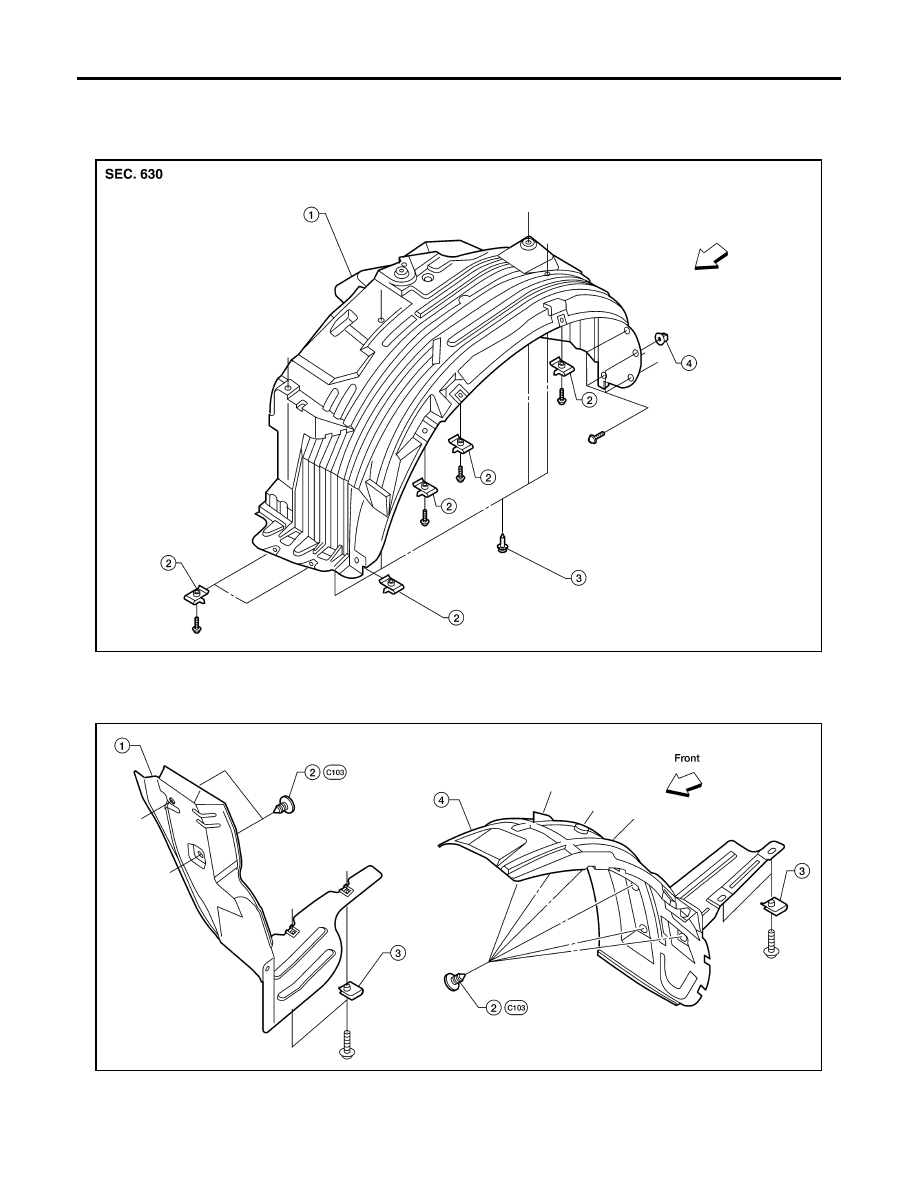

1.

Fender protector LH

2.

Nut

3.

Clip C205

4.

Grommet

⇐

Vehicle front

LIIA1764E

1.

Fender protector RH

2.

Clips

3.

Nuts

4.

Fender protector LH

FENDER PROTECTOR

EI-21

C

D

E

F

G

H

J

K

L

M

A

B

EI

2007 Pathfinder

Removal and Installation of Front Fender Protector

EIS007TY

REMOVAL

1.

Remove screws.

2.

Remove plastic clips.

3.

Remove pushpins.

4.

Remove front fender protector.

INSTALLATION

Installation is in the reverse order of removal.

Removal and Installation of Rear Fender Protector

EIS007TZ

REMOVAL

1.

Remove screws.

2.

Remove plastic clips.

3.

Remove pushpins.

4.

Remove rear fender protector.

INSTALLATION

Installation is in the reverse order of removal.

EI-22

RUNNING BOARDS

2007 Pathfinder

RUNNING BOARDS

PFP:96110

Removal and Installation

EIS007U0

REMOVAL

1.

Remove mud flaps (if equipped).

2.

Remove bolts and remove running board from running board brackets.

3.

Remove nuts and remove running board brackets from chassis.

4.

Remove screw and clip and remove wind deflector.

INSTALLATION

Installation is in the reverse order of removal.

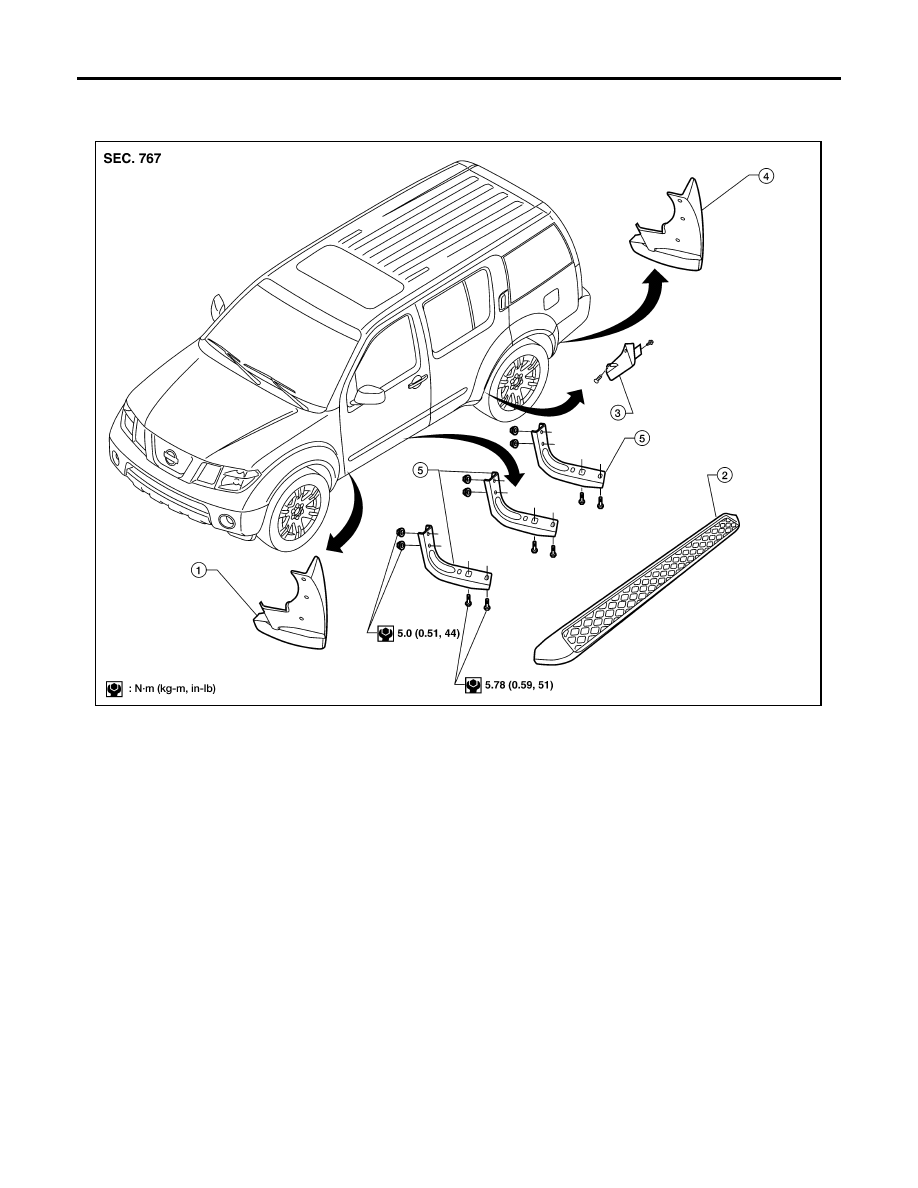

1.

Front mud flap (if equipped)

2.

Running board

3.

Rear wheel wind deflector

4.

Rear mud flap (if equipped)

5.

Running board bracket

LIIA1779E

ROOF RACK

EI-23

C

D

E

F

G

H

J

K

L

M

A

B

EI

2007 Pathfinder

ROOF RACK

PFP:73155

Removal and Installation

EIS007U1

REMOVAL

1.

Pry outward releasing the clips and remove the slide rail cover front LH and RH.

2.

Pry outward releasing the clips and remove the slide rail cover rear LH and RH.

3.

Remove the bolts and remove front and rear sliding crossbars from slide rails.

4.

Remove the bolts from the slide rails LH and RH.

5.

Shift the slide rails forward to disengage from center stanchion and remove from roof.

6.

Remove the bolts and remove center stansions LH and RH from roof.

INSTALLATION

Installation is in the reverse order of removal.

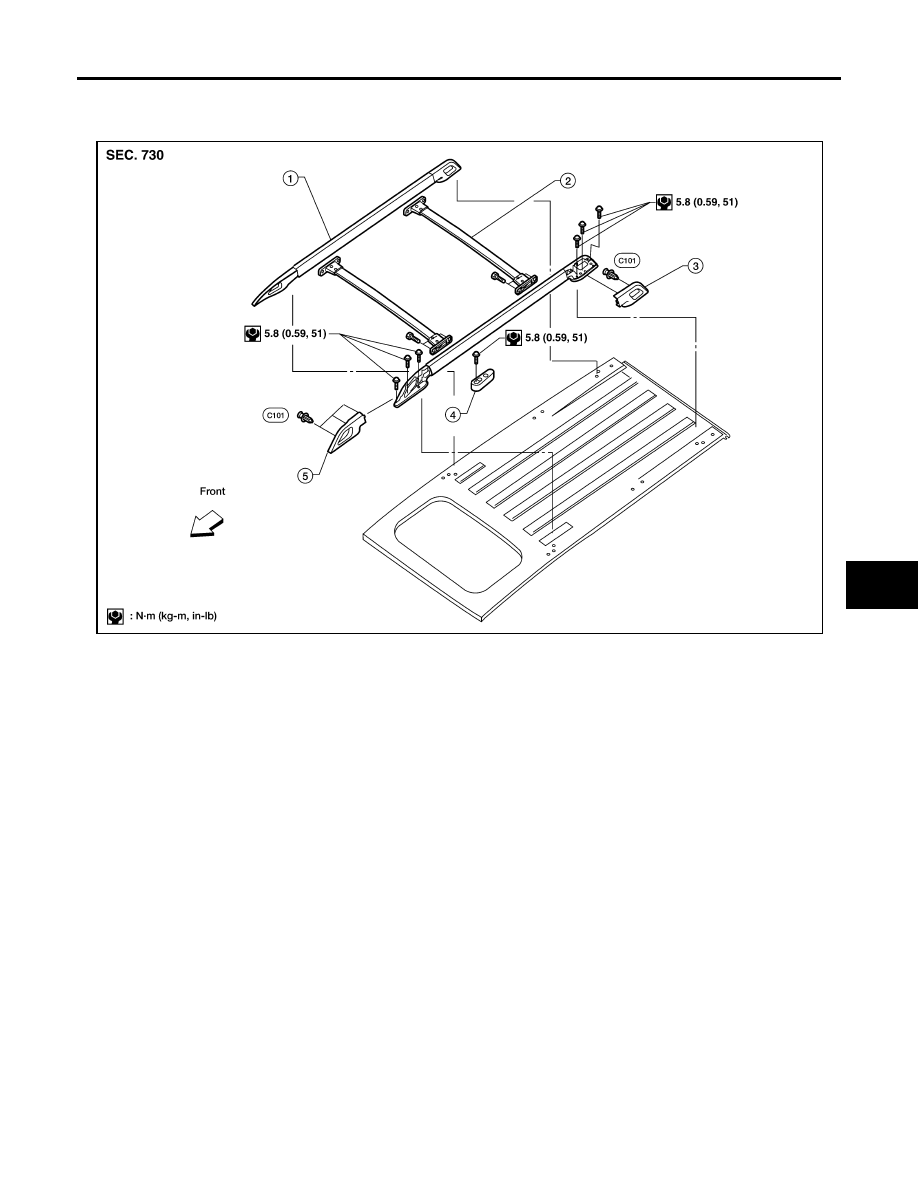

1.

Slide rail

2.

Sliding crossbar

3.

Slide rail cover rear

4.

Center stanchion

5.

Slide rail cover front

LIIA1776E

EI-24

DOOR OUTSIDE MOLDING

2007 Pathfinder

DOOR OUTSIDE MOLDING

PFP:82820

Removal and Installation

EIS007U2

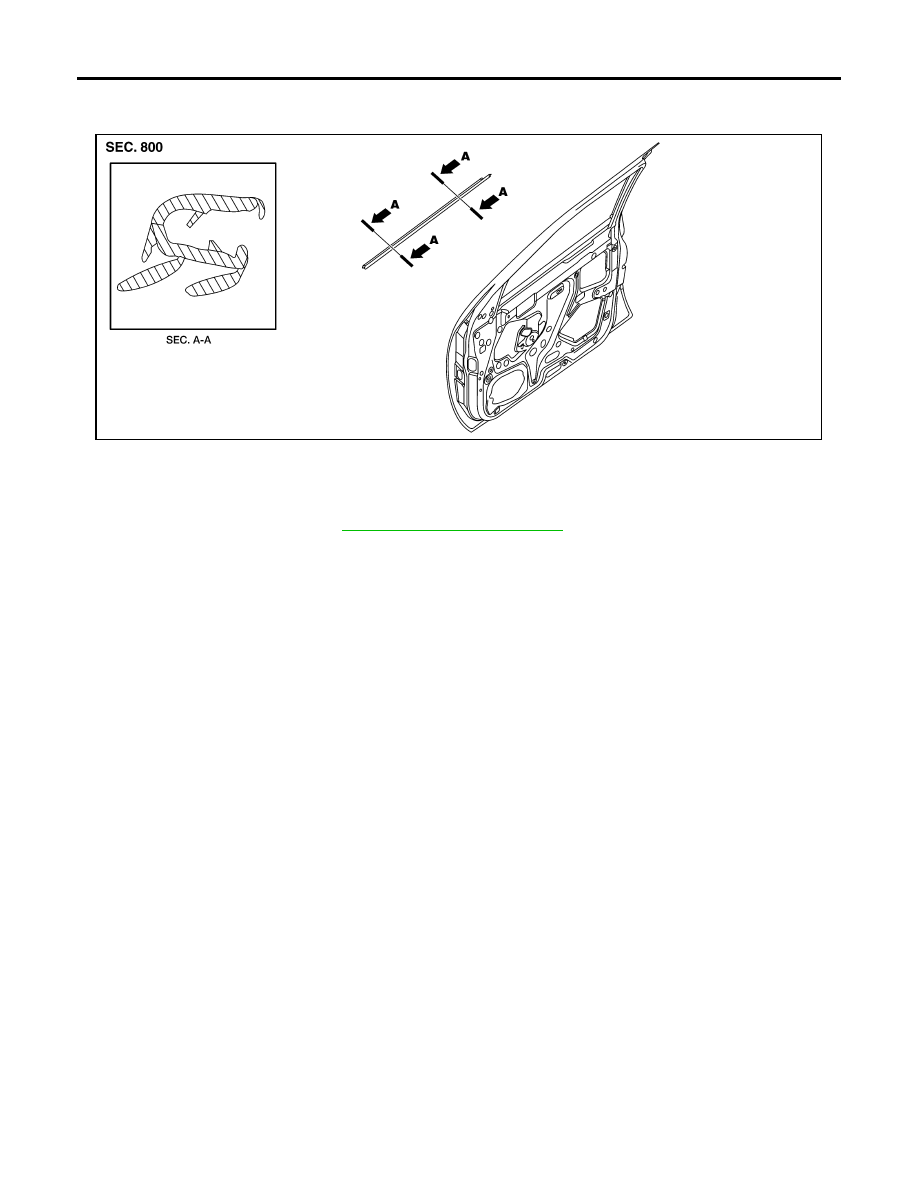

FRONT DOOR OUTSIDE MOLDING
Removal

1.

Open the window fully.

2.

Remove the door mirror. Refer to

GW-92, "Door Mirror Assembly"

 .

3.

Lift molding from the front side off of flange.

4.

Remove the front door outside molding.

Installation

Installation is in the reverse order of removal.

LIIA1780E
