SQUEAK AND RATTLE TROUBLE DIAGNOSES

EI-9

C

D

E

F

G

H

J

K

L

M

A

B

EI

2007 Pathfinder

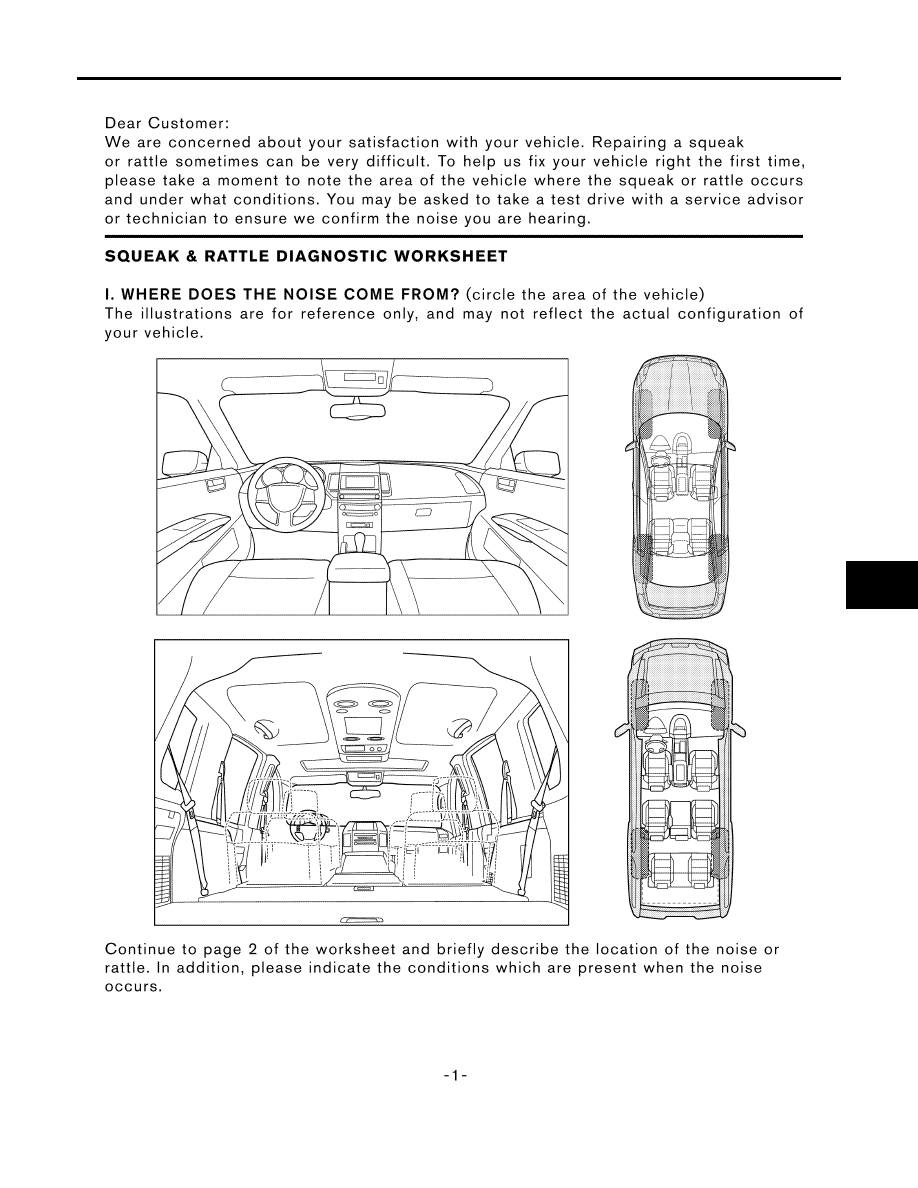

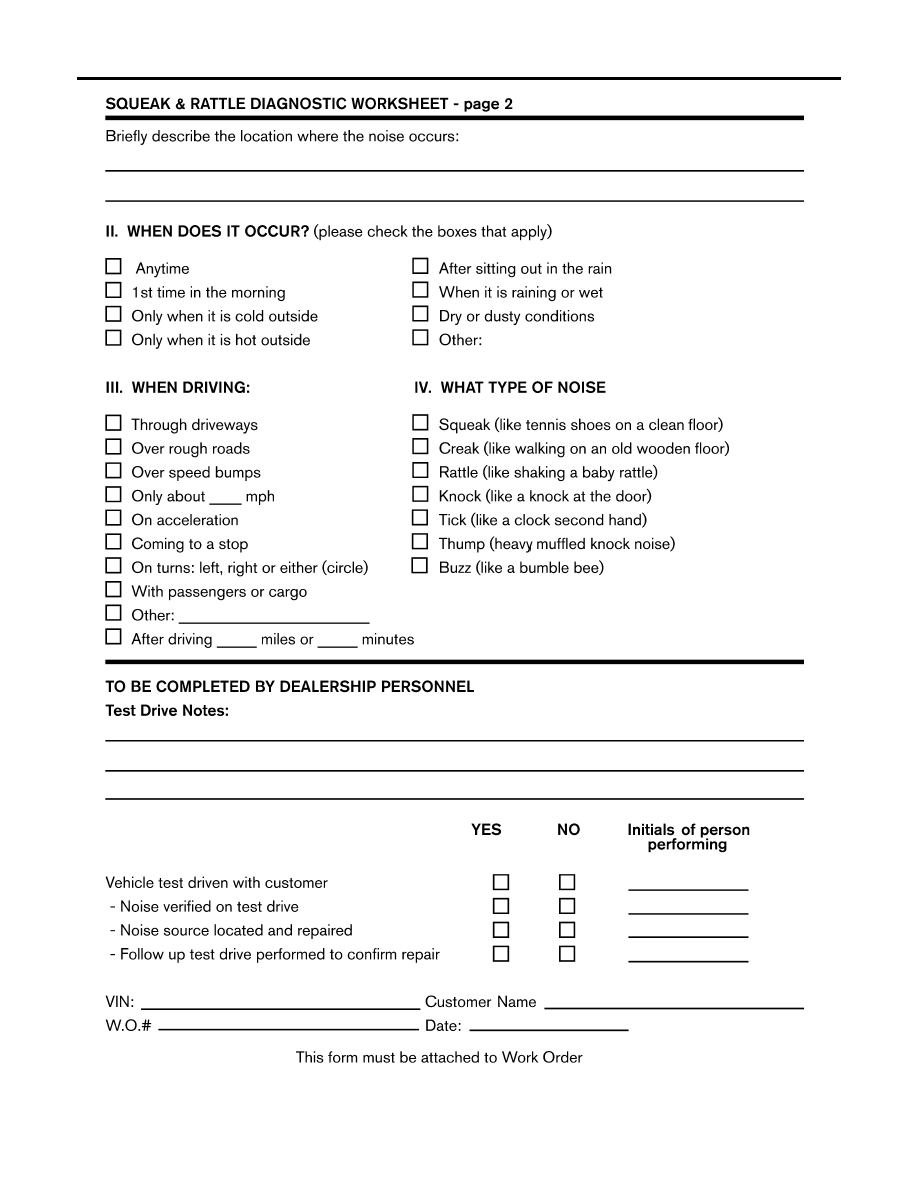

Diagnostic Worksheet

EIS007TP

LAIA0072E

EI-10

SQUEAK AND RATTLE TROUBLE DIAGNOSES

2007 Pathfinder

LAIA0071E

CLIP AND FASTENER

EI-11

C

D

E

F

G

H

J

K

L

M

A

B

EI

2007 Pathfinder

CLIP AND FASTENER

PFP:76906

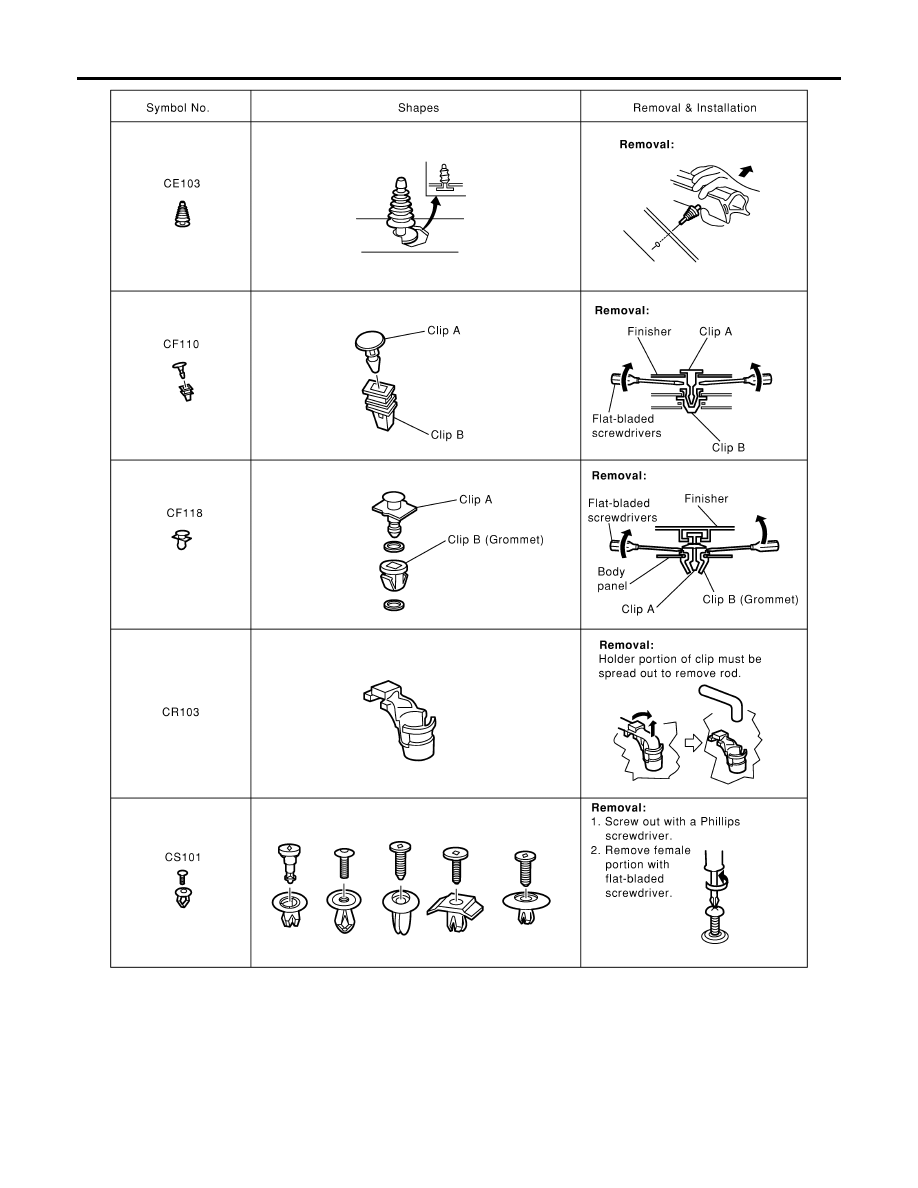

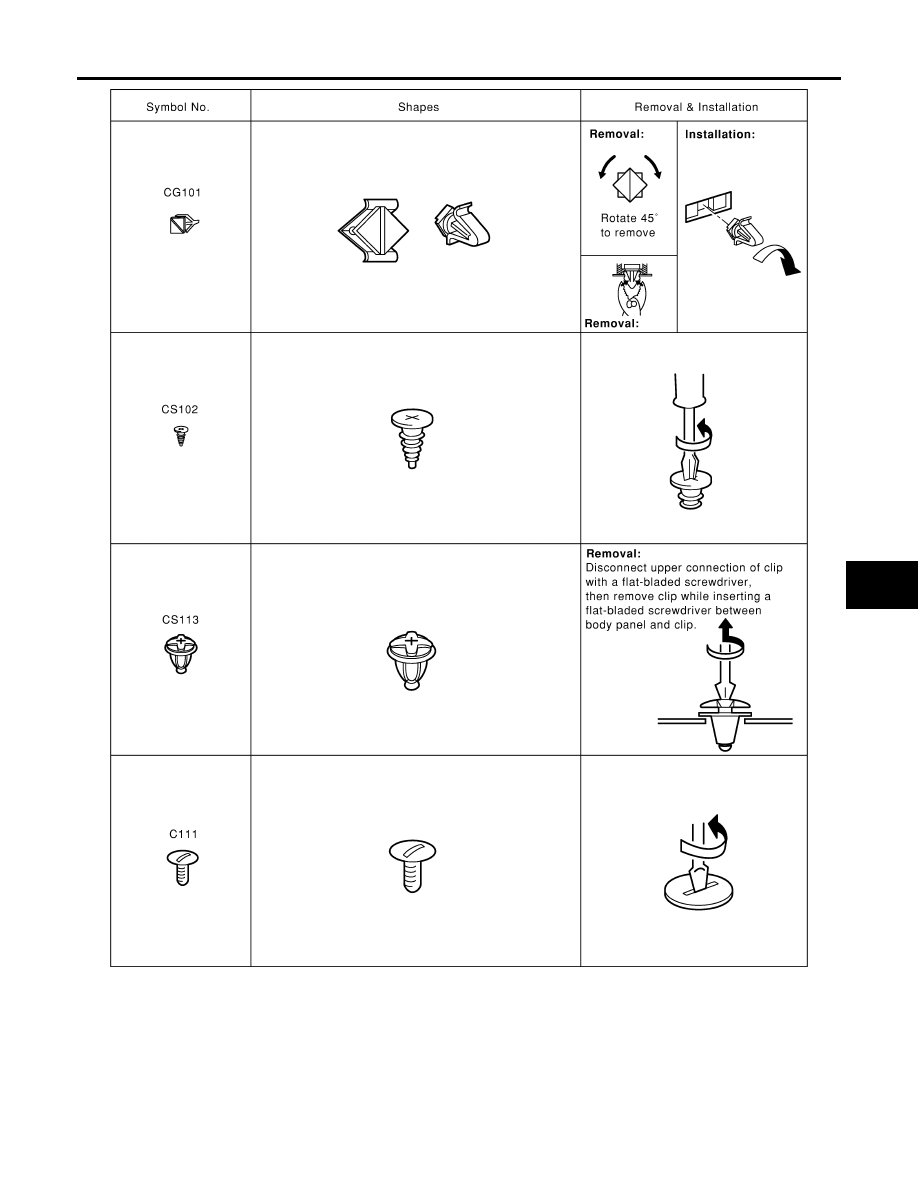

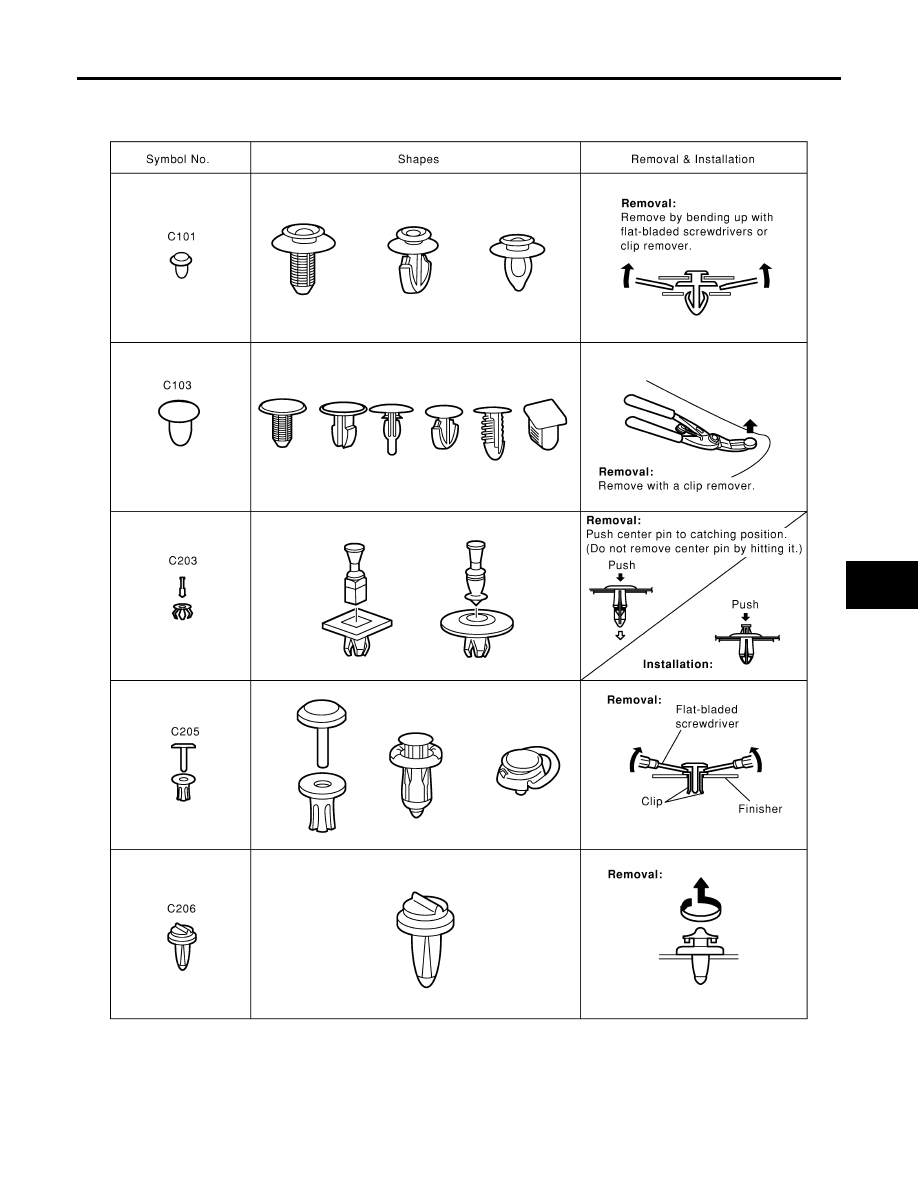

Clip and Fastener

EIS007TQ

SIIA0315E

EI-12

CLIP AND FASTENER

2007 Pathfinder

SIIA0316E

CLIP AND FASTENER

EI-13

C

D

E

F

G

H

J

K

L

M

A

B

EI

2007 Pathfinder

SIIA0317E

EI-14

FRONT BUMPER

2007 Pathfinder

FRONT BUMPER

PFP:F2022

Removal and Installation

EIS007TR

REMOVAL

1.

Disconnect the negative and positive battery cables, then wait at least 3 minutes.

2.

Remove radiator grille. Refer to

EI-16, "FRONT GRILLE"

 .

3.

Remove front valance LH, center, then RH.

4.

Remove engine undercover.

5.

Remove front bumper stays LH and RH.

6.

Disconnect fog lamp harnesses, if equipped.

7.

Remove front bumper assembly.

INSTALLATION

Installation is in the reverse order of removal.

1.

Front bumper assembly

2.

Front bumper stay RH/LH

3.

Front valance RH/LH

4.

Front valance center

5.

Front license plate bracket

6.

Engine undercover

7.

Fog lamp (if equipped)

8.

Fog lamp opening finisher (if equipped)

9.

Front bumper stay LH

10. Front bumper reinforcement RH/LH

11.

Front bumper bracket

12. Front bumper stay RH

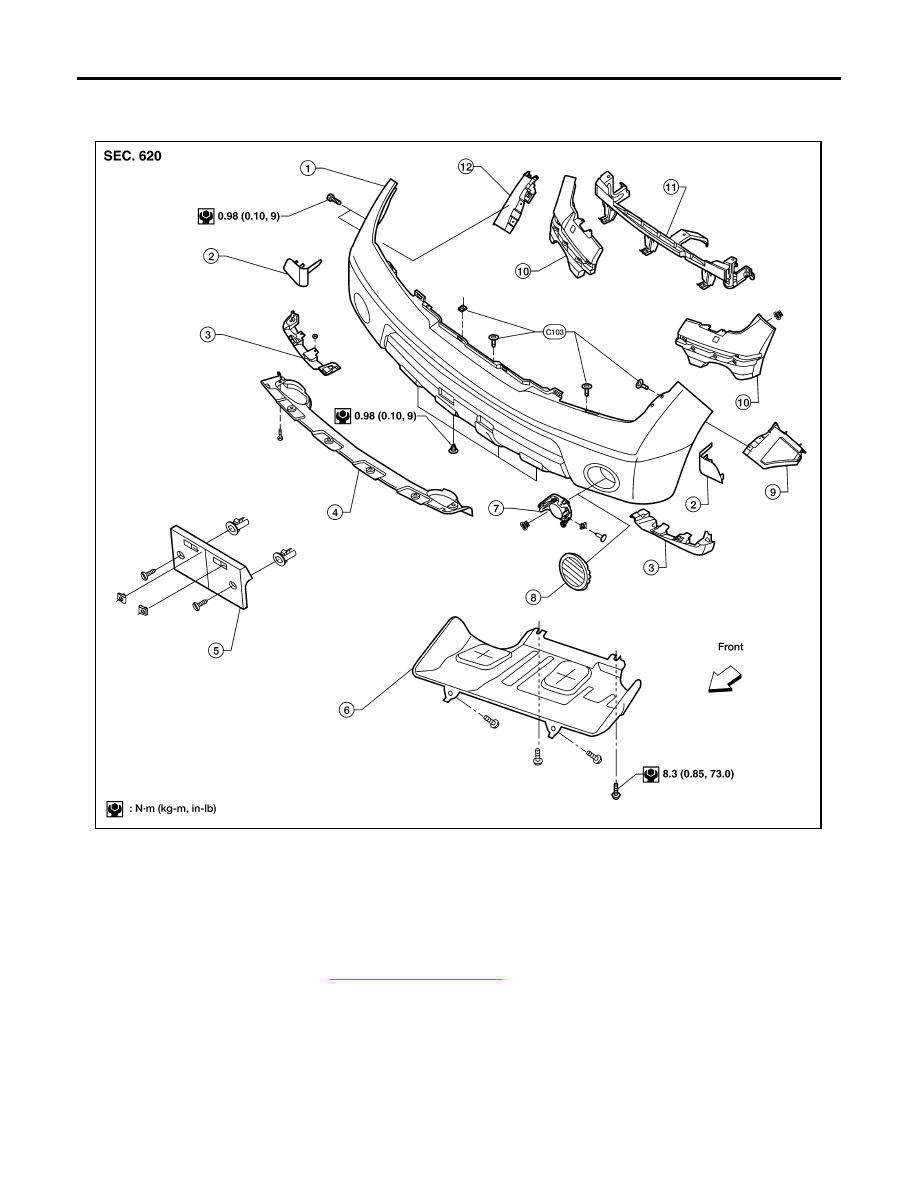

LIIA1757E

REAR BUMPER

EI-15

C

D

E

F

G

H

J

K

L

M

A

B

EI

2007 Pathfinder

REAR BUMPER

PFP:H5022

Removal and Installation

EIS007TS

REMOVAL

1.

Remove LH and RH rear fascia struts.

2.

Remove rear fascia lower stay bolts.

3.

Remove fascia front upper bolts near wheel opening.

4.

Release left pinch rail clips and remove LH side of rear bumper fascia from quarter panel.

5.

Release right pinch rail clips and remove RH side of rear bumper fascia from quarter panel.

6.

Remove fascia rear upper bolts near combination lamp.

7.

Remove rear bumper fascia.

8.

Disconnect harness on left side of tow hitch.

9.

Remove rear bumper reinforcement.

10. Remove drafter duct from lower side of LH quarter panel.

INSTALLATION

Installation is in the reverse order of removal.

●

Apply sealant to clips securing upper step pad during installation.

1.

Rear valance

2.

Rear bumper reinforcement

3.

Rear bumper fascia

4.

Rear fascia strut LH/RH

5.

Step pad

6.

Clip

7.

Tow hitch

8.

Tow harness bracket

9.

Tow hitch harness

10. Rear fascia lower stay

11.

Pinch rail

12. Washer

13. Drafter duct

14. Filter element

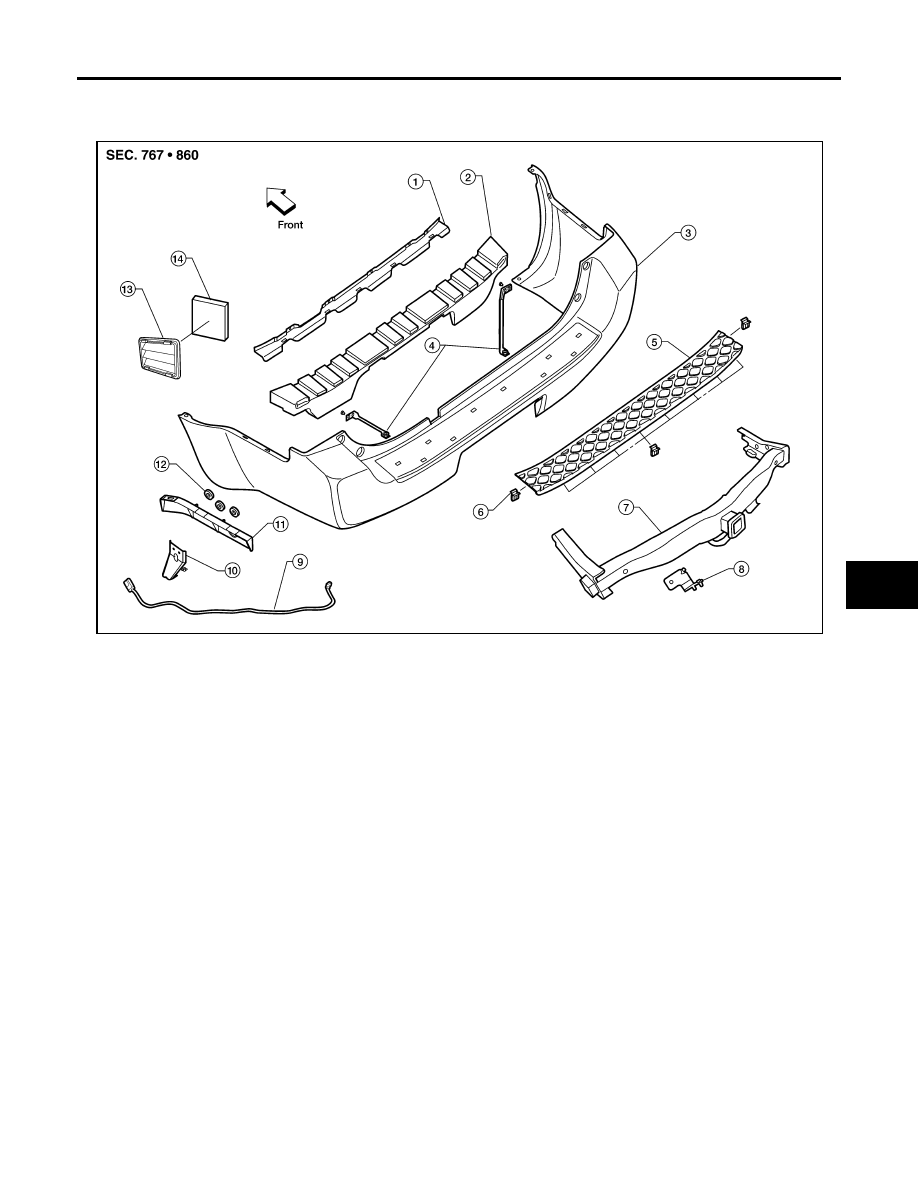

LIIA1750E

EI-16

FRONT GRILLE

2007 Pathfinder

FRONT GRILLE

PFP:62310

Removal and Installation

EIS007TT

REMOVAL

1.

Release upper clips from front grille.

2.

Twist and release LH and RH side clips and remove front grille from member.

INSTALLATION

Installation is in the reverse order of removal.

1.

Slide clips

2.

Front grille

3.

Front emblem

4.

Clips

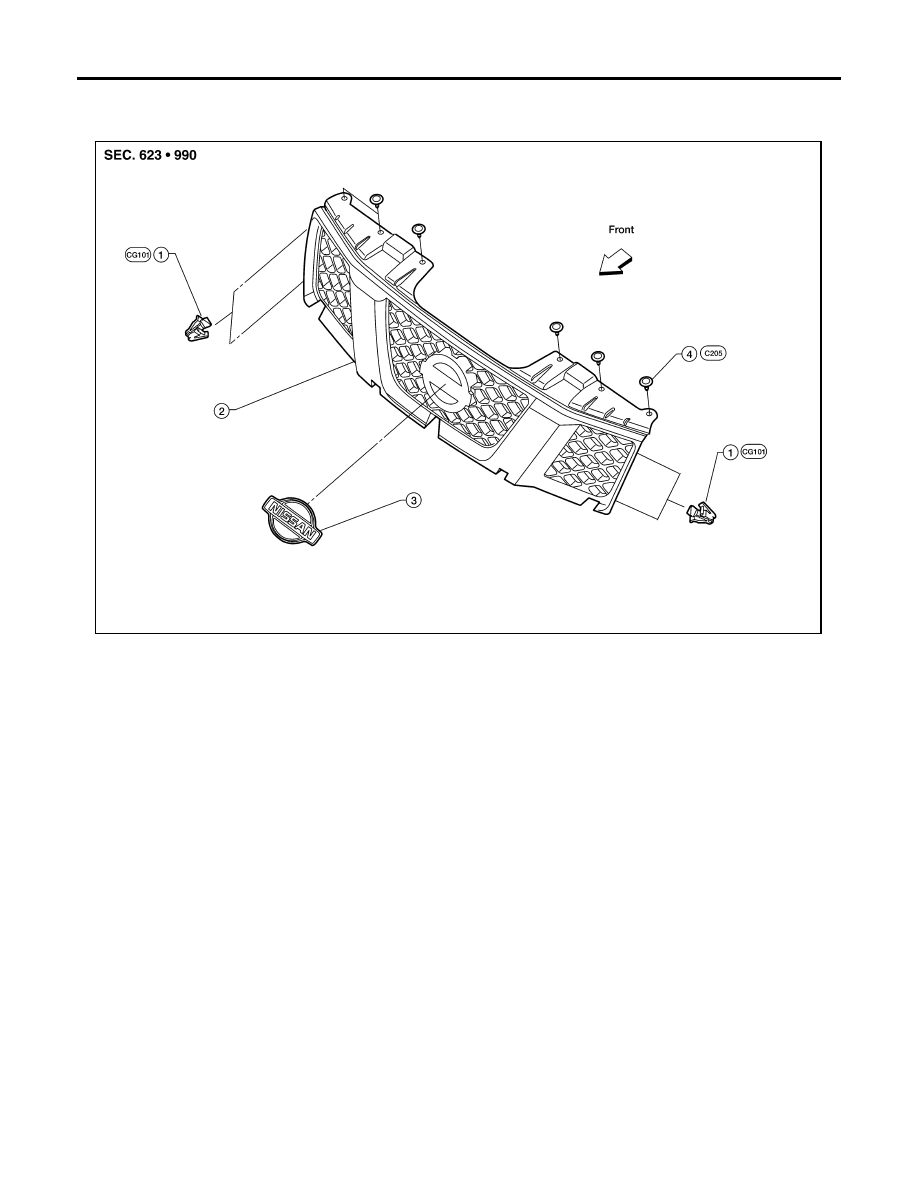

LIIA1760E
