BODY REPAIR

BL-125

C

D

E

F

G

H

J

K

L

M

A

B

BL

2007 Pathfinder

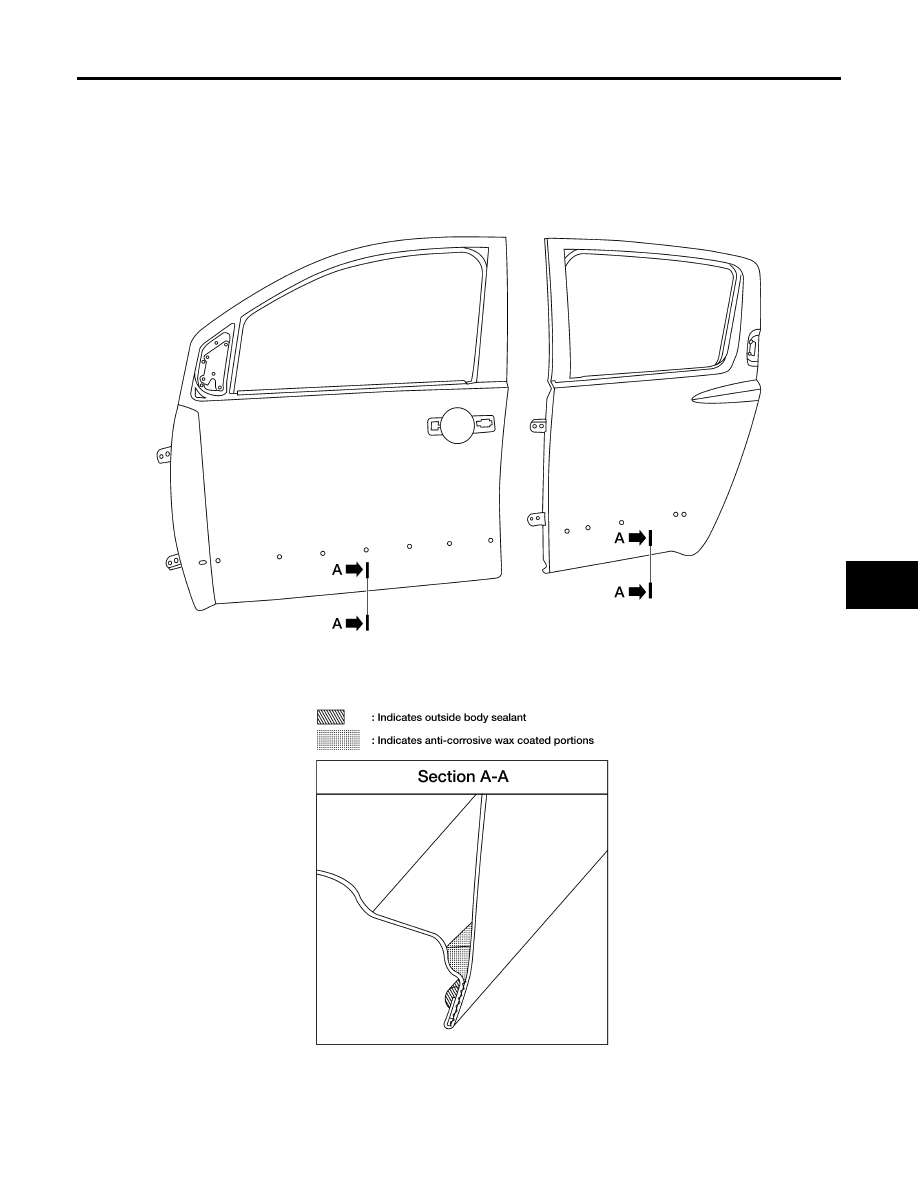

ANTI-CORROSIVE WAX

To improve corrosion resistance, anti-corrosive wax is applied inside the body sill and inside other closed sec-
tions. Accordingly, when replacing these parts, be sure to apply anti-corrosive wax to the appropriate areas of
the new parts. Select an excellent anti-corrosive wax which will penetrate after application and has a long shelf
life.

LIIA0905E

BL-126

BODY REPAIR

2007 Pathfinder

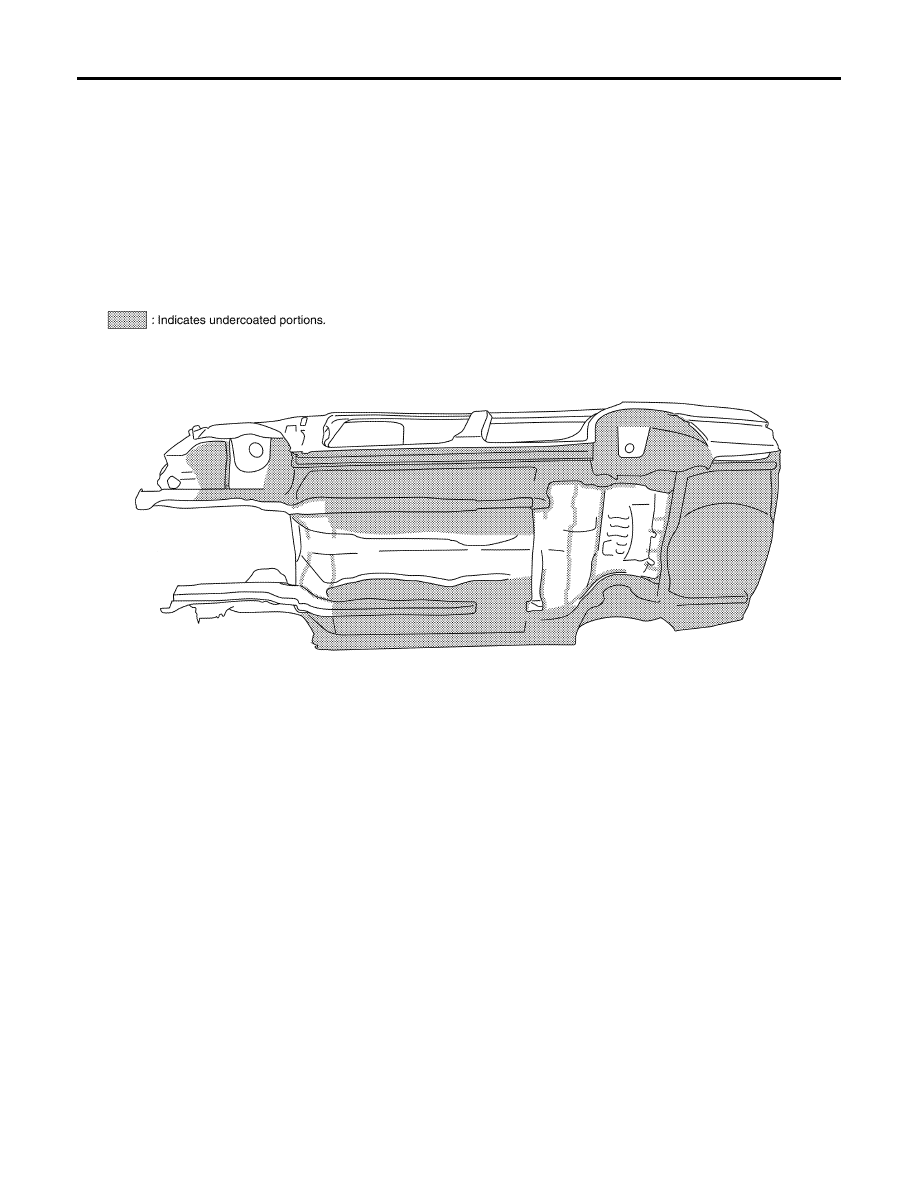

UNDERCOATING

The underside of the floor and wheelhouse are undercoated to prevent rust, vibration, noise and stone chip-
ping. Therefore, when such a panel is replaced or repaired, apply undercoating to that part. Use an undercoat-
ing which is rust preventive, soundproof, vibration-proof, shock-resistant, adhesive, and durable.

Precautions in undercoating

1.

Do not apply undercoating to any place unless specified (such as the areas above the muffler and three
way catalyst which are subjected to heat).

2.

Do not undercoat the exhaust pipe or other parts which become hot.

3.

Do not undercoat rotating parts.

4.

Apply bitumen wax after applying undercoating.

LIIA0129E

BODY REPAIR

BL-127

C

D

E

F

G

H

J

K

L

M

A

B

BL

2007 Pathfinder

Body Sealing

EIS007QV

DESCRIPTION

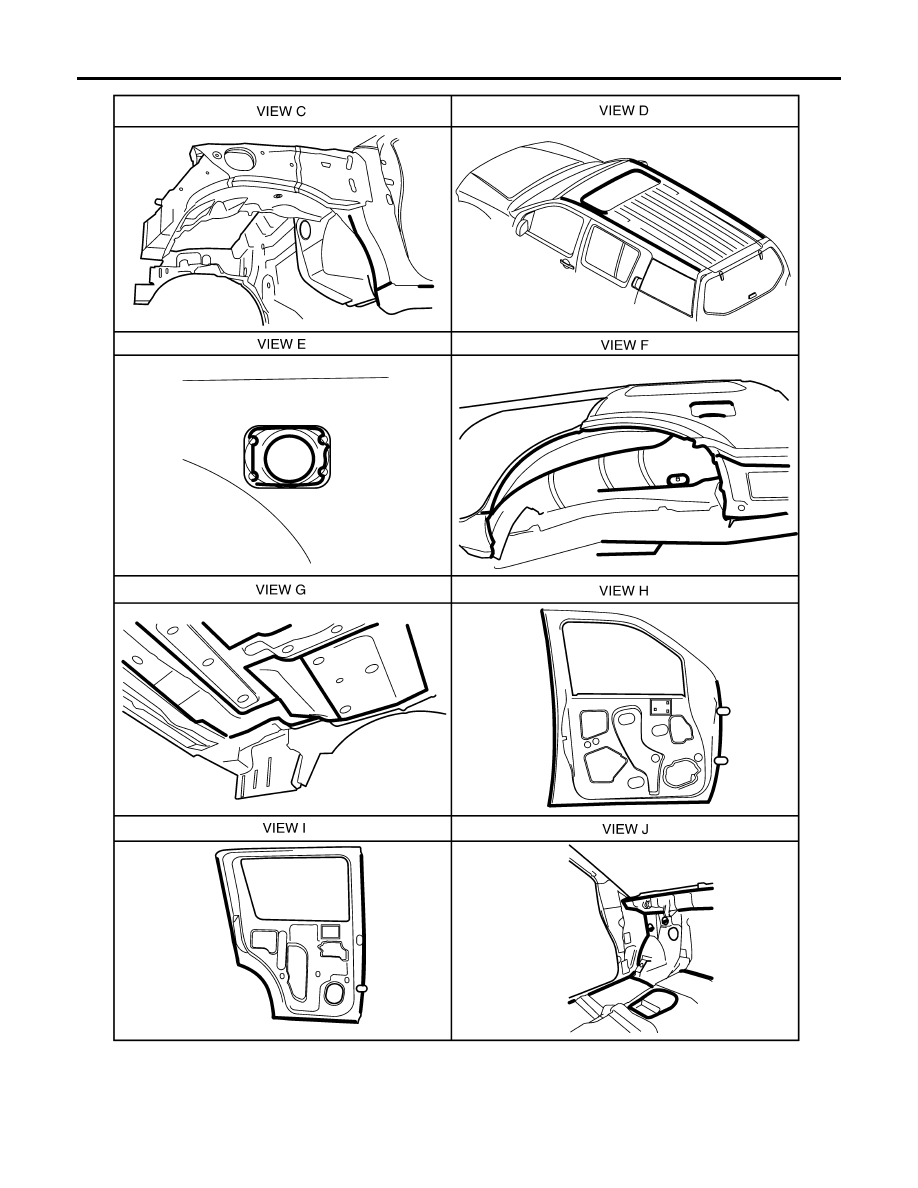

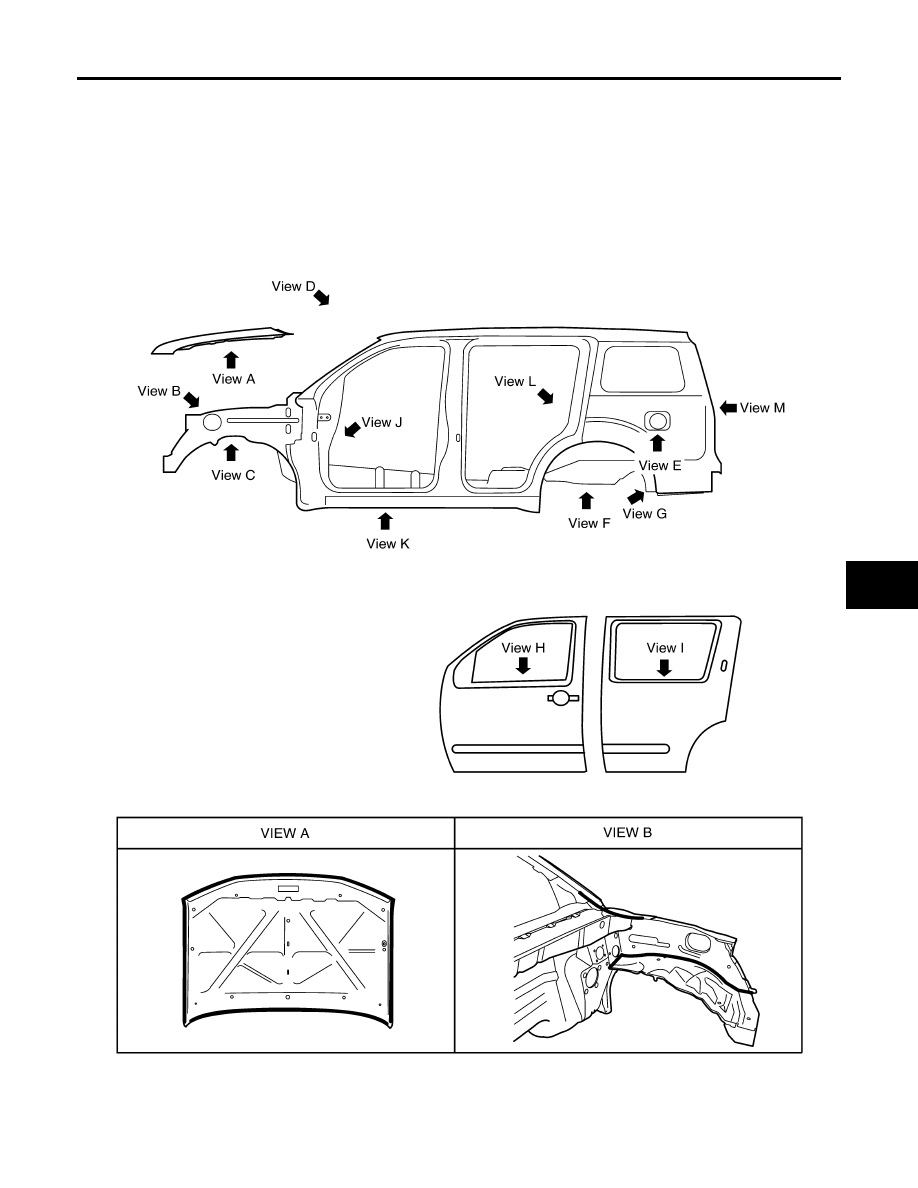

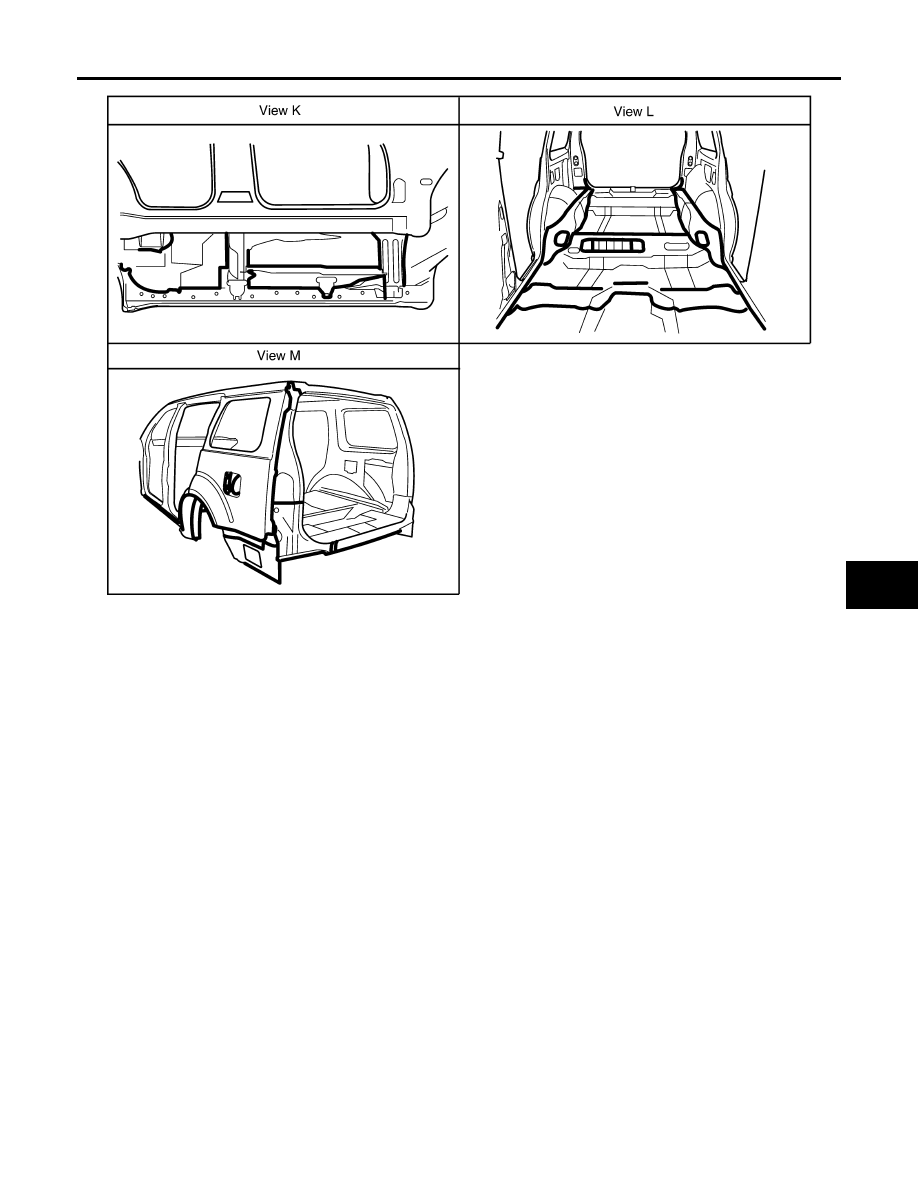

The following figure shows the areas which are sealed at the factory. Sealant which has been applied to these
areas should be smooth and free from cuts or gaps. Care should be taken not to apply an excess amount of
sealant and not to allow other unaffected parts to come into contact with the sealant.

LIIA1736E

BL-128

BODY REPAIR

2007 Pathfinder

WIIA0728E

BODY REPAIR

BL-129

C

D

E

F

G

H

J

K

L

M

A

B

BL

2007 Pathfinder

LIIA1738E

BL-130

BODY REPAIR

2007 Pathfinder

Body Construction

EIS007QW

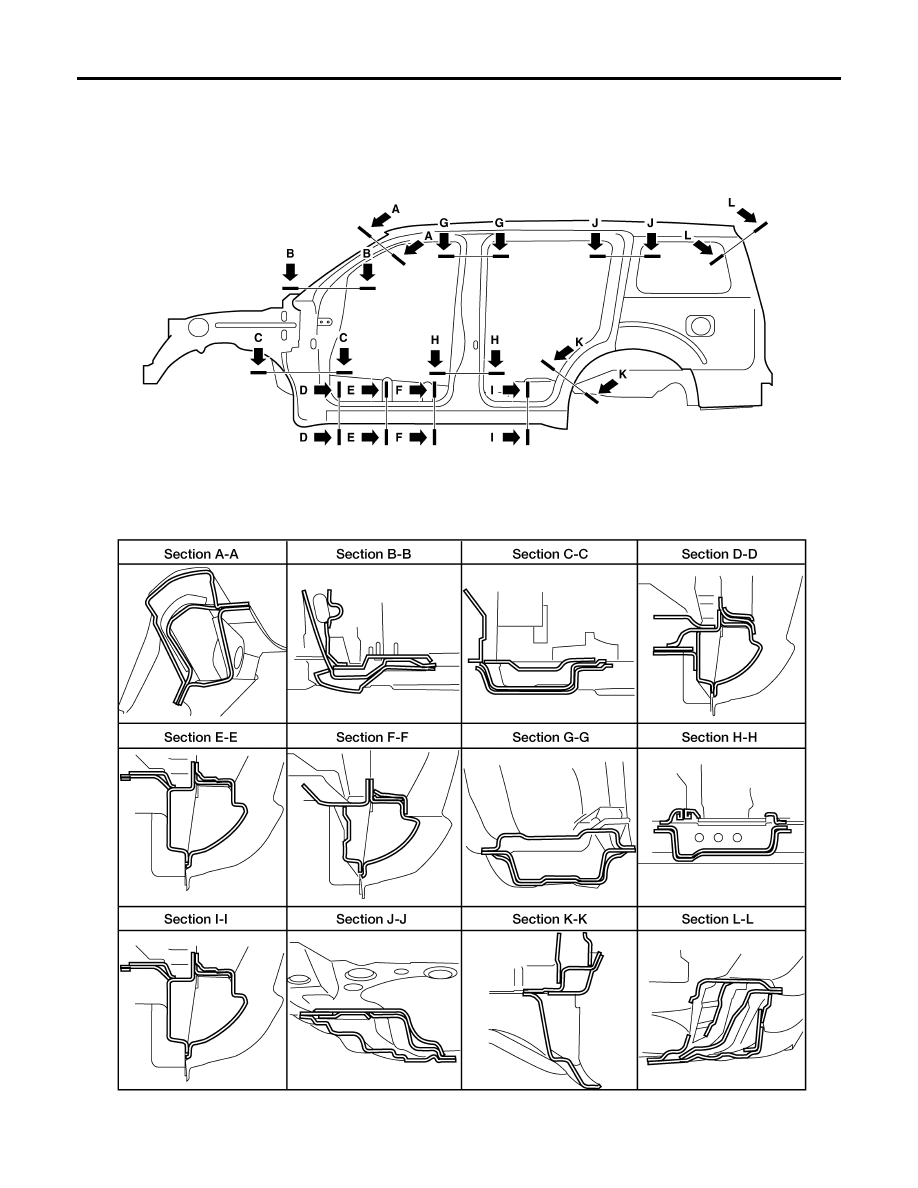

BODY CONSTRUCTION

LIIA1739E

BODY REPAIR

BL-131

C

D

E

F

G

H

J

K

L

M

A

B

BL

2007 Pathfinder

Body Alignment

EIS007QX

BODY CENTER MARKS

A mark has been placed on each part of the body to indicate the vehicle center. When repairing parts dam-
aged by an accident which might affect the vehicle frame (members, pillars, etc.), more accurate and effective
repair will be possible by using these marks together with body alignment specifications.

LIIA1790E

BL-132

BODY REPAIR

2007 Pathfinder

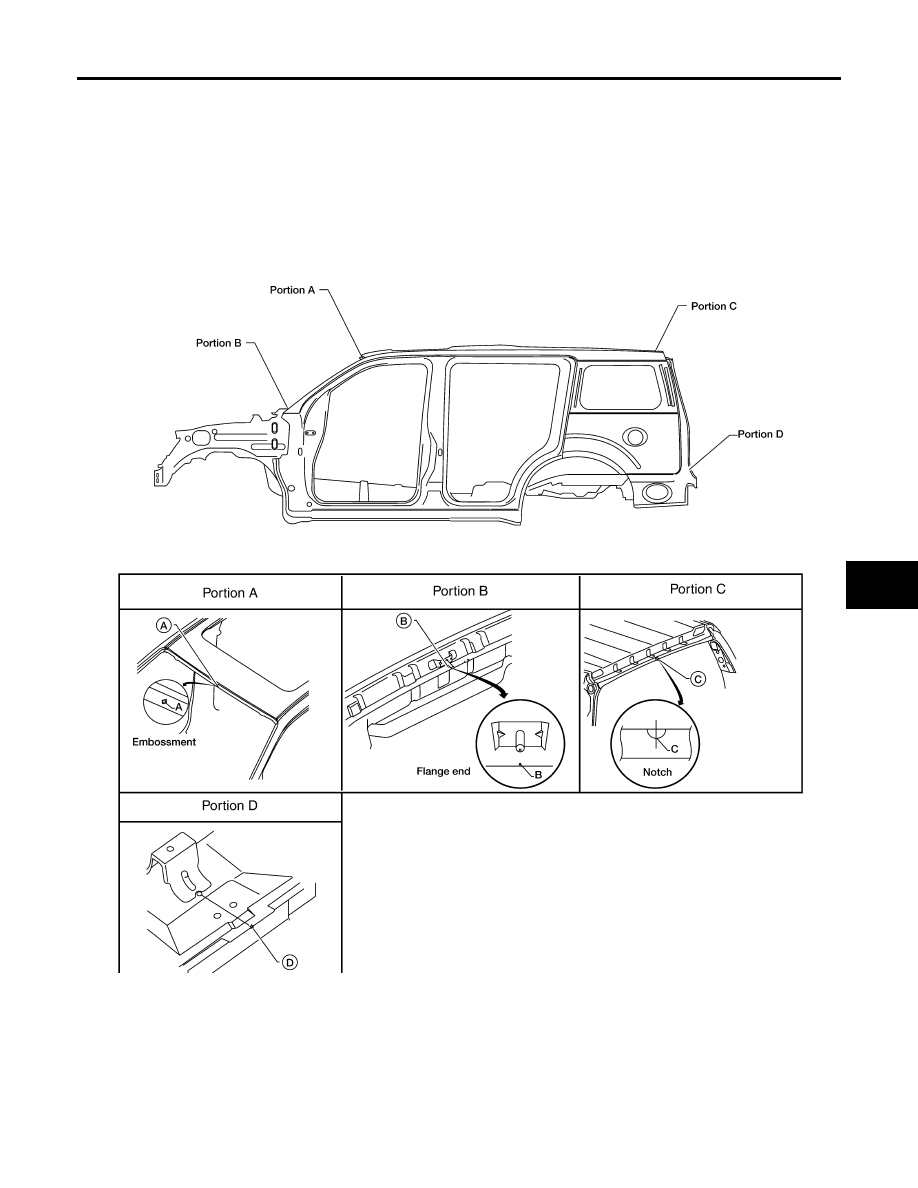

PANEL PARTS MATCHING MARKS

A mark has been placed on each body panel to indicate the parts matching positions. When repairing parts
damaged by an accident which might affect the vehicle structure (members, pillars, etc.), more accurate and
effective repair will be possible by using these marks together with body alignment specifications.

LIIA1791E
