BODY REPAIR

BL-117

C

D

E

F

G

H

J

K

L

M

A

B

BL

2007 Pathfinder

BODY REPAIR

PFP:60100

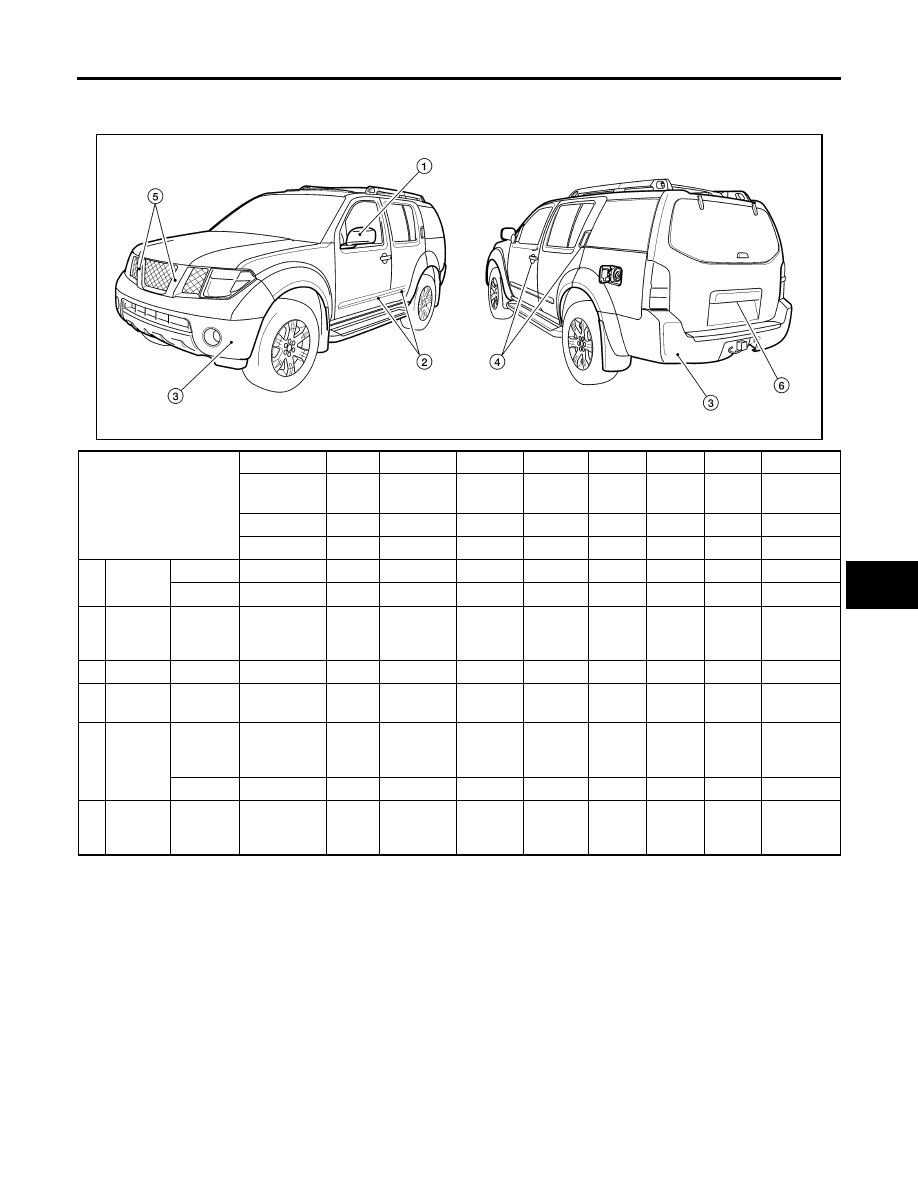

Body Exterior Paint Color

EIS007QS

M: Metallic; S: 1-Coat Solid; 2S: 2-Coat Solid, 2P: 2-Coat Pearl; PM: Pearl + Metallic

LIIA1735E

Component

Color code

A15

B25

BW9

K12

K27

KH3

KY2

QM1

Description

Red

Brawn

Silverton

Blue

Majestic

Blue

Silver

Lightning

Storm

Gray

Super

Black

Granite

Avalanche

Paint type

PM

PM

PM

M

M

2S

M

S

Clear coat

t

t

t

t

t

t

t

t

1

Outside
mirror

Body color

A15

B25

BW9

K12

K27

KH3

KY2

QM1

XE

Black

KH3

KH3

KH3

KH3

KH3

KH3

KH3

KH3

2

Side
Guard
Molding

Body color

A15

B25

BW9

K12

K27

KH3

KY2

QM1

3

Bumpers

Fascias

Body color

A15

B25

BW9

K12

K27

KH3

KY2

QM1

4

Outside
handles

Body color

A15

B25

BW9

K12

K27

KH3

KY2

QM1

5

Radiator
grille

Center
and
emblem

Chromium
plate

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Center

Black

KH3

KH3

KH3

KH3

KH3

KH3

KH3

KH3

6

License
Lamp
Finisher

Chromium
plate

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

BL-118

BODY REPAIR

2007 Pathfinder

Body Component Parts

EIS007QT

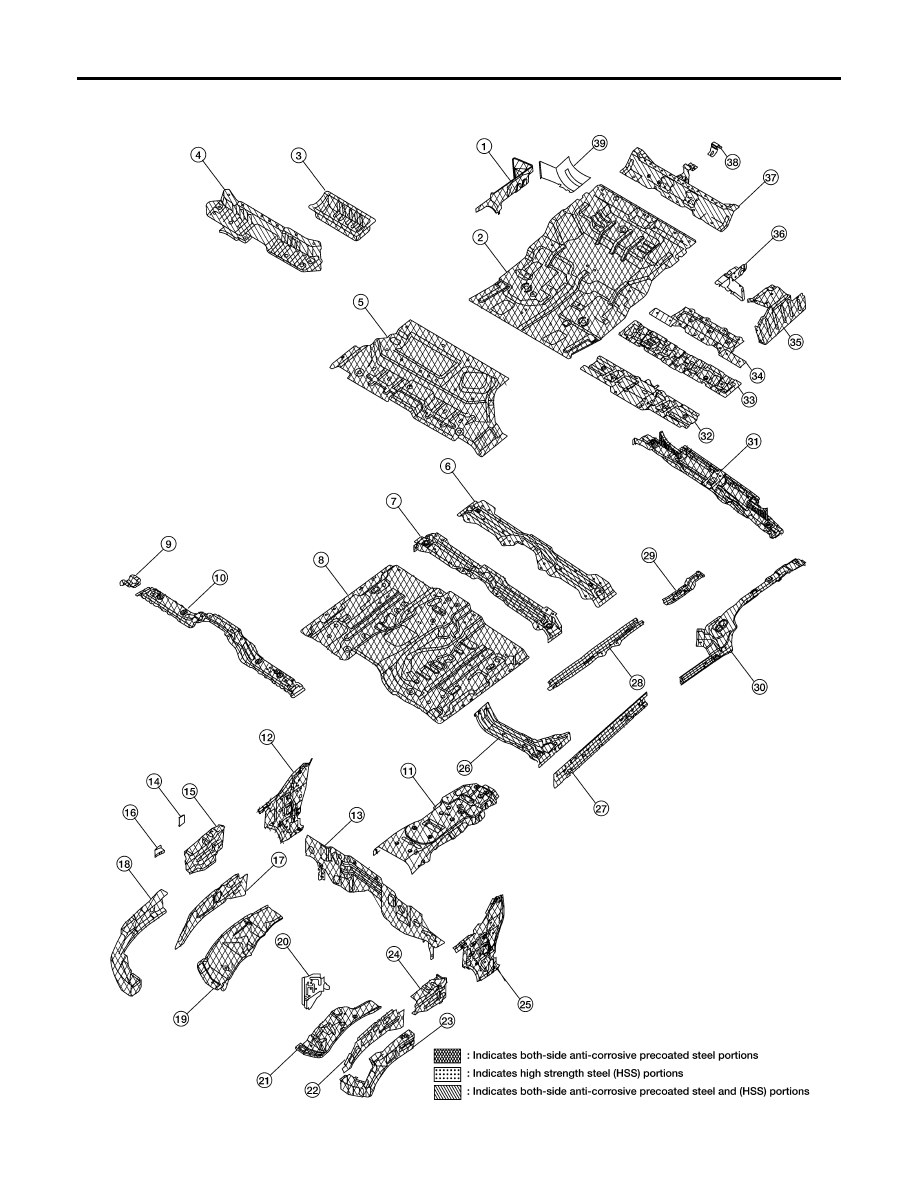

UNDERBODY COMPONENT PARTS

LIIA1787E

BODY REPAIR

BL-119

C

D

E

F

G

H

J

K

L

M

A

B

BL

2007 Pathfinder

1.

Rear floor side RH

2.

Rear floor

3.

Storage bin

4.

Second seat mounting crossmember

5.

Rear floor front

6.

Center pillar crossmember assembly

7.

Front seat mounting rear crossmember

8.

Front floor

9.

Front seat mounting crossmember

10. Second crossmember extension

11. Front floor reinforcement

12. Side dash RH

13. Lower dash

14. Wash tank bracket

15. Hoodledge reinforcement RH

16. Hoodledge plate

17. Hoodledge RH

18. Hoodledge reinforcement assembly RH

19. Rear lower hoodledge RH

20. Battery tray

21. Rear lower hoodledge LH

22. Hoodledge LH

23. Hoodledge reinforcement assembly LH

24. Hoodledge reinforcement LH

25. Side dash LH

26. Second crossmember assembly (RH/LH)

27. Inner sill (RH/LH)

28. Front side member assembly (RH/LH)

29. Center floor member assembly

30. Rear side member rear (RH/LH)

31. Rear crossmember

32. Second seat mounting crossmember

33. Third seat mounting bracket assembly

34. Rope hook bracket

35. Rear floor side LH

36. Rear floor side upper extension assembly LH

37. Third seat mounting rear crossmember assembly

38. Trim mounting bracket

39. Rear floor side upper extension assembly RH

BL-120

BODY REPAIR

2007 Pathfinder

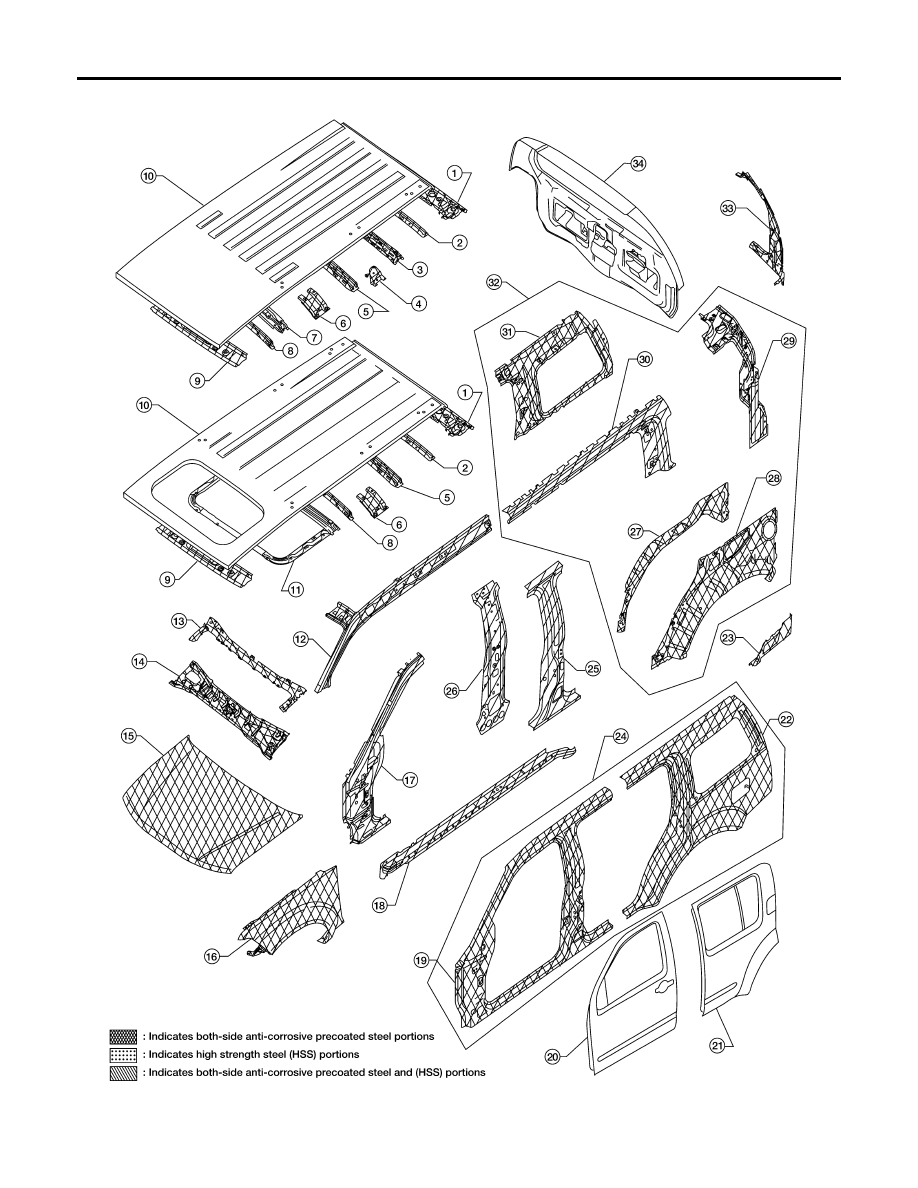

BODY COMPONENT PARTS

LIIA1788E

BODY REPAIR

BL-121

C

D

E

F

G

H

J

K

L

M

A

B

BL

2007 Pathfinder

1.

Rear roof rail

2.

Roof bow No 5

3.

Roof 4th bow

4.

Roof rack plate

5.

Roof 3rd bow

6.

Roof bow second bracket

7.

Roof 2nd bow

8.

Roof 1st bow

9.

Front roof rail

10. Roof

11. Sunroof reinforcement

12. Front inner pillar upper (RH, LH)

13. Dash upper crossmember assembly

14. Dash upper assembly

15. Hood assembly

16. Front fender (RH, LH)

17. Front pillar hinge brace (RH, LH)

18. Outer sill reinforcement (RH, LH)

19. Front body side outer (RH, LH)

20. Front door assembly (RH, LH)

21. Rear door assembly (RH, LH)

22. Rear body side outer (RH, LH)

23. Rear fender extension RH/LH

24. Body side outer assembly

25. Center pillar hinge brace

26. Center inner pillar (RH, LH)

27. Rear wheel housing inner (RH, LH)

28. Rear wheel housing outer (RH, LH)

29. Back pillar reinforcement (RH, LH)

30. Outer roof side rail reinforcement (RH/LH)

31. Rear inner side panel (RH, LH)

32. Body side inner reinforcement assembly (RH, LH)

33. Main back pillar (RH, LH)

34. Lift gate assembly

BL-122

BODY REPAIR

2007 Pathfinder

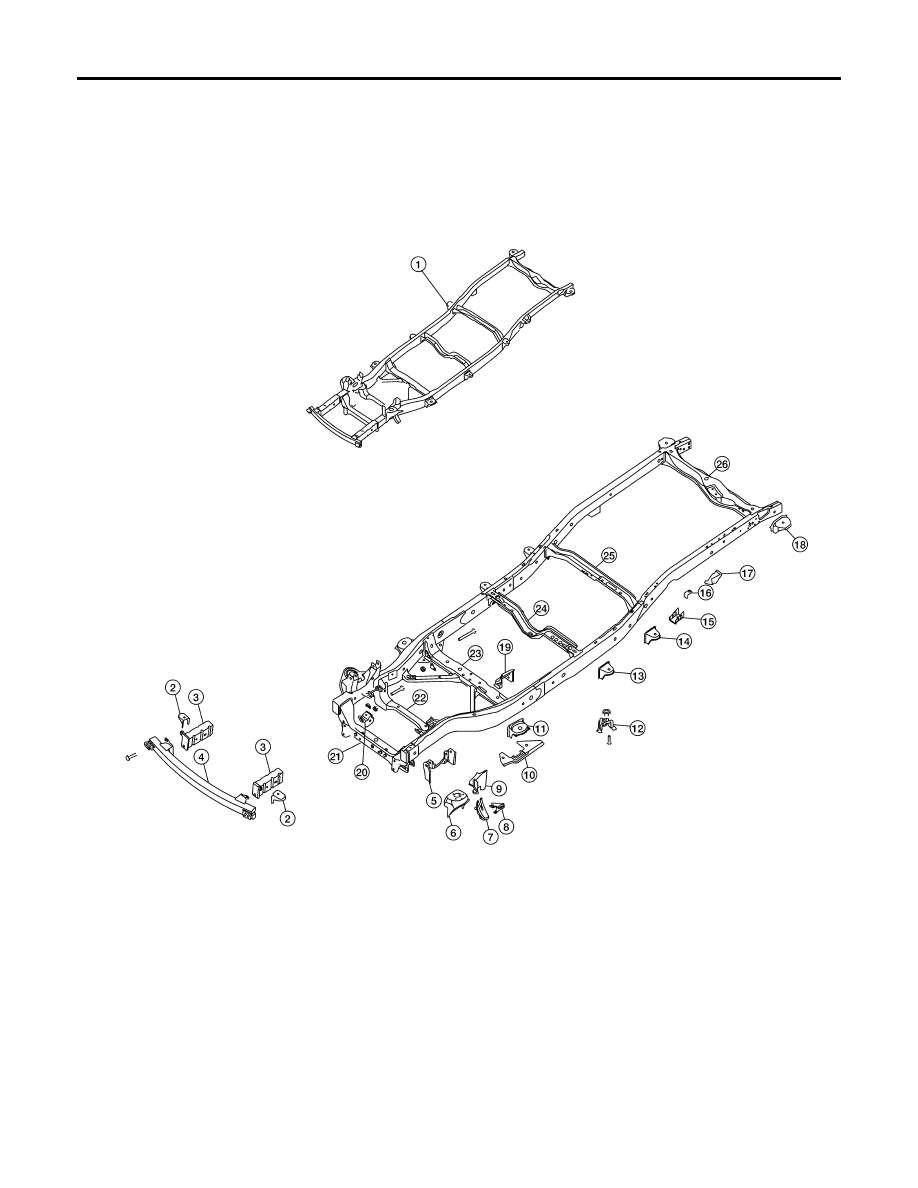

FRAME COMPONENT PARTS

LIIA1789E

BODY REPAIR

BL-123

C

D

E

F

G

H

J

K

L

M

A

B

BL

2007 Pathfinder

1.

Frame assembly

2.

1st cab mounting bracket RH/LH

3.

Front side member extension assembly RH/LH

4.

1st crossmember assembly

5.

Front upper link mounting bracket RH/LH

6.

Front shock absorber mounting bracket RH/LH

7.

Bound bumper bracket RH/LH

8.

Front brake hose bracket RH/LH

9.

Panhard rod bracket reinforcement

10. 4th crossmember gusset RH/LH

11. 2nd cab mounting bracket RH/LH

12. Crossmember support RH/LH

13. 3rd cab mounting bracket RH/LH

14. 4th cab mounting bracket RH/LH

15. Rear suspension mounting bracket RH/LH

16. Rear brake hose bracket

17. Rear bound bumper bracket RH/LH

18. Cab mounting bracket assembly RH/LH

19. 4th crossmember gusset RH/LH

20. Front differential mounting bracket RH/LH

21. 2nd crossmember assembly

22. 3rd crossmember assembly

23. 4th crossmember assembly

24. 5th crossmember assembly

25. 6th crossmember assembly

26. 9th crossmember assembly

BL-124

BODY REPAIR

2007 Pathfinder

Corrosion Protection

EIS007QU

DESCRIPTION

To provide improved corrosion prevention, the following anti-corrosive measures have been implemented in
NISSAN production plants. When repairing or replacing body panels, it is necessary to use the same anti-cor-
rosive measures.

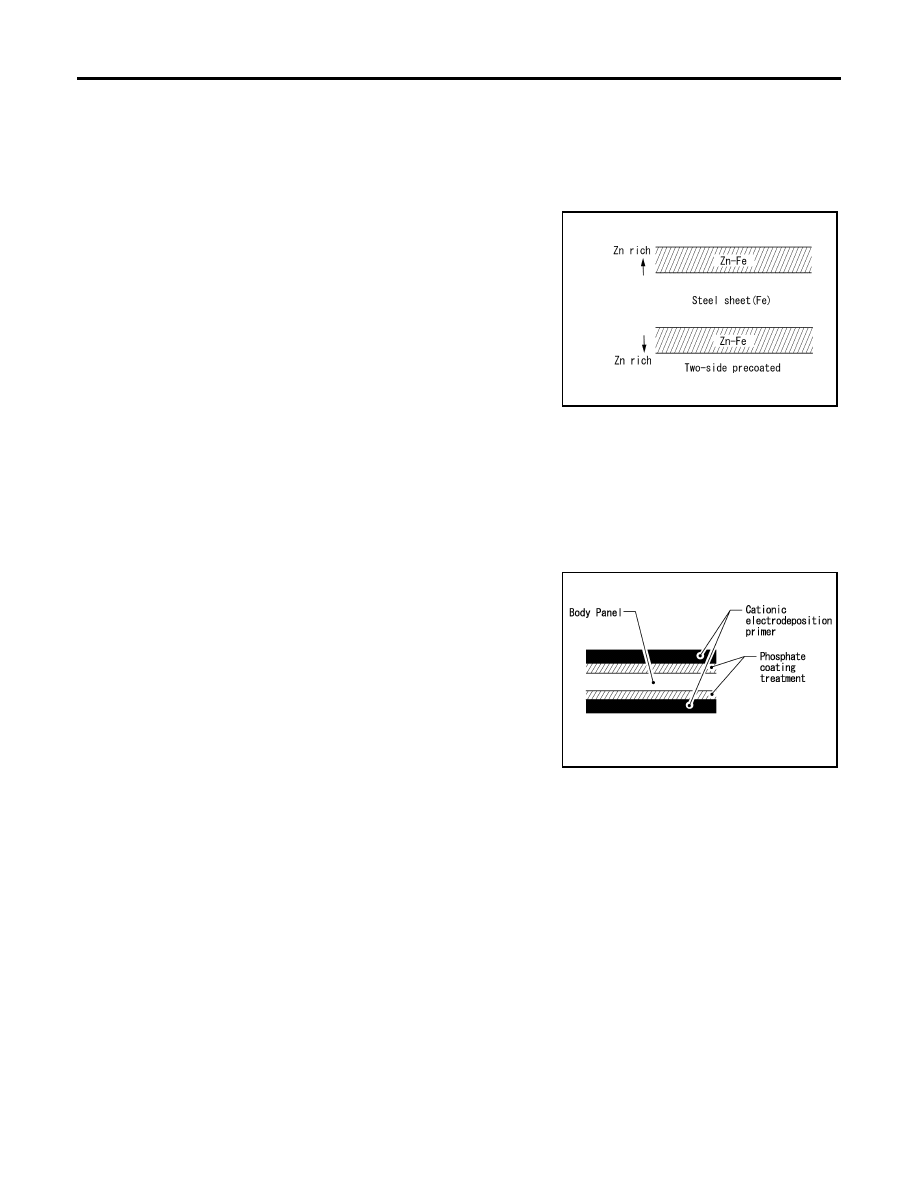

ANTI-CORROSIVE PRECOATED STEEL (GALVANNEALED STEEL)

To improve repairability and corrosion resistance, a new type of anti-
corrosive precoated steel sheet has been adopted replacing conven-
tional zinc-coated steel sheet.
Galvannealed steel is electroplated and heated to form Zinc-iron
alloy, which provides excellent and long term corrosion resistance
with cationic electrode position primer.

Nissan Genuine Service Parts are fabricated from galvannealed steel. Therefore, it is recommended that
GENUINE NISSAN PARTS or equivalent be used for panel replacement to maintain the anti-corrosive perfor-
mance built into the vehicle at the factory.

PHOSPHATE COATING TREATMENT AND CATIONIC ELECTRODEPOSITION PRIMER

A phosphate coating treatment and a cationic electrode position primer, which provide excellent corrosion pro-
tection, are employed on all body components.

CAUTION:

Confine paint removal during welding operations to an absolute
minimum.

Nissan Genuine Service Parts are also treated in the same manner. Therefore, it is recommended that GENU-
INE NISSAN PARTS or equivalent be used for panel replacement to maintain anti-corrosive performance built
into the vehicle at the factory.

PIIA0093E

PIIA0095E
