NVIS(NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)

BL-109

C

D

E

F

G

H

J

K

L

M

A

B

BL

2007 Pathfinder

4.

CHECK POWER SUPPLY FOR NATS ANTENNA AMP.

1.

Turn ignition switch OFF.

2.

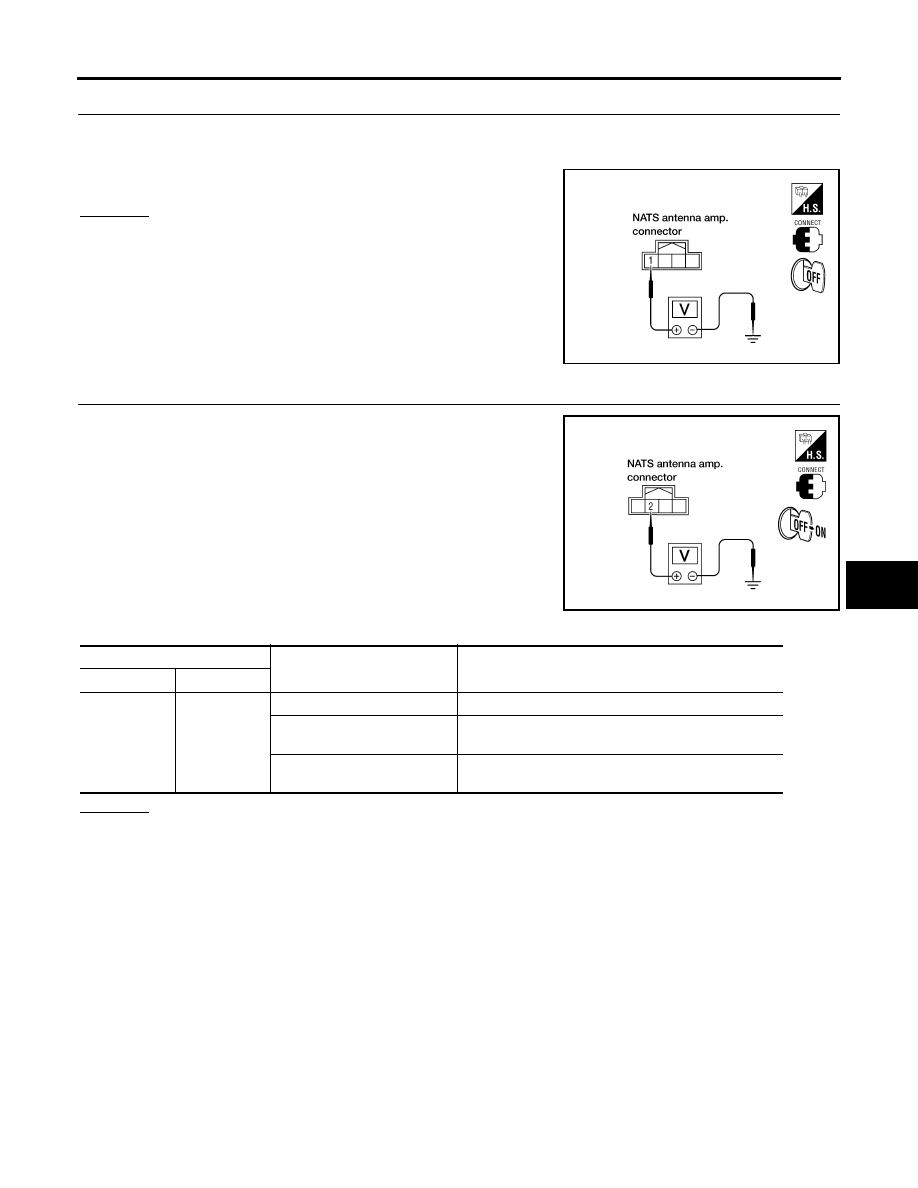

Check voltage between NATS antenna amp. connector M21 terminal 1 and ground.

OK or NG

OK

>> GO TO 5.

NG

>> Repair or replace fuse or harness. Ref. part No. E3

5.

CHECK NATS ANTENNA AMP. SIGNAL LINE- 1

Check voltage between NATS antenna amp. connector M21 terminal
2 and ground with analog tester.

OK or NG

OK

>> GO TO 6.

NG

>>

Repair or replace harness. Ref. part No. E1

NOTE:
If harness is OK, replace BCM, perform initialization with CONSULT-II. For initialization, refer to
“CONSULT-II Operation Manual NATS-IVIS/NVIS”.

1 - Ground

: Battery voltage

LIIA1280E

LIIA1642E

Terminals

Position of ignition key cylinder

Voltage (V)

(Approx.)

( + )

( - )

2

Ground

Before inserting ignition key

Battery voltage

After inserting ignition key

Pointer of tester should move for approx. 30 seconds,

then return to battery voltage

Just after turning ignition

switch ON

Pointer of tester should move for approx. 1 second,

then return to battery voltage

BL-110

NVIS(NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)

2007 Pathfinder

6.

CHECK NATS ANTENNA AMP. SIGNAL LINE- 2

Check voltage between NATS antenna amp. connector M21 terminal
4 and ground with analog tester.

OK or NG

OK

>> GO TO 7.

NG

>>

Repair or replace harness. Ref. part No. E2

NOTE:
If harness is OK, replace BCM, perform initialization with CONSULT-II. For initialization, refer to
“CONSULT-II Operation Manual NATS-IVIS/NVIS”.

7.

CHECK NATS ANTENNA AMP. GROUND LINE CIRCUIT

1.

Turn ignition switch OFF.

2.

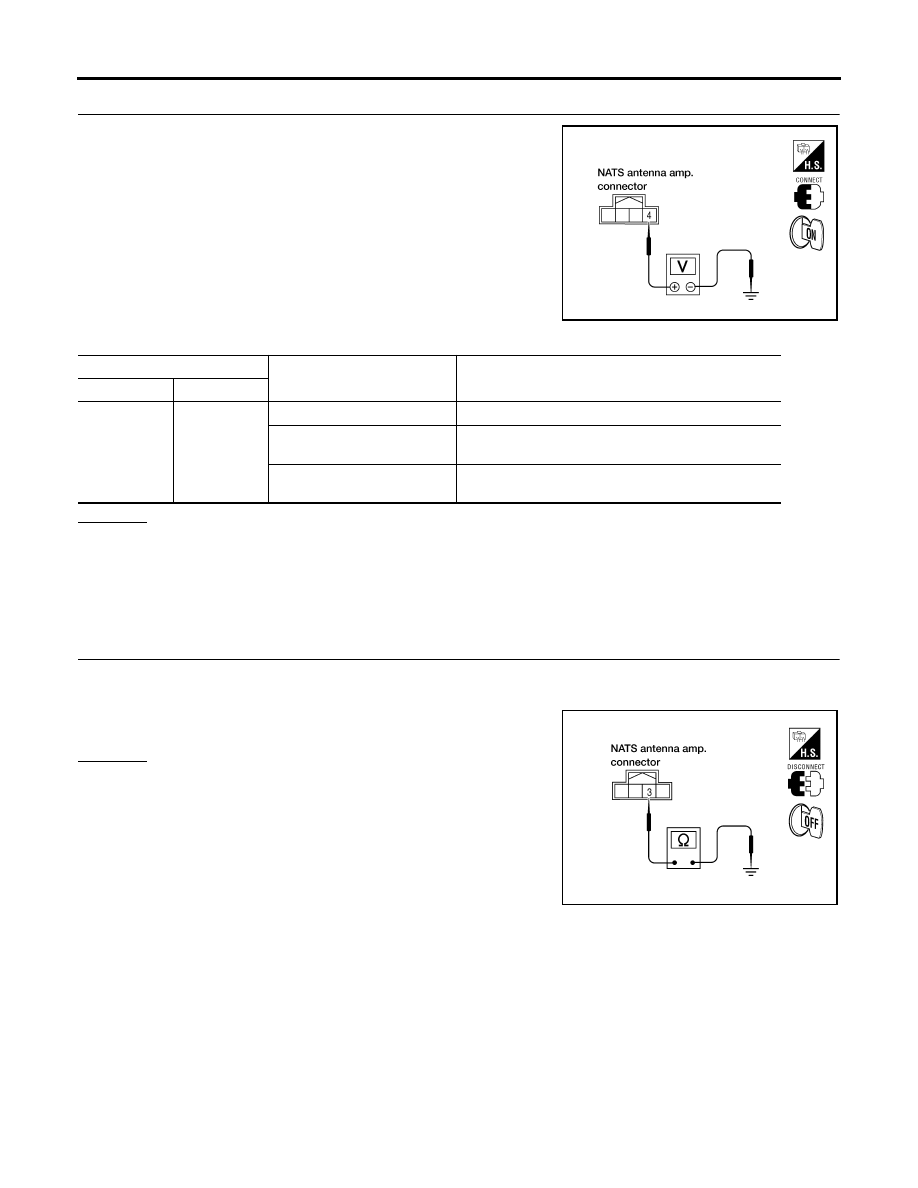

Check continuity between NATS antenna amp. connector M21 terminal 3 and ground.

OK or NG

OK

>> NATS antenna amp. is malfunctioning. Ref. part No. E6

NG

>>

Repair or replace harness. Ref. part No. E4

NOTE:
If harness is OK, replace BCM, perform initialization
with CONSULT-II. For initialization, refer to “CON-
SULT-II Operation Manual NATS-IVIS/NVIS”.

LIIA1643E

Terminals

Position of ignition key cylinder

Voltage (V)

(Approx.)

( + )

( - )

4

Ground

Before inserting ignition key

Battery voltage

After inserting ignition key

Pointer of tester should move for approx. 30 seconds,

then return to battery voltage

Just after turning ignition

switch ON

Pointer of tester should move for approx. 1 second,

then return to battery voltage

3 - Ground

: Continuity should exist.

LIIA1283E

NVIS(NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)

BL-111

C

D

E

F

G

H

J

K

L

M

A

B

BL

2007 Pathfinder

Diagnostic Procedure 6

EIS007QN

“SECURITY INDICATOR LAMP DOES NOT LIGHT UP”

1.

CHECK FUSE

Check 10A fuse [No.19, located in the fuse block (J/B)].

OK or NG

OK

>> GO TO 2.

NG

>> Replace fuse.

2.

CHECK SECURITY INDICATOR LAMP

1.

Install 10A fuse.

2.

Start engine and turn ignition switch OFF.

3.

Check the security indicator lamp lights up.

OK or NG

OK

>> Inspection End.

NG

>> GO TO 3.

3.

CHECK SECURITY INDICATOR LAMP POWER SUPPLY CIRCUIT

1.

Disconnect combination meter.

2.

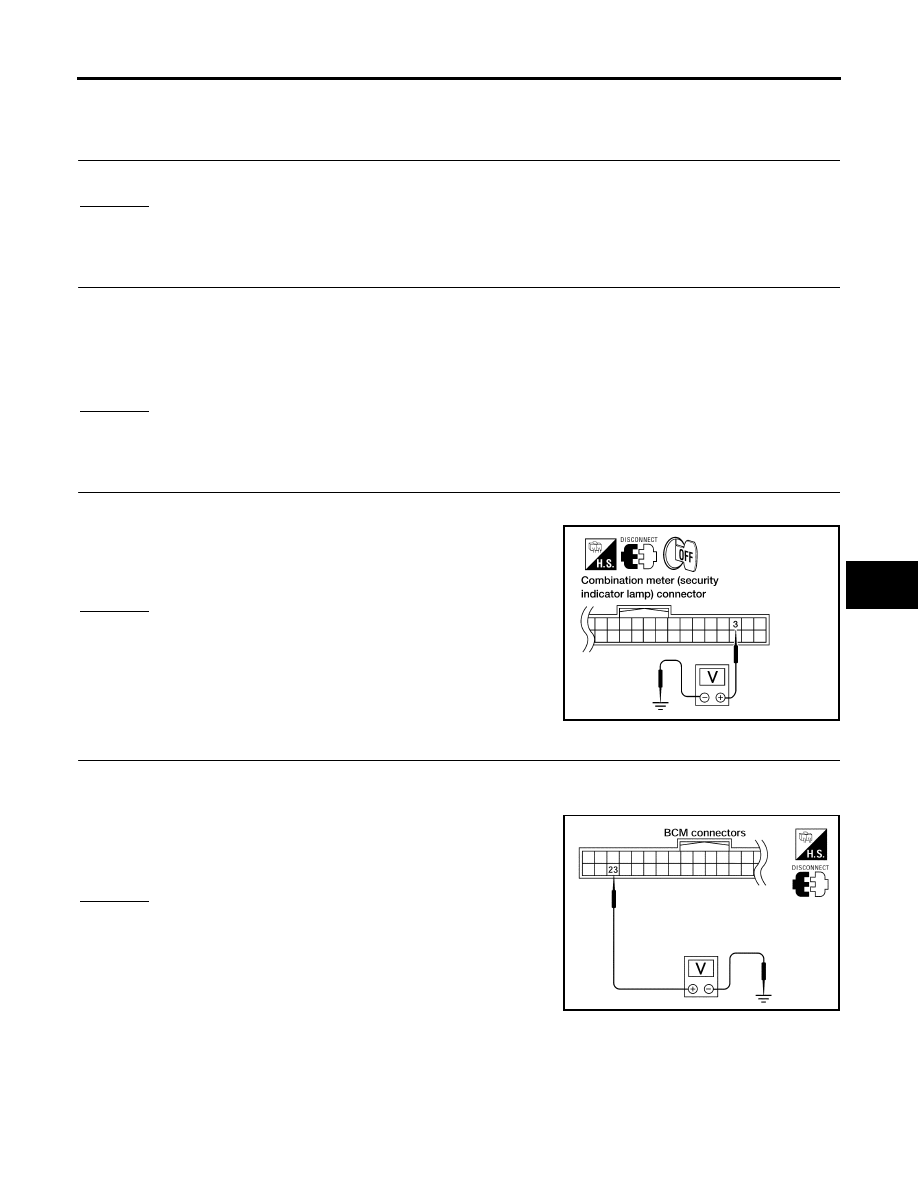

Check voltage between combination meter connector M24 ter-
minal 3 and ground.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace harness.

4.

CHECK BCM (NATS CONTROL UNIT) FUNCTION

1.

Connect combination meter.

2.

Disconnect BCM.

3.

Check voltage between BCM connector M18 terminal 23 and
ground.

OK or NG

OK

>> BCM is malfunctioning.

Replace BCM.
Ref. part No. A

Perform initialization with CONSULT-II.

For initialization, refer to “CONSULT-II Operation
Manual NATS-IVIS/NVIS”.

NG

>> Check the following:

Harness for open or short between combination meter and BCM (NATS control unit).

Combination meter

 Security indicator lamp should light up.

3 - Ground

: Battery voltage

WIIA0467E

23 - Ground

: Battery voltage

LIIA0523E

BL-112

NVIS(NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)

2007 Pathfinder

How to Replace NATS Antenna Amp.

EIS007QO

NOTE:

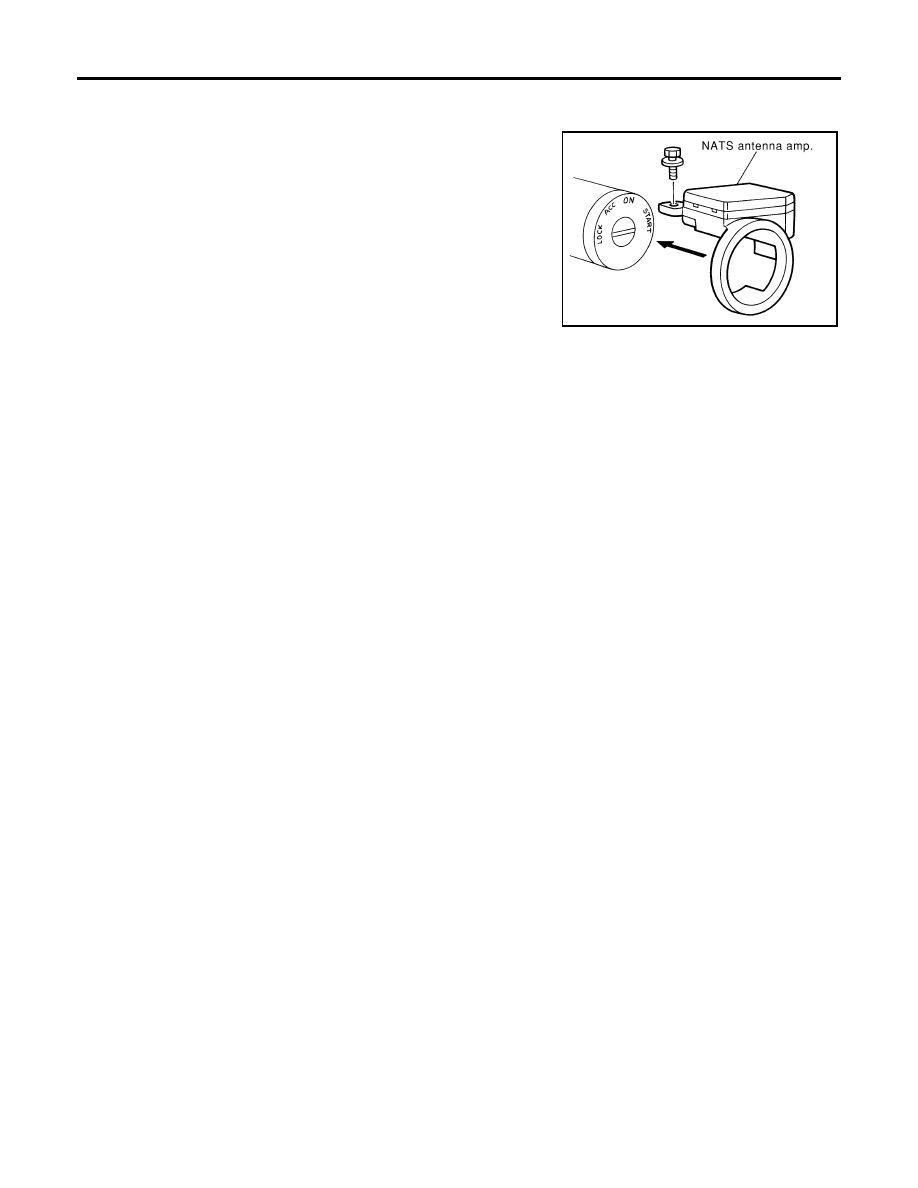

If NATS antenna amp. is not installed correctly, NVIS (NATS)
system will not operate properly and SELF-DIAG RESULTS
on CONSULT-II screen will show “LOCK MODE” or “CHAIN
OF IMMU-KEY”.

Initialization is not necessary when only NATS antenna
amp. is replaced with a new one.

SIIA1683E

HOMELINK UNIVERSAL TRANSCEIVER

BL-113

C

D

E

F

G

H

J

K

L

M

A

B

BL

2007 Pathfinder

HOMELINK UNIVERSAL TRANSCEIVER

PFP:96401

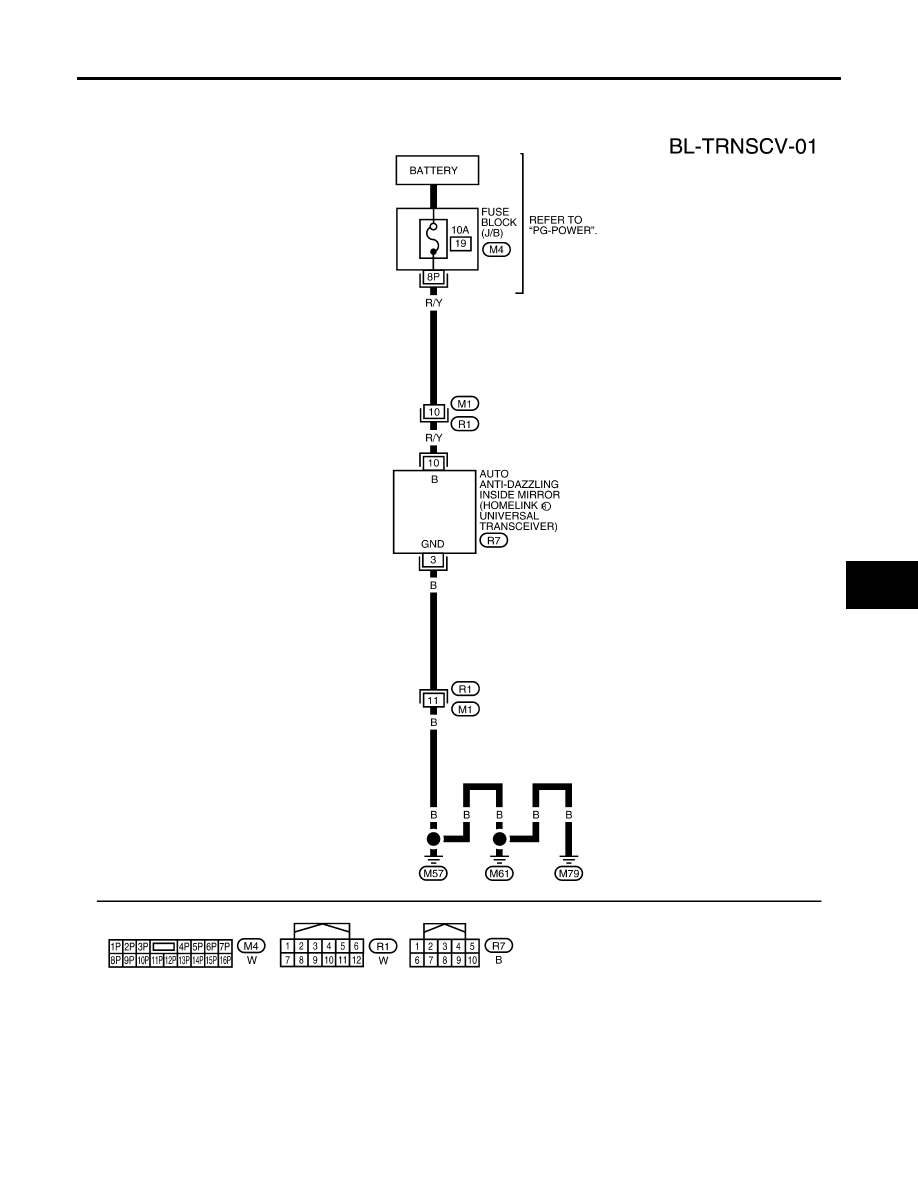

Wiring Diagram — TRNSCV —

EIS007QP

WIWA1621E

BL-114

HOMELINK UNIVERSAL TRANSCEIVER

2007 Pathfinder

Trouble Diagnoses

EIS007QQ

DIAGNOSTIC PROCEDURE
SYMPTOM: Transmitter does not activate receiver.

Before conducting the procedure given below, make sure that system receiver (garage door opener, etc.)
operates with original, hand-held transmitter. If NG, receiver or hand-held transmitter is at fault, not vehicle
related.

1.

ILLUMINATION CHECK

1.

Turn ignition switch OFF.

2.

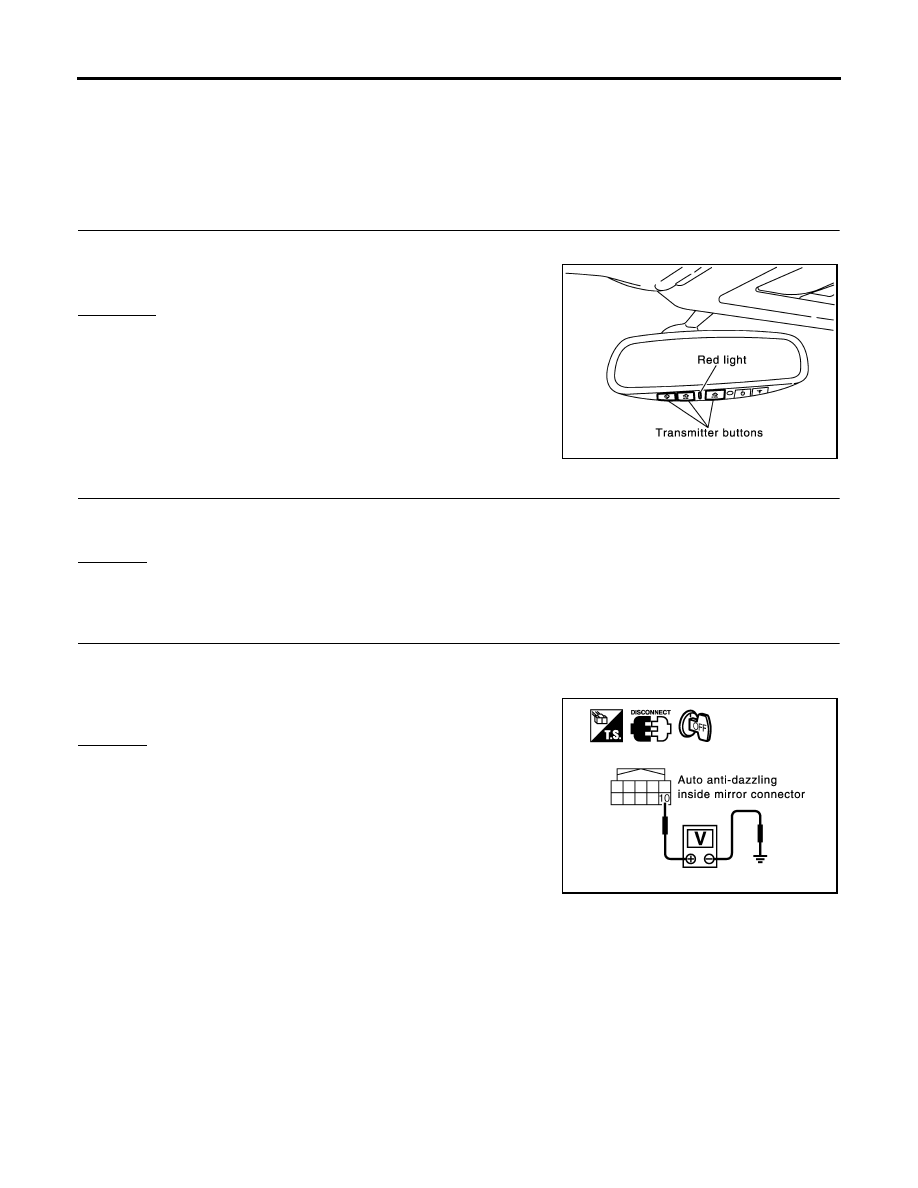

Does red light (LED) of transmitter illuminate when any button is
pressed?

YES or NO

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

TRANSMITTER CHECK

Check transmitter with Tool*.
*:For details, refer to Technical Service Bulletin.

OK or NG

OK

>> Receiver or hand-held transmitter malfunction, not vehicle related.

NG

>> Replace transmitter.

3.

POWER SUPPLY CHECK

1.

Disconnect transmitter.

2.

Check voltage between auto anti-dazzling inside mirror connector R7 terminal 10 and ground.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace fuse or harness.

PIIA4815E

10 - Ground

: Battery voltage

LIIA0839E

HOMELINK UNIVERSAL TRANSCEIVER

BL-115

C

D

E

F

G

H

J

K

L

M

A

B

BL

2007 Pathfinder

4.

GROUND CIRCUIT CHECK

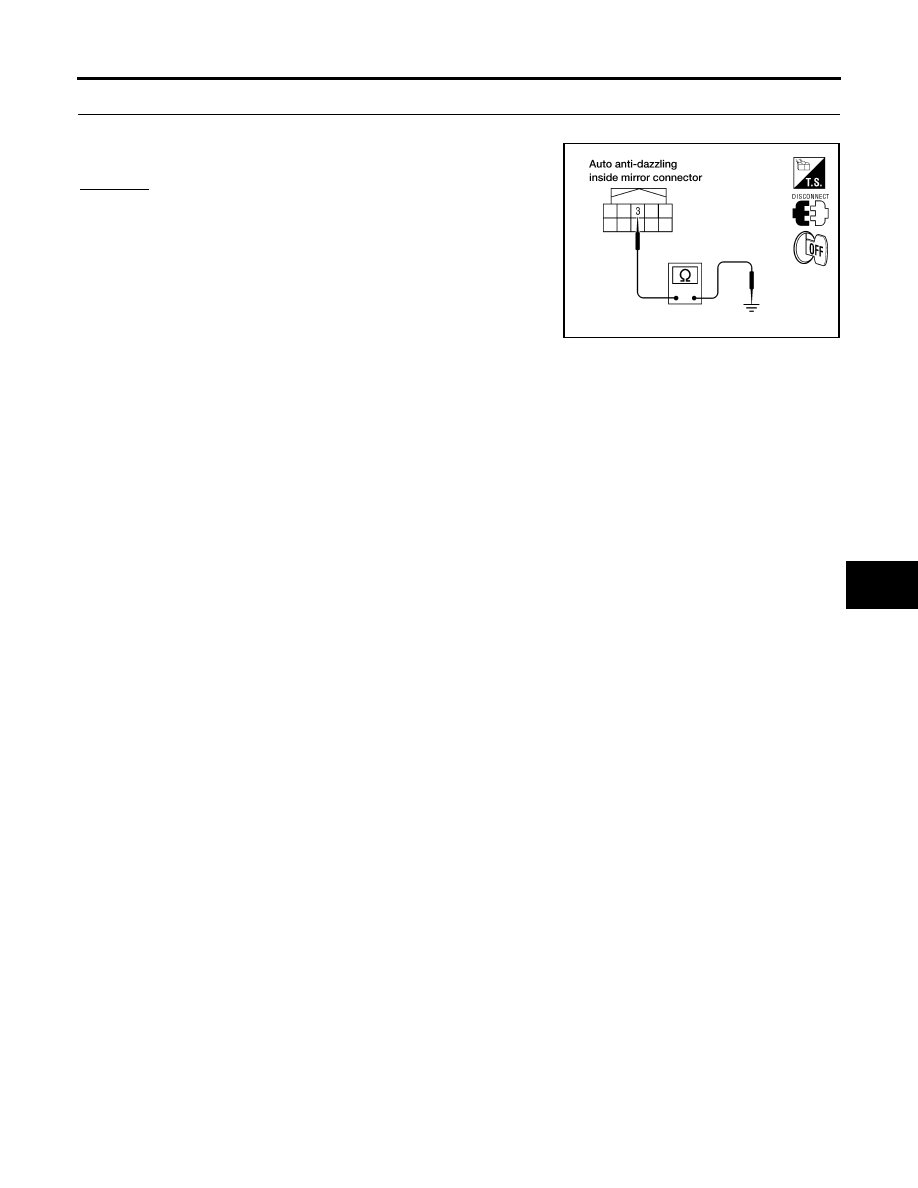

Check continuity between auto anti-dazzling inside mirror connector R7 terminal 3 and body ground.

OK or NG

OK

>> Replace auto anti-dazzling inside mirror assembly.

NG

>> Repair or replace harness.

3 - Ground

: Continuity should exist.

WIIA0464E

BL-116

CAB AND REAR BODY

2007 Pathfinder

CAB AND REAR BODY

PFP:93020

Body Mounting

EIS007QR

When removing, be sure to replace bolts and nuts (sealant applied bolts or self-lock nuts are used for all
mounting).

Unless otherwise noted, the bushings and insulators have paint marks that are to be installed facing out-
ward.

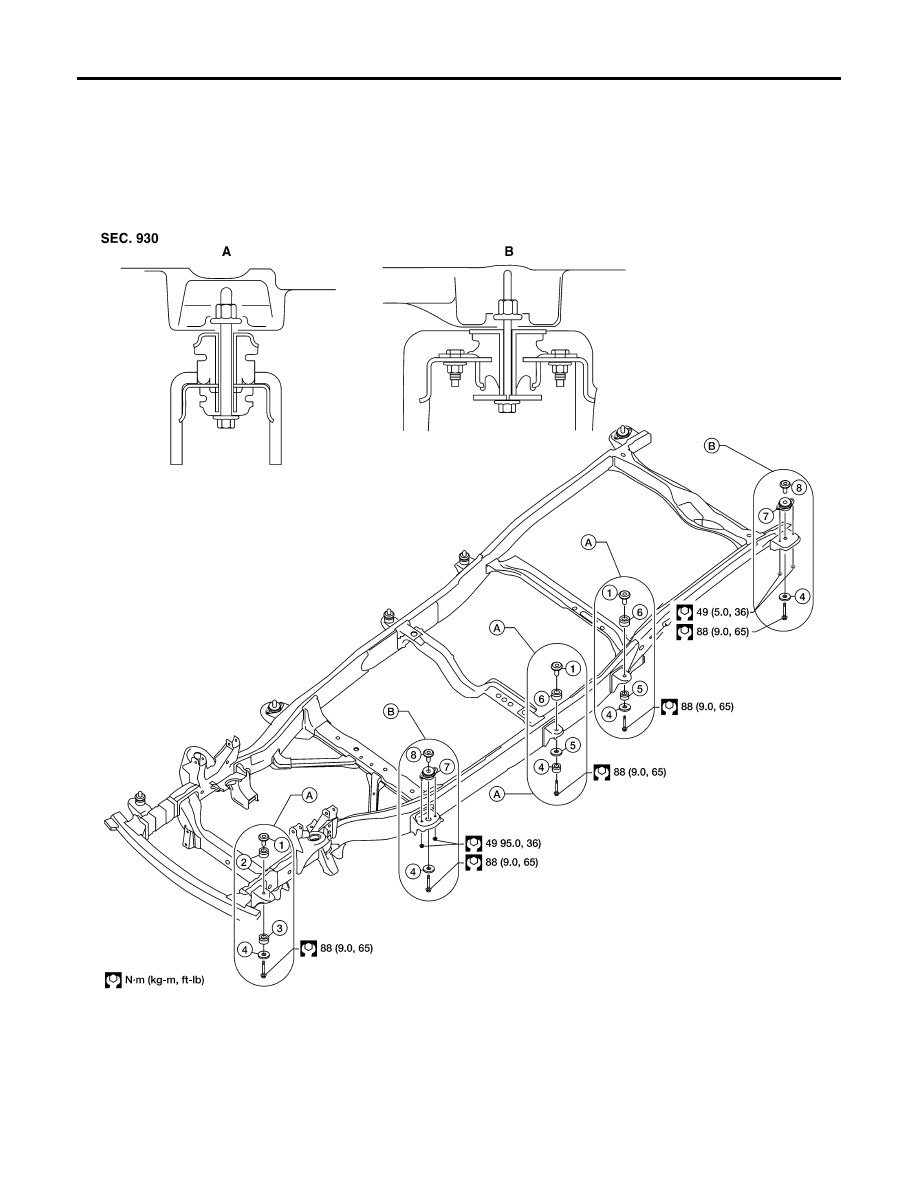

1.

Gold washer

2.

Upper bushing

3.

Lower bushing

4.

Black washer

5.

Lower bushing without paint mark

6.

Upper bushing without paint mark

7.

Body mount insulator

8.

Body washer
