BODY REPAIR

BL-133

C

D

E

F

G

H

J

K

L

M

A

B

BL

2007 Pathfinder

DESCRIPTION

All dimensions indicated in the figures are actual.

When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge
itself to make sure there is no free play.

When a measuring tape is used, check to be sure there is no elongation, twisting or bending.

Measurements should be taken at the center of the mounting holes.

An asterisk (*) following the value at the measuring point indicates that the measuring point on the other
side is symmetrically the same value.

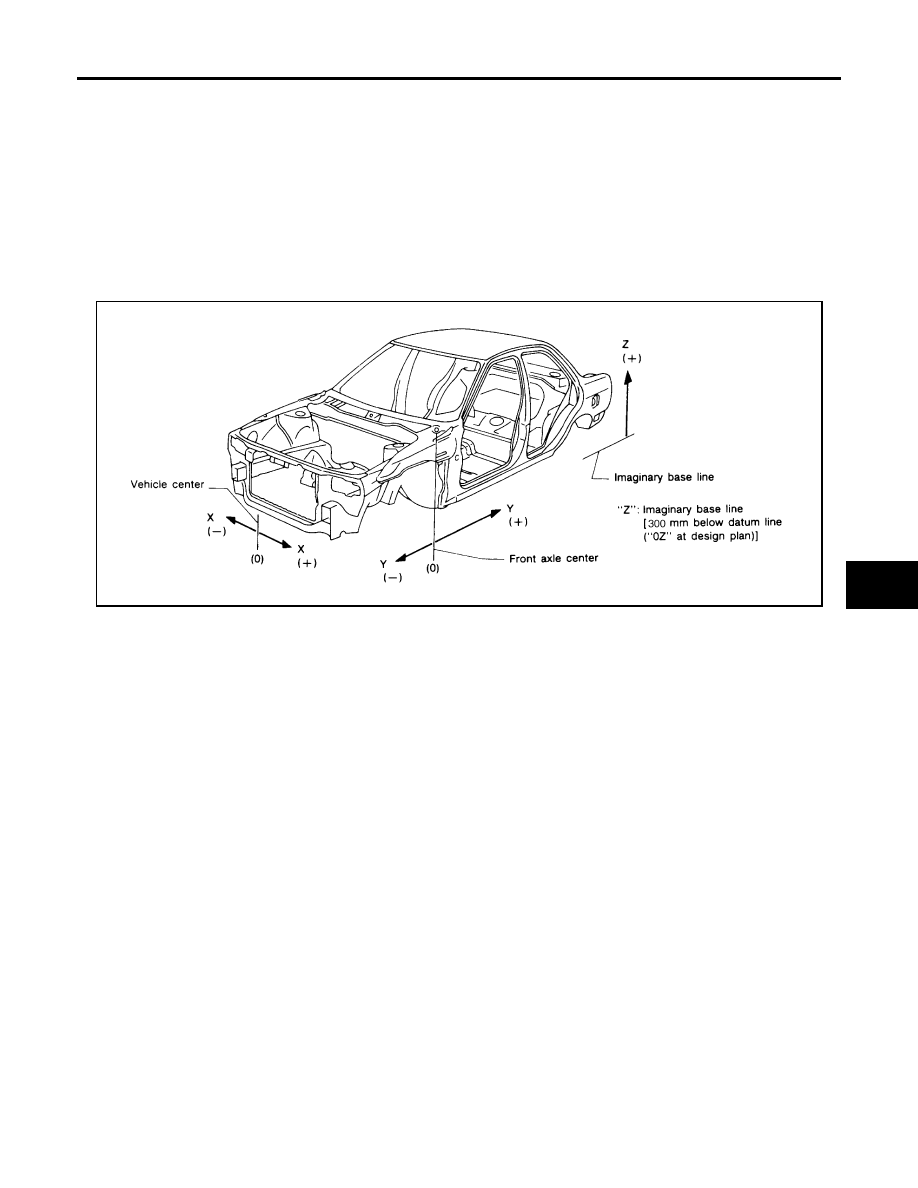

The coordinates of the measurement points are the distances measured from the standard line of "X", "Y"
and "Z".

LIIA1506E

BL-134

BODY REPAIR

2007 Pathfinder

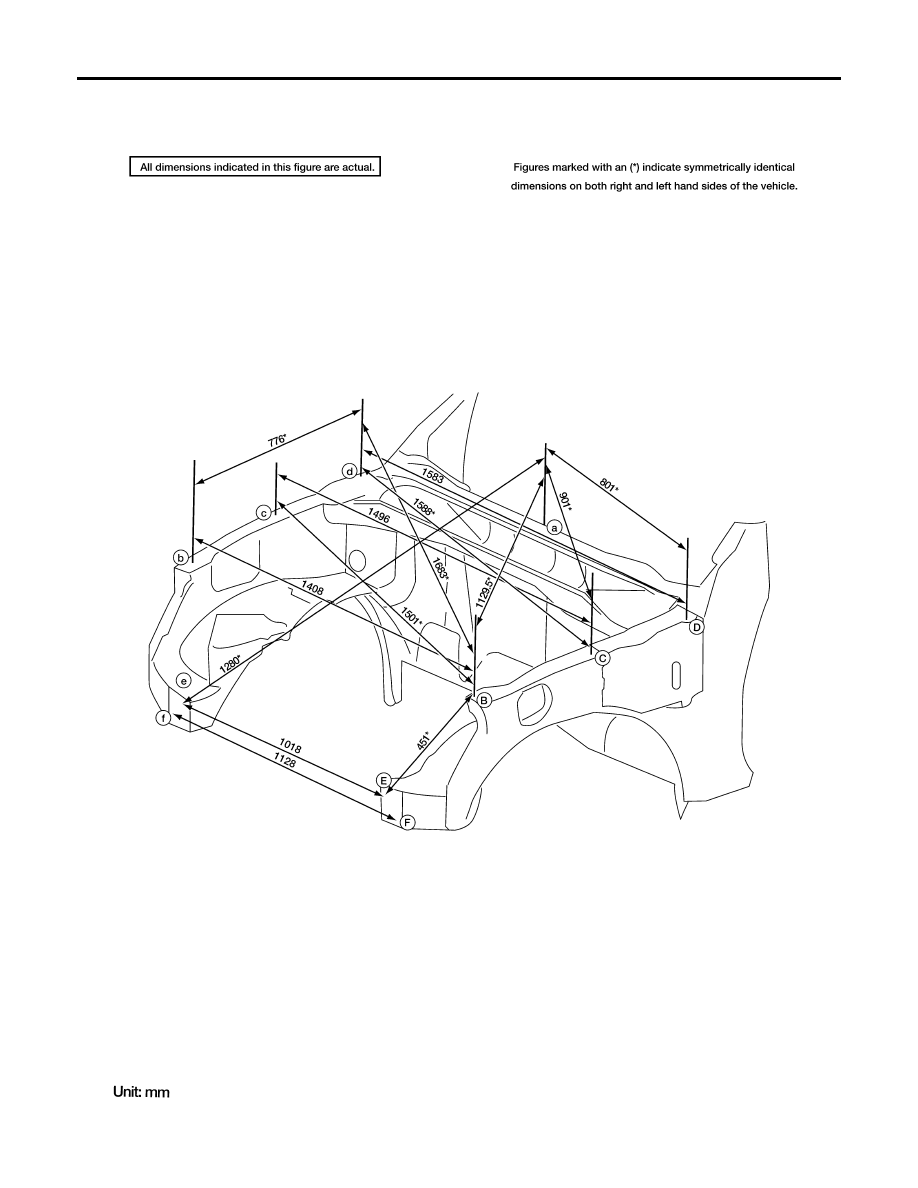

ENGINE COMPARTMENT
MEASUREMENT

WIIA0729E

BODY REPAIR

BL-135

C

D

E

F

G

H

J

K

L

M

A

B

BL

2007 Pathfinder

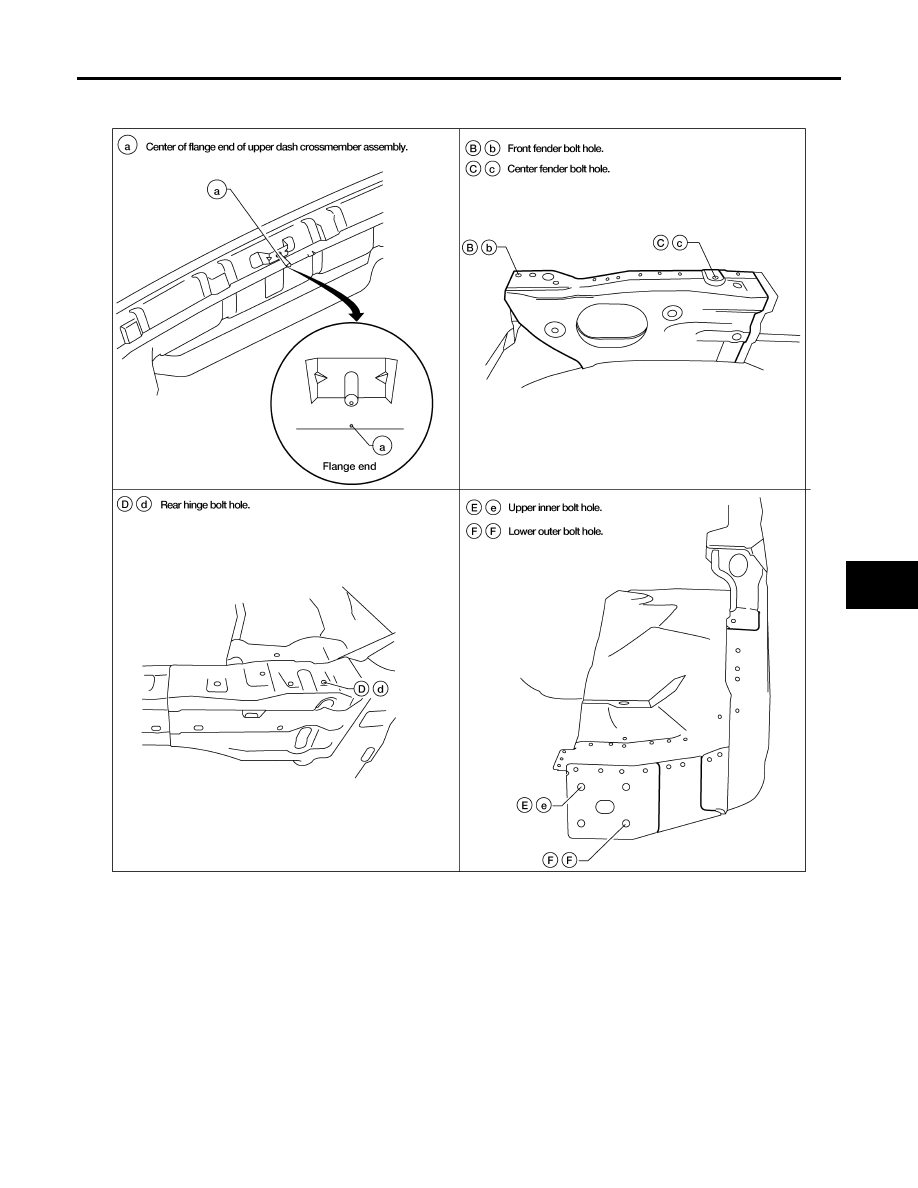

MEASUREMENT POINTS

LIIA1793E

BL-136

BODY REPAIR

2007 Pathfinder

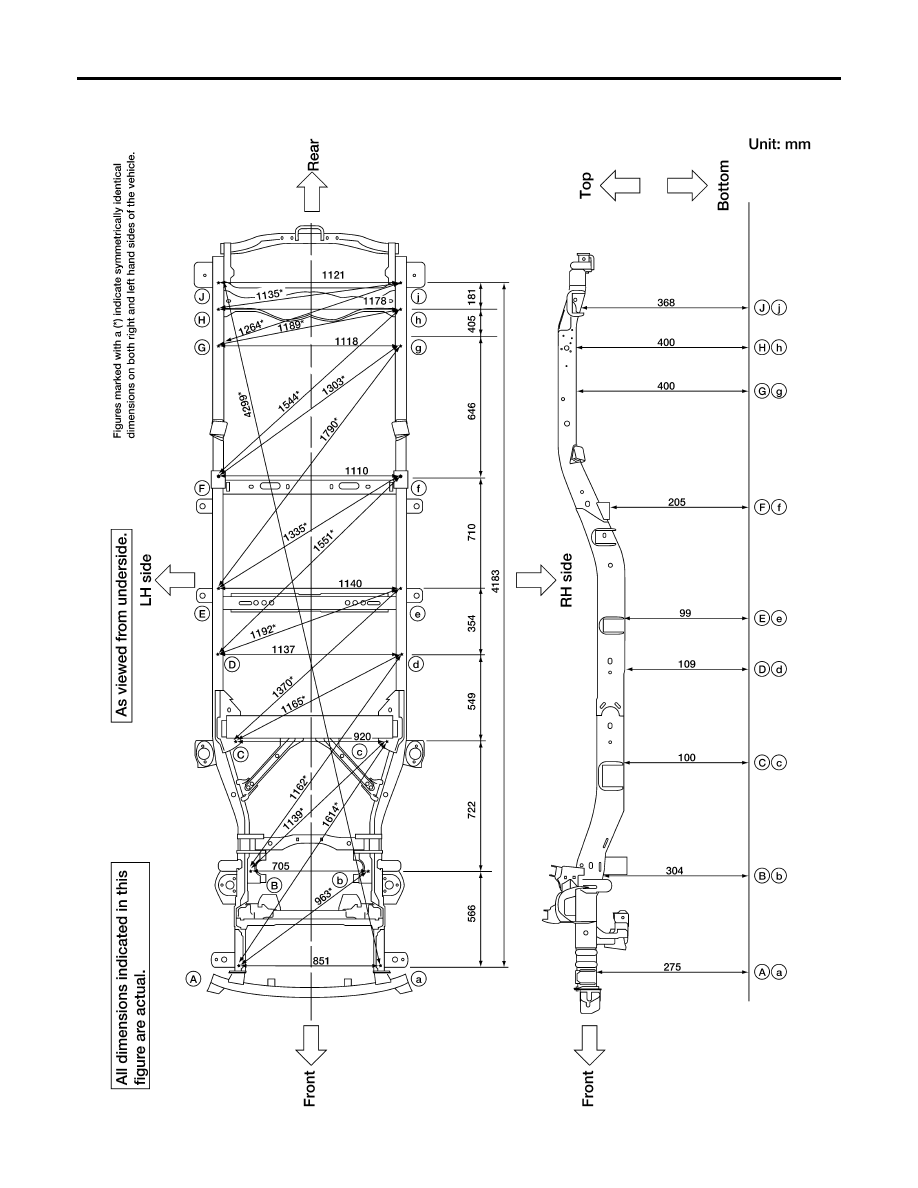

UNDERBODY
MEASUREMENT

LIIA1794E

BODY REPAIR

BL-137

C

D

E

F

G

H

J

K

L

M

A

B

BL

2007 Pathfinder

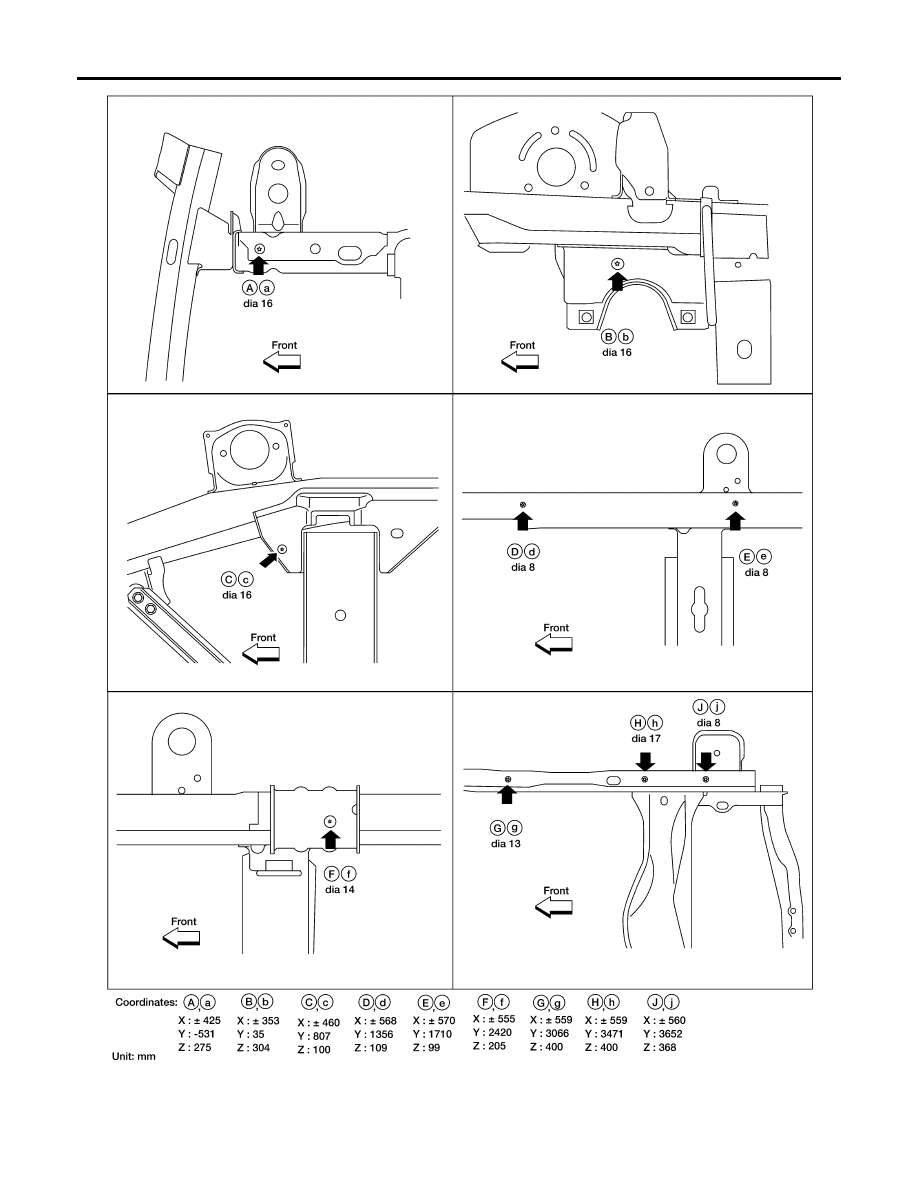

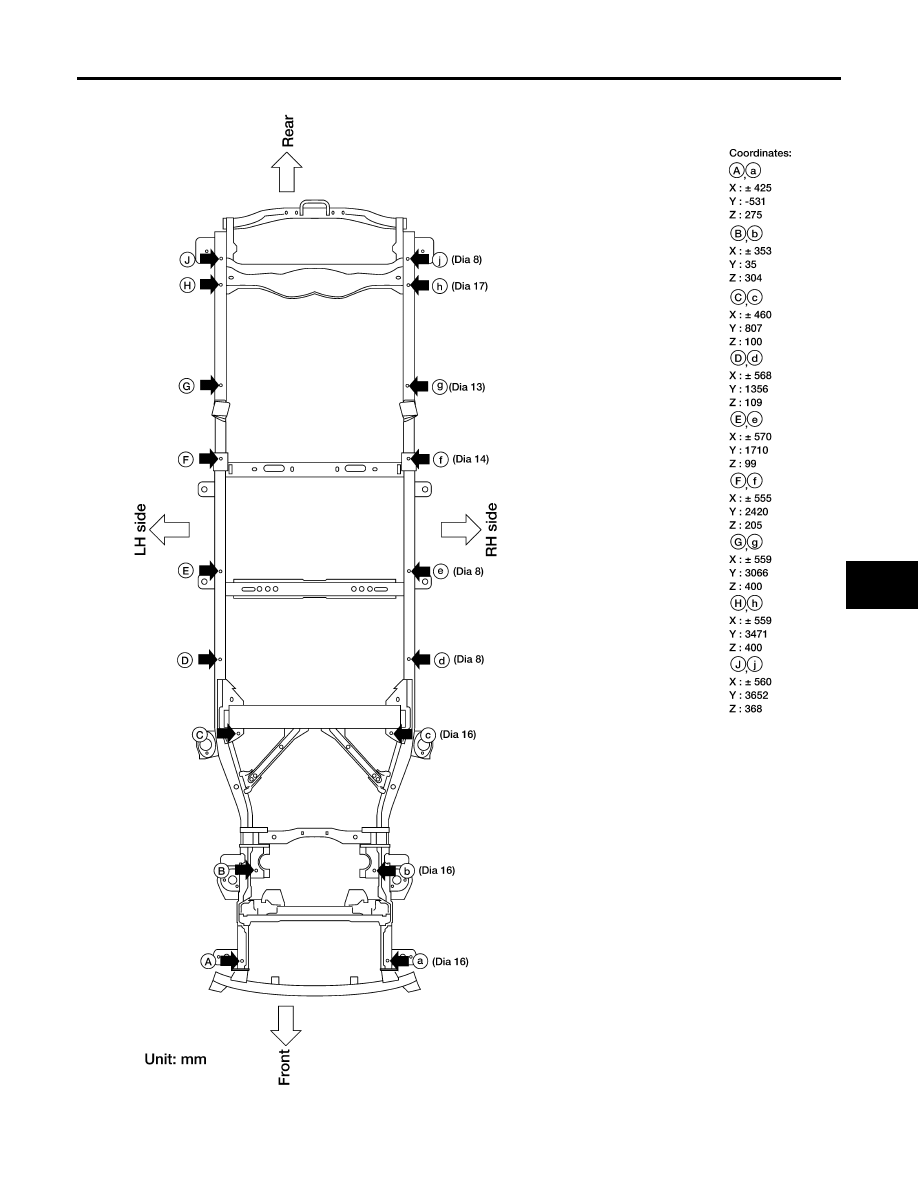

MEASUREMENT POINTS

LIIA1795E

BL-138

BODY REPAIR

2007 Pathfinder

LIIA1796E

BODY REPAIR

BL-139

C

D

E

F

G

H

J

K

L

M

A

B

BL

2007 Pathfinder

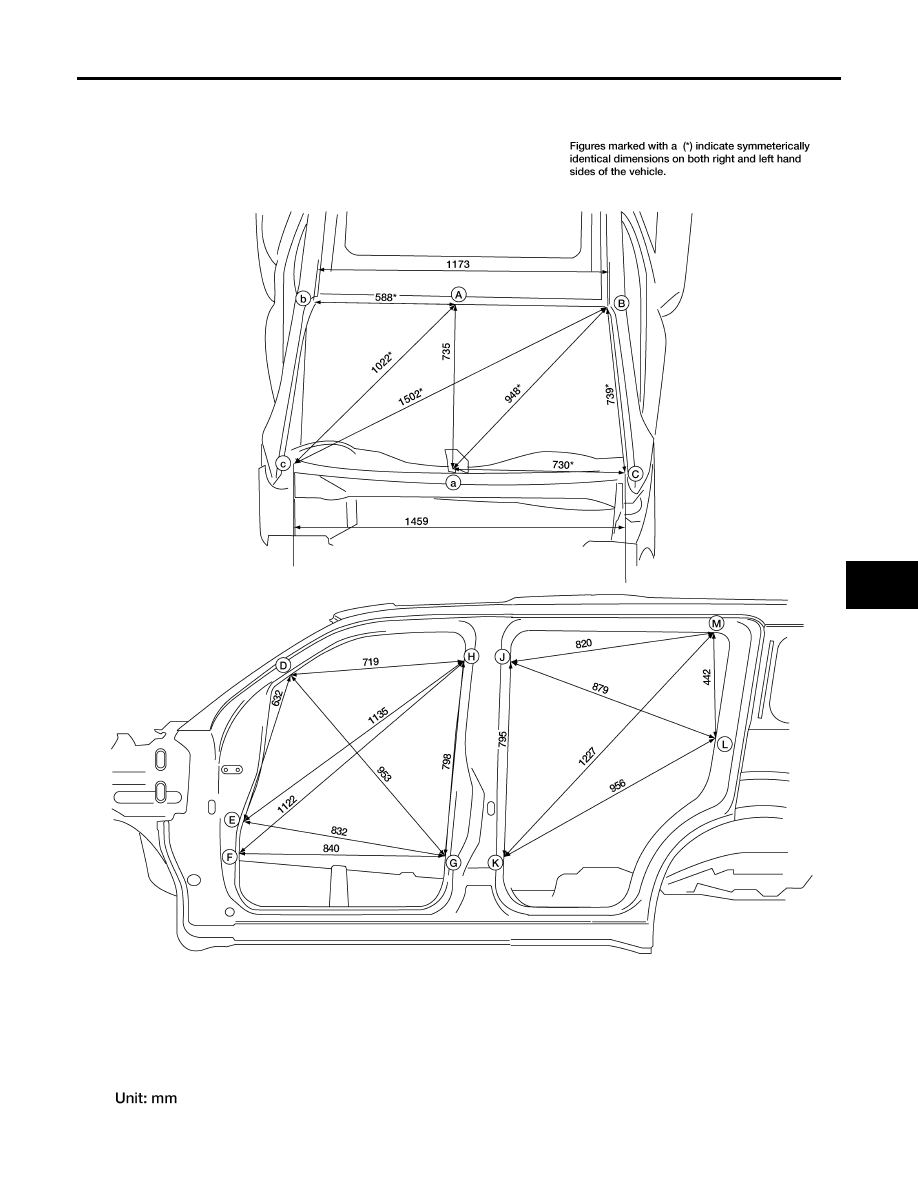

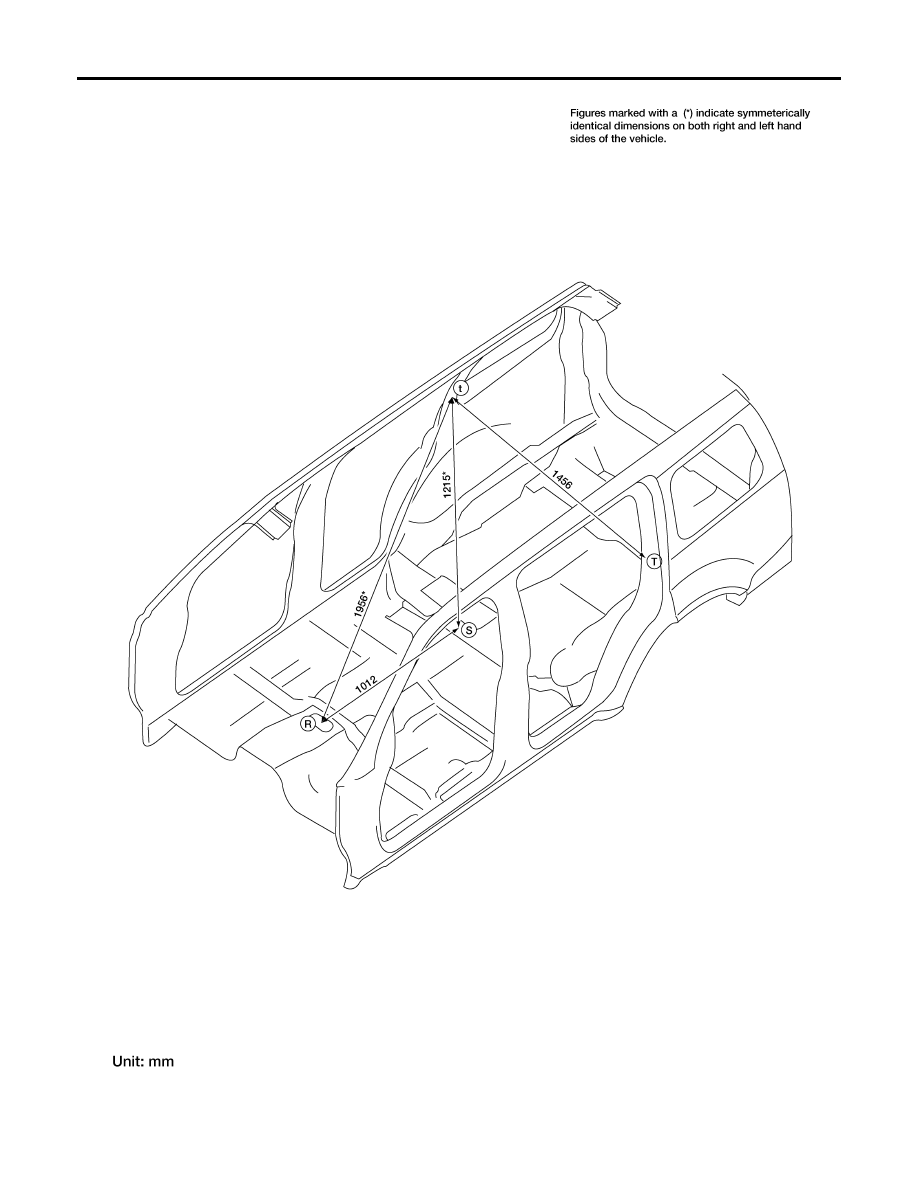

PASSENGER COMPARTMENT
MEASUREMENT

LIIA1798E

BL-140

BODY REPAIR

2007 Pathfinder

LIIA1799E
