2007 Pathfinder

COMPONENT DESCRIPTION  ......................... 127
OPTICAL INPUT PROCESS  ............................ 127
DIAGNOSTIC PROCEDURE FOR OPTICAL
SENSOR ........................................................... 127

Intake Sensor Circuit  ............................................ 129

COMPONENT DESCRIPTION  ......................... 129
DIAGNOSTIC PROCEDURE FOR INTAKE SEN-
SOR .................................................................. 129
COMPONENT INSPECTION ............................ 130

CONTROL UNIT  ..................................................... 131

Removal and Installation  ...................................... 131

FRONT AIR CONTROL  .................................... 131
REAR AIR CONTROL ....................................... 131

AMBIENT SENSOR ................................................ 132

Removal and Installation  ...................................... 132

REMOVAL ......................................................... 132
INSTALLATION ................................................. 132

IN-VEHICLE SENSOR ............................................ 133

Removal and Installation  ...................................... 133

REMOVAL ......................................................... 133
INSTALLATION ................................................. 133

OPTICAL SENSOR  ................................................ 134

Removal and Installation  ...................................... 134

INTAKE SENSOR  ................................................... 135

Removal and Installation  ...................................... 135

REMOVAL ......................................................... 135
INSTALLATION ................................................. 135

BLOWER MOTOR  .................................................. 136

Components ......................................................... 136
Removal and Installation  ...................................... 136

FRONT BLOWER MOTOR  ............................... 136
REAR BLOWER MOTOR  ................................. 137

IN-CABIN MICROFILTER  ....................................... 138

Removal and Installation  ...................................... 138

FUNCTION ........................................................ 138
REPLACEMENT TIMING .................................. 138
REPLACEMENT PROCEDURE  ....................... 138

HEATER & COOLING UNIT ASSEMBLY  .............. 140

Components ......................................................... 140
Removal and Installation  ...................................... 141

FRONT HEATER AND COOLING UNIT ASSEM-
BLY .................................................................... 141
REAR HEATER AND COOLING UNIT ASSEM-
BLY .................................................................... 142

HEATER CORE  ...................................................... 144

Components ......................................................... 144
Removal and Installation  ...................................... 145

FRONT HEATER CORE  ................................... 145
REAR HEATER CORE  ..................................... 145

HEATER PUMP  ...................................................... 146

Removal and Installation  ...................................... 146

REMOVAL ......................................................... 146
INSTALLATION ................................................. 146

INTAKE DOOR MOTOR  ......................................... 147

Removal and Installation  ...................................... 147

REMOVAL ......................................................... 147
INSTALLATION ................................................. 147

MODE DOOR MOTOR ............................................ 148

Removal and Installation  ...................................... 148

REMOVAL ......................................................... 148
INSTALLATION ................................................. 148

AIR MIX DOOR MOTOR  ......................................... 149

Components ......................................................... 149
Removal and Installation  ...................................... 149

FRONT AIR MIX DOOR MOTOR (DRIVER) ..... 149
FRONT AIR MIX DOOR MOTOR (PASSENGER)

. 149

REAR AIR MIX DOOR MOTOR  ........................ 150

VARIABLE BLOWER CONTROL ........................... 151

Removal and Installation  ...................................... 151

REMOVAL ......................................................... 151
INSTALLATION ................................................. 151

REAR BLOWER MOTOR RESISTOR .................... 152

Removal and Installation  ...................................... 152

REMOVAL ......................................................... 152
INSTALLATION ................................................. 152

DUCTS AND GRILLES  ........................................... 153

Components ......................................................... 153
Removal and Installation  ...................................... 155

DEFROSTER NOZZLE  ..................................... 155
RH AND LH SIDE DEMISTER DUCT  ............... 155
RH AND LH VENTILATOR DUCT ..................... 156
CENTER VENTILATOR DUCT  ......................... 156
FLOOR CONNECTOR DUCT  ........................... 156
FRONT AND REAR FLOOR DUCTS ................ 156
REAR OVERHEAD DUCTS  .............................. 156
SIDE REAR FLOOR DUCT ............................... 157
GRILLES ........................................................... 157

REFRIGERANT LINES  ........................................... 158

HFC-134a (R-134a) Service Procedure  ............... 158

SETTING OF SERVICE TOOLS AND EQUIP-
MENT ................................................................ 158

Components ......................................................... 160
Removal and Installation for Compressor  ............ 162

REMOVAL ......................................................... 162
INSTALLATION ................................................. 162

Removal and Installation for Compressor Clutch . 163

REMOVAL ......................................................... 163
INSPECTION .................................................... 164
INSTALLATION ................................................. 164
BREAK-IN OPERATION .................................... 166

Removal and Installation for Front High-pressure
Flexible A/C Hose ................................................. 166

REMOVAL ......................................................... 166
INSTALLATION ................................................. 166

Removal and Installation for Front High-pressure
A/C Pipe  ............................................................... 166

REMOVAL ......................................................... 166
INSTALLATION ................................................. 166

Removal and Installation for Front Low-pressure
Flexible A/C Hose ................................................. 166

REMOVAL ......................................................... 166
INSTALLATION ................................................. 166

Removal and Installation for Front Low-pressure A/
C Pipe ................................................................... 167

REMOVAL ......................................................... 167
INSTALLATION ................................................. 167

ATC-4

2007 Pathfinder

Removal and Installation for Rear High- and Low-
pressure A/C Pipes ............................................... 167

REMOVAL ......................................................... 167
INSTALLATION .................................................. 167

Removal and Installation for Underfloor Rear High-
and Low-pressure A/C and Heater Core Pipes  .... 167

REMOVAL ......................................................... 167
INSTALLATION .................................................. 169

Removal and Installation for Refrigerant Pressure
Sensor .................................................................. 169

REMOVAL ......................................................... 169
INSTALLATION .................................................. 169

Removal and Installation for Condenser ............... 169

REMOVAL ......................................................... 169
INSTALLATION .................................................. 169

Removal and Installation for Front Evaporator  ..... 170

REMOVAL ......................................................... 171
INSTALLATION .................................................. 171

Removal and Installation for Rear Evaporator  ...... 172

REMOVAL ......................................................... 172
INSTALLATION .................................................. 173

Removal and Installation for Front Expansion Valve .173

REMOVAL ..........................................................173
INSTALLATION ..................................................173

Removal and Installation for Rear Expansion Valve .173

REMOVAL ..........................................................173
INSTALLATION ..................................................173

Checking for Refrigerant Leaks  ............................174
Checking System for Leaks Using the Fluorescent
Dye Leak Detector  ................................................174
Dye Injection  .........................................................174
Electronic Refrigerant Leak Detector  ....................175

PRECAUTIONS FOR HANDLING LEAK
DETECTOR .......................................................175
CHECKING PROCEDURE  ................................176

SERVICE DATA AND SPECIFICATIONS (SDS)  ....178

Service Data and Specifications (SDS)  ................178

COMPRESSOR .................................................178
OIL .....................................................................178
REFRIGERANT .................................................178
ENGINE IDLING SPEED  ...................................178
BELT TENSION  .................................................178

PRECAUTIONS

ATC-5

C

D

E

F

G

H

I

K

L

M

A

B

ATC

2007 Pathfinder

PRECAUTIONS

PFP:00001

Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”

EJS004O6

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

Precautions for Working with HFC-134a (R-134a)

EJS004O7

WARNING:

CFC-12 (R-12) refrigerant and HFC-134a (R-134a) refrigerant are not compatible. If the refrigerants
are mixed compressor failure is likely to occur. Refer

ATC-5, "Contaminated Refrigerant"

 . To

determine the purity of HFC-134a (R-134a) in the vehicle and recovery tank, use refrigerant recov-
ery/recycling equipment and refrigerant identifier.

Use only specified oil for the HFC-134a (R-134a) A/C system and HFC-134a (R-134a) components.
If oil other than that specified is used, compressor failure is likely to occur.

The specified HFC-134a (R-134a) oil rapidly absorbs moisture from the atmosphere. The following
handling precautions must be observed:

When removing refrigerant components from a vehicle, immediately cap (seal) the component to
minimize the entry of moisture from the atmosphere.

When installing refrigerant components to a vehicle, do not remove the caps (unseal) until just
before connecting the components. Connect all refrigerant loop components as quickly as possi-
ble to minimize the entry of moisture into system.

Only use the specified oil from a sealed container. Immediately reseal containers of oil. Without
proper sealing, oil will become moisture saturated and should not be used.

Avoid breathing A/C refrigerant and oil vapor or mist. Exposure may irritate eyes, nose and throat.
Remove HFC-134a (R-134a) from the A/C system using certified service equipment meeting
requirements of SAE J2210 [HFC-134a (R-134a) recycling equipment], or SAE J2209 [HFC-134a (R-
134a) recovery equipment]. If accidental system discharge occurs, ventilate work area before
resuming service. Additional health and safety information may be obtained from refrigerant and
oil manufacturers.

Do not allow the refrigerant oil to come in contact with styrofoam parts. Damage may result.

Contaminated Refrigerant

EJS004O8

If a refrigerant other than pure HFC-134a (R-134a) is identified in a vehicle, your options are:

Explain to the customer that environmental regulations prohibit the release of contaminated refrigerant
into the atmosphere.

Explain that recovery of the contaminated refrigerant could damage your service equipment and refriger-
ant supply.

Suggest the customer return the vehicle to the location of previous service where the contamination may
have occurred.

If you choose to perform the repair, recover the refrigerant using only dedicated equipment and contain-
ers. Do not recover contaminated refrigerant into your existing service equipment.
  If your facility

ATC-6

PRECAUTIONS

2007 Pathfinder

does not have dedicated recovery equipment, you may contact a local refrigerant product retailer for avail-
able service. This refrigerant must be disposed of in accordance with all federal and local regulations. In
addition, replacement of all refrigerant system components on the vehicle is recommended.

If the vehicle is within the warranty period, the air conditioner warranty is void. Please contact NISSAN
Customer Affairs for further assistance.

General Refrigerant Precautions

EJS004O9

WARNING:

Do not release refrigerant into the air. Use approved recovery/recycling equipment to capture the
refrigerant every time an air conditioning system is discharged.

Always wear eye and hand protection (goggles and gloves) when working with any refrigerant or
air conditioning system.

Do not store or heat refrigerant containers above 52

°

C (125

°

F).

Do not heat a refrigerant container with an open flame; if container warming is required, place the
bottom of the container in a warm pail of water.

Do not intentionally drop, puncture, or incinerate refrigerant containers.

Keep refrigerant away from open flames: poisonous gas will be produced if refrigerant burns.

Refrigerant will displace oxygen, therefore be certain to work in well ventilated areas to prevent
suffocation.

Do not pressure test or leak test HFC-134a (R-134a) service equipment and/or vehicle air condi-
tioning systems with compressed air during repair. Some mixtures of air and HFC-134a (R-134a)
have been shown to be combustible at elevated pressures. These mixtures, if ignited, may cause
injury or property damage. Additional health and safety information may be obtained from refriger-
ant manufacturers.

Precautions for Leak Detection Dye

EJS004OA

The A/C system contains a fluorescent leak detection dye used for locating refrigerant leaks. An ultraviolet
(UV) lamp is required to illuminate the dye when inspecting for leaks.

Always wear fluorescence enhancing UV safety goggles to protect your eyes and enhance the visibility of
the fluorescent dye.

The fluorescent dye leak detector is not a replacement for an electronic refrigerant leak detector. The fluo-
rescent dye leak detector should be used in conjunction with an electronic refrigerant leak detector (J-
41995).

For your safety and the customer's satisfaction, read and follow all manufacturer's operating instructions
and precautions prior to performing work.

A compressor shaft seal should not be repaired because of dye seepage. The compressor shaft seal
should only be repaired after confirming the leak with an electronic refrigerant leak detector (J-41995).

Always remove any remaining dye from the leak area after repairs are complete to avoid a misdiagnosis
during a future service.

Do not allow dye to come into contact with painted body panels or interior components. If dye is spilled,
clean immediately with the approved dye cleaner. Fluorescent dye left on a surface for an extended period
of time cannot be removed .

Do not spray the fluorescent dye cleaning agent on hot surfaces (engine exhaust manifold, etc.).

Do not use more than one refrigerant dye bottle (1/4 ounce / 7.4 cc) per A/C system.

Leak detection dyes for HFC-134a (R-134a) and CFC-12 (R-12) A/C systems are different. Do not use
HFC-134a (R-134a) leak detection dye in CFC-12 (R-12) A/C systems or CFC-12 (R-12) leak detection
dye in HFC-134a (R-134a) A/C systems or A/C system damage may result.

The fluorescent properties of the dye will remain for over three (3) years unless a compressor failure
occurs.

A/C Identification Label

EJS004OB

Vehicles with factory installed fluorescent dye have this identification label on the underside of hood.

Precautions for Refrigerant Connection

EJS004OC

A new type refrigerant connection has been introduced to all refrigerant lines except the following locations.

PRECAUTIONS

ATC-7

C

D

E

F

G

H

I

K

L

M

A

B

ATC

2007 Pathfinder

Expansion valve to cooling unit

Evaporator pipes to evaporator (inside cooling unit)

Refrigerant pressure sensor

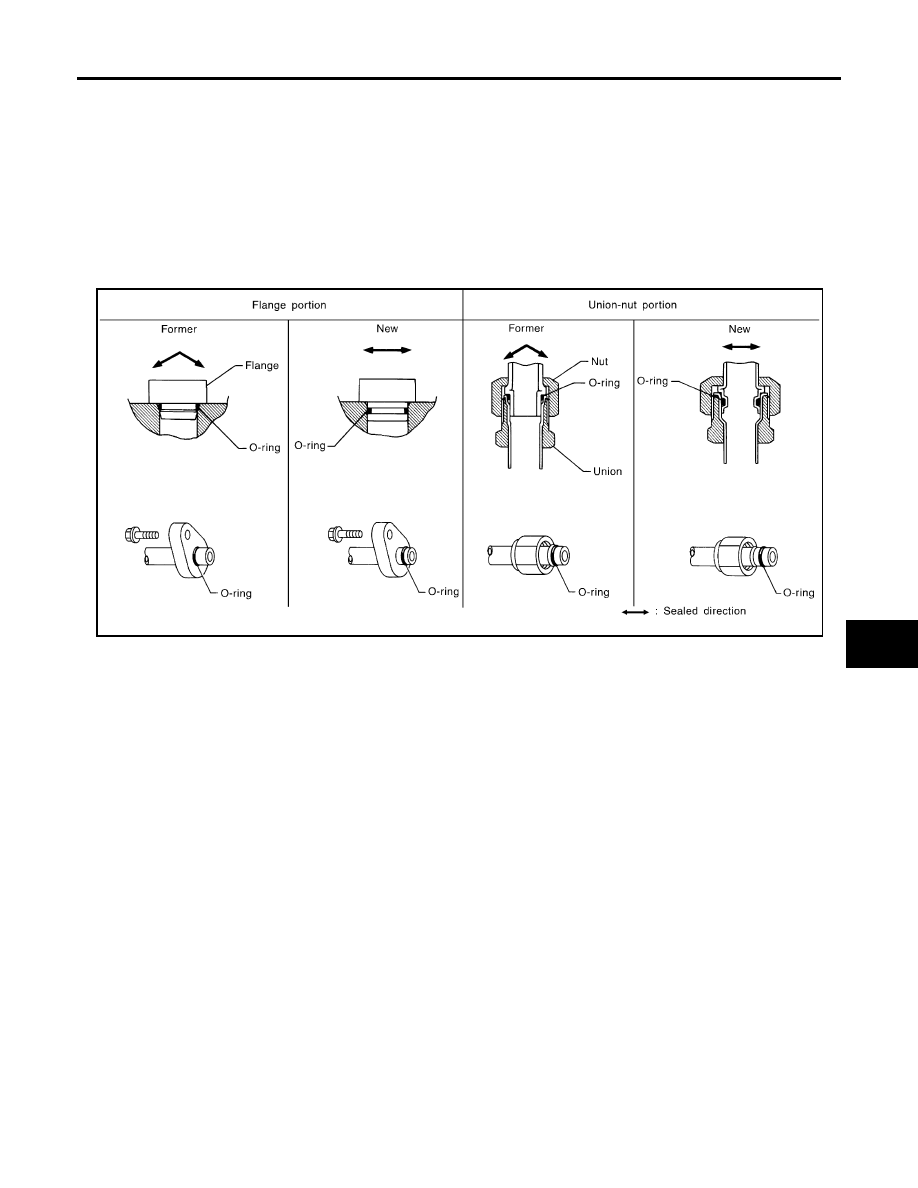

FEATURES OF NEW TYPE REFRIGERANT CONNECTION

The O-ring has been relocated. It has also been provided with a groove for proper installation. This
reduces the possibility of the O-ring being caught in, or damaged by, the mating part. The sealing direction
of the O-ring is now set vertically in relation to the contacting surface of the mating part to improve sealing
characteristics.

The reaction force of the O-ring will not occur in the direction that causes the joint to pull out, thereby facil-
itating piping connections.

SHA815E

ATC-8

PRECAUTIONS

2007 Pathfinder

O-RING AND REFRIGERANT CONNECTION

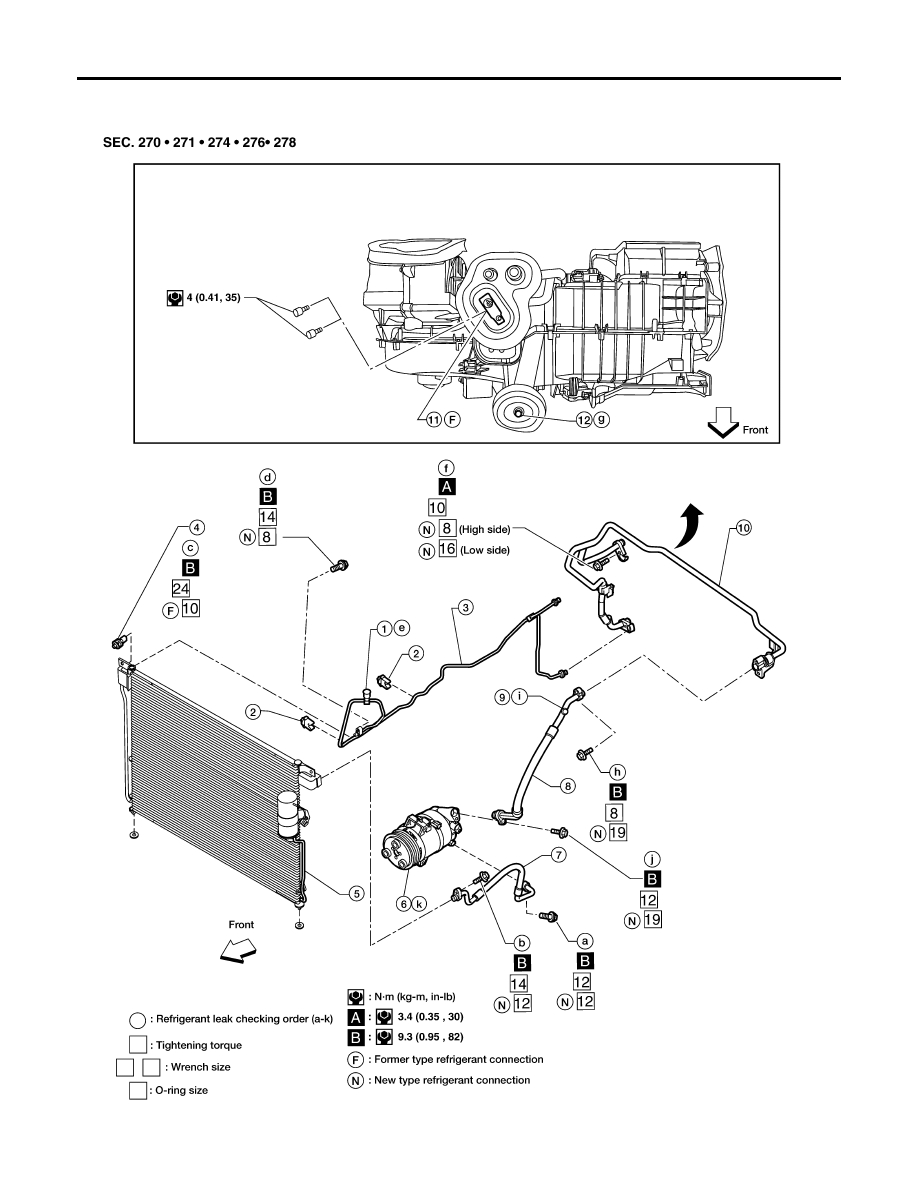

Front A/C Compressor and Condenser

WJIA1399E

PRECAUTIONS

ATC-9

C

D

E

F

G

H

I

K

L

M

A

B

ATC

2007 Pathfinder

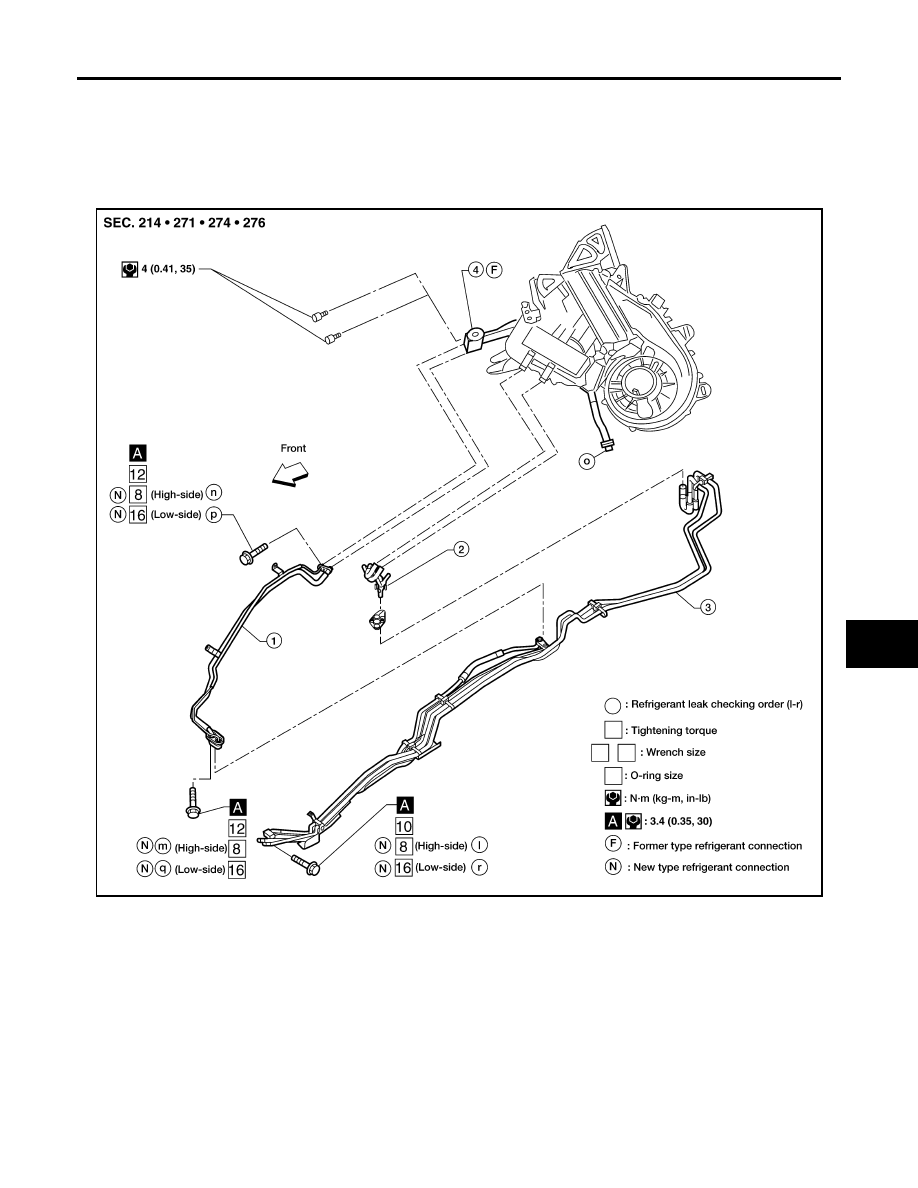

Rear A/C

CAUTION:

The new and former refrigerant connections use different O-ring configurations. Do not confuse O-
rings since they are not interchangeable. If a wrong O-ring is installed, refrigerant will leak at or
around the connection.

1.

High-pressure service valve

2.

Clip

3.

Front high-pressure A/C pipe

4.

Refrigerant pressure sensor

5.

Condenser

6.

Compressor shaft seal

7.

Front high-pressure flexible A/C hose

8.

Front low-pressure flexible A/C hose

9.

Low-pressure service valve

10. Front low-pressure A/C pipe

11. Front expansion valve

12. Front A/C drain hose

WJIA1400E

1.

Rear high- and low-pressure A/C pipes

2.

Rear heater core hoses

3.

Underfloor rear high- and low-pres-
sure A/C and heater core pipes

4.

Rear expansion valve

ATC-10

PRECAUTIONS

2007 Pathfinder

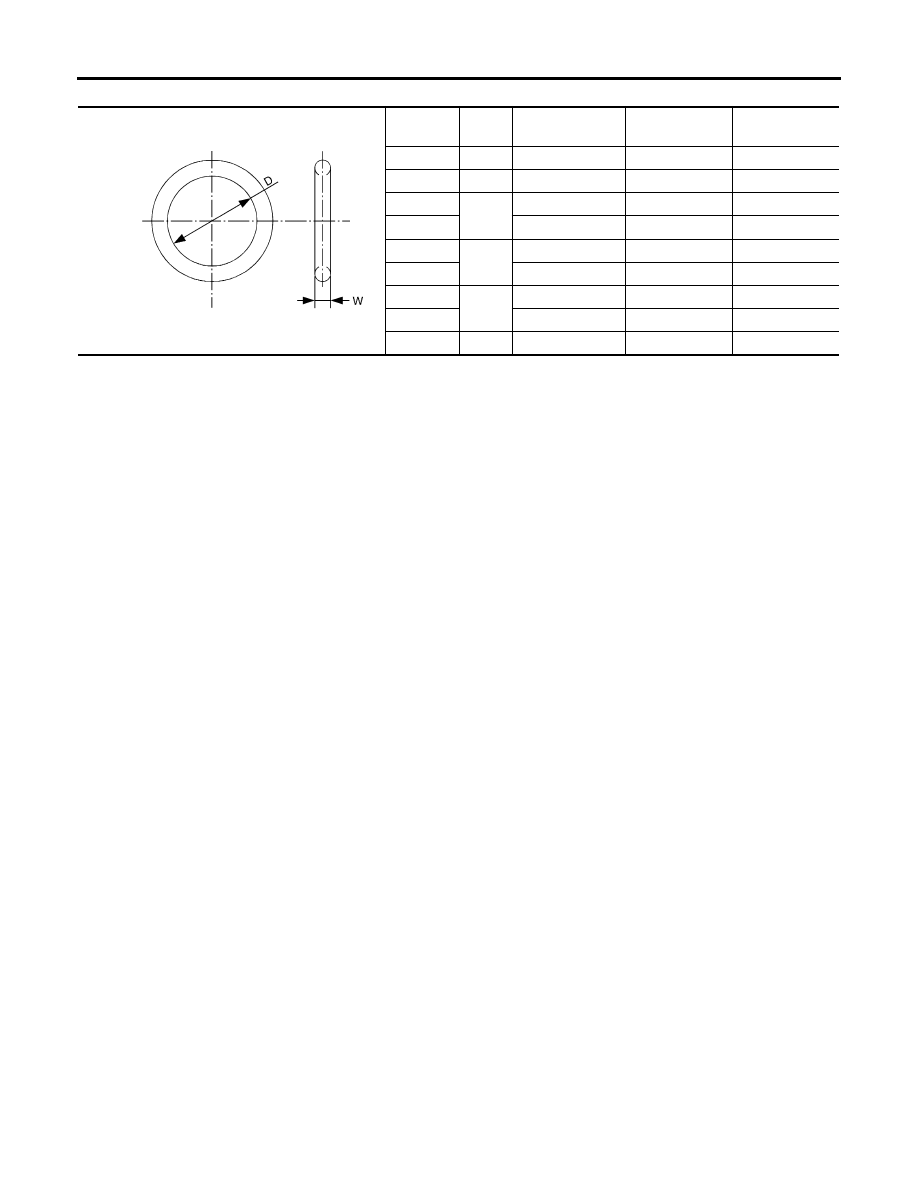

O-Ring Part Numbers and Specifications

*: Always check with the Parts Department for the latest parts information.

WARNING:

Make sure all refrigerant is discharged into the recycling equipment and the pressure in the system is
less than atmospheric pressure. Then gradually loosen the discharge side hose fitting and remove it.

CAUTION:

When replacing or cleaning refrigerant cycle components, observe the following.

When the compressor is removed, store it in the same position as it is when mounted on the car.
Failure to do so will cause oil to enter the low pressure chamber.

When connecting tubes, always use a torque wrench and a back-up wrench.

After disconnecting tubes, immediately plug all openings to prevent entry of dirt and moisture.

When installing an air conditioner in the vehicle, connect the pipes as the final stage of the opera-
tion. Do not remove the seal caps of pipes and other components until just before required for
connection.

Allow components stored in cool areas to warm to working area temperature before removing seal
caps. This prevents condensation from forming inside A/C components.

Thoroughly remove moisture from the refrigeration system before charging the refrigerant.

Always replace used O-rings.

When connecting tube, apply oil to circle of the O-rings shown in illustration. Be careful not to
apply oil to threaded portion.
Oil name: NISSAN A/C System Oil Type S or equivalent.

O-ring must be closely attached to dented portion of tube.

When replacing the O-ring, be careful not to damage O-ring and tube.

Connect tube until you hear it click, then tighten the nut or bolt by hand until snug. Make sure that
the O-ring is installed to tube correctly.

After connecting line, conduct leak test and make sure that there is no leakage from connections.
When the refrigerant leaking point is found, disconnect that line and replace the O-ring. Then
tighten connections of seal seat to the specified torque.

Connec-
tion type

O-ring

size

Part number*

D

mm (in)

W

mm (in)

New

8

92471 N8210

6.8 (0.268)

1.85 (0.0728)

Former

10

J2476 89956

9.25 (0.3642)

1.78 (0.0701)

New

12

92472 N8210

10.9 (0.429)

2.43 (0.0957)

Former

92475 71L00

11.0 (0.433)

2.4 (0.094)

New

16

92473 N8210

13.6 (0.535)

2.43 (0.0957)

Former

92475 72L00

14.3 (0.563)

2.3 (0.091)

New

19

92474 N8210

16.5 (0.650)

2.43 (0.0957)

Former

92477 N8200

17.12 (0.6740)

1.78 (0.0701)

New

24

92195 AH300

21.8 (0.858)

2.4 (0.094)

SHA814E
