Nissan Pathfinder (2007 year). Manual - part 43





ASSEMBLY

AT-315

D

E

F

G

H

I

J

K

L

M

A

B

AT

2007 Pathfinder

h.

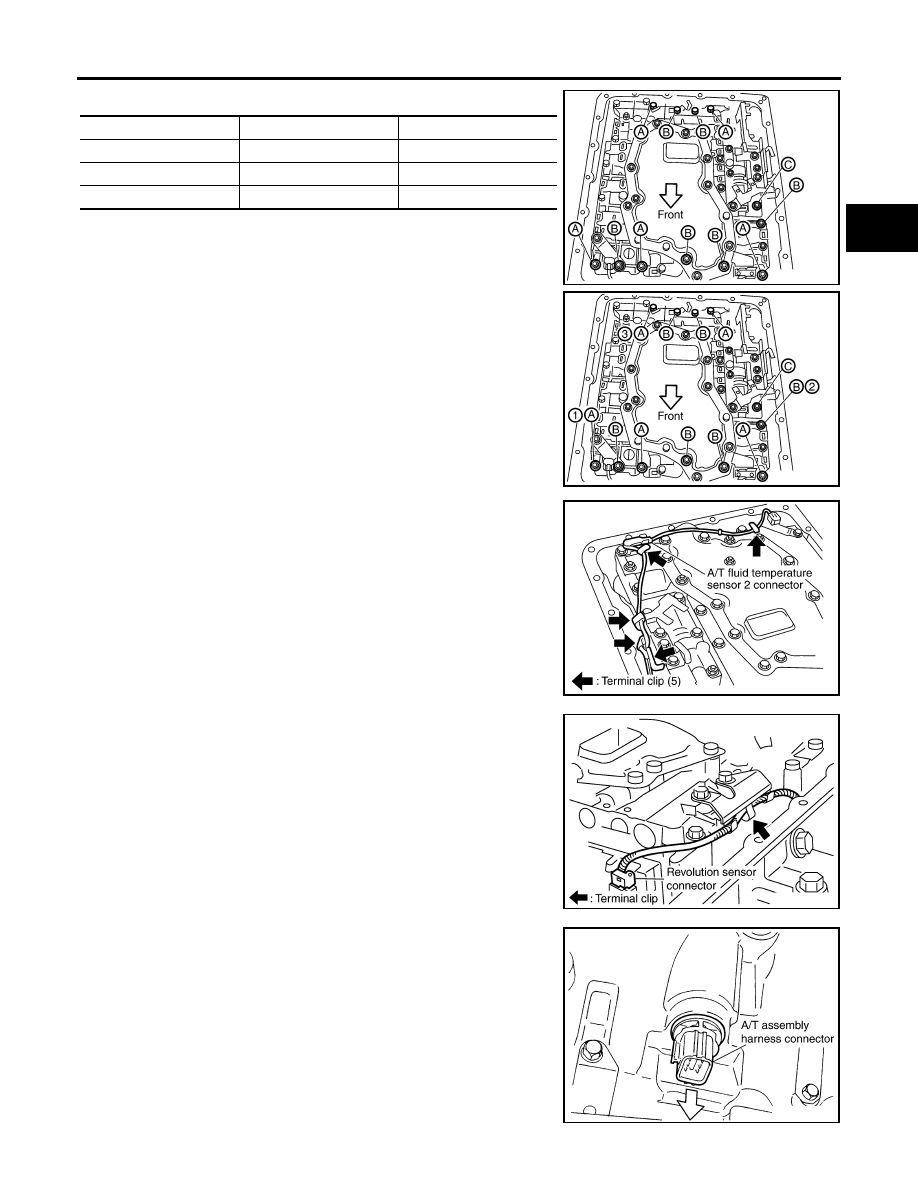

Install bolts (A), (B) and (C) to control valve with TCM.

i.

Tighten bolt (1), (2) and (3) temporarily to prevent dislocation.
After that tighten them in order (1

 2

 3), and then tighten

other bolts.

10. Connect A/T fluid temperature sensor 2 connector.

11. Securely fasten terminal cord assembly and A/T fluid tempera-

ture sensor 2 harness with terminal clips.

12. Connect revolution sensor connector.

13. Securely fasten revolution sensor harness with terminal clip.

14. Pull down A/T assembly harness connector.

CAUTION:

Do not damage connector.

Bolt symbol

Length mm (in)

Number of bolts

A

42 (1.65)

5

B

55 (2.17)

6

C

40 (1.57)

1

Bolts

: 7.9 N·m (0.81 kg-m, 70 in-lb)

SCIA5025E

SCIA5037E

SCIA5446E

SCIA7526E

SCIA5299E

AT-316

ASSEMBLY

2007 Pathfinder

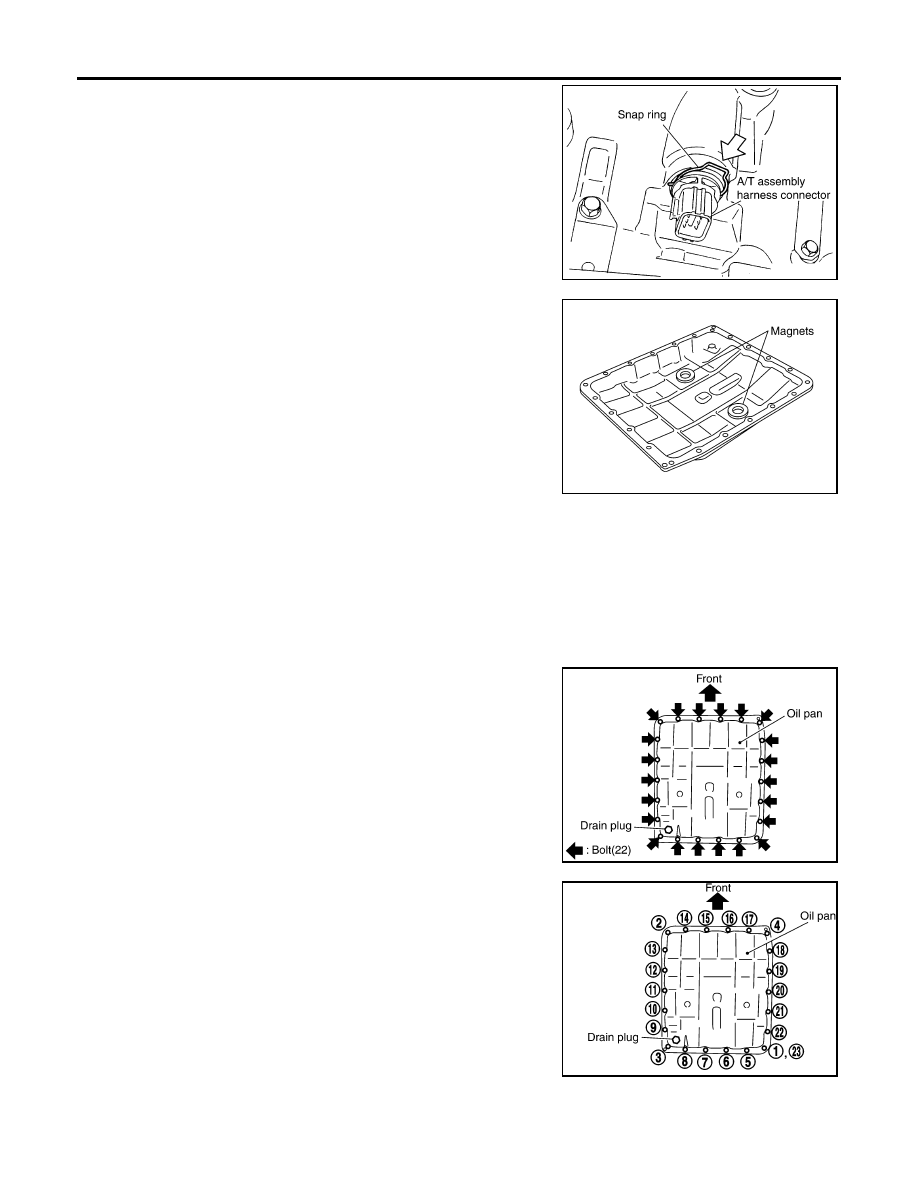

15. Install snap ring to A/T assembly harness connector.

16. Install magnets in oil pan.

17. Install oil pan to transmission case.

a.

Install oil pan gasket to transmission case.

CAUTION:

Do not reuse oil pan gasket.

Install it in the direction to align hole positions.

Completely remove all moisture, oil, old gasket and any foreign material from oil pan gasket
mating surface.

b.

Install oil pan to transmission case.

CAUTION:

Install it so that drain plug is in the position as shown.

Do not pinch harnesses.

Completely remove all moisture, oil, old gasket and any
foreign material from oil pan gasket mating surface.

c.

Temporarily tighten the oil pan bolts, then tighten them to the
specified torque in the numerical order shown.

CAUTION:

Do not reuse oil pan bolts.

18. Install drain plug to oil pan.

CAUTION:

Do not reuse drain plug gasket.

19. Install torque converter.

SCIA5300E

SCIA5200E

SCIA2308E

Oil pan bolts

: 7.9 N·m (0.81 kg-m, 70 in-lb)

Drain plug

: 34 N·m (3.5 kg-m, 25 ft-lb)

SCIA4113E

ASSEMBLY

AT-317

D

E

F

G

H

I

J

K

L

M

A

B

AT

2007 Pathfinder

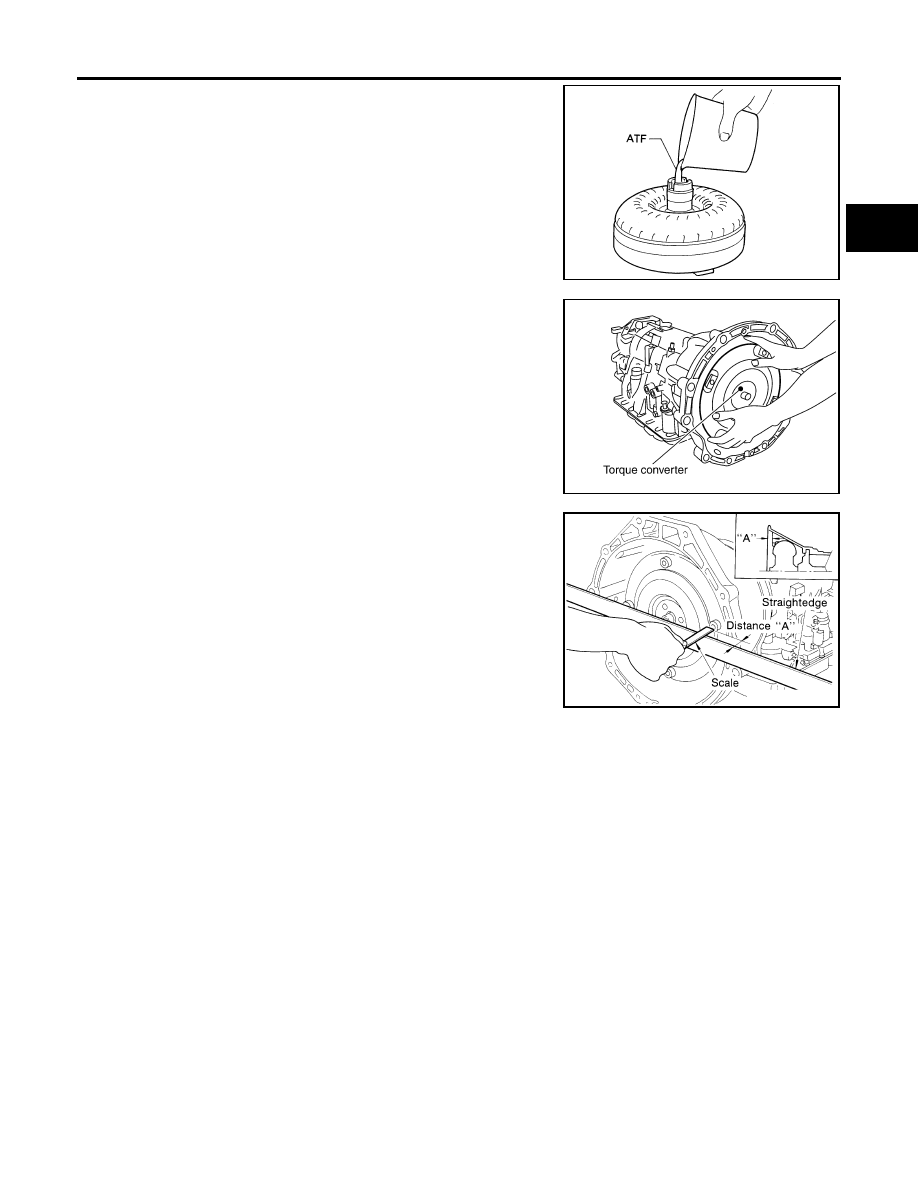

a.

Pour ATF into torque converter.

NOTE:

Approximately 2 liters (2-1/8 US qt, 1-3/4 Imp qt) of fluid is
required for a new torque converter.

When reusing old torque converter, add the same amount of
fluid as was drained.

b.

Install torque converter while aligning notches of torque con-
verter with notches of oil pump.

CAUTION:

Install torque converter while rotating it.

c.

Measure distance "A" to make sure that torque converter is in
proper position.

SAT428DA

SCIA5010E

Distance “A”

: 25.0 mm (0.98 in) or more

SCIA5694E

AT-318

SERVICE DATA AND SPECIFICATIONS (SDS)

2007 Pathfinder

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00030

General Specifications

ECS00EMC

*1: Refer to

MA-11, "Fluids and Lubricants"

 .

Vehicle Speed at Which Gear Shifting Occurs

ECS00EMD

2WD MODELS

At half throttle, the accelerator opening is 1/2 of the full opening.

4WD MODELS

At half throttle, the accelerator opening is 1/2 of the full opening.

Applied model

2WD

4WD

Automatic transmission model

RE5R05A

Transmission model code number

98X0A

98X0B

Stall torque ratio

1.76: 1

Transmission gear ratio

1st

3.842

2nd

2.353

3rd

1.529

4th

1.000

5th

0.839

Reverse

2.765

Recommended fluid

Genuine NISSAN Matic J ATF*1

Fluid capacity

10.3 liter (10-7/8 US qt, 9-1/8 Imp qt)

CAUTION:

Use only Genuine NISSAN Matic J ATF. Do not mix with other fluid.

Using automatic transmission fluid other than Genuine NISSAN Matic J ATF will deteriorate in driveability and automatic
transmission durability, and may damage the automatic transmission, which is not covered by the warranty.

Final
gear
ratio

Tire size

Throt-

tle posi-

tion

Vehicle speed km/h (MPH)

D

1



D

2

D

2



D

3

D

3



D

4

D

4



D

5

D

5



D

4

D

4



D

3

D

3



D

2

D

2



D

1

3.133

P265/75R16

Full

throttle

66 - 74

(41 - 46)

108 - 118

(68 - 74)

166 - 182

(104 - 114)

242 - 266

(151 - 166)

238 - 262

(149 - 164)

154 - 170

(96 - 106)

94 - 104

(59 - 65)

42 - 48

(26 - 30)

Half

throttle

53 - 59

(33 - 37)

86 - 96

(54 - 60)

134 - 149

(84 - 93)

158 - 174

(99 - 109)

125 - 138

(78 - 86)

79 - 86

(49 - 53)

54 - 61

(34 - 38)

12 - 14

(7 - 9)

P245/75R16
P265/70R16
P265/65R17

Full

throttle

60 - 68

(37 - 43)

99 - 110

(61 - 69)

153 - 170

(95 - 107)

234 - 259

(146 - 162)

230 - 255

 (143 - 160)

142 - 158

(88 - 99)

87 - 97

(54 - 61)

41 - 47

(25 - 30)

Half

throttle

49 - 55

(30 - 35)

80 - 90

(50 - 57)

123 - 137

(76 - 86)

149 - 165

 (93 - 103)

115 - 128

(71 - 80)

71 - 79

(44 - 50)

51 - 57

(31 - 36)

12 - 14

(7 - 9)

Final
gear
ratio

Tire size

Throt-

tle posi-

tion

Vehicle speed km/h (MPH)

D

1



D

2

D

2



D

3

D

3



D

4

D

4



D

5

D

5



D

4

D

4



D

3

D

3



D

2

D

2



D

1

3.357

P245/75R16
P265/70R16
P265/65R17

Full

throttle

58 - 65

(36 - 41)

94 - 104

(58 - 65)

144 - 160

(90 - 100)

221 - 245

(138 - 154)

218 - 241

(136 - 151)

135 - 150

(84 - 94)

82 - 92

(51 - 58)

40 - 45

(25 - 29)

Half

throttle

46 - 52

(28 - 33)

76 - 84

(47 - 53)

117 - 130

(73 - 82)

140 - 156

(88 - 98)

109 - 121

(68 - 76)

67 - 75

(41 - 47)

48 - 54

(30 - 34)

12 - 14

(7 - 9)

P265/75R16

Full

throttle

60 - 68

(37 - 43)

99 - 110

(61 - 69)

153 - 170

(95 - 107)

234 - 259

(146 - 162)

230 - 255

 (143 - 160)

142 - 158

(88 - 99)

87 - 97

(54 - 61)

41 - 47

(25 - 30)

Half

throttle

49 - 55

(30 - 35)

80 - 90

(50 - 57)

123 - 137

(76 - 86)

149 - 165

 (93 - 103)

115 - 128

(71 - 80)

71 - 79

(44 - 50)

51 - 57

(31 - 36)

12 - 14

(7 - 9)

SERVICE DATA AND SPECIFICATIONS (SDS)

AT-319

D

E

F

G

H

I

J

K

L

M

A

B

AT

2007 Pathfinder

Vehicle Speed at Which Lock-up Occurs/Releases

ECS00EME

2WD MODELS

At closed throttle, the accelerator opening is less than 1/8 condition. (Closed throttle position signal: OFF)

At half throttle, the accelerator opening is 1/2 of the full opening.

4WD MODELS

At closed throttle, the accelerator opening is less than 1/8 condition. (Closed throttle position signal: OFF)

At half throttle, the accelerator opening is 1/2 of the full opening.

Stall Speed

ECS00EMF

Line Pressure

ECS00EMG

A/T Fluid Temperature Sensor

ECS00EMH

Turbine Revolution Sensor

ECS00EMI

Final gear ratio

Tire size

Throttle position

Vehicle speed km/h (MPH)

Lock-up “ON”

Lock-up “OFF”

3.133

P265/75R16

Closed throttle

71 - 79 (44 - 49)

68 - 76 (43 - 48)

Half throttle

175 - 195 (109 - 122)

144 - 160 (90 - 100)

P245/75R16
P265/70R16
P265/65R17

Closed throttle

66 - 74 (41 - 46)

63 - 71 (39 - 44)

Half throttle

166 - 186 (104 - 116)

132 - 148 (83 - 93)

Final gear ratio

Tire size

Throttle position

Vehicle speed km/h (MPH)

Lock-up “ON”

Lock-up “OFF”

3.357

P245/75R16
P265/70R16
P265/65R17

Closed throttle

62 - 70 (39 - 44)

59 - 67 (37 - 42)

Half throttle

157 - 175 (98 - 109)

126 - 140 (79 - 88)

P265/75R16

Closed throttle

66 - 74 (41 - 46)

63 - 71 (39 - 44)

Half throttle

166 - 186 (104 - 116)

122 - 148 (76 - 93)

Stall speed

2,200 - 2,500 rpm

Engine speed

Line pressure [kPa (kg/cm

2

 , psi)]

“R” position

“D” position

At idle speed

425 - 465 (4.3 - 4.7, 62 - 67)

379 - 428 (3.9 - 4.4, 55 - 62)

At stall speed

1,605 - 1,950 (16.4 - 19.9, 233 - 283)

1,310 - 1,500 (13.4 - 15.3, 190 - 218)

Name

Condition

CONSULT-II “DATA MONITOR” (Approx.) (V)

Resistance (Approx.) (k

)

A/T fluid temperature sensor 1

0

°

C (32

°

F)

3.3

15

20

°

C (68

°

F)

2.7

6.5

80

°

C (176

°

F)

0.9

0.9

A/T fluid temperature sensor 2

0

°

C (32

°

F)

3.3

10

20

°

C (68

°

F)

2.5

4

80

°

C (176

°

F)

0.7

0.5

Name

Condition

Data

(Approx.)

Turbine revolution
sensor 1

When running at 50 km/h (31 MPH) in 4th speed with the closed throttle position signal “OFF”.

 1.3 (kHz)

Turbine revolution
sensor 2

When moving at 20 km/h (12 MPH) in 1st speed with the closed throttle position signal “OFF”.

AT-320

SERVICE DATA AND SPECIFICATIONS (SDS)

2007 Pathfinder

Vehicle Speed Sensor A/T (Revolution Sensor)

ECS00EMJ

Reverse brake

ECS00EMK

*: Always check with the Parts Department for the latest parts information.

Total End Play

ECS00EML

BEARING RACE FOR ADJUSTING TOTAL END PLAY

*: Always check with the Parts Department for the latest parts information.

Name

Condition

Data (Approx.)

Revolution sensor

When moving at 20 km/h (12 MPH).

185 (Hz)

Thickness of retaining plates

Thickness

mm (in)

Part number*

4.2 (0.165)
4.4 (0.173)
4.6 (0.181)
4.8 (0.189)
5.0 (0.197)
5.2 (0.205)

31667 90X14
31667 90X15
31667 90X16
31667 90X17
31667 90X18
31667 90X19

Total end play

mm (in)

0.25 - 0.55 (0.0098 - 0.0217)

Thickness

mm (in)

Part number*

0.8 (0.031)
1.0 (0.039)
1.2 (0.047)
1.4 (0.055)
1.6 (0.063)
1.8 (0.071)

31435 95X00
31435 95X01
31435 95X02
31435 95X03
31435 95X04
31435 95X05

ATC-1

AUTOMATIC AIR CONDITIONER

J  AIR CONDITIONER

CONTENTS

C

D

E

F

G

H

I

K

L

M

SECTION

ATC

A

B

ATC

2007 Pathfinder

PRECAUTIONS .......................................................... 5

Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 5
Precautions for Working with HFC-134a (R-134a)

..... 5

Contaminated Refrigerant  ........................................ 5
General Refrigerant Precautions .............................. 6
Precautions for Leak Detection Dye ......................... 6
A/C Identification Label  ............................................ 6
Precautions for Refrigerant Connection  ................... 6

FEATURES OF NEW TYPE REFRIGERANT
CONNECTION ...................................................... 7
O-RING AND REFRIGERANT CONNECTION ..... 8

Precautions for Servicing Compressor ....................11
Precautions for Service Equipment  .........................11

RECOVERY/RECYCLING EQUIPMENT .............11
ELECTRONIC LEAK DETECTOR  .......................11
VACUUM PUMP  ................................................. 12
MANIFOLD GAUGE SET .................................... 12
SERVICE HOSES ............................................... 12
SERVICE COUPLERS ........................................ 13
REFRIGERANT WEIGHT SCALE  ...................... 13
CHARGING CYLINDER ...................................... 13

PREPARATION ......................................................... 14

Special Service Tools  ............................................. 14
HFC-134a (R-134a) Service Tools and Equipment

... 14

Commercial Service Tools ...................................... 17

REFRIGERATION SYSTEM  ..................................... 18

Components ........................................................... 18

FRONT REFRIGERATION SYSTEM .................. 18
REAR REFRIGERATION SYSTEM  .................... 19

Refrigerant Cycle  ................................................... 20

REFRIGERANT FLOW  ....................................... 20
FREEZE PROTECTION  ..................................... 20

Refrigerant System Protection  ............................... 21

REFRIGERANT PRESSURE SENSOR  ............. 21
PRESSURE RELIEF VALVE ............................... 21

OIL ............................................................................. 22

Maintenance of Oil Quantity in Compressor ........... 22

OIL ....................................................................... 22
CHECKING AND ADJUSTING ............................ 22

AIR CONDITIONER CONTROL  ............................... 25

Description .............................................................. 25
Operation ................................................................ 25

AIR MIX DOORS CONTROL  .............................. 25
BLOWER SPEED CONTROL  ............................. 25
INTAKE DOOR CONTROL  ................................. 25
MODE DOOR CONTROL  ................................... 25
DEFROSTER DOOR CONTROL  ........................ 25
MAGNET CLUTCH CONTROL  ........................... 26
SELF-DIAGNOSTIC SYSTEM  ............................ 26

Description of Control System  ................................ 27
Control Operation  ................................................... 27

DISPLAY SCREEN .............................................. 28
AUTO SWITCH  ................................................... 28
TEMPERATURE CONTROL DIAL (TEMPERA-
TURE CONTROL) (DRIVER SIDE) ..................... 28
TEMPERATURE CONTROL DIAL (TEMPERA-
TURE CONTROL) (PASSENGER SIDE)  ............ 28
TEMPERATURE CONTROL DIAL (TEMPERA-
TURE AND MODE CONTROL) (REAR)  ............. 28
RECIRCULATION () SWITCH  ............................. 28
DEFROSTER () SWITCH .................................... 28
REAR WINDOW DEFOGGER SWITCH  ............. 28
OFF SWITCH  ...................................................... 28
A/C SWITCH  ....................................................... 28
MODE SWITCH (FRONT) ................................... 28
FRONT BLOWER CONTROL DIAL  .................... 28
MODE SWITCH (REAR)  ..................................... 28
TEMPERATURE CONTROL DIAL (TEMPERA-
TURE AND MODE CONTROL) ........................... 29
REAR BLOWER CONTROL DIAL  ...................... 29

Discharge Air Flow  ................................................. 30

FRONT ................................................................ 30
REAR .................................................................. 30

System Description (Front) ..................................... 31

SWITCHES AND THEIR CONTROL FUNCTION ... 31

ATC-2

2007 Pathfinder

System Description (Rear)  ..................................... 32

SWITCHES AND THEIR CONTROL FUNCTION ... 32

CAN Communication System Description  .............. 33

TROUBLE DIAGNOSIS  ............................................ 34

CONSULT-II Function (BCM) .................................. 34

CONSULT-II START PROCEDURE  .................... 34
DATA MONITOR .................................................. 34

How to Perform Trouble Diagnosis for Quick and
Accurate Repair  ...................................................... 34

WORK FLOW  ...................................................... 34
SYMPTOM TABLE  .............................................. 34

Component Parts and Harness Connector Location ... 36

ENGINE COMPARTMENT  .................................. 36
FRONT PASSENGER COMPARTMENT  ............ 37
REAR PASSENGER COMPARTMENT ............... 38

Schematic ............................................................... 39
Wiring Diagram —A/C,A—  ..................................... 40
Front Air Control Terminals and Reference Values ... 48

FRONT AIR CONTROL HARNESS CONNEC-
TOR TERMINAL LAYOUT ................................... 48
TERMINALS AND REFERENCE VALUES FOR
FRONT AIR CONTROL ....................................... 48

A/C System Self-diagnosis Function  ...................... 50

DESCRIPTION .................................................... 50

Operational Check (Front)  ...................................... 52

CHECKING MEMORY FUNCTION  ..................... 52
CHECKING BLOWER  ......................................... 52
CHECKING DISCHARGE AIR  ............................ 52
CHECKING RECIRCULATION ............................ 52
CHECKING TEMPERATURE DECREASE  ......... 52
CHECKING TEMPERATURE INCREASE  .......... 53
CHECK A/C SWITCH  .......................................... 53
CHECKING AUTO MODE  ................................... 53

Operational Check (Rear) ....................................... 54

CHECKING BLOWER  ......................................... 54
CHECKING TEMPERATURE DECREASE  ......... 54
CHECKING TEMPERATURE INCREASE  .......... 54

Power Supply and Ground Circuit for Front Air Con-
trol ........................................................................... 55

INSPECTION FLOW  ........................................... 55
COMPONENT DESCRIPTION ............................ 56
DIAGNOSTIC PROCEDURE FOR A/C SYSTEM ... 56

Mode Door Motor Circuit  ........................................ 58

INSPECTION FLOW  ........................................... 58
SYSTEM DESCRIPTION  .................................... 60
COMPONENT DESCRIPTION ............................ 61
DIAGNOSTIC PROCEDURE FOR MODE
DOOR MOTOR  ................................................... 61

Air Mix Door Motor Circuit  ...................................... 63

INSPECTION FLOW  ........................................... 63
SYSTEM DESCRIPTION  .................................... 65
COMPONENT DESCRIPTION ............................ 66
DIAGNOSTIC PROCEDURE FOR AIR MIX
DOOR MOTOR (DRIVER) ................................... 66
DIAGNOSTIC PROCEDURE FOR AIR MIX
DOOR MOTOR (PASSENGER)  .......................... 68
DIAGNOSTIC PROCEDURE FOR AIR MIX
DOOR MOTOR (REAR)  ...................................... 70

Intake Door Motor Circuit ........................................ 73

INSPECTION FLOW ............................................73
SYSTEM DESCRIPTION .....................................74
COMPONENT DESCRIPTION  ............................75
DIAGNOSTIC PROCEDURE FOR INTAKE
DOOR MOTOR  ....................................................75

Front Blower Motor Circuit  ......................................76

INSPECTION FLOW ............................................76
SYSTEM DESCRIPTION .....................................77
COMPONENT DESCRIPTION  ............................78
DIAGNOSTIC PROCEDURE FOR BLOWER
MOTOR ................................................................78
COMPONENT INSPECTION ...............................82

Rear Blower Motor Circuit .......................................83

INSPECTION FLOW ............................................83
SYSTEM DESCRIPTION .....................................84
DIAGNOSTIC PROCEDURE FOR REAR
BLOWER MOTOR  ...............................................84
COMPONENT INSPECTION ...............................92

Rear Air Control Circuit  ...........................................94

INSPECTION FLOW ............................................94
SYSTEM DESCRIPTION .....................................95
DIAGNOSTIC PROCEDURE FOR REAR AIR
CONTROL ...........................................................95

Magnet Clutch Circuit ..............................................97

INSPECTION FLOW ............................................97
SYSTEM DESCRIPTION .....................................98
DIAGNOSTIC PROCEDURE FOR MAGNET
CLUTCH ..............................................................98

Insufficient Cooling ................................................103

INSPECTION FLOW ..........................................103
PERFORMANCE TEST DIAGNOSES  ..............105
PERFORMANCE CHART ..................................107
TROUBLE DIAGNOSES FOR UNUSUAL PRES-
SURE .................................................................108

Insufficient Heating  ............................................... 111

INSPECTION FLOW .......................................... 111

Heater Pump Circuit .............................................. 113

SYSTEM DESCRIPTION ................................... 113
DIAGNOSTIC PROCEDURE FOR HEATER
PUMP CIRCUIT  ................................................. 114
COMPONENT INSPECTION ............................. 115

Noise ..................................................................... 116

INSPECTION FLOW .......................................... 116

Self-diagnosis ....................................................... 118

INSPECTION FLOW .......................................... 118

Memory Function  ..................................................120

INSPECTION FLOW ..........................................120

Ambient Sensor 1 Circuit  ......................................121

COMPONENT DESCRIPTION  ..........................121
AMBIENT TEMPERATURE INPUT PROCESS .121
DIAGNOSTIC PROCEDURE FOR AMBIENT
SENSOR 1 .........................................................121
COMPONENT INSPECTION .............................123

In-vehicle Sensor Circuit  .......................................124

COMPONENT DESCRIPTION  ..........................124
DIAGNOSTIC PROCEDURE FOR IN-VEHICLE
SENSOR ............................................................124
COMPONENT INSPECTION .............................126

Optical Sensor Circuit  ...........................................127















Content      ..     41      42      43      44     ..
