OVERHAUL

AT-251

D

E

F

G

H

I

J

K

L

M

A

B

AT

2007 Pathfinder

7.

Pawl shaft

8.

Seal ring

9.

Needle bearing

10. Revolution sensor

11.

Parking gear

12. Output shaft

13. Bearing race

14. Needle bearing

15. Manual plate

16. Parking rod

17. Manual shaft oil seal

18. Manual shaft

19. O-ring

20. Band servo anchor end pin

21. Detent spring

22. Spacer

23. Seal ring

24. Snap ring

25. Return spring

26. O-ring

27. Servo assembly

28. Snap ring

29. Sub-harness

30. Control valve with TCM

31. Bracket

32. A/T fluid temperature sensor 2

33. Oil pan

34. Magnet

35. Drain plug

36. Drain plug gasket

37. Oil pan bolt

38. Oil pan gasket

39. Terminal cord assembly

40. O-ring

41. Retaining pin

42. Transmission case

*:

Apply Genuine Anaerobic Liquid
Gasket or equivalent. Refer to

GI-

47, "Recommended Chemical Prod-
ucts and Sealants"

 .

AT-252

OVERHAUL

2007 Pathfinder

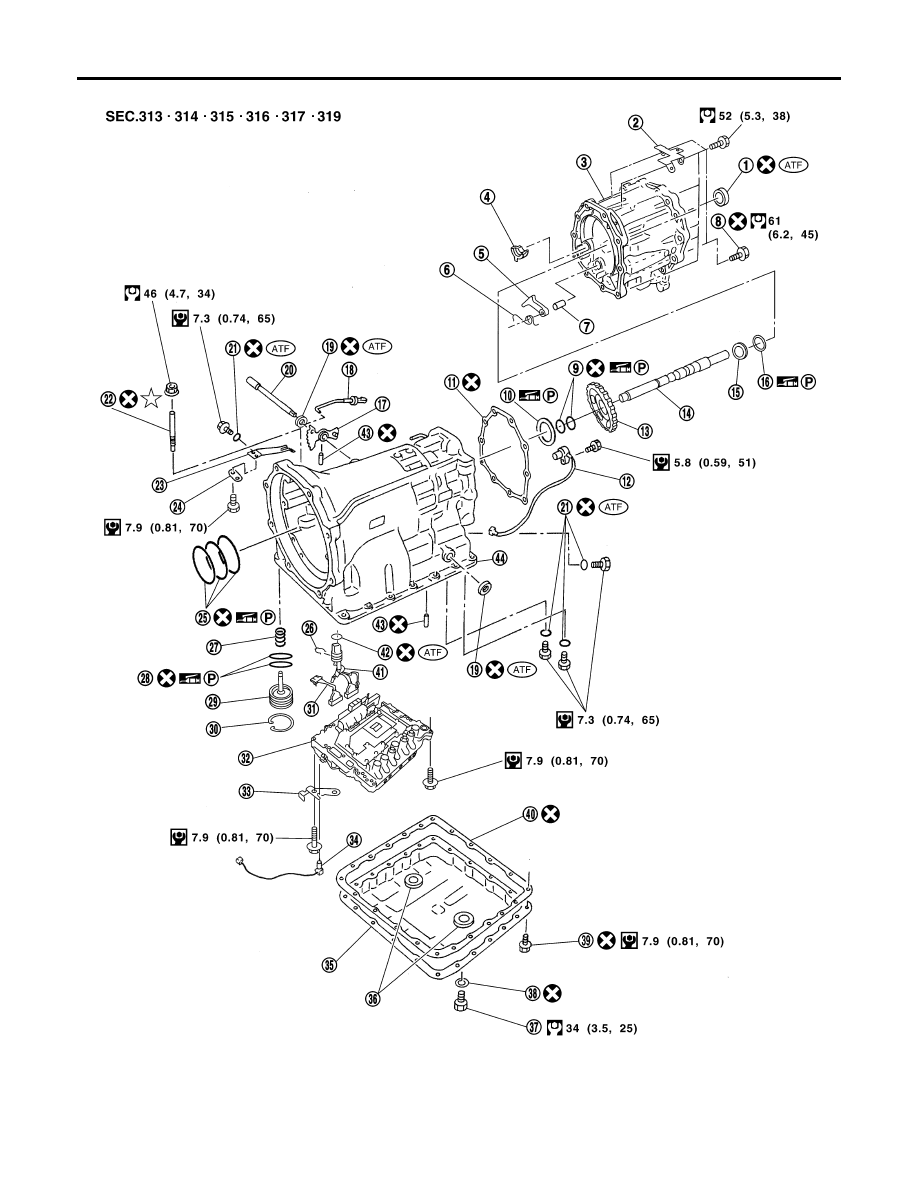

4WD models

SCIA7218E

1.

Rear oil seal

2.

Bracket

3.

Adapter case

4.

Parking actuator support

5.

Parking pawl

6.

Return spring

OVERHAUL

AT-253

D

E

F

G

H

I

J

K

L

M

A

B

AT

2007 Pathfinder

7.

Pawl shaft

8.

Self-sealing bolt

9.

Seal ring

10. Needle bearing

11.

Gasket

12. Revolution sensor

13. Parking gear

14. Output shaft

15. Bearing race

16. Needle bearing

17. Manual plate

18. Parking rod

19. Manual shaft oil seal

20. Manual shaft

21. O-ring

22. Band servo anchor end pin

23. Detent spring

24. Spacer

25. Seal ring

26. Snap ring

27. Return spring

28. O-ring

29. Servo assembly

30. Snap ring

31. Sub-harness

32. Control valve with TCM

33. Bracket

34. A/T fluid temperature sensor 2

35. Oil pan

36. Magnet

37. Drain plug

38. Drain plug gasket

39. Oil pan bolt

40. Oil pan gasket

41. Terminal cord assembly

42. O-ring

43. Retaining pin

44. Transmission case

AT-254

OVERHAUL

2007 Pathfinder

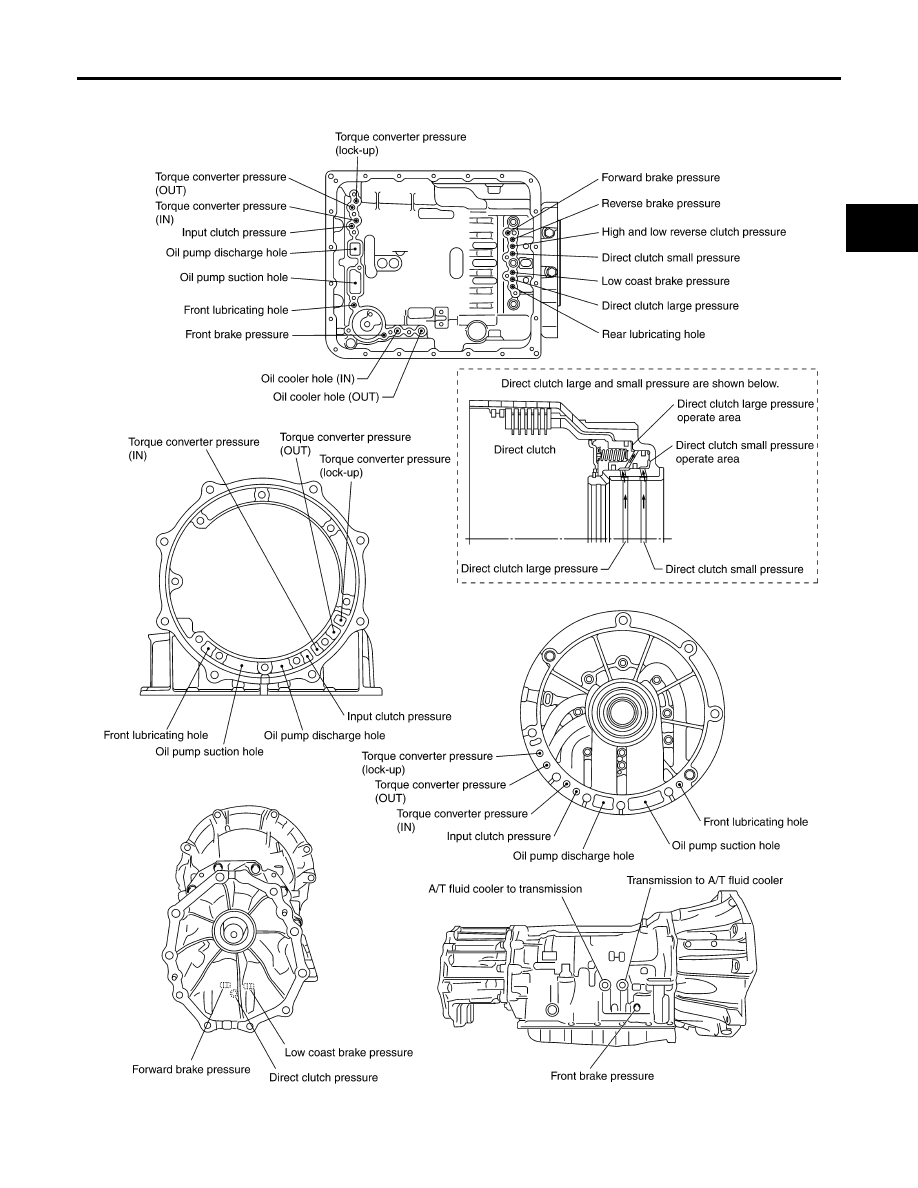

Oil Channel

ECS00EM0

2WD models

SCIA5185E

OVERHAUL

AT-255

D

E

F

G

H

I

J

K

L

M

A

B

AT

2007 Pathfinder

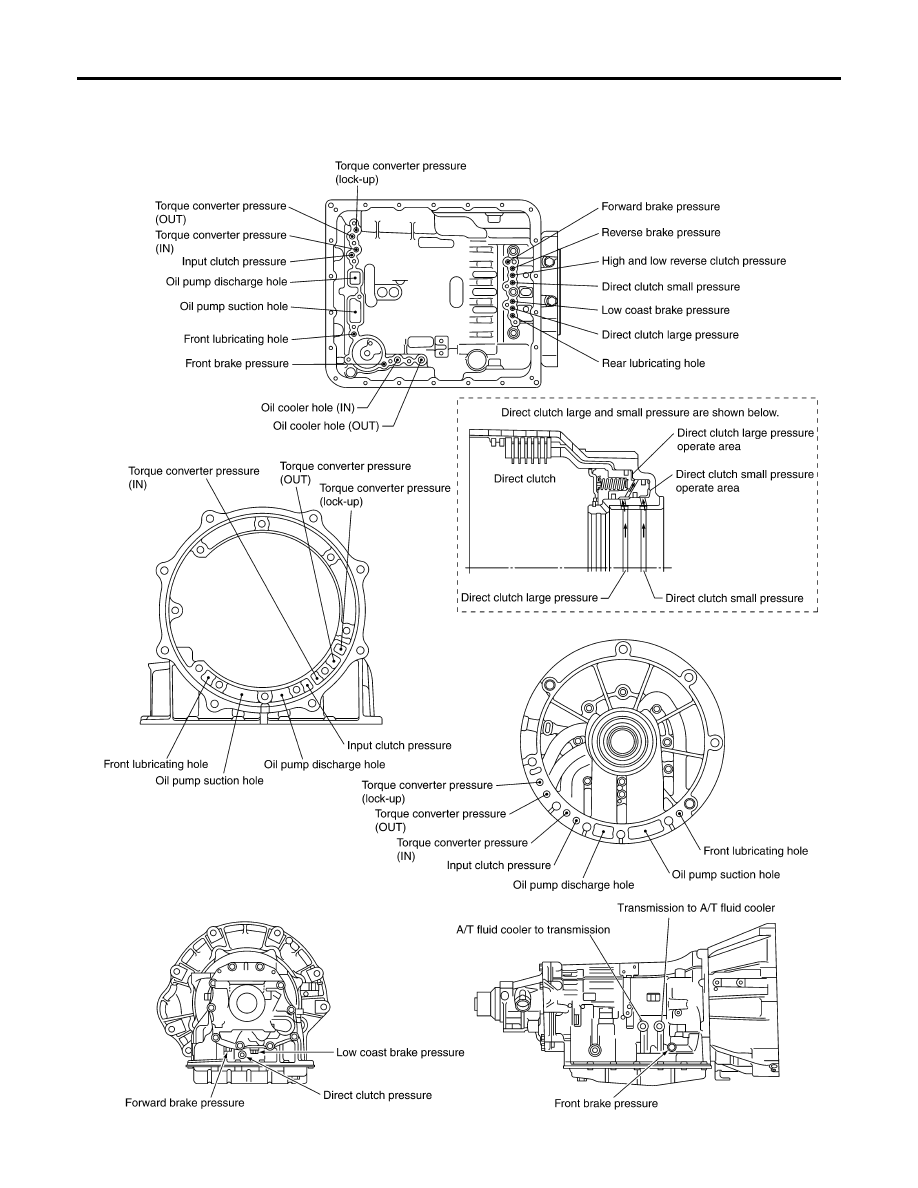

4WD models

SCIA5189E

AT-256

OVERHAUL

2007 Pathfinder

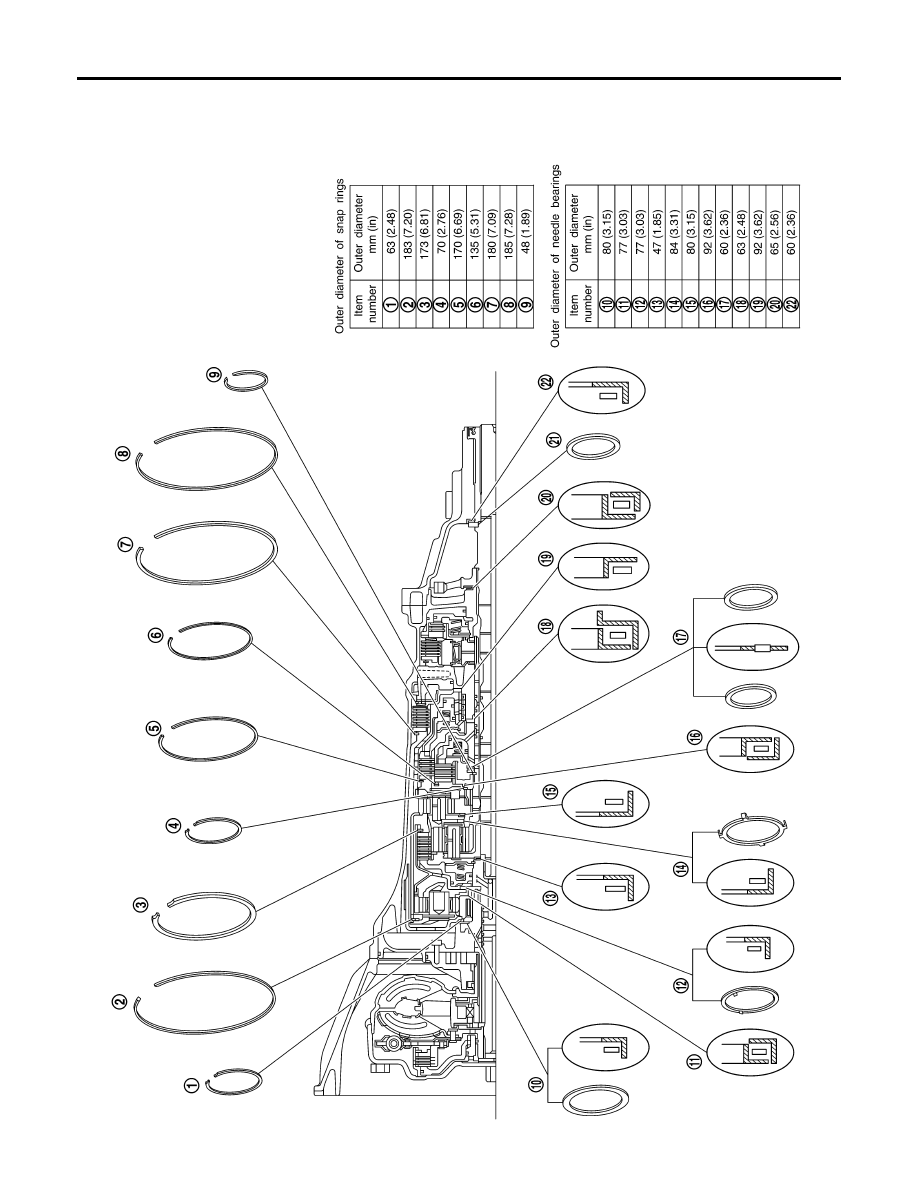

Locations of Adjusting Shims, Needle Bearings, Thrust Washers and Snap
Rings

ECS00EM1

2WD models

SCIA7019E

OVERHAUL

AT-257

D

E

F

G

H

I

J

K

L

M

A

B

AT

2007 Pathfinder

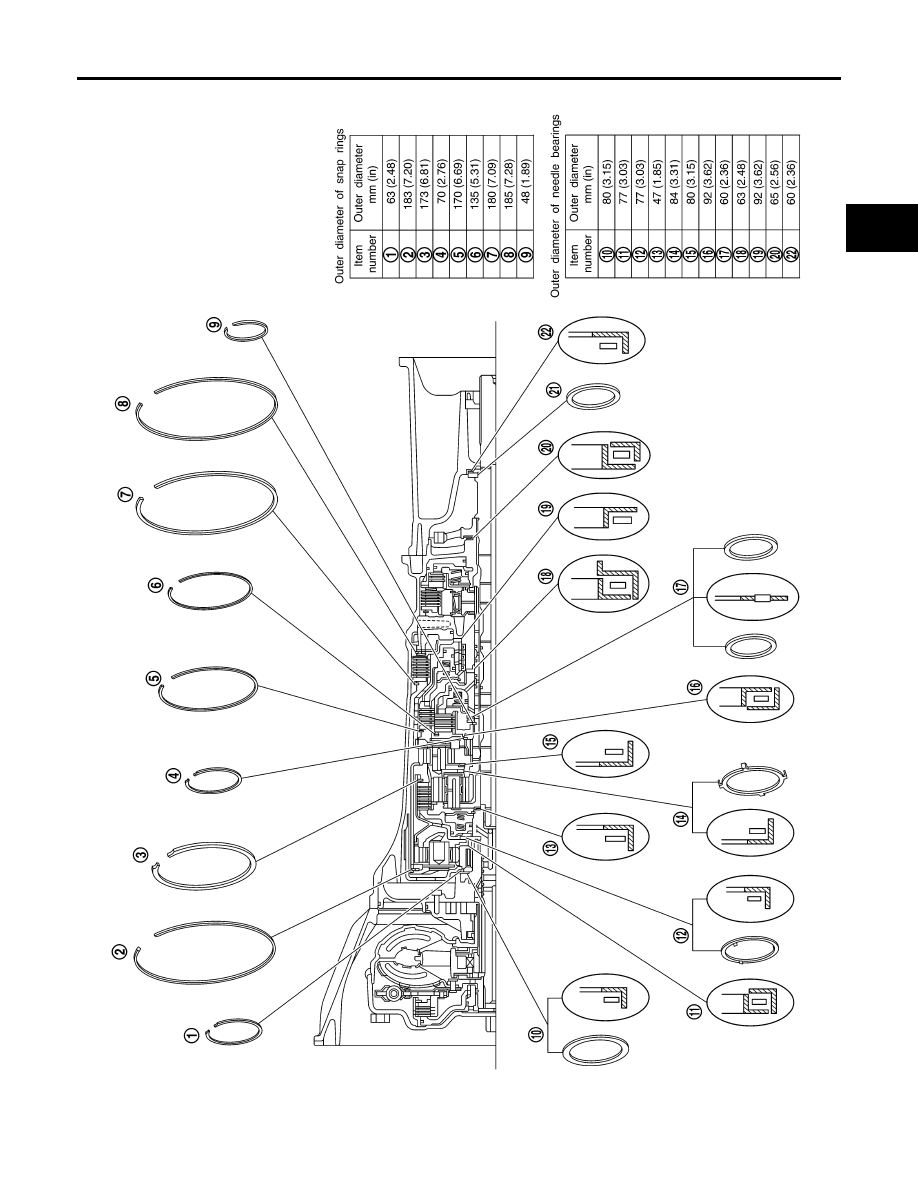

4WD models

SCIA7020E

AT-258

DISASSEMBLY

2007 Pathfinder

DISASSEMBLY

PFP:31020

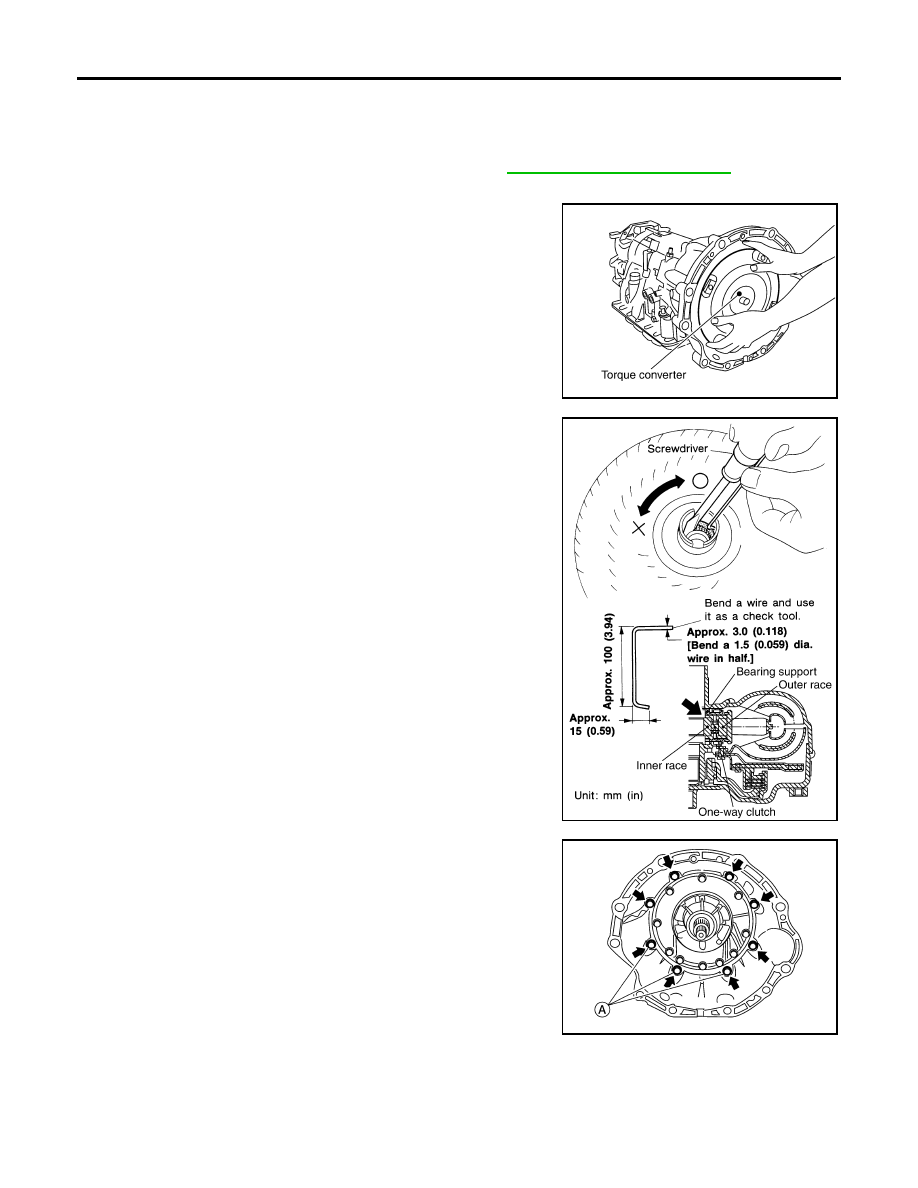

Disassembly

ECS00EM2

CAUTION:

Do not disassemble parts behind Drum Support. Refer to

AT-18, "Cross-Sectional View"

 .

1.

Drain A/T fluid through drain plug.

2.

Remove torque converter by holding it firmly and turing while
pulling straight out.

3.

Check torque converter one-way clutch using a check tool as
shown.

a.

Insert a check tool into the groove of bearing support built into
one-way clutch outer race.

b.

While holding bearing support with a check tool, rotate one-way
clutch spline using suitable tool.

c.

Make sure that inner race rotates clockwise only. If not, replace
torque converter assembly.

4.

Remove bolts and converter housing from transmission case.

CAUTION:

Do not scratch converter housing.

●

Self-sealing bolt (A)

SCIA5010E

SCIA3171E
