DISASSEMBLY

AT-259

D

E

F

G

H

I

J

K

L

M

A

B

AT

2007 Pathfinder

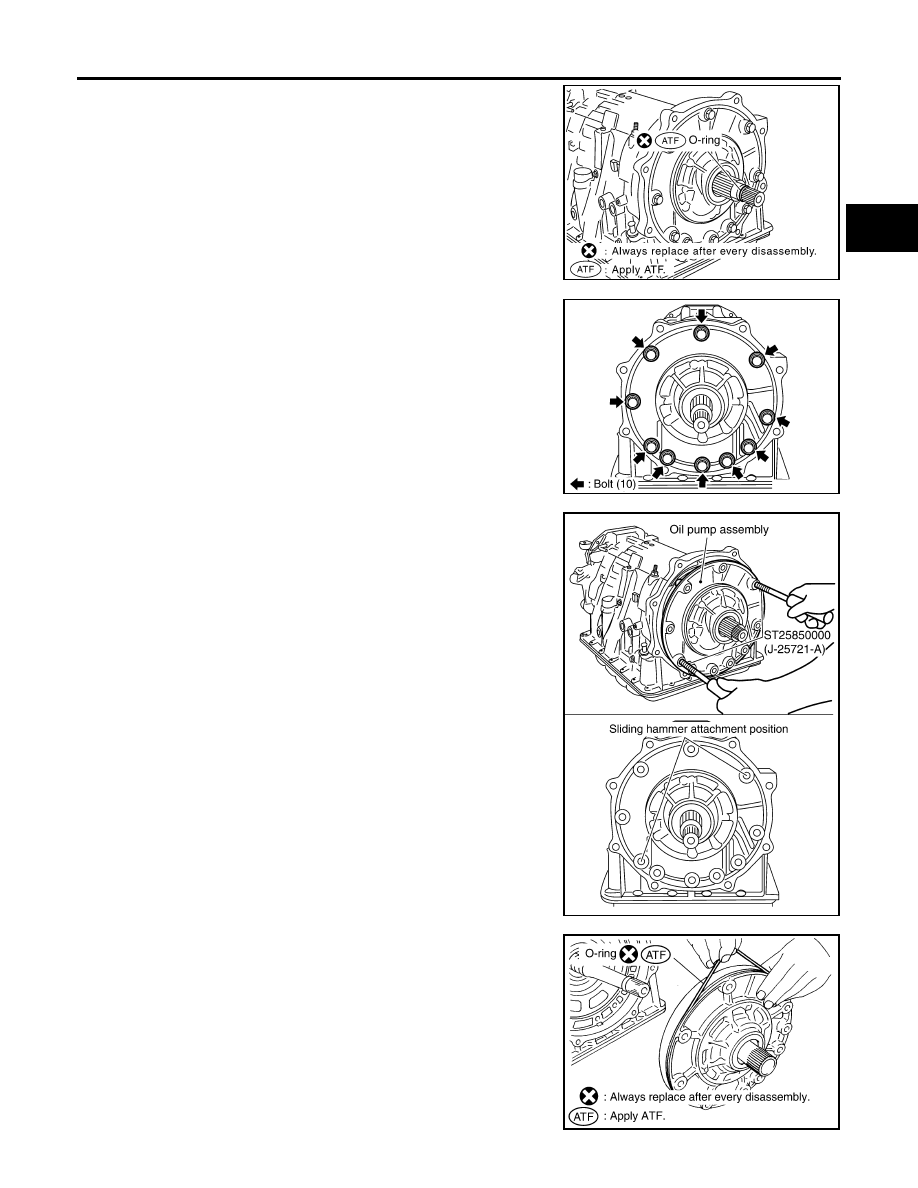

5.

Remove O-ring from input clutch assembly.

6.

Remove oil pump assembly to transmission case bolts.

7.

Remove the oil pump assembly evenly from the transmission
case using Tools.

CAUTION:

Fully tighten the sliding hammer screws.

Make sure that bearing race is installed to the oil pump
assembly edge surface.

8.

Remove O-ring from oil pump assembly.

SCIA5011E

SCIA2300E

Tool number

: ST25850000 (J-25721-A)

SCIA5474E

SCIA5172E

AT-260

DISASSEMBLY

2007 Pathfinder

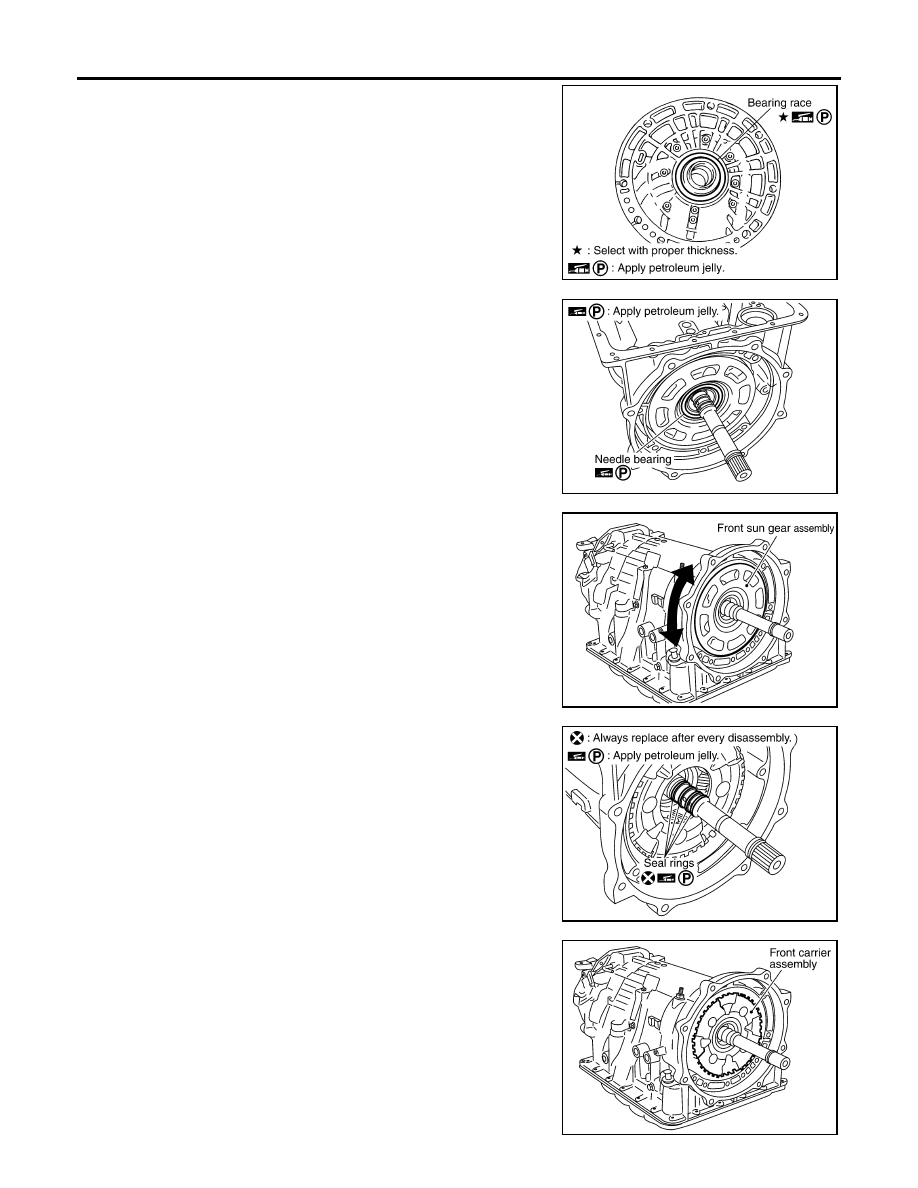

9.

Remove bearing race from oil pump assembly.

10. Remove needle bearing from front sun gear.

11. Remove front sun gear assembly from front carrier assembly.

NOTE:
Remove front sun gear by rotating it left and right.

12. Remove seal rings from input clutch assembly.

13. Remove front carrier assembly (with input clutch assembly and

rear internal gear) from rear carrier assembly.

CAUTION:

Do not remove it with needle bearing.

SCIA6529E

SCIA2808E

SCIA5014E

SCIA2470E

SCIA5015E

DISASSEMBLY

AT-261

D

E

F

G

H

I

J

K

L

M

A

B

AT

2007 Pathfinder

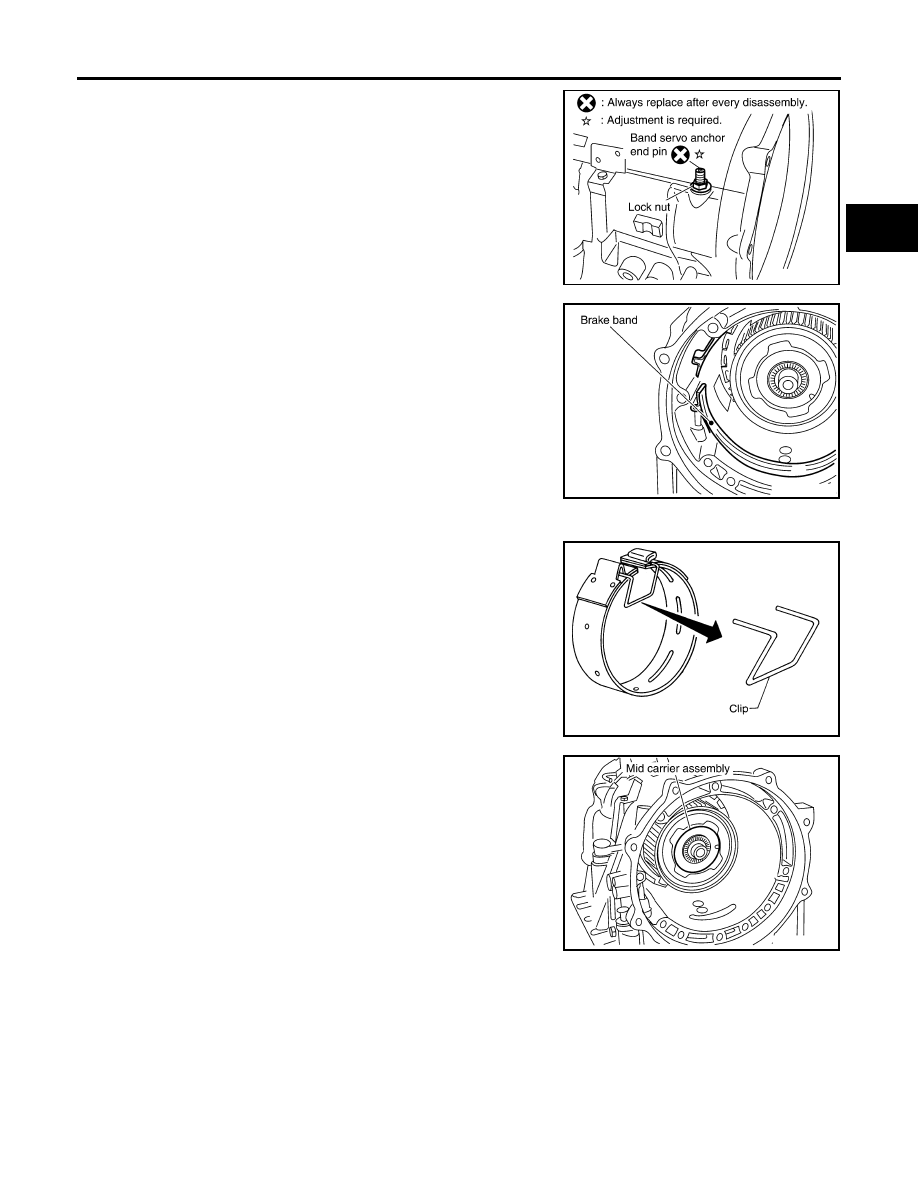

14. Loosen lock nut and remove band servo anchor end pin from

transmission case.

15. Remove brake band from transmission case.

CAUTION:

To prevent brake linings from cracking or peeling, do not
stretch the flexible band unnecessarily. When removing
the brake band, always secure it with a clip as shown.

Check brake band facing for damage, cracks, wear or
burns.

16. Remove mid carrier assembly and rear carrier assembly as a

unit.

SCIA6512E

SCIA2580E

SAT655

SCIA5017E

AT-262

DISASSEMBLY

2007 Pathfinder

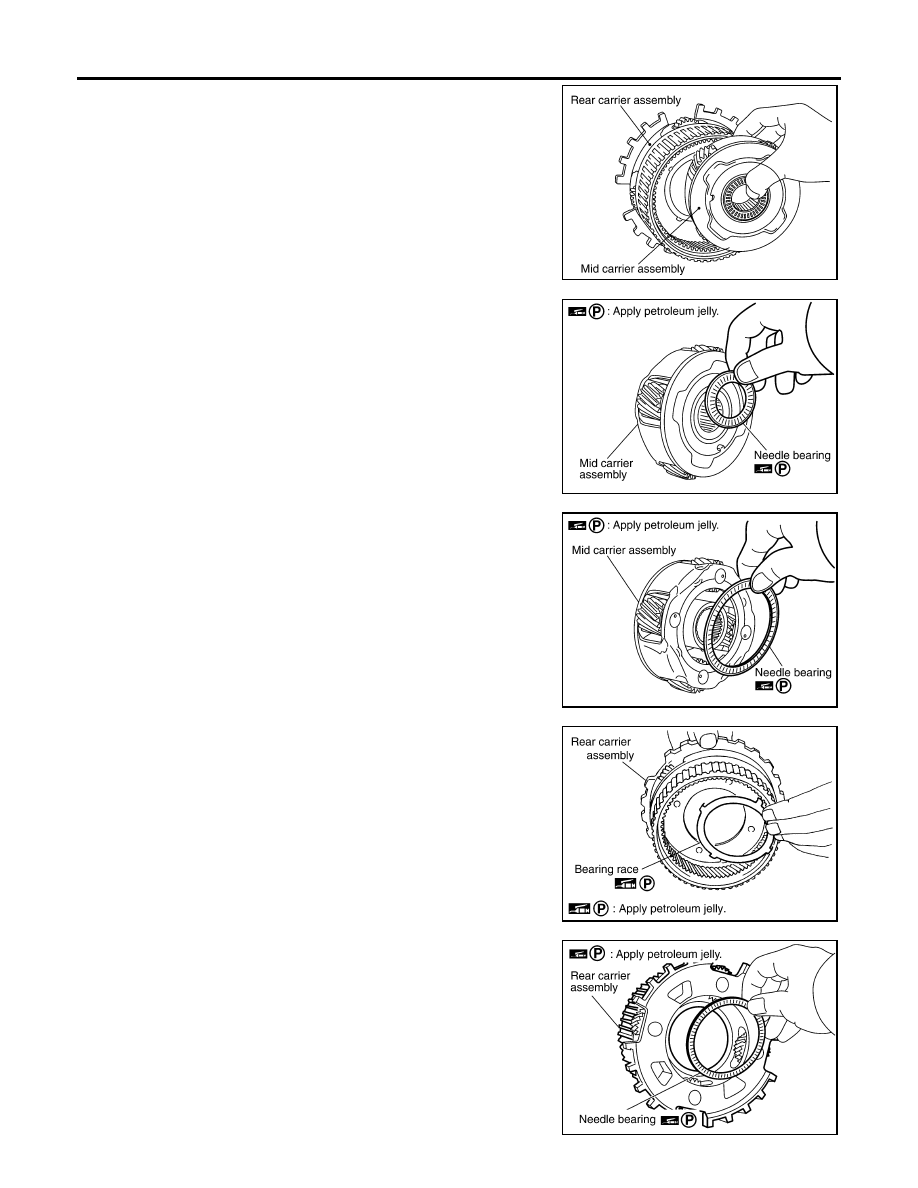

17. Remove mid carrier assembly from rear carrier assembly.

18. Remove needle bearing (front side) from mid carrier assembly.

19. Remove needle bearing (rear side) from mid carrier assembly.

20. Remove bearing race from rear carrier assembly.

21. Remove needle bearing from rear carrier assembly.

SCIA5697E

SCIA2805E

SCIA2804E

SCIA5175E

SCIA2803E

DISASSEMBLY

AT-263

D

E

F

G

H

I

J

K

L

M

A

B

AT

2007 Pathfinder

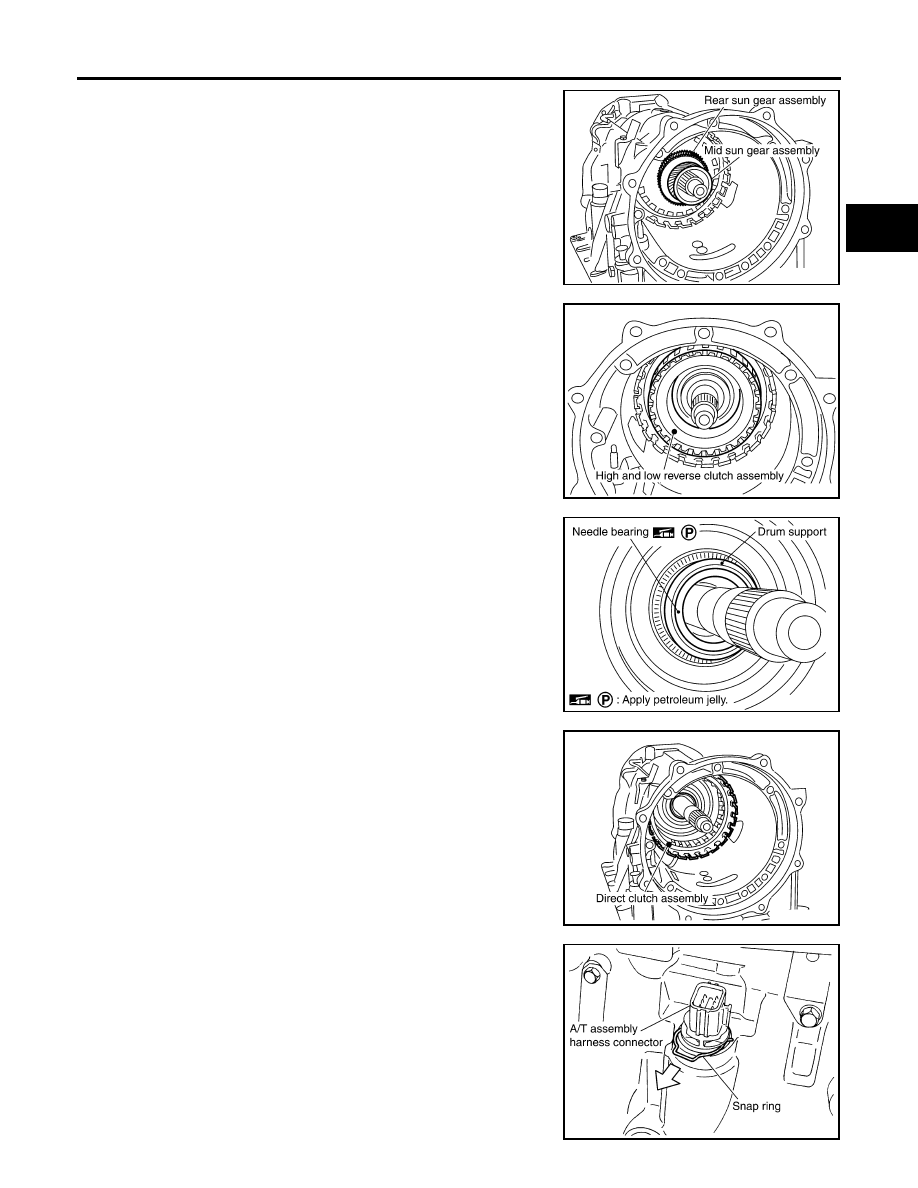

22. Remove mid sun gear assembly, rear sun gear assembly and

high and low reverse clutch hub as a unit.

CAUTION:

Remove them with bearing race and needle bearing.

23. Remove high and low reverse clutch assembly from direct clutch

assembly.

CAUTION:

Make sure that needle bearing is installed to the high and
low reverse clutch assembly edge surface.

24. Remove needle bearing from drum support.

25. Remove direct clutch assembly from reverse brake.

26. Remove snap ring from A/T assembly harness connector.

SCIA5018E

SCIA2306E

SCIA5198E

SCIA5019E

SCIA5021E

AT-264

DISASSEMBLY

2007 Pathfinder

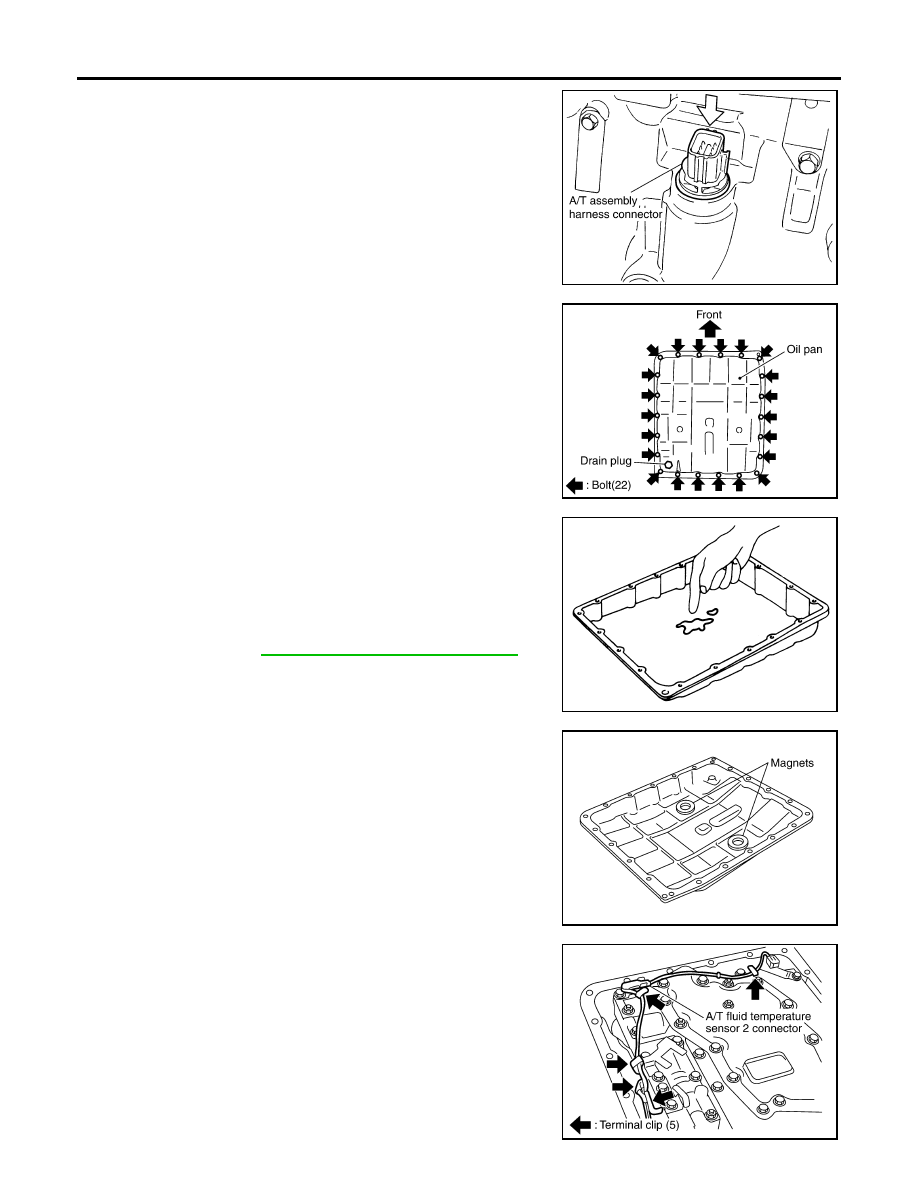

27. Push A/T assembly harness connector.

CAUTION:

Do not damage connector.

28. Remove oil pan and oil pan gasket.

29. Check foreign materials in oil pan to help determine causes of

malfunction. If the A/T fluid is very dark, smells burned, or con-
tains foreign particles, the frictional material (clutches, band)
may need replacement. A tacky film that will not wipe clean indi-
cates varnish build up. Varnish can cause valves, servo, and
clutches to stick and can inhibit pump pressure.

If frictional material is detected, perform A/T fluid cooler
cleaning. Refer to

AT-15, "A/T Fluid Cooler Cleaning"

 .

30. Remove magnets from oil pan.

31. Straighten terminal clips to free terminal cord assembly and A/T

fluid temperature sensor 2 harness.

32. Disconnect A/T fluid temperature sensor 2 connector.

CAUTION:

Do not damage connector.

SCIA5022E

SCIA2308E

SCIA5199E

SCIA5200E

SCIA5446E

DISASSEMBLY

AT-265

D

E

F

G

H

I

J

K

L

M

A

B

AT

2007 Pathfinder

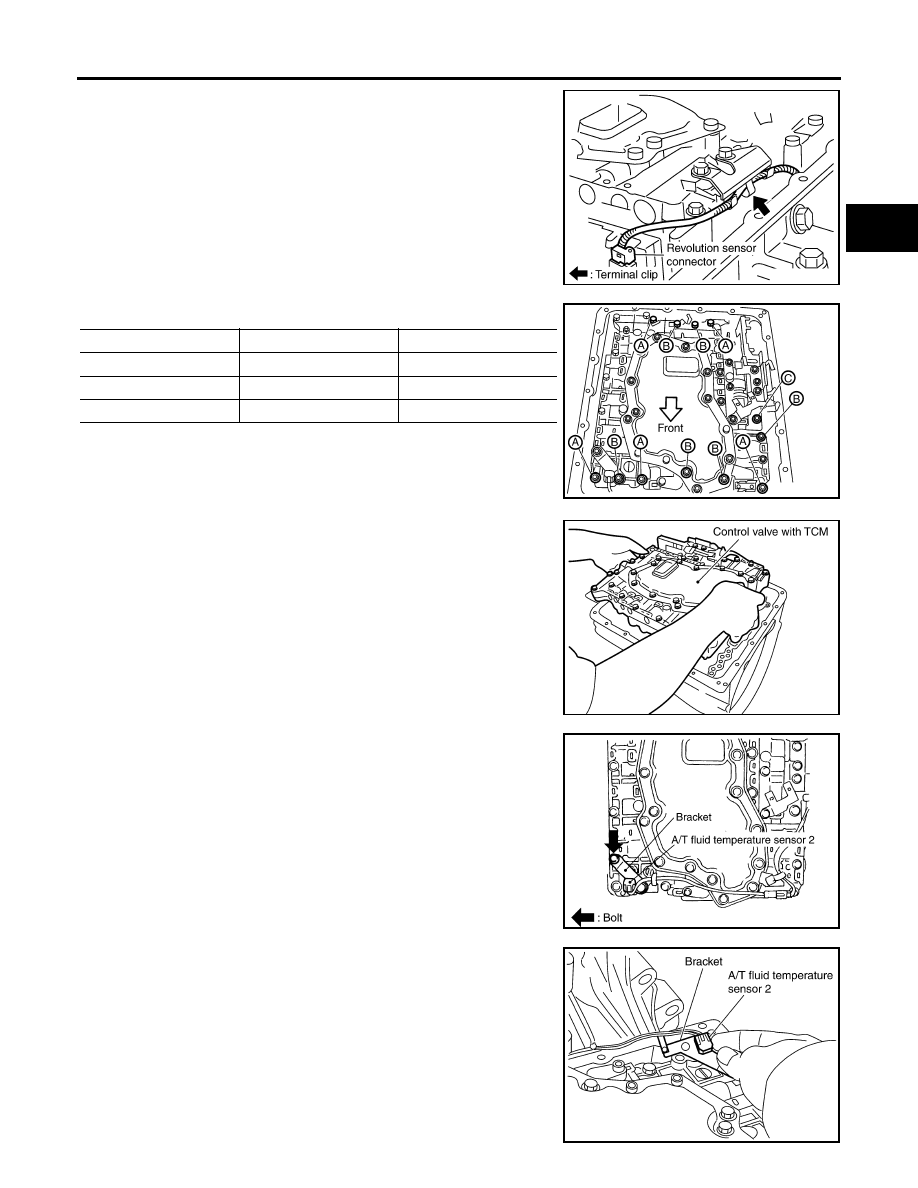

33. Straighten terminal clip to free revolution sensor harness.

34. Disconnect revolution sensor connector.

CAUTION:

Do not damage connector.

35. Remove bolts (A), (B) and (C) from control valve with TCM.

36. Remove control valve with TCM from transmission case.

CAUTION:

When removing, be careful with the manual valve notch and
manual plate height. Remove it vertically.

37. Remove A/T fluid temperature sensor 2 with bracket from con-

trol valve with TCM.

38. Remove bracket from A/T fluid temperature sensor 2.

SCIA7526E

Bolt symbol

Length mm (in)

Number of bolts

A

42 (1.65)

5

B

55 (2.17)

6

C

40 (1.57)

1

SCIA5025E

SCIA5260E

SCIA5301E

SCIA5264E

AT-266

DISASSEMBLY

2007 Pathfinder

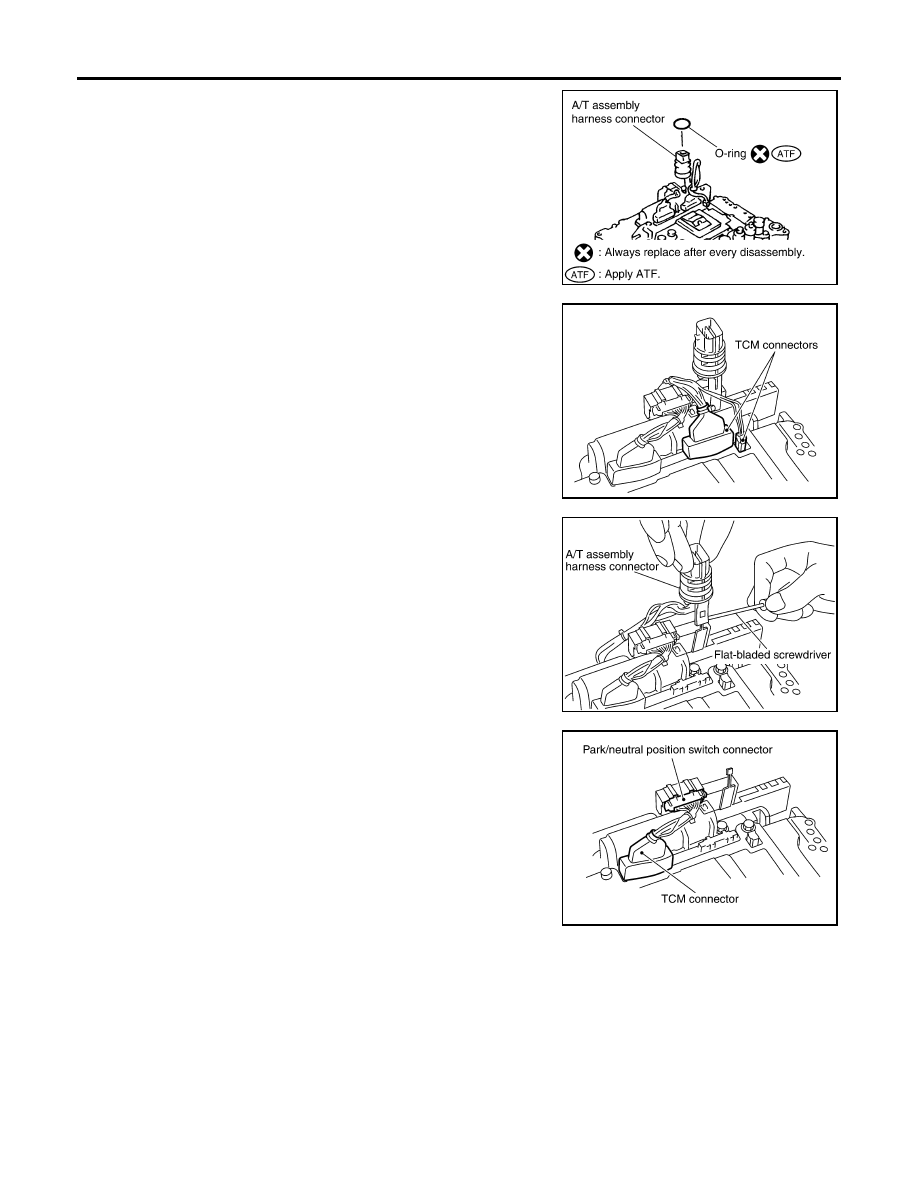

39. Remove O-ring from A/T assembly harness connector.

40. Disconnect TCM connectors.

CAUTION:

Do not damage connectors.

41. Remove A/T assembly harness connector from control valve

with TCM using suitable tool.

42. Disconnect TCM connector and park/neutral position switch

connector.

CAUTION:

Do not damage connectors.

43. Remove rear extension assembly (2WD models) or adapter case assembly (4WD models) according to

the following procedures.

SCIA5155E

SCIA5447E

SCIA5448E

SCIA5449E
