AUTOMATIC DRIVE POSITIONER

SE-21

C

D

E

F

G

H

J

K

L

M

A

B

SE

2006 Pathfinder

WIWA0558E

SE-22

AUTOMATIC DRIVE POSITIONER

2006 Pathfinder

WIWA0559E

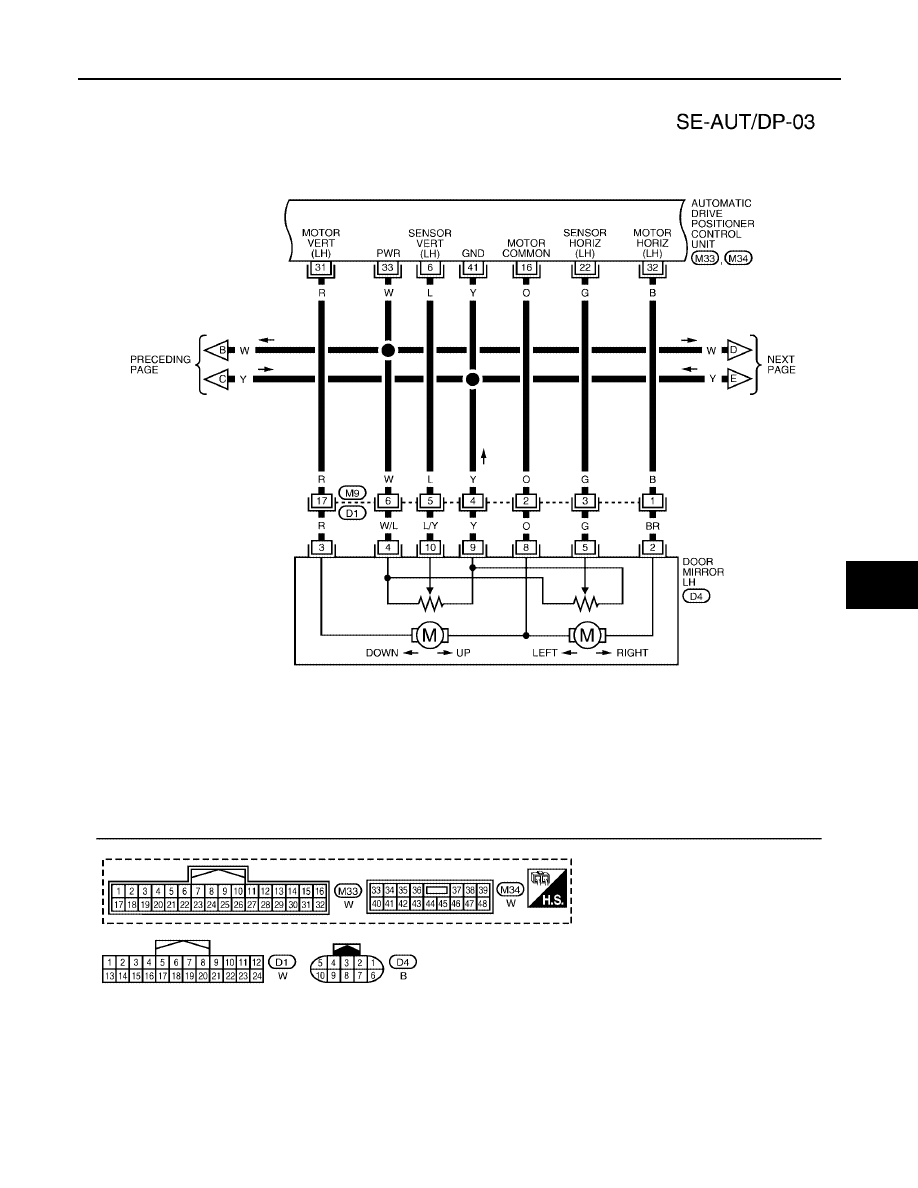

AUTOMATIC DRIVE POSITIONER

SE-23

C

D

E

F

G

H

J

K

L

M

A

B

SE

2006 Pathfinder

WIWA1600E

SE-24

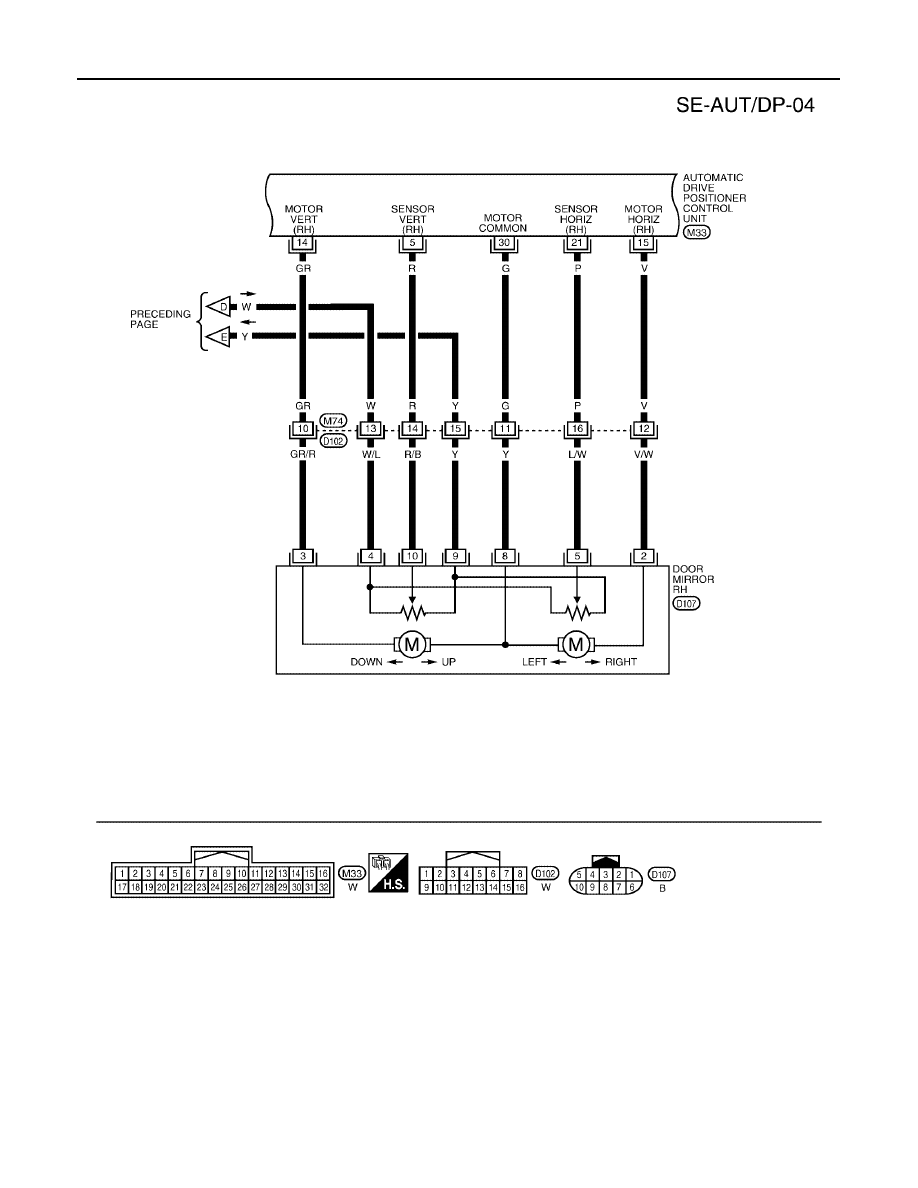

AUTOMATIC DRIVE POSITIONER

2006 Pathfinder

WIWA0561E

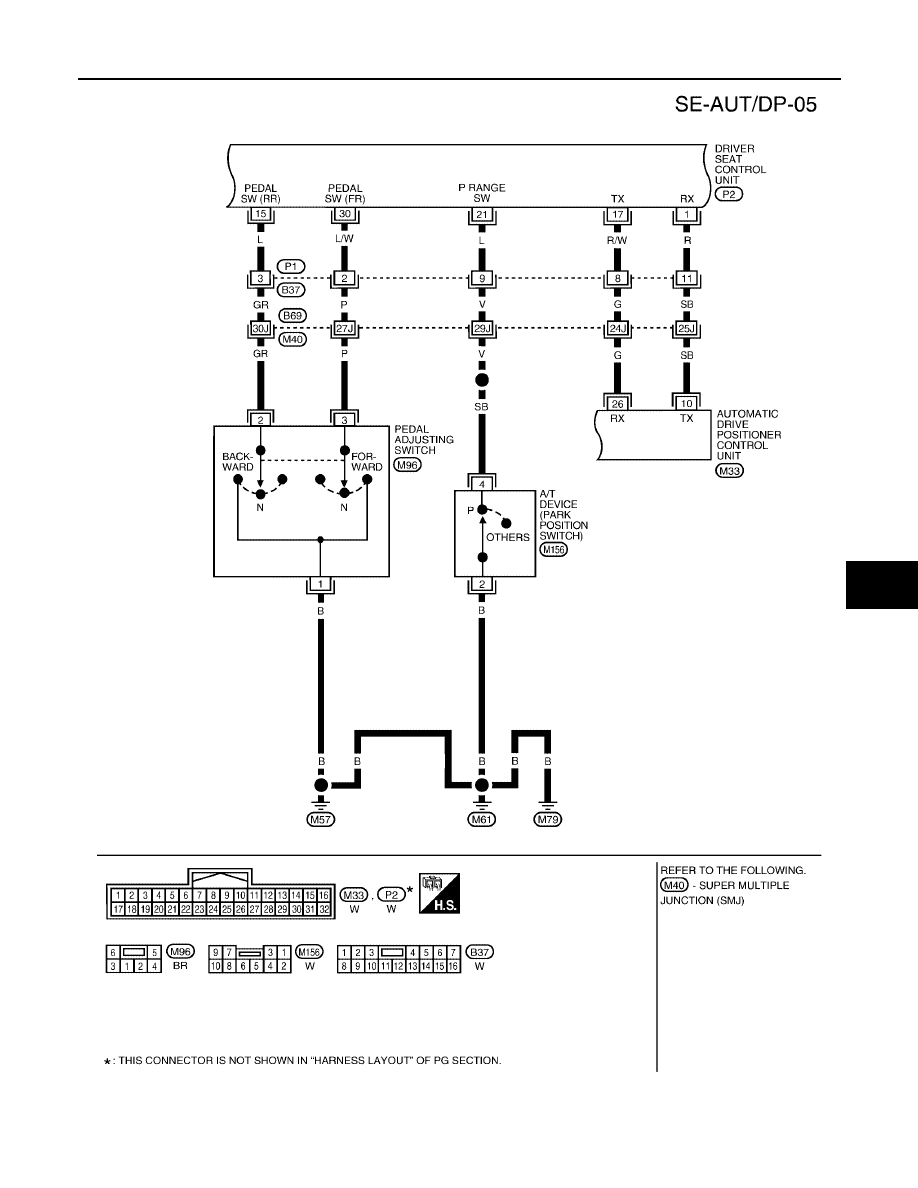

AUTOMATIC DRIVE POSITIONER

SE-25

C

D

E

F

G

H

J

K

L

M

A

B

SE

2006 Pathfinder

WIWA0562E

SE-26

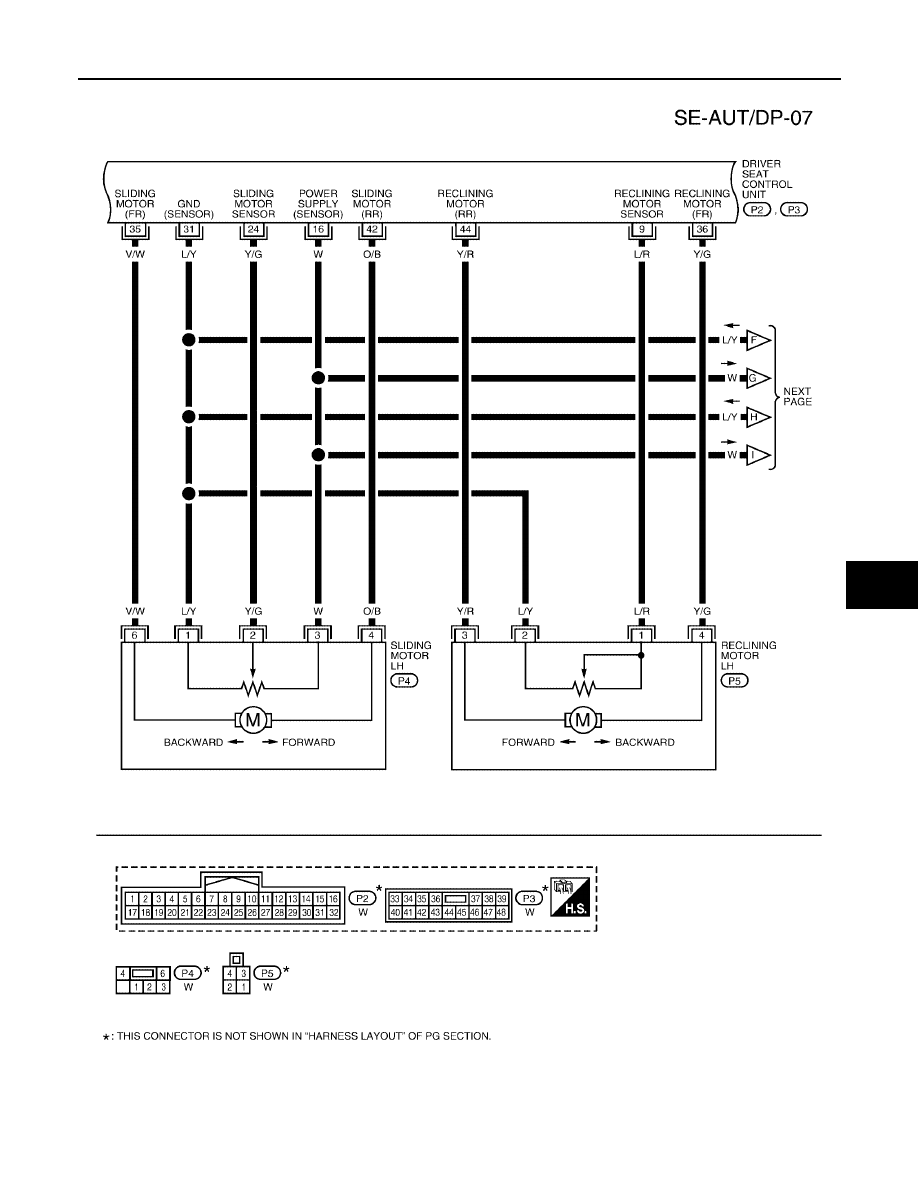

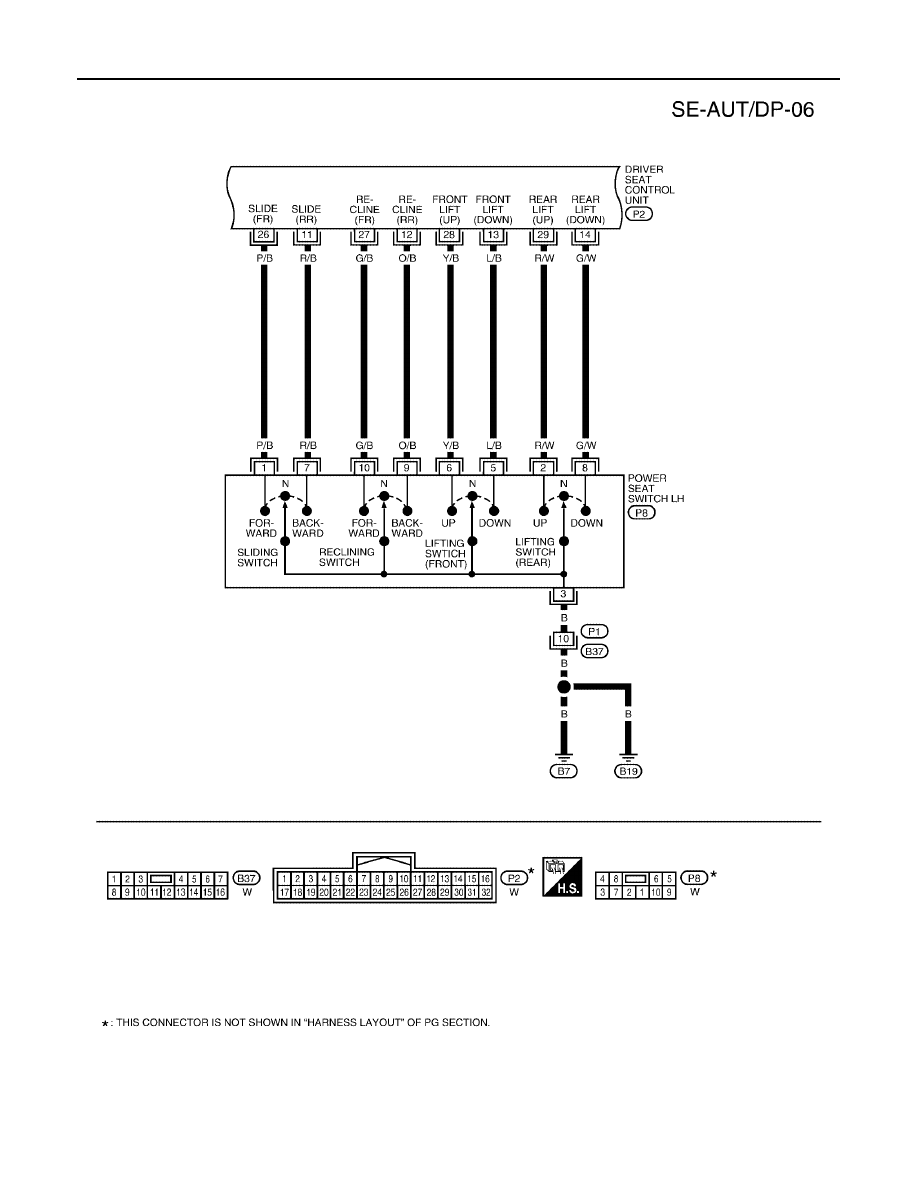

AUTOMATIC DRIVE POSITIONER

2006 Pathfinder

WIWA0563E

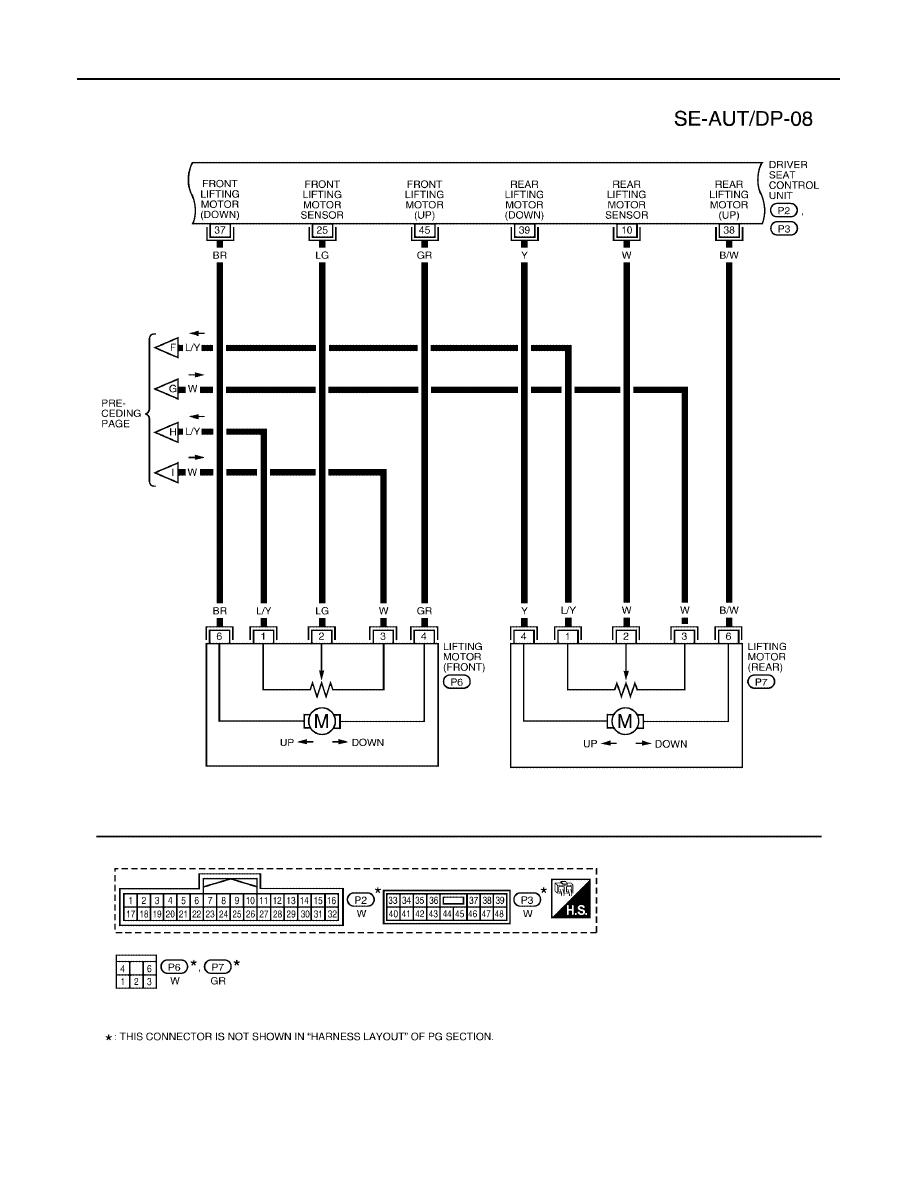

AUTOMATIC DRIVE POSITIONER

SE-27

C

D

E

F

G

H

J

K

L

M

A

B

SE

2006 Pathfinder

WIWA1601E

SE-28

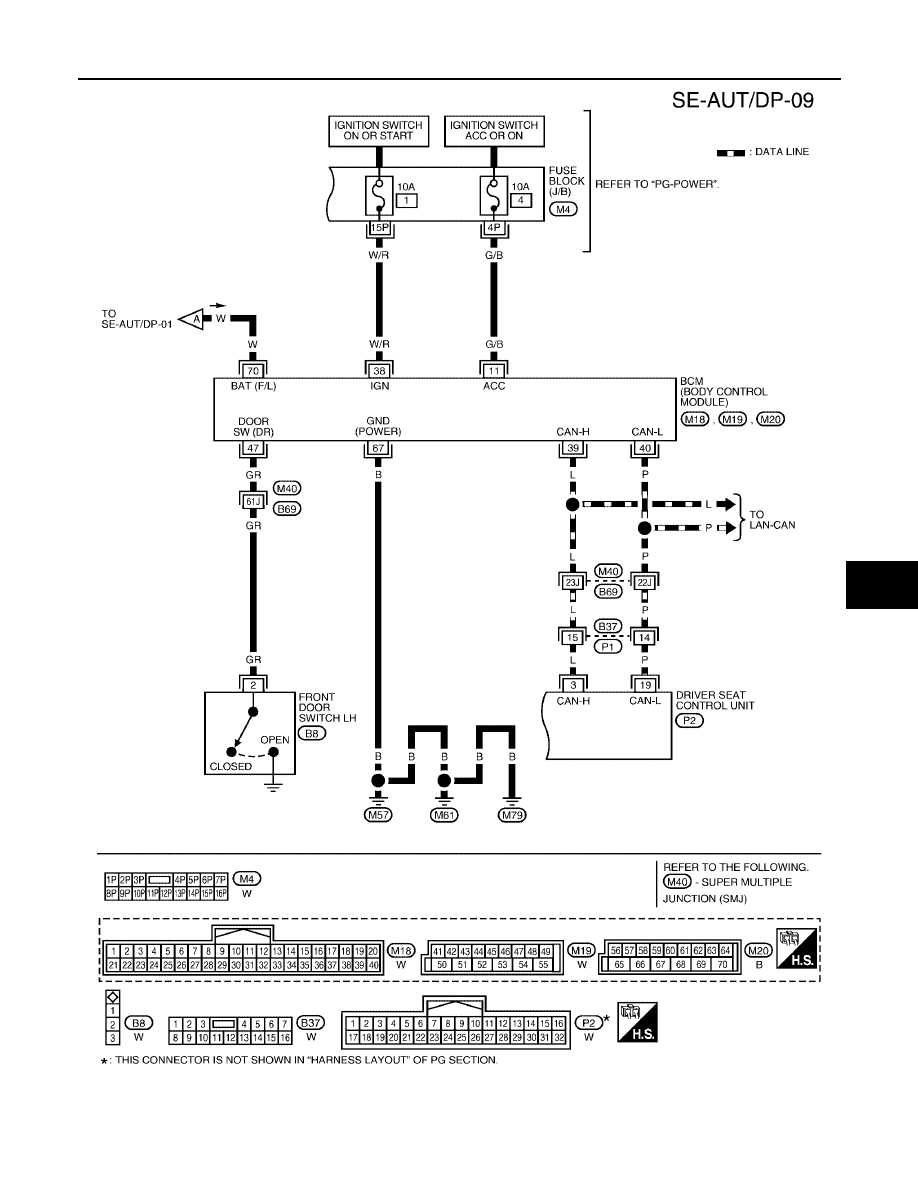

AUTOMATIC DRIVE POSITIONER

2006 Pathfinder

Terminals and Reference Values for BCM

EIS007UX

Refer to

BCS-3, "BCM (BODY CONTROL MODULE)"

 .

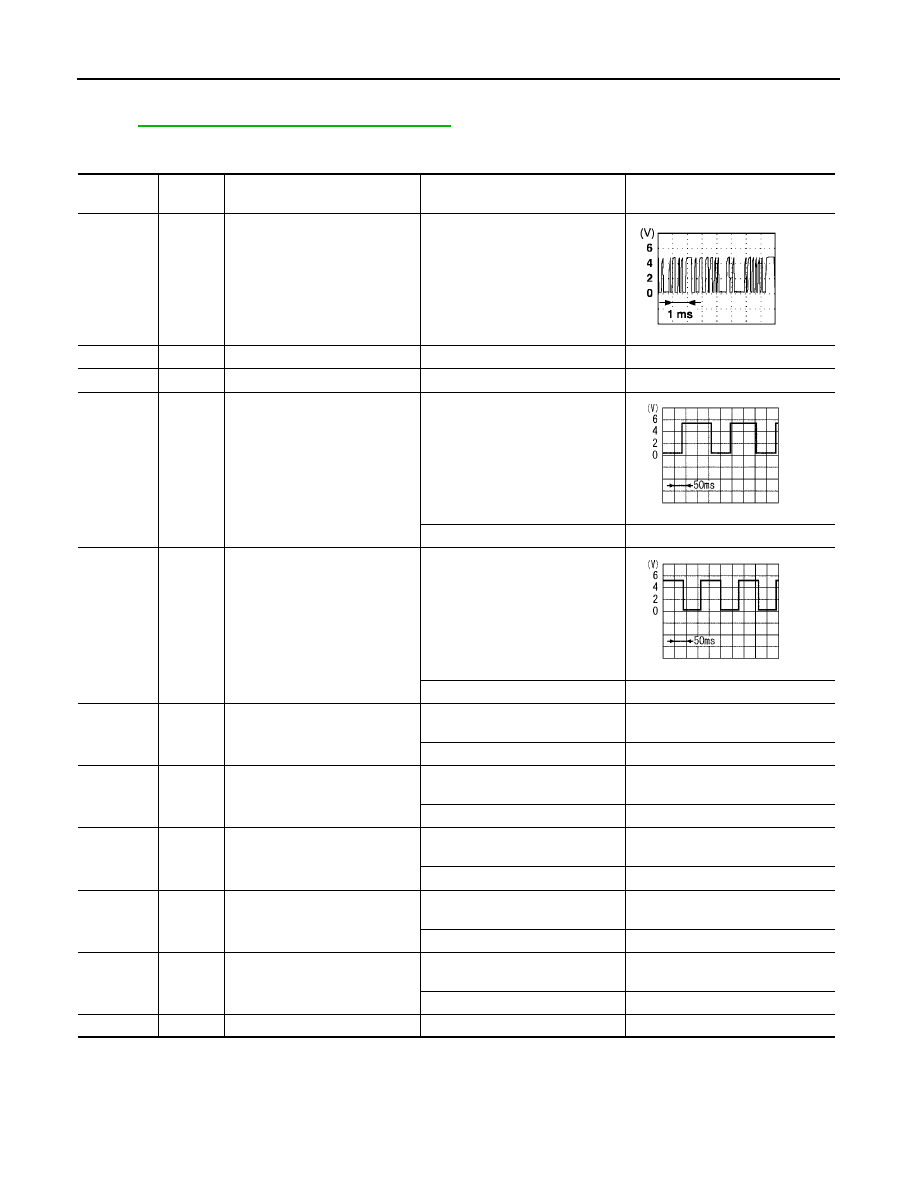

Terminals and Reference Values for Driver Seat Control Unit

EIS007UY

Terminal

Wire

Color

Item

Condition

Voltage (V)

(Approx.)

1

R

UART LINE (RX)

Pedal adjusting switch ON (FOR-
WARD or BACKWARD operation)

3

L

CAN-H

—

—

6

BR/W

Ignition switch (START)

Ignition switch (START position)

Battery voltage

9

L/R

Reclining motor sensor signal

ON (seat reclining motor opera-
tion)

Other than above

0 or 5

10

W

Rear lifting motor sensor signal

ON (rear lifting motor operation)

Other than above

0 or 5

11

R/B

Sliding switch BACKWARD sig-
nal

ON (seat sliding switch BACK-
WARD operation)

0

Other than above

Battery voltage

12

O/B

Reclining switch BACKWARD
signal

ON (seat reclining switch BACK-
WARD operation)

0

Other than above

Battery voltage

13

L/B

Front lifting switch DOWN signal

ON (front lifting switch DOWN
operation)

0

Other than above

Battery voltage

14

G/W

Rear lifting switch DOWN signal

ON (rear lifting switch DOWN
operation)

0

Other than above

Battery voltage

15

L

Pedal adjusting switch BACK-
WARD signal

ON (pedal adjusting switch BACK-
WARD operation)

 0

Other than above

Battery voltage

16

W

Seat sensor power

—

 5
