AUTOMATIC DRIVE POSITIONER

SE-13

C

D

E

F

G

H

J

K

L

M

A

B

SE

2006 Pathfinder

FAIL-SAFE MODE

An "output error" is judged if any seat or pedal motor movement is detected for T2 or longer while no manual
or automatic operations are in process.

CANCEL OF FAIL-SAFE MODE

The mode is cancelled when the A/T selector lever is shifted to P position from any other position.

OPERATED PORTION

T2

Seat sliding

Approx. 0.1 sec.

Seat reclining

Same as above

Seat lifting (Front)

Same as above

Seat lifting (Rear)

Same as above

Pedal adjust

Same as above

SE-14

AUTOMATIC DRIVE POSITIONER

2006 Pathfinder

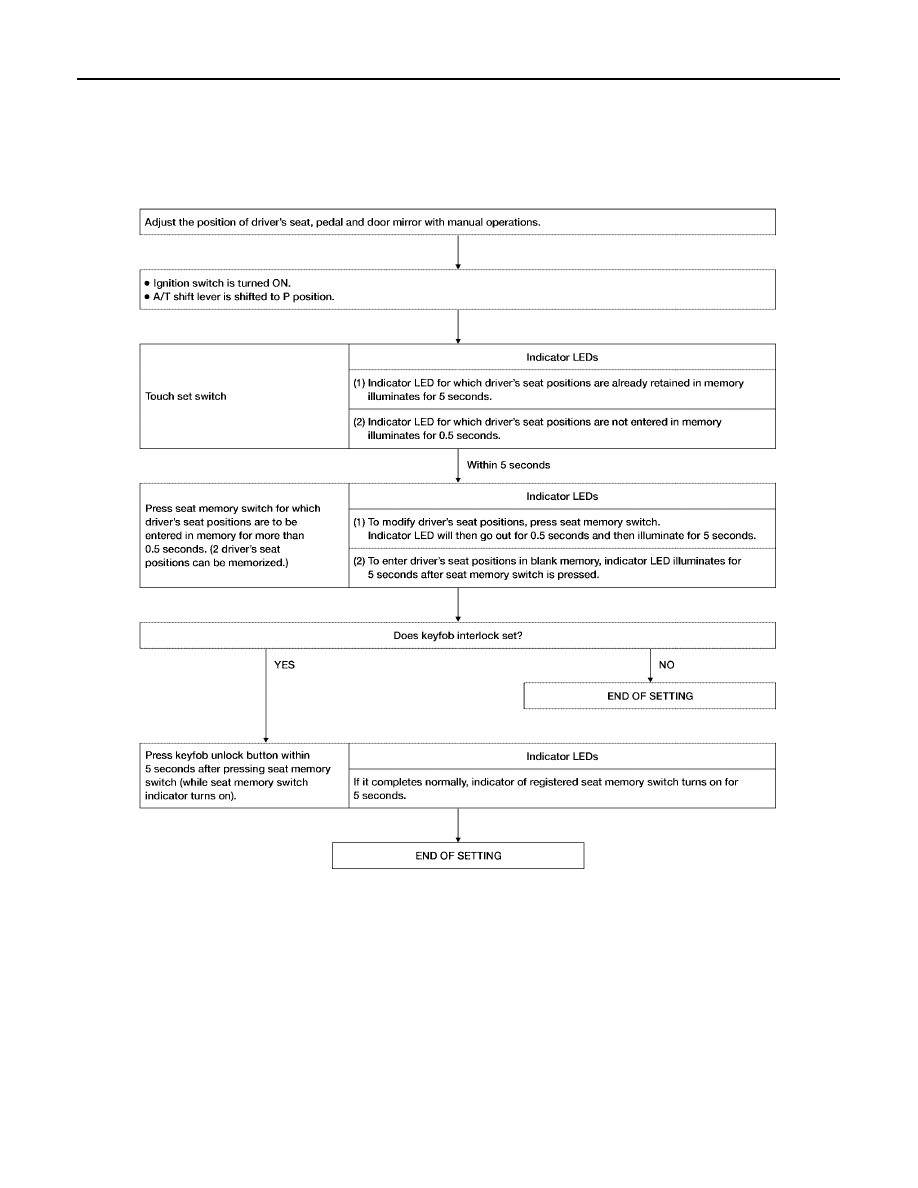

MEMORY STORING AND KEYFOB INTERLOCK STORING

●

Stores the 2 driving positions and shifts to the stored driving position with the memory switch.

●

Keyfob interlock function is set simultaneously with setting driving position memory. It can set driving posi-
tion to memory position.

NOTE:

●

If another keyfob interlock function setting is performed by same key, the newly registered setting is valid.

●

If a memory position is modified and re-saved, the keyfob interlock function is maintained.

●

If the keyfob has not been previously programmed to the vehicle, keyfob interlock function cannot set.

LIIA1666E

AUTOMATIC DRIVE POSITIONER

SE-15

C

D

E

F

G

H

J

K

L

M

A

B

SE

2006 Pathfinder

MEMORY OPERATION

Selecting the memorized position.

1.

Within 45 seconds of opening front door LH press the desired seat memory switch for at least 1 second,
or turn ignition switch ON and press the desired seat memory switch for at least 1 second.

2.

The front seat LH, door mirrors, accelerator pedal and brake pedal will move to their set memory posi-
tions. During adjustments, indicator LED flashes, then illuminates for 5 seconds.

NOTE:
The front seat position and pedal adjustment functions (see the following table) operate simultaneously in the
order of priority.

*: In conjunction with sliding the seat, the door mirrors are positioned.

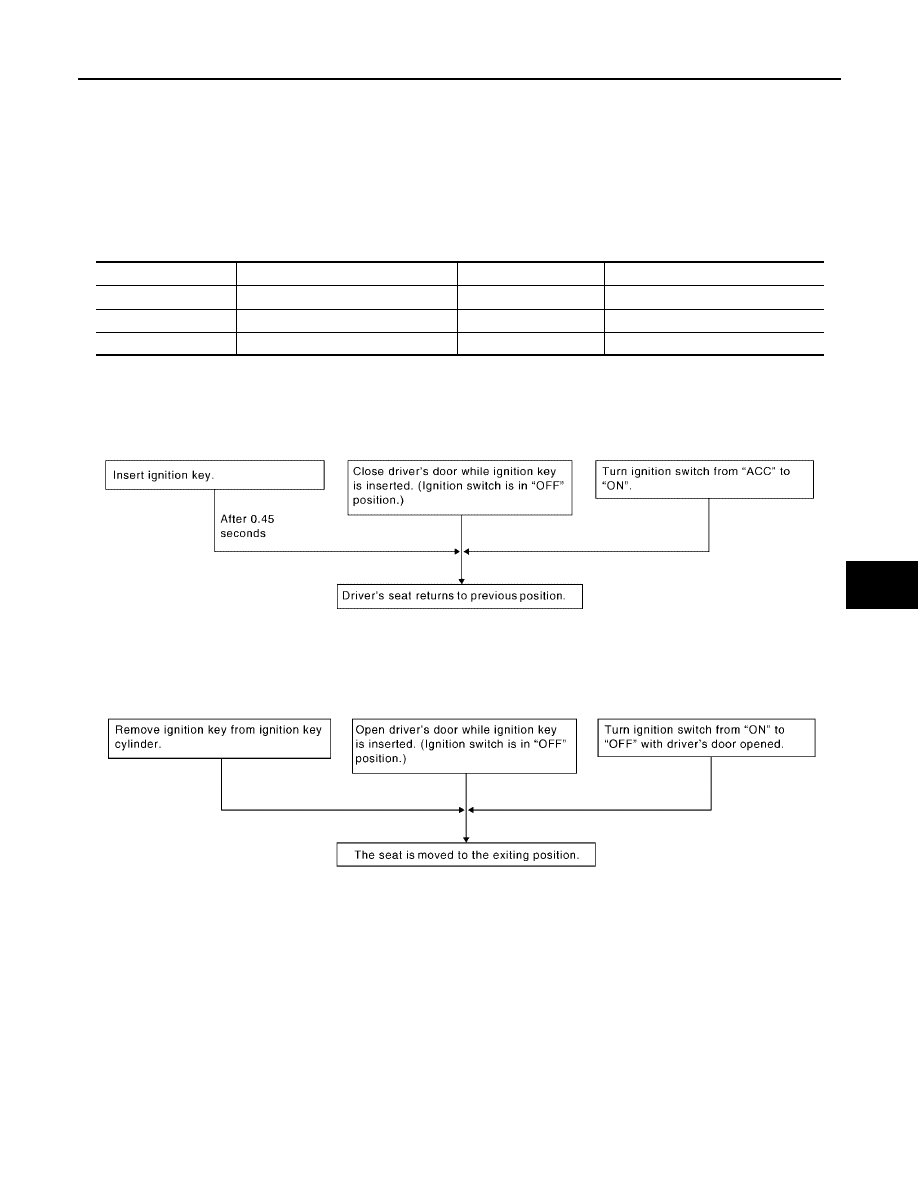

ENTRY OPERATION

When the seat is in the exiting positions, the following operation moves the seat to the previous position before
the exiting operation.

EXITING OPERATION

At Entry/Exiting, the seat is automatically moved to the exiting position.

Priority

Function

Priority

Function

1

Seat sliding, (door mirror LH/RH)*

4

Seat lifter-FR

2

Pedal

5

Seat lifter-RR

3

Seat reclining

LIIA0855E

LIIA0856E

SE-16

AUTOMATIC DRIVE POSITIONER

2006 Pathfinder

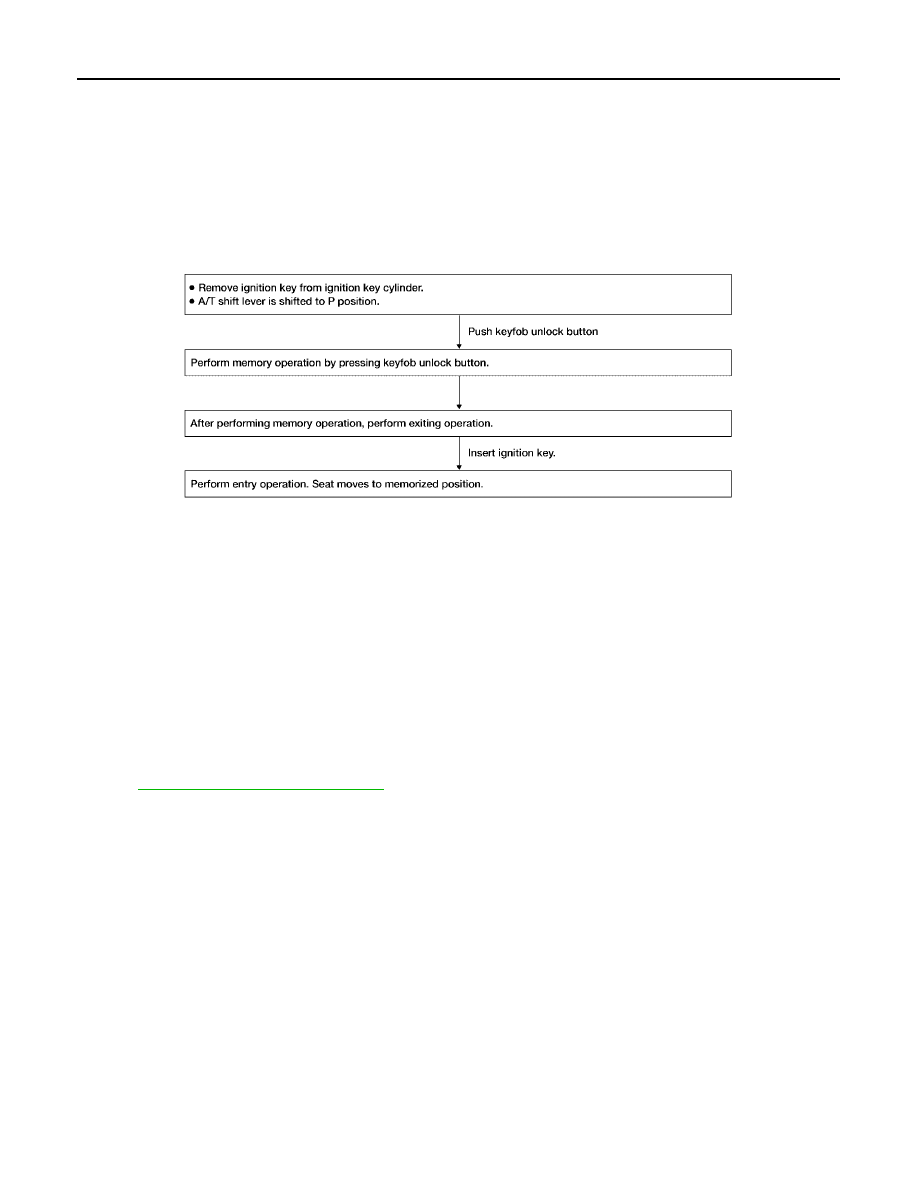

KEYFOB INTERLOCK OPERATION

●

The system performs memory operation, exiting operation and return operation by pressing keyfob unlock
button.

NOTE:

●

If Entry/Exiting operation is cancelled, the system performs memory operation only.

●

If ignition switch turns ON in the middle of memory operation, the system does not perform exiting opera-
tion after memory operation.

●

If ignition switch turns ON in the middle of exiting operation, entry operation starts at that time.

CAN Communication System Description

EIS007UU

Refer to

LAN-25, "CAN COMMUNICATION"

 .

LIIA1667E

AUTOMATIC DRIVE POSITIONER

SE-17

C

D

E

F

G

H

J

K

L

M

A

B

SE

2006 Pathfinder

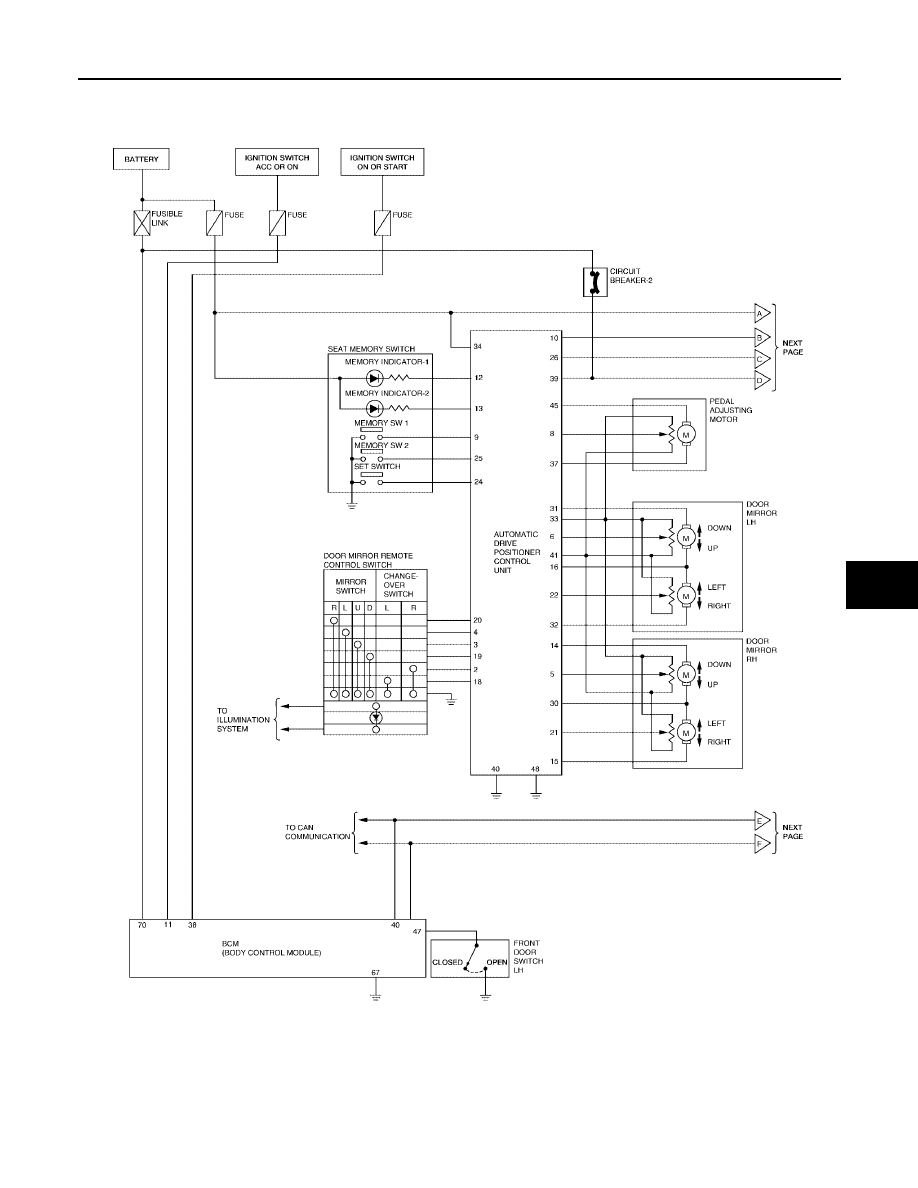

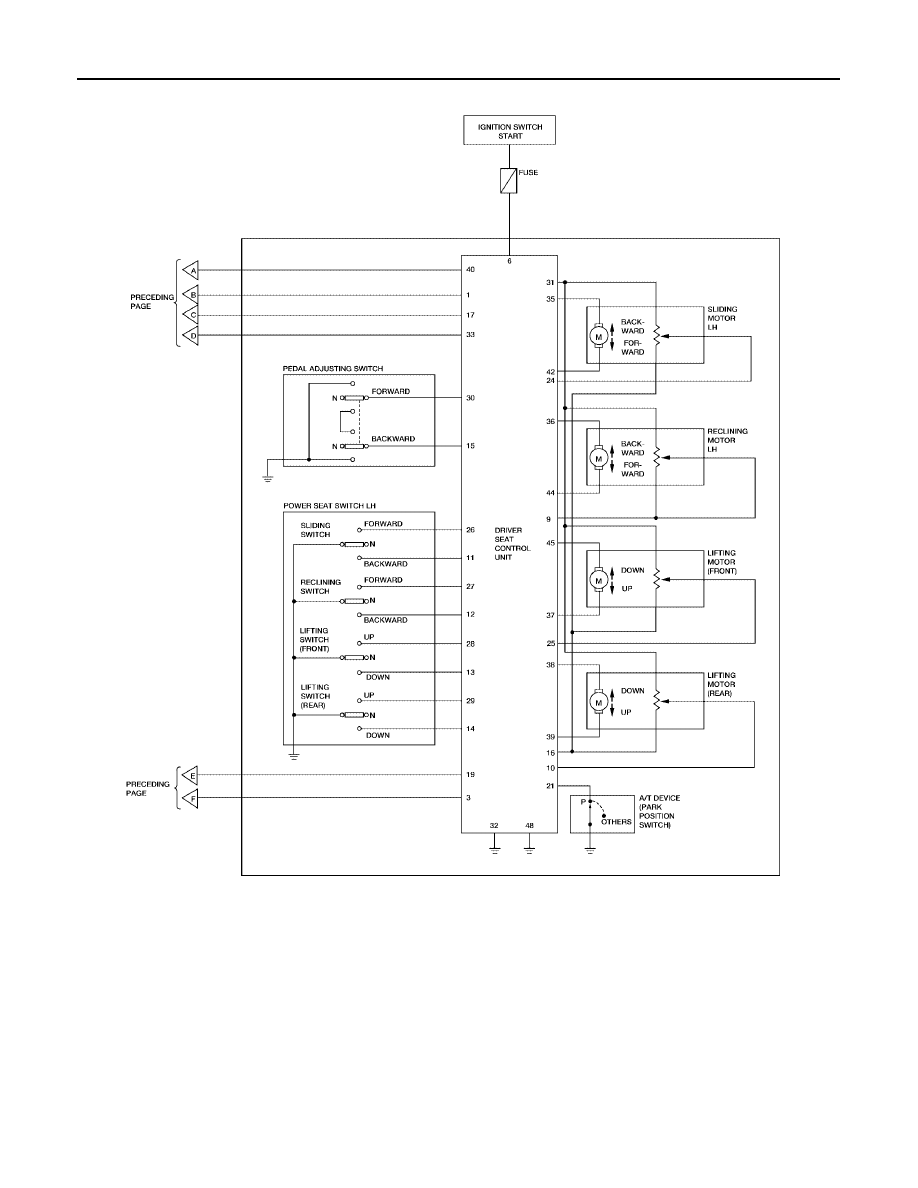

Schematic

EIS007UV

WIWA1597E

SE-18

AUTOMATIC DRIVE POSITIONER

2006 Pathfinder

WIWA1598E

AUTOMATIC DRIVE POSITIONER

SE-19

C

D

E

F

G

H

J

K

L

M

A

B

SE

2006 Pathfinder

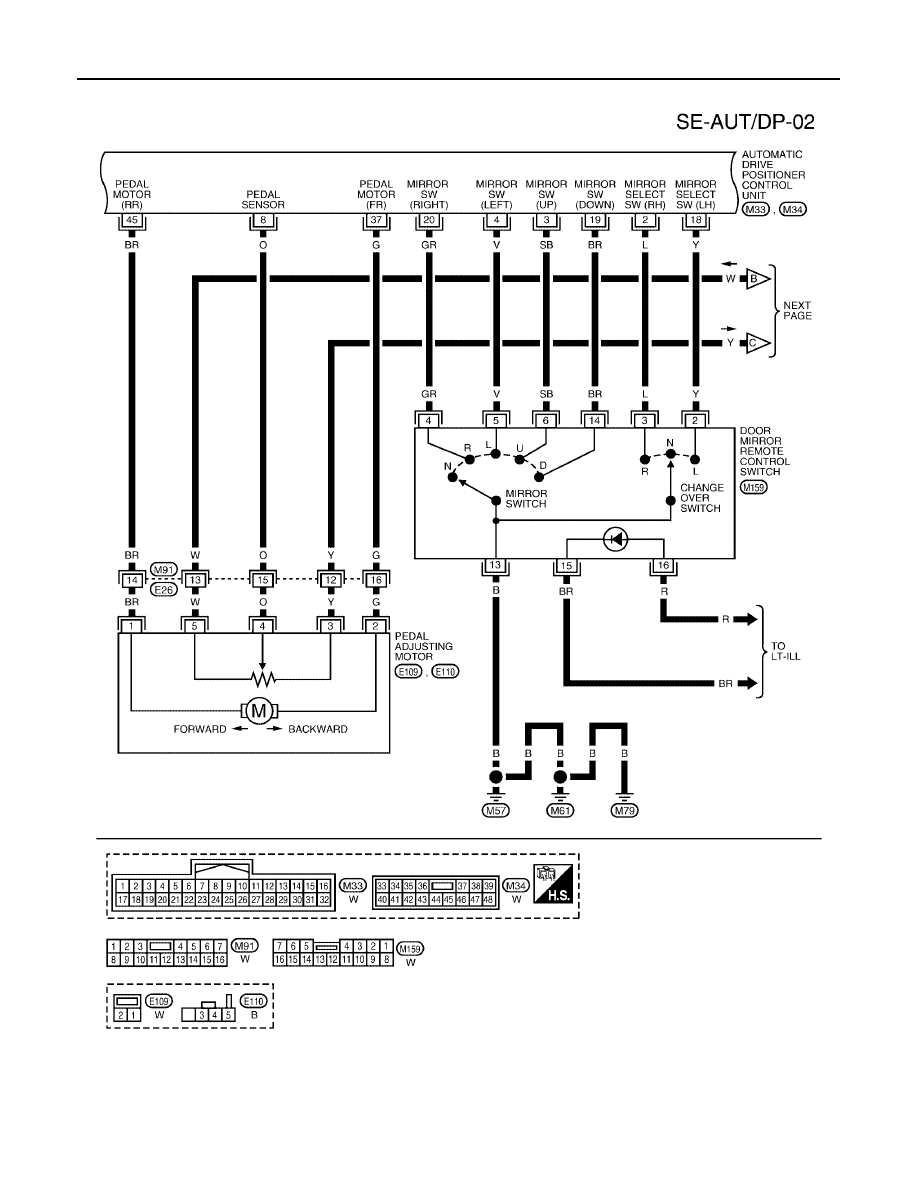

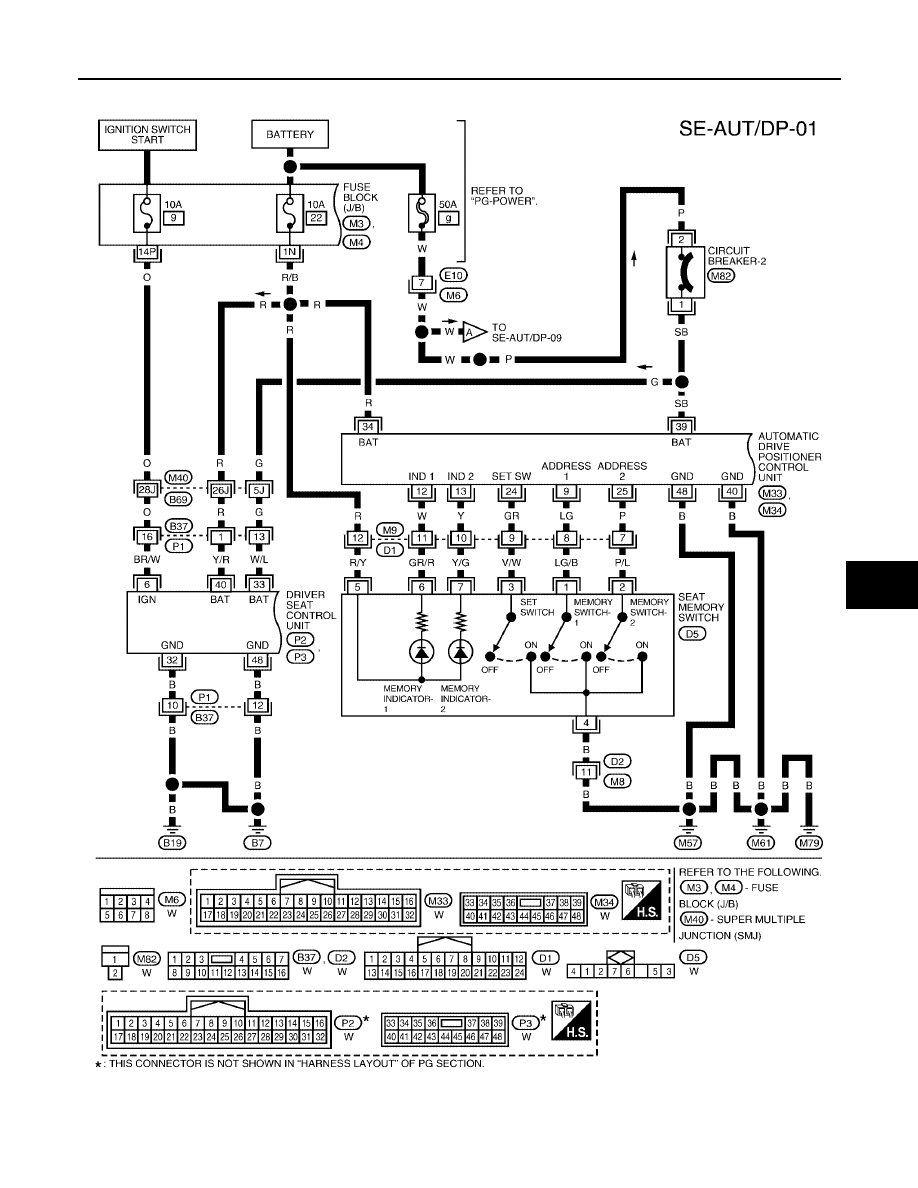

Wiring Diagram — AUT/DP —

EIS007UW

WIWA1599E

SE-20

AUTOMATIC DRIVE POSITIONER

2006 Pathfinder

WIWA0557E
