Nissan Pathfinder (2006 year). Manual - part 318





PARKING, LICENSE PLATE AND TAIL LAMPS

LT-99

C

D

E

F

G

H

I

J

L

M

A

B

LT

2006 Pathfinder

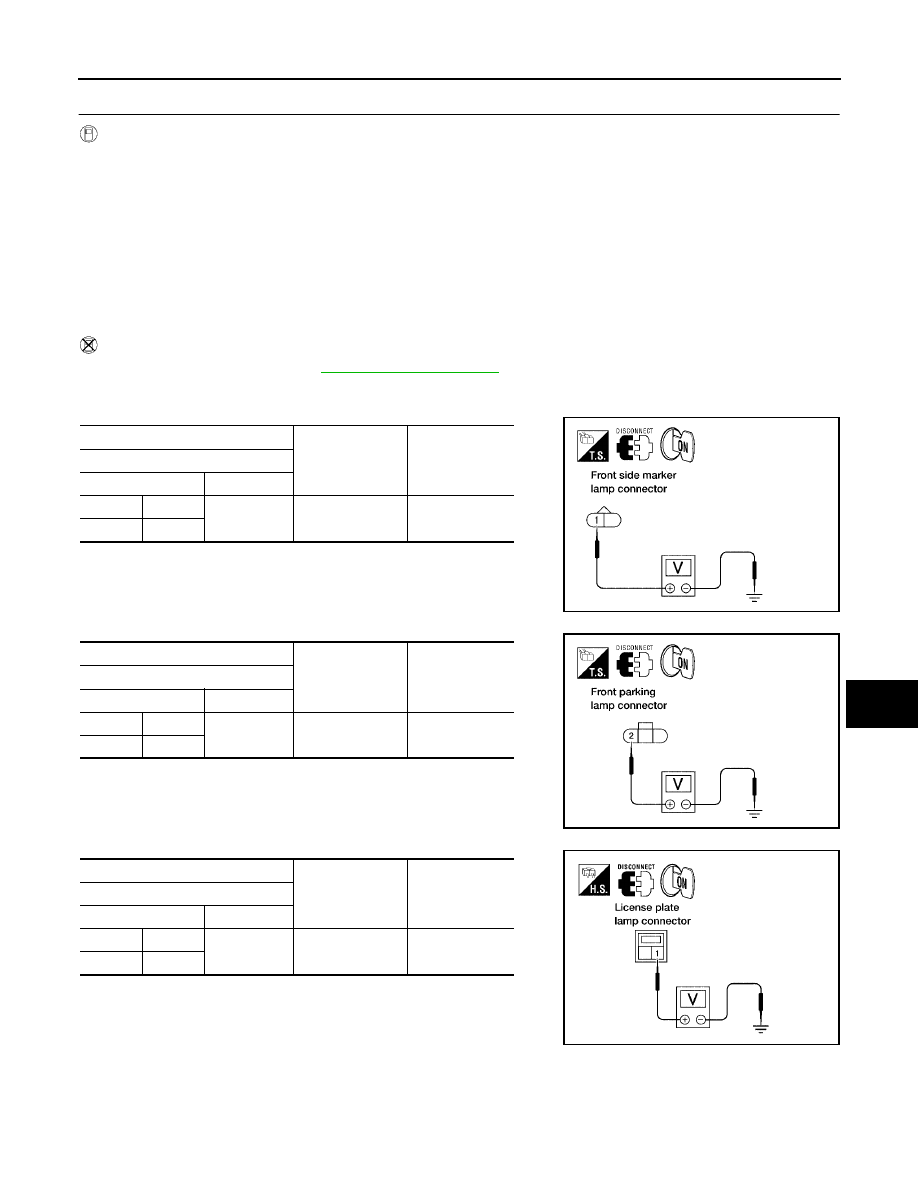

4.

CHECK INPUT SIGNAL

With CONSULT-II

1.

Turn ignition switch OFF.

2.

Disconnect front parking lamp, front side marker lamp, license plate lamp and rear combination lamp con-
nectors.

3.

Turn ignition switch ON.

4.

Select "IPDM E/R" on CONSULT-II, and select "ACTIVE TEST" on "SELECT DIAG MODE" screen.

5.

Select "TAIL LAMP" on "SELECT TEST ITEM" screen.

6.

Touch "ON" on "ACTIVE TEST" screen.

7.

When tail lamp is operating, check voltage between front parking lamp, front side marker lamp, license
plate lamp, rear combination lamp harness connector and ground.

Without CONSULT-II

1.

Start auto active test. Refer to

PG-24, "Auto Active Test"

 .

2.

When tail lamp is operating, check voltage between front side marker lamp, front parking lamp, license
plate lamp, rear combination lamp harness connector and ground.

Front side marker lamp

(–)

Voltage

 (+)

Connector

Terminal

LH

E17

1

Ground Battery

voltage

RH

E108

WKIA3508E

Front parking lamp

(–)

Voltage

 (+)

Connector

Terminal

LH

E27

2

Ground Battery

voltage

RH

E111

WKIA3509E

License plate lamp

(–)

Voltage

 (+)

Connector

Terminal

LH

D506

1

Ground Battery

voltage

RH

D507

WKIA3315E

LT-100

PARKING, LICENSE PLATE AND TAIL LAMPS

2006 Pathfinder

OK or NG

OK

>> GO TO 6.

NG

>> GO TO 5.

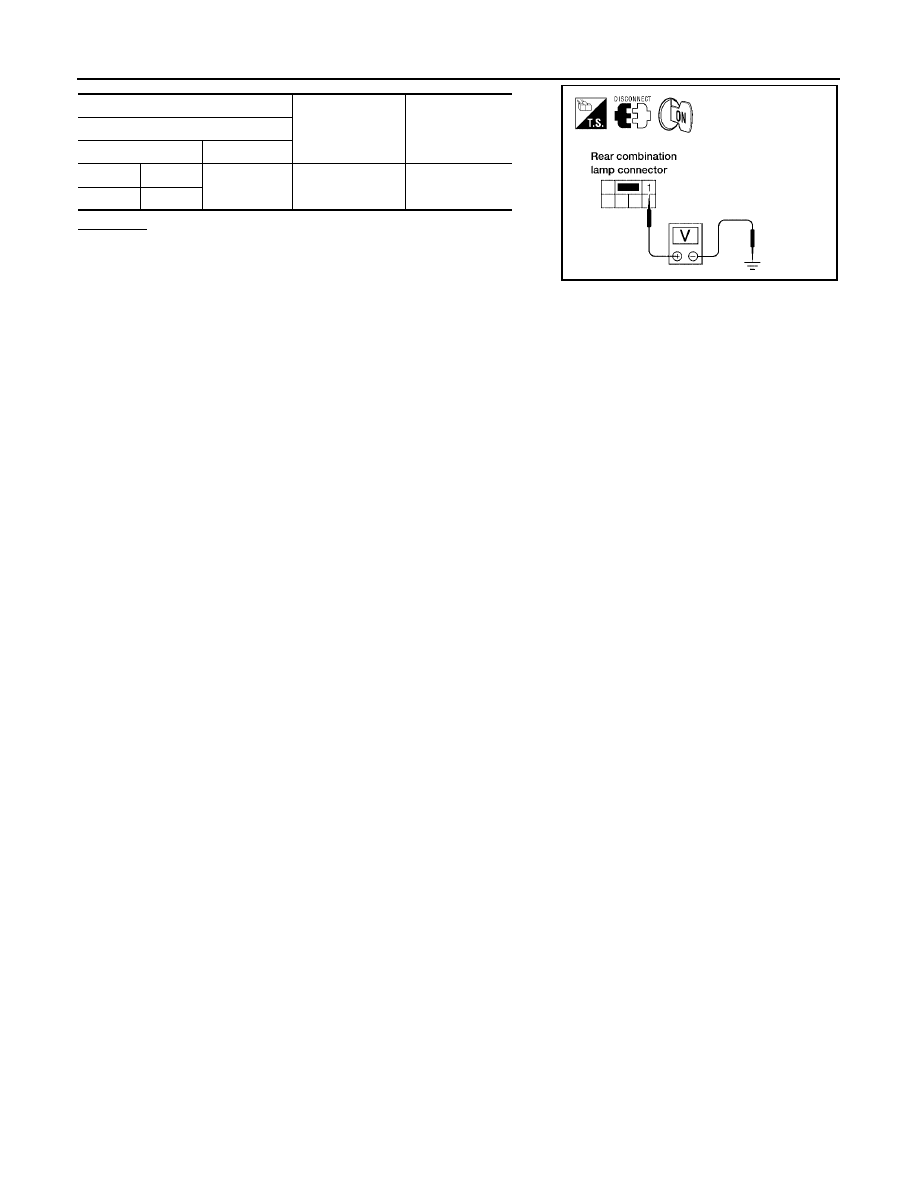

Rear combination lamp

(–)

Voltage

 (+)

Connector

Terminal

LH

B35

1

Ground Battery

voltage

RH

B105

WKIA3316E

PARKING, LICENSE PLATE AND TAIL LAMPS

LT-101

C

D

E

F

G

H

I

J

L

M

A

B

LT

2006 Pathfinder

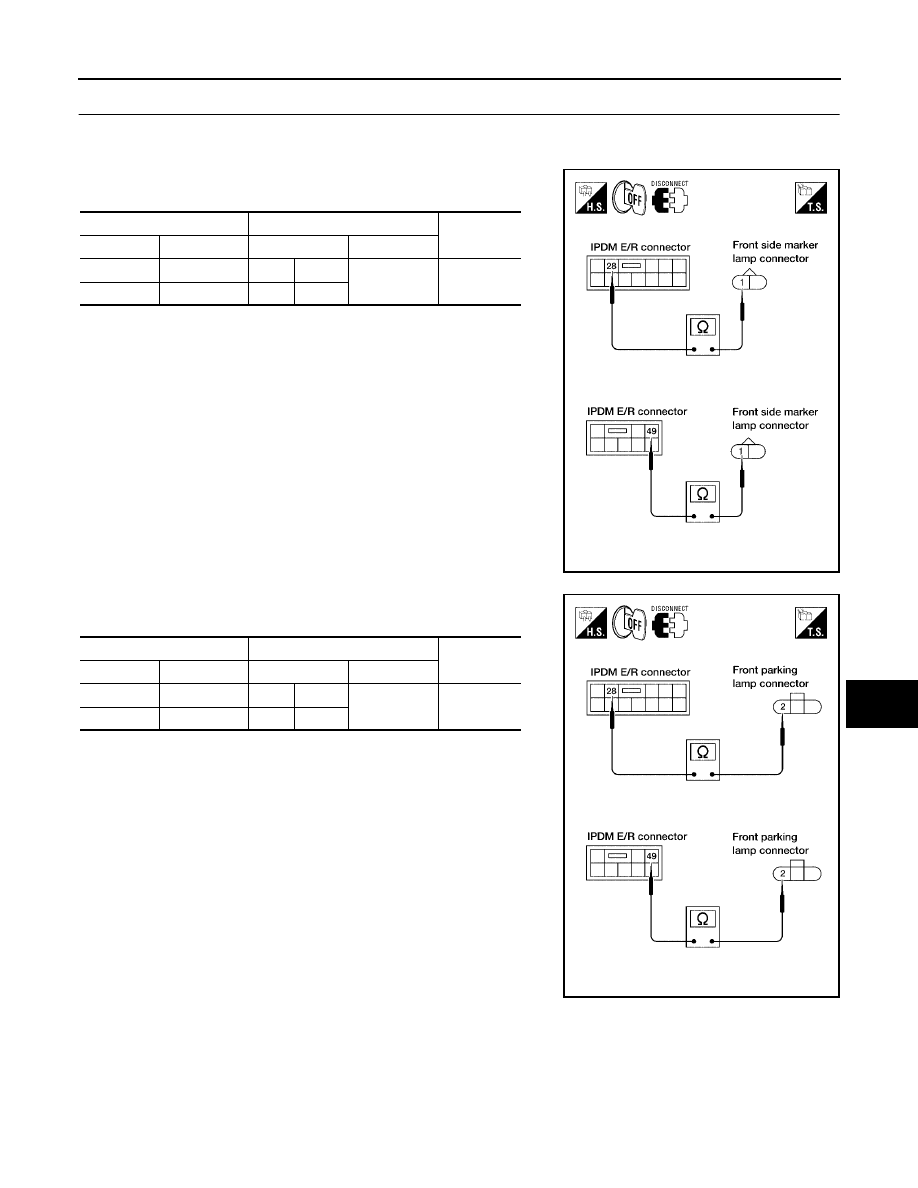

5.

CHECK PARKING, SIDE MARKER, LICENSE PLATE AND TAIL LAMP CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect IPDM E/R connector.

3.

Check continuity between IPDM E/R harness connector and
front side marker lamp harness connector.

4.

Check continuity between IPDM E/R harness connector and
front parking lamp harness connector.

IPDM E/R

Front side marker lamp

Continuity

Connector

Terminal

Connector

Terminal

E121

28

LH

E17

1

Yes

E123

49

RH

E108

WKIA3512E

IPDM E/R

Front parking lamp

Continuity

Connector

Terminal

Connector

Terminal

E121

28

LH

E27

2

Yes

E123

49

RH

E111

WKIA3513E

LT-102

PARKING, LICENSE PLATE AND TAIL LAMPS

2006 Pathfinder

5.

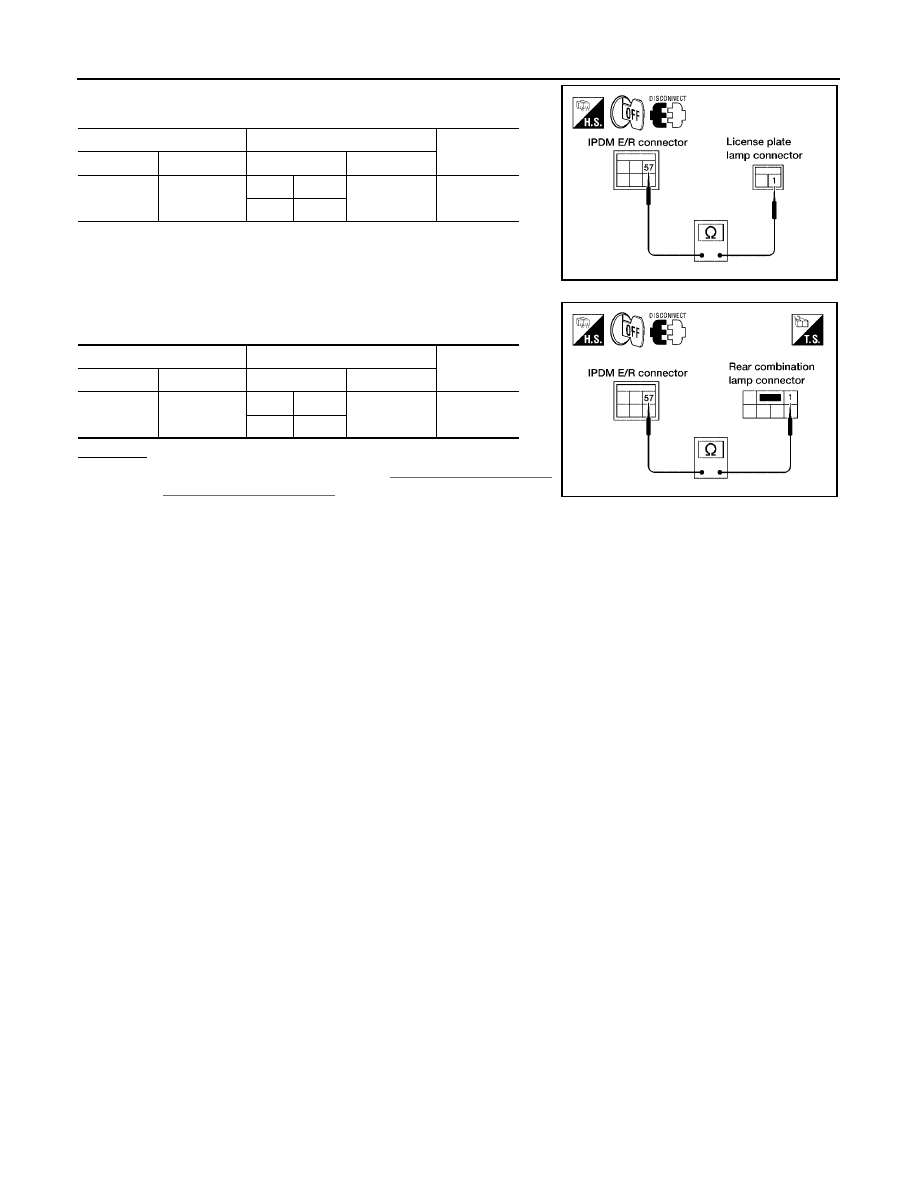

Check continuity between IPDM E/R harness connector and
license plate lamp harness connector.

6.

Check continuity between IPDM E/R harness connector and
rear combination lamp harness connector.

OK or NG

OK

>> Replace IPDM E/R. Refer to

PG-32, "Removal and

Installation of IPDM E/R"

 .

NG

>> Repair harness or connector.

IPDM E/R

License plate lamp

Continuity

Connector

Terminal

Connector

Terminal

E124

57

LH

D506

1

Yes

RH

D507

WKIA3318E

IPDM E/R

Rear combination lamp

Continuity

Connector

Terminal

Connector

Terminal

E124

57

LH

B35

1

Yes

RH

B105

WKIA3319E

PARKING, LICENSE PLATE AND TAIL LAMPS

LT-103

C

D

E

F

G

H

I

J

L

M

A

B

LT

2006 Pathfinder

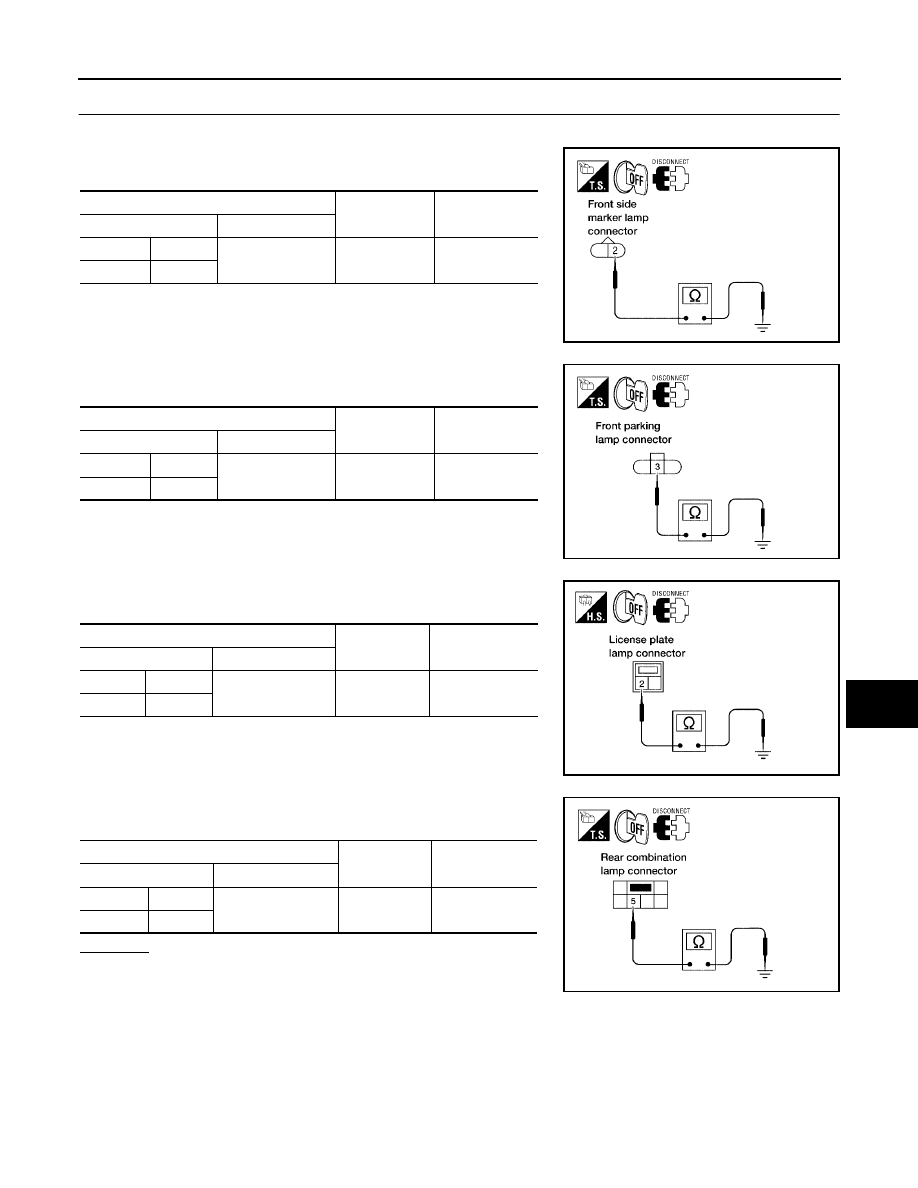

6.

CHECK GROUND

1.

Turn ignition switch OFF.

2.

Check continuity between front side marker lamp harness con-
nector and ground.

3.

Check continuity between front parking lamp harness connector
and ground.

4.

Check continuity between license plate lamp harness connector
and ground.

5.

Check continuity between rear combination lamp harness con-
nector and ground.

OK or NG

OK

>> Check bulbs.

NG

>> Repair harness or connector.

Front side marker lamp

Continuity

Connector

Terminal

LH

E17

2

Ground

Yes

RH

E108

WKIA3516E

Front parking lamp

Continuity

Connector

Terminal

LH

E27

3

Ground

Yes

RH

E111

WKIA3517E

License plate lamp

Continuity

Connector

Terminal

LH

D506

2 Ground

Yes

RH

D507

WKIA3321E

Rear combination lamp

Continuity

Connector

Terminal

LH

B35

5 Ground

Yes

RH

B105

WKIA3322E

LT-104

PARKING, LICENSE PLATE AND TAIL LAMPS

2006 Pathfinder

Parking, Side Marker, License Plate and Tail Lamps Do Not Turn OFF (After
Approx. 10 Minutes)

EKS00FWZ

1.

CHECK IPDM E/R

1.

Turn ignition switch ON. Turn the combination switch (lighting switch) to the OFF position. Turn ignition
switch OFF.

2.

Verify that the parking, front side marker, license plate and tail lamps turn on and off after approximately
10 minutes.

OK or NG

OK

>> Ignition relay malfunction. Refer to

PG-19, "Function of Detecting Ignition Relay Malfunction"

 .

NG

>> Inspection End.

Bulb Replacement

EKS00FX0

FRONT PARKING LAMP

Refer to

LT-27, "FRONT TURN SIGNAL/PARKING LAMP"

 .

TAIL LAMP

For bulb replacement, refer to

LT-105, "Bulb Replacement"

 .

LICENSE PLATE LAMP
Removal

1.

Remove back door finisher. Refer to

EI-35, "BACK DOOR TRIM"

 .

2.

Turn bulb socket counterclockwise and remove bulb socket.

3.

Remove license plate lamp bulb.

Installation

Installation is in the reverse order of removal.

Removal and Installation

EKS00HJU

LICENSE PLATE LAMP
Removal

1.

Remove license lamp finisher. Refer to

EI-19, "LICENSE LAMP FINISHER"

 .

2.

Disconnect license plate lamp harness connector.

3.

Remove license plate lamp screw and remove license plate lamp.

Installation

Installation is in the reverse order of removal.

REAR COMBINATION LAMP

LT-105

C

D

E

F

G

H

I

J

L

M

A

B

LT

2006 Pathfinder

REAR COMBINATION LAMP

PFP:26554

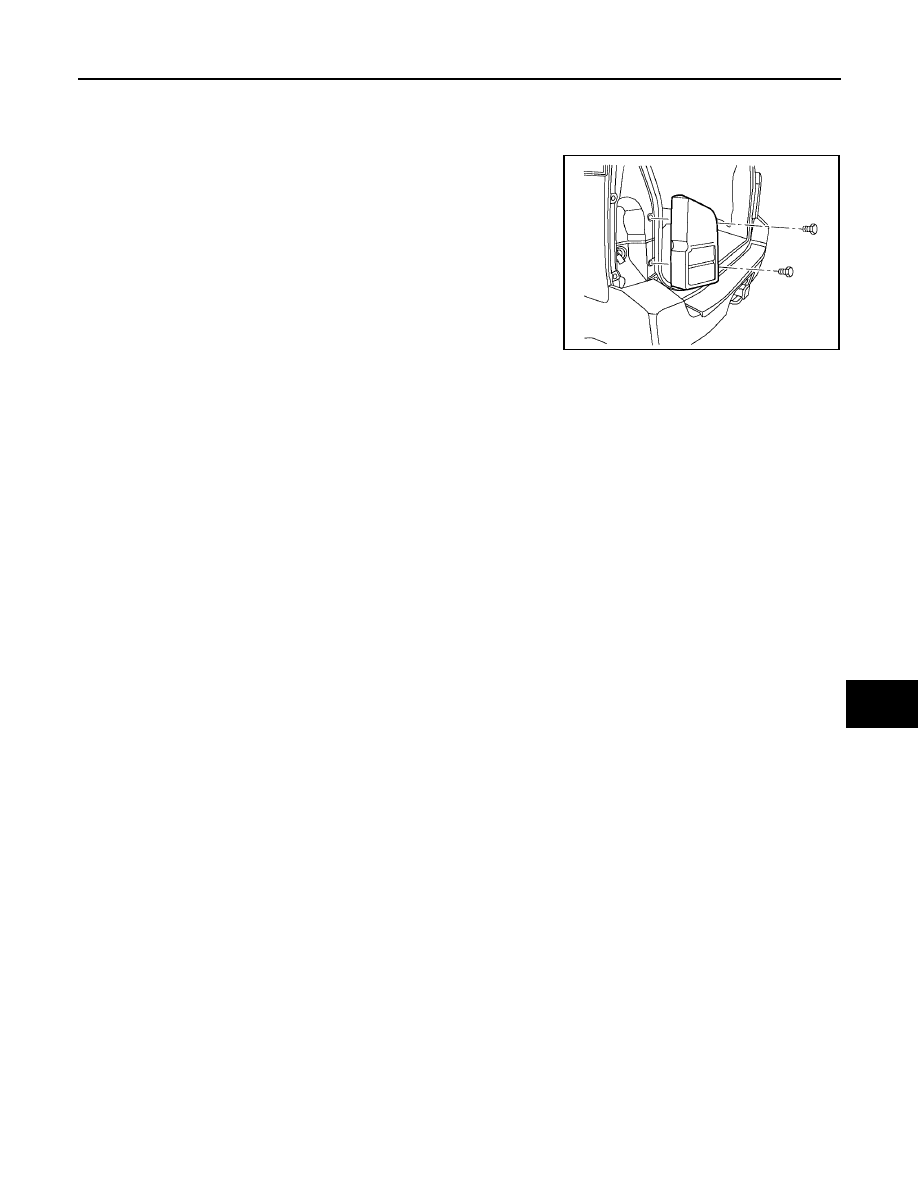

Bulb Replacement

EKS00FX2

REMOVAL

1.

Remove rear combination lamp bolts.

2.

Pull rear combination lamp to remove from the vehicle.

3.

Turn bulb socket counterclockwise and unlock it.

4.

Remove bulb.

INSTALLATION

Installation is in the reverse order of removal.

Removal and Installation

EKS00FX3

REMOVAL

1.

Remove rear combination lamp bolts.

2.

Pull rear combination lamp to remove from the vehicle.

3.

Disconnect rear combination lamp connector.

INSTALLATION

Installation is in the reverse order of removal.

WKIA4168E

LT-106

TRAILER TOW

2006 Pathfinder

TRAILER TOW

PFP:93020

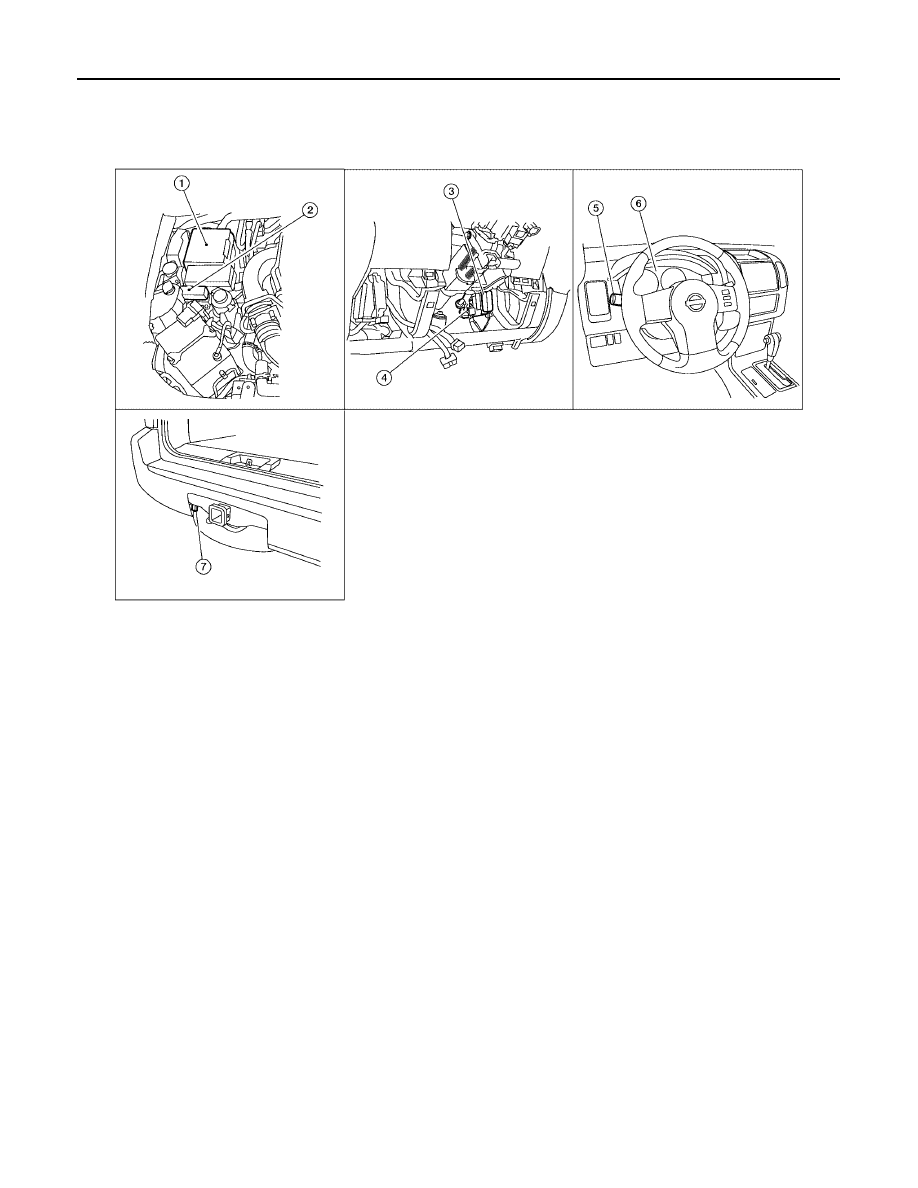

Component Parts and Harness Connector Location

EKS00FX4

System Description

EKS00FX5

Power is supplied at all times

to ignition relay, located in the IPDM E/R (intelligent power distribution module engine room), and

to tail lamp relay, located in the IPDM E/R, and

through 50A fusible link (letter g , located in the fuse and fusible link box)

to BCM (body control module) terminal 70, and

to 15A fuse (No. 60, located in the fuse and relay box), and

to trailer turn relay RH and LH terminal 5, and

through 20A fuse (No. 53, located in the IPDM E/R)

to CPU of the IPDM E/R, and

through 10A fuse (No. 32, located in the IPDM E/R)

to IPDM E/R terminal 61

to trailer tow relay 1 terminal 3, and

through 30A fusible link (letter m , located in the fuse and fusible link box)

to trailer tow relay 2 terminals 3 and 6, and

through 30A fusible link (letter h , located in the fuse and fusible link box)

to electric brake (pre-wiring) terminal 5.

WKIA4962E

1.

IPDM E/R
E118, E119, E120, E121,
E122, E123, E124

2.

Trailer tow relays
E140, E148

3.

BCM
M18, M19, M20
(view with instrument lower panel LH removed)

4.

Electric brake (pre-wiring)
M76

5.

Combination switch (lighting switch)
M28

6.

Combination meter
M24

7.

Trailer connector
C126
