Nissan Pathfinder (2006 year). Manual - part 319





TRAILER TOW

LT-107

C

D

E

F

G

H

I

J

L

M

A

B

LT

2006 Pathfinder

With the ignition switch in the ON or START position, power is supplied

to ignition relay, located in the IPDM E/R, and

through 10A fuse [No. 1, located in the fuse block (J/B)]

to BCM terminal 38, and

through 10A fuse (No. 38, located in the IPDM E/R)

to IPDM E/R terminal 27, and

to trailer tow relay 2 terminal 1.

Ground is supplied

to BCM terminal 67 and

to electric brake (pre-wiring) terminal 1

through grounds M57, M61 and M79, and

to IPDM E/R terminals 38 and 59

to trailer tow relay 1 terminal 2

to trailer tow relay 2 terminal 2

to trailer connector terminal 1 (trailer tow 7 pin) or terminal 4 (trailer tow 4 pin), and

to trailer turn relay RH and LH terminal 2

through grounds E9, E15 and E24.

TRAILER TAIL LAMP OPERATION

The trailer tail lamps are controlled by the trailer tow relay 1.
With the lighting switch in the parking and tail lamp ON (1ST) position, AUTO position (and the auto light sys-
tem is activated) or headlamp ON (2ND) position, power is supplied from the tail lamp relay

through 10A fuse (No. 37, located in the IPDM E/R)

through IPDM E/R terminal 29

to trailer tow relay 1 terminal 1.

When energized, trailer tow relay 1 tail lamp power is supplied

through trailer tow relay 1 terminal 5

to trailer connector terminal 3.

TRAILER STOP, TURN SIGNAL AND HAZARD LAMP OPERATION

The trailer stop, turn signal and hazard lamps are controlled by the BCM. If either turn signal or the hazard
lamps are turned on, the BCM supplies voltage to the trailer turn relay RH or LH to make them flash. If the
BCM receives stop lamp switch signal, the BCM supplies voltage to the trailer turn relay RH and LH to make
them illuminate.
Left stop, turn signal and hazard lamp output is supplied

through BCM terminal 52

to trailer turn relay LH terminal 1

When energized, trailer turn relay LH supplies power to the left stop, turn signal, and hazard lamp

through trailer turn relay LH terminal 3

to trailer connector terminal 2 (trailer tow 7 pin) or terminal 1 (trailer tow 4 pin).

Right stop, turn signal and hazard lamp output is supplied

through BCM terminal 51

to trailer turn relay RH terminal 1

When energized, trailer turn relay RH supplies power to the right stop, turn signal, and hazard lamp

through trailer turn relay RH terminal 3

to trailer connector terminal 5 (trailer tow 7 pin) or terminal 2 (trailer tow 4 pin).

TRAILER POWER SUPPLY OPERATION

The trailer power supply (trailer tow 7 pin connector only) is controlled by trailer tow relay 2.
When the ignition switch is in the ON or START position, power is supplied

through 10A fuse (No. 38, located in the IPDM E/R)

through IPDM E/R terminal 27

LT-108

TRAILER TOW

2006 Pathfinder

to trailer tow relay 2 terminal 1.

When energized, trailer tow relay 2 power is supplied

through trailer tow relay 2 terminals 5 and 7

to trailer connector terminal 4.

TRAILER TOW

LT-109

C

D

E

F

G

H

I

J

L

M

A

B

LT

2006 Pathfinder

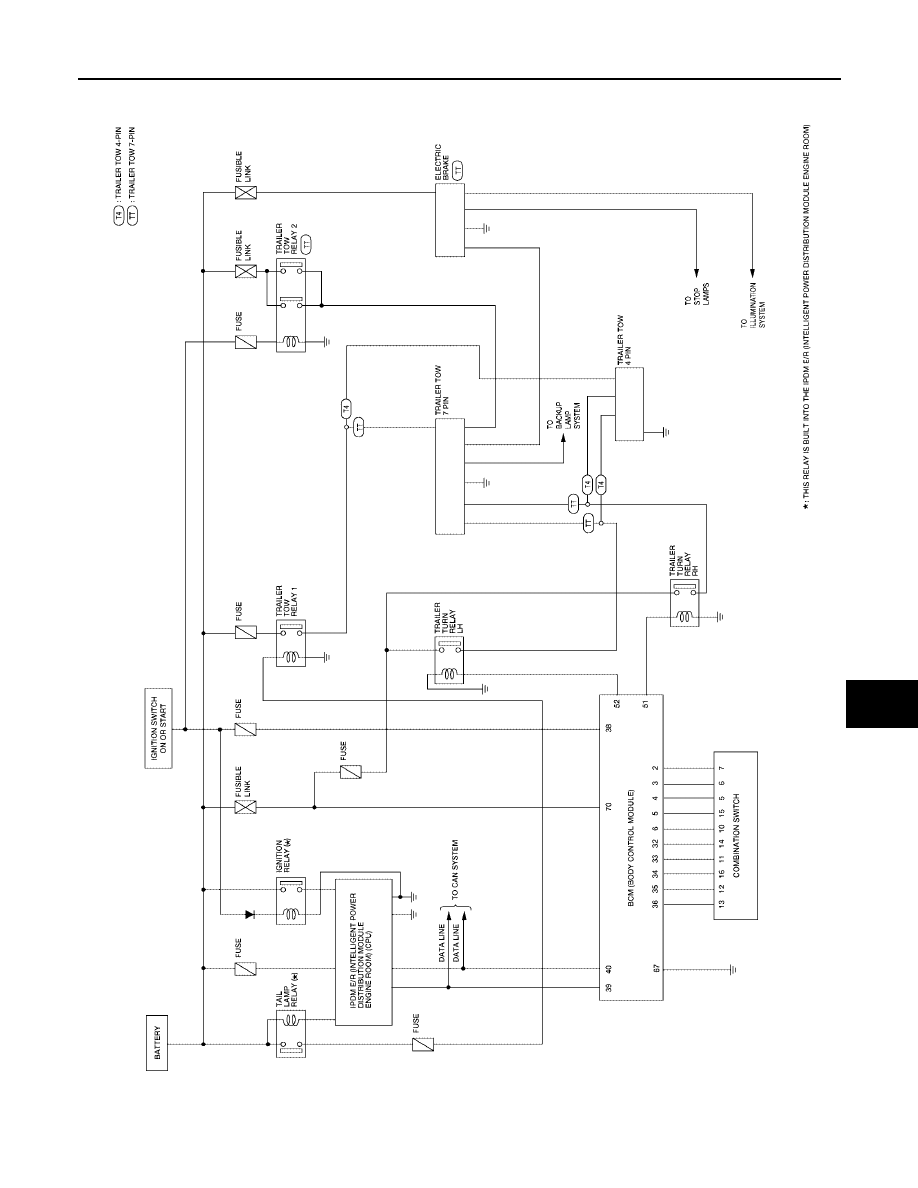

Schematic

EKS00FX6

WKWA4232E

LT-110

TRAILER TOW

2006 Pathfinder

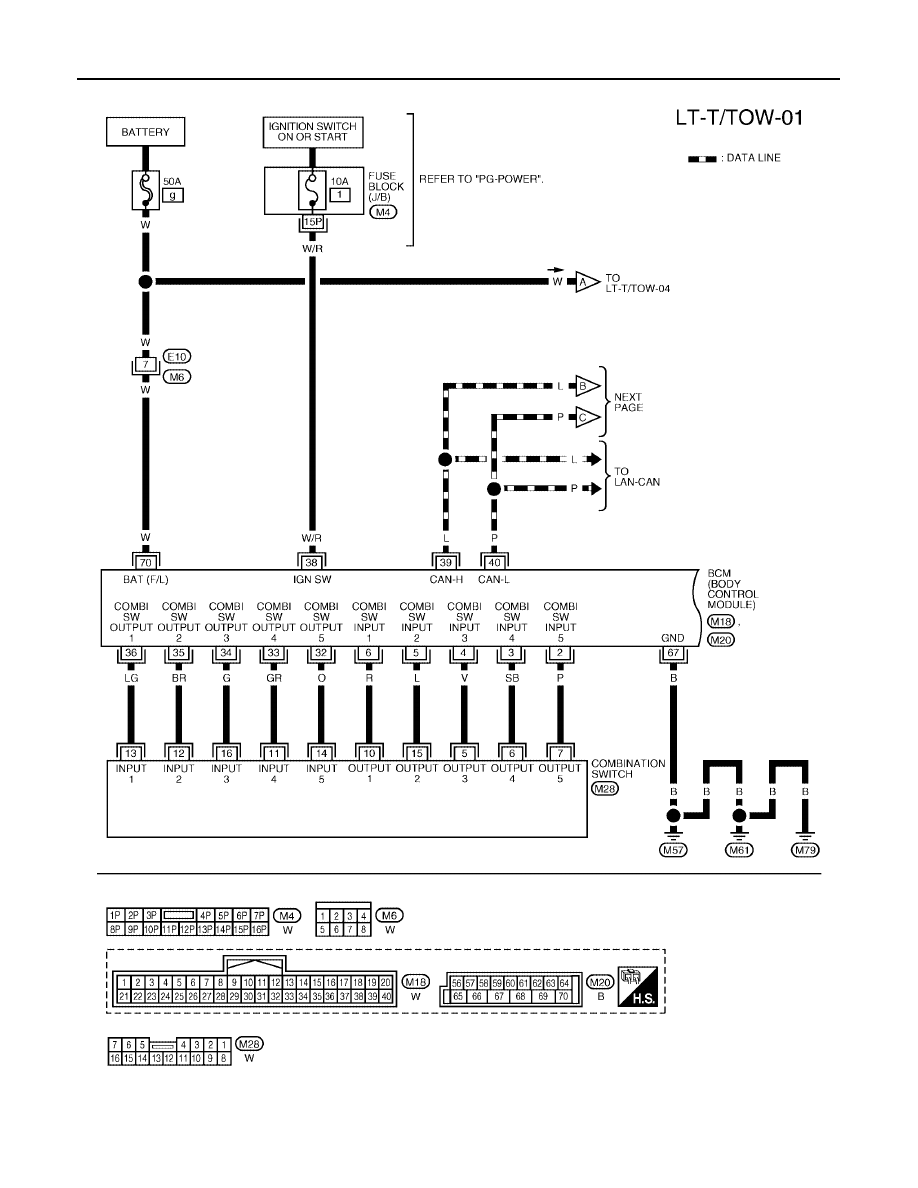

Wiring Diagram — T/TOW —

EKS00FX7

WKWA4233E

TRAILER TOW

LT-111

C

D

E

F

G

H

I

J

L

M

A

B

LT

2006 Pathfinder

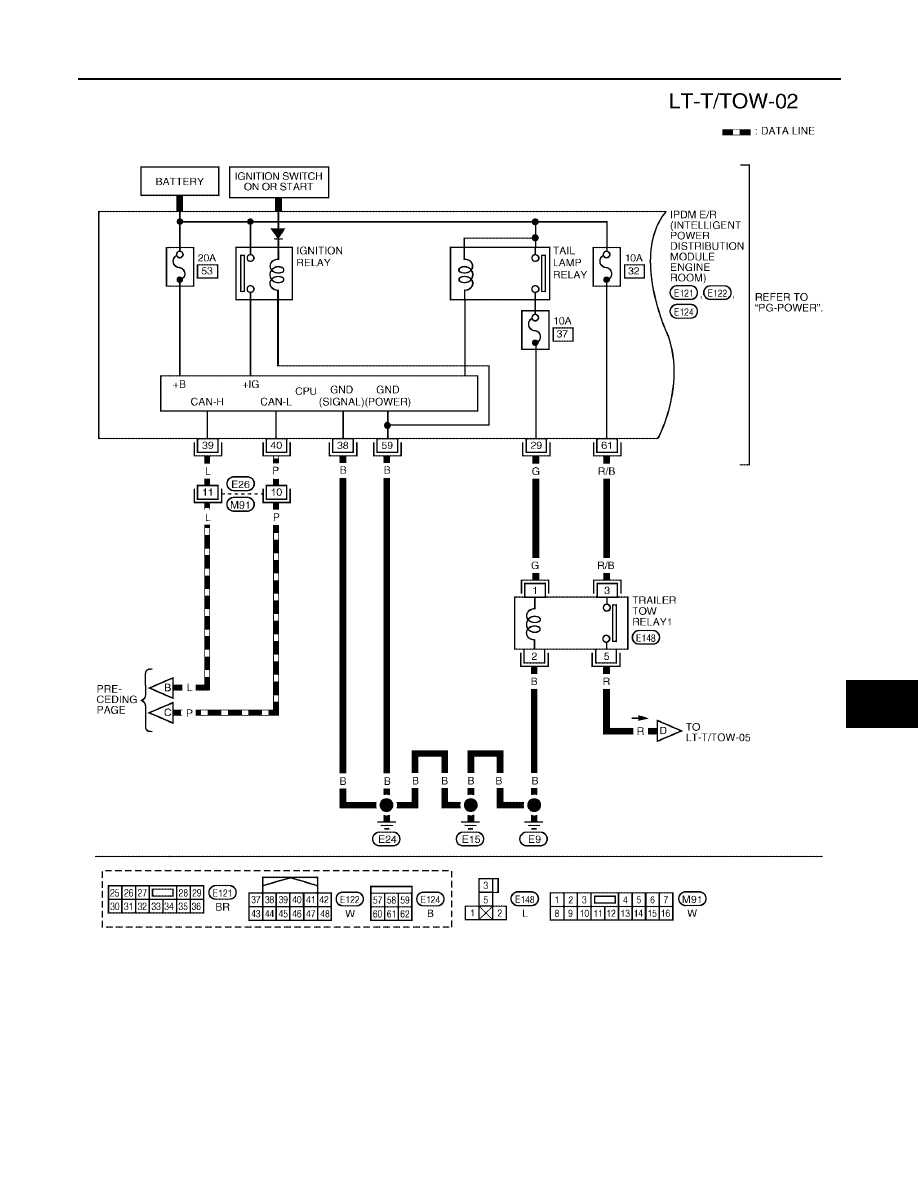

WKWA4234E

LT-112

TRAILER TOW

2006 Pathfinder

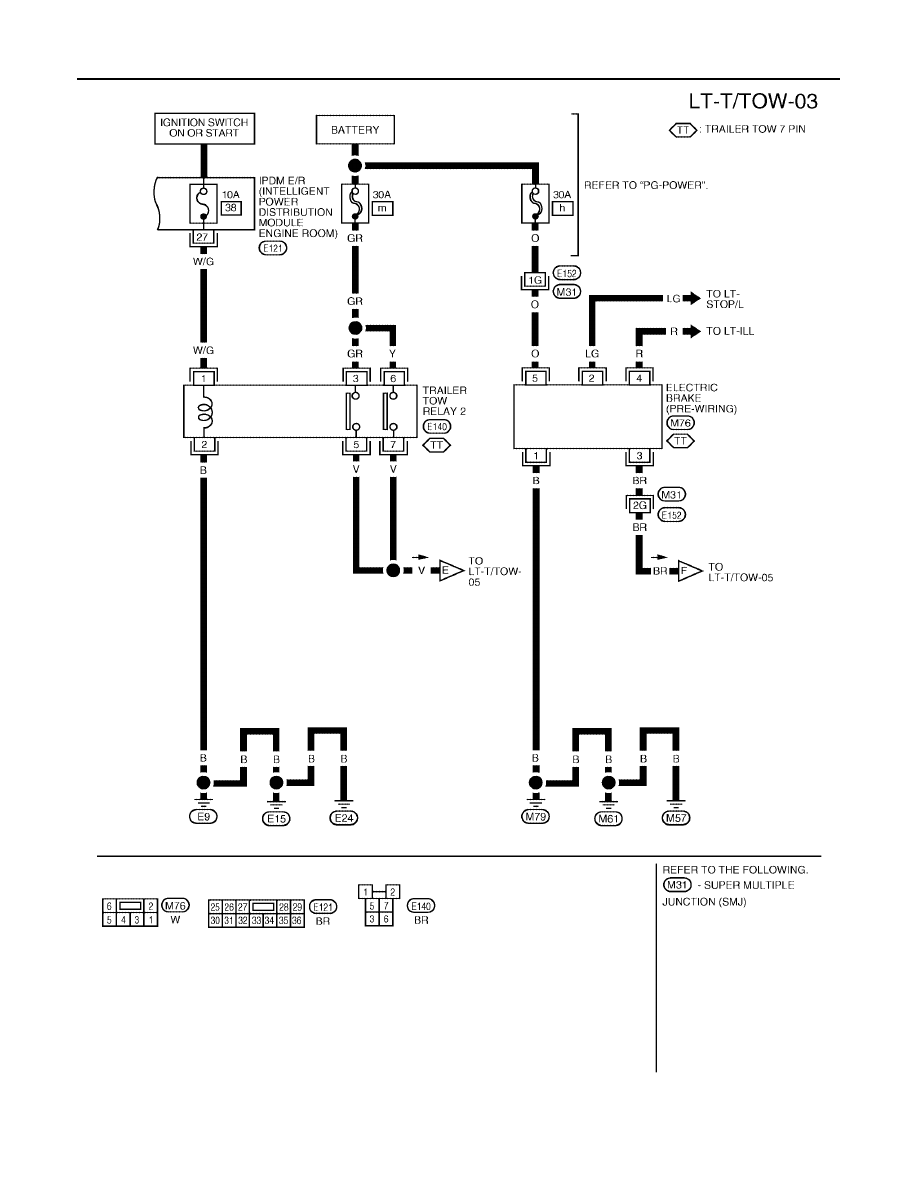

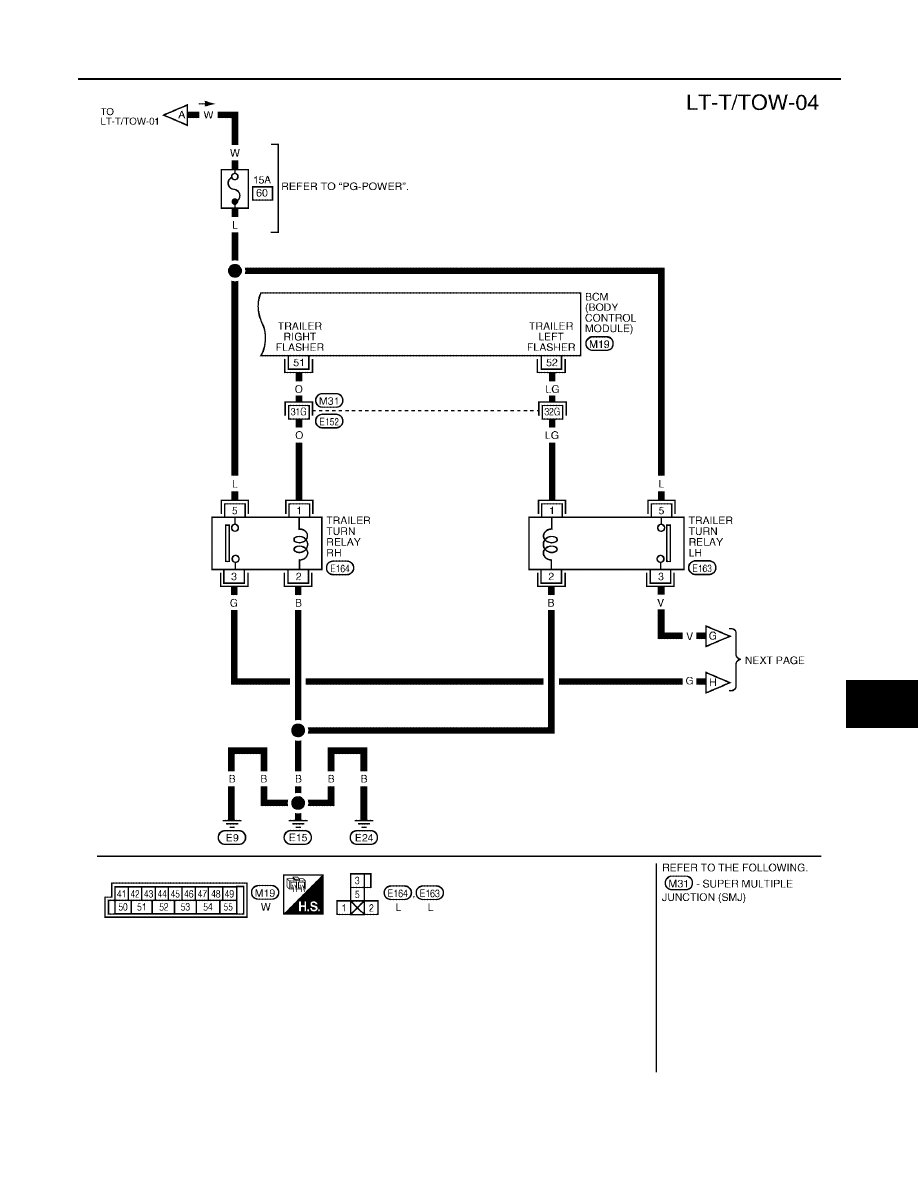

WKWA4235E

TRAILER TOW

LT-113

C

D

E

F

G

H

I

J

L

M

A

B

LT

2006 Pathfinder

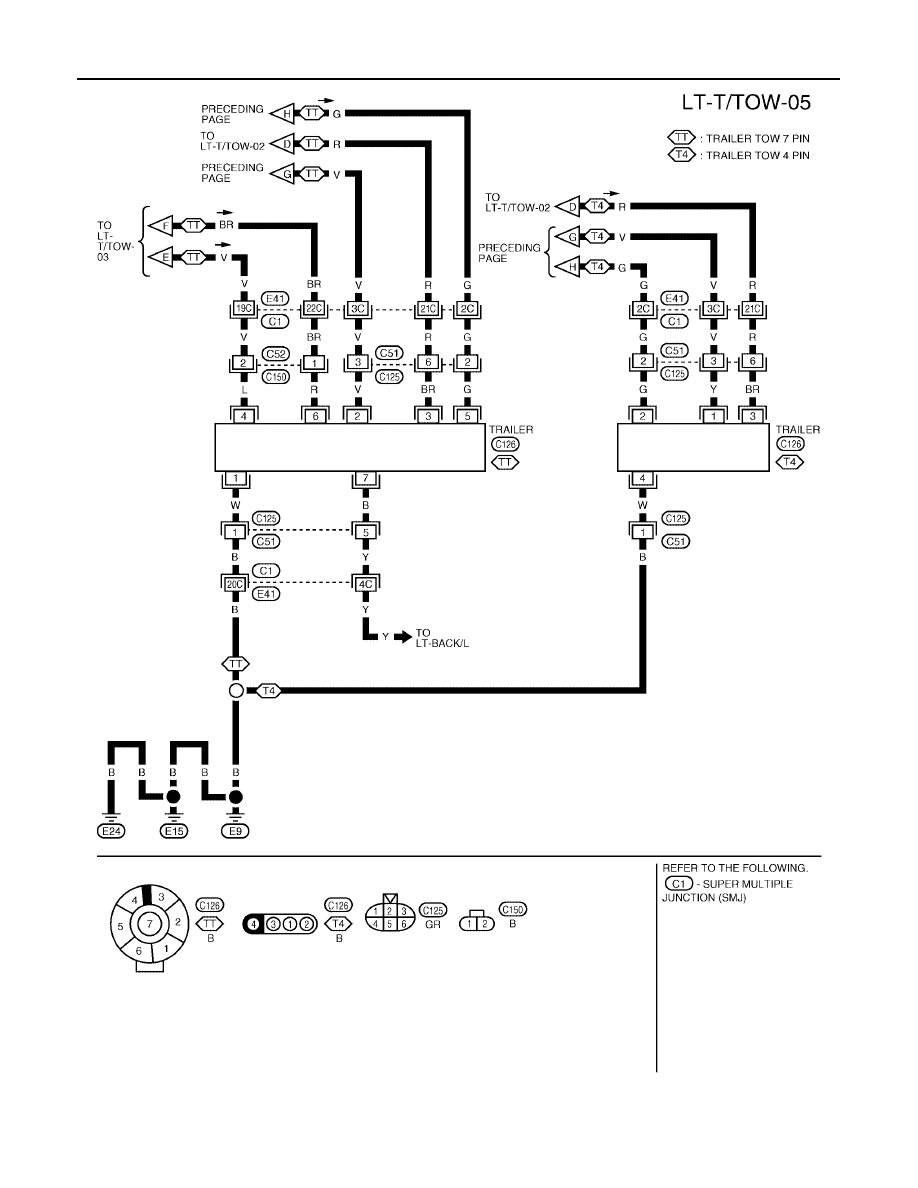

WKWA4236E

LT-114

TRAILER TOW

2006 Pathfinder

WKWA4237E
