Nissan Pathfinder (2006 year). Manual - part 317





PARKING, LICENSE PLATE AND TAIL LAMPS

LT-91

C

D

E

F

G

H

I

J

L

M

A

B

LT

2006 Pathfinder

through 10A fuse (No. 37, located in the IPDM E/R)

through IPDM E/R terminal 57

to license plate lamp LH and RH terminal 1

to rear combination lamp LH and RH (tail/side marker) terminal 1, and

through 10A fuse (No. 36, located in the IPDM E/R)

through IPDM E/R terminals 28 and 49

to front side marker lamp LH and RH terminal 1

to front parking lamp LH and RH terminal 2.

Ground is supplied

to front side marker lamp LH and RH terminal 2

to front parking lamp LH and RH terminal 3

through grounds E9, E15 and E24, and

to license plate lamp LH and RH terminal 2

through grounds D406 and D504, and

to rear combination lamp LH (tail/side marker) terminal 5

through grounds B7 and B19, and

to rear combination lamp RH (tail/side marker) terminal 5

through grounds B117 and B132.

With power and ground supplied, the parking, side marker, license plate and tail lamps illuminate.

COMBINATION SWITCH READING FUNCTION

Refer to

BCS-3, "COMBINATION SWITCH READING FUNCTION"

 .

EXTERIOR LAMP BATTERY SAVER CONTROL

When the combination switch (lighting switch) is in the 1ST (or 2ND) position, and the ignition switch is turned
from ON or ACC to OFF, the battery saver control feature is activated.
Under this condition, the parking, front side marker, license and tail lamps remain illuminated for 5 minutes,
then the parking, front side marker, license plate and tail lamps are turned off.
Exterior lamp battery saver control mode can be changed by the function setting of CONSULT-II.

CAN Communication System Description

EKS00FWQ

Refer to

LAN-25, "CAN COMMUNICATION"

 .

LT-92

PARKING, LICENSE PLATE AND TAIL LAMPS

2006 Pathfinder

Schematic

EKS00FWR

WKWA4308E

PARKING, LICENSE PLATE AND TAIL LAMPS

LT-93

C

D

E

F

G

H

I

J

L

M

A

B

LT

2006 Pathfinder

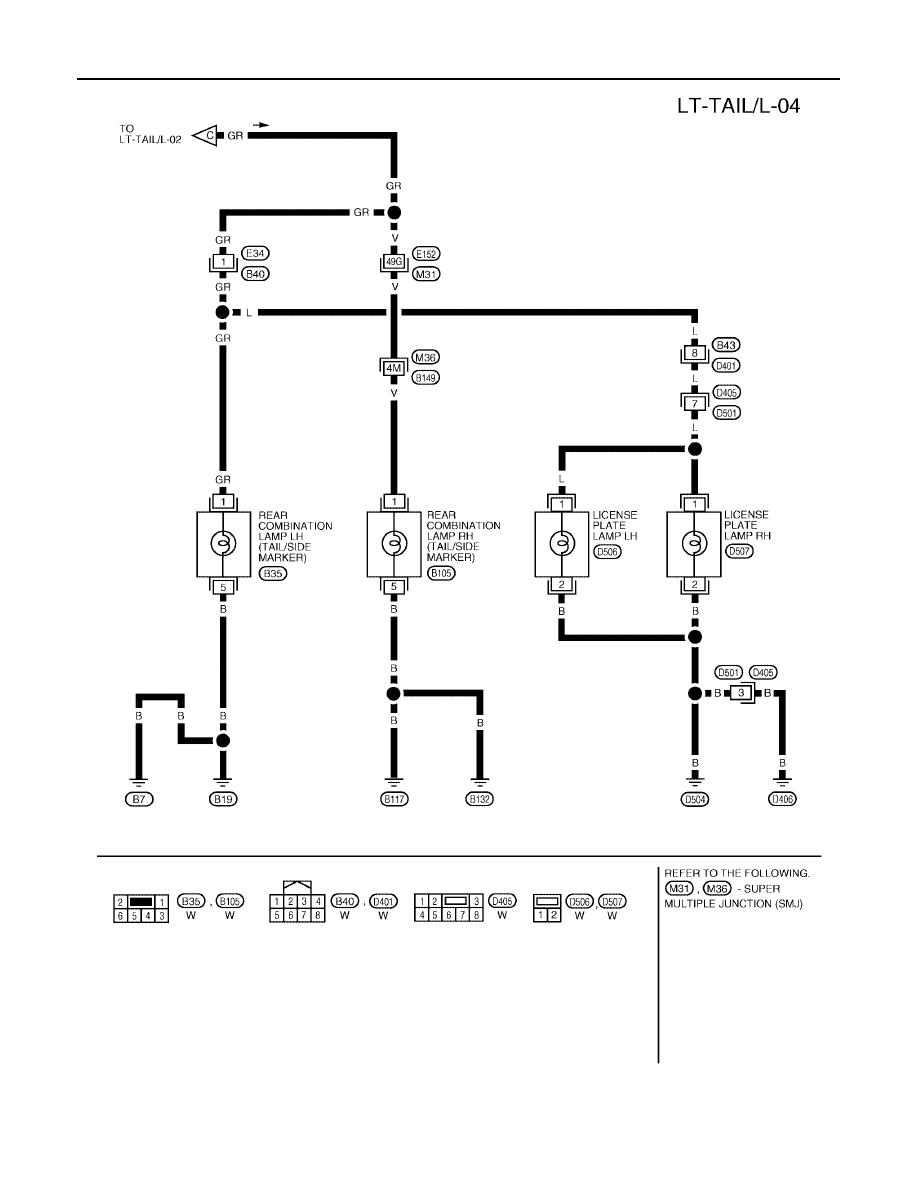

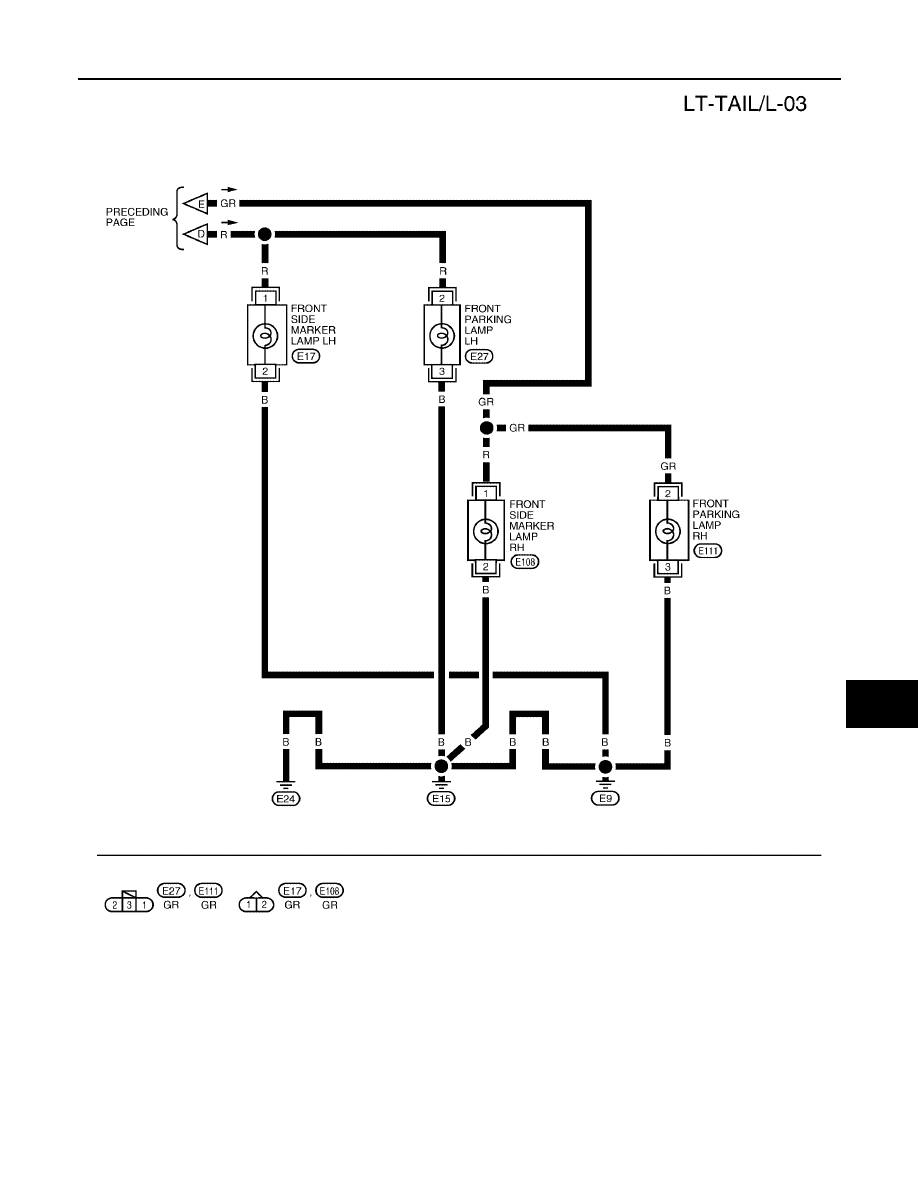

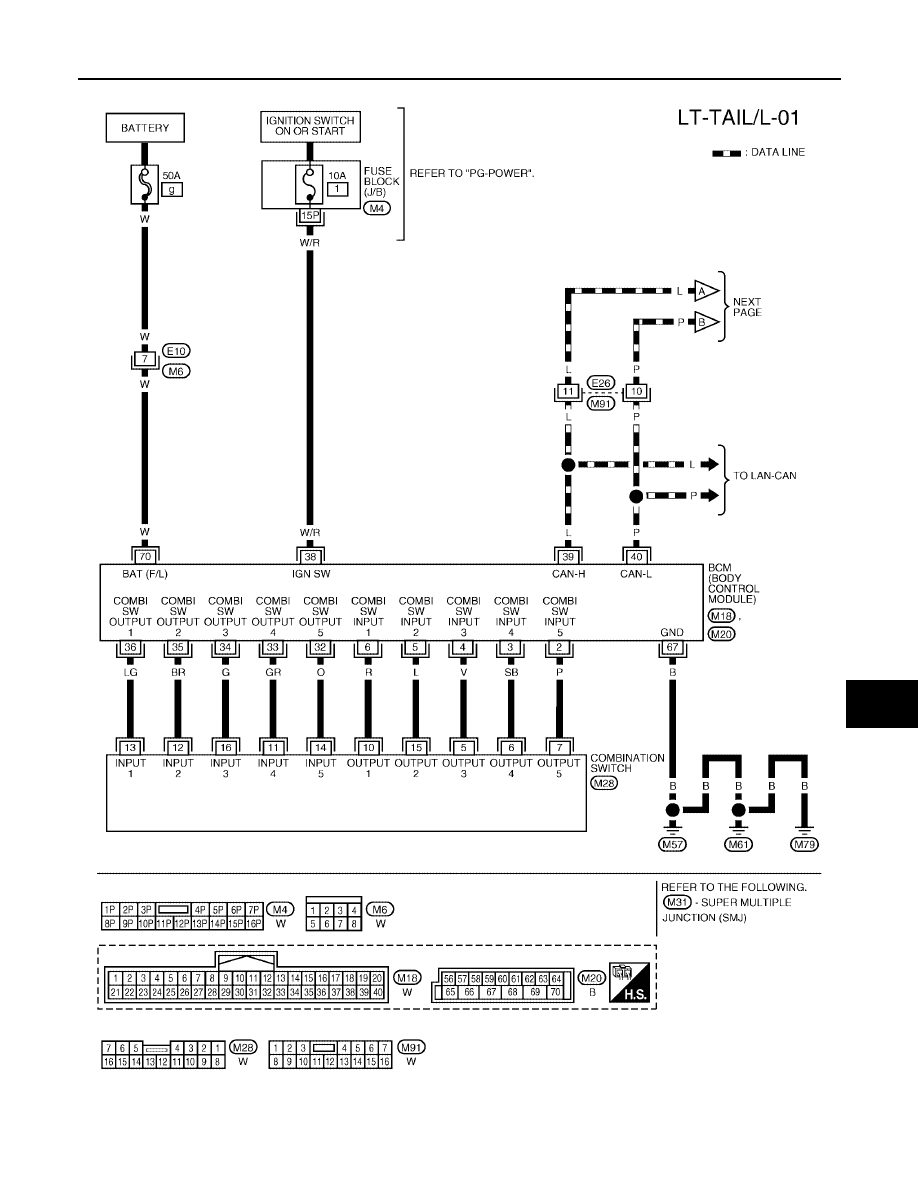

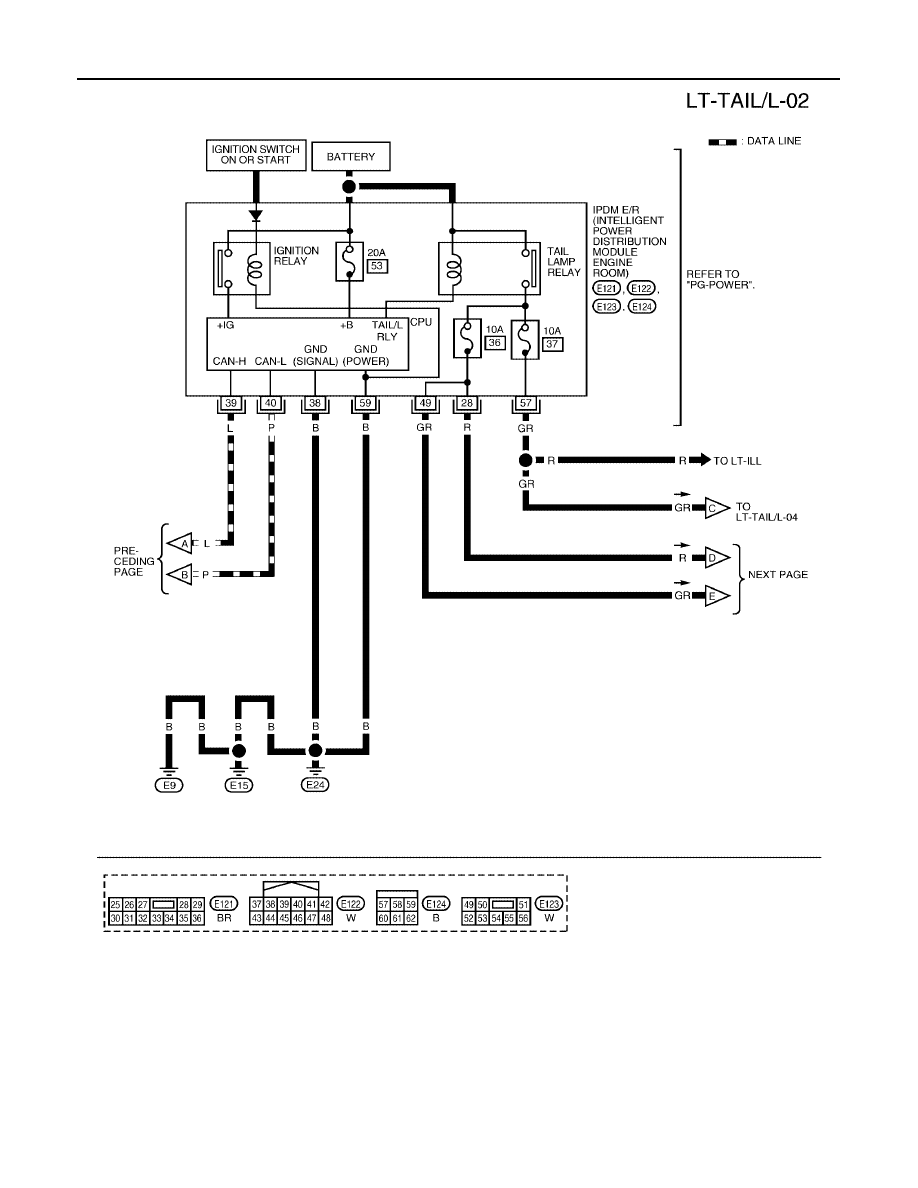

Wiring Diagram — TAIL/L —

EKS00FWS

WKWA4231E

LT-94

PARKING, LICENSE PLATE AND TAIL LAMPS

2006 Pathfinder

WKWA3087E

PARKING, LICENSE PLATE AND TAIL LAMPS

LT-95

C

D

E

F

G

H

I

J

L

M

A

B

LT

2006 Pathfinder

WKWA2039E

LT-96

PARKING, LICENSE PLATE AND TAIL LAMPS

2006 Pathfinder

WKWA4342E

PARKING, LICENSE PLATE AND TAIL LAMPS

LT-97

C

D

E

F

G

H

I

J

L

M

A

B

LT

2006 Pathfinder

Terminals and Reference Values for BCM

EKS00FWT

Refer to

BCS-12, "Terminals and Reference Values for BCM"

 .

Terminals and Reference Values for IPDM E/R

EKS00FWU

Refer to

PG-28, "Terminals and Reference Values for IPDM E/R"

 .

How to Proceed With Trouble Diagnosis

EKS00FWV

1.

Confirm the symptom or customer complaint.

2.

Understand operation description and function description. Refer to

LT-90, "System Description"

 .

3.

Carry out the Preliminary Check. Refer to

LT-97, "Preliminary Check"

 .

4.

Check symptom and repair or replace the cause of malfunction.

5.

Do the parking, front side marker, license and tail lamps operate normally? If YES: GO TO 6. If NO: GO
TO 4.

6.

Inspection End.

Preliminary Check

EKS00FWW

CHECK POWER SUPPLY AND GROUND CIRCUIT

Refer to

BCS-16, "BCM Power Supply and Ground Circuit Check"

  and

PG-30, "IPDM E/R Power/Ground Cir-

cuit Inspection"

 .

CONSULT-II Functions

EKS00FWX

Refer to

LT-12, "CONSULT-II Function (BCM)"

  in HEADLAMP (FOR USA).

Refer to

LT-15, "CONSULT-II Function (IPDM E/R)"

  in HEADLAMP (FOR USA).

Parking, Side Marker, License Plate and/or Tail Lamps Do Not Illuminate

EKS00FWY

1.

CHECK COMBINATION SWITCH INPUT SIGNAL

With CONSULT-II

Select "BCM" on CONSULT-II. With "HEAD LAMP" data monitor,
make sure "LIGHT SW 1ST" turns ON-OFF linked with operation of
lighting switch.

Without CONSULT-II

Refer to

LT-82, "Combination Switch Inspection"

 .

OK or NG

OK

>> GO TO 2.

NG

>> Check lighting switch. Refer to

LT-82, "Combination

Switch Inspection"

 .

When lighting switch is in
1ST position

: LIGHT SW 1ST   ON

SKIA5956E

LT-98

PARKING, LICENSE PLATE AND TAIL LAMPS

2006 Pathfinder

2.

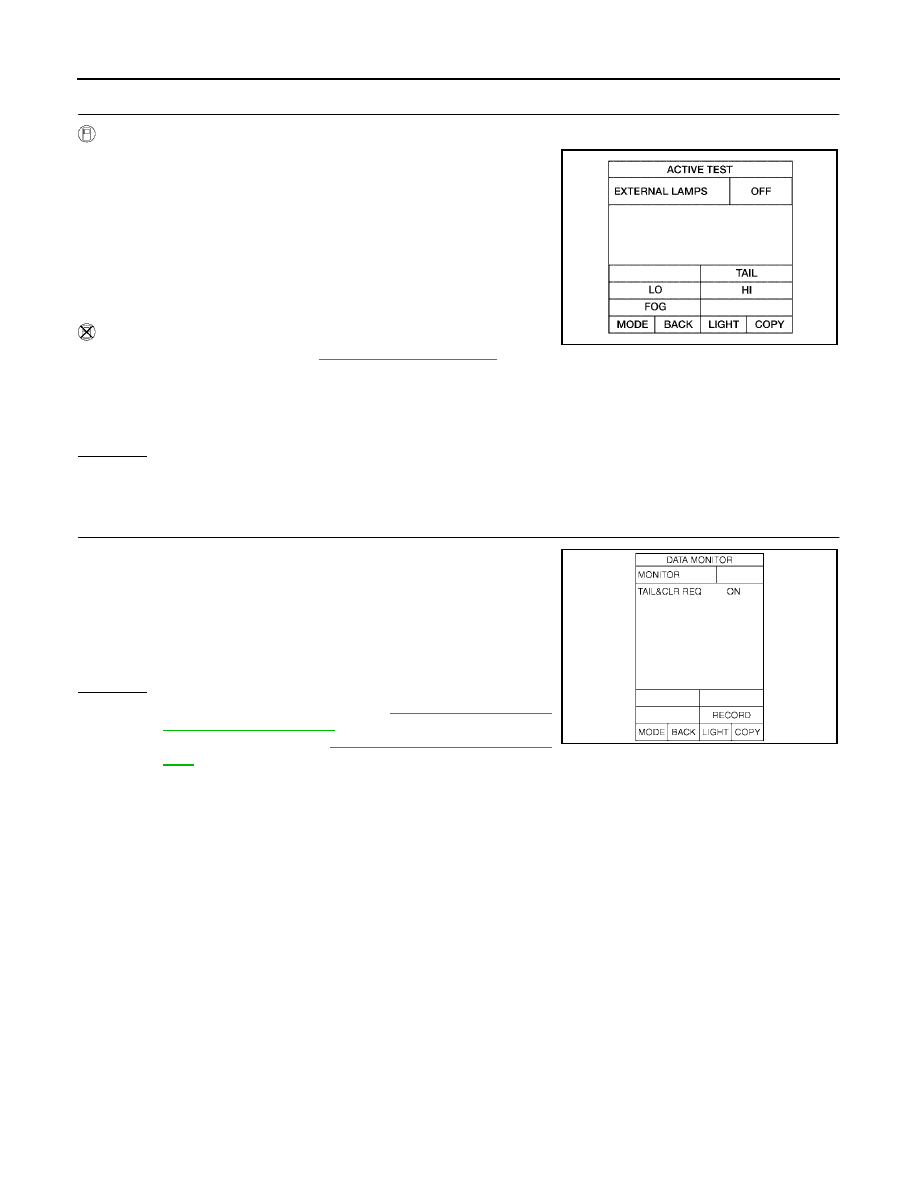

ACTIVE TEST

With CONSULT-II

1.

Select "IPDM E/R" on CONSULT-II, and select "ACTIVE TEST"
on "SELECT DIAG MODE" screen.

2.

Select "EXTERNAL LAMPS" on "SELECT TEST ITEM" screen.

3.

Touch "TAIL" on "ACTIVE TEST" screen.

4.

Make sure parking, front side marker, license plate and tail lamp
operation.

Without CONSULT-II

1.

Start auto active test. Refer to

PG-24, "Auto Active Test"

 .

2.

Make sure parking, front side marker, license plate and tail lamp operation.

OK or NG

OK

>> GO TO 3.

NG

>> GO TO 4.

3.

CHECK IPDM E/R

1.

Select "IPDM E/R" on CONSULT-II, and select "DATA MONI-
TOR" on "SELECT DIAG MODE" screen.

2.

Make sure "TAIL&CLR REQ" turns ON when lighting switch is in
1ST position.

OK or NG

OK

>> Replace IPDM E/R. Refer to

PG-32, "Removal and

Installation of IPDM E/R"

 .

NG

>> Replace BCM. Refer to

BCS-27, "Removal and Installa-

tion"

 .

Parking, front side marker, license plate and tail
lamp should operate

Parking, front side marker, license plate and tail
lamp should operate

WKIA1438E

When lighting switch is in
1ST position

: TAIL&CLR REQ ON

SKIA5958E
