TURN SIGNAL AND HAZARD WARNING LAMPS

LT-75

C

D

E

F

G

H

I

J

L

M

A

B

LT

2006 Pathfinder

5.

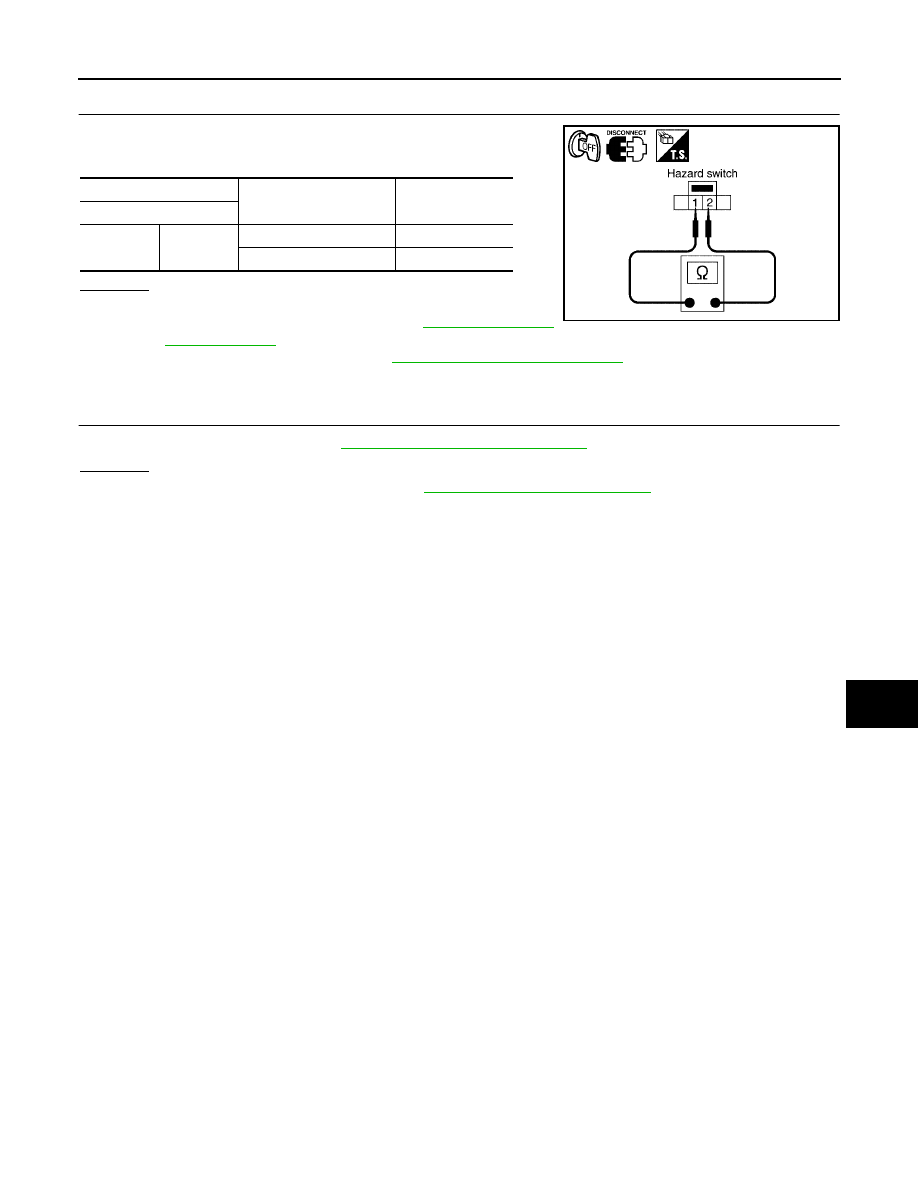

CHECK HAZARD SWITCH

1.

Disconnect hazard switch connector.

2.

Check continuity of hazard switch.

OK or NG

OK

>> Replace BCM if hazard warning lamps do not work after

setting the connector again. Refer to

BCS-27, "Removal

and Installation"

 .

NG

>> Replace hazard switch. Refer to

LT-78, "Removal and Installation"

 .

Turn Signal Indicator Lamp Does Not Operate

EKS00FW4

1.

CHECK CAN COMMUNICATION SYSTEM

Check CAN communication. Refer to

LAN-25, "CAN COMMUNICATION"

 .

OK or NG

OK

>> Replace combination meter. Refer to

IP-14, "COMBINATION METER"

 .

NG

>> Repair as necessary.

Hazard switch

Condition

Continuity

Terminal

2

1

Hazard switch is ON

Yes

Hazard switch is OFF

No

PKIA4601E

LT-76

TURN SIGNAL AND HAZARD WARNING LAMPS

2006 Pathfinder

Bulb Replacement

EKS00FW5

FRONT TURN SIGNAL LAMP

Refer to

LT-27, "FRONT TURN SIGNAL/PARKING LAMP"

 .

REAR TURN SIGNAL LAMP

Refer to

LT-105, "Bulb Replacement"

 .

Removal and Installation

EKS00FW7

FRONT TURN SIGNAL LAMP

Refer to

LT-27, "Removal and Installation"

 .

REAR TURN SIGNAL LAMP

Refer to

LT-105, "Removal and Installation"

 .

LIGHTING AND TURN SIGNAL SWITCH

LT-77

C

D

E

F

G

H

I

J

L

M

A

B

LT

2006 Pathfinder

LIGHTING AND TURN SIGNAL SWITCH

PFP:25540

Removal and Installation

EKS00FW9

REMOVAL

1.

Remove instrument lower cover LH. Refer to

IP-14, "LOWER INSTRUMENT PANEL LH"

 .

2.

Remove steering column cover.

3.

Disconnect the lighting and turn signal switch connector.

4.

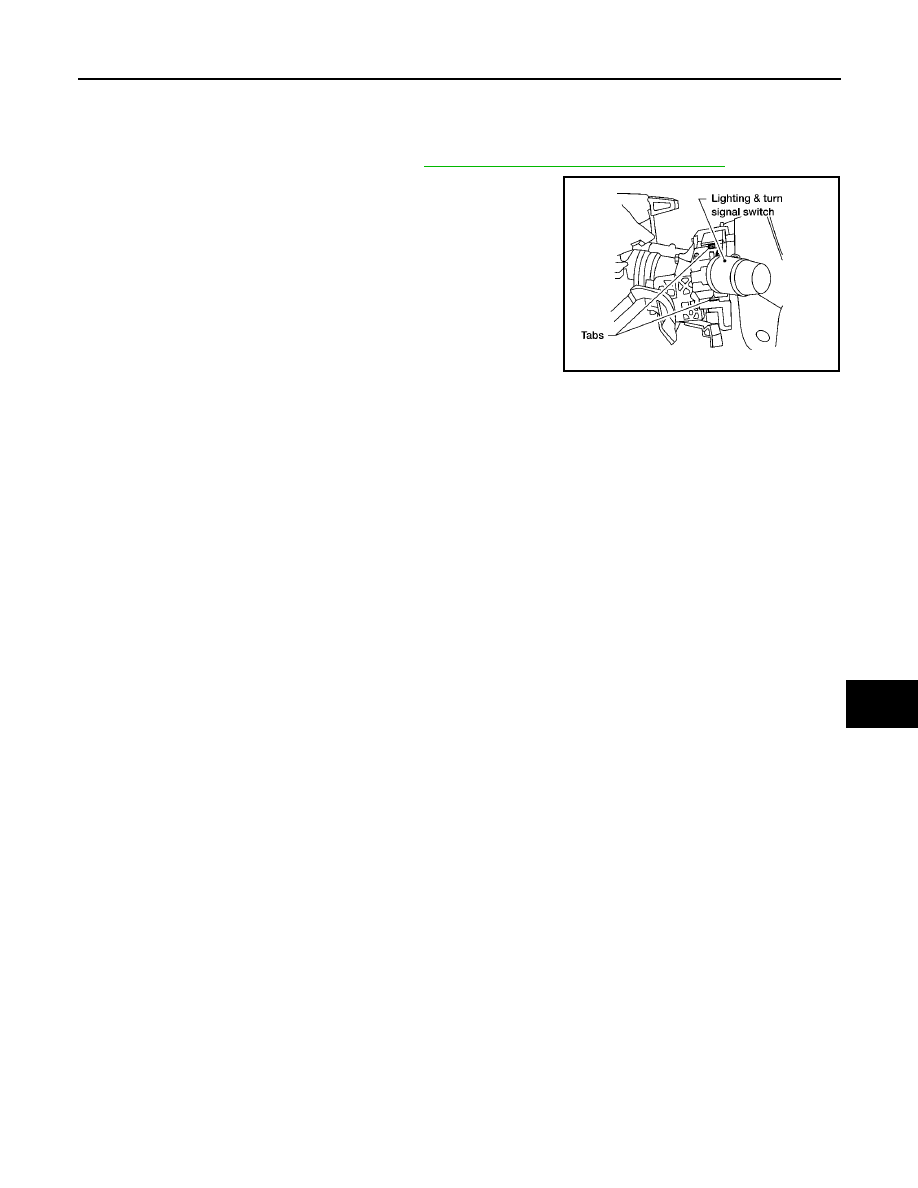

While pressing tabs, pull lighting and turn signal switch toward
driver door and release from the steering column.

INSTALLATION

Installation is in the reverse order of removal.

LKIA0013E

LT-78

HAZARD SWITCH

2006 Pathfinder

HAZARD SWITCH

PFP:25290

Removal and Installation

EKS00FWA

REMOVAL

1.

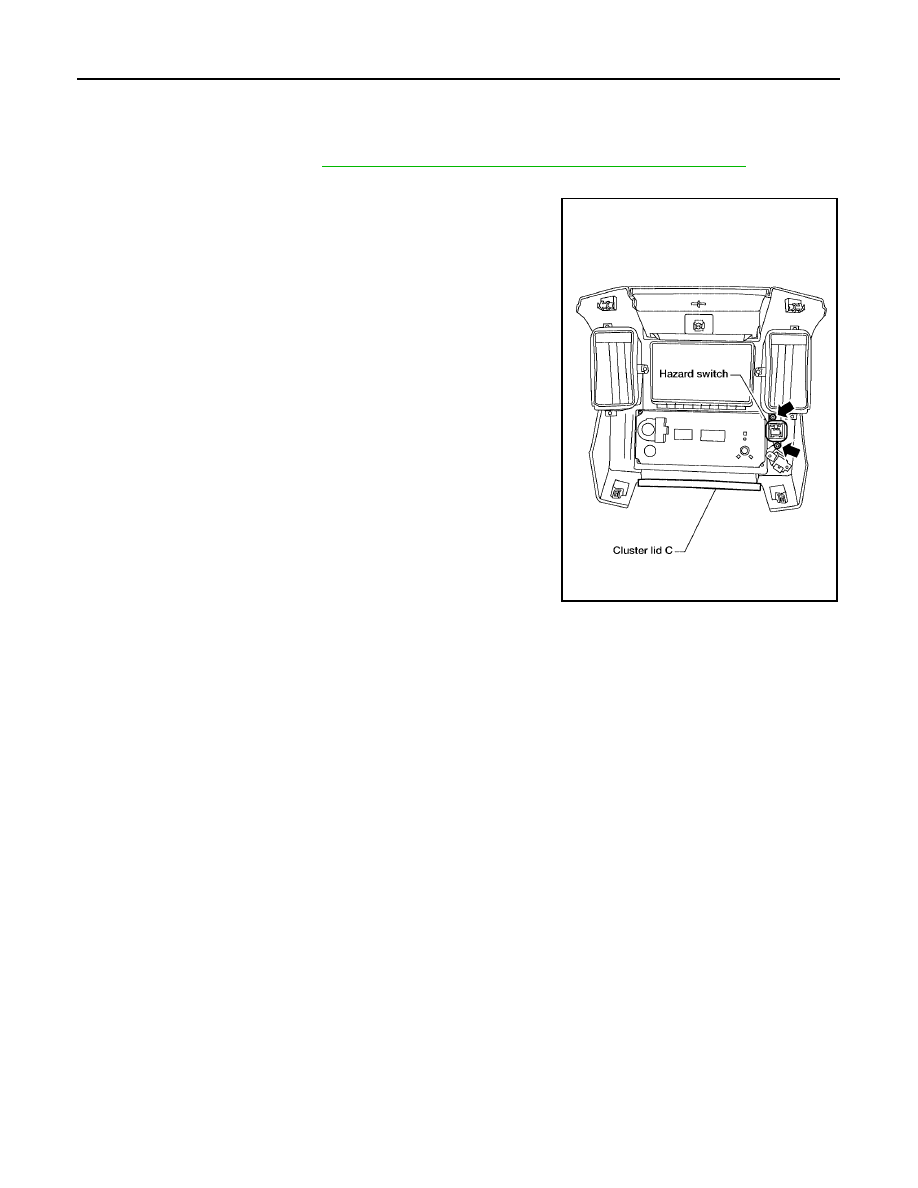

Remove cluster lid C. Refer to

IP-11, "CLUSTER LID C -WITHOUT NAVIGATION SYSTEM"

 .

2.

Disconnect the hazard switch connector.

3.

Remove the screws and remove the hazard switch.

INSTALLATION

Installation is in the reverse order of removal.

LKIA0575E

COMBINATION SWITCH

LT-79

C

D

E

F

G

H

I

J

L

M

A

B

LT

2006 Pathfinder

COMBINATION SWITCH

PFP:25567

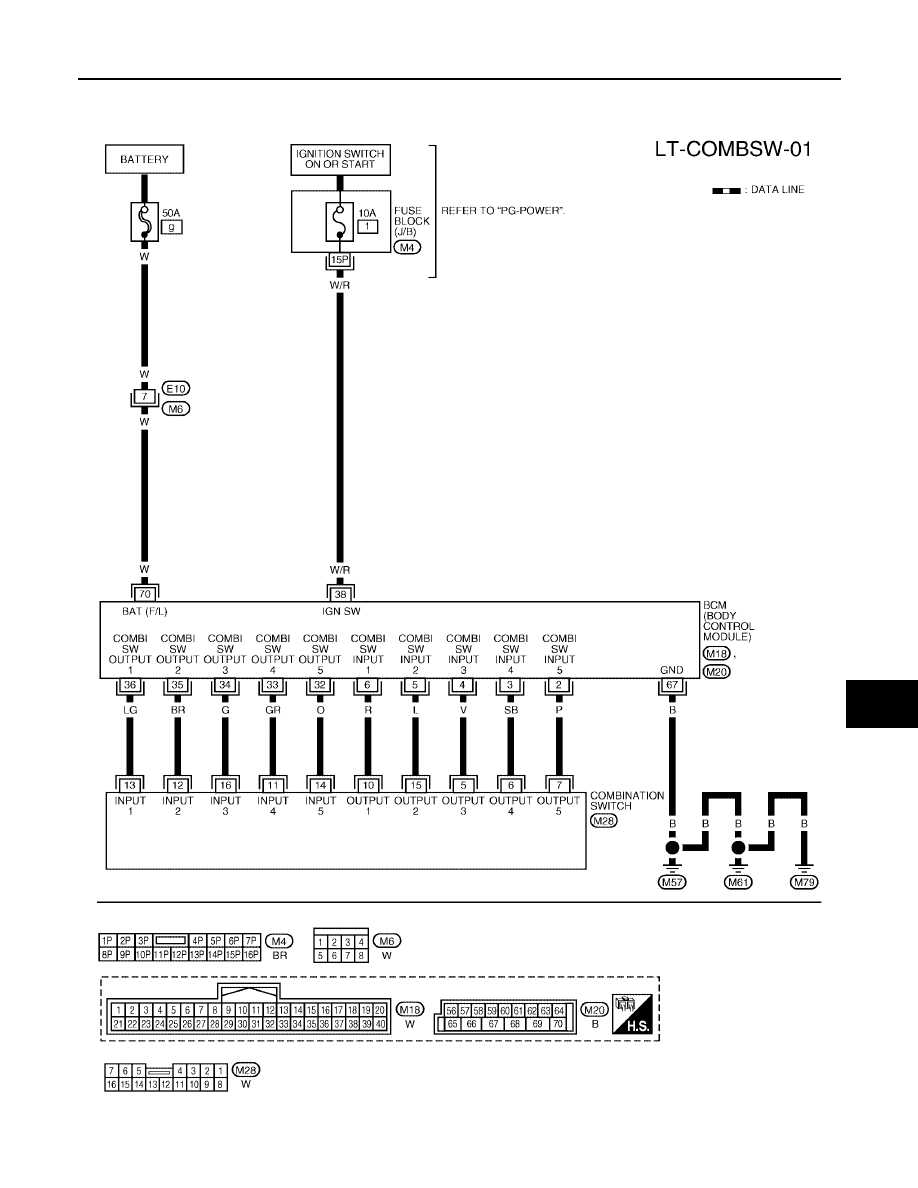

Wiring Diagram — COMBSW —

EKS00FWB

WKWA4229E

LT-80

COMBINATION SWITCH

2006 Pathfinder

Combination Switch Reading Function

EKS00FWC

For details, refer to

BCS-3, "COMBINATION SWITCH READING FUNCTION"

 .

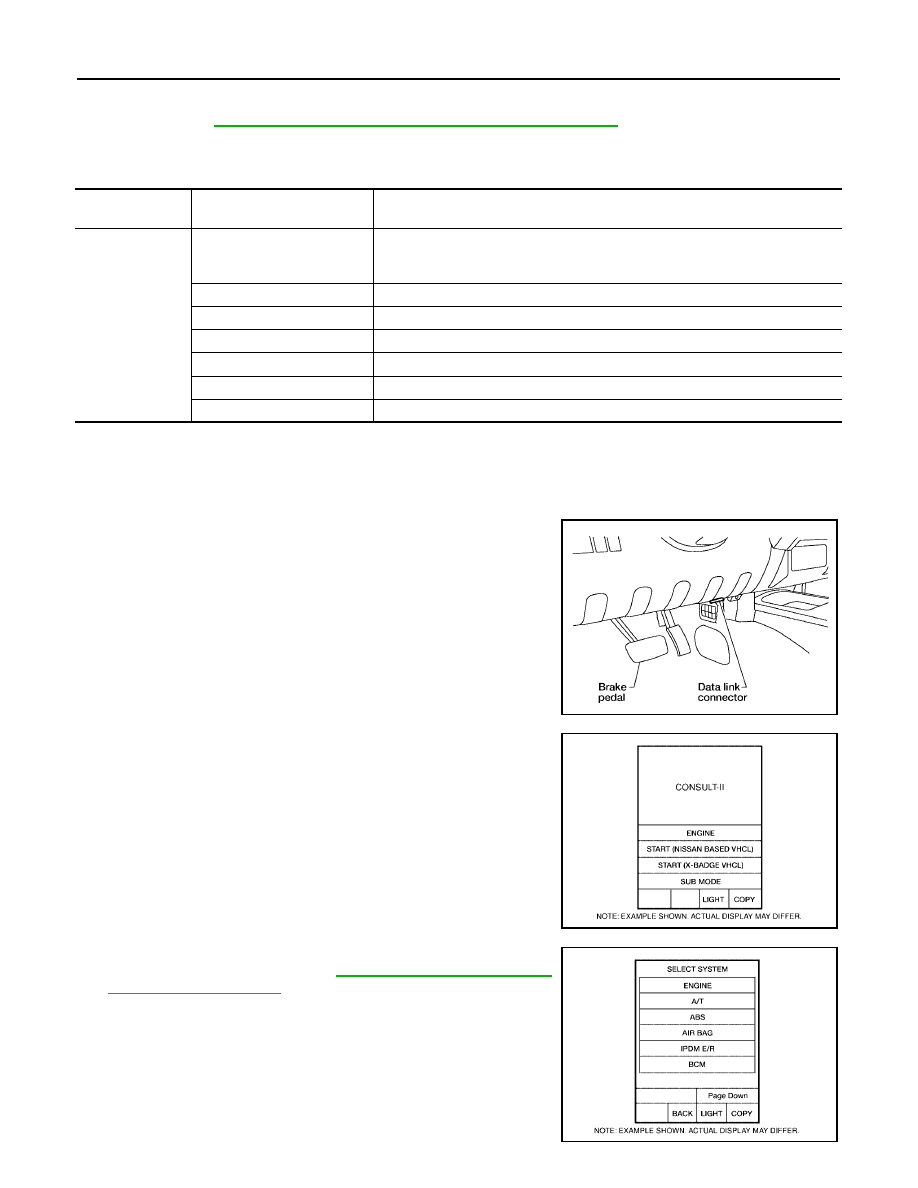

CONSULT-II Function (BCM)

EKS00FWD

CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.

CONSULT-II OPERATION

CAUTION:

If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.

1.

With the ignition switch OFF, connect CONSULT-II and CON-
SULT-II CONVERTER to the data link connector, then turn igni-
tion switch ON.

2.

Touch "START (NISSAN BASED VHCL)".

3.

Touch "BCM" on "SELECT SYSTEM" screen.
If "BCM" is not indicated, go to

GI-40, "CONSULT-II Data Link

Connector (DLC) Circuit"

 .

BCM diagnostic

test item

Diagnostic mode

Description

Inspection by part

WORK SUPPORT

Supports inspections and adjustments. Commands are transmitted to the BCM
for setting the status suitable for required operation, input/output signals are
received from the BCM and received data is displayed.

DATA MONITOR

Displays BCM input/output data in real time.

ACTIVE TEST

Operation of electrical loads can be checked by sending drive signal to them.

SELF-DIAG RESULTS

Displays BCM self-diagnosis results.

CAN DIAG SUPPORT MNTR

The result of transmit/receive diagnosis of CAN communication can be read.

ECU PART NUMBER

BCM part number can be read.

CONFIGURATION

Performs BCM configuration read/write functions.

BBIA0538E

BCIA0029E

BCIA0030E

COMBINATION SWITCH

LT-81

C

D

E

F

G

H

I

J

L

M

A

B

LT

2006 Pathfinder

4.

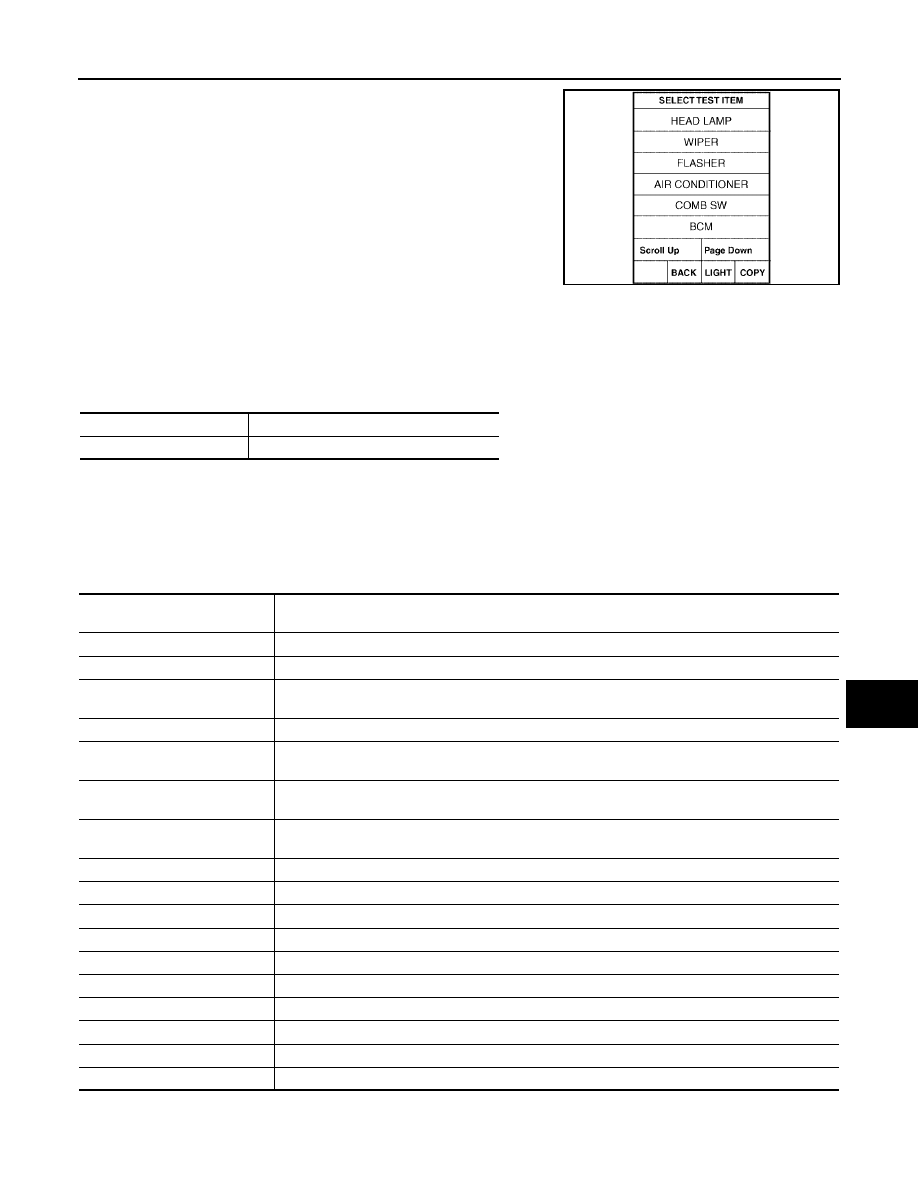

Touch "COMB SW" on "SELECT TEST ITEM" screen.

DATA MONITOR
Operation Procedure

1.

Touch "COMB SW" on "SELECT TEST ITEM" screen.

2.

Touch "DATA MONITOR" on "SELECT DIAG MODE" screen.

3.

Touch either "ALL SIGNALS" or "SELECTION FROM MENU" on "SELECT MONITOR ITEM" screen.

4.

Touch "START".

5.

When "SELECTION FROM MENU" is selected, touch items to be monitored. When "ALL SIGNALS" is
selected, all the signals will be monitored.

6.

Touch "RECORD" while monitoring, then the status of the monitored item can be recorded. To stop
recording, touch "STOP".

Display Item List

LKIA0183E

ALL SIGNALS

Monitors all the signals.

SELECTION FROM MENU

Selects and monitors individual signal.

Monitor item name

 "OPERATION OR UNIT"

Contents

TURN SIGNAL R

"ON/OFF"

Displays "Turn Right (ON)/Other (OFF)" status, determined from lighting switch signal.

TURN SIGNAL L

"ON/OFF"

Displays "Turn Left (ON)/Other (OFF)" status, determined from lighting switch signal.

HI BEAM SW

"ON/OFF"

Displays status (high beam switch: ON/Others: OFF) of high beam switch judged from lighting
switch signal.

HEAD LAMP SW 1

"ON/OFF"

Displays "Headlamp switch 1 (ON)/Other (OFF)" status, determined from lighting switch signal.

HEAD LAMP SW 2

"ON/OFF"

Displays status (headlamp switch 2: ON/Others: OFF) of headlamp switch 2 judged from lighting
switch signal.

LIGHT SW 1ST

"ON/OFF"

Displays status (lighting switch 1st position: ON/Others: OFF) of lighting switch judged from lighting
switch signal.

PASSING SW

"ON/OFF"

Displays status (flash-to-pass switch: ON/Others: OFF) of flash-to-pass switch judged from lighting
switch signal.

AUTO LIGHT SW

"ON/OFF"

Displays "Auto light switch (ON)/Other (OFF)" status, determined from lighting switch signal.

FR FOG SW

"ON/OFF"

Displays "Front fog lamp switch (ON)/Other (OFF)" status, determined from lighting switch signal.

FR WIPER HI

"ON/OFF"

Displays "Front Wiper HI (ON)/Other (OFF)" status, determined from wiper switch signal.

FR WIPER LOW

"ON/OFF"

Displays "Front Wiper LOW (ON)/Other (OFF)" status, determined from wiper switch signal.

FR WIPER INT

"ON/OFF"

Displays "Front Wiper INT (ON)/Other (OFF)" status, determined from wiper switch signal.

FR WASHER SW

"ON/OFF"

Displays "Front Washer Switch (ON)/Other (OFF)" status, determined from wiper switch signal.

INT VOLUME

[1 - 7]

Displays intermittent operation knob setting (1 - 7), determined from wiper switch signal.

RR WIPER ON

"ON/OFF"

Displays "Rear Wiper (ON)/(OFF)" status, determined from wiper switch signal.

RR WIPER INT

"ON/OFF"

Displays "Rear Wiper INT (ON)/(OFF)" status, determined from wiper switch signal.

RR WASHER SW

"ON/OFF"  Displays "Rear Washer (ON)/(OFF)" status, determined from wiper switch signal.

LT-82

COMBINATION SWITCH

2006 Pathfinder

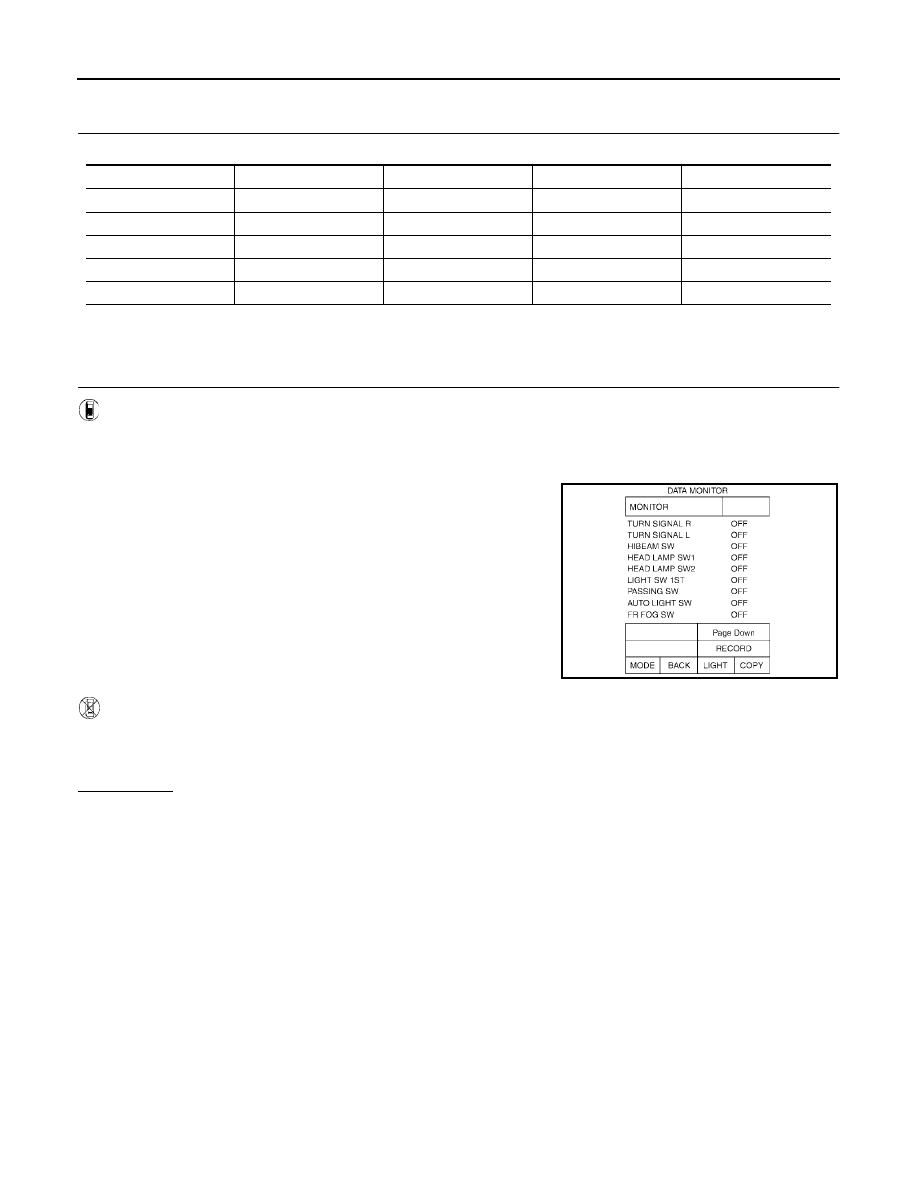

Combination Switch Inspection

EKS00FWE

1.

SYSTEM CHECK

Referring to table below, check to which system the malfunctioning switch belongs.

>> GO TO 2.

2.

SYSTEM CHECK

With CONSULT-II

CAUTION:

If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.

1.

Connect CONSULT-II, and select "COMB SW" on "SELECT
TEST ITEM" screen.

2.

Select "DATA MONITOR".

3.

Select "START", and confirm that other switches in malfunction-
ing system operate normally.
Example: When auto light switch is malfunctioning, confirm that
"FRONT WIPER LOW" and "FRONT WIPER INT" in System 3,
to which the auto light switch belongs, turn ON-OFF normally.

Without CONSULT-II

Operate combination switch, and confirm that other switches in malfunctioning system operate normally.
Example: When auto light switch is malfunctioning, confirm that "FRONT WIPER LOW" and "FRONT WIPER
INT" in System 3, to which the auto light switch belongs, operate normally.

Check results

Other switches in malfunctioning system operate normally.>>Replace lighting switch or wiper switch.
Other switches in malfunctioning system do not operate normally.>>GO TO 3.

System  1

System  2

System  3

System  4

System  5

—

FR WASHER

FR WIPER LO

TURN LH

TURN RH

FR WIPER HI

—

FR WIPER INT

PASSING

HEAD LAMP1

INT VOLUME 1

RR WASHER

—

HEAD LAMP2

HI BEAM

RR WIPER INT

INT VOLUME 3

AUTO LIGHT

—

TAIL LAMP

INT VOLUME 2

RR WIPER ON

—

FR FOG

—

SKIA7075E
