Nissan Pathfinder (2006 year). Manual - part 314





TURN SIGNAL AND HAZARD WARNING LAMPS

LT-67

C

D

E

F

G

H

I

J

L

M

A

B

LT

2006 Pathfinder

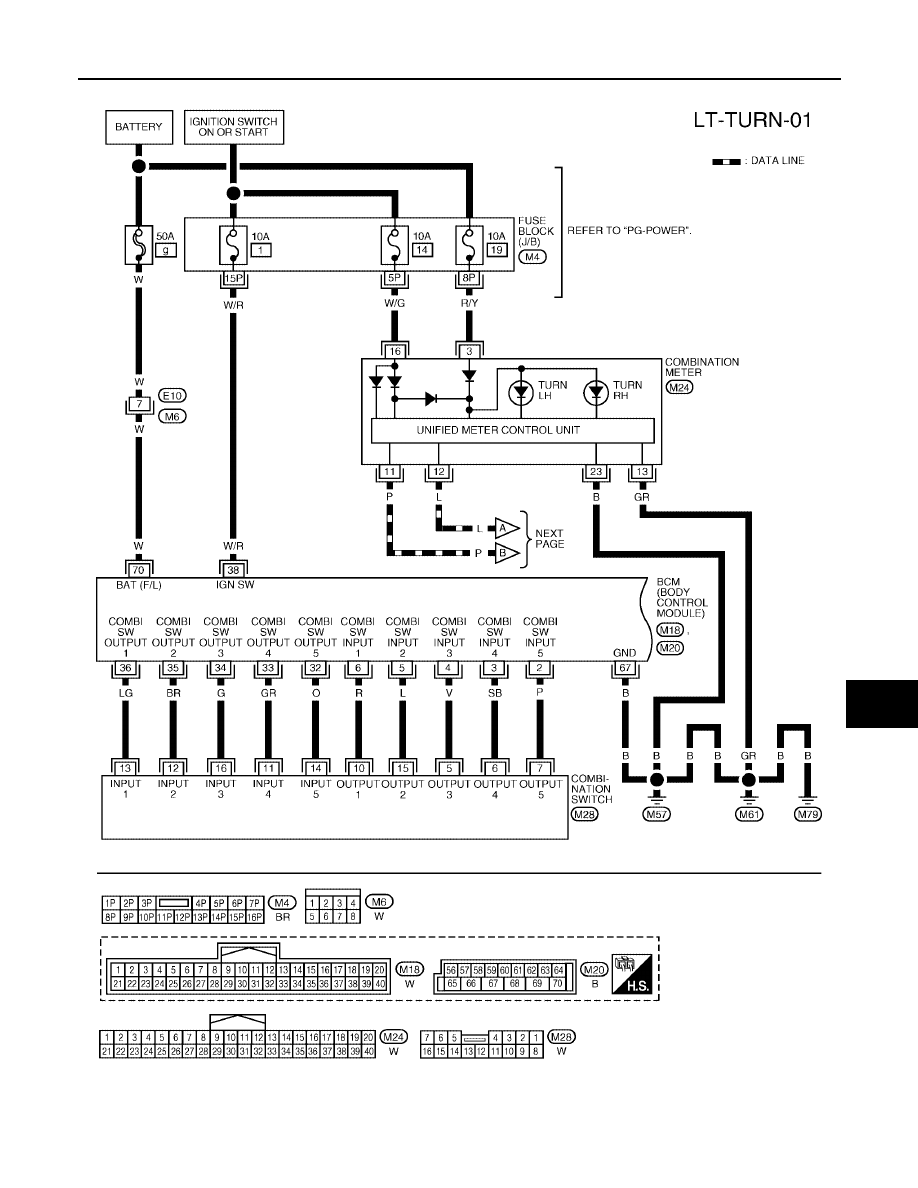

Wiring Diagram — TURN —

EKS00FVW

WKWA4228E

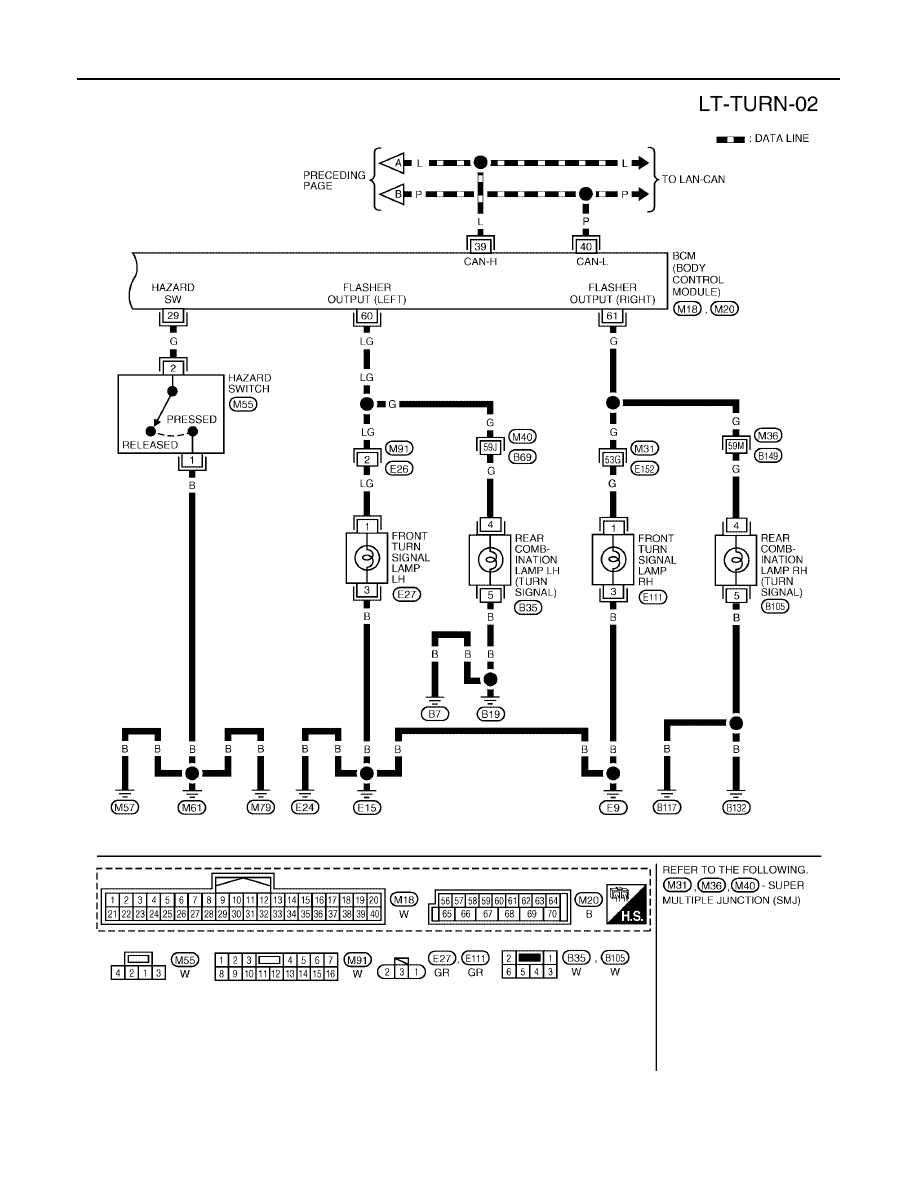

LT-68

TURN SIGNAL AND HAZARD WARNING LAMPS

2006 Pathfinder

WKWA4307E

TURN SIGNAL AND HAZARD WARNING LAMPS

LT-69

C

D

E

F

G

H

I

J

L

M

A

B

LT

2006 Pathfinder

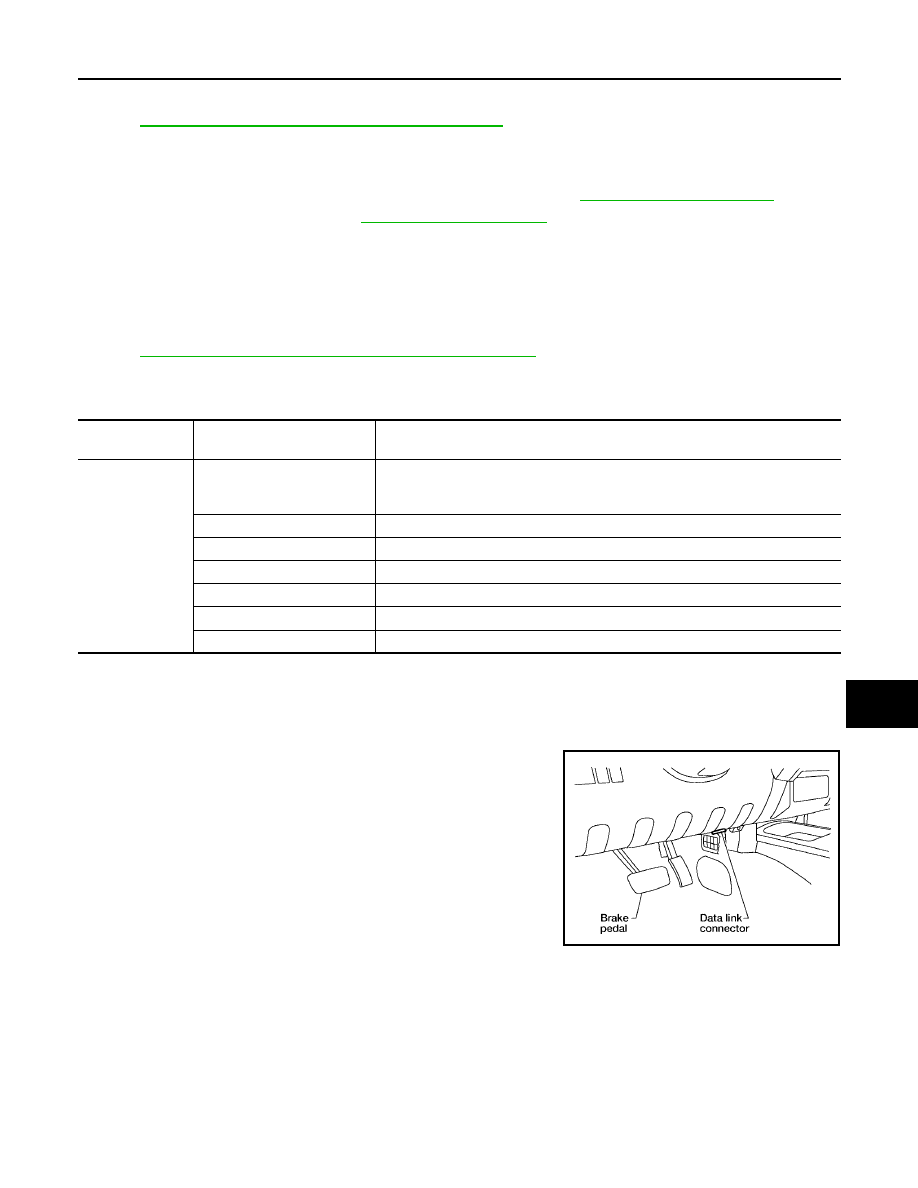

Terminals and Reference Values for BCM

EKS00FVX

Refer to

BCS-12, "Terminals and Reference Values for BCM"

 .

How to Proceed With Trouble Diagnosis

EKS00FVY

1.

Confirm the symptom or customer complaint.

2.

Understand operation description and function description. Refer to

LT-64, "System Description"

 .

3.

Perform preliminary check. Refer to

LT-69, "Preliminary Check"

 .

4.

Check symptom and repair or replace the cause of malfunction.

5.

Do turn signal and hazard warning lamps operate normally? If YES: GO TO 6. If NO: GO TO 4.

6.

Inspection End.

Preliminary Check

EKS00FVZ

CHECK POWER SUPPLY AND GROUND CIRCUIT

Refer to

BCS-16, "BCM Power Supply and Ground Circuit Check"

 .

CONSULT-II Function (BCM)

EKS00FW0

CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.

CONSULT-II OPERATION

CAUTION:

If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.

1.

With the ignition switch OFF, connect CONSULT-II and CON-
SULT-II CONVERTER to the data link connector, then turn igni-
tion switch ON.

BCM diagnostic

test item

Diagnostic mode

Description

Inspection by part

WORK SUPPORT

Supports inspections and adjustments. Commands are transmitted to the BCM
for setting the status suitable for required operation, input/output signals are
received from the BCM and received data is displayed.

DATA MONITOR

Displays BCM input/output data in real time.

ACTIVE TEST

Operation of electrical loads can be checked by sending drive signal to them.

SELF-DIAG RESULTS

Displays BCM self-diagnosis results.

CAN DIAG SUPPORT MNTR

The result of transmit/receive diagnosis of CAN communication can be read.

ECU PART NUMBER

BCM part number can be read.

CONFIGURATION

Performs BCM configuration read/write functions.

BBIA0538E

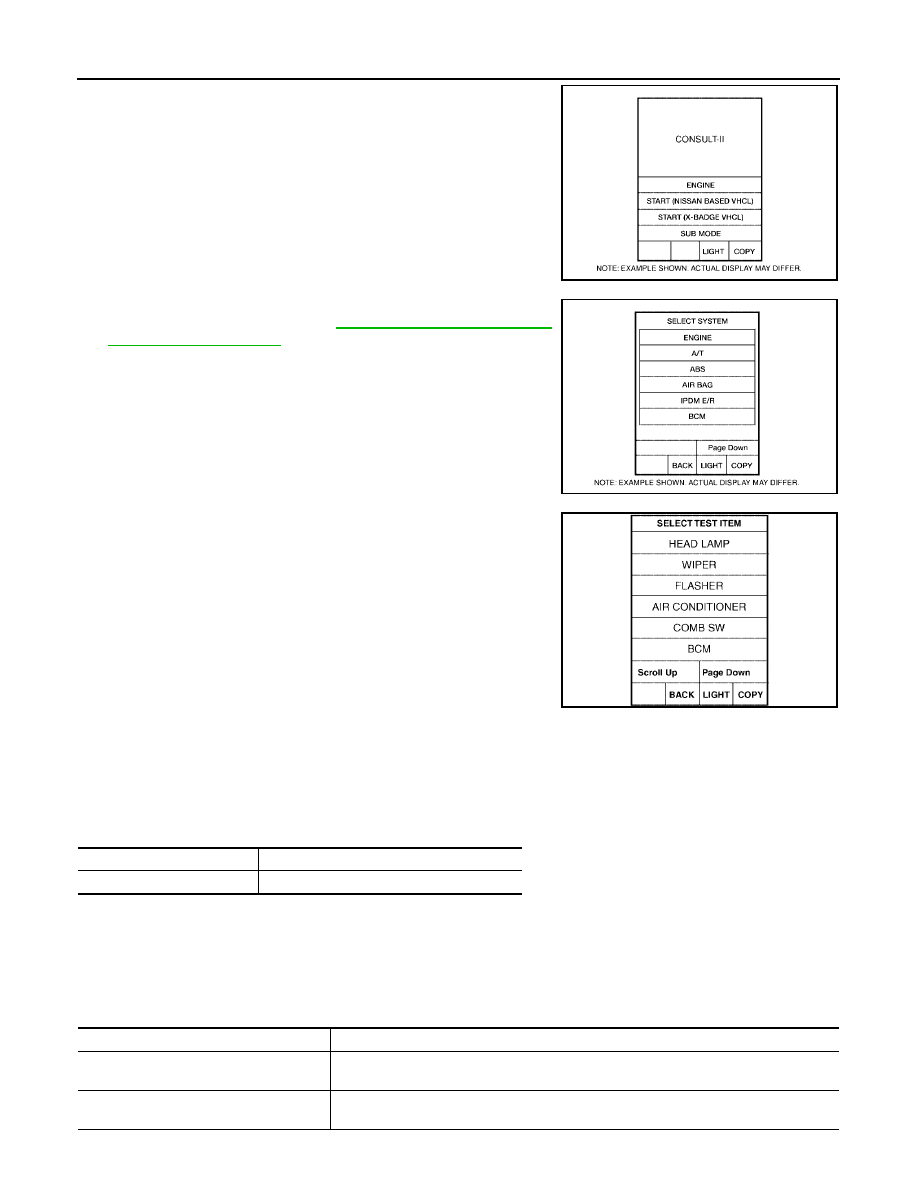

LT-70

TURN SIGNAL AND HAZARD WARNING LAMPS

2006 Pathfinder

2.

Touch "START (NISSAN BASED VHCL)".

3.

Touch "BCM" on "SELECT SYSTEM" screen.
If "BCM" is not indicated, go to

GI-40, "CONSULT-II Data Link

Connector (DLC) Circuit"

 .

4.

Touch "FLASHER" on "SELECT TEST ITEM" screen.

DATA MONITOR
Operation Procedure

1.

Touch "FLASHER" on "SELECT TEST ITEM" screen.

2.

Touch "DATA MONITOR" on "SELECT DIAG MODE" screen.

3.

Touch either "ALL SIGNALS" or "SELECTION FROM MENU" on the "SELECT MONITOR ITEM" screen.

4.

Touch "START".

5.

When "SELECTION FROM MENU" is selected, touch items to be monitored. When "ALL SIGNALS" is
selected, all the items will be monitored.

6.

Touch "RECORD" while monitoring, then the status of the monitored item can be recorded. To stop
recording, touch "STOP".

Display Item List

BCIA0029E

BCIA0030E

LKIA0183E

ALL SIGNALS

Monitors all the signals.

SELECTION FROM MENU

Selects and monitors the individual signal.

Monitor item

Contents

IGN ON SW

"ON/OFF"

Displays "IGN position (ON)/OFF, ACC position (OFF)" judged from the ignition switch
signal.

HAZARD SW

"ON/OFF"

Displays "Hazard ON (ON)/Hazard OFF (OFF)" status, determined from hazard switch
signal.

TURN SIGNAL AND HAZARD WARNING LAMPS

LT-71

C

D

E

F

G

H

I

J

L

M

A

B

LT

2006 Pathfinder

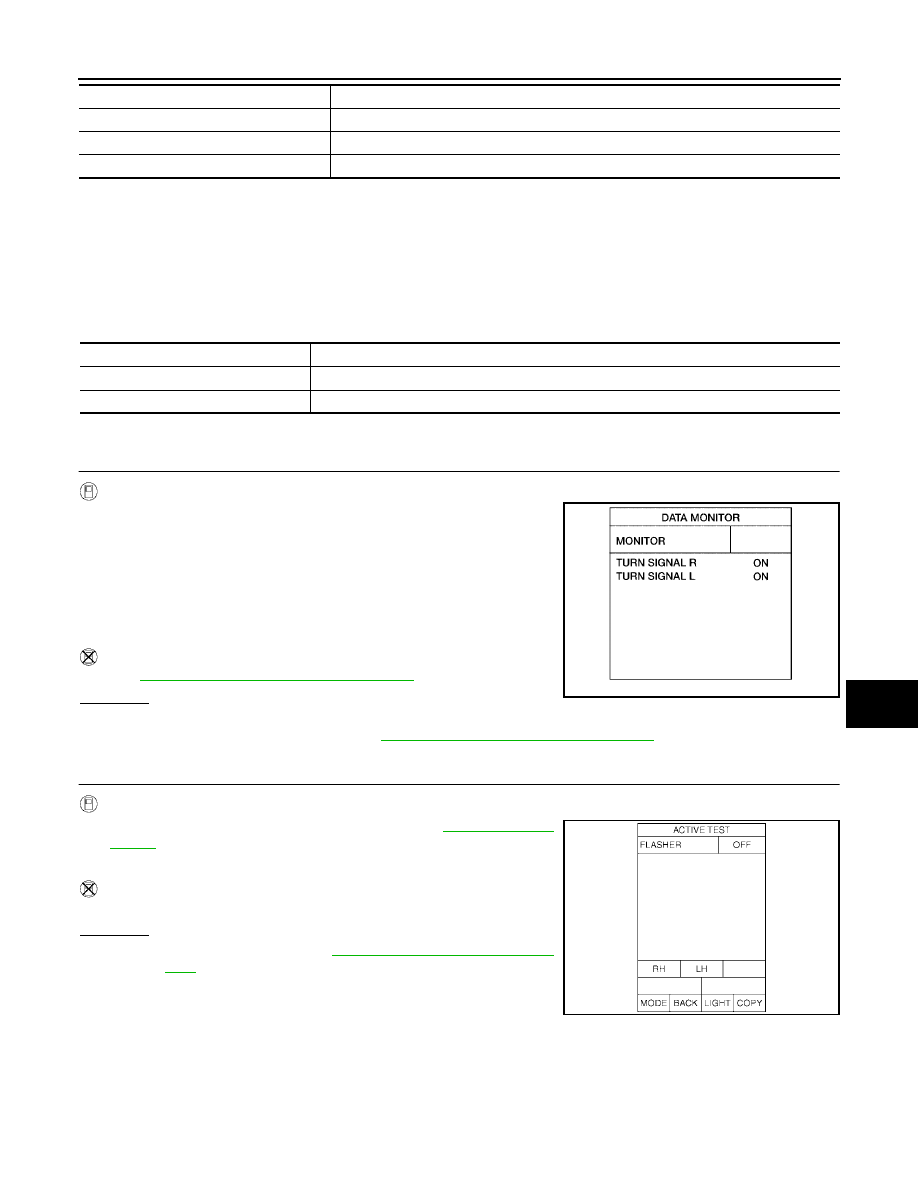

ACTIVE TEST
Operation Procedure

1.

Touch "FLASHER" on "SELECT TEST ITEM" screen.

2.

Touch "ACTIVE TEST" on "SELECT DIAG MODE" screen.

3.

Touch item to be tested and check operation of the selected item.

4.

During the operation check, touching "BACK" or "OFF" deactivates the operation.

Display Item List

Turn Signal Lamp Does Not Operate

EKS00FW1

1.

CHECK COMBINATION SWITCH INPUT SIGNAL

With CONSULT-II

Select "BCM" on CONSULT-II. With "FLASHER" data monitor, make
sure "TURN SIGNAL R" and "TURN SIGNAL L" turns ON-OFF
linked with operation of lighting switch.

Without CONSULT-II

Refer to

LT-82, "Combination Switch Inspection"

 .

OK or NG

OK

>> GO TO 2.

NG

>> Check lighting switch. Refer to

LT-82, "Combination Switch Inspection"

 .

2.

ACTIVE TEST

With CONSULT-II

1.

Select "FLASHER" during active test. Refer to

LT-71, "ACTIVE

TEST"

 .

2.

Make sure "FLASHER RH" and "FLASHER LH" operate.

Without CONSULT-II

GO TO 3.

OK or NG

OK

>> Replace BCM. Refer to

BCS-27, "Removal and Installa-

tion"

 .

NG

>> GO TO 3.

TURN SIGNAL R

"ON/OFF"

Displays "Turn right (ON)/Other (OFF)" status, determined from lighting switch signal.

TURN SIGNAL L

"ON/OFF"

Displays "Turn left (ON)/Other (OFF)" status, determined from lighting switch signal.

BRAKE SW

"ON/OFF"

Displays status of stop lamp switch.

Monitor item

Contents

Test item

Description

FLASHER (RH)

Turn signal lamp (right) can be operated by any ON-OFF operations.

FLASHER (LH)

Turn signal lamp (left) can be operated by any ON-OFF operations.

When lighting switch is in
TURN RH position

: TURN SIGNAL R ON

When lighting switch is in
TURN LH position

: TURN SIGNAL L ON

SKIA4499E

SKIA6190E

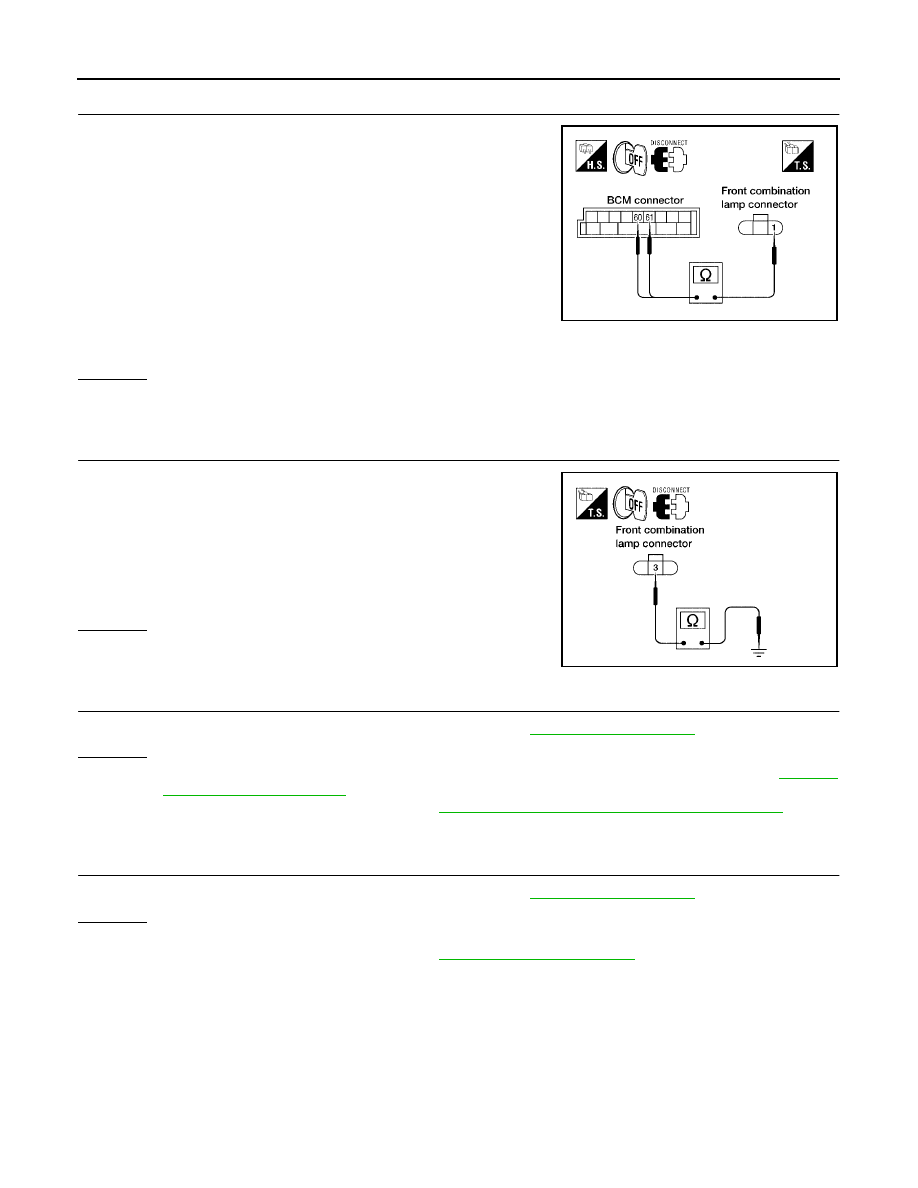

LT-72

TURN SIGNAL AND HAZARD WARNING LAMPS

2006 Pathfinder

3.

CHECK TURN SIGNAL LAMPS CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect BCM connector and front turn signal lamp LH and
RH connectors.

3.

Check continuity between BCM harness connector M20 terminal
60 and front turn signal lamp LH harness connector E27 termi-
nal 1.

4.

Check continuity between BCM harness connector M20 terminal
61 and front turn signal lamp RH harness connector E111 termi-
nal 1.

OK or NG

OK

>>  GO TO 4.

NG

>> Repair harness or connector.

4.

CHECK GROUND

1.

Check continuity between front turn signal lamp LH harness
connector E27 terminal 3 and ground.

2.

Check continuity between front turn signal lamp RH harness
connector E111 terminal 3 and ground.

OK or NG

OK

>> GO TO 5.

NG

>> Repair harness or connector.

5.

CHECK BULB

Check bulb standard of each turn signal lamp is correct. Refer to

LT-151, "Exterior Lamp"

 .

OK or NG

OK

>> Replace BCM if turn signal lamps do not work after setting the connector again. Refer to

BCS-27,

"Removal and Installation"

 .

NG

>> Replace turn signal lamp bulb. Refer to

LT-27, "FRONT TURN SIGNAL/PARKING LAMP"

 .

Rear Turn Signal Lamp Does Not Operate

EKS00FW2

1.

CHECK TAIL LAMPS AND STOP LAMPS

Check bulb standard of each turn signal lamp is correct. Refer to

LT-151, "Exterior Lamp"

 .

OK or NG

OK

>> GO TO 2.

NG

>> Replace turn signal lamp bulb. Refer to

LT-105, "Bulb Replacement"

 .

60 - 1

: Continuity should exist.

61 - 1

: Continuity should exist.

WKIA3308E

3 - Ground

: Continuity should exist.

3 - Ground

: Continuity should exist.

WKIA3309E

TURN SIGNAL AND HAZARD WARNING LAMPS

LT-73

C

D

E

F

G

H

I

J

L

M

A

B

LT

2006 Pathfinder

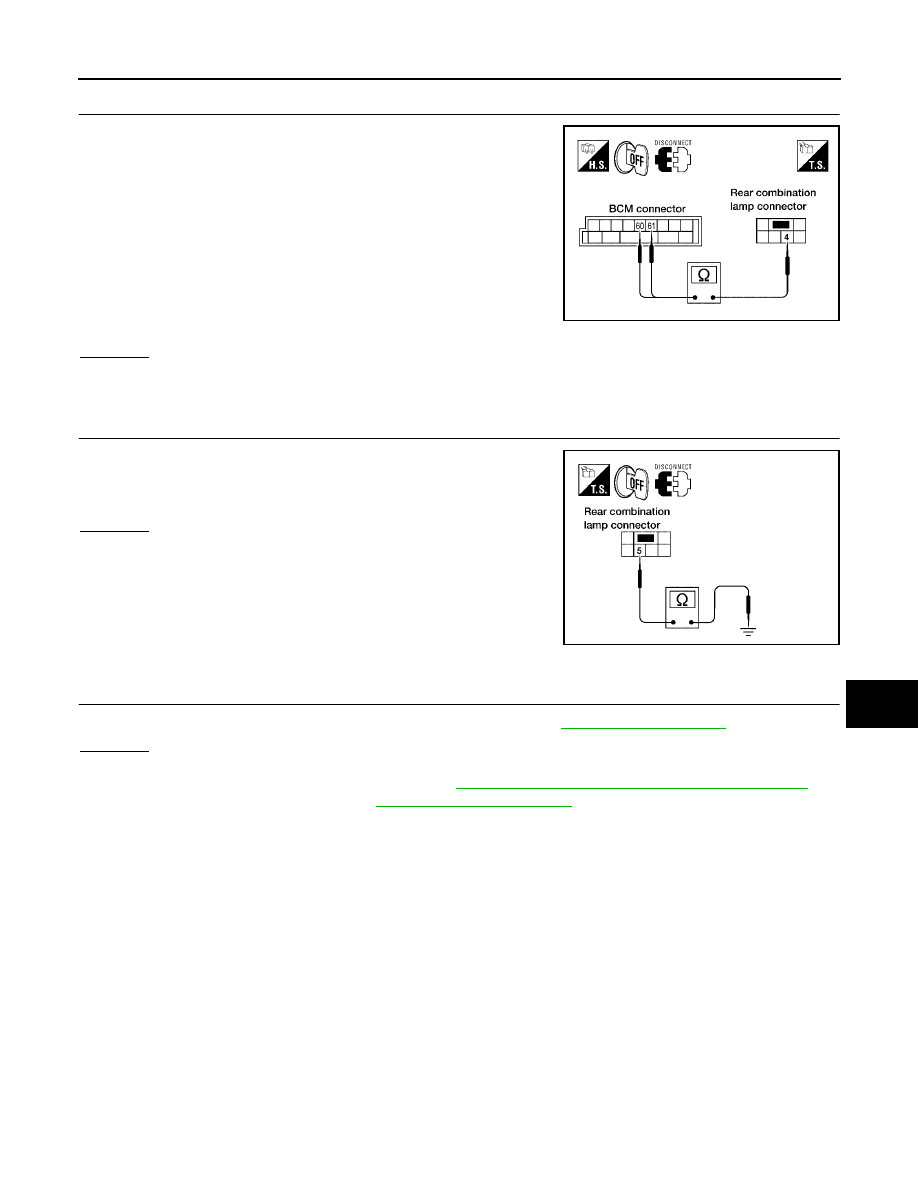

2.

CHECK TURN SIGNAL LAMPS CIRCUIT

1.

Disconnect BCM connector and rear combination lamp connec-
tor.

2.

Check continuity between BCM harness connector M20 terminal
61 and rear combination lamp RH harness connector B105 ter-
minal 4.

3.

Check continuity between BCM harness connector M20 terminal
60 and rear combination lamp LH harness connector B35 termi-
nal 4.

OK or NG

OK

>> GO TO 3.

NG

>> Repair harness or connector.

3.

CHECK GROUND CIRCUIT

Check continuity between rear combination lamp harness connector
B35 (LH) and B105 (RH) terminal 5 and ground.

OK or NG

OK

>> Check rear combination lamp connector for proper con-

nection. Repair as necessary.

NG

>> Repair harness or connector.

Hazard Warning Lamp Does Not Operate But Turn Signal Lamps Operate

EKS00FW3

1.

CHECK BULB

Make sure bulb standard of each turn signal lamp is correct. Refer to

LT-151, "Exterior Lamp"

 .

OK or NG

OK

>> GO TO 2.

NG

>> Replace turn signal lamp bulb. Refer to

LT-27, "FRONT TURN SIGNAL/PARKING LAMP"

    for

front turn signal bulb. Refer to

LT-105, "Bulb Replacement"

  for rear turn signal bulb.

61 - 4

: Continuity should exist.

60 - 4

: Continuity should exist.

WKIA3310E

5 - Ground

: Continuity should exist.

WKIA3311E

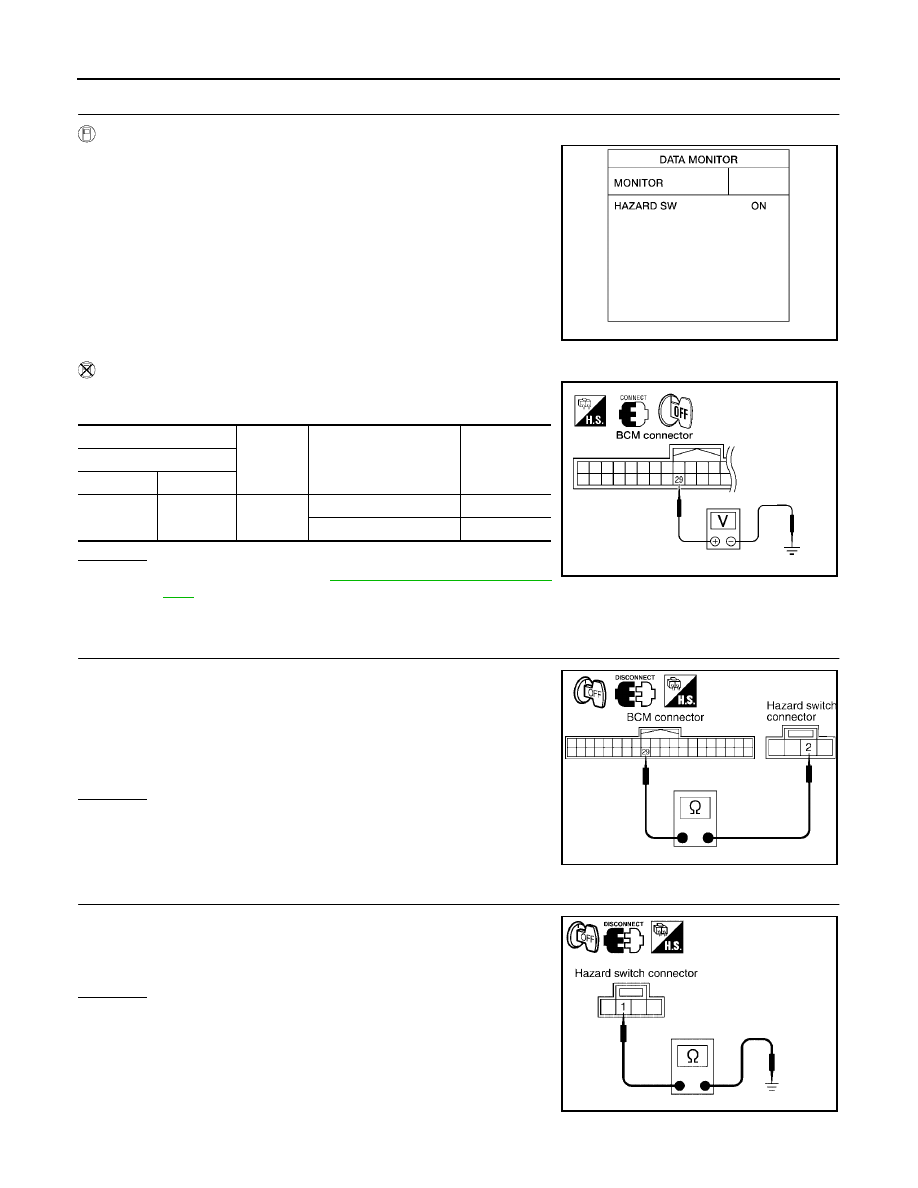

LT-74

TURN SIGNAL AND HAZARD WARNING LAMPS

2006 Pathfinder

2.

CHECK HAZARD SWITCH INPUT SIGNAL

With CONSULT-II

Select "BCM" on CONSULT-II. With "FLASHER" data monitor, make
sure "HAZARD SW" turns ON-OFF linked with operation of hazard
switch.

Without CONSULT-II

Check voltage between BCM harness connector M18 terminal 29
and ground.

OK or NG

OK

>> Replace BCM. Refer to

BCS-27, "Removal and Installa-

tion"

 .

NG

>> GO TO 3.

3.

CHECK HAZARD SWITCH CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect BCM connector and hazard switch connector.

3.

Check continuity between BCM harness connector M18 terminal
29 and hazard switch harness connector M55 terminal 2.

OK or NG

OK

>> GO TO 4.

NG

>> Repair harness or connector.

4.

CHECK GROUND

Check continuity between hazard switch harness connector M55 ter-
minal 1 and ground.

OK or NG

OK

>> GO TO 5.

NG

>> Repair harness or connector.

When hazard switch is in
ON position

: HAZARD SW ON

SKIA4500E

BCM

(–)

Condition

Voltage

(Approx.)

(+)

Connector

Terminal

M18

29

Ground

Hazard switch is ON

0V

Hazard switch is OFF

5V

WKIA1969E

29 - 2

: Continuity should exist.

SKIA5912E

1 - Ground

: Continuity should exist.

SKIA8972E
