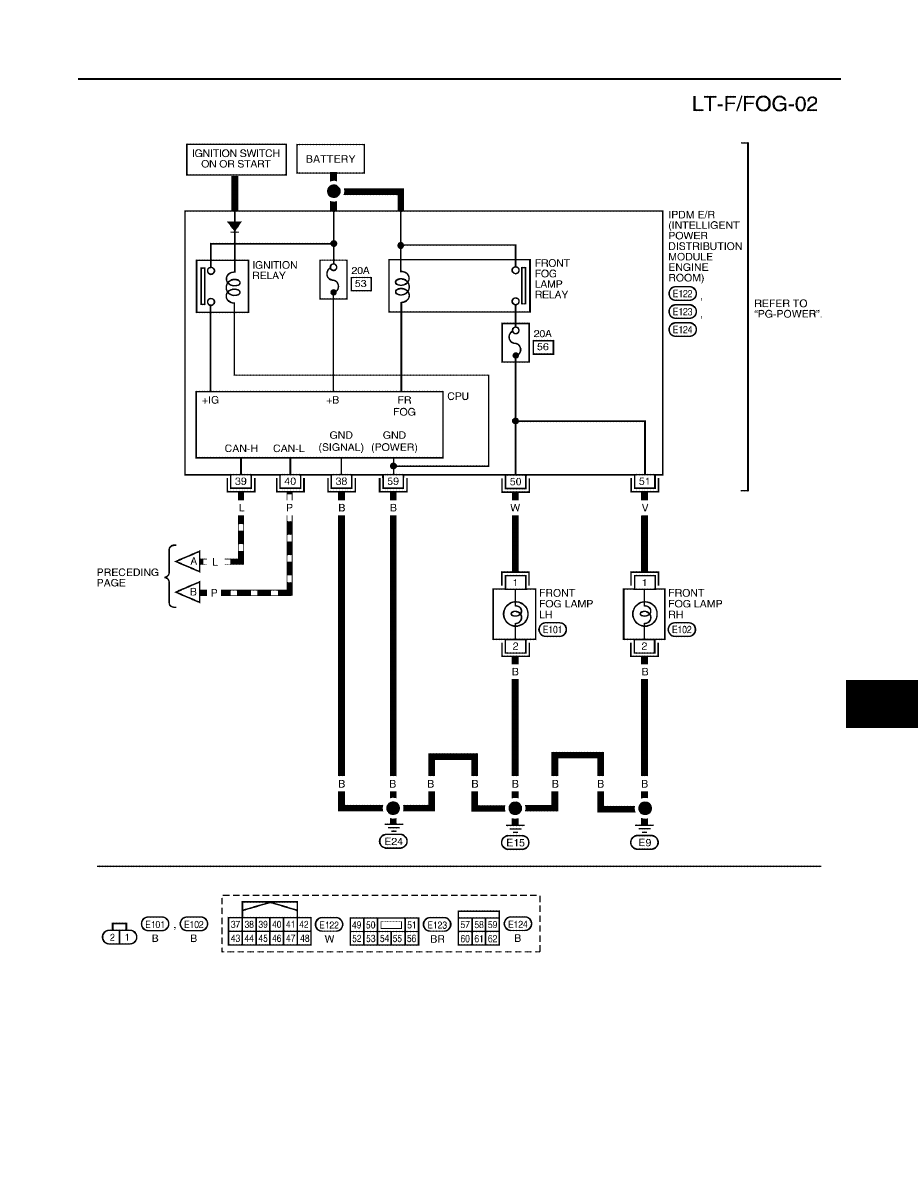

FRONT FOG LAMP

LT-59

C

D

E

F

G

H

I

J

L

M

A

B

LT

2006 Pathfinder

WKWA3082E

LT-60

FRONT FOG LAMP

2006 Pathfinder

Terminals and Reference Values for BCM

EKS00FVJ

Refer to

BCS-12, "Terminals and Reference Values for BCM"

 .

Terminals and Reference Values for IPDM E/R

EKS00FVK

Refer to

PG-28, "Terminals and Reference Values for IPDM E/R"

 .

How to Proceed With Trouble Diagnosis

EKS00FVL

1.

Confirm the symptom or customer complaint.

2.

Understand operation description and function description. Refer to

LT-56, "System Description"

 .

3.

Perform the Preliminary Check. Refer to

LT-60, "Preliminary Check"

 .

4.

Check symptom and repair or replace the cause of malfunction.

5.

Does the front fog lamp operate normally? If YES: GO TO 6. If NO: GO TO 4.

6.

Inspection End.

Preliminary Check

EKS00FVM

CHECK POWER SUPPLY AND GROUND CIRCUIT

Refer to

BCS-16, "BCM Power Supply and Ground Circuit Check"

  an

PG-30, "IPDM E/R Power/Ground Cir-

cuit Inspection"

 .

CONSULT-II Functions

EKS00FVN

Refer to

LT-12, "CONSULT-II Function (BCM)"

  in HEADLAMP (FOR USA).

Refer to

LT-15, "CONSULT-II Function (IPDM E/R)"

  in HEADLAMP (FOR USA).

Front Fog Lamps Do Not Illuminate (Both Sides)

EKS00FVO

1.

CHECK COMBINATION SWITCH INPUT SIGNAL

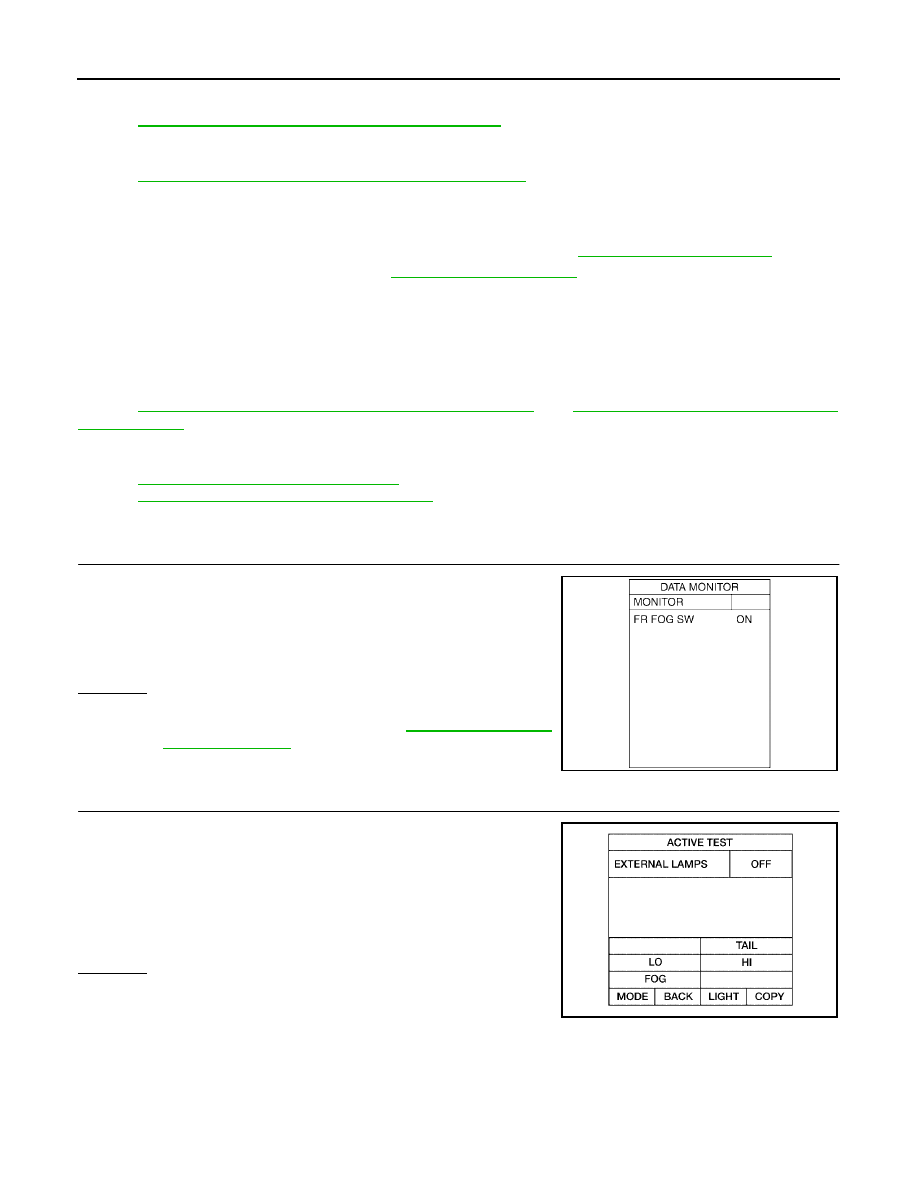

Select "BCM" on CONSULT-II. With "HEAD LAMP" data monitor,
make sure "FR FOG SW" turns ON-OFF linked with operation of
lighting switch.

OK or NG

OK

>> GO TO 2.

NG

>> Check lighting switch. Refer to

LT-82, "Combination

Switch Inspection"

 .

2.

FOG LAMP ACTIVE TEST

1.

Select "IPDM E/R" on CONSULT-II, and select "ACTIVE TEST"
on "SELECT DIAG MODE" screen.

2.

Select "EXTERNAL LAMPS" on "SELECT TEST ITEM" screen.

3.

Touch "FOG" on "ACTIVE TEST" screen.

4.

Make sure fog lamps operate.

OK or NG

OK

>> GO TO 3.

NG

>> GO TO 4.

When lighting switch is in
FOG position

: FR FOG SW ON

SKIA5897E

Fog lamps should operate.

WKIA1438E

FRONT FOG LAMP

LT-61

C

D

E

F

G

H

I

J

L

M

A

B

LT

2006 Pathfinder

3.

CHECK IPDM E/R

1.

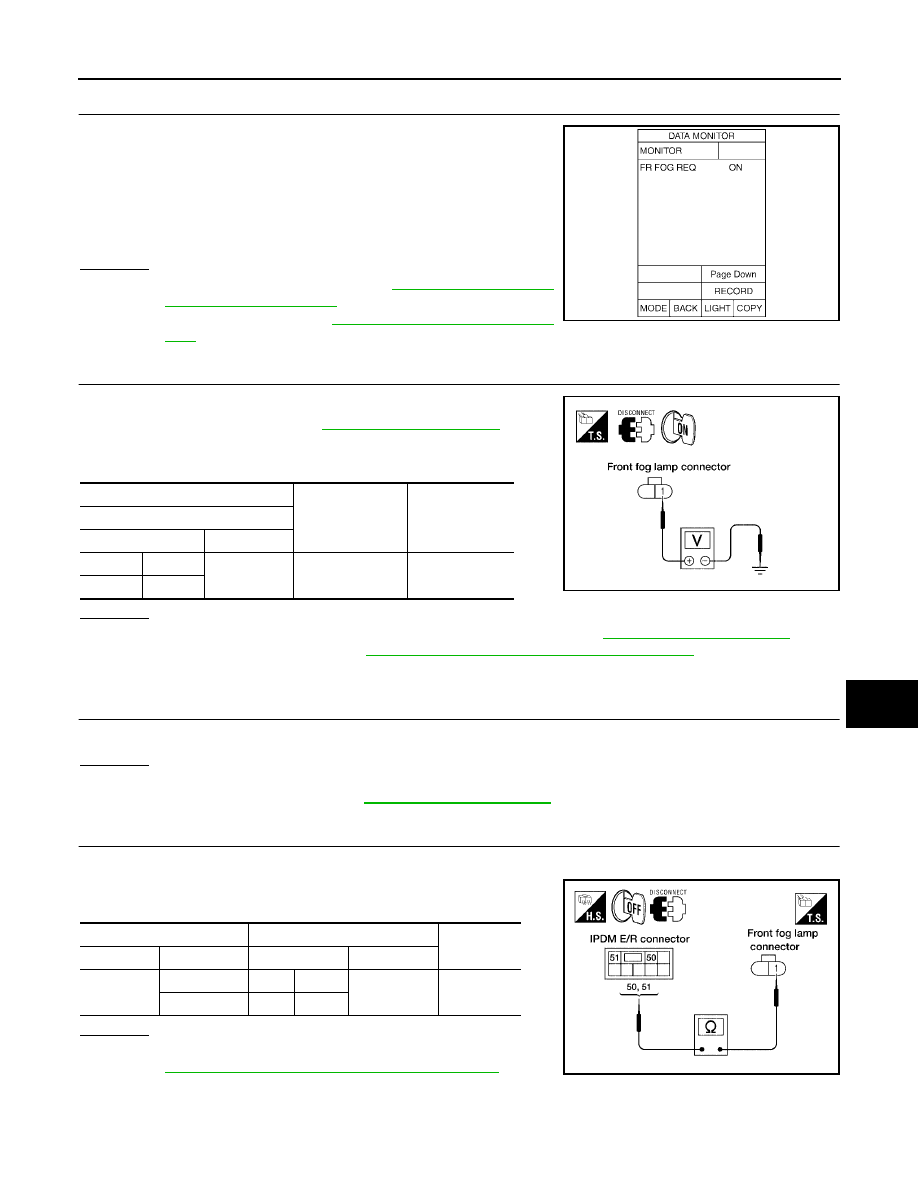

Select "IPDM E/R" on CONSULT-II, and select "DATA MONI-
TOR" on "SELECT DIAG MODE" screen.

2.

Make sure "FR FOG REQ" turns ON when lighting switch is in
FOG position.

OK or NG

OK

>> Replace IPDM E/R. Refer to

PG-32, "Removal and

Installation of IPDM E/R"

 .

NG

>> Replace BCM. Refer to

BCS-27, "Removal and Installa-

tion"

 .

4.

IPDM E/R INSPECTION

1.

Disconnect fog lamp LH and RH.

2.

Start auto active test. Refer to

PG-24, "Auto Active Test"

 . When

front fog lamp relay is operating, check voltage between left/right
front fog lamp connector terminals and ground.

OK or NG

OK

>> Check front fog lamp bulbs and replace as necessary. Refer to

LT-63, "Bulb Replacement"

 .

NG

>> Replace IPDM E/R. Refer to

PG-32, "Removal and Installation of IPDM E/R"

 .

Front Fog Lamp Does Not Illuminate (One Side)

EKS00FVP

1.

BULB INSPECTION

Inspect bulb of lamp which does not illuminate.

OK or NG

OK

>> GO TO 2.

NG

>> Replace lamp bulb. Refer to

LT-63, "Bulb Replacement"

 .

2.

INSPECTION BETWEEN IPDM E/R AND FRONT FOG LAMPS

1.

Disconnect IPDM E/R connector and inoperative front fog lamp connector.

2.

Check continuity between harness connector terminals of IPDM
E/R and harness connector terminal of front fog lamps.

OK or NG

OK

>> Check ground circuit. If OK, replace IPDM E/R. Refer to

PG-32, "Removal and Installation of IPDM E/R"

 . If NG,

repair harness or connector.

NG

>> Check for short circuits and open circuits in harness between IPDM E/R and front fog lamps.

When lighting switch is in
FOG position

: FR FOG REQ ON

SKIA5898E

Front fog lamp

(–)

Voltage

(Approx.)

 (+)

Connector

Terminal

LH

E101

1

Ground Battery

voltage

RH

E102

WKIA3306E

IPDM E/R

Front fog lamp

Continuity

Connector

Terminal

Connector

Terminal

E123

50

LH

E101

1

Yes

51

RH

E102

WKIA3307E

LT-62

FRONT FOG LAMP

2006 Pathfinder

Aiming Adjustment

EKS00FVQ

The fog lamp is a semi-sealed beam type which uses a replaceable halogen bulb. Before performing aiming
adjustment, make sure of the following.

Keep all tires inflated to correct pressure.

Place vehicle on level ground.

See that vehicle is unloaded (except for full levels of coolant, engine oil and fuel, and spare tire, jack, and
tools). Have the driver or equivalent weight placed in driver seat.

Adjust aiming in the vertical direction by turning the adjustment
screw.

NOTE:
Use a Phillips screwdriver to adjust. Turn screw clockwise to raise
pattern and counterclockwise to lower pattern.

1.

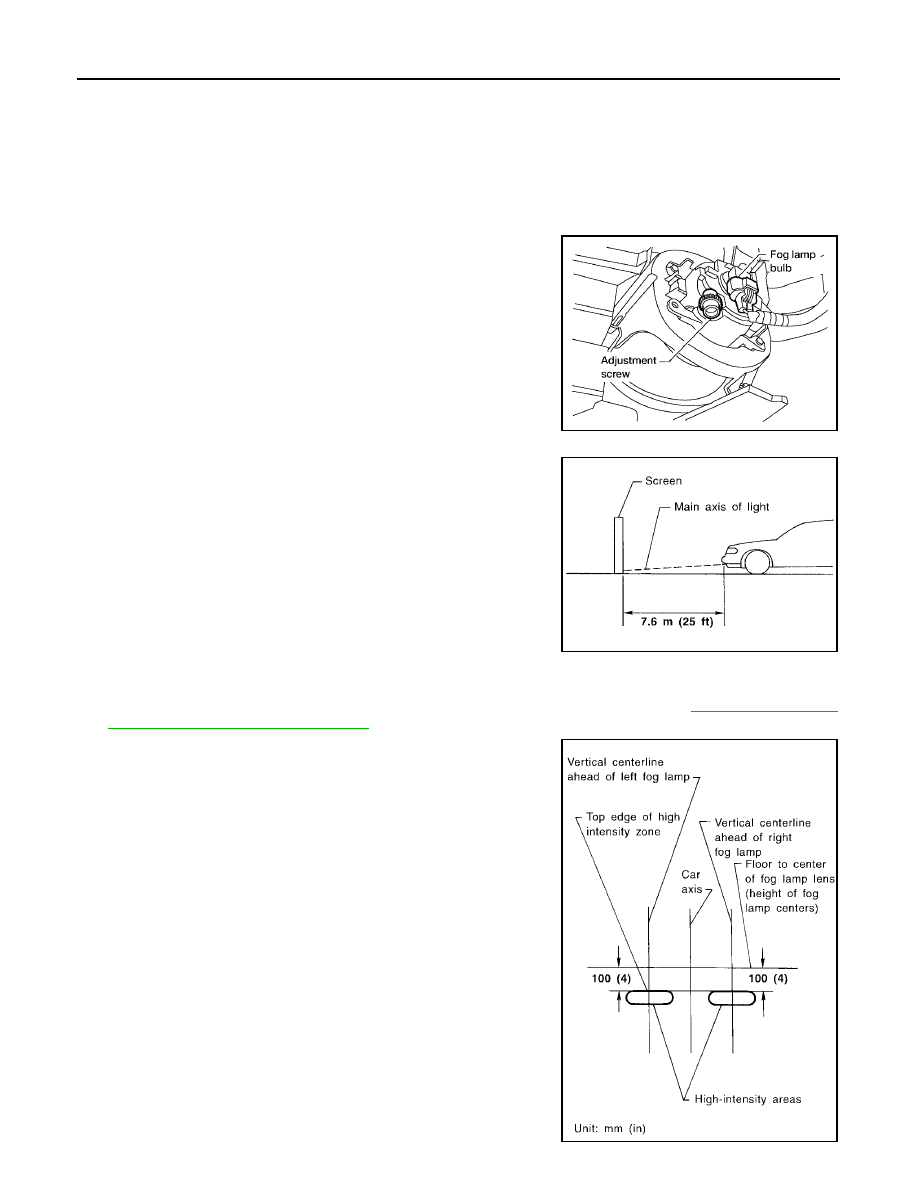

Set the distance between the screen and the center of the fog
lamp lens as shown.

2.

Turn front fog lamps ON.

3.

Remove front portion of fender protector(s) for adjustment screw access. Refer to

EI-21, "Removal and

Installation of Front Fender Protector"

4.

Adjust front fog lamps using adjustment screw so that the top
edge of the high intensity zone is 100 mm (4 in) below the height
of the fog lamp centers as shown.

When performing adjustment, if necessary, cover the headlamps
and opposite fog lamp.

LKIA0572E

MEL327G

MEL328G

FRONT FOG LAMP

LT-63

C

D

E

F

G

H

I

J

L

M

A

B

LT

2006 Pathfinder

Bulb Replacement

EKS00FVR

1.

Remove front portion of fender protector. Refer to

EI-21, "Removal and Installation of Front Fender Pro-

tector"

2.

Disconnect fog lamp connector.

3.

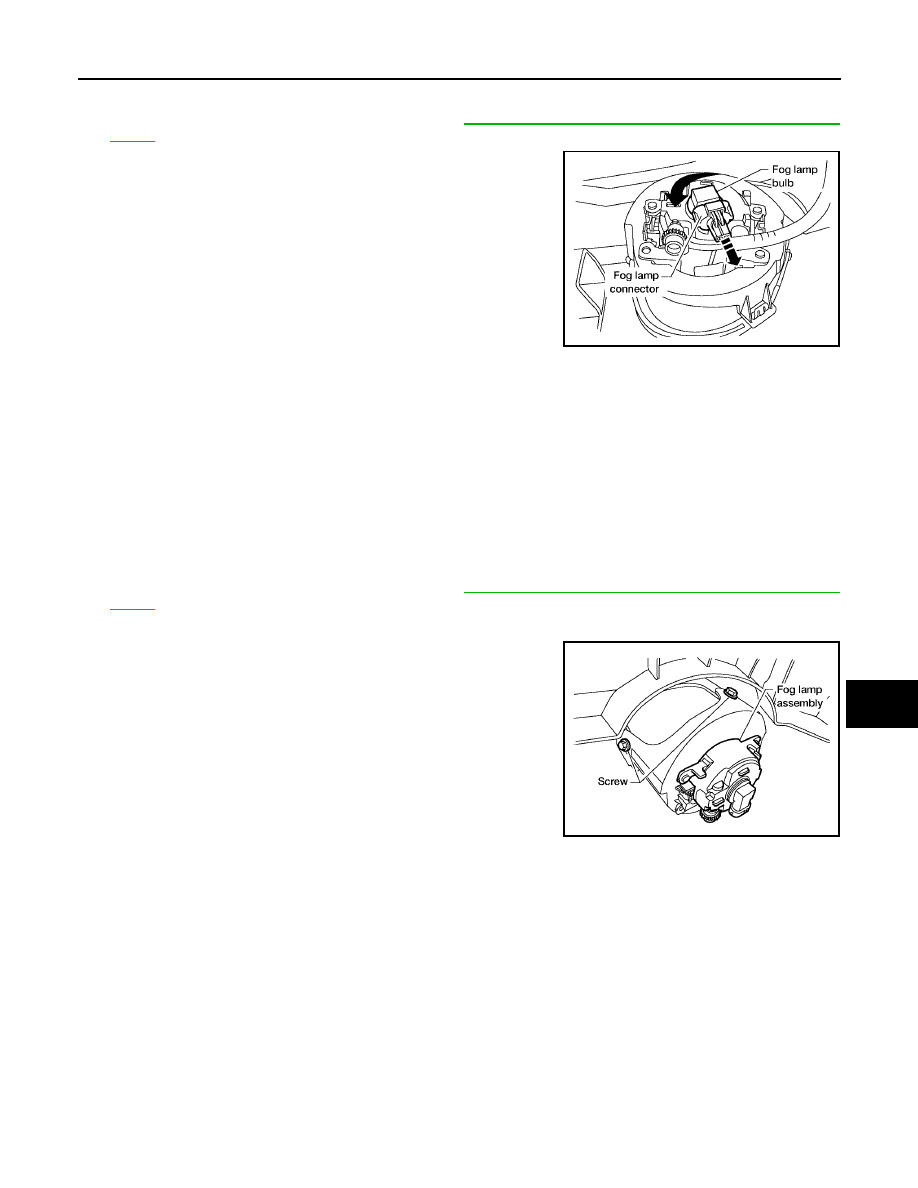

Turn the bulb counterclockwise to remove it.

CAUTION:

Do not touch the glass of bulb directly by hand. Keep
grease and other oily substances away from it. Do not
touch bulb by hand while it is lit or right after being
turned off. Burning may result.

Do not leave bulb out of fog lamp reflector for a long time
because dust, moisture smoke, etc. may affect the perfor-
mance of fog lamp. When replacing bulb, be sure to
replace it with new one.

Removal and Installation

EKS00FVS

FRONT FOG LAMP

The fog lamp is a semi-sealed beam type which uses a replaceable halogen bulb.

CAUTION:

Do not leave fog lamp assembly without bulb for a long period of time. Dust, moisture, smoke, etc.
entering the fog lamp body may affect the performance. Remove the bulb from the headlamp
assembly just before replacement bulb is installed.

Grasp only the plastic base when handling the bulb. Never touch the glass envelope. Touching the
glass could significantly affect the bulb life and/or fog lamp performance.

Removal

1.

Remove front portion of fender protector. Refer to

EI-21, "Removal and Installation of Front Fender Pro-

tector"

2.

Disconnect fog lamp connector.

3.

Remove fog lamp screws and pull fog lamp rearward out of front
bumper.

Installation

Installation is in the reverse order of removal.

LKIA0573E

LKIA0574E

LT-64

TURN SIGNAL AND HAZARD WARNING LAMPS

2006 Pathfinder

TURN SIGNAL AND HAZARD WARNING LAMPS

PFP:26120

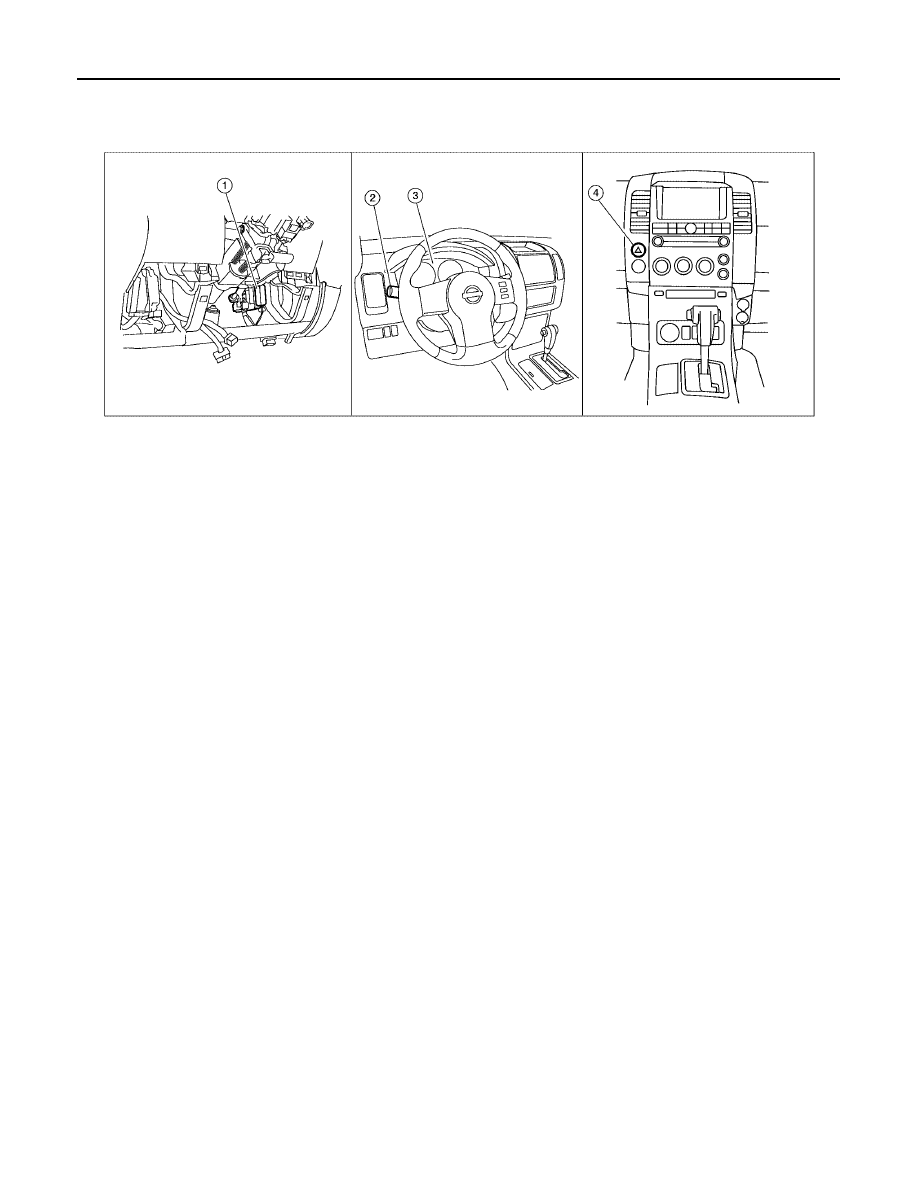

Component Parts and Harness Connector Location

EKS00FVT

System Description

EKS00FVU

OUTLINE

Power is supplied at all times

through 50A fusible link (letter g , located in the fuse and fusible link box)

to BCM (body control module) terminal 70, and

through 10A fuse [No. 19, located in the fuse block (J/B)]

to combination meter terminal 3.

TURN SIGNAL OPERATION

When the ignition switch is in the ON or START position, power is supplied

through 10A fuse [No. 1, located in the fuse block (J/B)]

to BCM terminal 38, and

through 10A fuse [No. 14, located in the fuse block (J/B)]

to combination meter terminal 16.

Ground is supplied

to BCM terminal 67 and

to combination meter terminals 13 and 23

through grounds M57, M61 and M79.

LH Turn

When the turn signal switch is moved to the left position, the BCM, interpreting it as turn signal is ON, outputs
turn signal from BCM terminal 60.
The BCM supplies power

through BCM terminal 60

to front turn signal lamp LH terminal 1

through front turn signal lamp LH terminal 3

to grounds E9, E15 and E24, and

to rear combination lamp LH (turn signal) terminal 4

through rear combination lamp LH (turn signal) terminal 5

to grounds B7 and B19.

WKIA4961E

1.

BCM
M18, M19, M20
(view with instrument lower panel RH removed)

2.

Combination switch (lighting
switch)
M28

3.

Combination meter
M24

4.

Hazard switch

TURN SIGNAL AND HAZARD WARNING LAMPS

LT-65

C

D

E

F

G

H

I

J

L

M

A

B

LT

2006 Pathfinder

BCM sends signal to combination meter through CAN communication lines and turns on turn signal indicator
lamp within combination meter.

RH Turn

When the turn signal switch is moved to the right position, the BCM, interpreting it as turn signal is ON, outputs
turn signal from BCM terminal 61.
The BCM supplies power

through BCM terminal 61

to front turn signal lamp RH terminal 1

through front turn signal lamp RH terminal 3

to grounds E9, E15 and E24, and

to rear combination lamp RH (turn signal) terminal 4

through rear combination lamp RH (turn signal) terminal 5

to grounds B117 and B132.

BCM sends signal to combination meter through CAN communication lines, and turns on turn signal indicator
lamp within combination meter.

HAZARD LAMP OPERATION

Power is supplied at all times

through 50A fusible link (letter g , located in the fuse and fusible link box)

to BCM terminal 70, and

through 10A fuse [No. 19, located in the fuse block (J/B)]

to combination meter terminal 3.

Ground is supplied

to BCM terminal 67 and

to combination meter terminals 13 and 23

through grounds M57, M61 and M79.

When the hazard switch is depressed, ground is supplied

to BCM terminal 29

through hazard switch terminal 2

through hazard switch terminal 1

through grounds M57, M61 and M79.

When the hazard switch is depressed, the BCM, interpreting it as hazard warning lamps are ON, outputs turn
signal from BCM terminals 60 and 61.
The BCM supplies power

through BCM terminals 60 and 61

to front turn signal lamp LH and RH terminal 1

through front turn signal lamp LH and RH terminal 3

to grounds E9, E15 and E24, and

to rear combination lamp LH (turn signal) terminal 4

through rear combination lamp LH (turn signal) terminal 5

to grounds B7 and B19, and

to rear combination lamp RH (turn signal) terminal 4

through rear combination lamp RH (turn signal) terminal 5

to grounds B117 and B132.

BCM sends signal to combination meter through CAN communication lines and turns on turn signal indicator
lamps within combination meter.

REMOTE KEYLESS ENTRY SYSTEM OPERATION

Power is supplied at all times

through 50A fusible link (letter g , located in the fuse and fusible link box)

to BCM terminal 70, and

LT-66

TURN SIGNAL AND HAZARD WARNING LAMPS

2006 Pathfinder

through 10A fuse [No. 19, located in the fuse block (J/B)]

to combination meter terminal 3.

Ground is supplied

to BCM terminal 67 and

to combination meter terminals 13 and 23

through grounds M57, M61 and M79.

When the remote keyless entry system is triggered by input from the keyfob, the BCM, interpreting it as turn
signal is ON, outputs turn signal from BCM terminals 60 and 61.
The BCM supplies power

through BCM terminals 60 and 61

to front turn signal lamp LH and RH terminal 1

through front turn signal lamp LH and RH terminal 3

to grounds E9, E15 and E24, and

to rear combination lamp LH (turn signal) terminal 4

through rear combination lamp LH (turn signal) terminal 5

to grounds B7 and B19, and

to rear combination lamp RH (turn signal) terminal 4

through rear combination lamp RH (turn signal) terminal 5

to grounds B117 and B132.

BCM sends signal to combination meter through CAN communication lines, and turns on turn signal indicator
lamps within combination meter.
With power and input supplied, the BCM controls the flashing of the hazard warning lamps when keyfob is
used to activate the remote keyless entry system.

COMBINATION SWITCH READING FUNCTION

Refer to

BCS-3, "COMBINATION SWITCH READING FUNCTION"

 .

CAN Communication System Description

EKS00FVV

Refer to

LAN-25, "CAN COMMUNICATION"

 .















Content      ..     311      312      313      314     ..
