CAN SYSTEM (TYPE 9)

PFP:23710

Component Parts and Harness Connector Location

UKS0051W

Refer to

LAN-25, "Component Parts and Harness Connector Location"

 .

Schematic

UKS0051X

Refer to

LAN-26, "Schematic"

 .

Wiring Diagram — CAN —

UKS0051Y

Refer to

LAN-27, "Wiring Diagram — CAN —"

 .

LAN-162

[CAN]

CAN SYSTEM (TYPE 9)

2006 Pathfinder

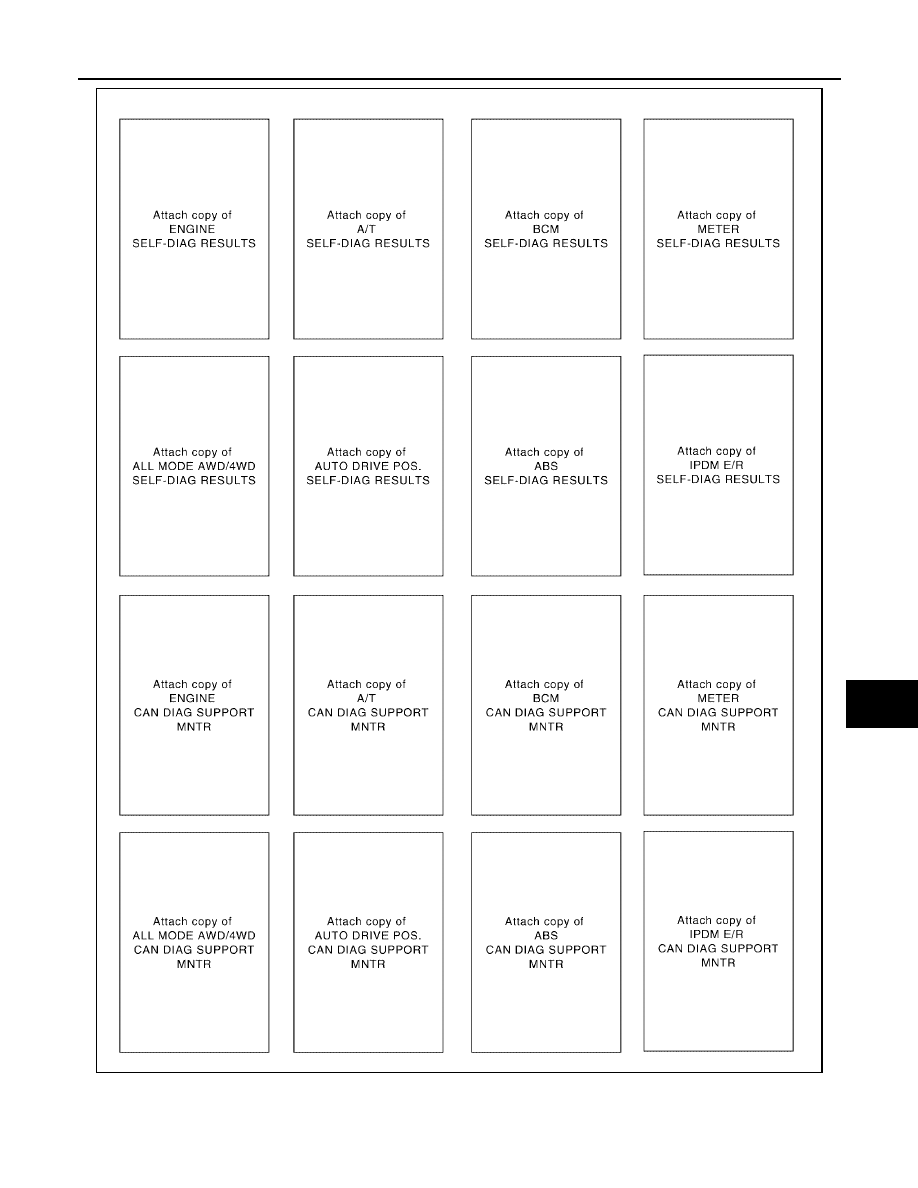

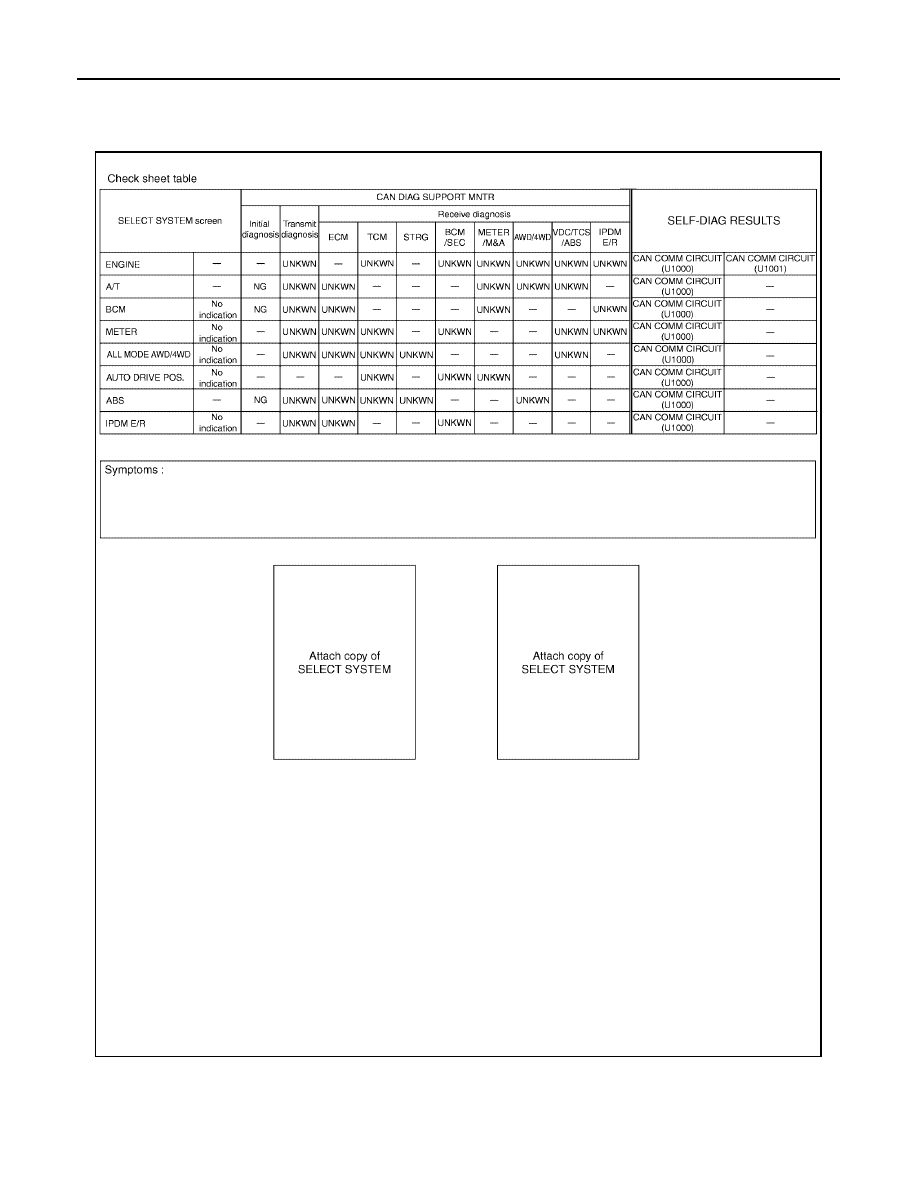

Check Sheet

UKS0051Z

NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

PKIC5703E

CAN SYSTEM (TYPE 9)

LAN-163

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

PKIC7067E

LAN-164

[CAN]

CAN SYSTEM (TYPE 9)

2006 Pathfinder

CHECK SHEET RESULTS (EXAMPLE)

NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

Case 1

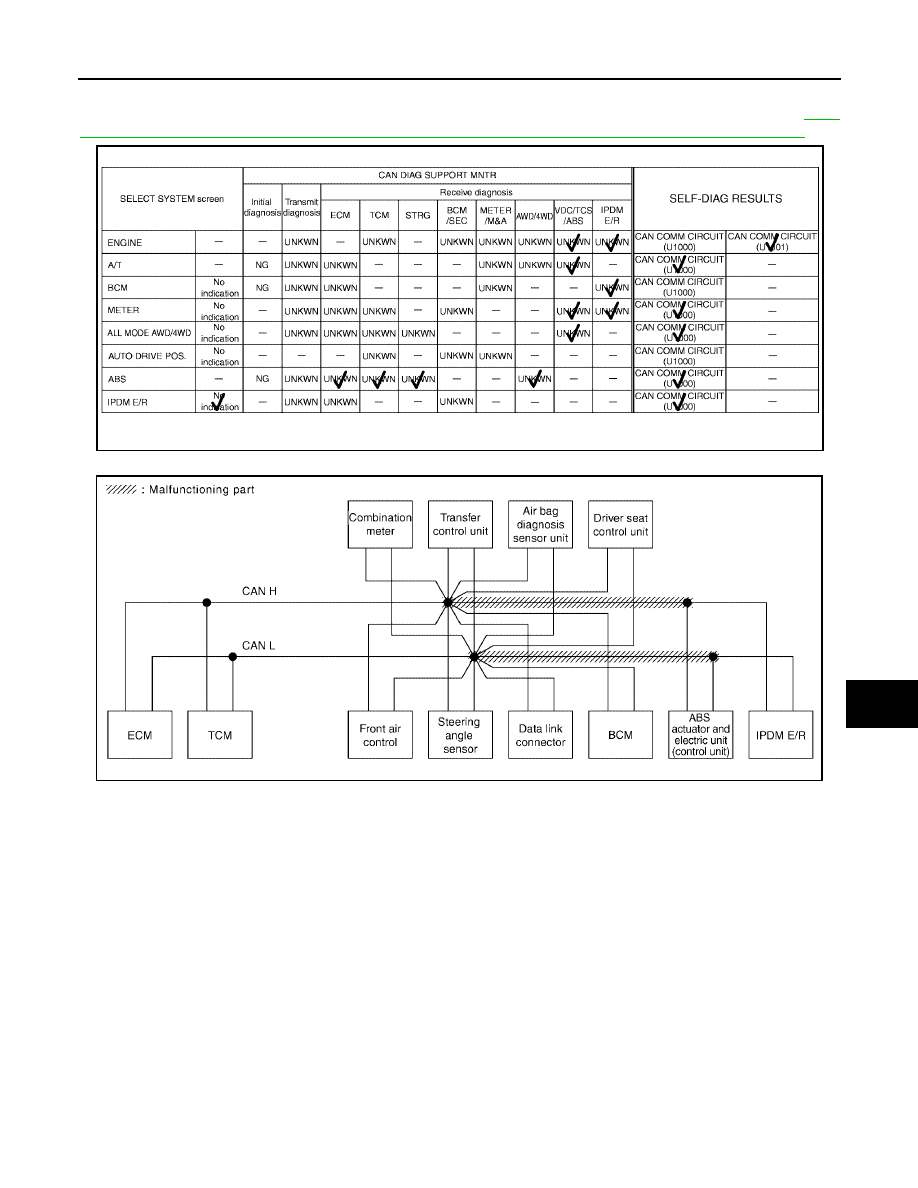

Check harness between TCM and data link connector. Refer to

LAN-195, "Inspection Between TCM and Data

Link Connector Circuit"

 .

PKIC5704E

PKIC5471E

CAN SYSTEM (TYPE 9)

LAN-165

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

Case 2

Check harness between data link connector and ABS actuator and electric unit (control unit). Refer to

LAN-

196, "Inspection Between Data Link Connector and ABS Actuator and Electric Unit (Control Unit) Circuit"

 .

PKIC5706E

PKIC5473E

LAN-166

[CAN]

CAN SYSTEM (TYPE 9)

2006 Pathfinder

Case 3

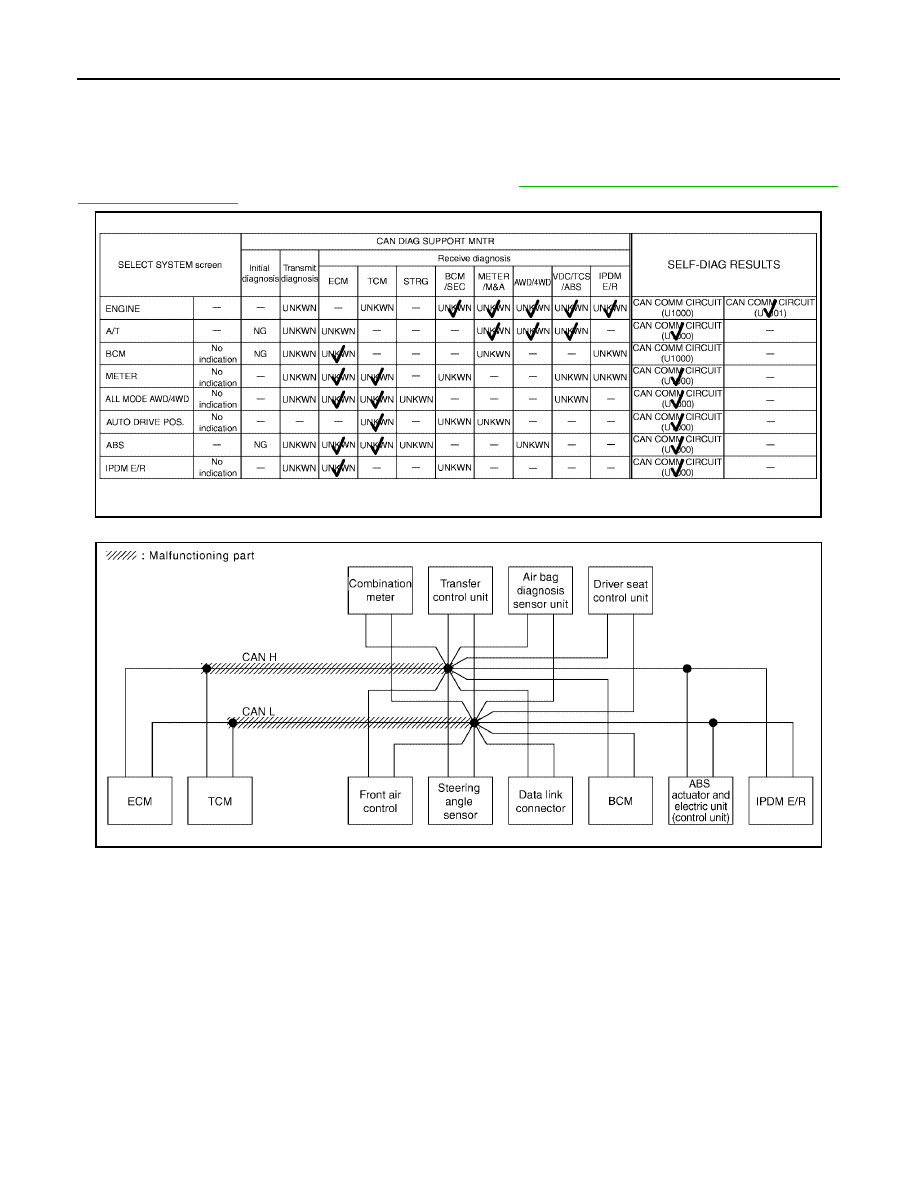

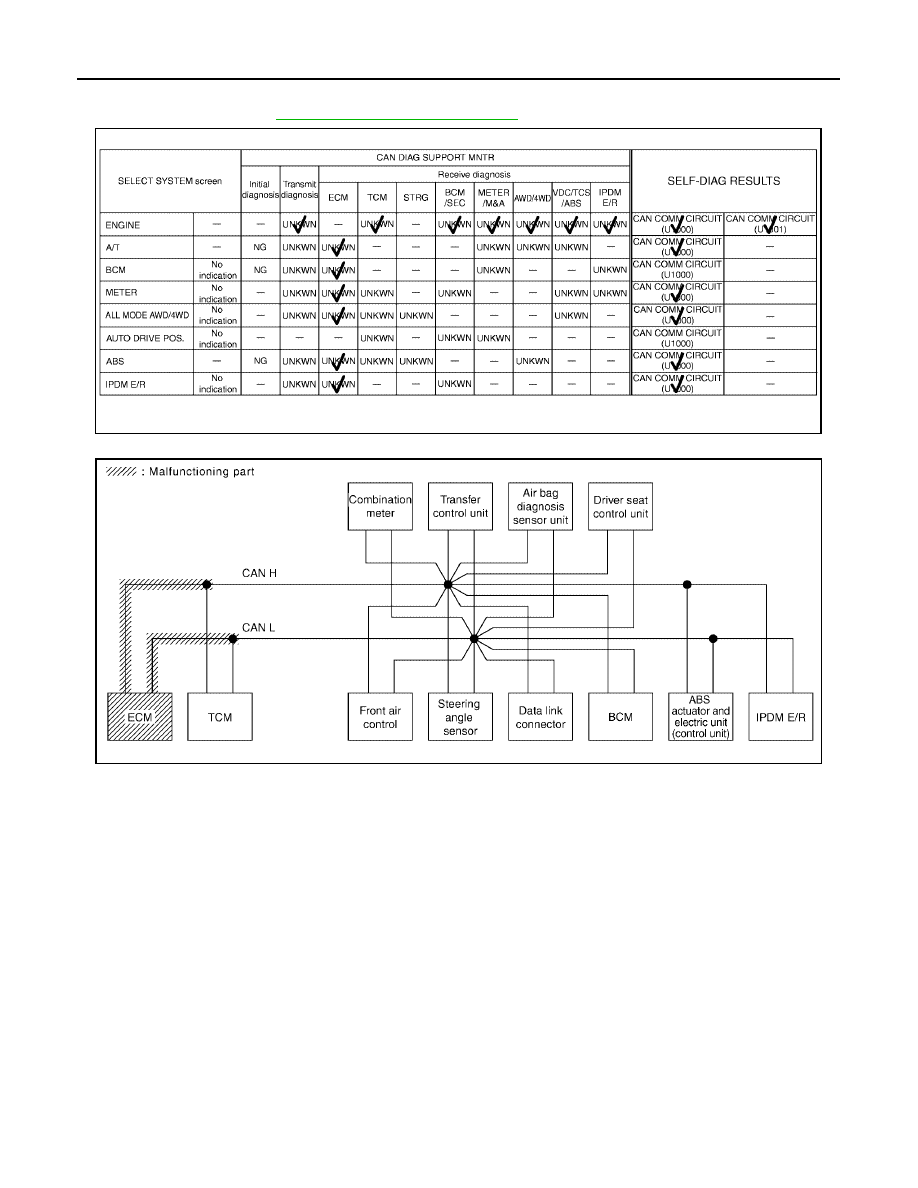

Check ECM circuit. Refer to

LAN-197, "ECM Circuit Inspection"

 .

PKIC5707E

PKIC5474E

CAN SYSTEM (TYPE 9)

LAN-167

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

Case 4

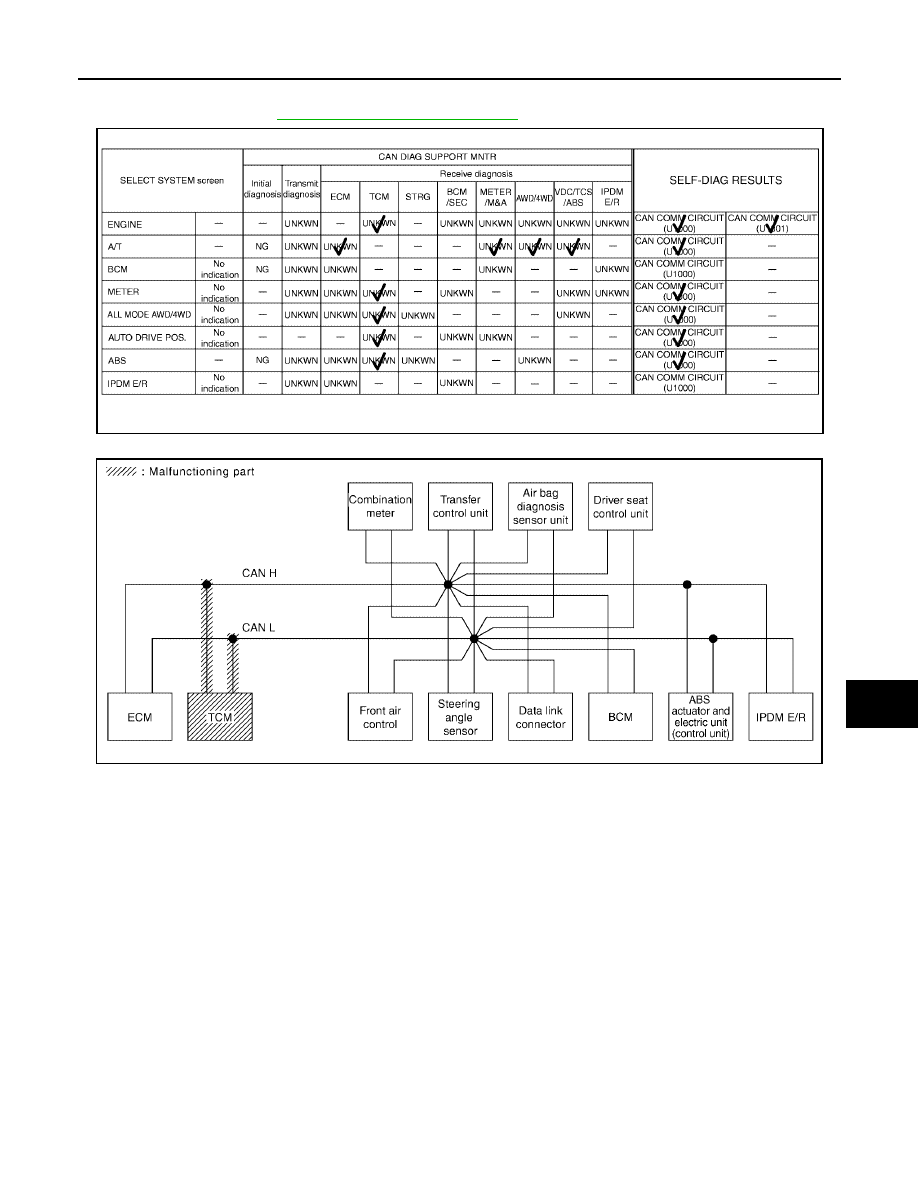

Check TCM circuit. Refer to

LAN-197, "TCM Circuit Inspection"

 .

PKIC5708E

PKIC5475E

LAN-168

[CAN]

CAN SYSTEM (TYPE 9)

2006 Pathfinder

Case 5

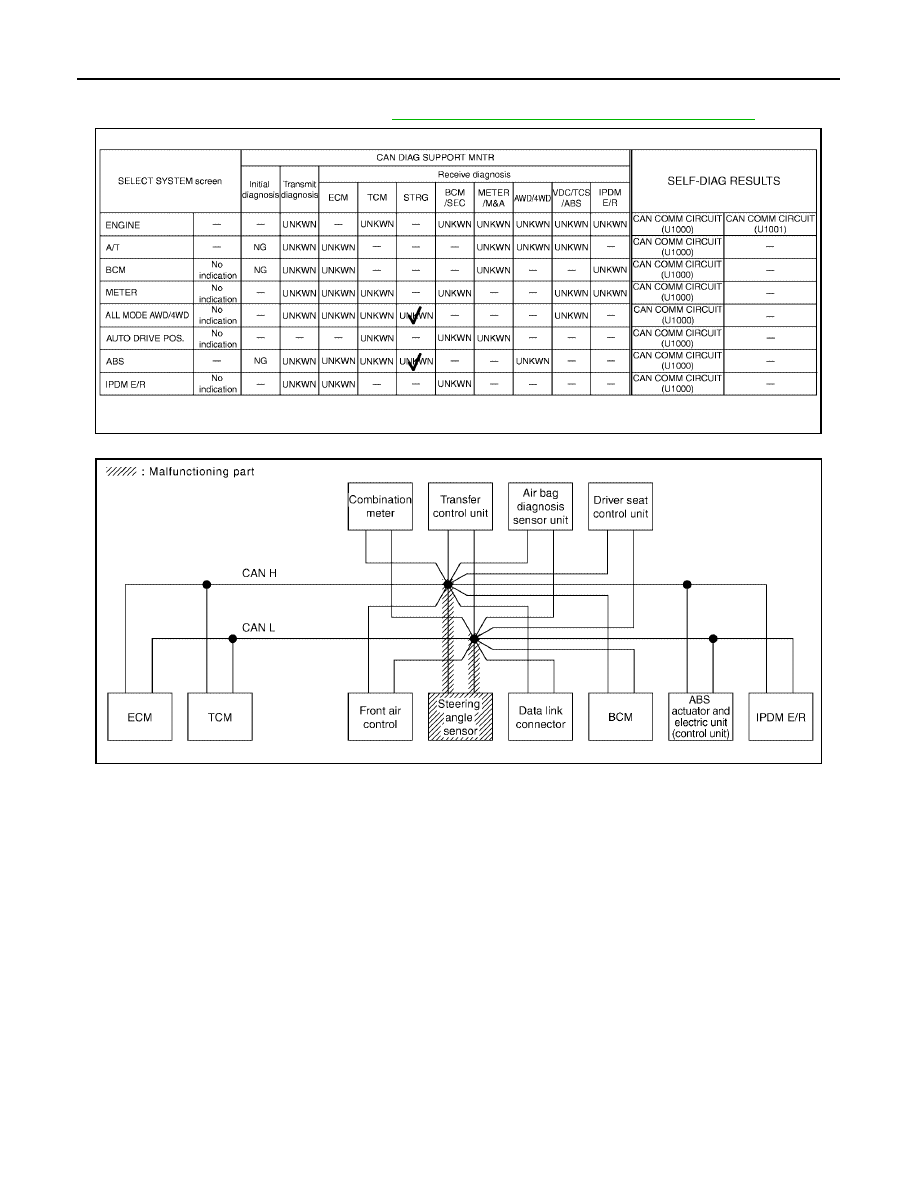

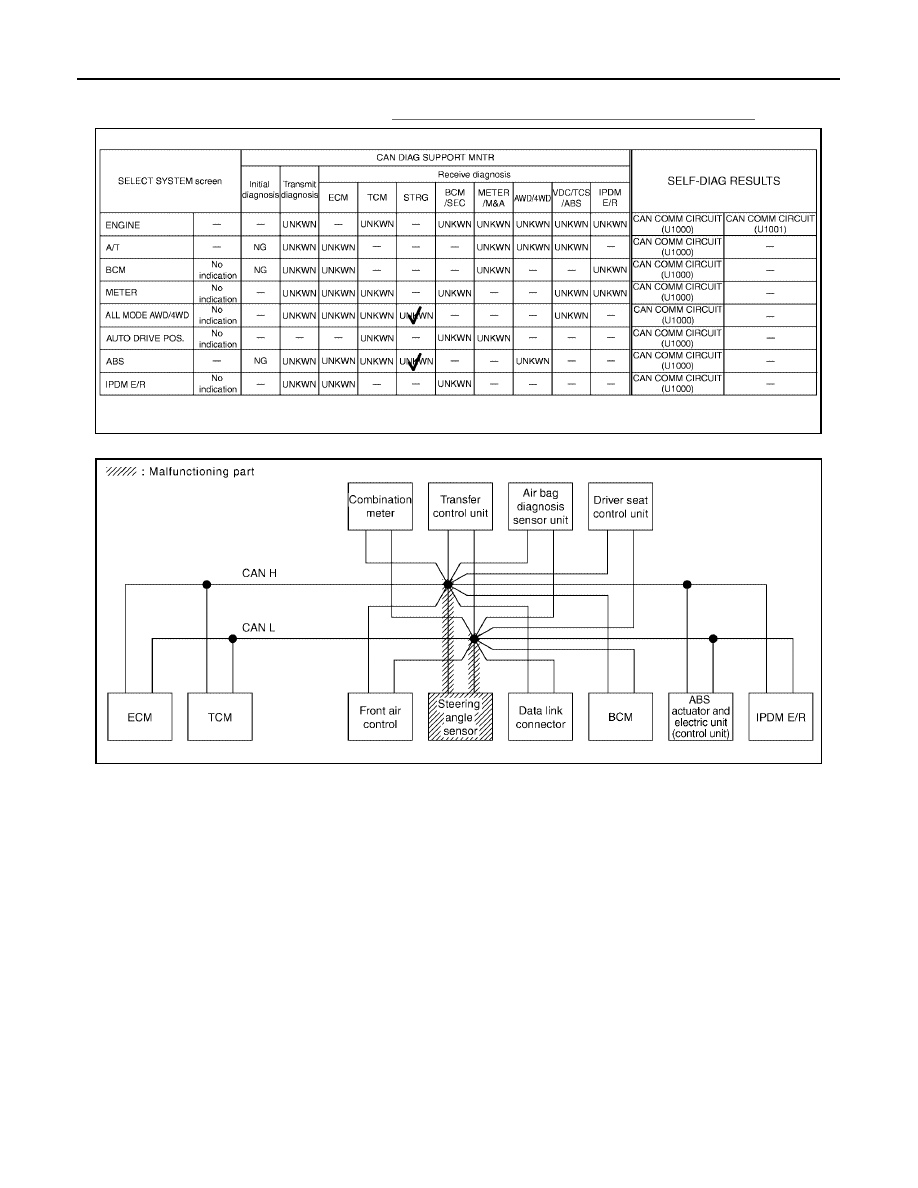

Check steering angle sensor circuit. Refer to

LAN-199, "Steering Angle Sensor Circuit Inspection"

 .

PKIC5709E

PKIC5477E
