CAN SYSTEM (TYPE 9)

LAN-169

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

Case 6

Check data link connector circuit. Refer to

LAN-199, "Data Link Connector Circuit Inspection"

 .

PKIC5710E

PKIC5478E

LAN-170

[CAN]

CAN SYSTEM (TYPE 9)

2006 Pathfinder

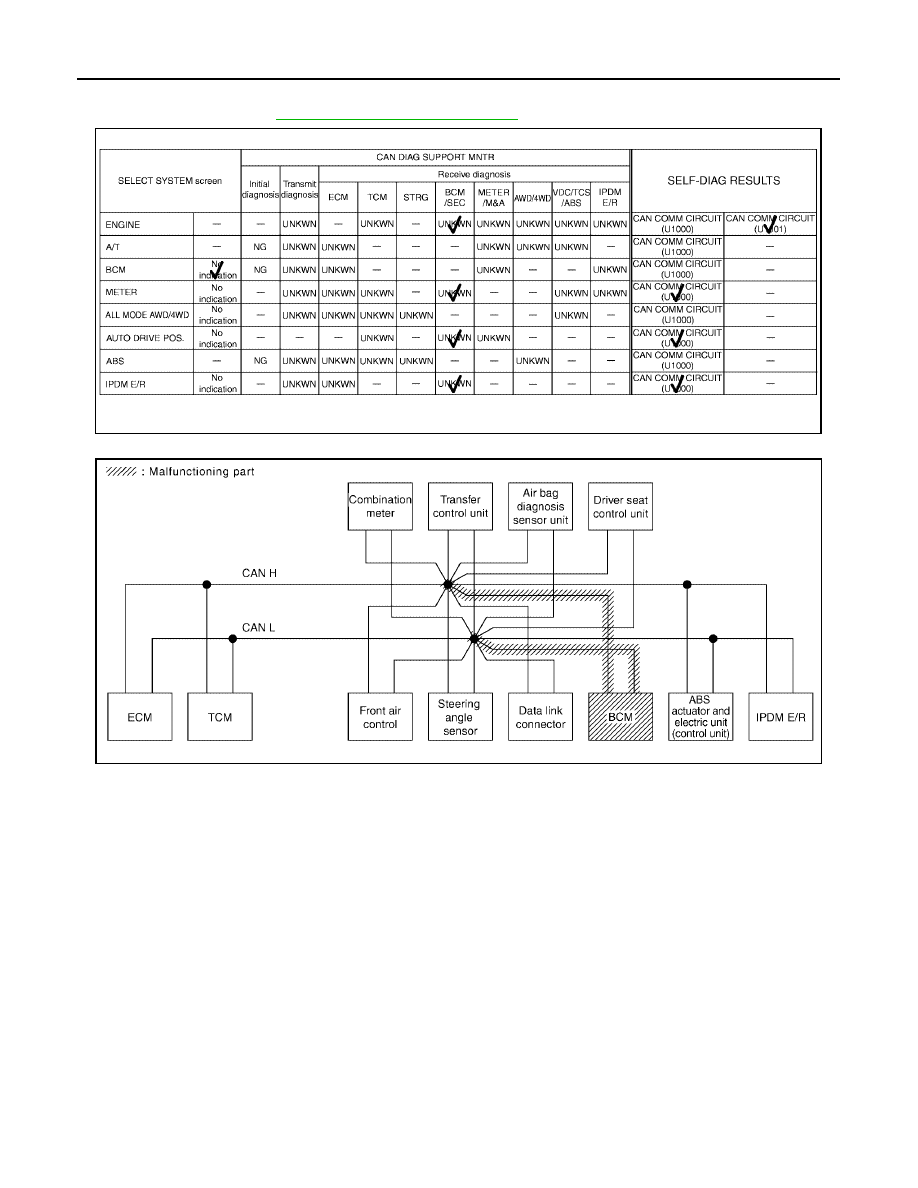

Case 7

Check BCM circuit. Refer to

LAN-200, "BCM Circuit Inspection"

 .

PKIC5711E

PKIC5479E

CAN SYSTEM (TYPE 9)

LAN-171

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

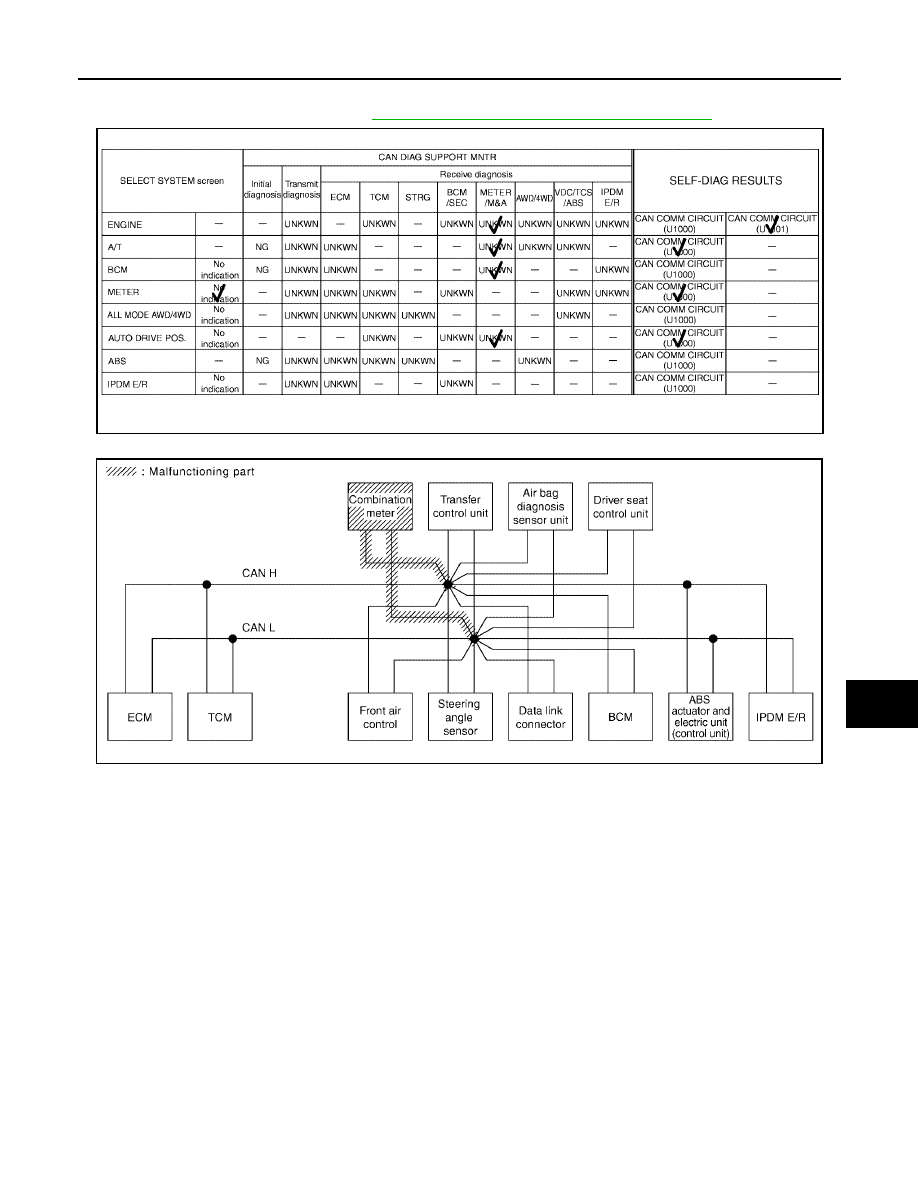

Case 8

Check combination meter circuit. Refer to

LAN-200, "Combination Meter Circuit Inspection"

 .

PKIC5712E

PKIC5480E

LAN-172

[CAN]

CAN SYSTEM (TYPE 9)

2006 Pathfinder

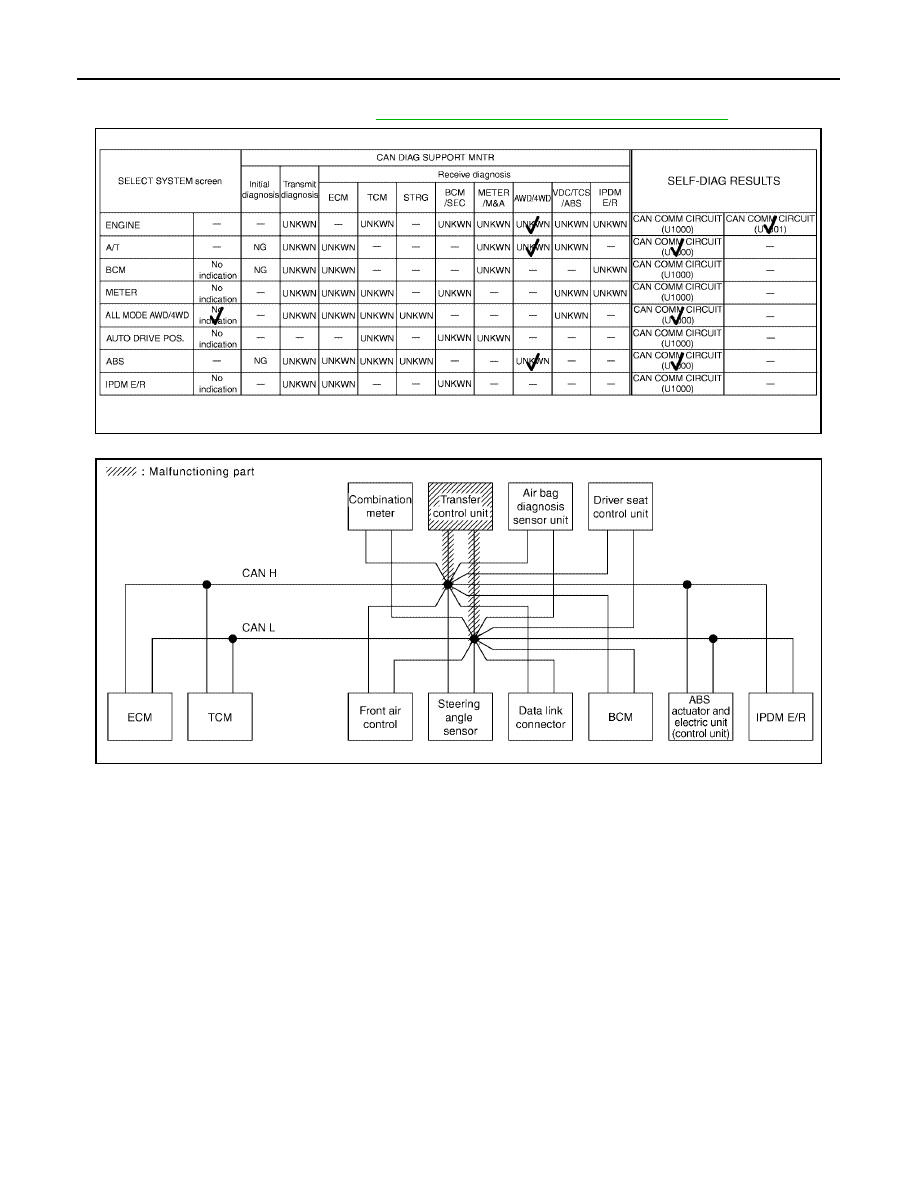

Case 9

Check transfer control unit circuit. Refer to

LAN-201, "Transfer Control Unit Circuit Inspection"

 .

PKIC5713E

PKIC5481E

CAN SYSTEM (TYPE 9)

LAN-173

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

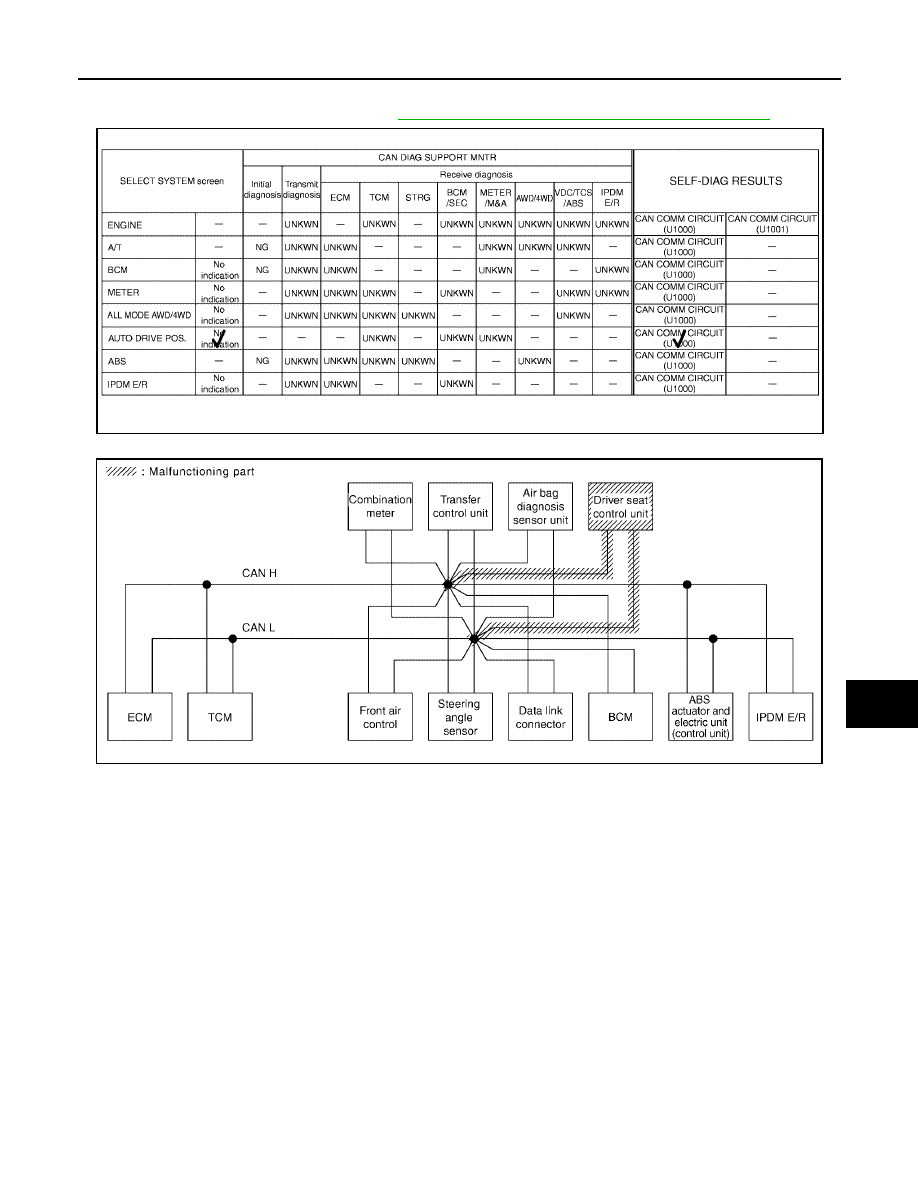

Case 10

Check driver seat control unit circuit. Refer to

LAN-202, "Driver Seat Control Unit Circuit Inspection"

 .

PKIC5714E

PKIC5482E

LAN-174

[CAN]

CAN SYSTEM (TYPE 9)

2006 Pathfinder

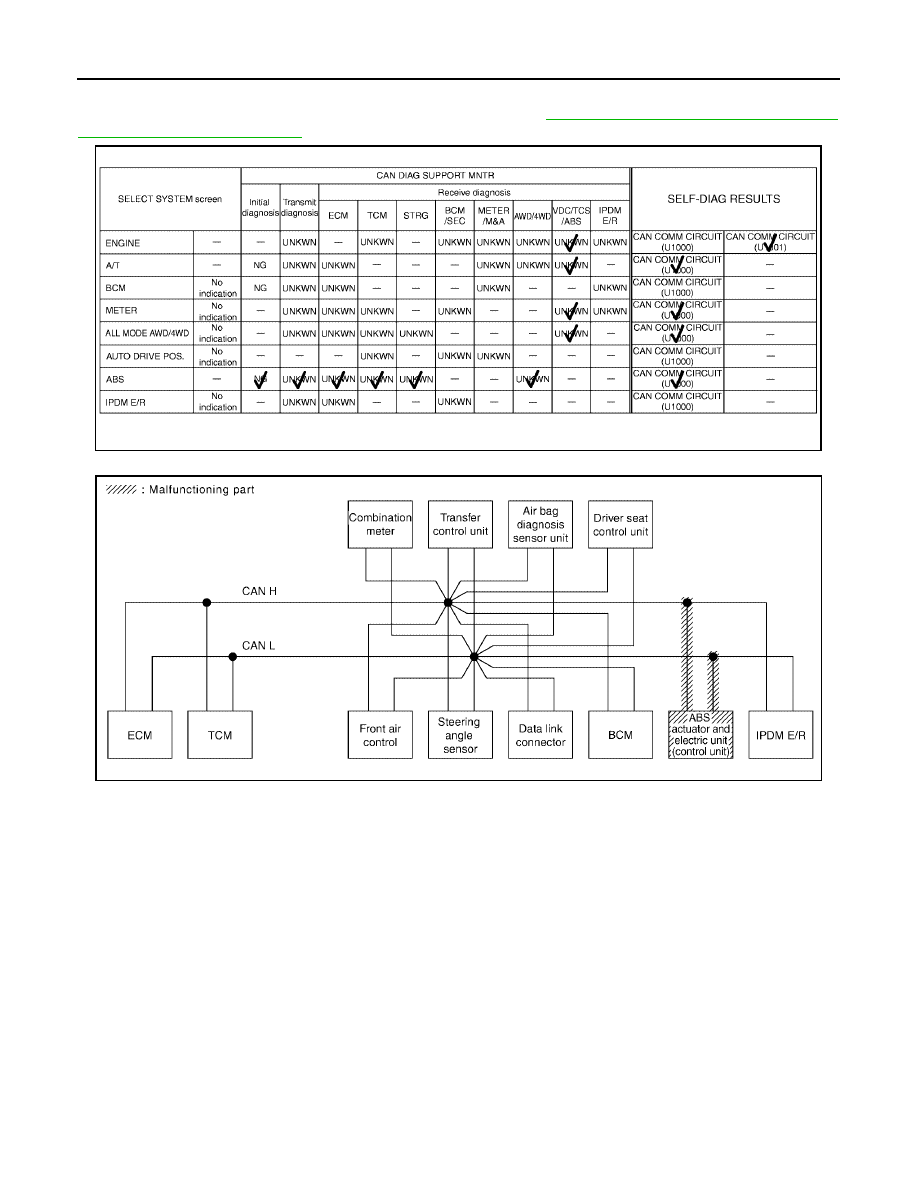

Case 11

Check ABS actuator and electric unit (control unit) circuit. Refer to

LAN-202, "ABS Actuator and Electric Unit

(Control Unit) Circuit Inspection"

 .

PKIC5715E

PKIC5483E

CAN SYSTEM (TYPE 9)

LAN-175

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

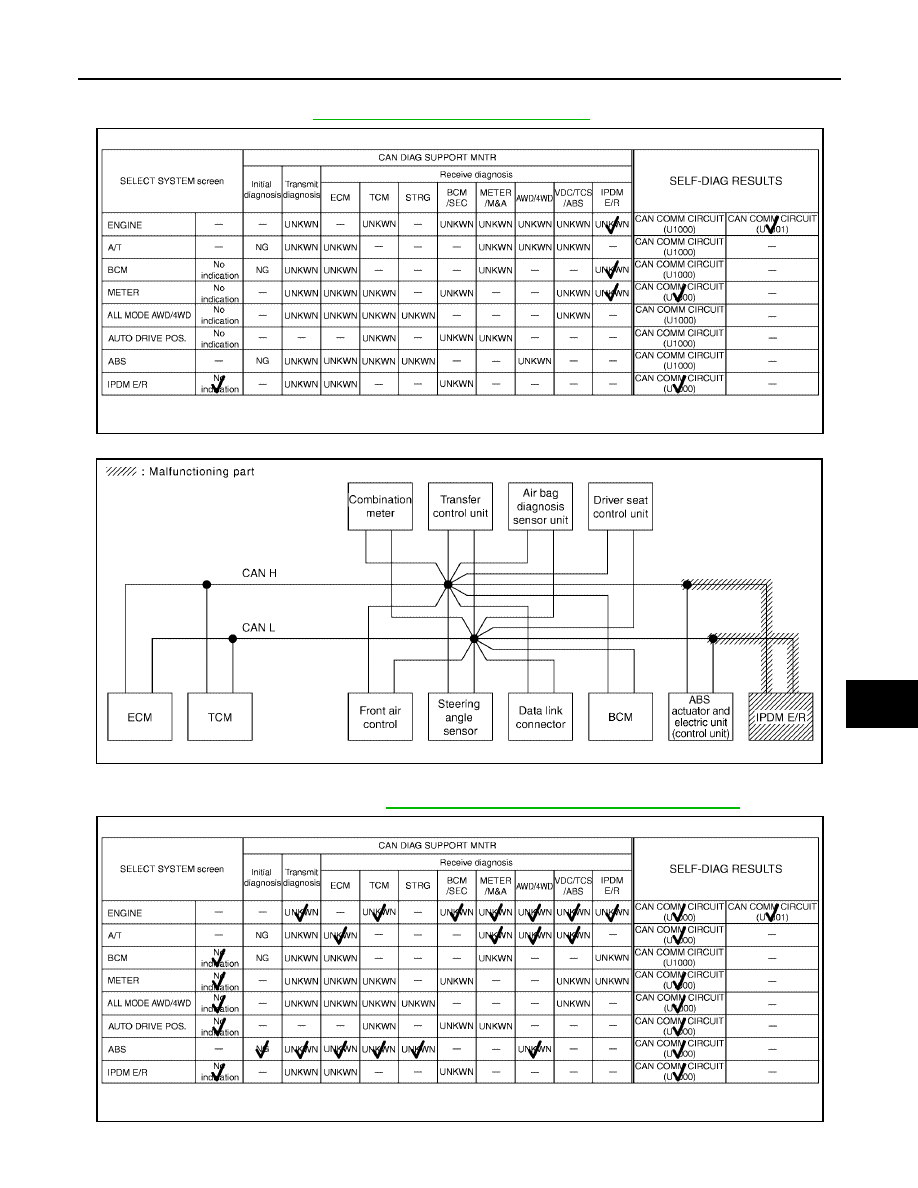

Case 12

Check IPDM E/R circuit. Refer to

LAN-203, "IPDM E/R Circuit Inspection"

 .

Case 13

Check CAN communication circuit. Refer to

LAN-203, "CAN Communication Circuit Inspection"

 .

PKIC5716E

PKIC5484E

PKIC5717E

LAN-176

[CAN]

CAN SYSTEM (TYPE 9)

2006 Pathfinder

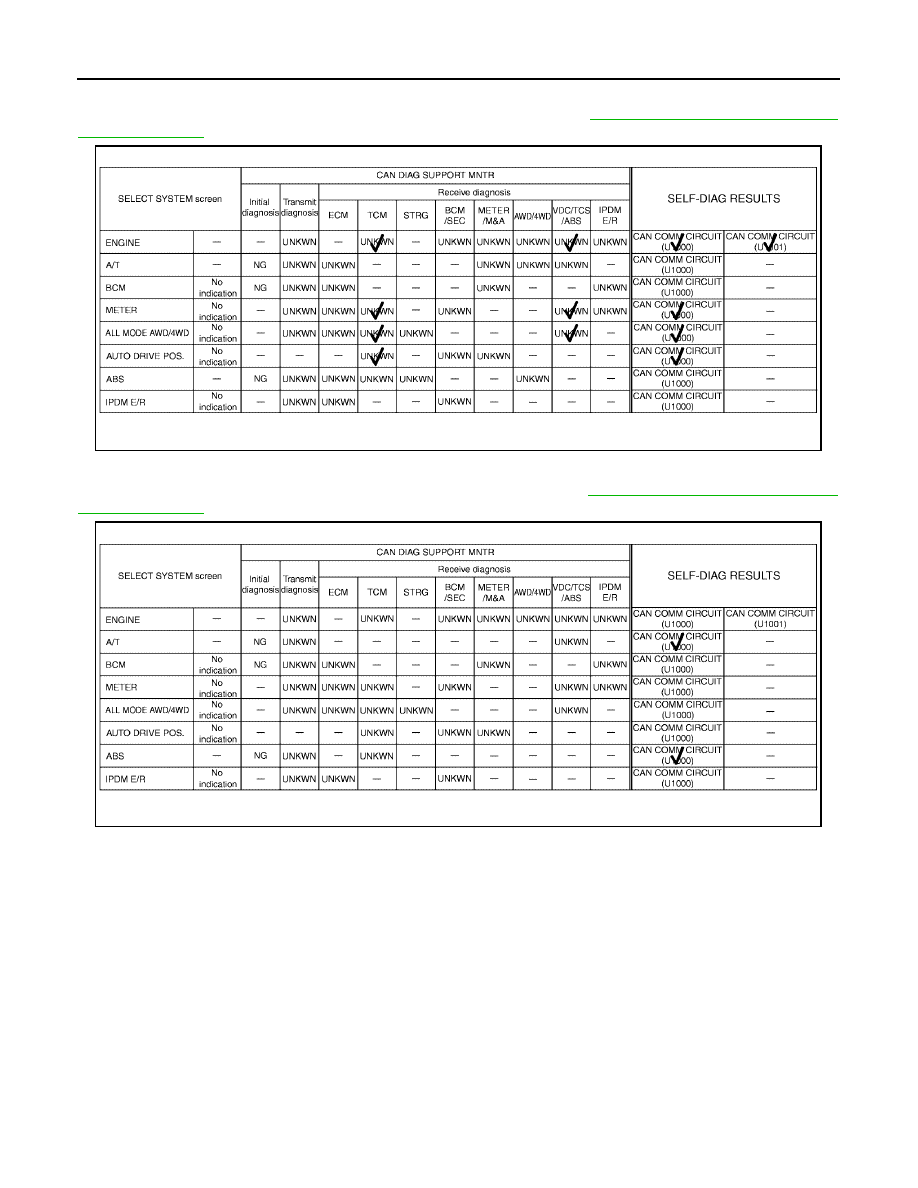

Case 14

Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer to

LAN-204, "IPDM E/R Ignition Relay

Circuit Inspection"

 .

Case 15

Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to

LAN-204, "IPDM E/R Ignition Relay

Circuit Inspection"

 .

PKIC5718E

PKIC5719E
