CAN SYSTEM (TYPE 8)

LAN-153

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

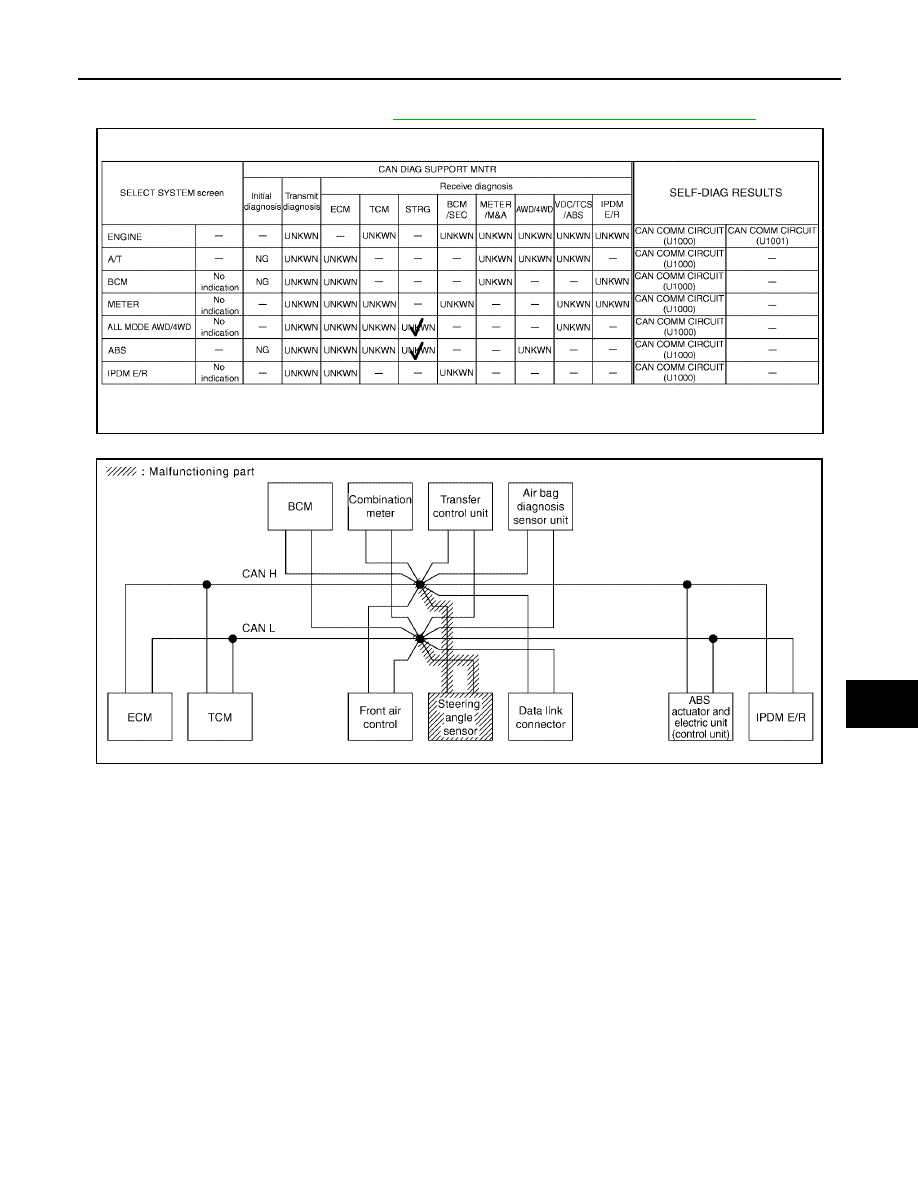

Case 5

Check steering angle sensor circuit. Refer to

LAN-199, "Steering Angle Sensor Circuit Inspection"

 .

PKIC5693E

PKIC5464E

LAN-154

[CAN]

CAN SYSTEM (TYPE 8)

2006 Pathfinder

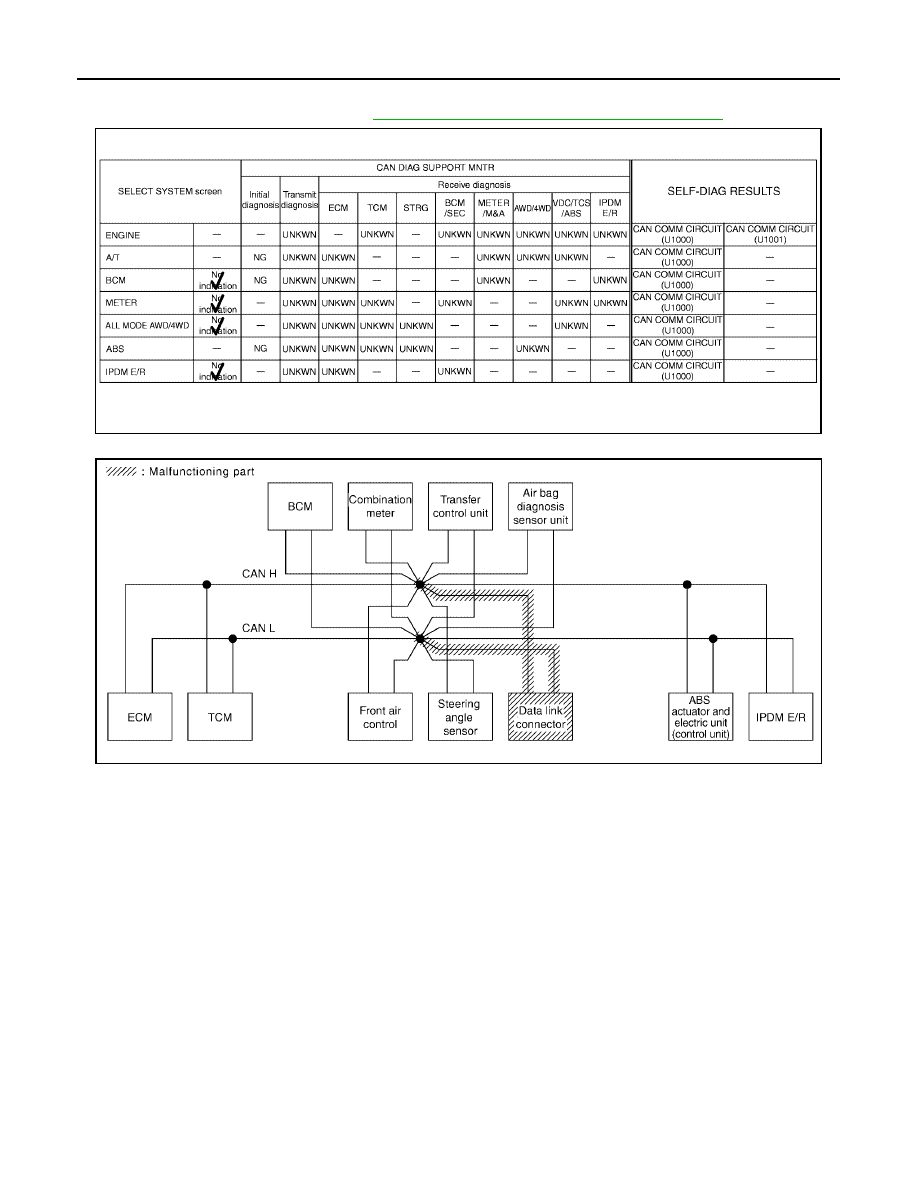

Case 6

Check data link connector circuit. Refer to

LAN-199, "Data Link Connector Circuit Inspection"

 .

PKIC5694E

PKIC5465E

CAN SYSTEM (TYPE 8)

LAN-155

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

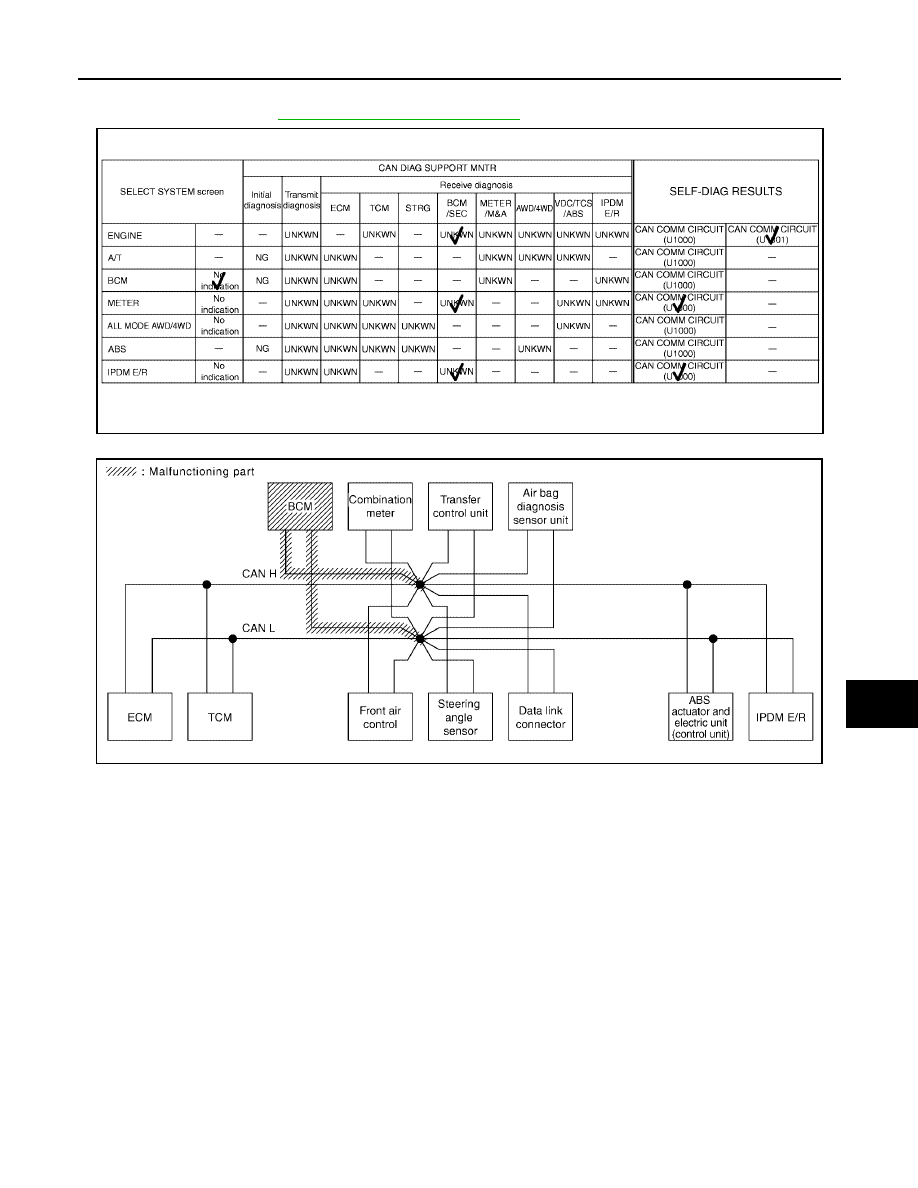

Case 7

Check BCM circuit. Refer to

LAN-200, "BCM Circuit Inspection"

 .

PKIC5695E

PKIC5466E

LAN-156

[CAN]

CAN SYSTEM (TYPE 8)

2006 Pathfinder

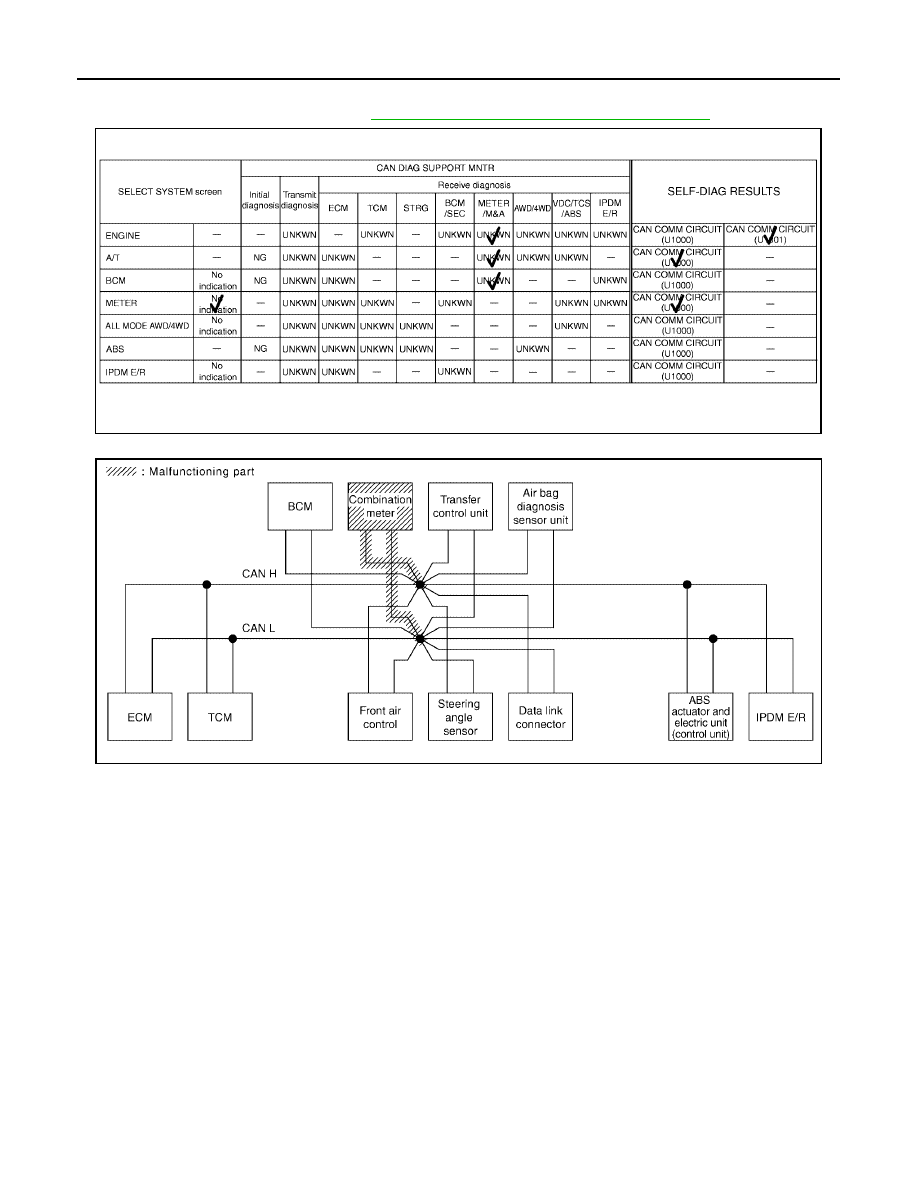

Case 8

Check combination meter circuit. Refer to

LAN-200, "Combination Meter Circuit Inspection"

 .

PKIC5696E

PKIC5467E

CAN SYSTEM (TYPE 8)

LAN-157

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

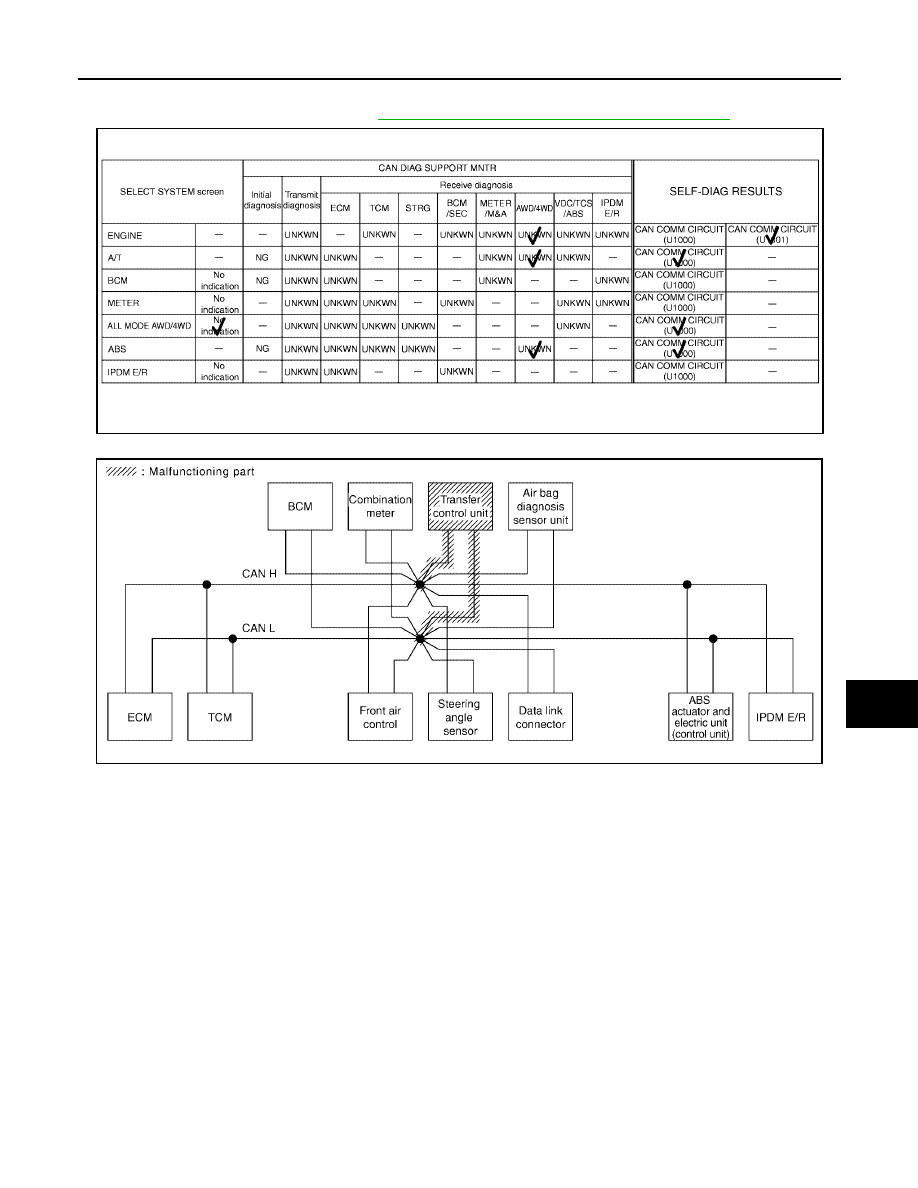

Case 9

Check transfer control unit circuit. Refer to

LAN-201, "Transfer Control Unit Circuit Inspection"

 .

PKIC5697E

PKIC5468E

LAN-158

[CAN]

CAN SYSTEM (TYPE 8)

2006 Pathfinder

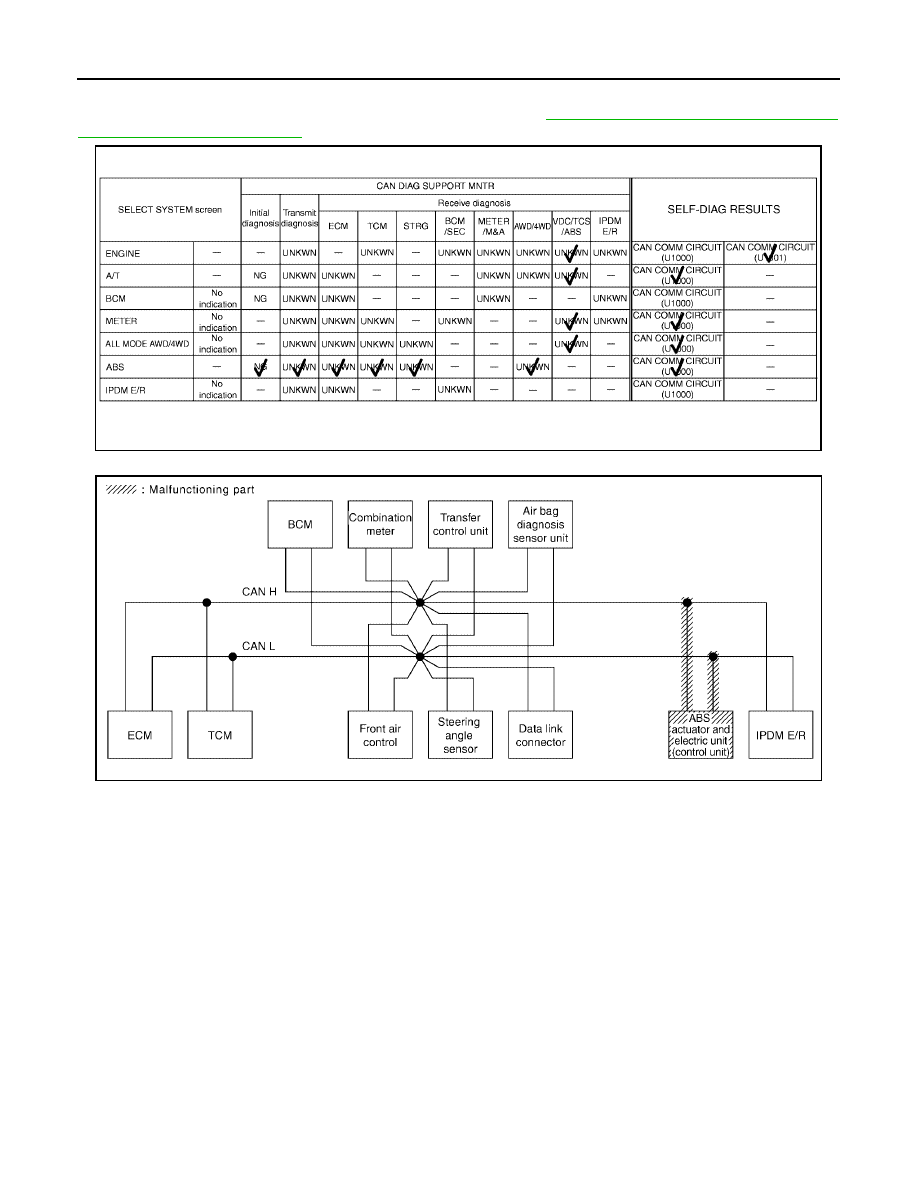

Case 10

Check ABS actuator and electric unit (control unit) circuit. Refer to

LAN-202, "ABS Actuator and Electric Unit

(Control Unit) Circuit Inspection"

 .

PKIC5698E

PKIC5469E

CAN SYSTEM (TYPE 8)

LAN-159

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

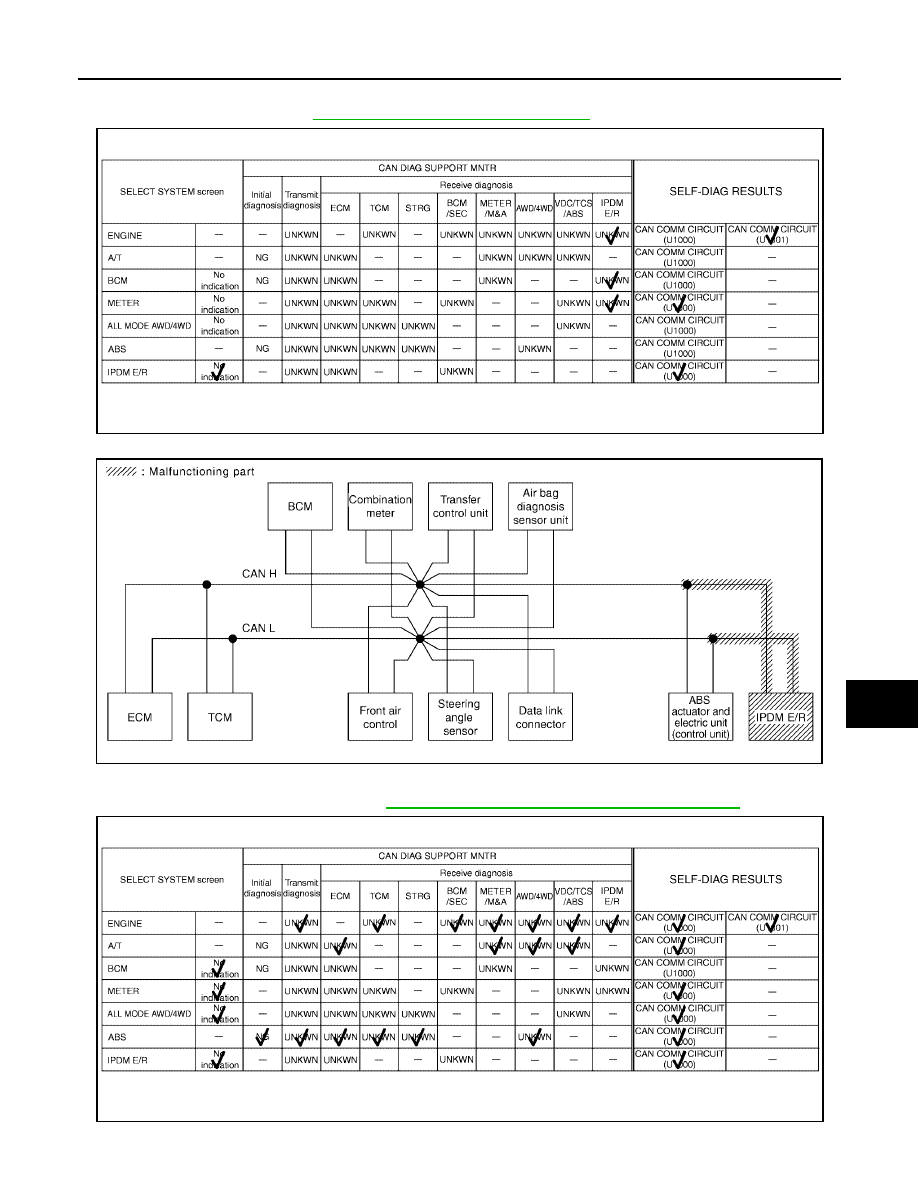

Case 11

Check IPDM E/R circuit. Refer to

LAN-203, "IPDM E/R Circuit Inspection"

 .

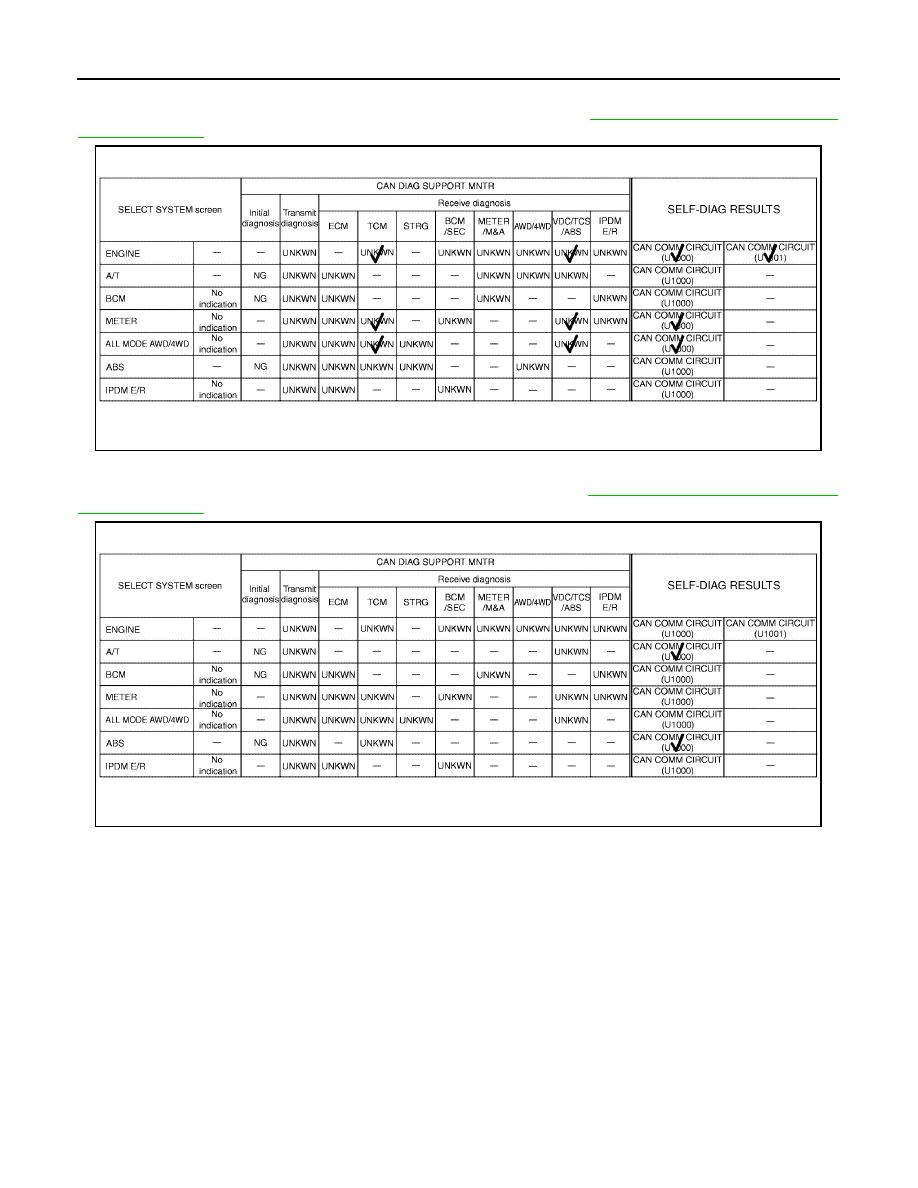

Case 12

Check CAN communication circuit. Refer to

LAN-203, "CAN Communication Circuit Inspection"

 .

PKIC5699E

PKIC5470E

PKIC5700E

LAN-160

[CAN]

CAN SYSTEM (TYPE 8)

2006 Pathfinder

Case 13

Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer to

LAN-204, "IPDM E/R Ignition Relay

Circuit Inspection"

 .

Case 14

Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to

LAN-204, "IPDM E/R Ignition Relay

Circuit Inspection"

 .
