CAN SYSTEM (TYPE 7)

LAN-137

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

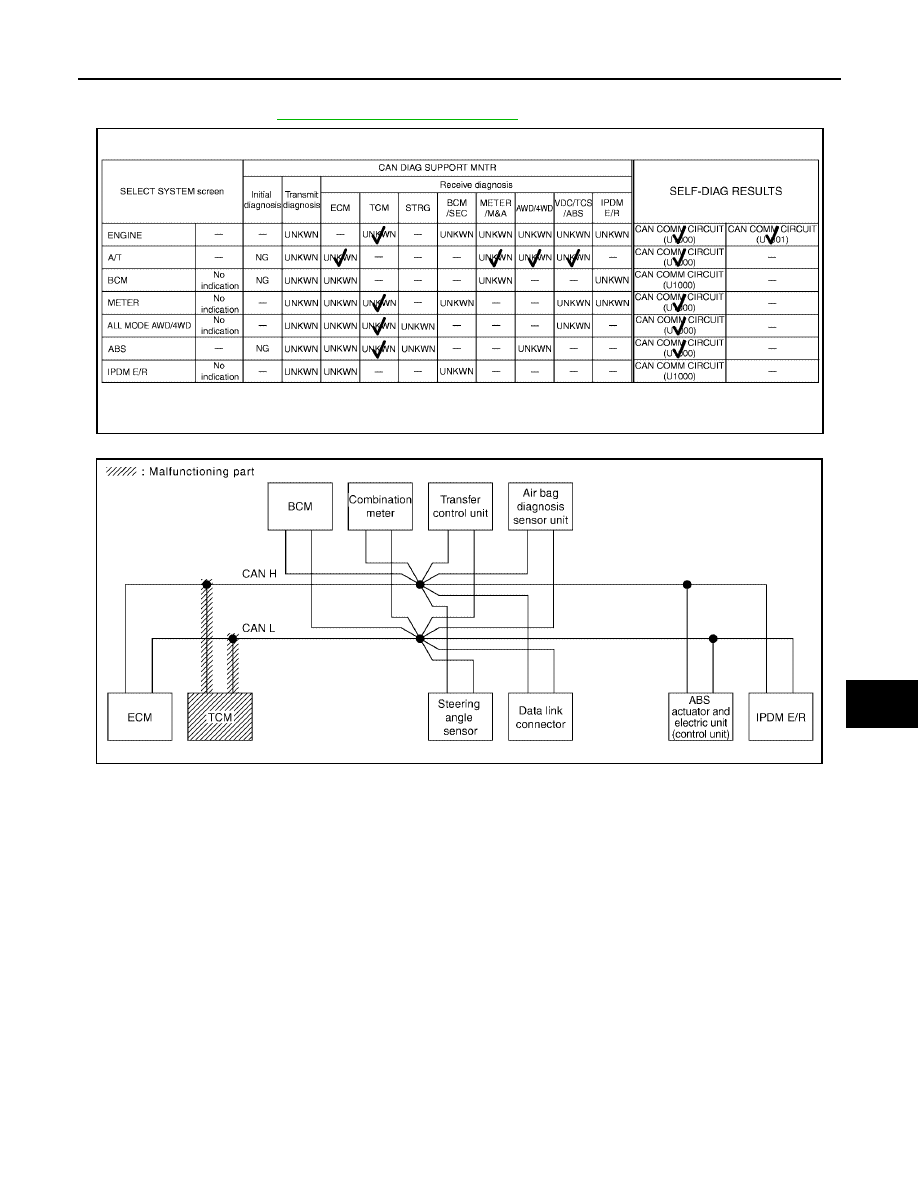

Case 4

Check TCM circuit. Refer to

LAN-197, "TCM Circuit Inspection"

 .

PKIC5692E

PKIC5451E

LAN-138

[CAN]

CAN SYSTEM (TYPE 7)

2006 Pathfinder

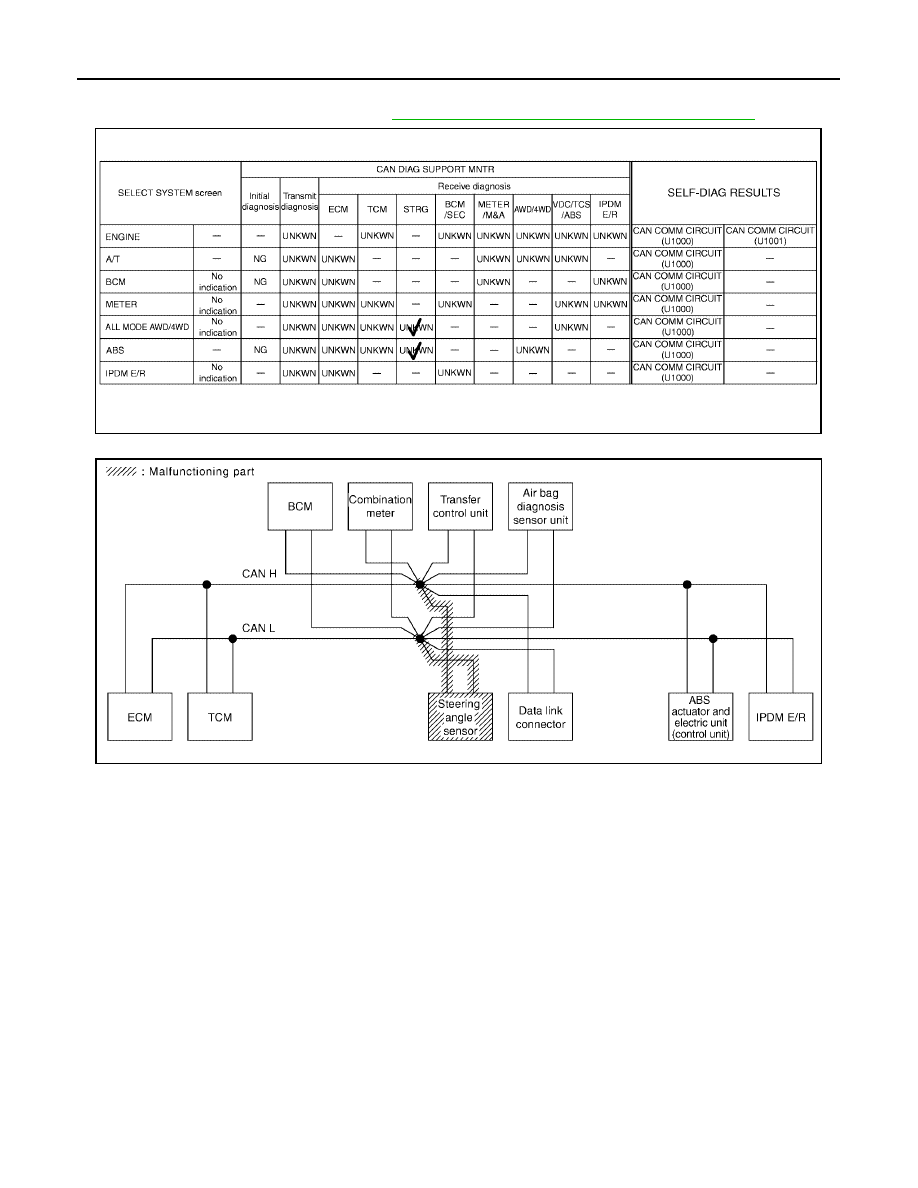

Case 5

Check steering angle sensor circuit. Refer to

LAN-199, "Steering Angle Sensor Circuit Inspection"

 .

PKIC5693E

PKIC5452E

CAN SYSTEM (TYPE 7)

LAN-139

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

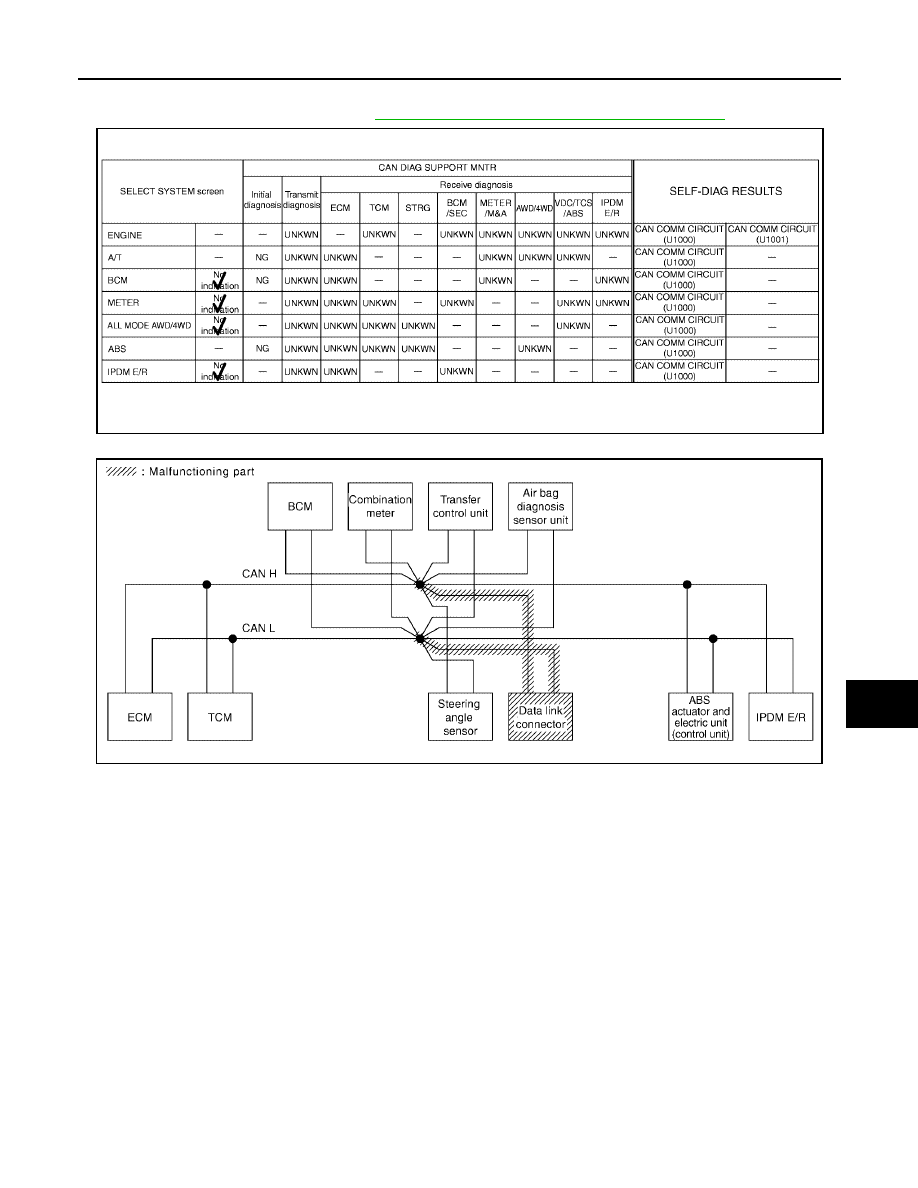

Case 6

Check data link connector circuit. Refer to

LAN-199, "Data Link Connector Circuit Inspection"

 .

PKIC5694E

PKIC5453E

LAN-140

[CAN]

CAN SYSTEM (TYPE 7)

2006 Pathfinder

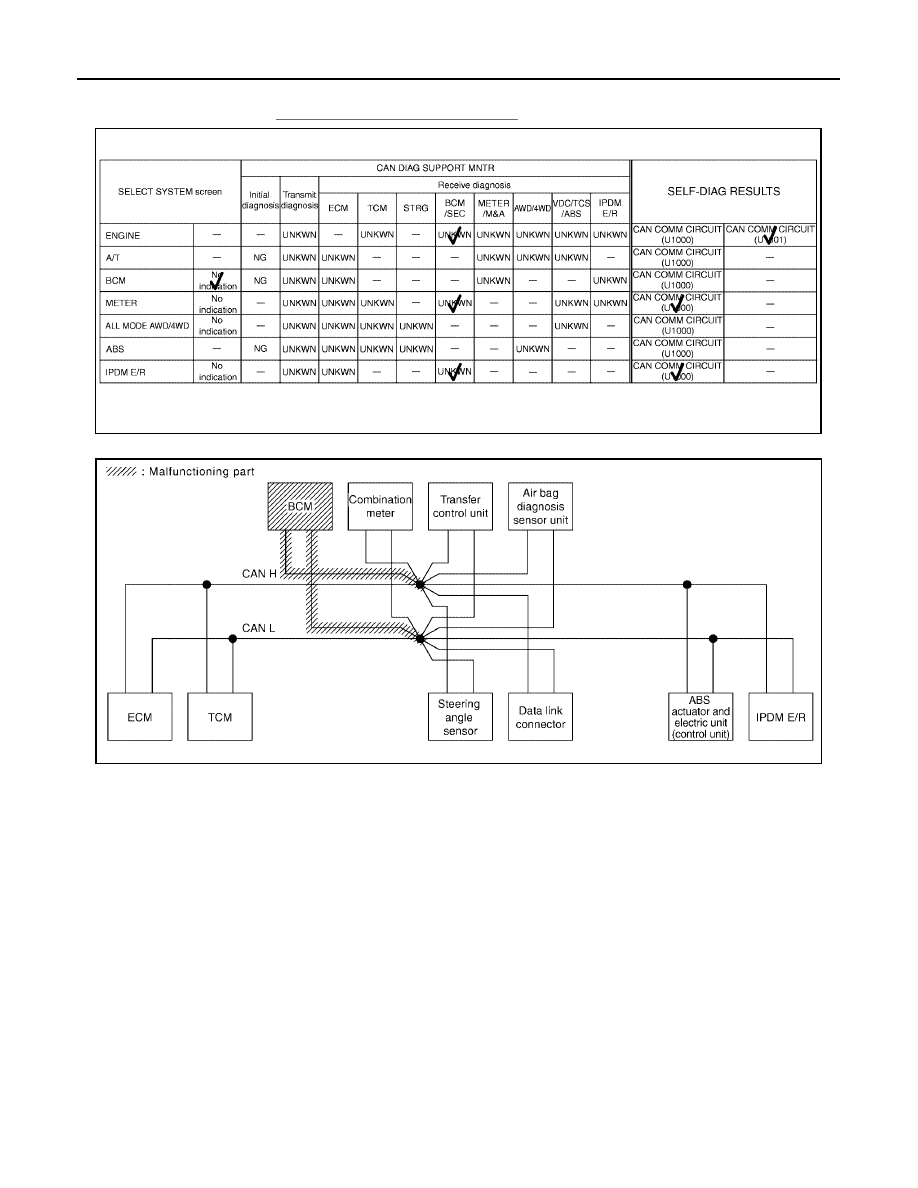

Case 7

Check BCM circuit. Refer to

LAN-200, "BCM Circuit Inspection"

 .

PKIC5695E

PKIC5454E

CAN SYSTEM (TYPE 7)

LAN-141

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

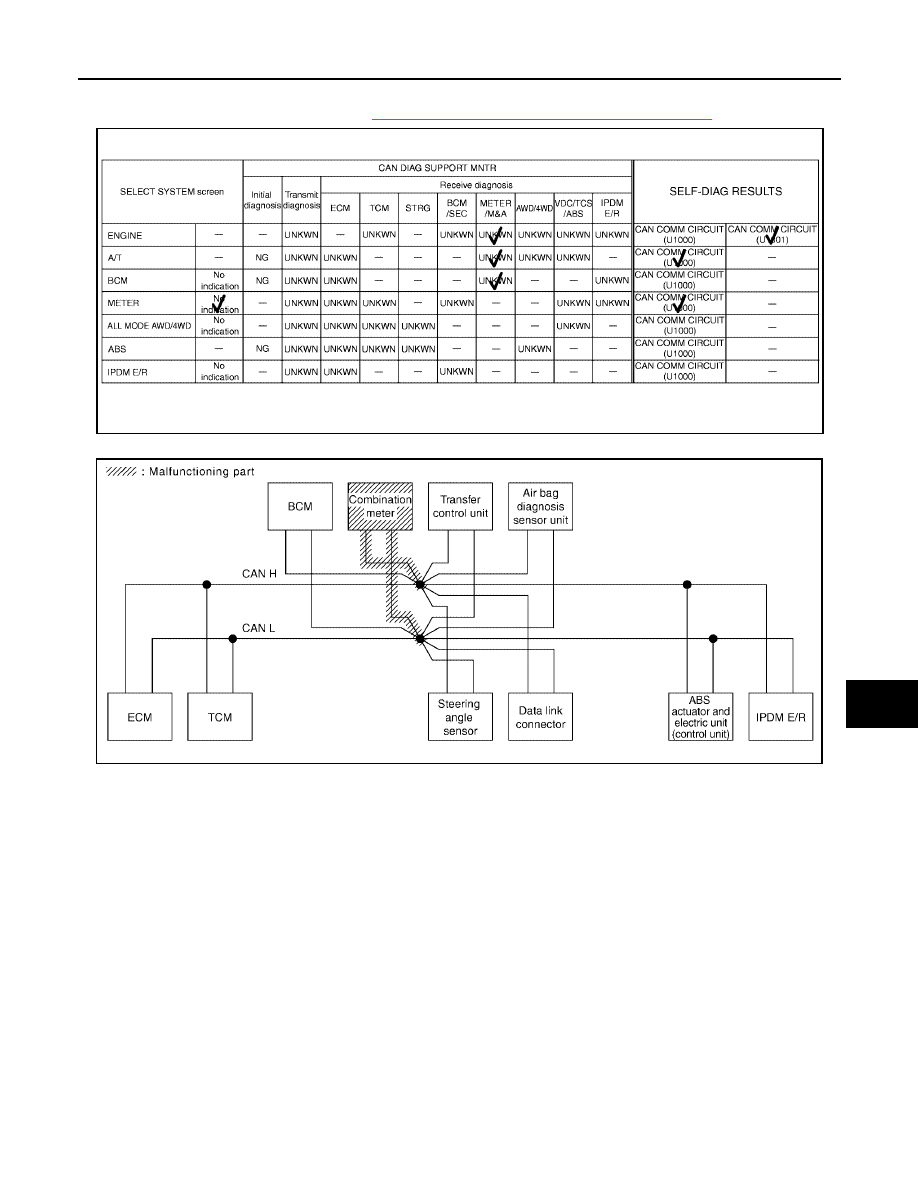

Case 8

Check combination meter circuit. Refer to

LAN-200, "Combination Meter Circuit Inspection"

 .

PKIC5696E

PKIC5455E

LAN-142

[CAN]

CAN SYSTEM (TYPE 7)

2006 Pathfinder

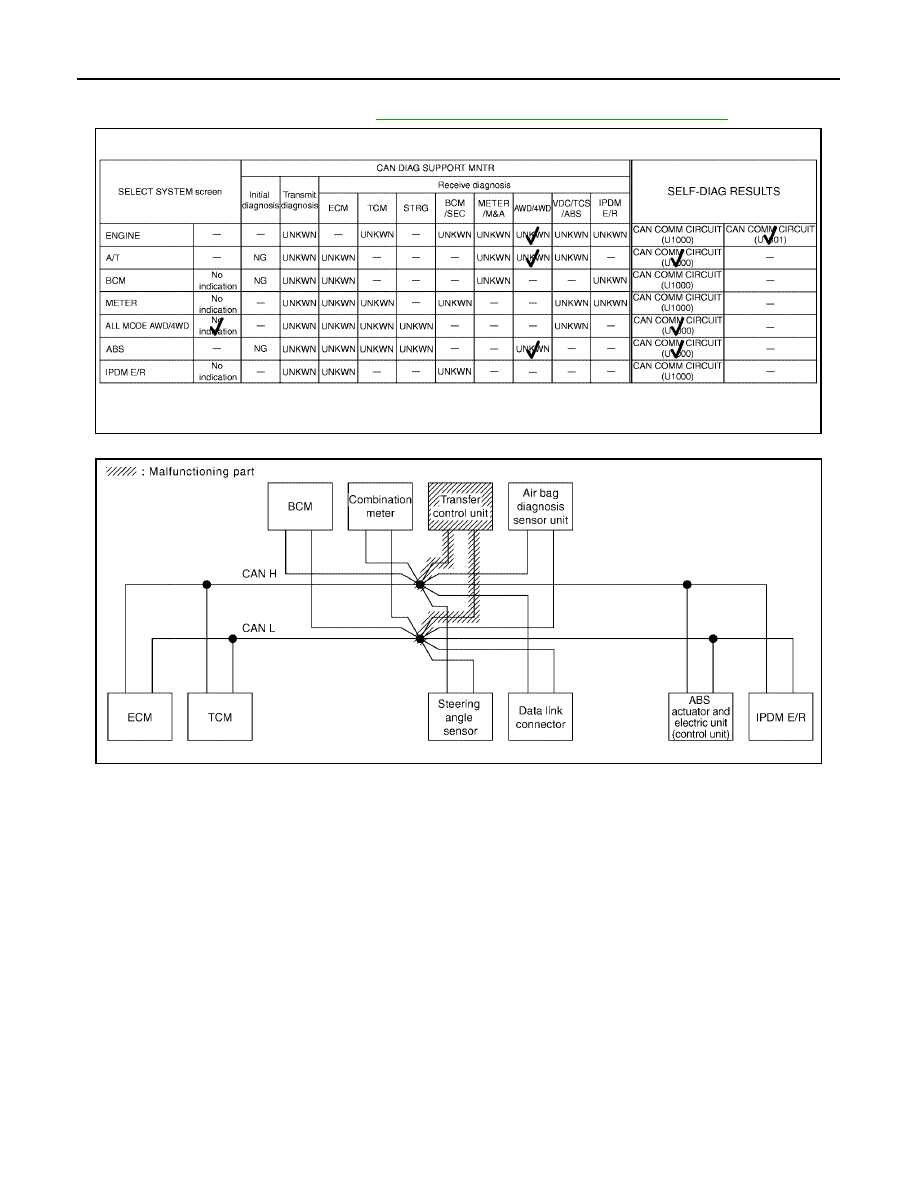

Case 9

Check transfer control unit circuit. Refer to

LAN-201, "Transfer Control Unit Circuit Inspection"

 .

PKIC5697E

PKIC5456E

CAN SYSTEM (TYPE 7)

LAN-143

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

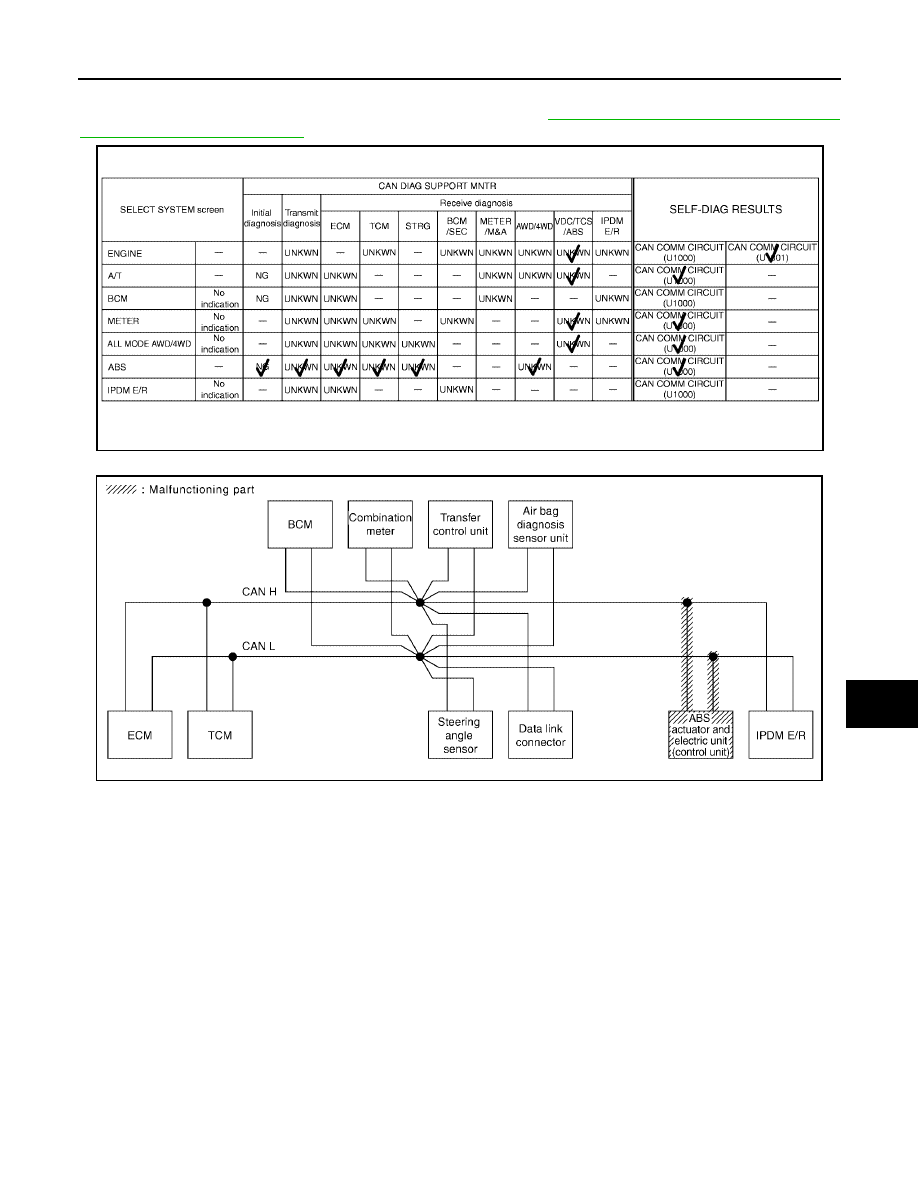

Case 10

Check ABS actuator and electric unit (control unit) circuit. Refer to

LAN-202, "ABS Actuator and Electric Unit

(Control Unit) Circuit Inspection"

 .

PKIC5698E

PKIC5457E

LAN-144

[CAN]

CAN SYSTEM (TYPE 7)

2006 Pathfinder

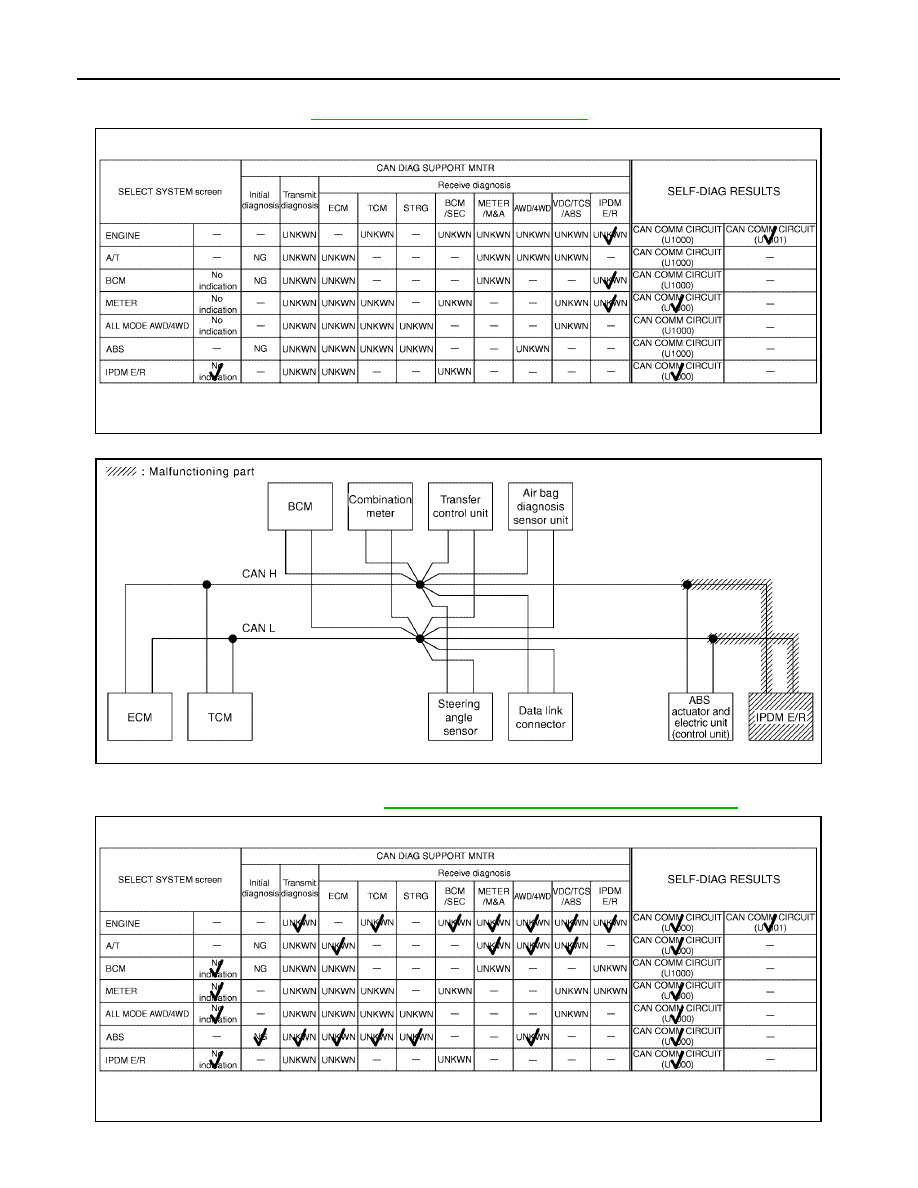

Case 11

Check IPDM E/R circuit. Refer to

LAN-203, "IPDM E/R Circuit Inspection"

 .

Case 12

Check CAN communication circuit. Refer to

LAN-203, "CAN Communication Circuit Inspection"

 .

PKIC5699E

PKIC5458E

PKIC5700E
