CAN SYSTEM (TYPE 6)

LAN-129

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

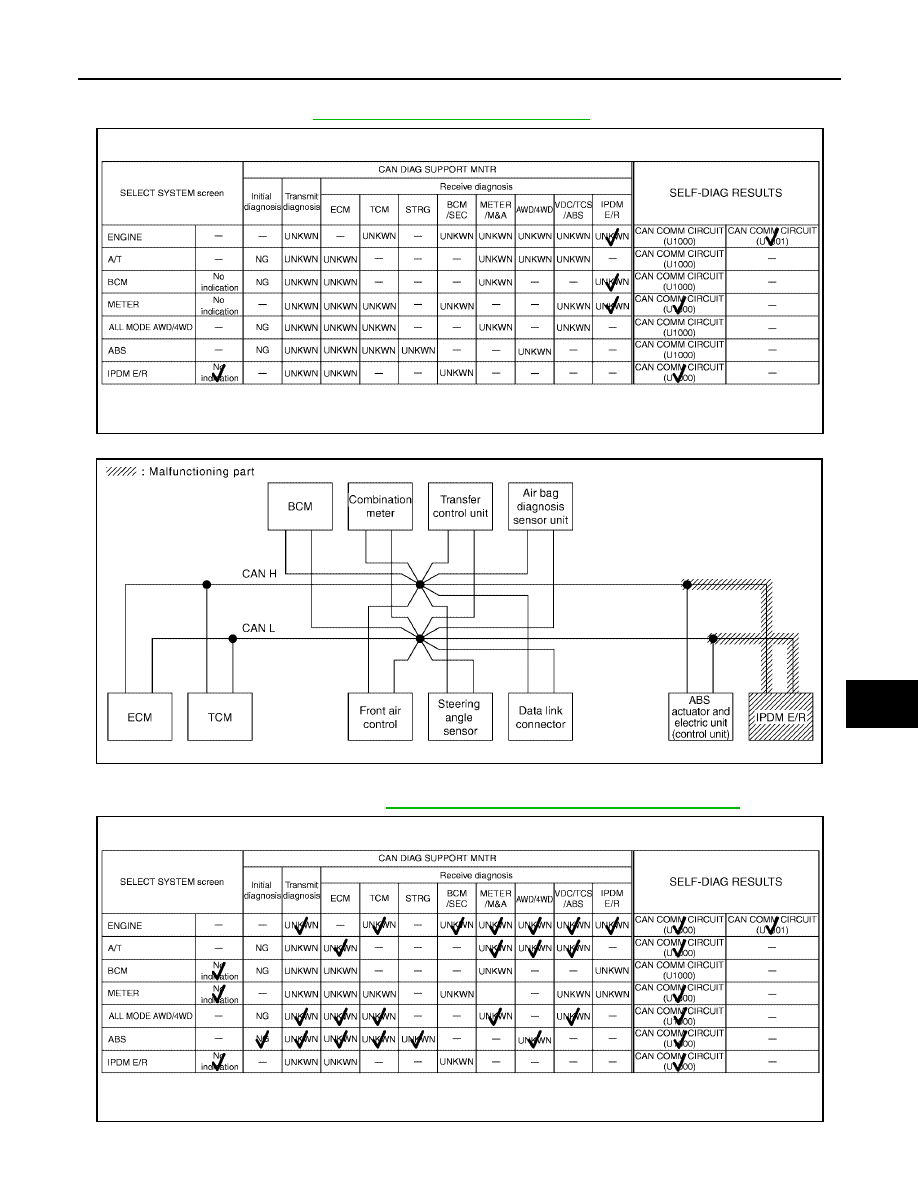

Case 11

Check IPDM E/R circuit. Refer to

LAN-203, "IPDM E/R Circuit Inspection"

 .

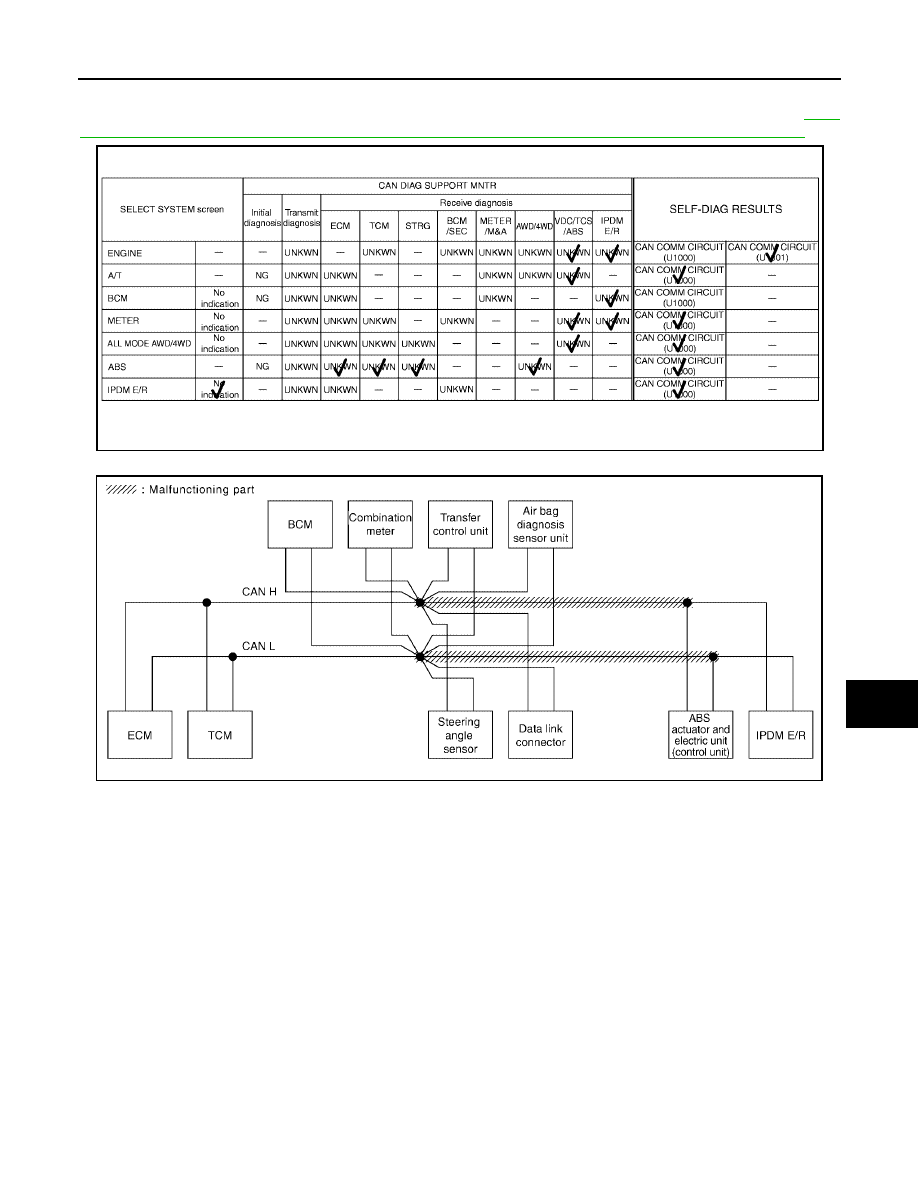

Case 12

Check CAN communication circuit. Refer to

LAN-203, "CAN Communication Circuit Inspection"

 .

PKIC5684E

PKIC5470E

PKIC5685E

LAN-130

[CAN]

CAN SYSTEM (TYPE 6)

2006 Pathfinder

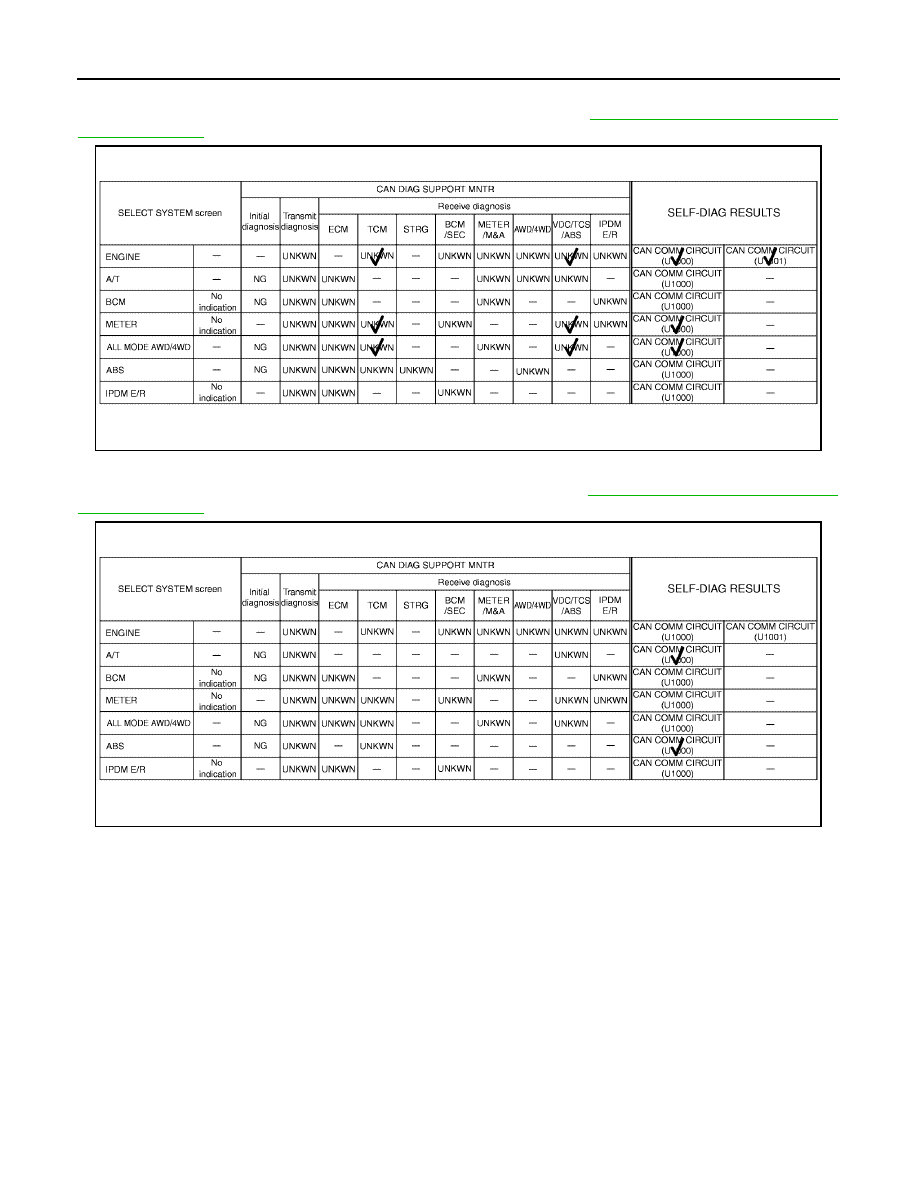

Case 13

Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer to

LAN-204, "IPDM E/R Ignition Relay

Circuit Inspection"

 .

Case 14

Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to

LAN-204, "IPDM E/R Ignition Relay

Circuit Inspection"

 .

PKIC5686E

PKIC5687E

CAN SYSTEM (TYPE 7)

LAN-131

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

CAN SYSTEM (TYPE 7)

PFP:23710

Component Parts and Harness Connector Location

UKS0053Q

Refer to

LAN-25, "Component Parts and Harness Connector Location"

 .

Schematic

UKS0053R

Refer to

LAN-26, "Schematic"

 .

Wiring Diagram — CAN —

UKS0053S

Refer to

LAN-27, "Wiring Diagram — CAN —"

 .

LAN-132

[CAN]

CAN SYSTEM (TYPE 7)

2006 Pathfinder

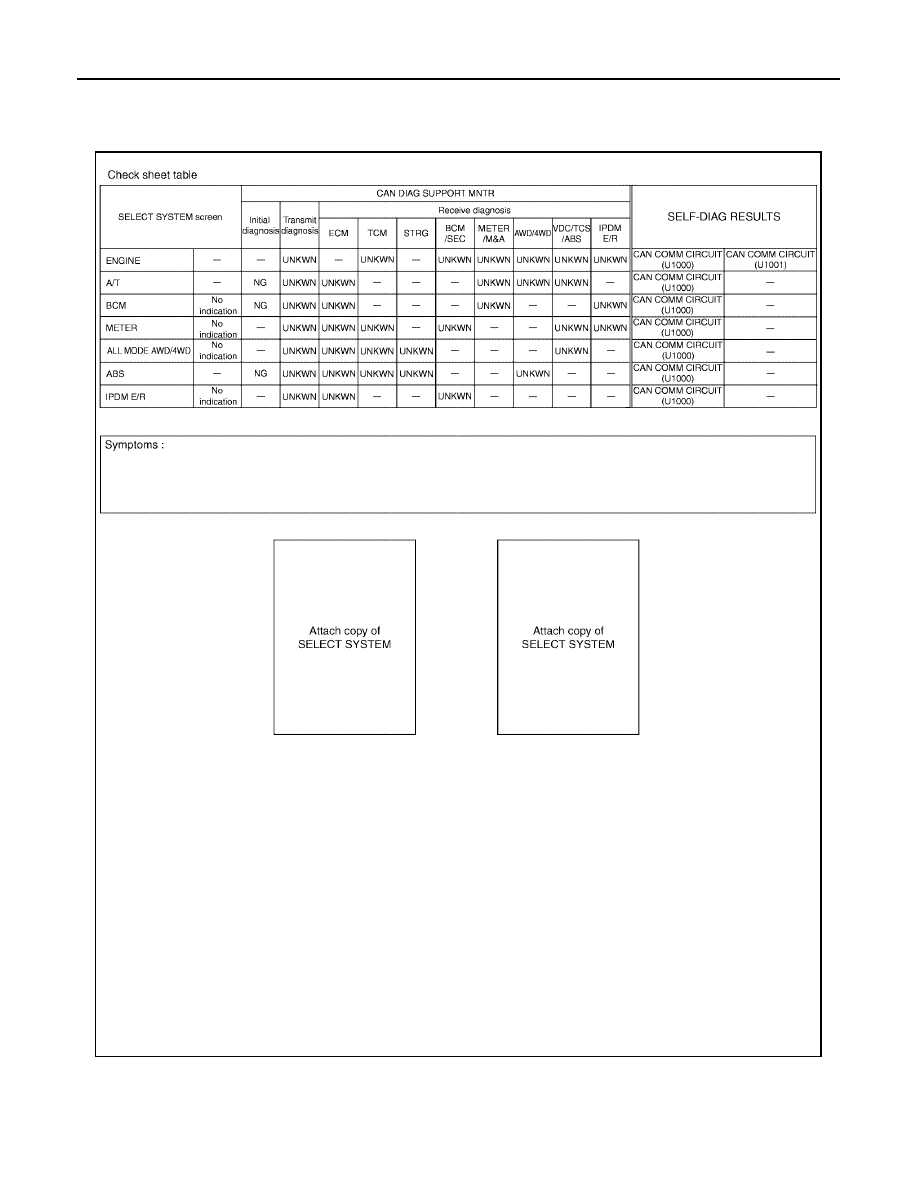

Check Sheet

UKS0053T

NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

PKIC5688E

CAN SYSTEM (TYPE 7)

LAN-133

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

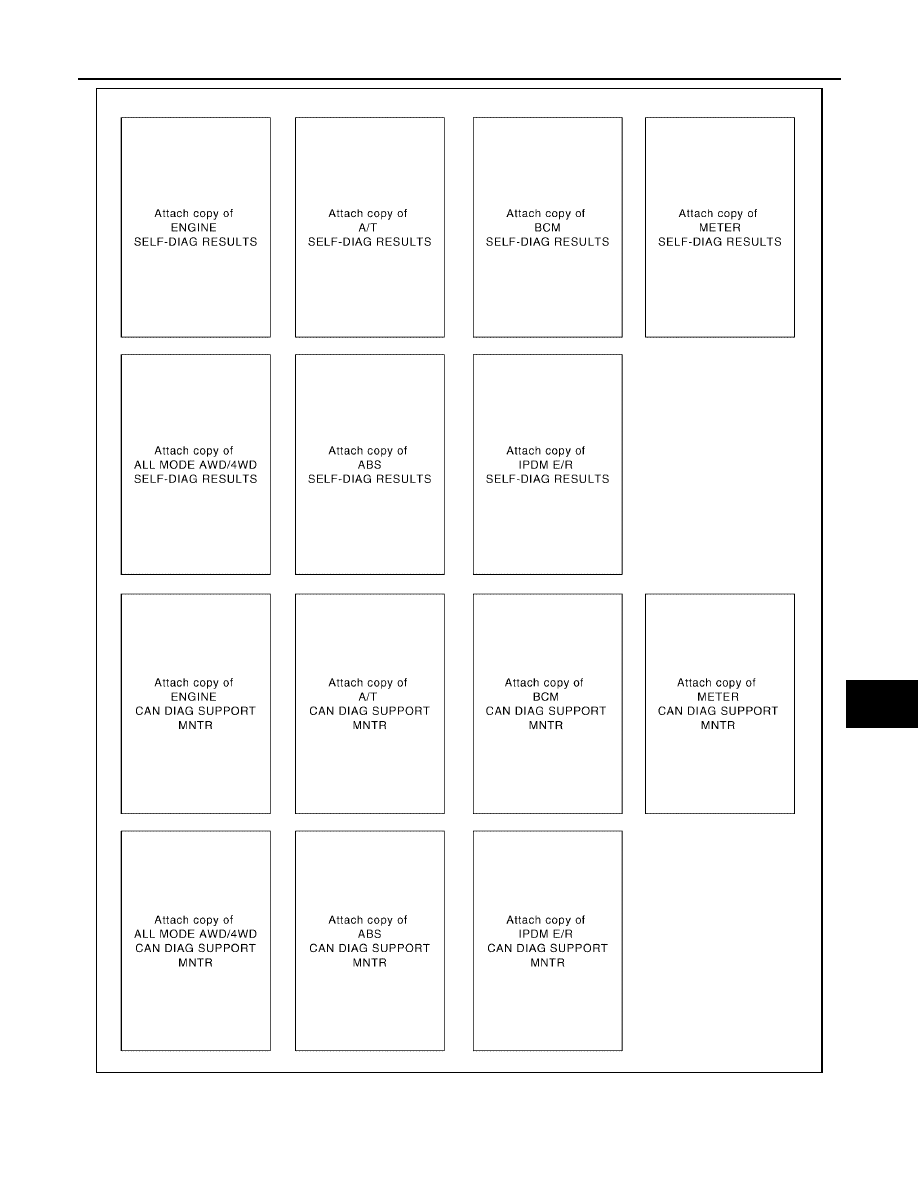

PKIC7066E

LAN-134

[CAN]

CAN SYSTEM (TYPE 7)

2006 Pathfinder

CHECK SHEET RESULTS (EXAMPLE)

NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

Case 1

Check harness between TCM and data link connector. Refer to

LAN-195, "Inspection Between TCM and Data

Link Connector Circuit"

 .

PKIC5689E

PKIC5448E

CAN SYSTEM (TYPE 7)

LAN-135

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

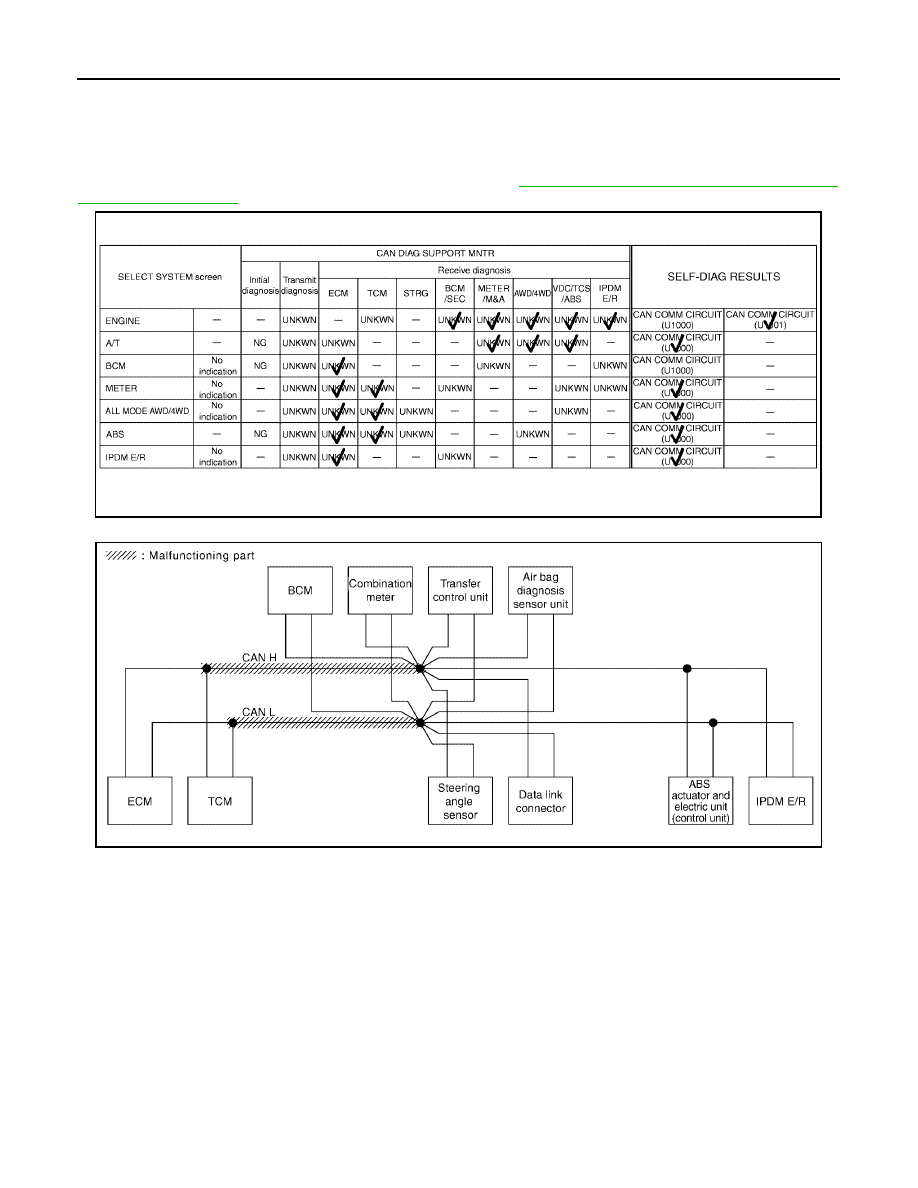

Case 2

Check harness between data link connector and ABS actuator and electric unit (control unit). Refer to

LAN-

196, "Inspection Between Data Link Connector and ABS Actuator and Electric Unit (Control Unit) Circuit"

 .

PKIC5690E

PKIC5449E

LAN-136

[CAN]

CAN SYSTEM (TYPE 7)

2006 Pathfinder

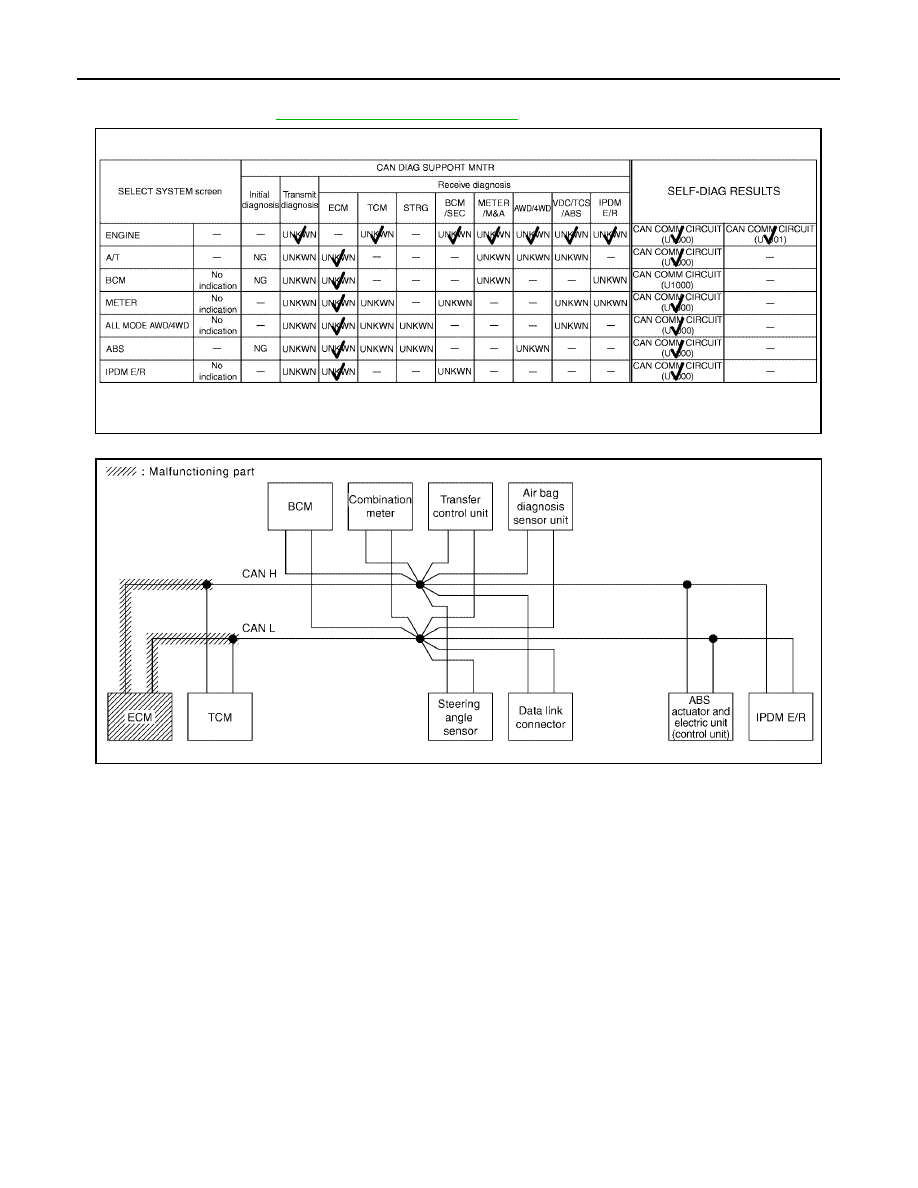

Case 3

Check ECM circuit. Refer to

LAN-197, "ECM Circuit Inspection"

 .

PKIC5691E

PKIC5450E
