CAN SYSTEM (TYPE 6)

LAN-121

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

Case 3

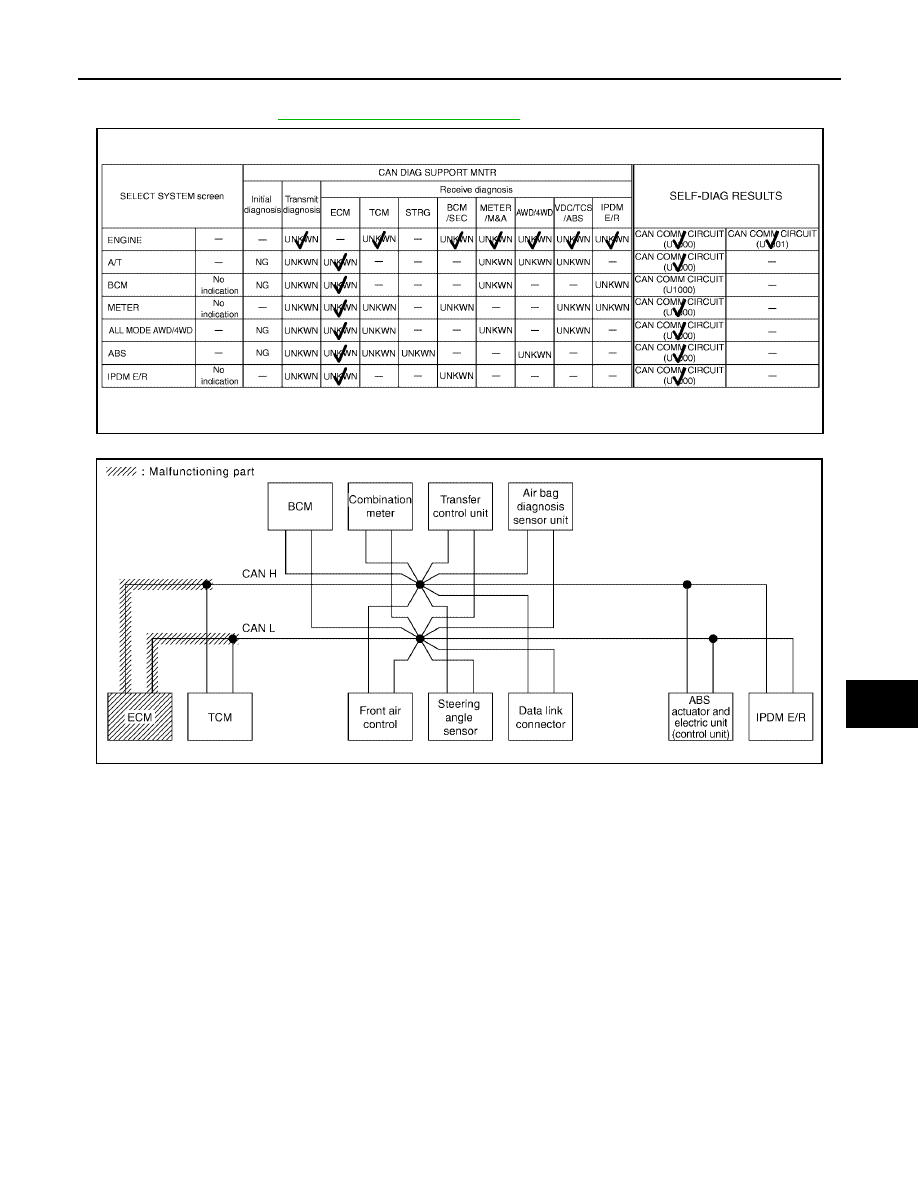

Check ECM circuit. Refer to

LAN-197, "ECM Circuit Inspection"

 .

PKIC5676E

PKIC5461E

LAN-122

[CAN]

CAN SYSTEM (TYPE 6)

2006 Pathfinder

Case 4

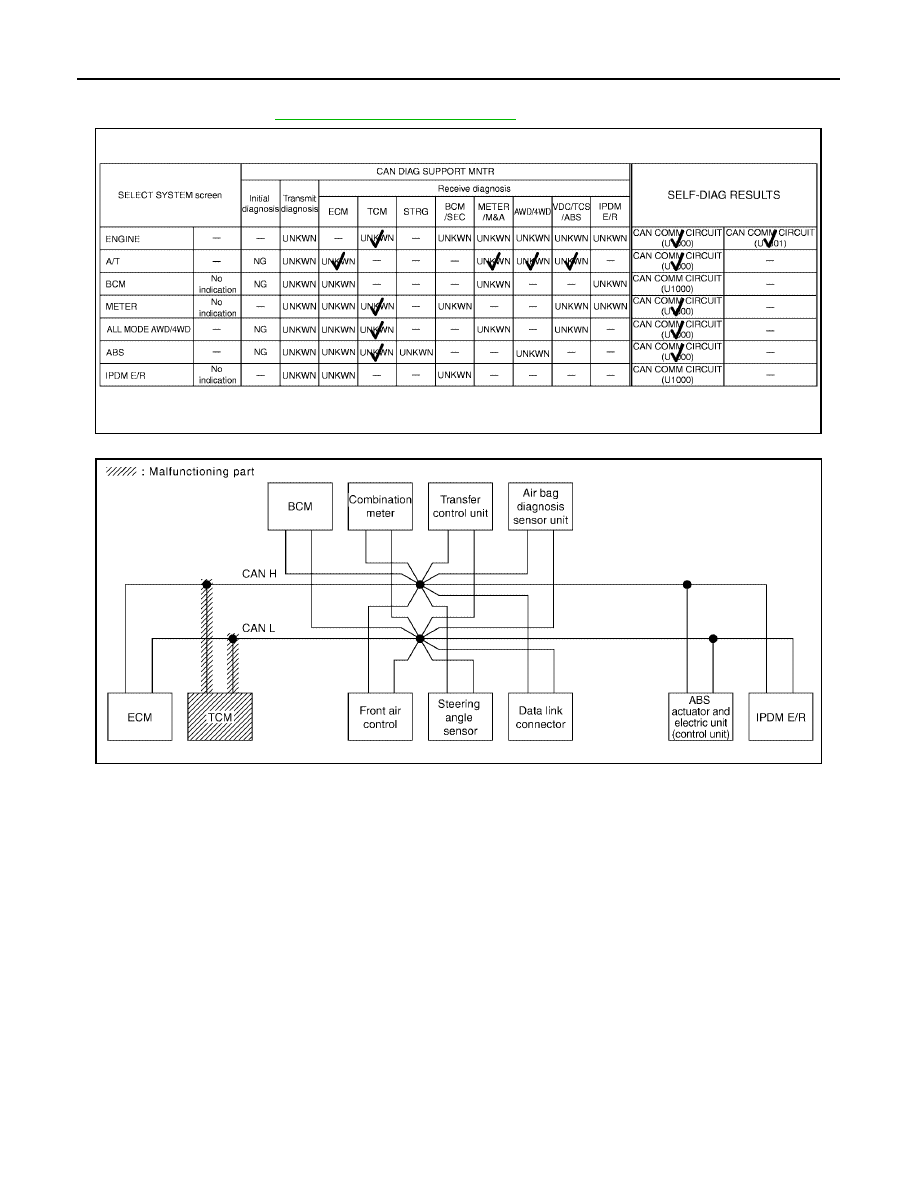

Check TCM circuit. Refer to

LAN-197, "TCM Circuit Inspection"

 .

PKIC5677E

PKIC5462E

CAN SYSTEM (TYPE 6)

LAN-123

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

Case 5

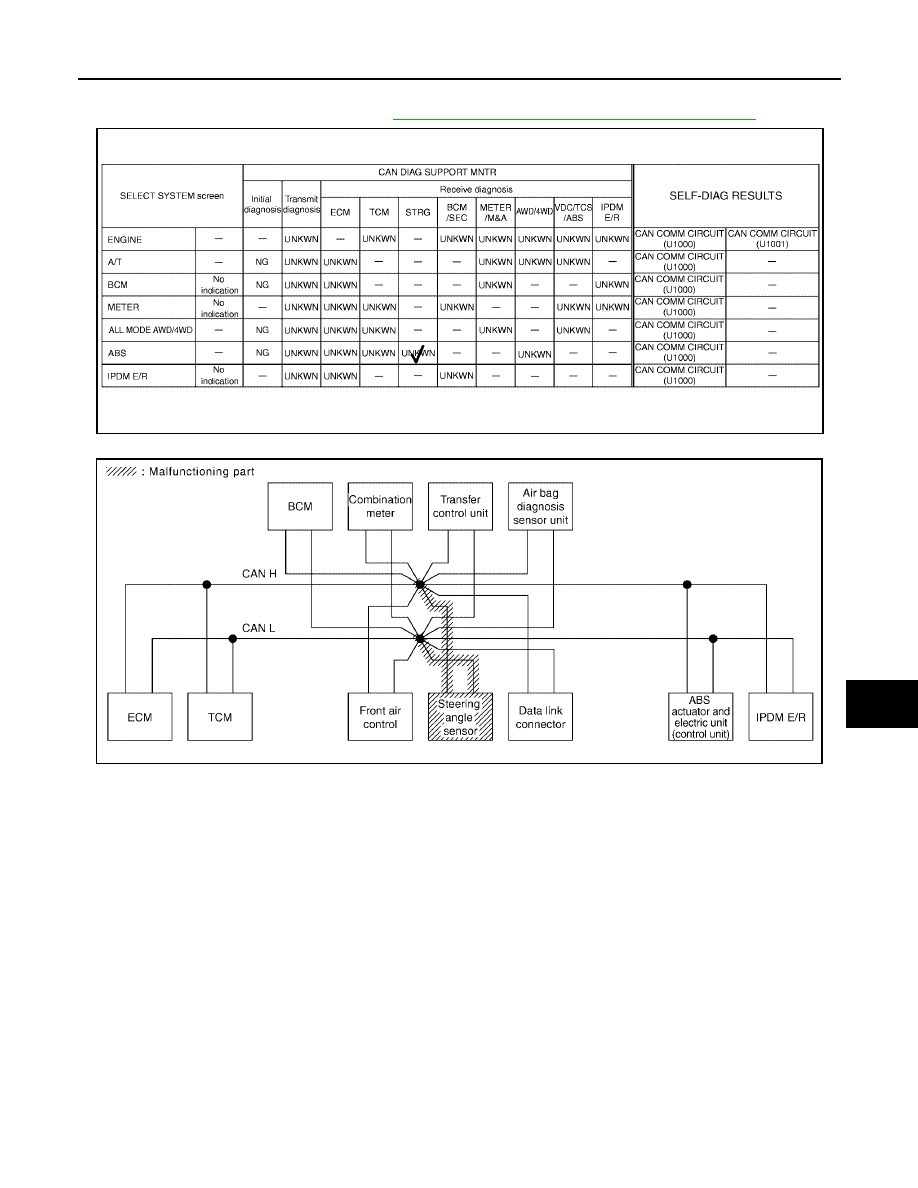

Check steering angle sensor circuit. Refer to

LAN-199, "Steering Angle Sensor Circuit Inspection"

 .

PKIC5678E

PKIC5464E

LAN-124

[CAN]

CAN SYSTEM (TYPE 6)

2006 Pathfinder

Case 6

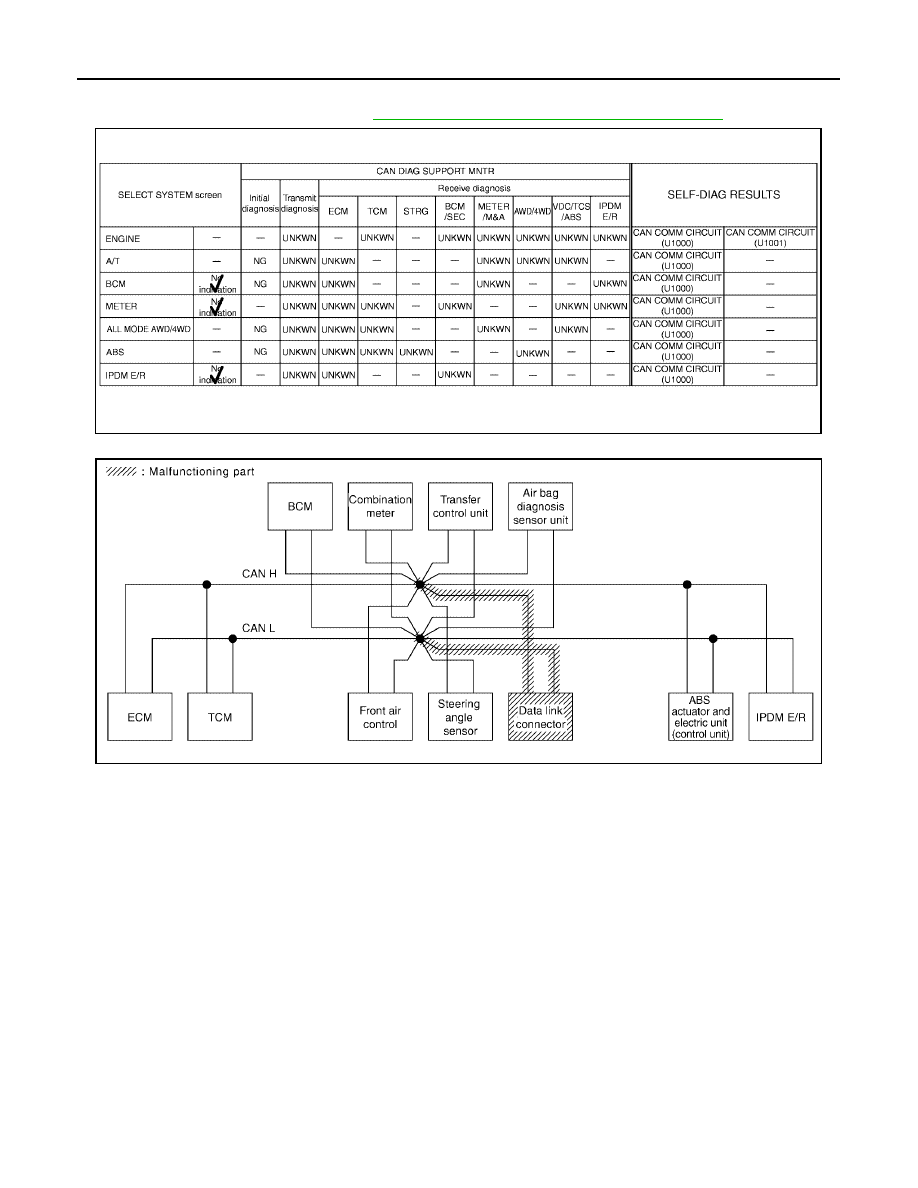

Check data link connector circuit. Refer to

LAN-199, "Data Link Connector Circuit Inspection"

 .

PKIC5679E

PKIC5465E

CAN SYSTEM (TYPE 6)

LAN-125

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

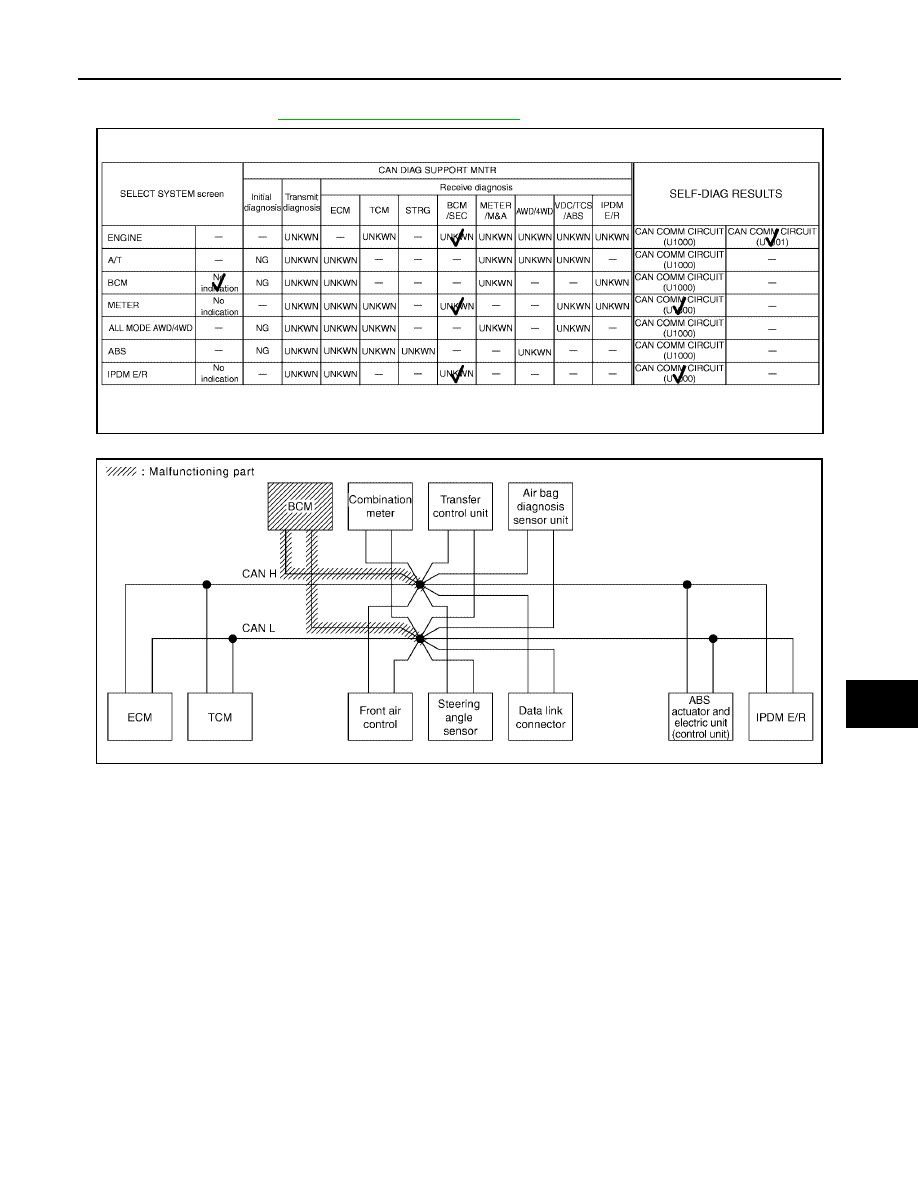

Case 7

Check BCM circuit. Refer to

LAN-200, "BCM Circuit Inspection"

 .

PKIC5680E

PKIC5466E

LAN-126

[CAN]

CAN SYSTEM (TYPE 6)

2006 Pathfinder

Case 8

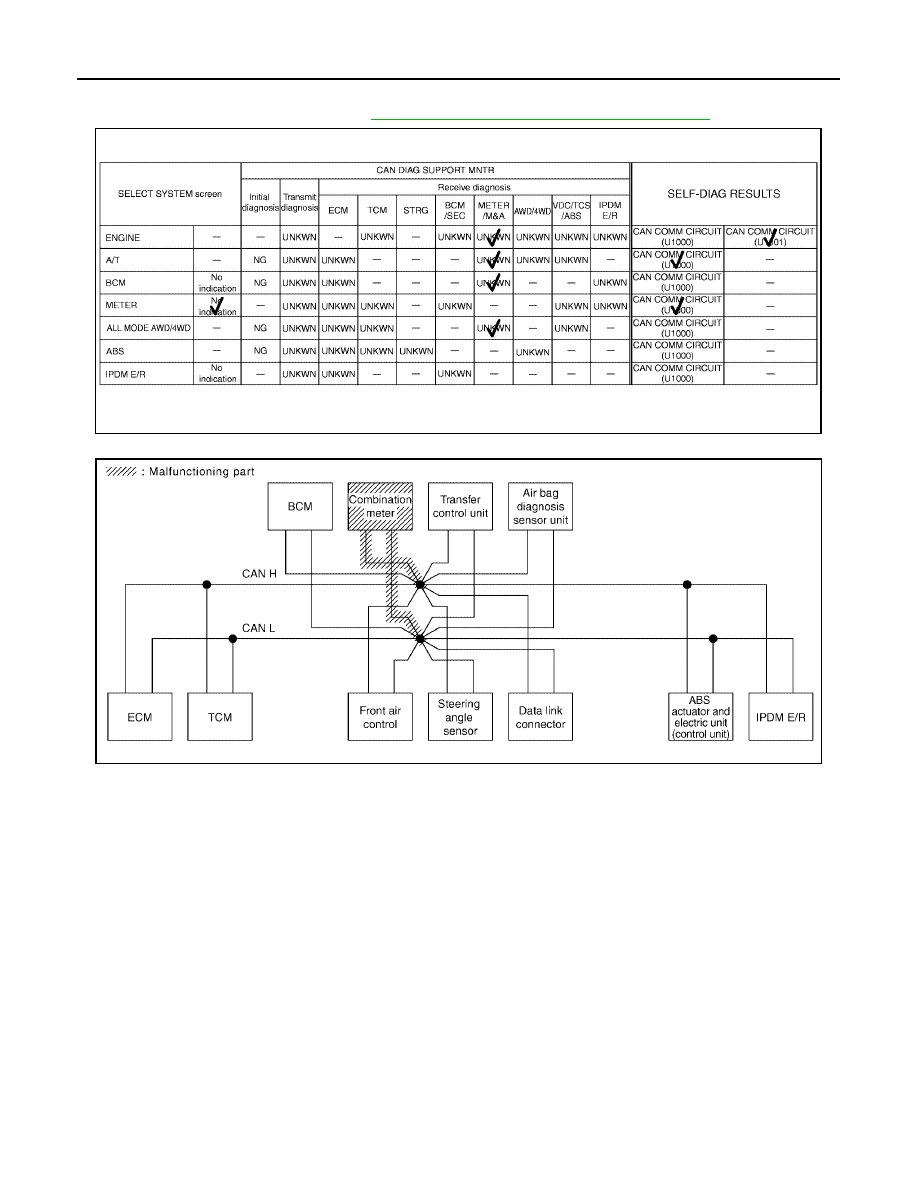

Check combination meter circuit. Refer to

LAN-200, "Combination Meter Circuit Inspection"

 .

PKIC5681E

PKIC5467E

CAN SYSTEM (TYPE 6)

LAN-127

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

Case 9

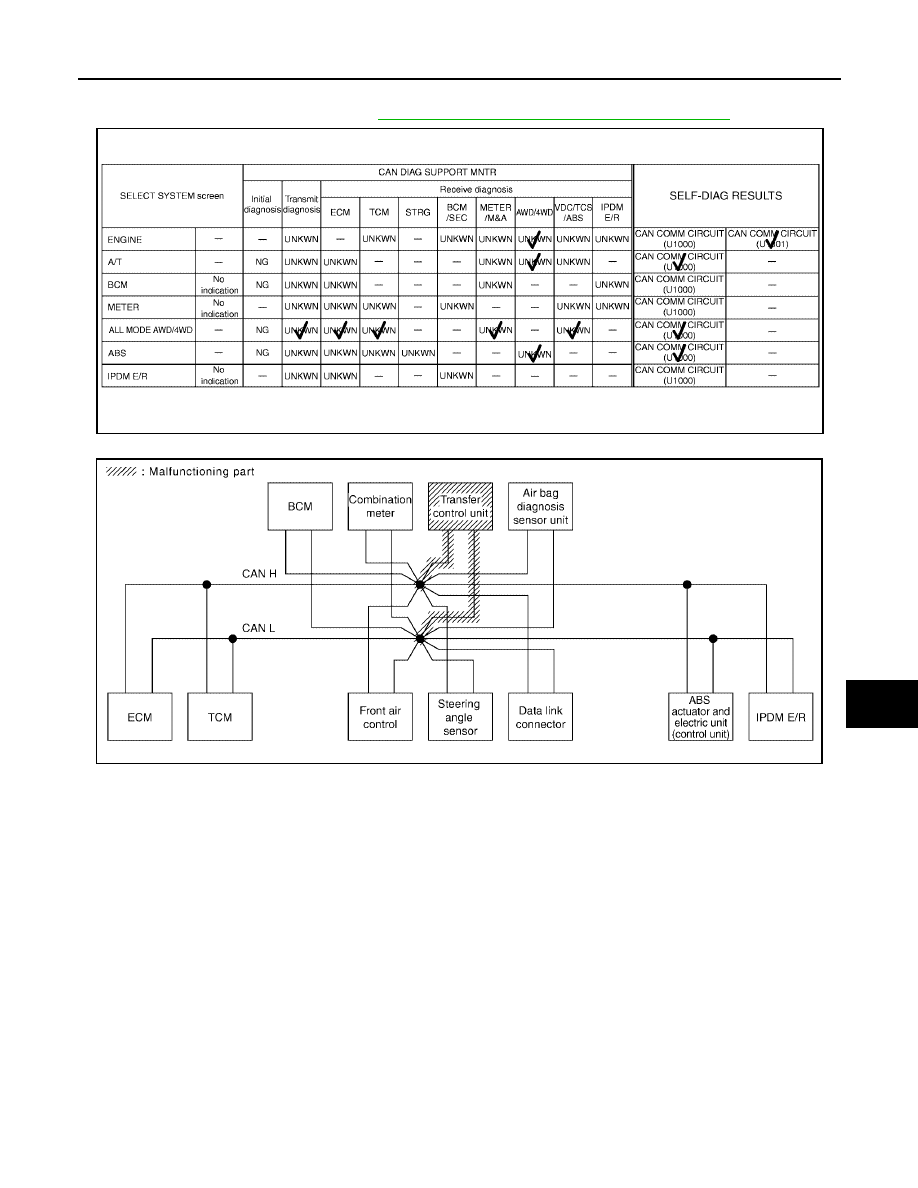

Check transfer control unit circuit. Refer to

LAN-201, "Transfer Control Unit Circuit Inspection"

 .

PKIC5682E

PKIC5468E

LAN-128

[CAN]

CAN SYSTEM (TYPE 6)

2006 Pathfinder

Case 10

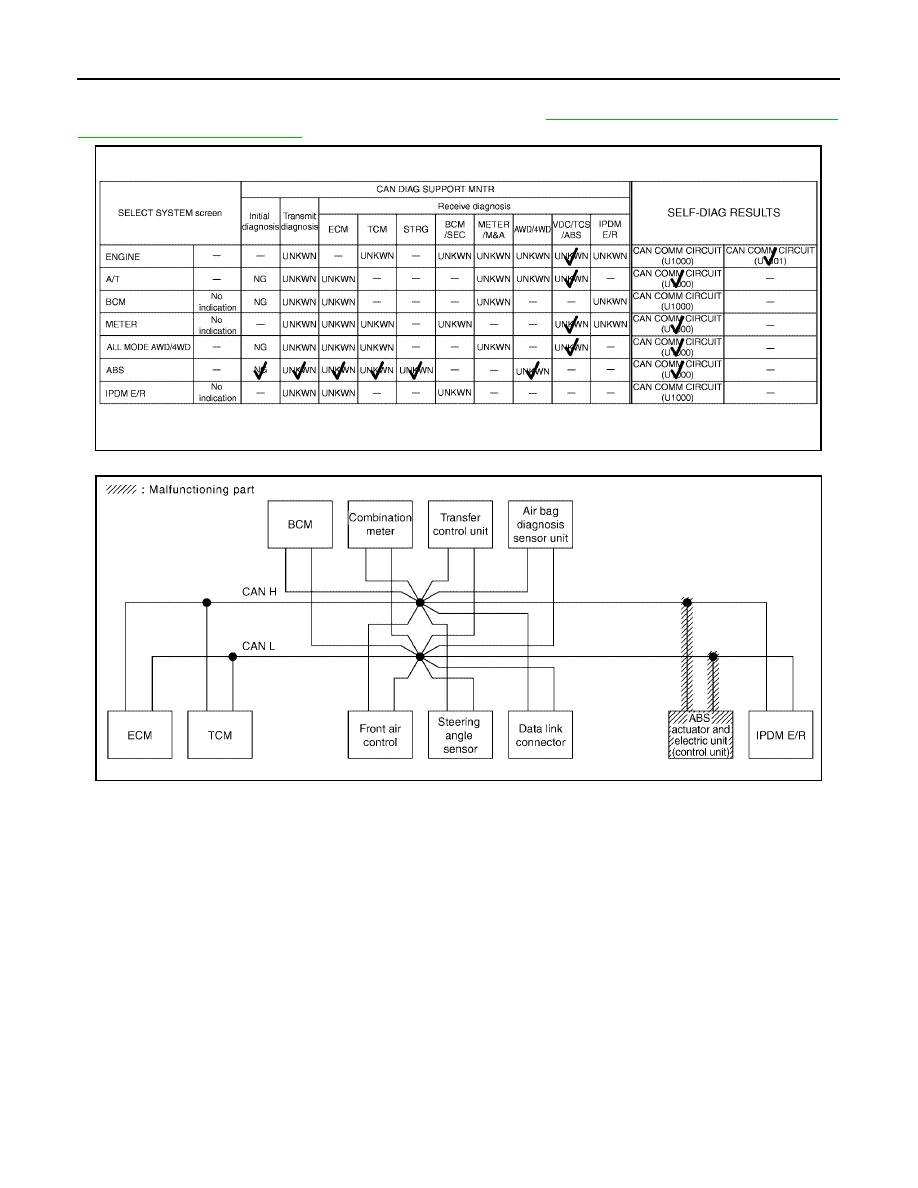

Check ABS actuator and electric unit (control unit) circuit. Refer to

LAN-202, "ABS Actuator and Electric Unit

(Control Unit) Circuit Inspection"

 .

PKIC5683E

PKIC5469E
