Nissan Pathfinder (2006 year). Manual - part 298





CAN SYSTEM (TYPE 7)

LAN-145

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

Case 13

Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer to

LAN-204, "IPDM E/R Ignition Relay

Circuit Inspection"

 .

Case 14

Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to

LAN-204, "IPDM E/R Ignition Relay

Circuit Inspection"

 .

PKIC5701E

PKIC5702E

LAN-146

[CAN]

CAN SYSTEM (TYPE 8)

2006 Pathfinder

CAN SYSTEM (TYPE 8)

PFP:23710

Component Parts and Harness Connector Location

UKS0053U

Refer to

LAN-25, "Component Parts and Harness Connector Location"

 .

Schematic

UKS0053V

Refer to

LAN-26, "Schematic"

 .

Wiring Diagram — CAN —

UKS0053W

Refer to

LAN-27, "Wiring Diagram — CAN —"

 .

CAN SYSTEM (TYPE 8)

LAN-147

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

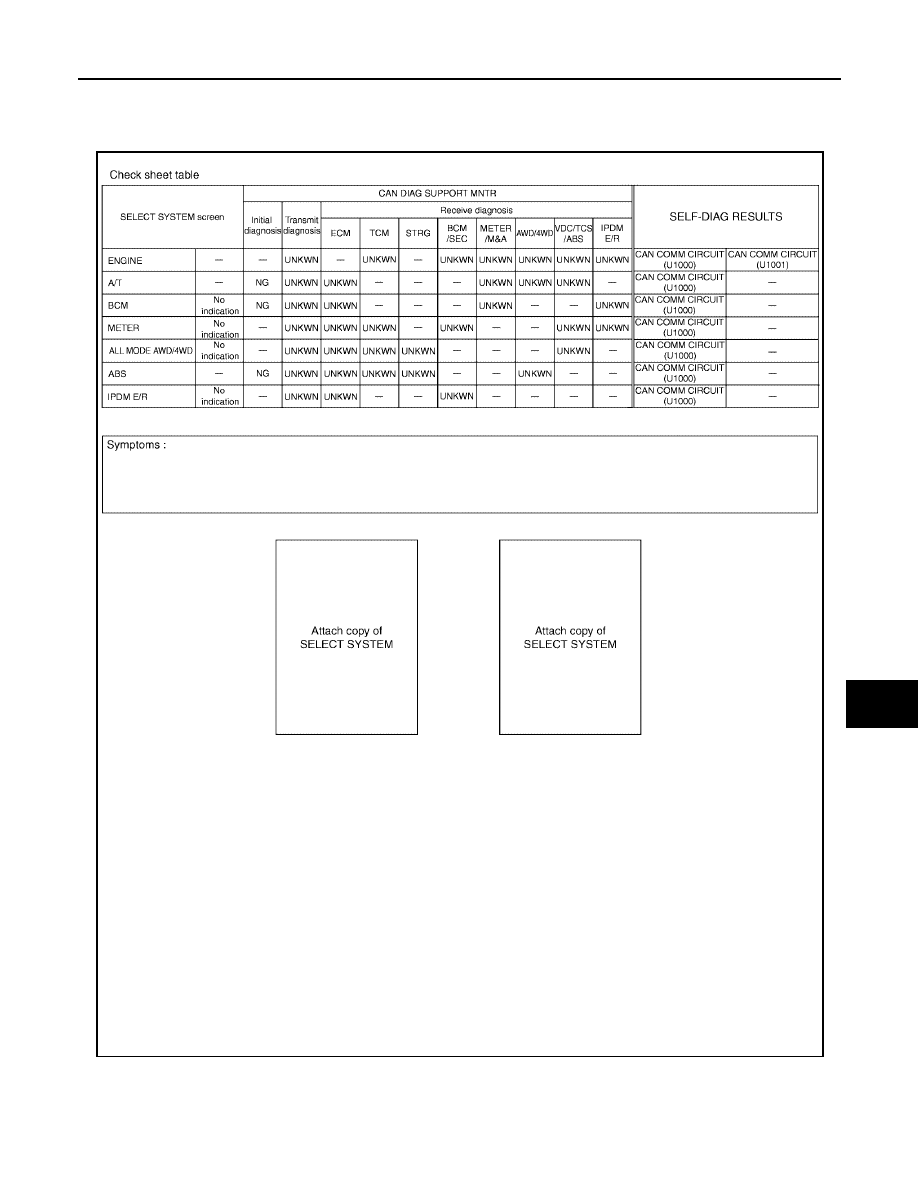

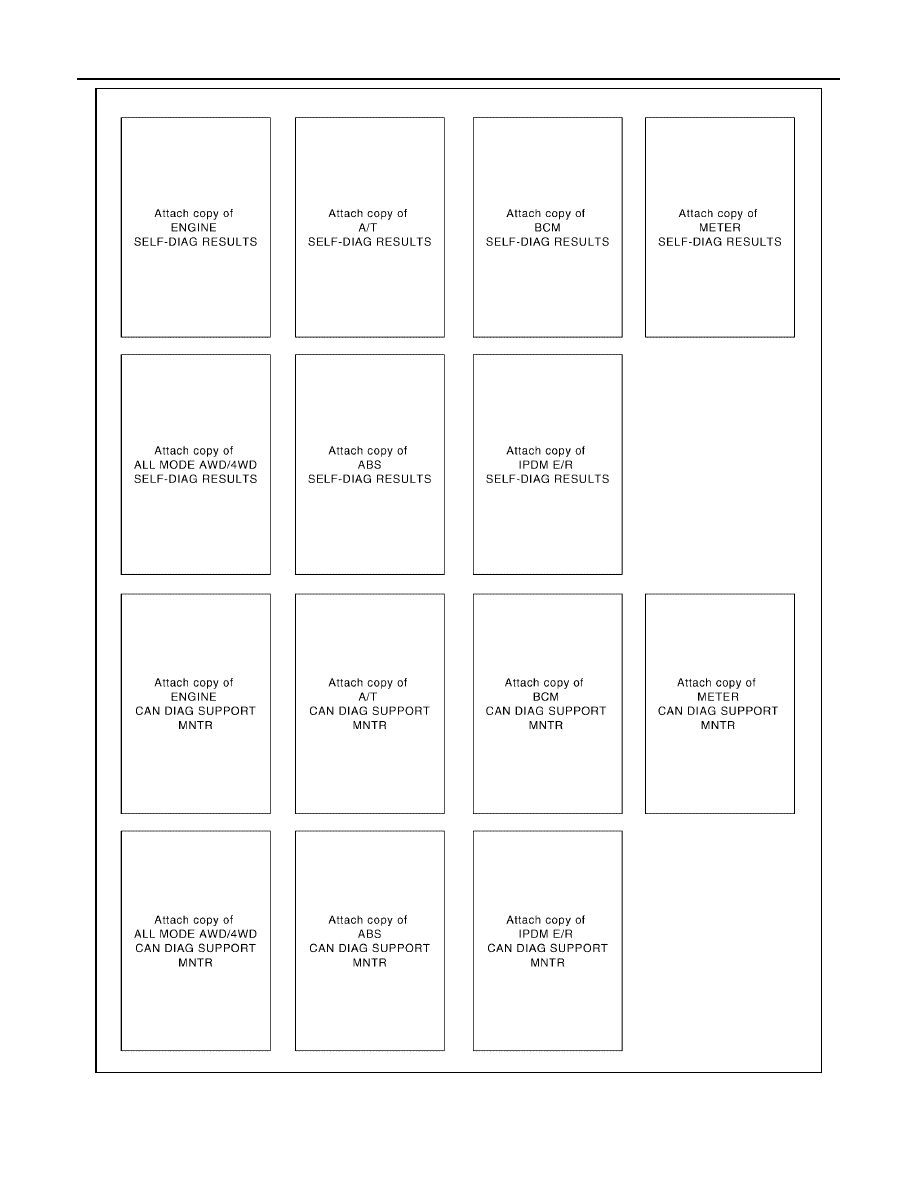

Check Sheet

UKS0053X

NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

PKIC5688E

LAN-148

[CAN]

CAN SYSTEM (TYPE 8)

2006 Pathfinder

PKIC7066E

CAN SYSTEM (TYPE 8)

LAN-149

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

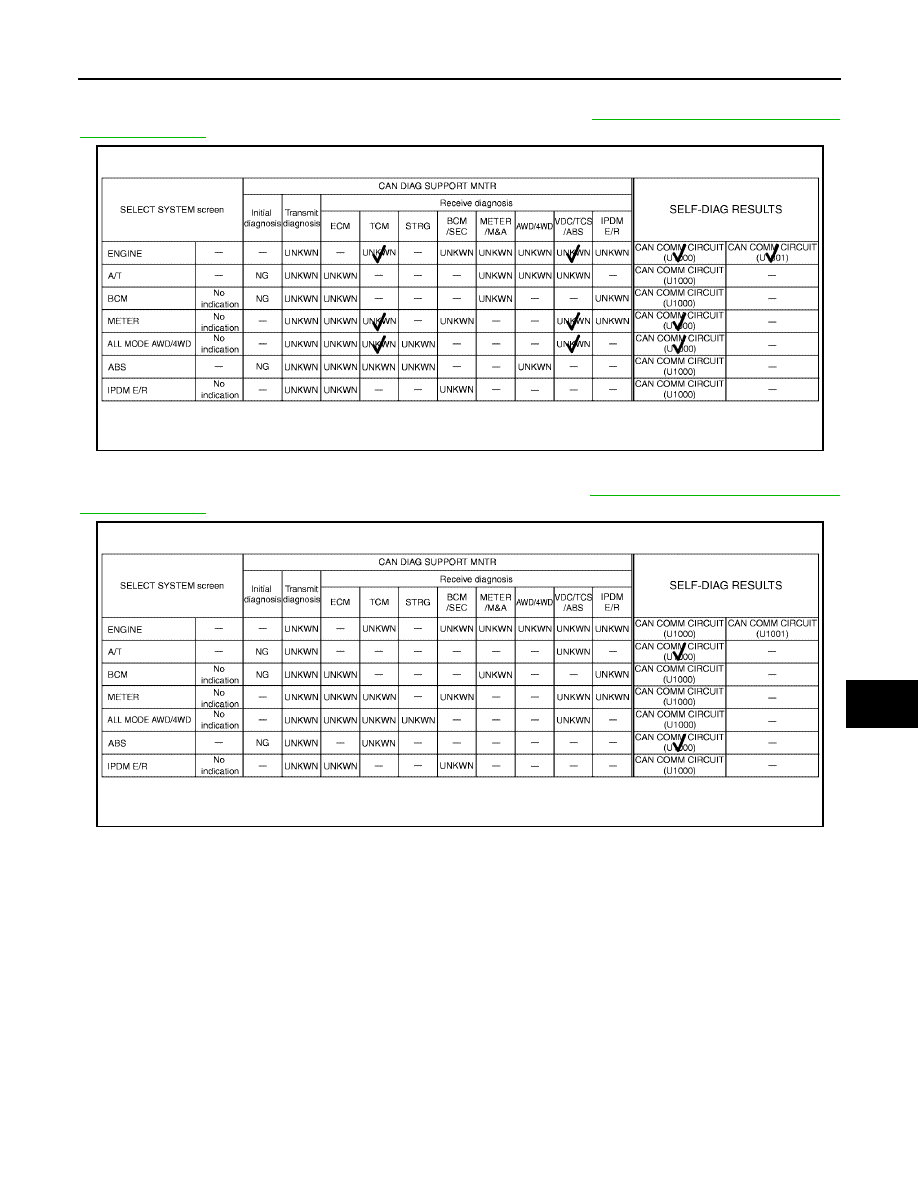

CHECK SHEET RESULTS (EXAMPLE)

NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

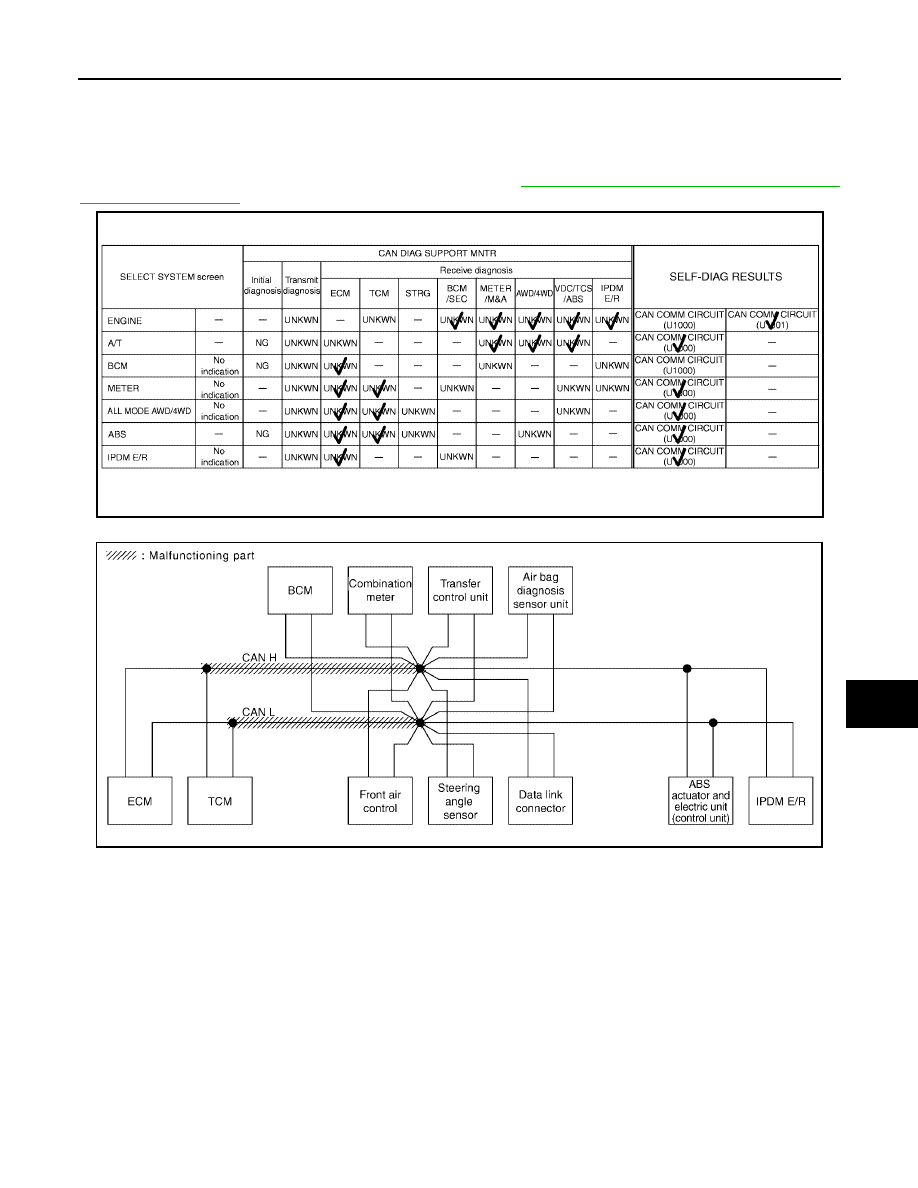

Case 1

Check harness between TCM and data link connector. Refer to

LAN-195, "Inspection Between TCM and Data

Link Connector Circuit"

 .

PKIC5689E

PKIC5459E

LAN-150

[CAN]

CAN SYSTEM (TYPE 8)

2006 Pathfinder

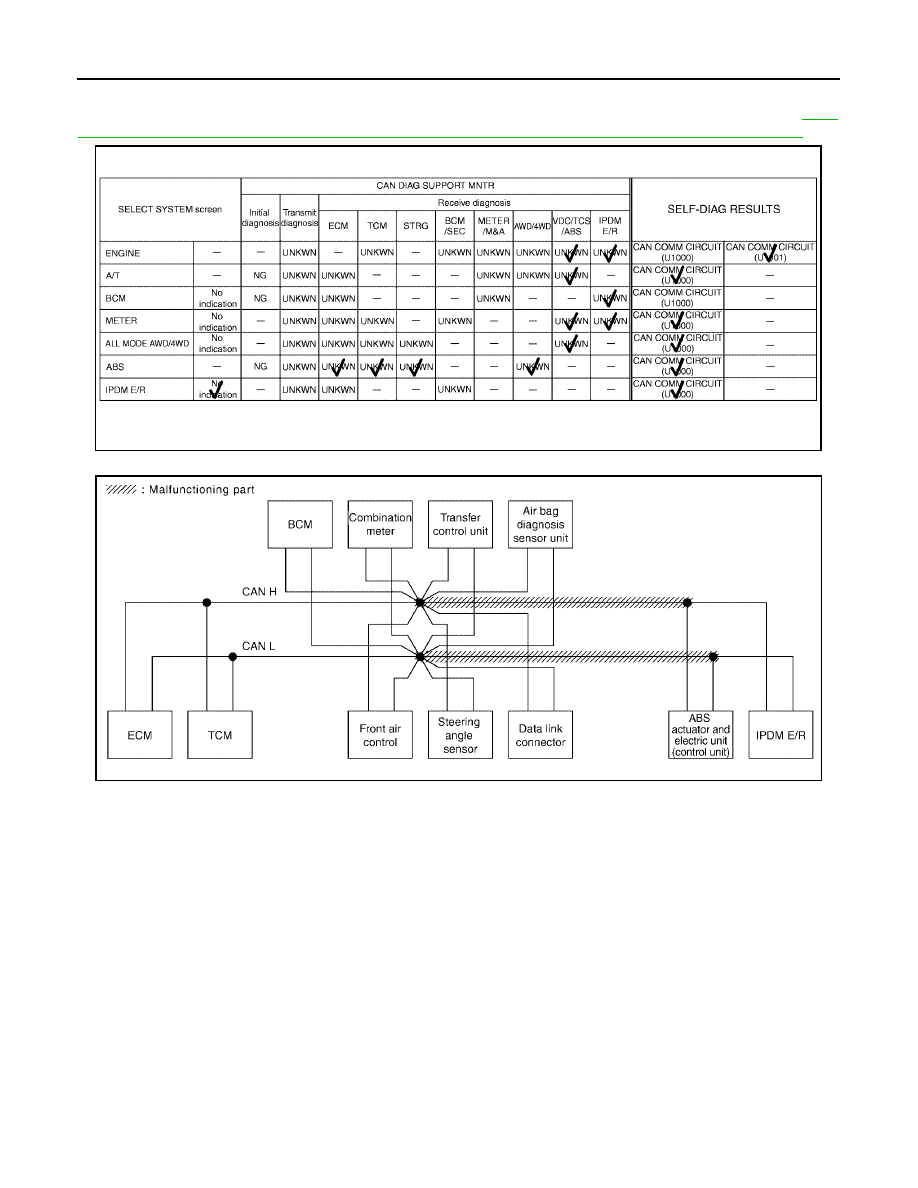

Case 2

Check harness between data link connector and ABS actuator and electric unit (control unit). Refer to

LAN-

196, "Inspection Between Data Link Connector and ABS Actuator and Electric Unit (Control Unit) Circuit"

 .

PKIC5690E

PKIC5460E

CAN SYSTEM (TYPE 8)

LAN-151

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

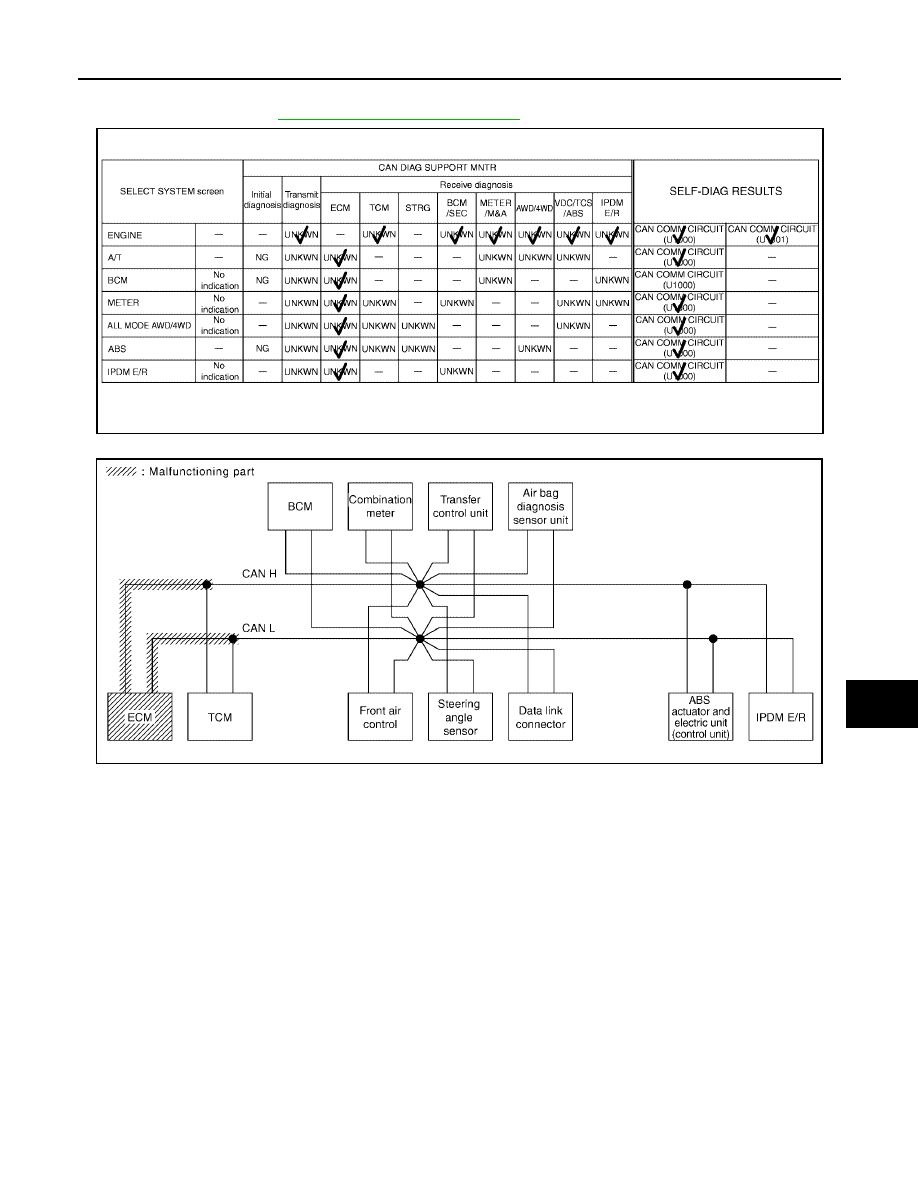

Case 3

Check ECM circuit. Refer to

LAN-197, "ECM Circuit Inspection"

 .

PKIC5691E

PKIC5461E

LAN-152

[CAN]

CAN SYSTEM (TYPE 8)

2006 Pathfinder

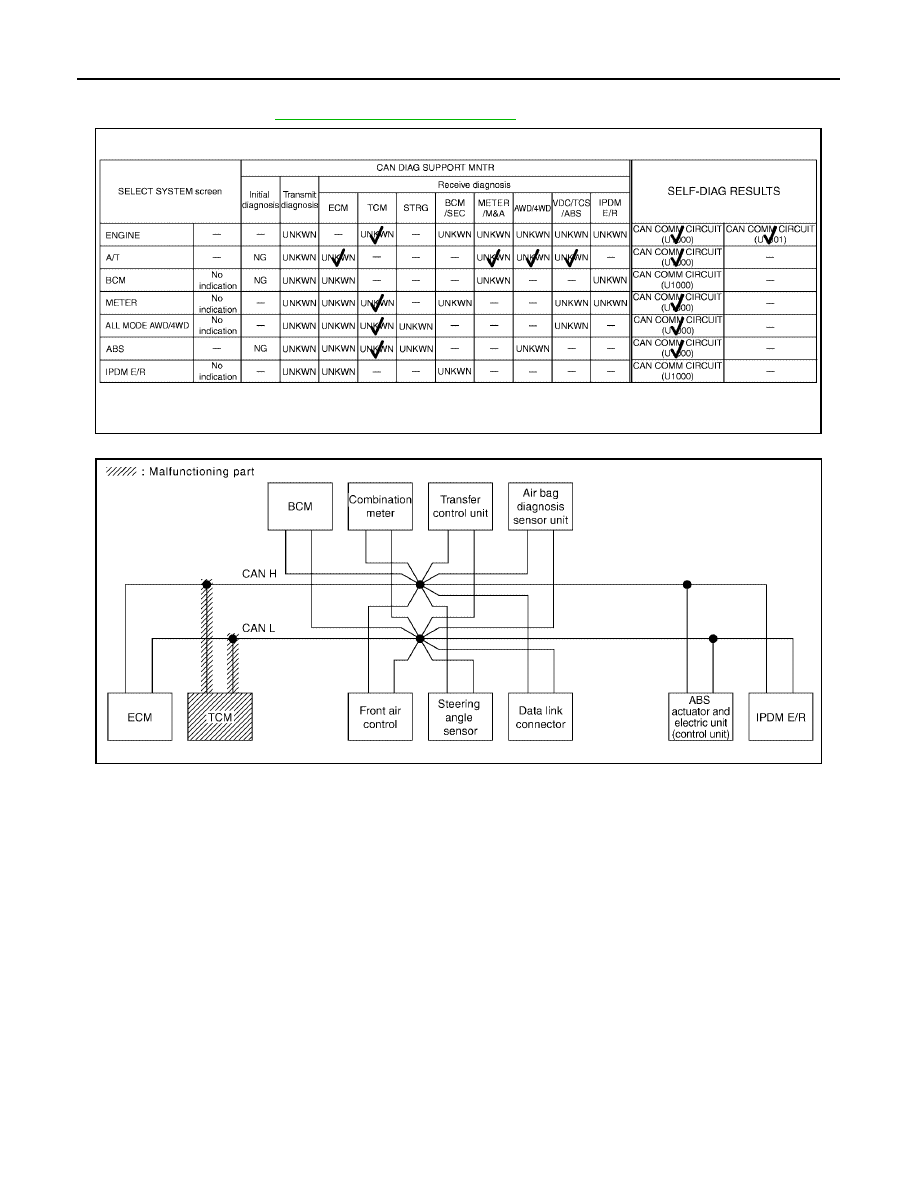

Case 4

Check TCM circuit. Refer to

LAN-197, "TCM Circuit Inspection"

 .

PKIC5692E

PKIC5462E
