Nissan Pathfinder (2006 year). Manual - part 288

CAN SYSTEM (TYPE 2)

LAN-65

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

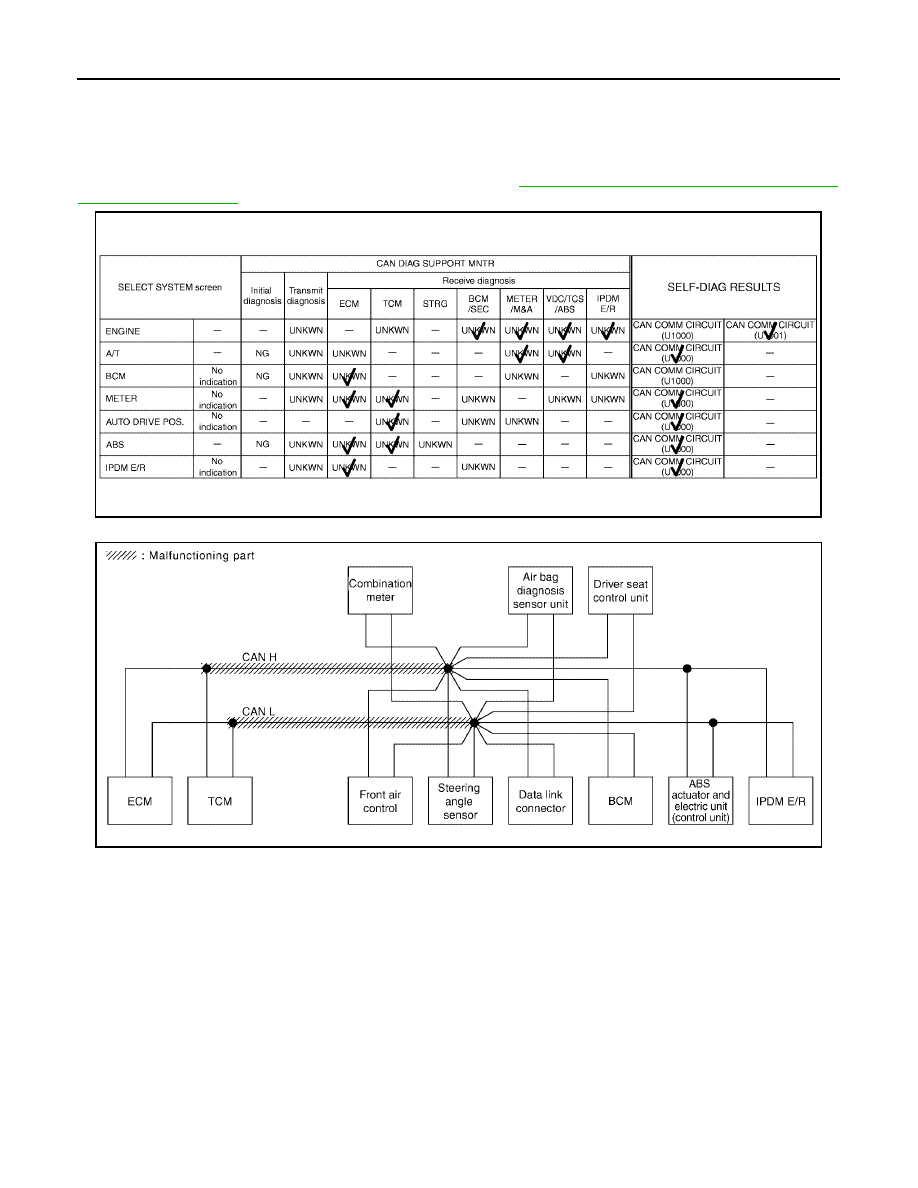

Case 8

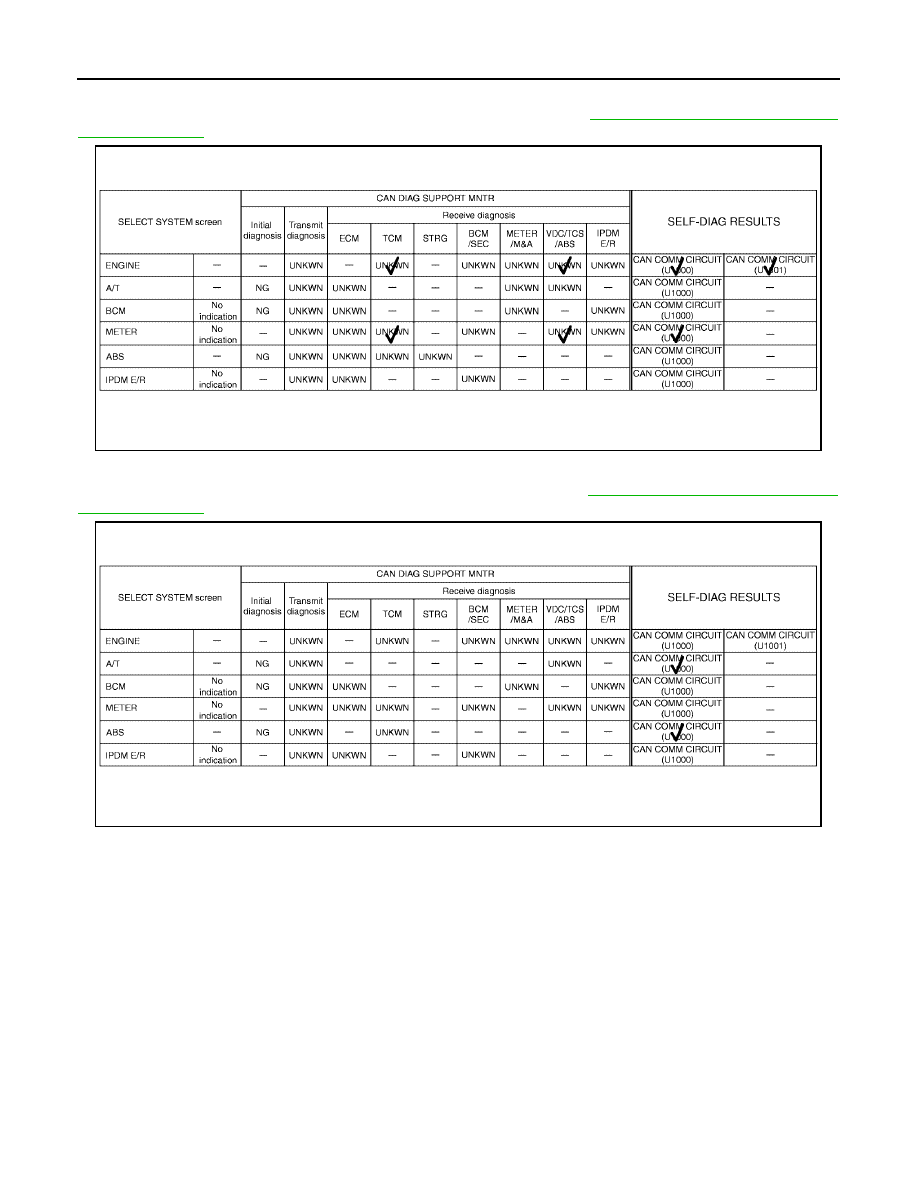

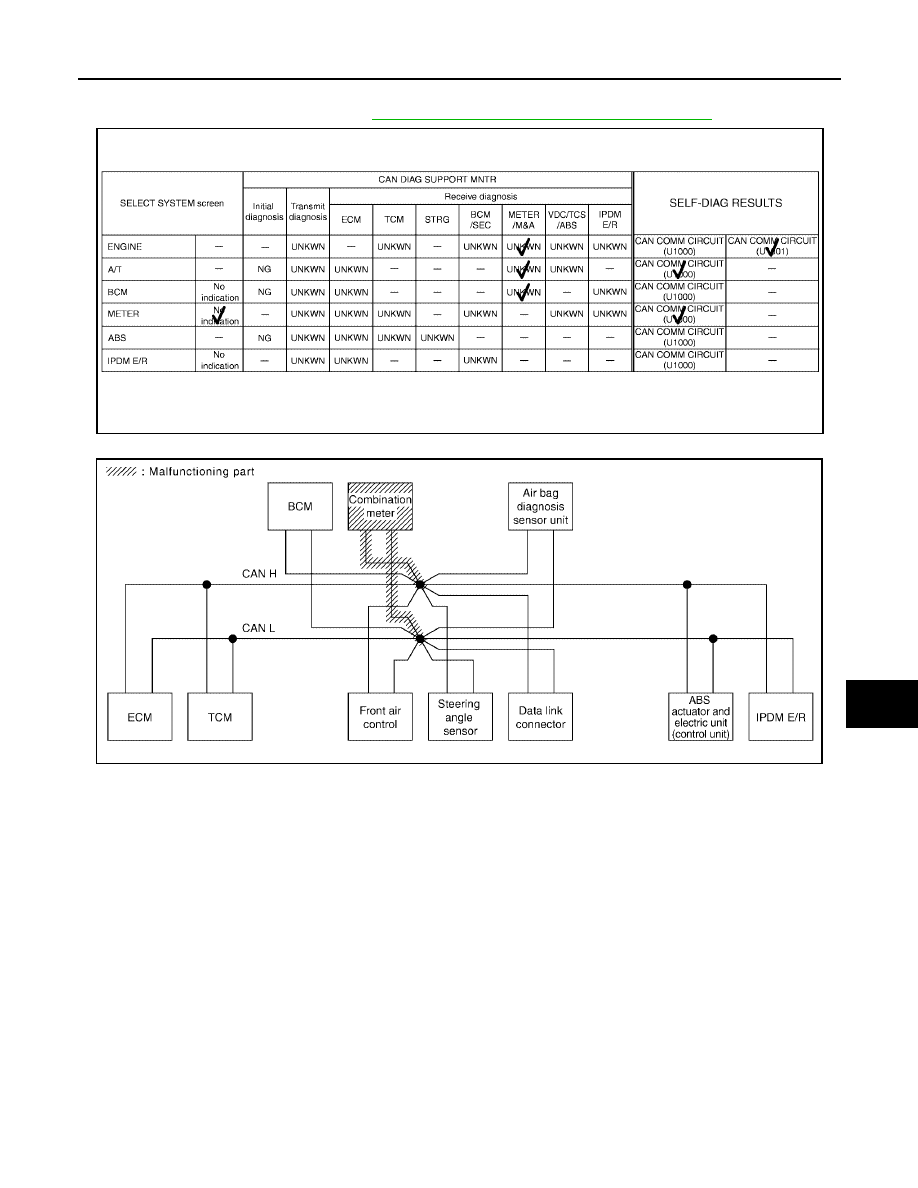

Check combination meter circuit. Refer to

LAN-200, "Combination Meter Circuit Inspection"

 .

PKIC5633E

PKIC5418E

LAN-66

[CAN]

CAN SYSTEM (TYPE 2)

2006 Pathfinder

Case 9

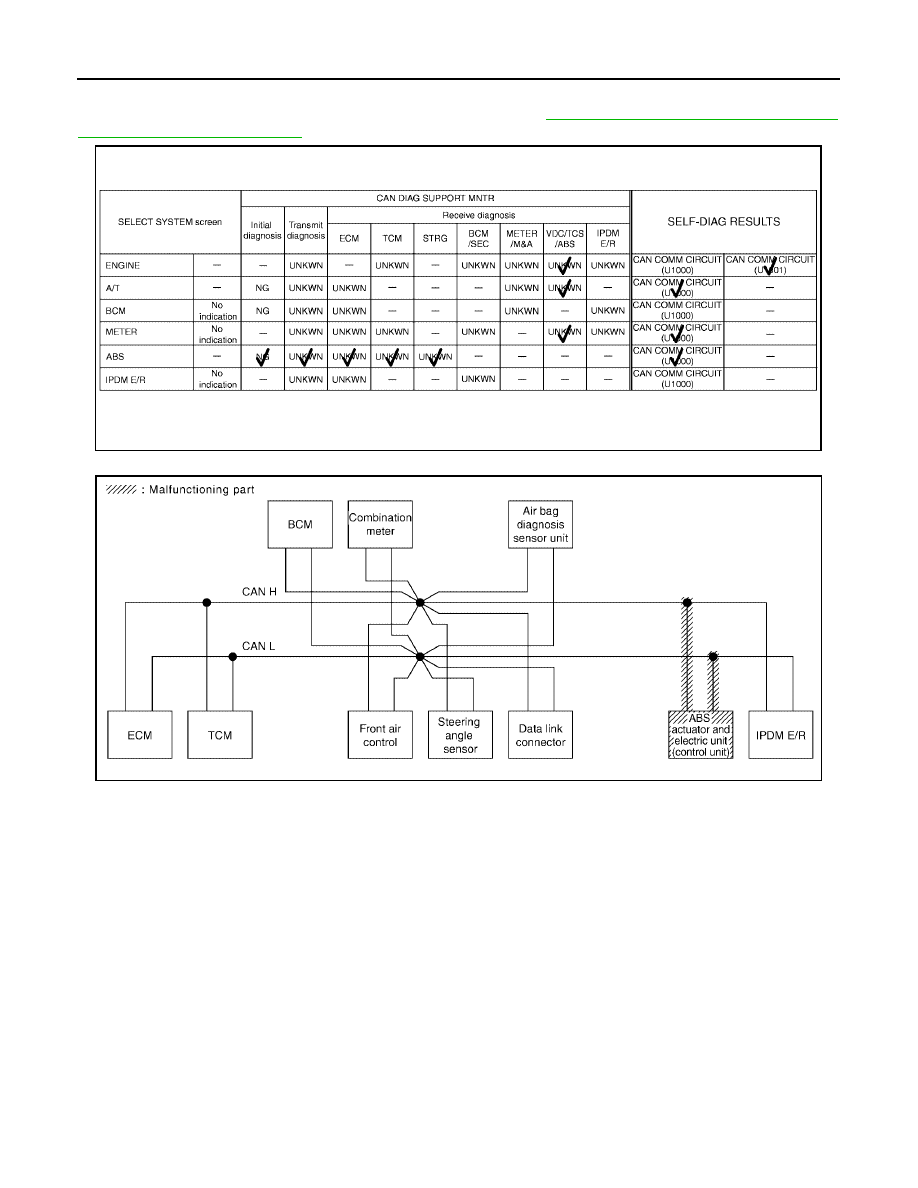

Check ABS actuator and electric unit (control unit) circuit. Refer to

LAN-202, "ABS Actuator and Electric Unit

(Control Unit) Circuit Inspection"

 .

PKIC5634E

PKIC5419E

CAN SYSTEM (TYPE 2)

LAN-67

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

Case 10

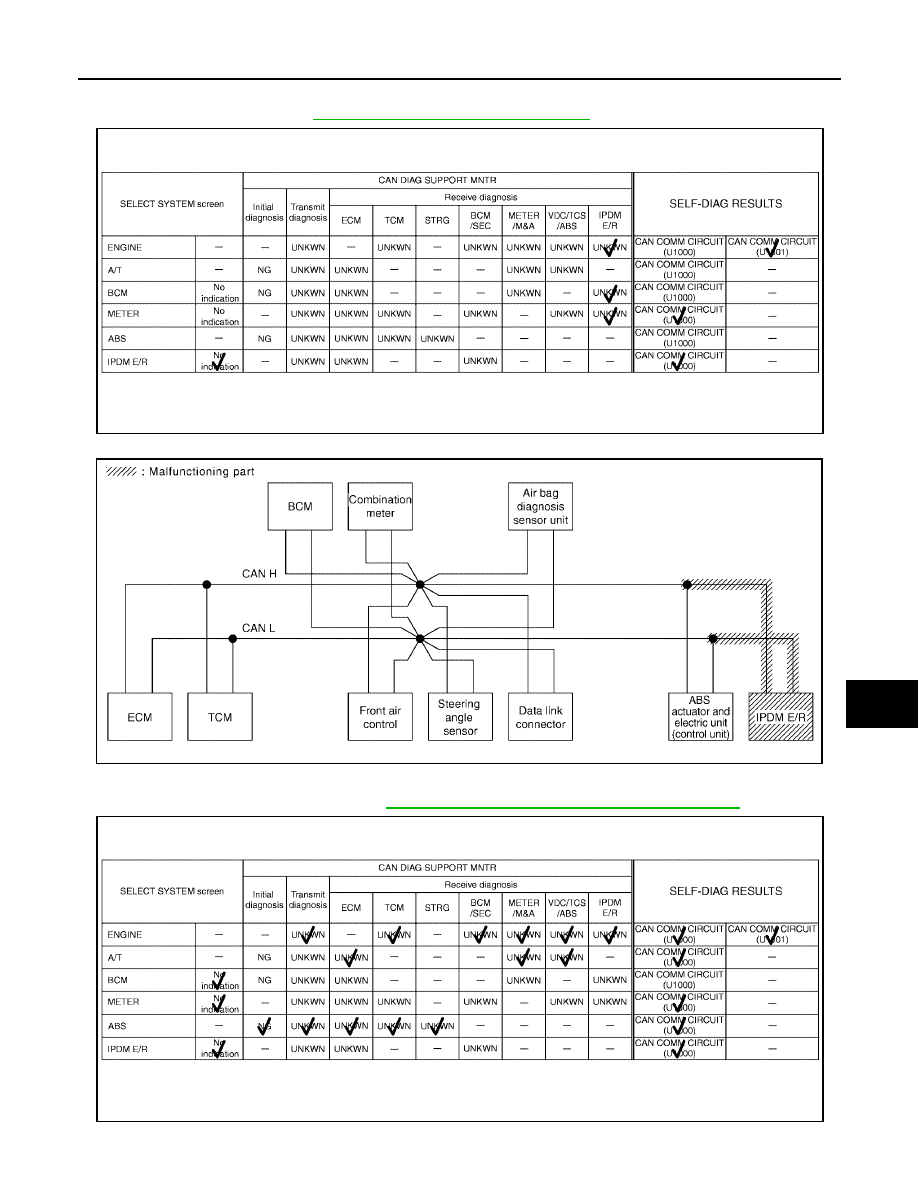

Check IPDM E/R circuit. Refer to

LAN-203, "IPDM E/R Circuit Inspection"

 .

Case 11

Check CAN communication circuit. Refer to

LAN-203, "CAN Communication Circuit Inspection"

 .

PKIC5635E

PKIC5420E

PKIC5636E

LAN-68

[CAN]

CAN SYSTEM (TYPE 2)

2006 Pathfinder

Case 12

Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer to

LAN-204, "IPDM E/R Ignition Relay

Circuit Inspection"

 .

Case 13

Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to

LAN-204, "IPDM E/R Ignition Relay

Circuit Inspection"

 .

PKIC5637E

PKIC5638E

CAN SYSTEM (TYPE 3)

LAN-69

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

CAN SYSTEM (TYPE 3)

PFP:23710

Component Parts and Harness Connector Location

UKS00536

Refer to

LAN-25, "Component Parts and Harness Connector Location"

 .

Schematic

UKS00537

Refer to

LAN-26, "Schematic"

 .

Wiring Diagram — CAN —

UKS00538

Refer to

LAN-27, "Wiring Diagram — CAN —"

 .

LAN-70

[CAN]

CAN SYSTEM (TYPE 3)

2006 Pathfinder

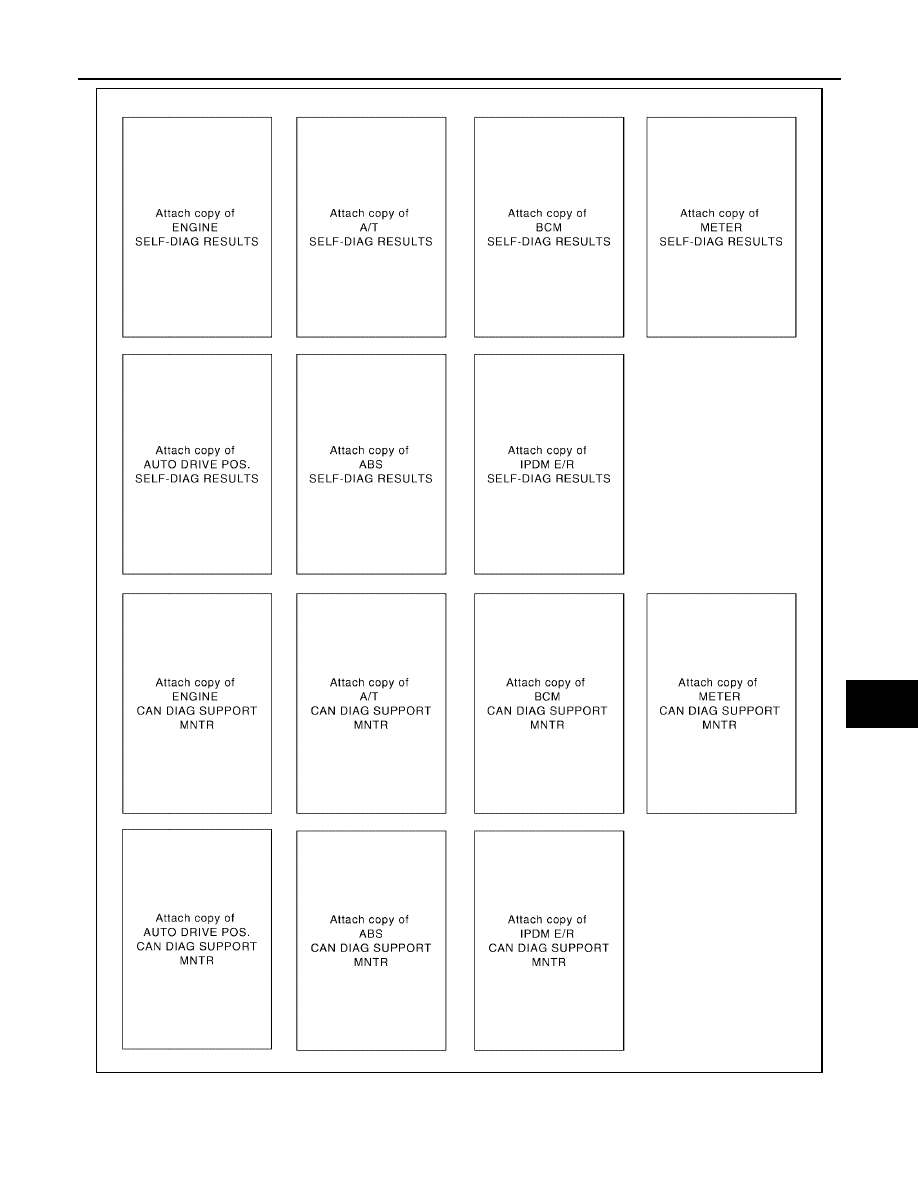

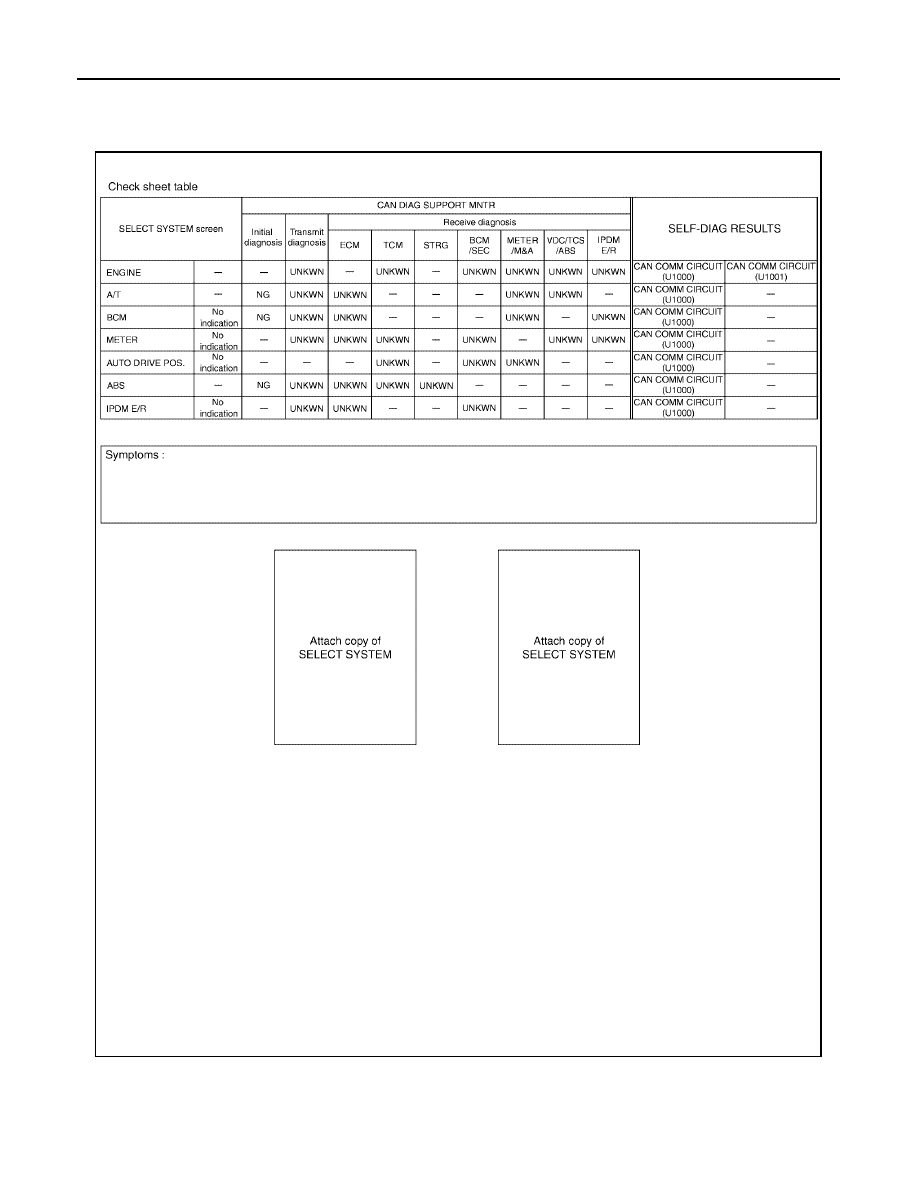

Check Sheet

UKS00539

NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

PKIC5639E

CAN SYSTEM (TYPE 3)

LAN-71

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

PKIC7065E

LAN-72

[CAN]

CAN SYSTEM (TYPE 3)

2006 Pathfinder

CHECK SHEET RESULTS (EXAMPLE)

NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

Case 1

Check harness between TCM and data link connector. Refer to

LAN-195, "Inspection Between TCM and Data

Link Connector Circuit"

 .

PKIC5640E

PKIC5421E
