CAN SYSTEM (TYPE 3)

LAN-73

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

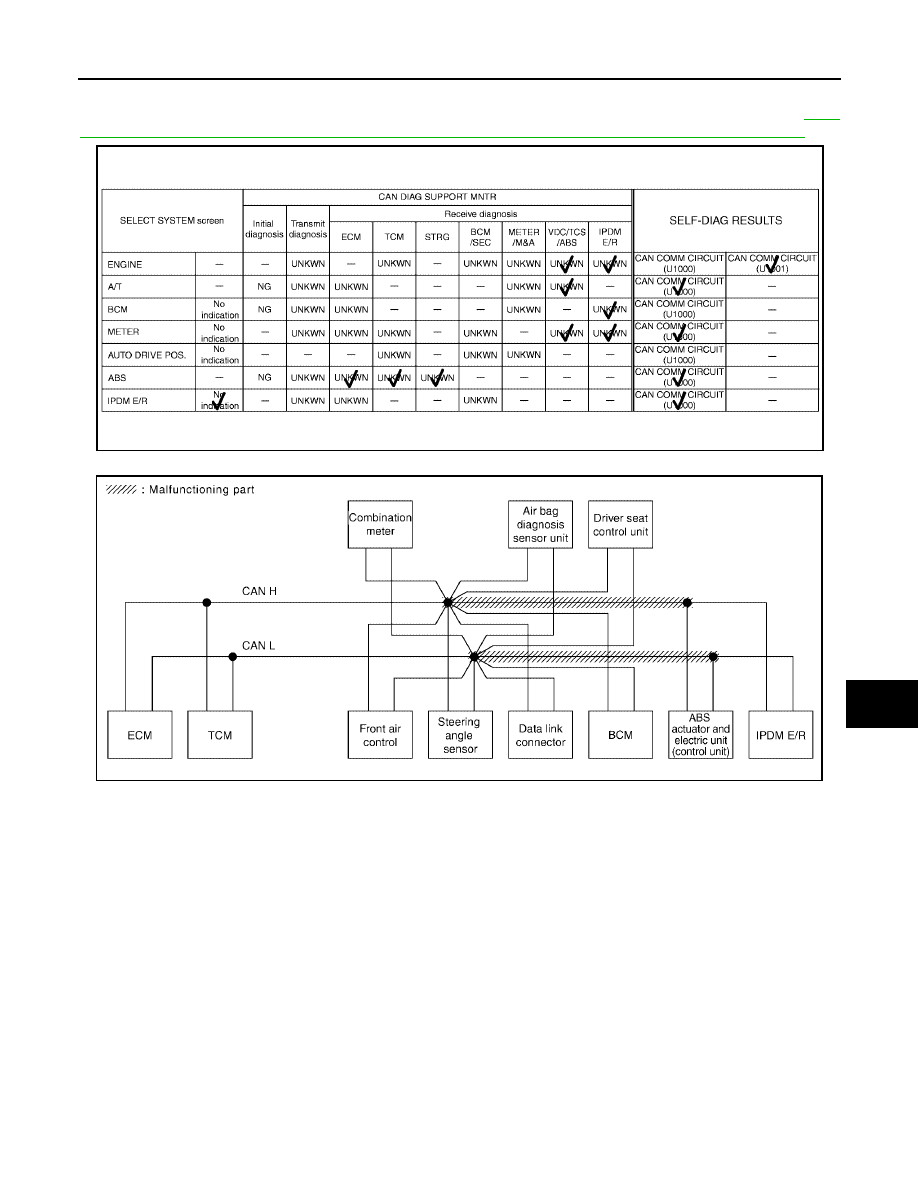

Case 2

Check harness between data link connector and ABS actuator and electric unit (control unit). Refer to

LAN-

196, "Inspection Between Data Link Connector and ABS Actuator and Electric Unit (Control Unit) Circuit"

 .

PKIC5642E

PKIC5423E

LAN-74

[CAN]

CAN SYSTEM (TYPE 3)

2006 Pathfinder

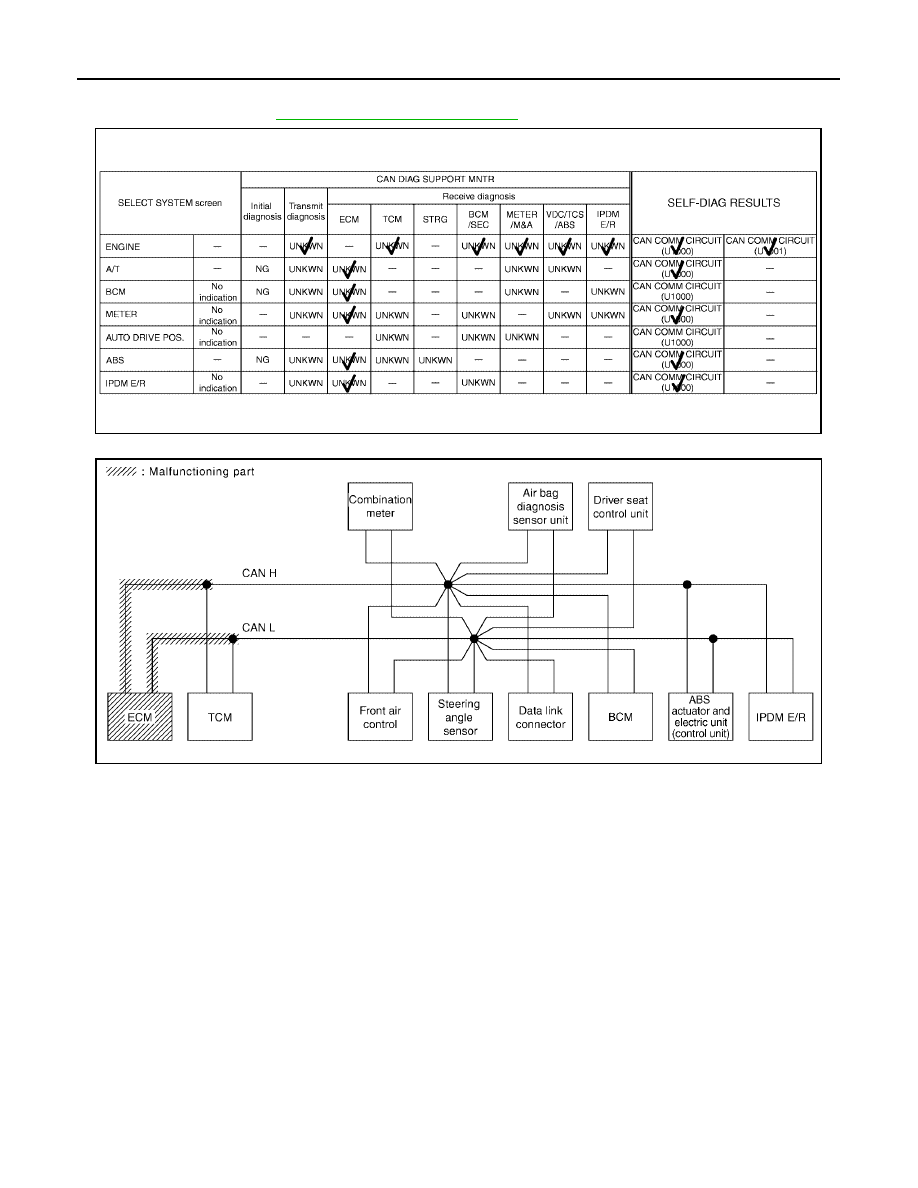

Case 3

Check ECM circuit. Refer to

LAN-197, "ECM Circuit Inspection"

 .

PKIC5643E

PKIC5424E

CAN SYSTEM (TYPE 3)

LAN-75

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

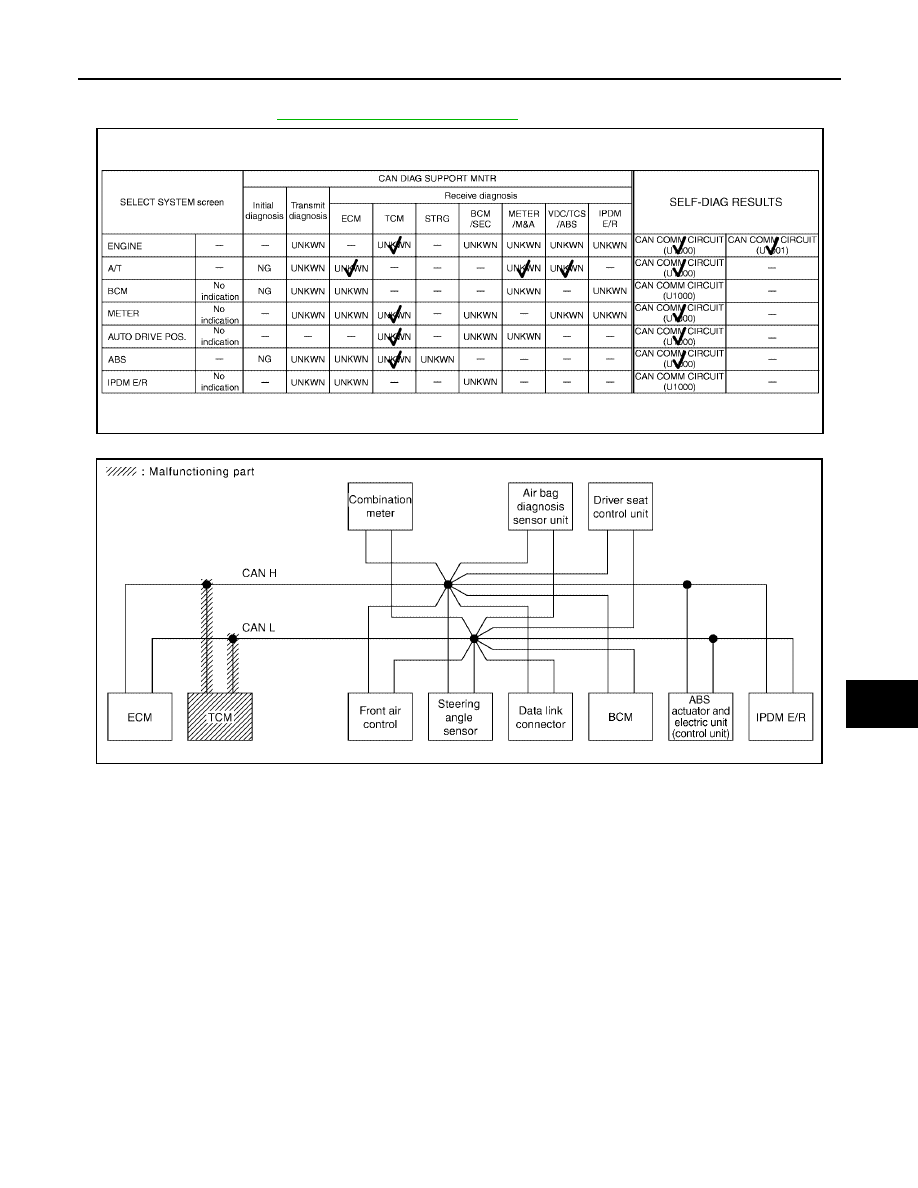

Case 4

Check TCM circuit. Refer to

LAN-197, "TCM Circuit Inspection"

 .

PKIC5644E

PKIC5425E

LAN-76

[CAN]

CAN SYSTEM (TYPE 3)

2006 Pathfinder

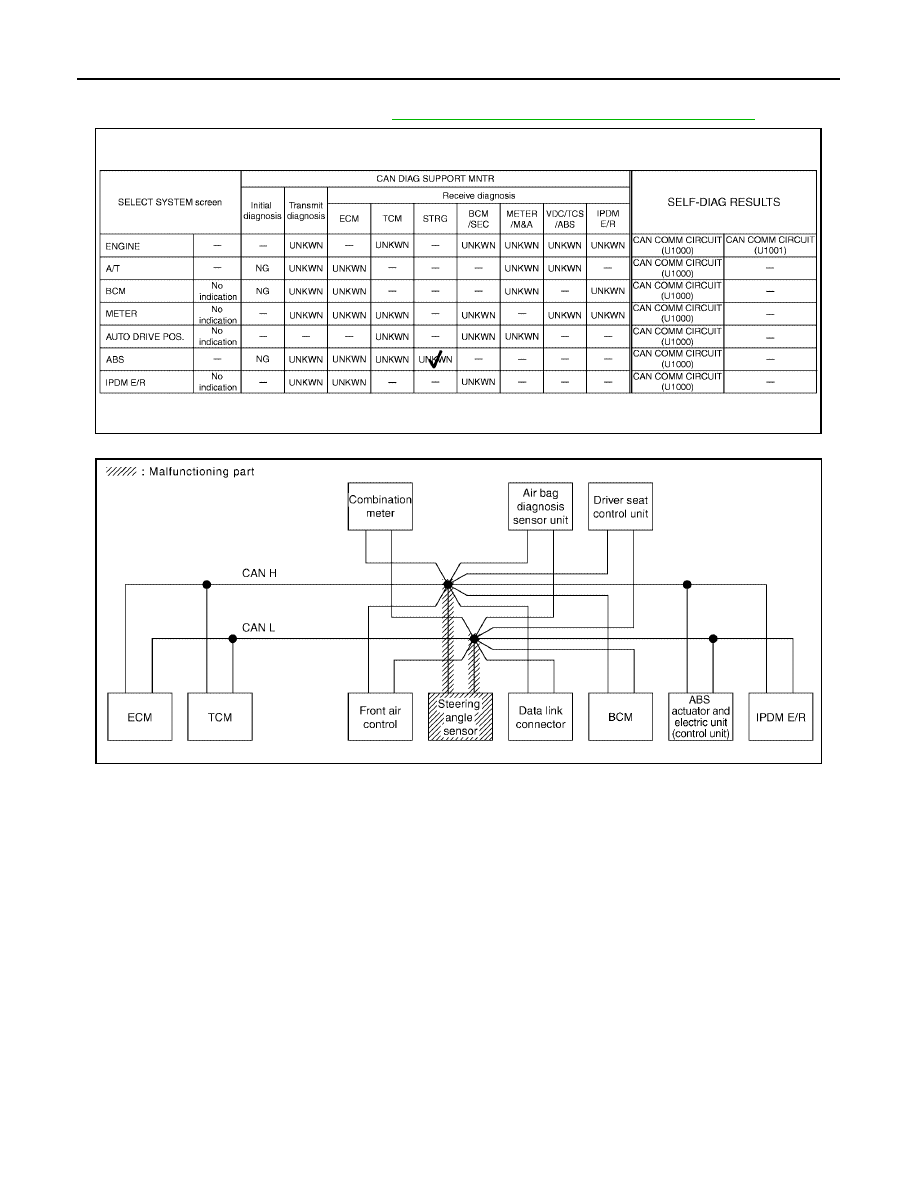

Case 5

Check steering angle sensor circuit. Refer to

LAN-199, "Steering Angle Sensor Circuit Inspection"

 .

PKIC5645E

PKIC5427E

CAN SYSTEM (TYPE 3)

LAN-77

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

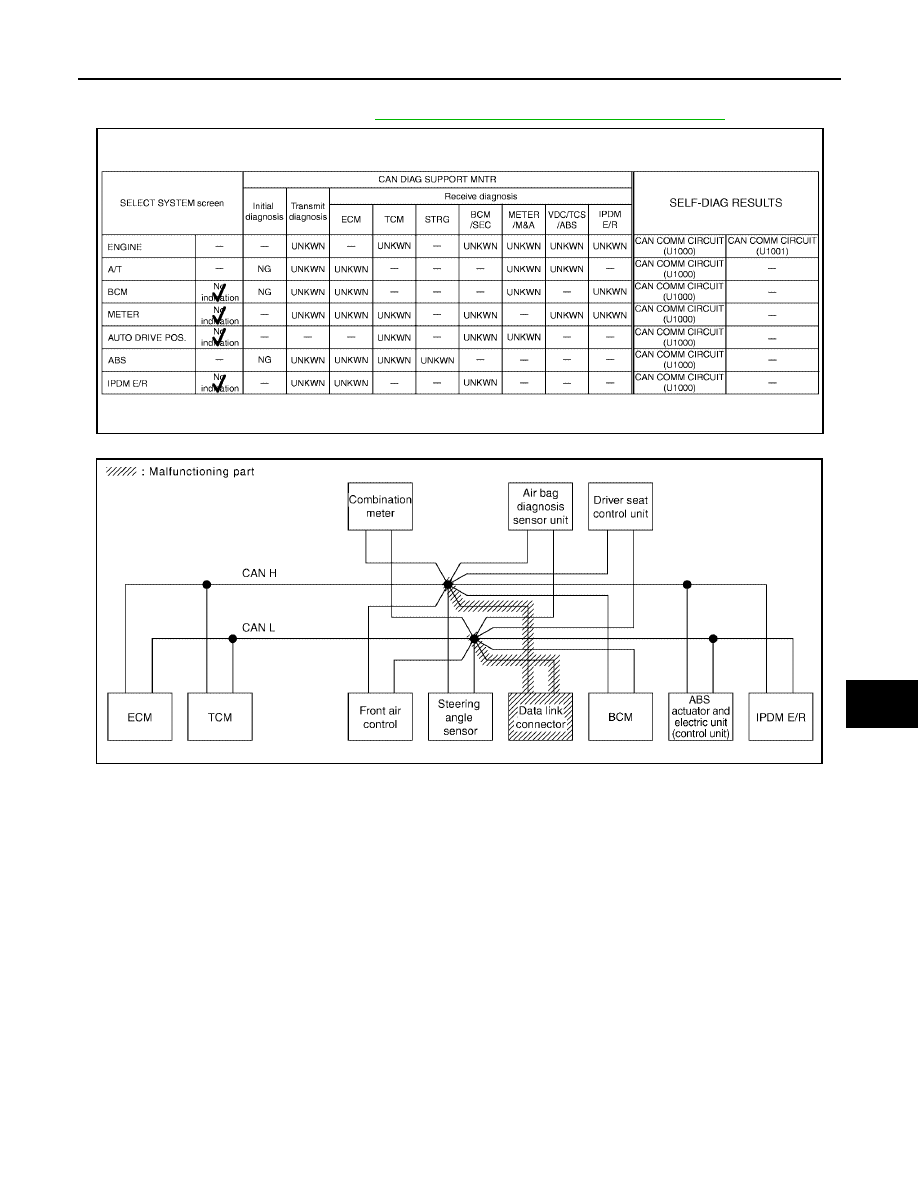

Case 6

Check data link connector circuit. Refer to

LAN-199, "Data Link Connector Circuit Inspection"

 .

PKIC5646E

PKIC5428E

LAN-78

[CAN]

CAN SYSTEM (TYPE 3)

2006 Pathfinder

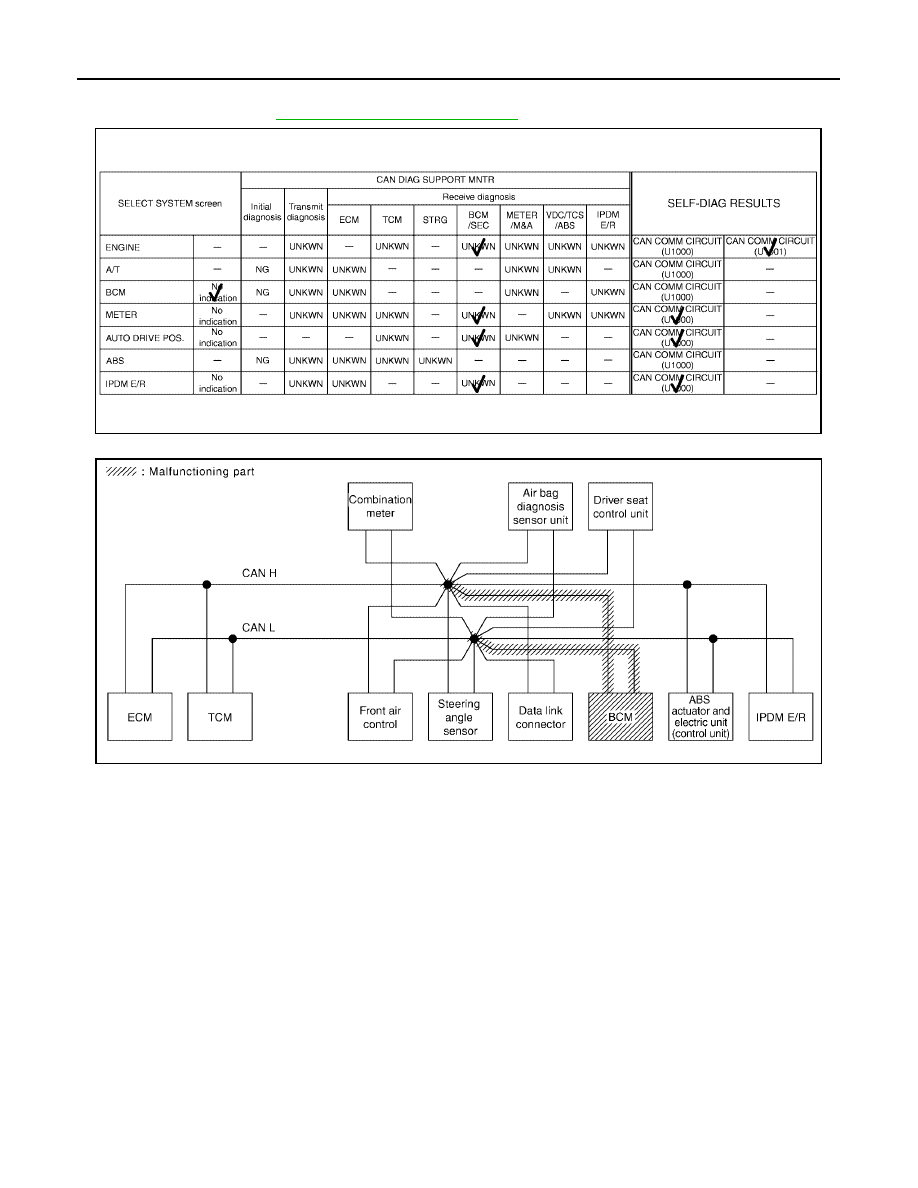

Case 7

Check BCM circuit. Refer to

LAN-200, "BCM Circuit Inspection"

 .

PKIC5647E

PKIC5429E

CAN SYSTEM (TYPE 3)

LAN-79

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

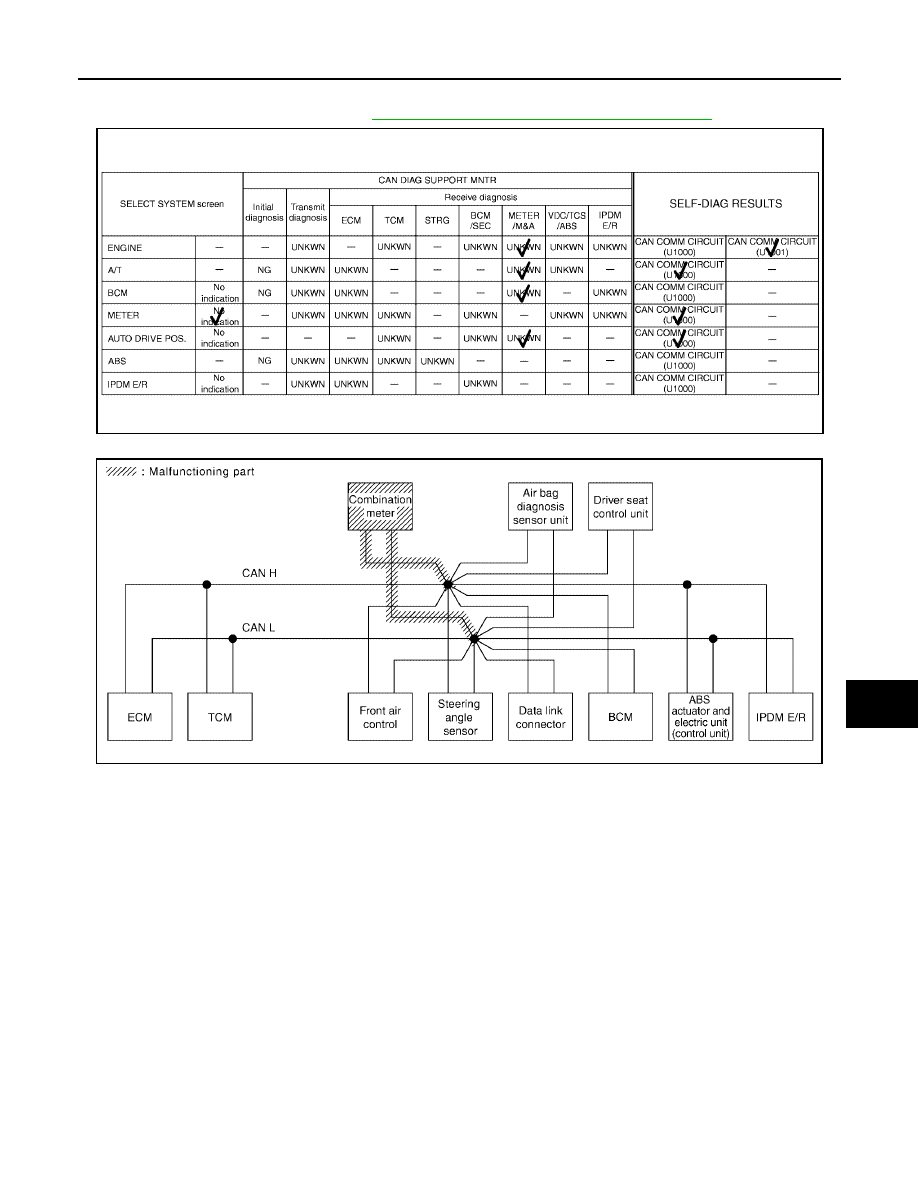

Case 8

Check combination meter circuit. Refer to

LAN-200, "Combination Meter Circuit Inspection"

 .

PKIC5648E

PKIC5430E

LAN-80

[CAN]

CAN SYSTEM (TYPE 3)

2006 Pathfinder

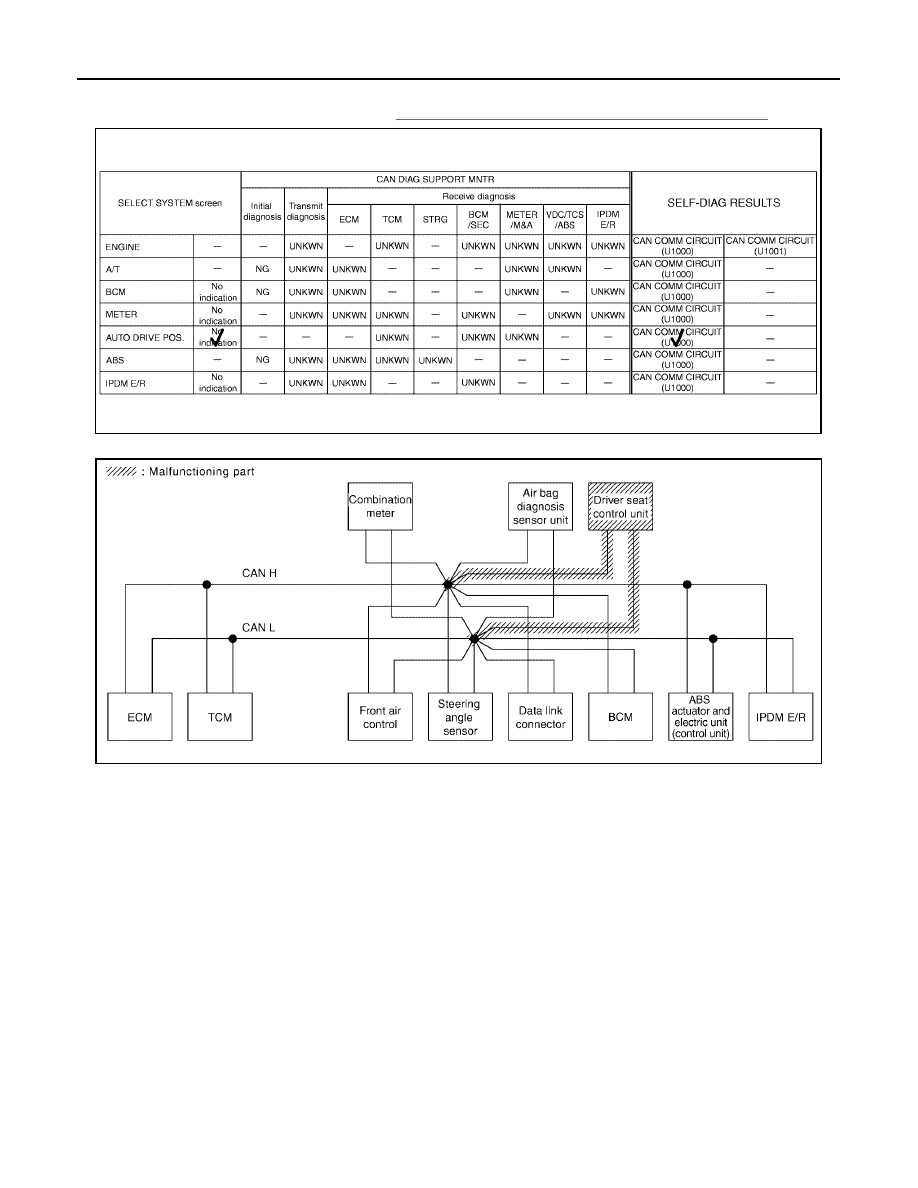

Case 9

Check driver seat control unit circuit. Refer to

LAN-202, "Driver Seat Control Unit Circuit Inspection"

 .

PKIC5649E

PKIC5431E
