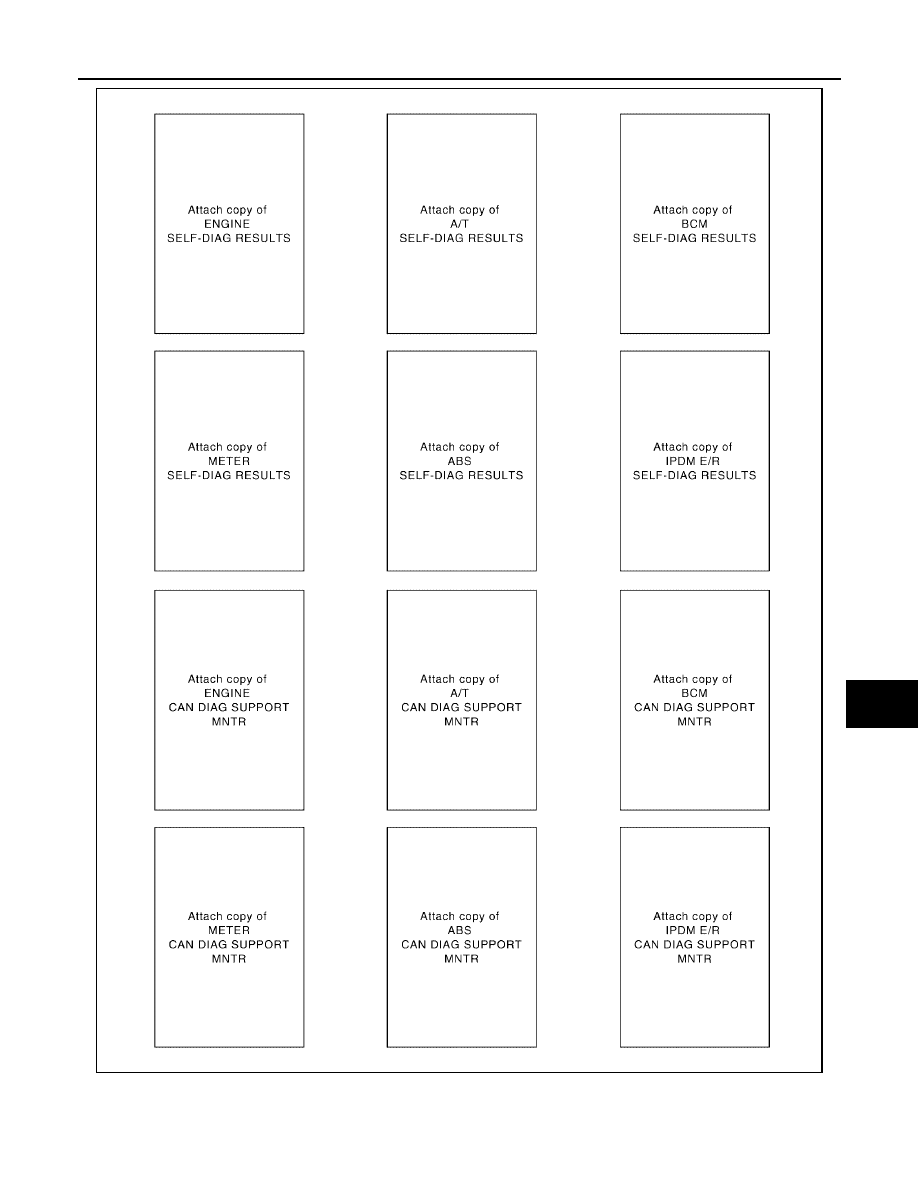

CAN SYSTEM (TYPE 2)

LAN-57

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

PKIC7064E

LAN-58

[CAN]

CAN SYSTEM (TYPE 2)

2006 Pathfinder

CHECK SHEET RESULTS (EXAMPLE)

NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

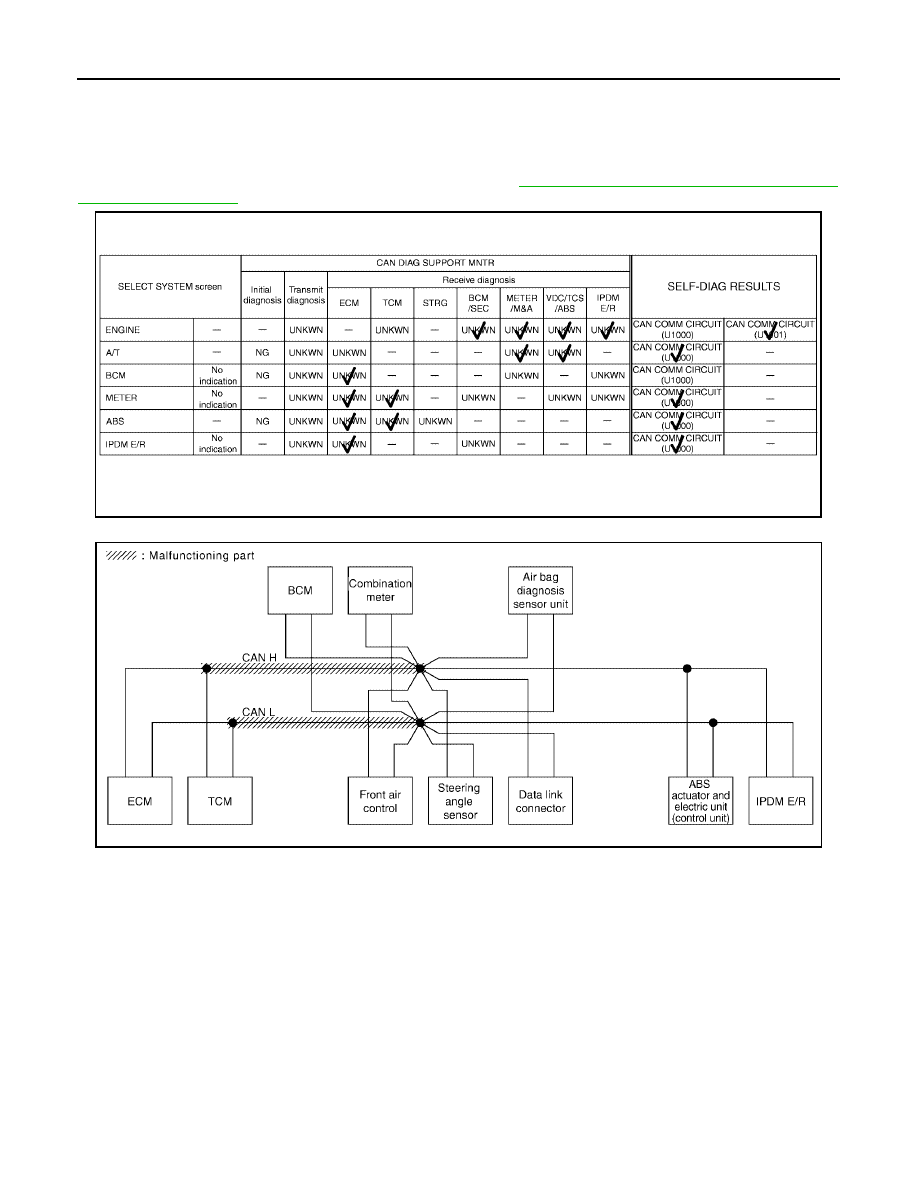

Case 1

Check harness between TCM and data link connector. Refer to

LAN-195, "Inspection Between TCM and Data

Link Connector Circuit"

 .

PKIC5626E

PKIC5410E

CAN SYSTEM (TYPE 2)

LAN-59

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

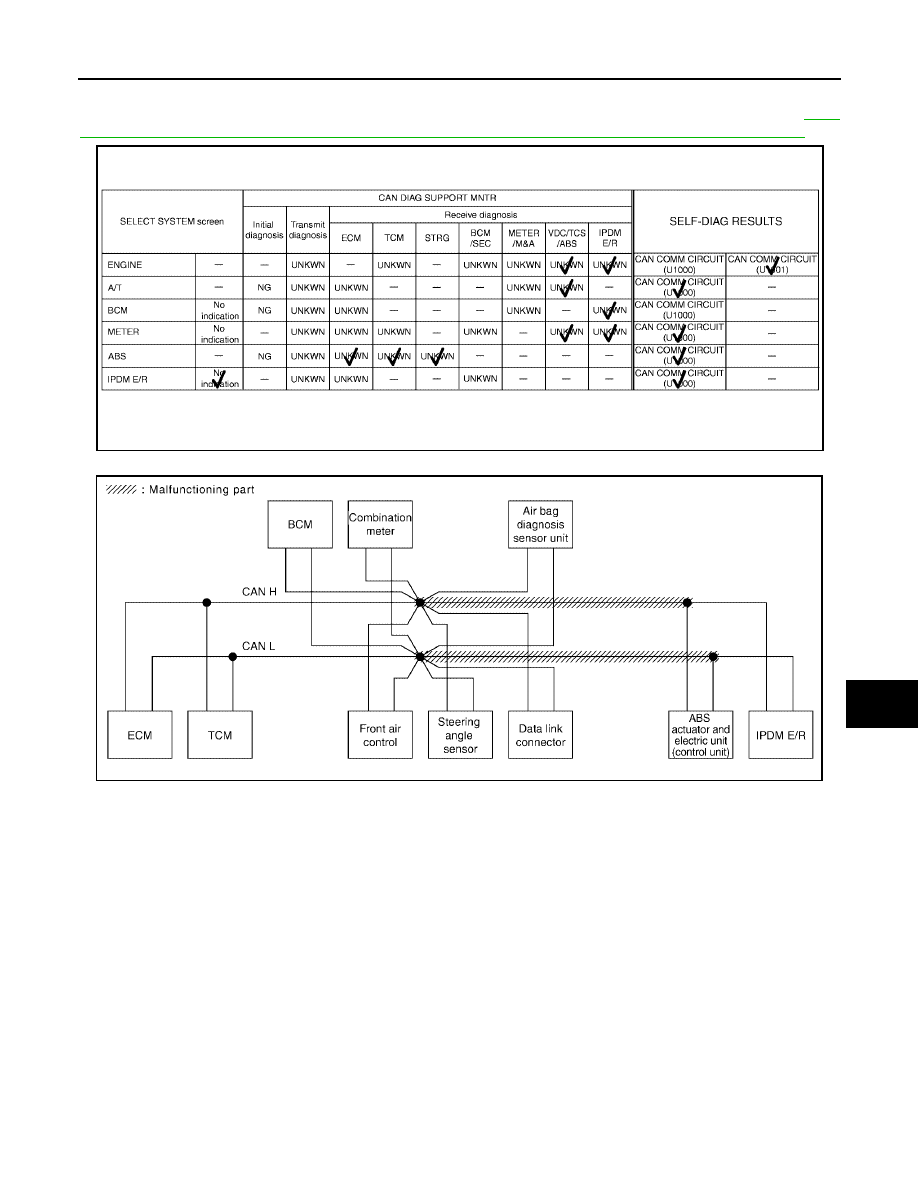

Case 2

Check harness between data link connector and ABS actuator and electric unit (control unit). Refer to

LAN-

196, "Inspection Between Data Link Connector and ABS Actuator and Electric Unit (Control Unit) Circuit"

 .

PKIC5627E

PKIC5411E

LAN-60

[CAN]

CAN SYSTEM (TYPE 2)

2006 Pathfinder

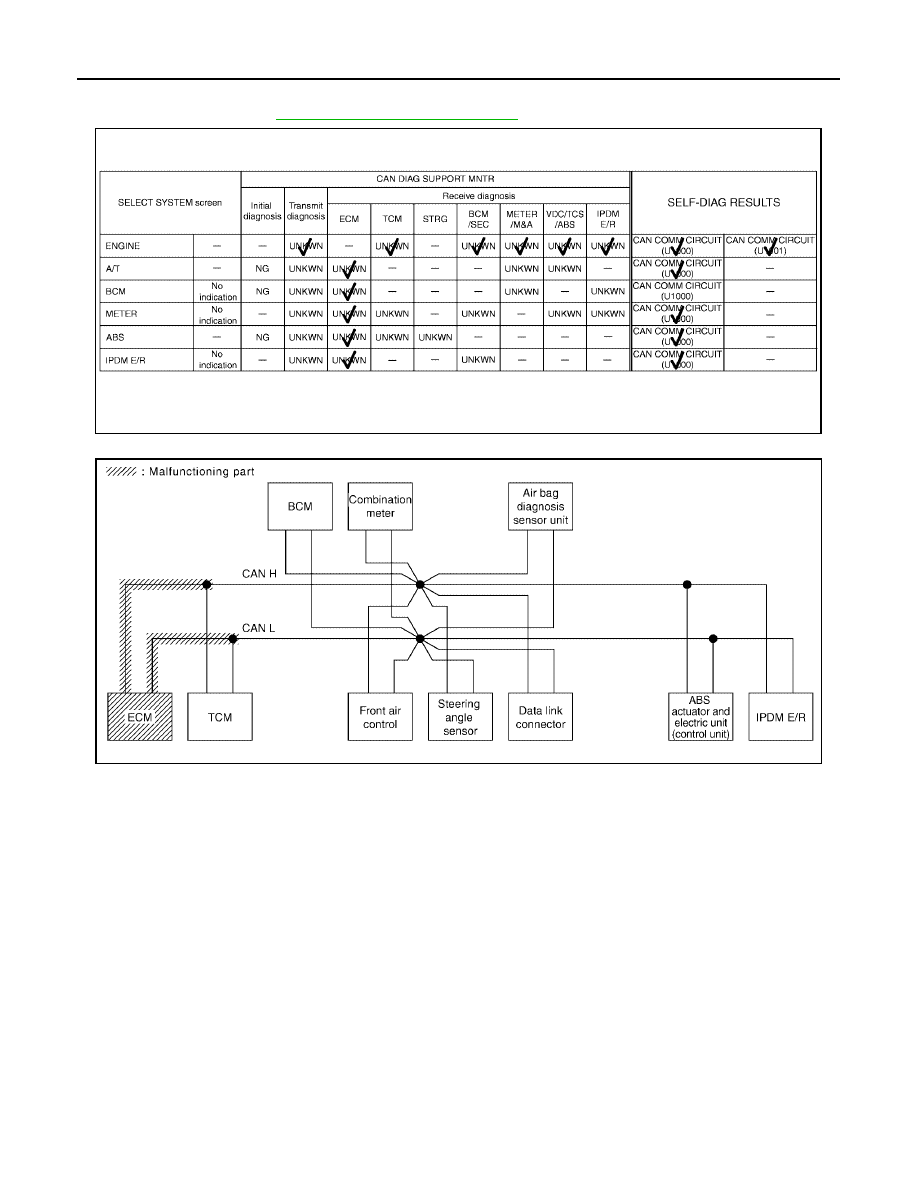

Case 3

Check ECM circuit. Refer to

LAN-197, "ECM Circuit Inspection"

 .

PKIC5628E

PKIC5412E

CAN SYSTEM (TYPE 2)

LAN-61

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

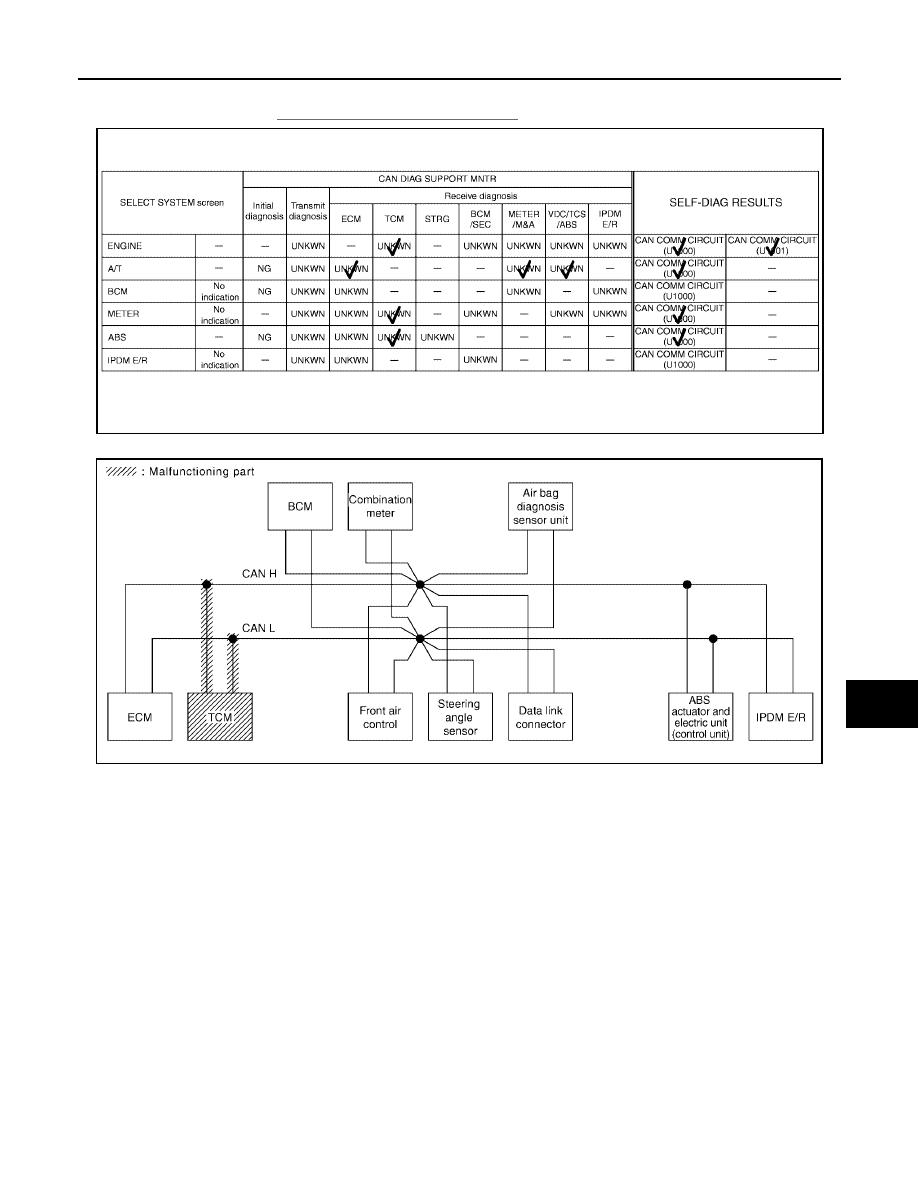

Case 4

Check TCM circuit. Refer to

LAN-197, "TCM Circuit Inspection"

 .

PKIC5629E

PKIC5413E

LAN-62

[CAN]

CAN SYSTEM (TYPE 2)

2006 Pathfinder

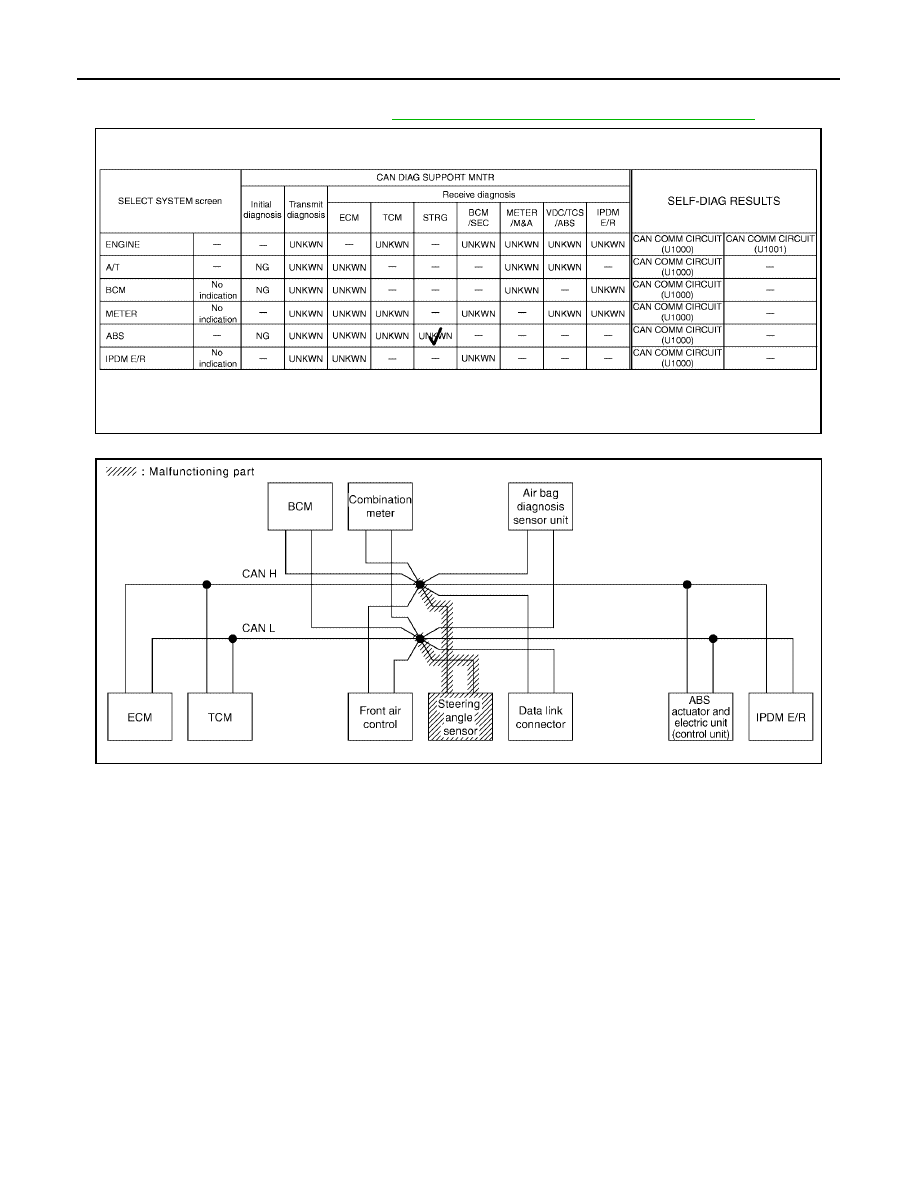

Case 5

Check steering angle sensor circuit. Refer to

LAN-199, "Steering Angle Sensor Circuit Inspection"

 .

PKIC5630E

PKIC5415E

CAN SYSTEM (TYPE 2)

LAN-63

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

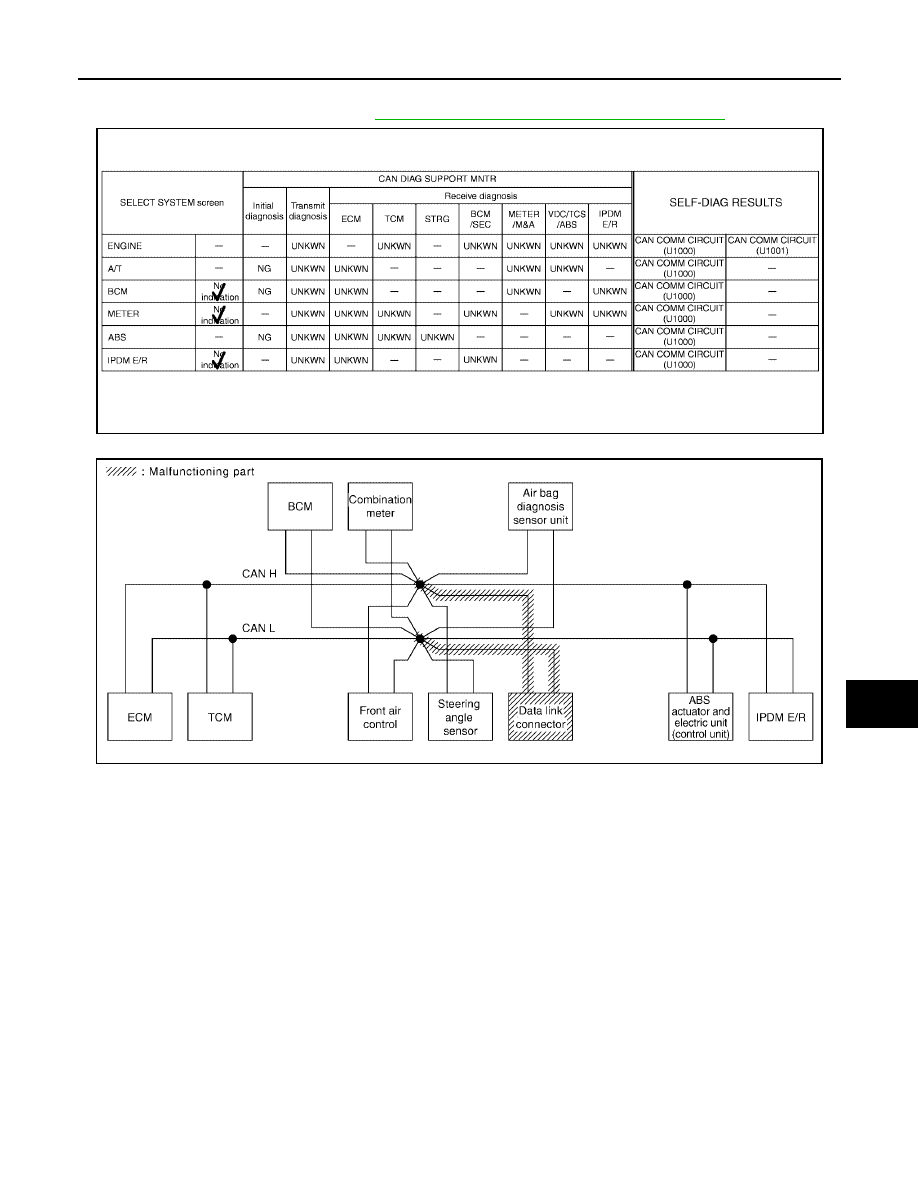

Case 6

Check data link connector circuit. Refer to

LAN-199, "Data Link Connector Circuit Inspection"

 .

PKIC5631E

PKIC5416E

LAN-64

[CAN]

CAN SYSTEM (TYPE 2)

2006 Pathfinder

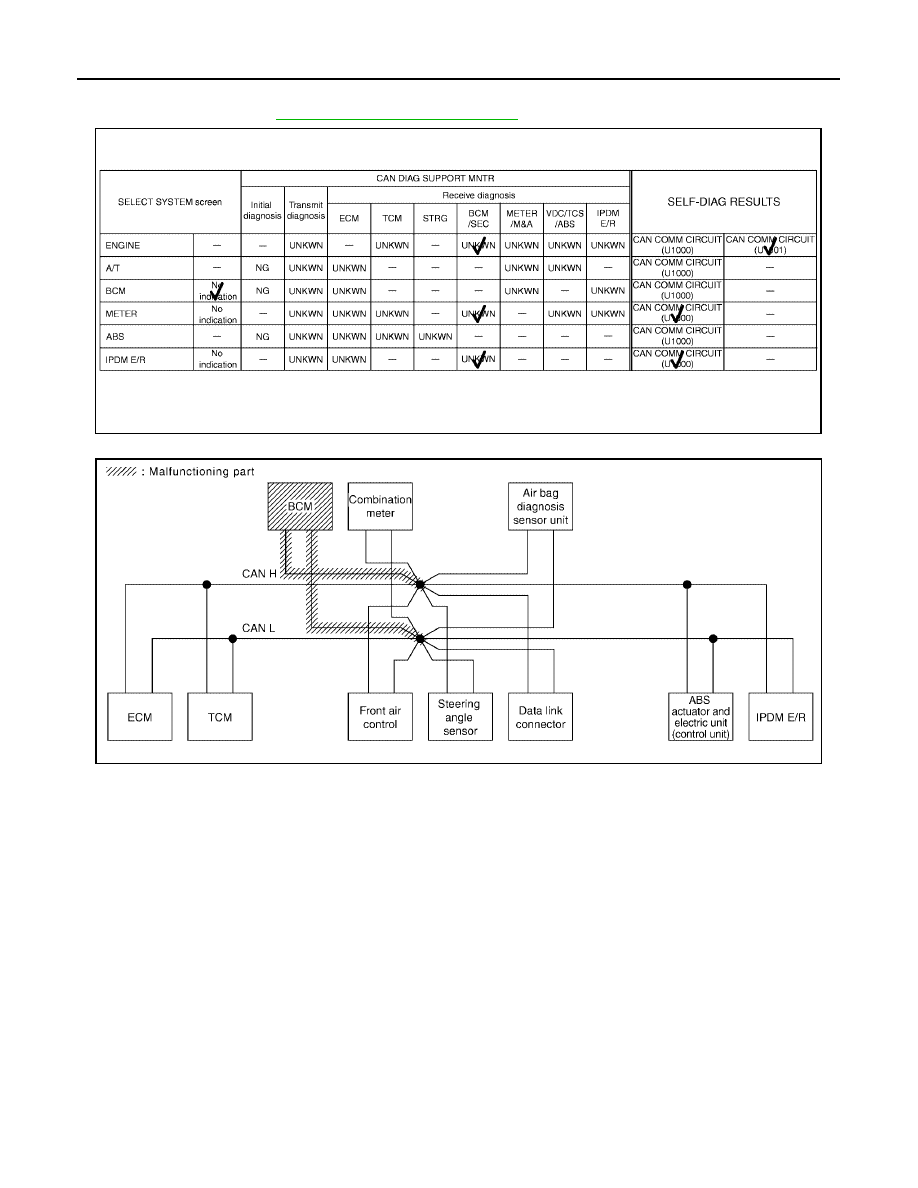

Case 7

Check BCM circuit. Refer to

LAN-200, "BCM Circuit Inspection"

 .

PKIC5632E

PKIC5417E
