CAN SYSTEM (TYPE 1)

LAN-41

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

CAN SYSTEM (TYPE 1)

PFP:23710

Component Parts and Harness Connector Location

UKS0053A

Refer to

LAN-25, "Component Parts and Harness Connector Location"

 .

Schematic

UKS0053B

Refer to

LAN-26, "Schematic"

 .

Wiring Diagram — CAN —

UKS0053C

Refer to

LAN-27, "Wiring Diagram — CAN —"

 .

LAN-42

[CAN]

CAN SYSTEM (TYPE 1)

2006 Pathfinder

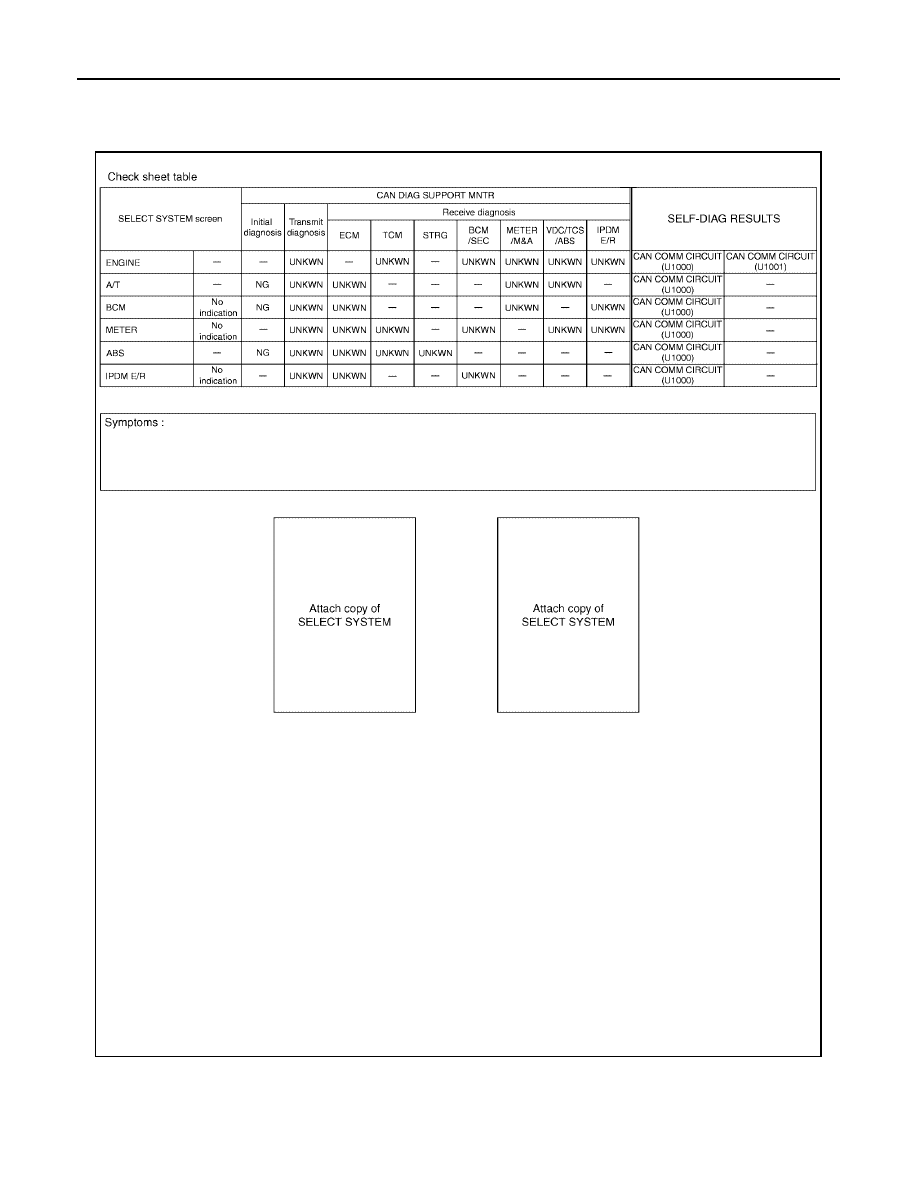

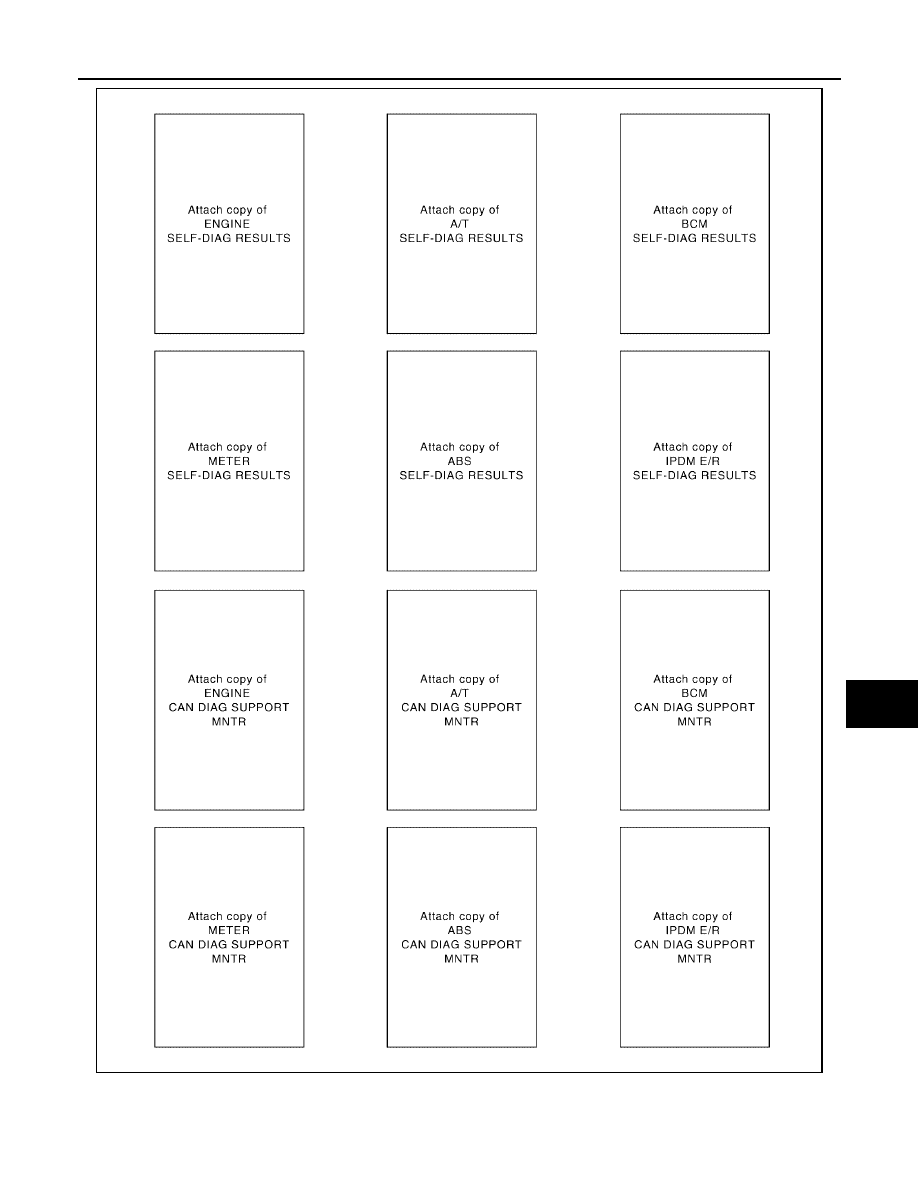

Check Sheet

UKS0053D

NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

PKIC5625E

CAN SYSTEM (TYPE 1)

LAN-43

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

PKIC7064E

LAN-44

[CAN]

CAN SYSTEM (TYPE 1)

2006 Pathfinder

CHECK SHEET RESULTS (EXAMPLE)

NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

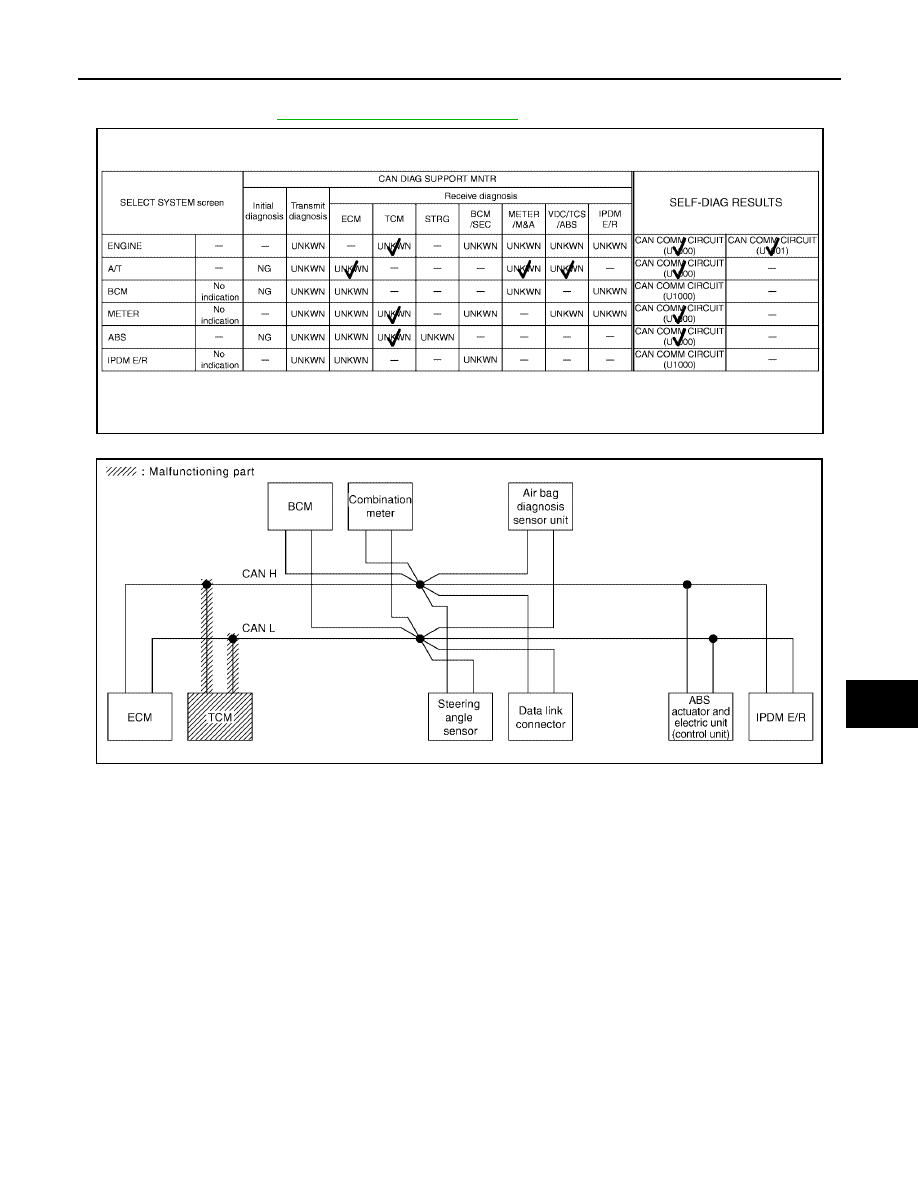

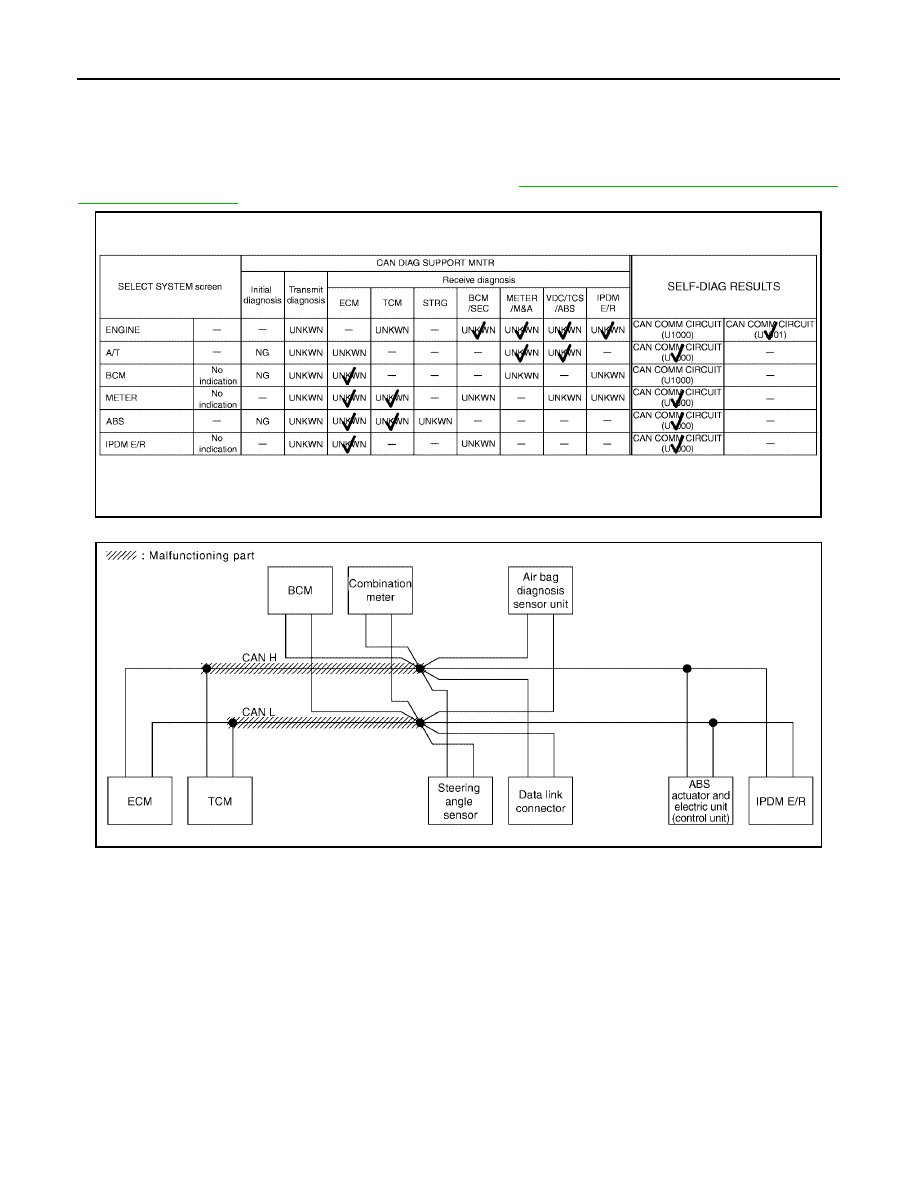

Case 1

Check harness between TCM and data link connector. Refer to

LAN-195, "Inspection Between TCM and Data

Link Connector Circuit"

 .

PKIC5626E

PKIC5400E

CAN SYSTEM (TYPE 1)

LAN-45

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

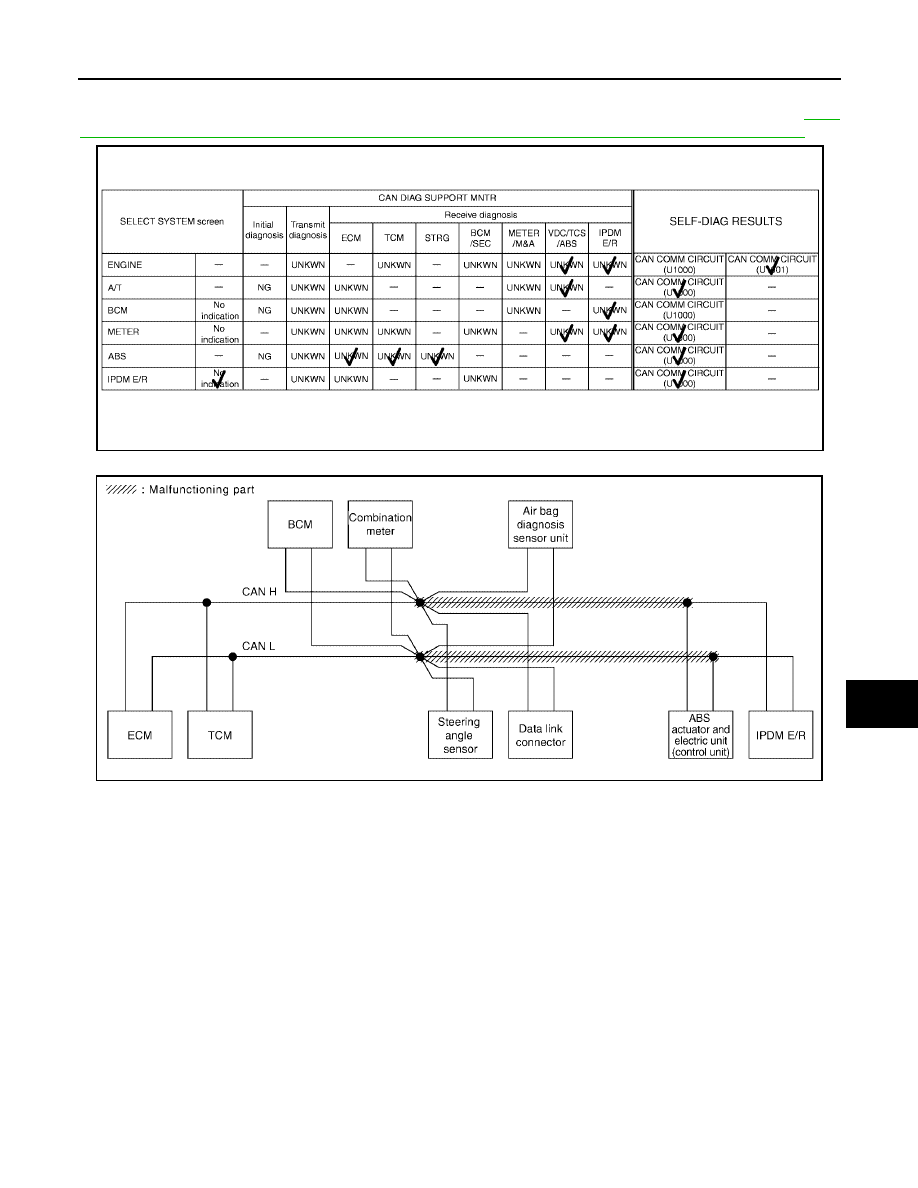

Case 2

Check harness between data link connector and ABS actuator and electric unit (control unit). Refer to

LAN-

196, "Inspection Between Data Link Connector and ABS Actuator and Electric Unit (Control Unit) Circuit"

 .

PKIC5627E

PKIC5401E

LAN-46

[CAN]

CAN SYSTEM (TYPE 1)

2006 Pathfinder

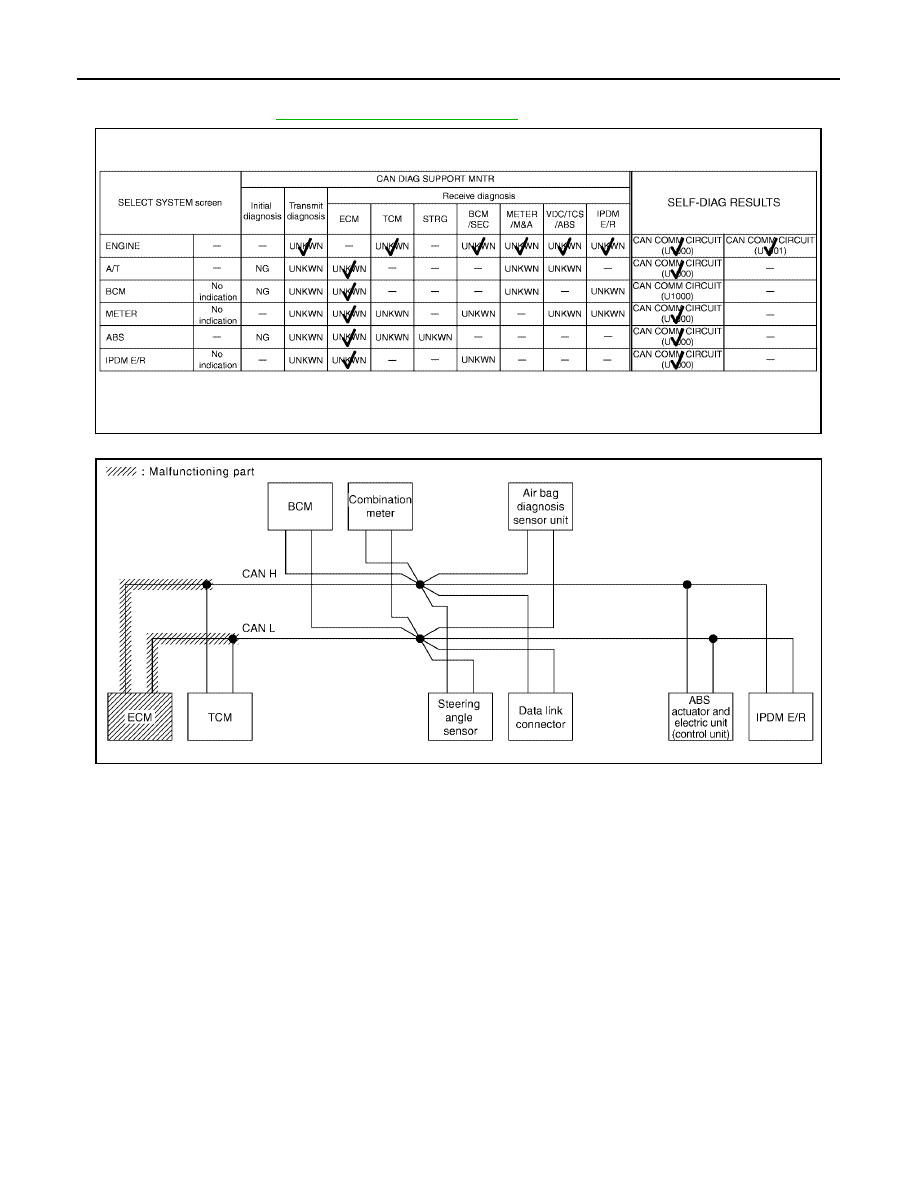

Case 3

Check ECM circuit. Refer to

LAN-197, "ECM Circuit Inspection"

 .

PKIC5628E

PKIC5402E

CAN SYSTEM (TYPE 1)

LAN-47

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

Case 4

Check TCM circuit. Refer to

LAN-197, "TCM Circuit Inspection"

 .

PKIC5629E

PKIC5403E

LAN-48

[CAN]

CAN SYSTEM (TYPE 1)

2006 Pathfinder

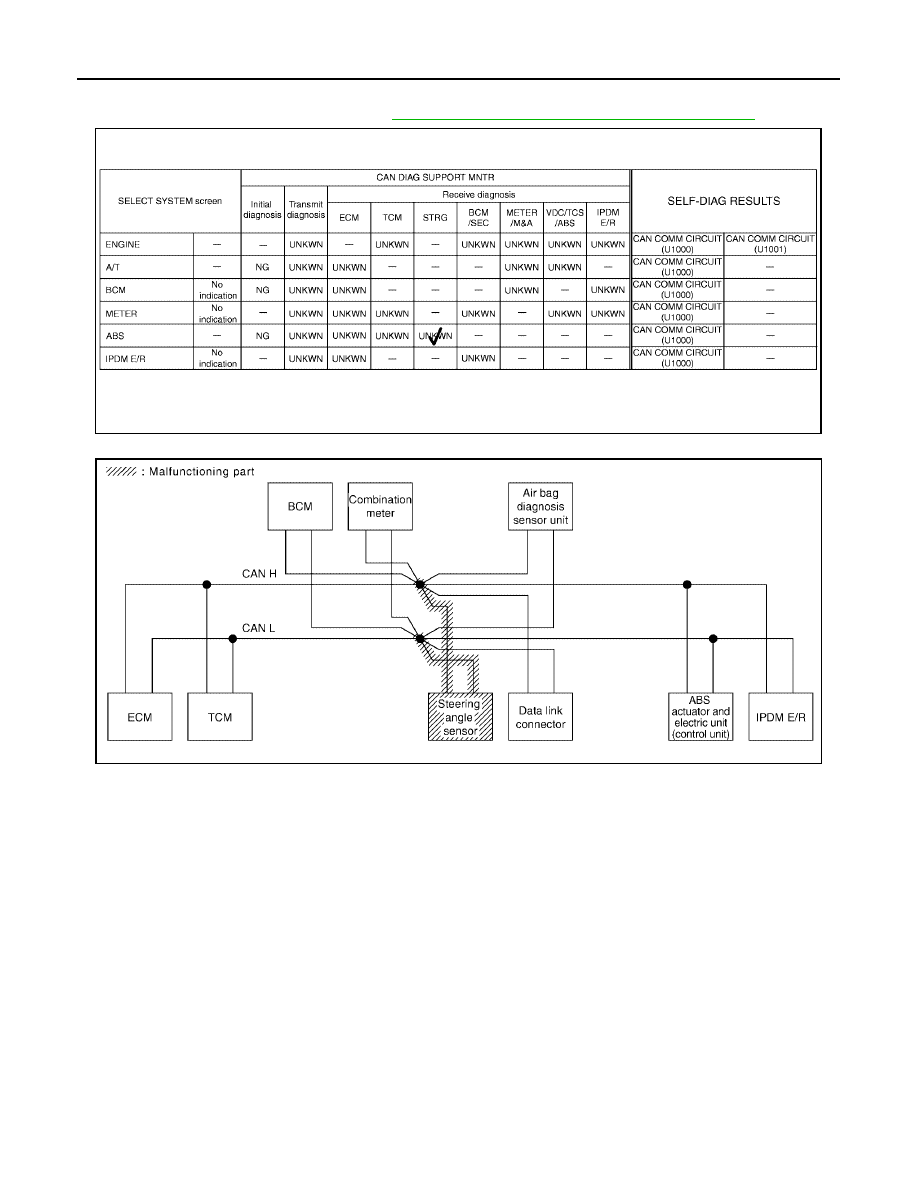

Case 5

Check steering angle sensor circuit. Refer to

LAN-199, "Steering Angle Sensor Circuit Inspection"

 .

PKIC5630E

PKIC5404E
