CAN COMMUNICATION

LAN-25

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

CAN COMMUNICATION

PFP:23710

System Description

UKS000NU

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.

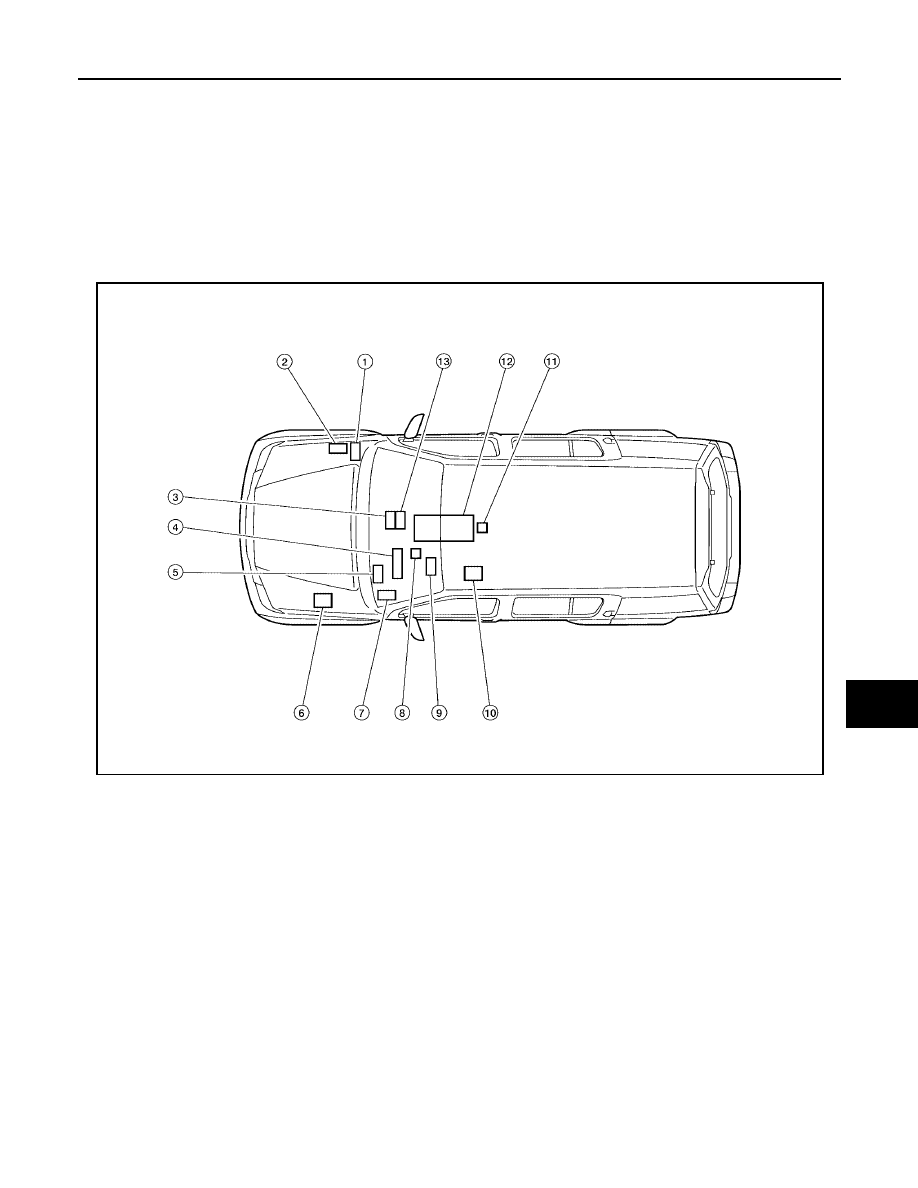

Component Parts and Harness Connector Location

UKS0051T

1.

IPDM E/R E122

2.

ECM E16

3.

Display control unit M95 (with NAVI)

4.

Combination meter M24

5.

BCM M18

6.

ABS actuator and electric unit (con-
trol unit) E125

7.

Transfer control unit M152
(with 4-wheel drive)

8.

Data link connector M22

9.

Steering angle sensor M47

10. Driver seat control unit P2

(with automatic drive positioner)

11.

Air bag diagnosis sensor unit M35

12. A/T assembly F9

13. Front air control M50 (with auto A/C)

BKIA0199E

LAN-26

[CAN]

CAN COMMUNICATION

2006 Pathfinder

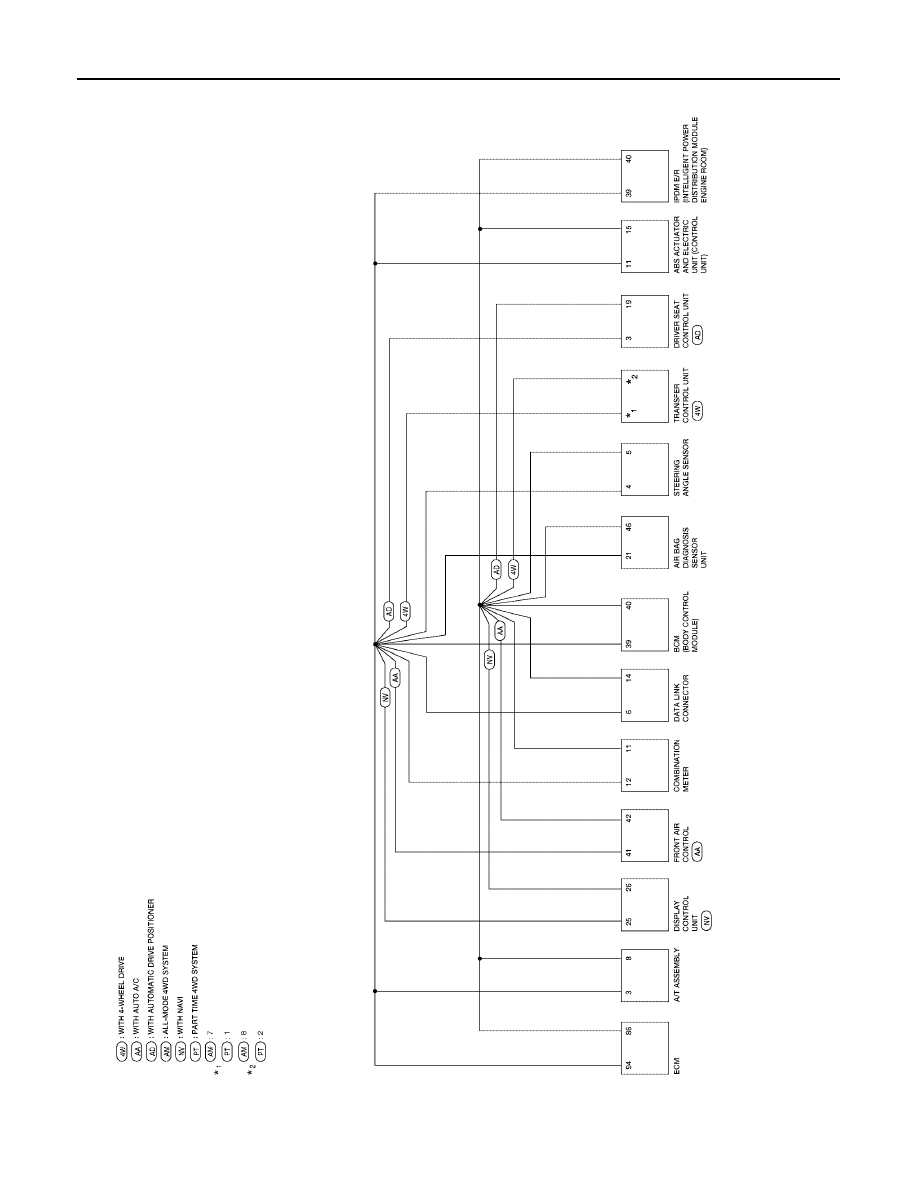

Schematic

UKS0051U

BKWA0659E

CAN COMMUNICATION

LAN-27

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

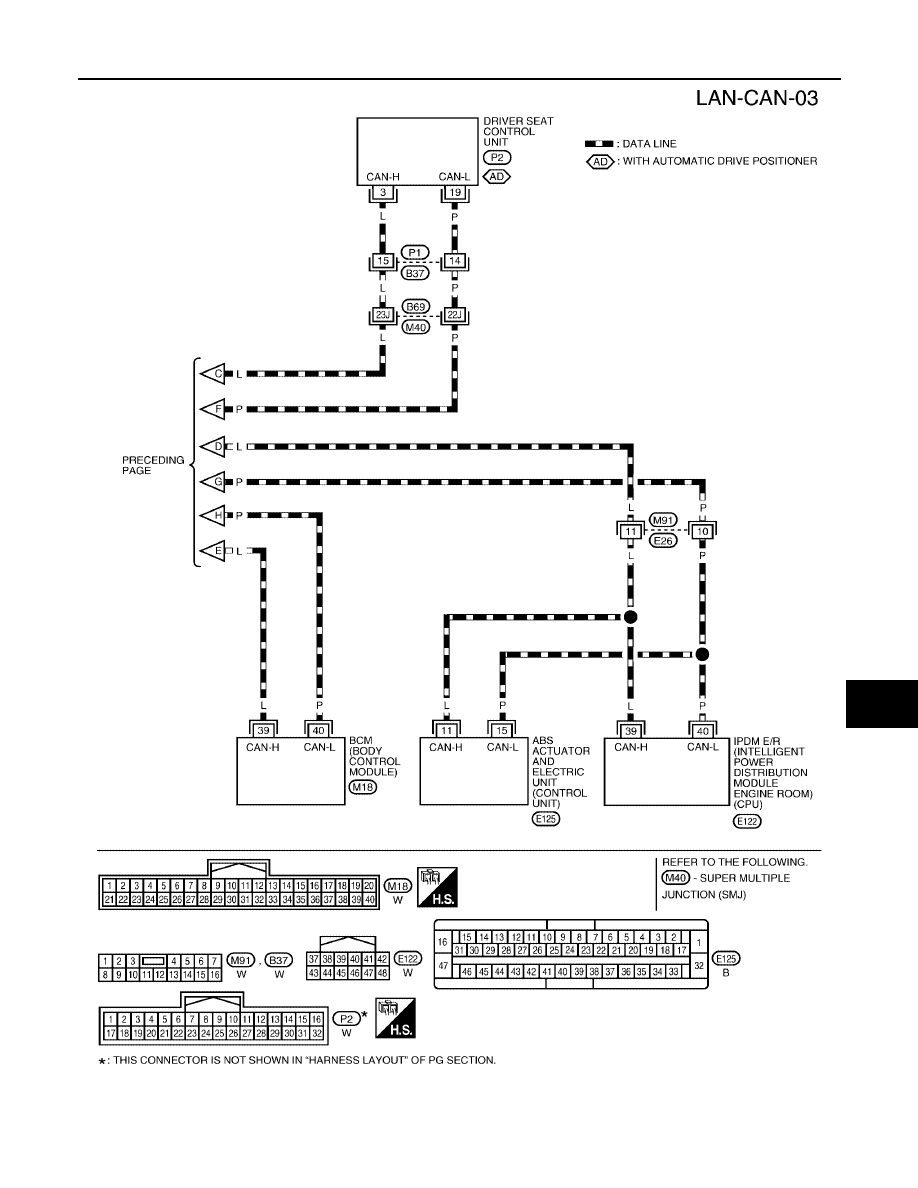

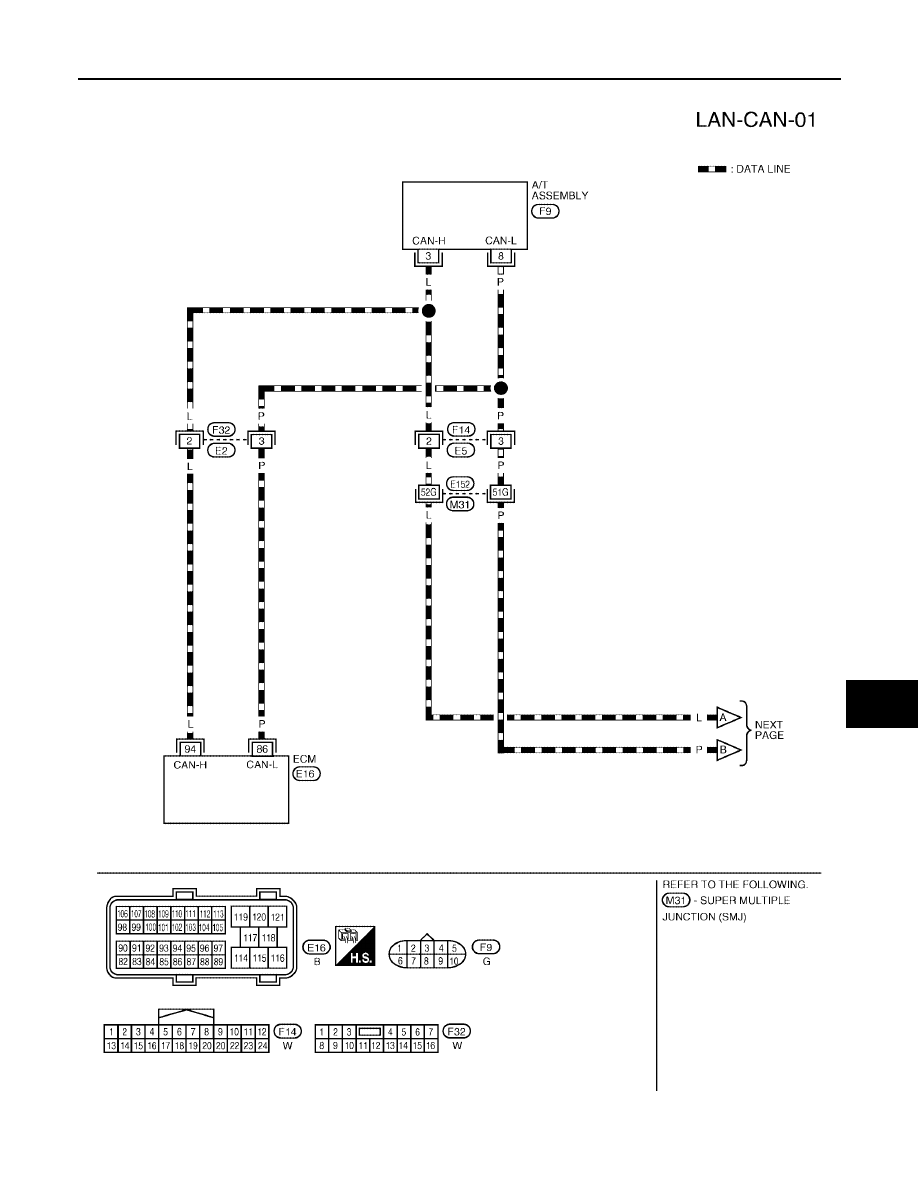

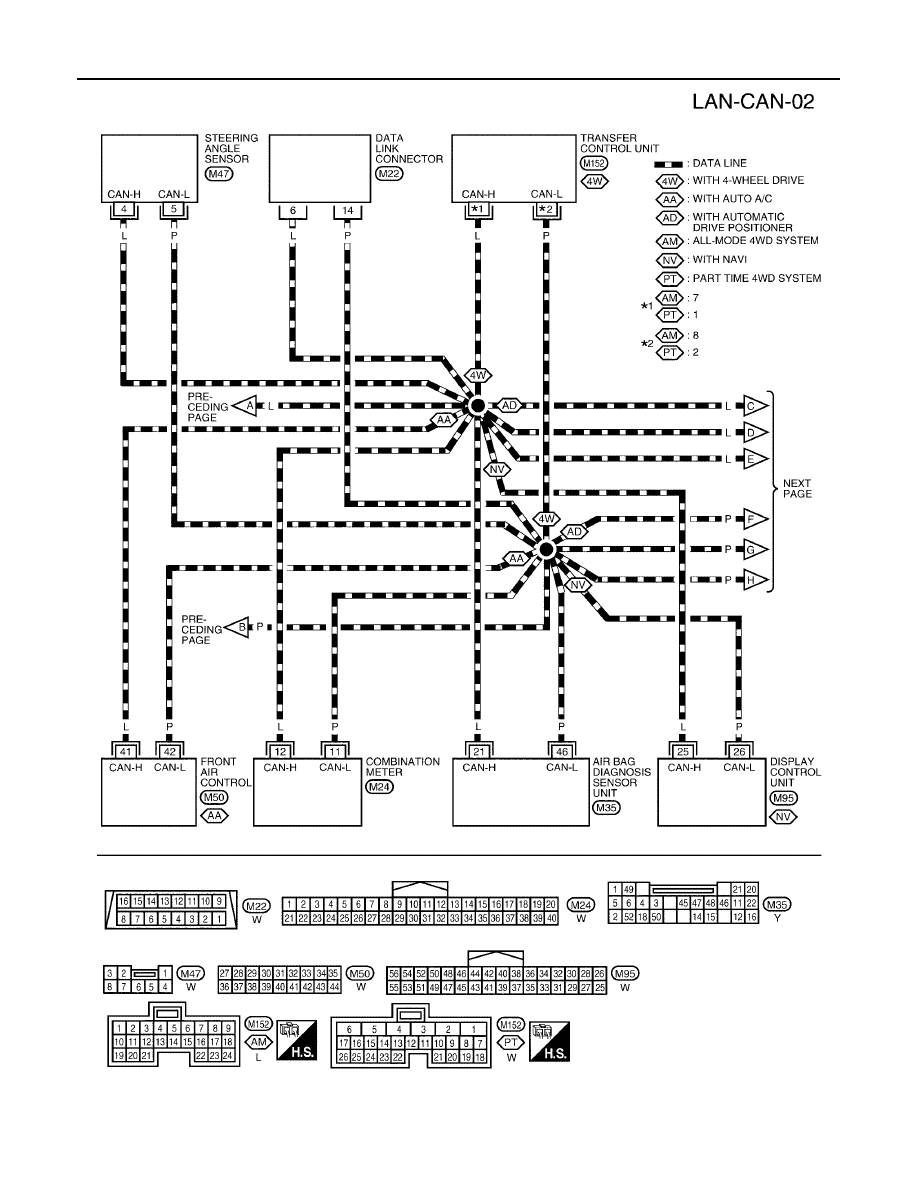

Wiring Diagram — CAN —

UKS0051V

BKWA0660E

LAN-28

[CAN]

CAN COMMUNICATION

2006 Pathfinder

BKWA0661E

CAN COMMUNICATION

LAN-29

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

BKWA0662E

LAN-30

[CAN]

CAN COMMUNICATION

2006 Pathfinder

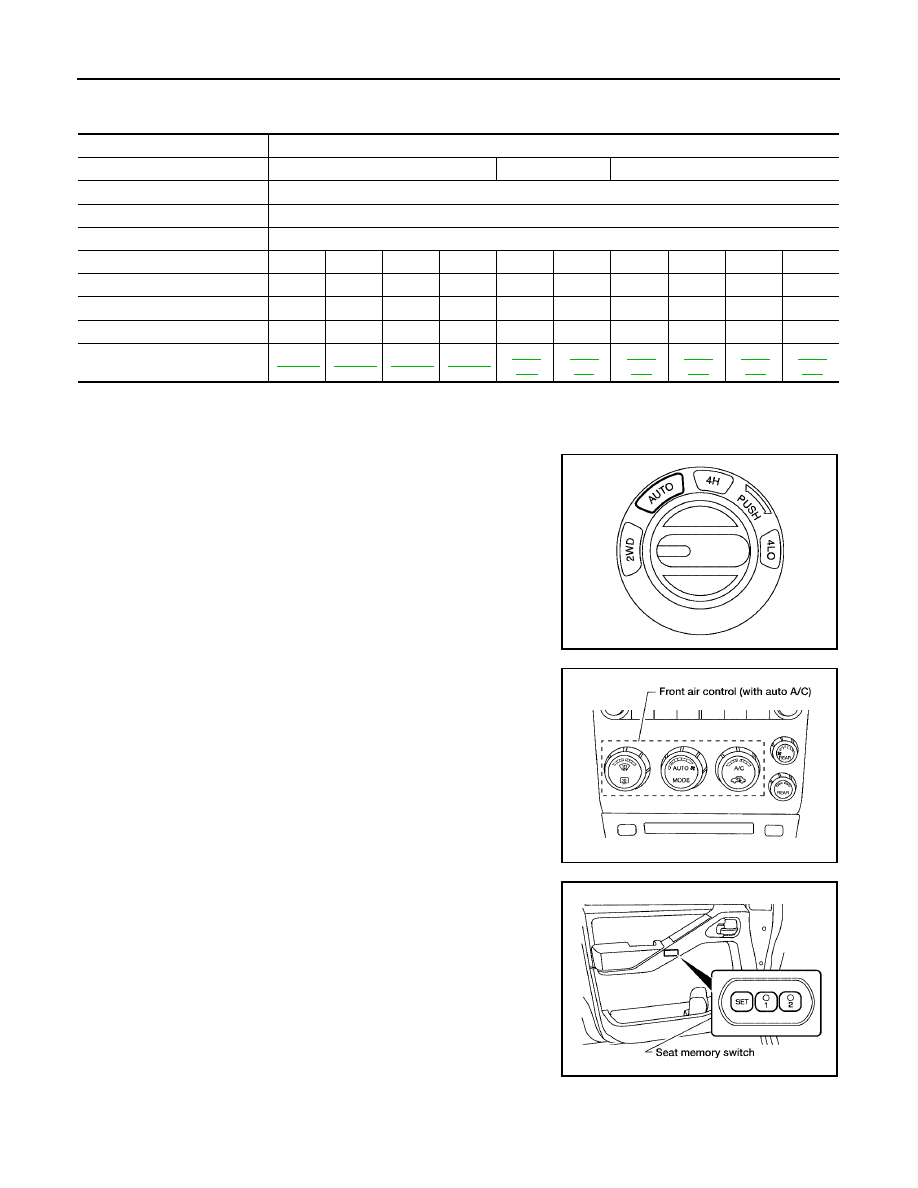

CAN Communication Unit

UKS000NV

Go to CAN system, when selecting your CAN system type from the following table.

×

: Applicable

NOTE:
Confirming the presence of the following items helps to identify CAN system type.

With All-mode 4WD

With automatic air conditioner

With automatic drive positioner

Body type

Wagon

Axle

2WD

4WD(Part time)

4WD(All-mode)

Engine

VQ40DE

Transmission

A/T

Brake control

VDC

Automatic air conditioner

×

×

×

×

×

×

×

Automatic drive positioner

×

×

×

×

Navigation system

×

×

CAN system type

1

2

3

4

5

6

7

8

9

10

CAN system trouble diagnosis

LAN-41

LAN-55

LAN-69

LAN-84

LAN-

101

LAN-

116

LAN-

131

LAN-

146

LAN-

161

LAN-

177

SKIB6462E

BKIA0204E

BKIA0172E

CAN COMMUNICATION

LAN-31

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

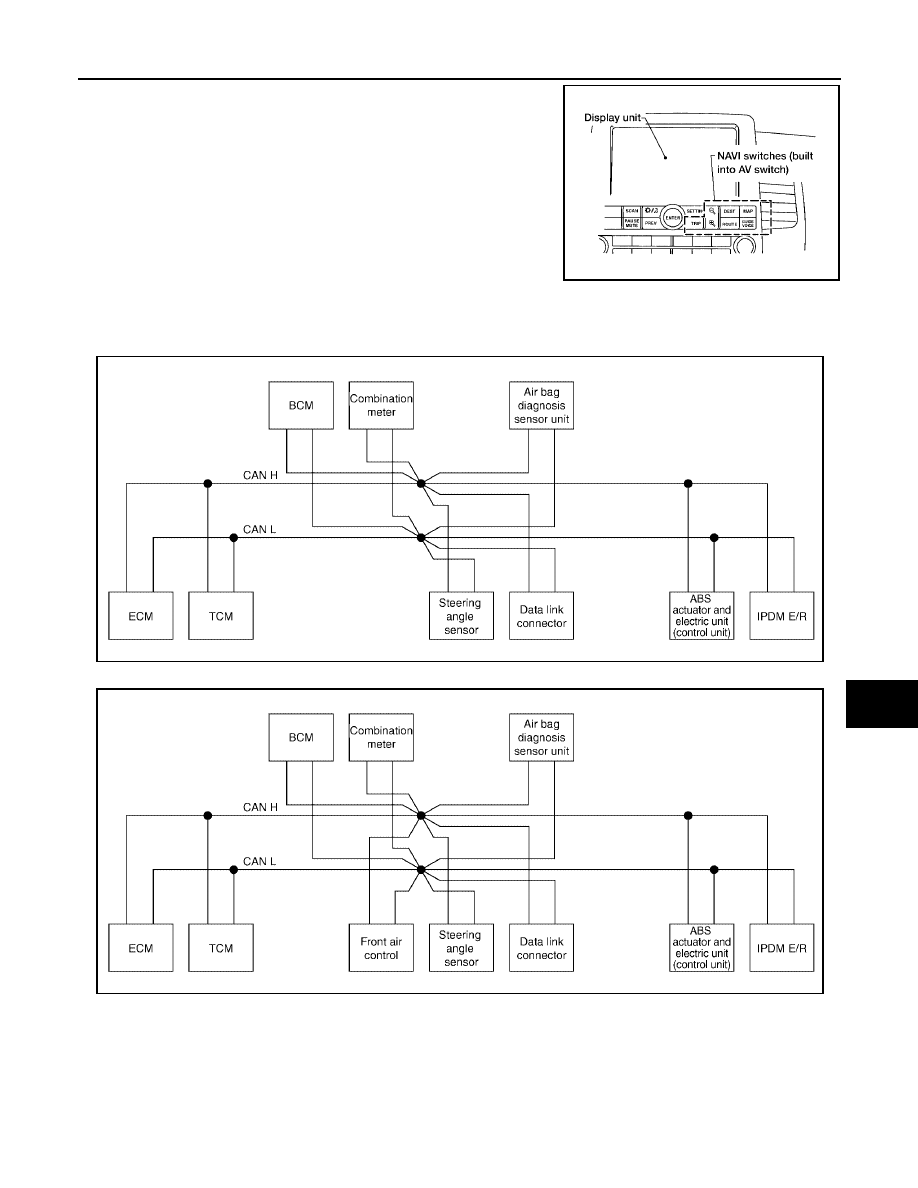

With navigation system

TYPE 1/TYPE 2/TYPE 3/TYPE 4
System diagram

Type 1

Type 2

BKIA0173E

PKIC4973E

PKIC4974E

LAN-32

[CAN]

CAN COMMUNICATION

2006 Pathfinder

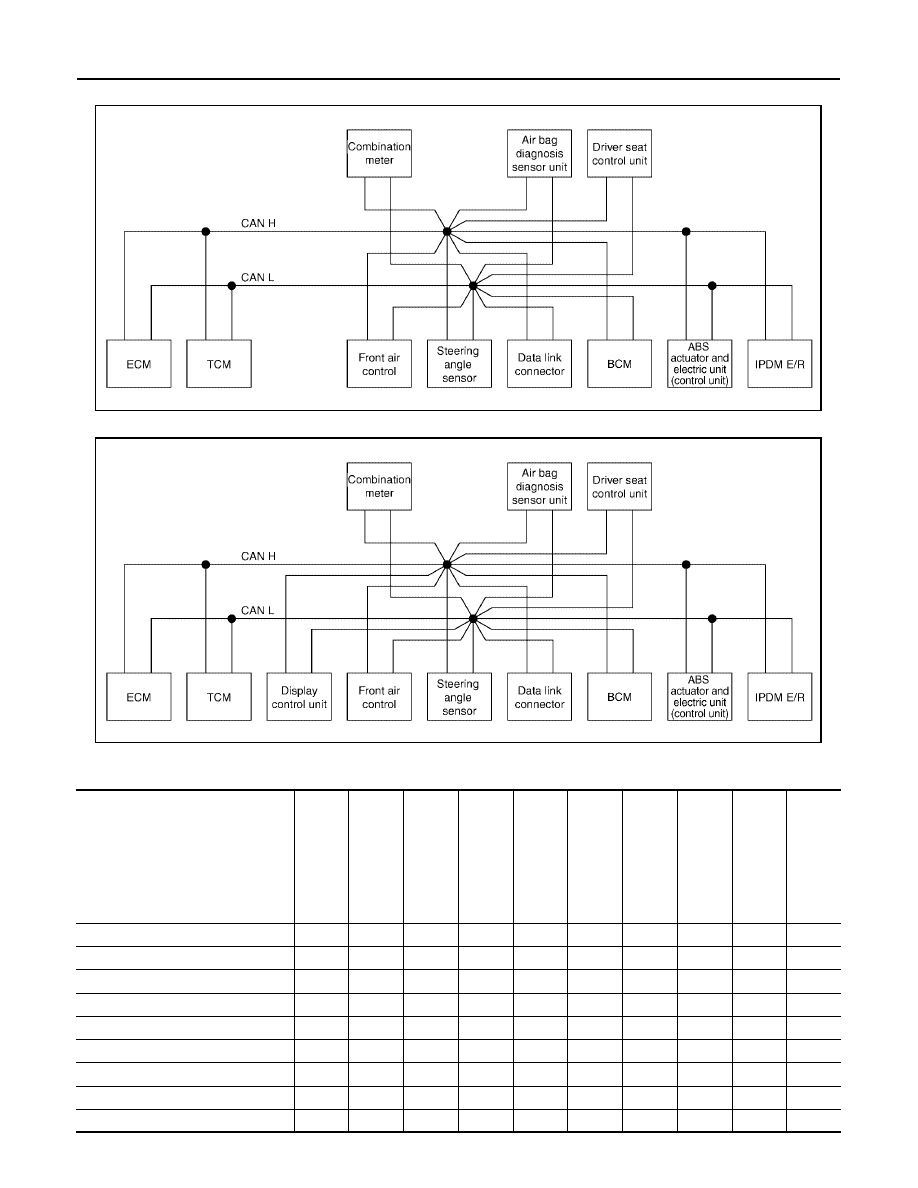

Type 3

Type 4

Input/output signal chart

T: Transmit   R: Receive

PKIC4975E

PKIC4976E

Signals

ECM

TCM

Dis-
play

control

unit

*1

Front

air con-

trol

*2

Steer-

ing

angle

sensor

BCM

Combi-

nation

meter

Driver

seat

control

unit

*3

ABS

actua-

tor and

elec-

tric unit

(con-

trol

unit)

IPDM

E/R

A/C compressor request signal

T

R

Accelerator pedal position signal

T

R

R

ASCD CRUISE lamp signal

T

R

ASCD OD cancel request

T

R

ASCD operation signal

T

R

ASCD SET lamp signal

T

R

Battery voltage signal

T

Closed throttle position signal

T

Cooling fan speed request signal

T

R
