CAN SYSTEM (TYPE 1)

LAN-49

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

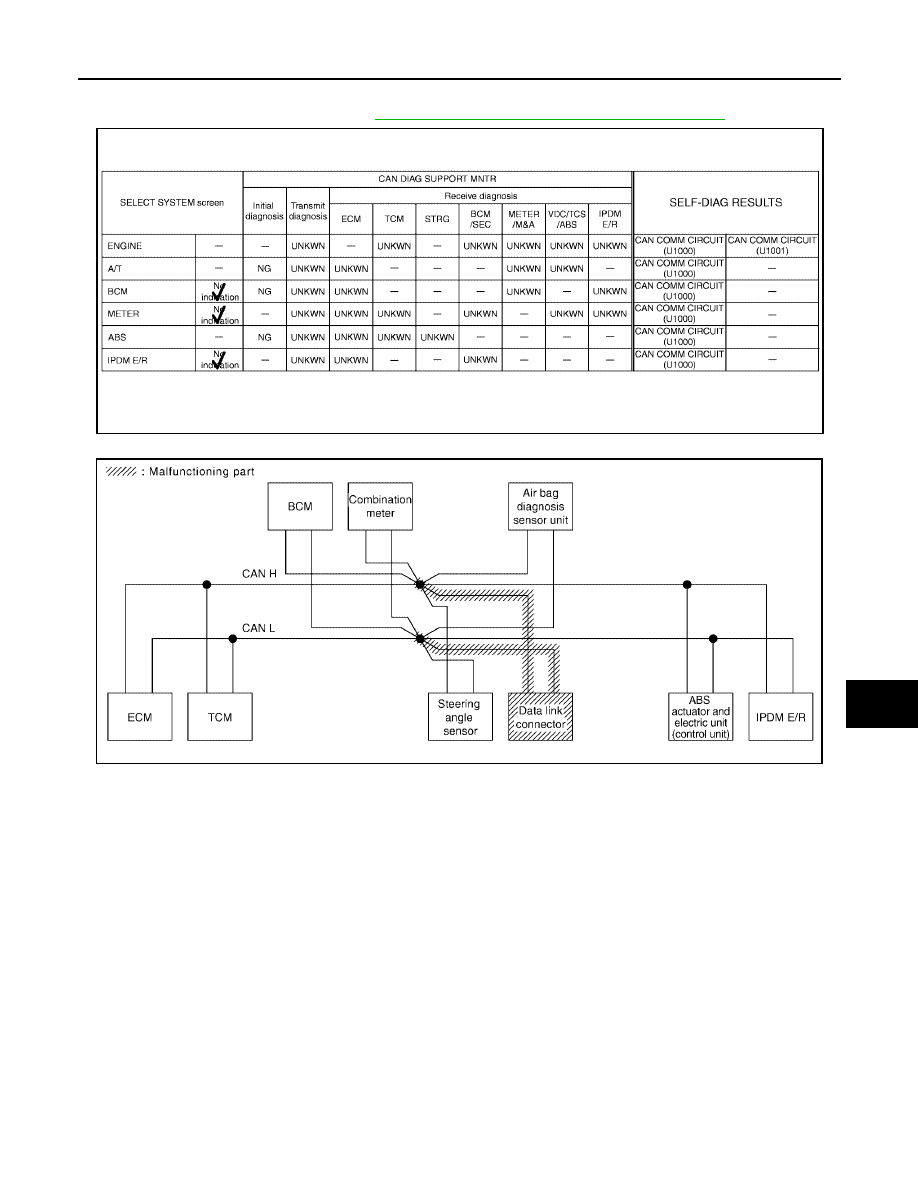

Case 6

Check data link connector circuit. Refer to

LAN-199, "Data Link Connector Circuit Inspection"

 .

PKIC5631E

PKIC5405E

LAN-50

[CAN]

CAN SYSTEM (TYPE 1)

2006 Pathfinder

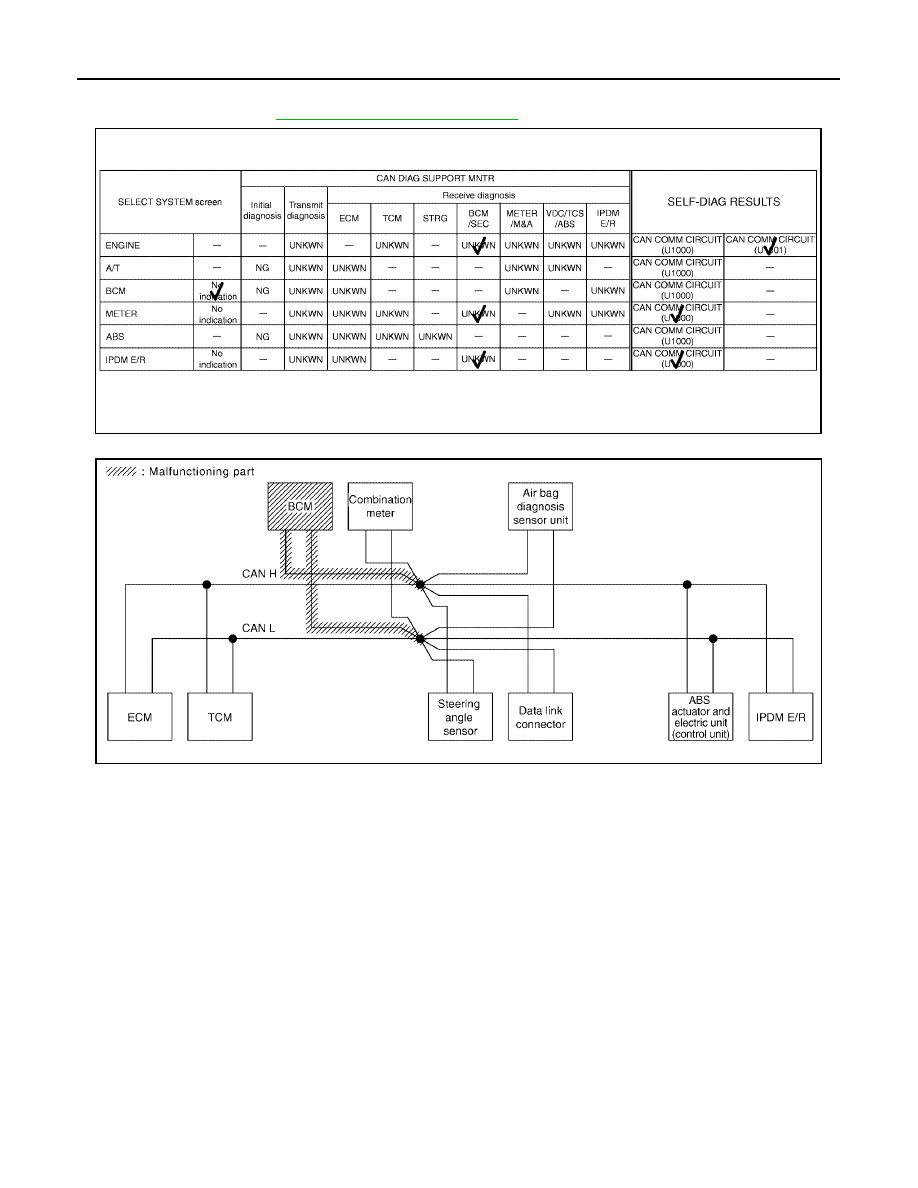

Case 7

Check BCM circuit. Refer to

LAN-200, "BCM Circuit Inspection"

 .

PKIC5632E

PKIC5406E

CAN SYSTEM (TYPE 1)

LAN-51

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

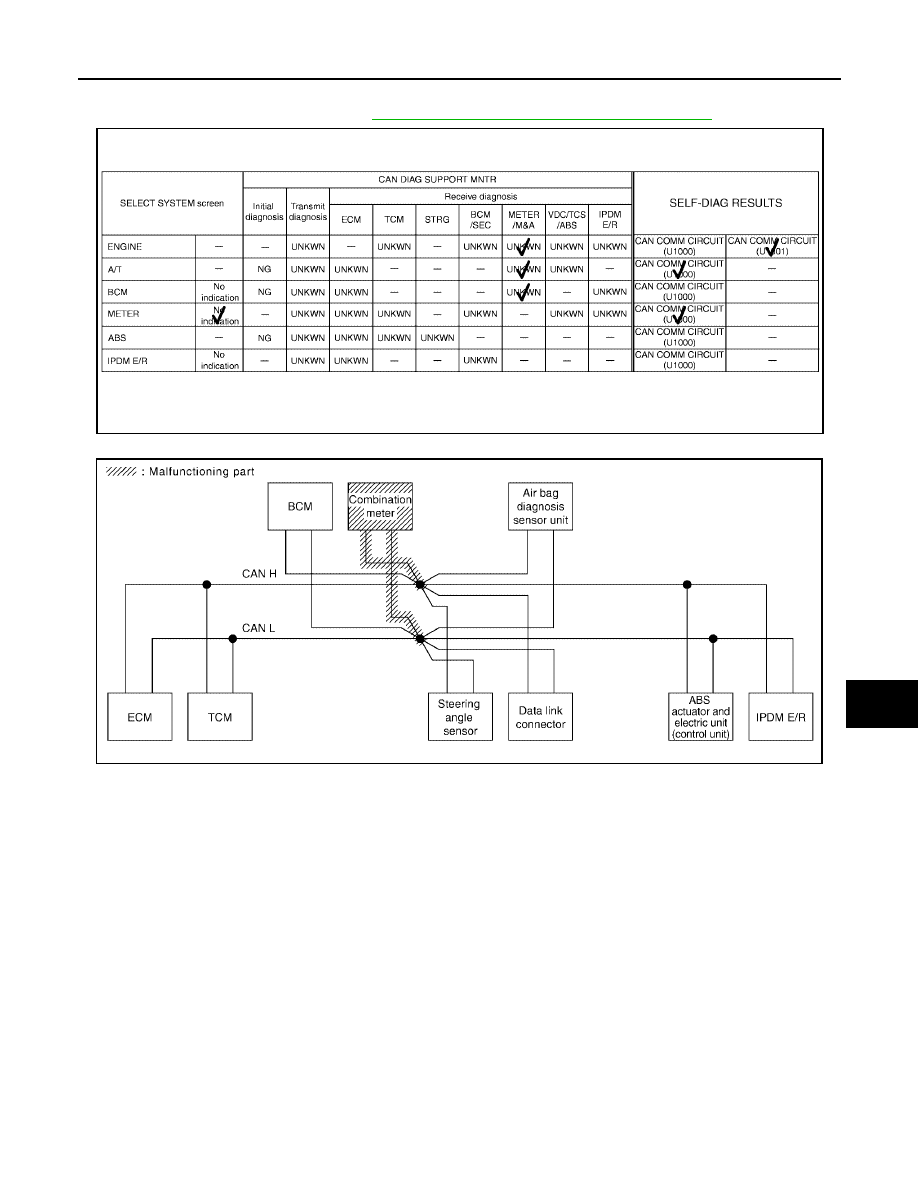

Case 8

Check combination meter circuit. Refer to

LAN-200, "Combination Meter Circuit Inspection"

 .

PKIC5633E

PKIC5407E

LAN-52

[CAN]

CAN SYSTEM (TYPE 1)

2006 Pathfinder

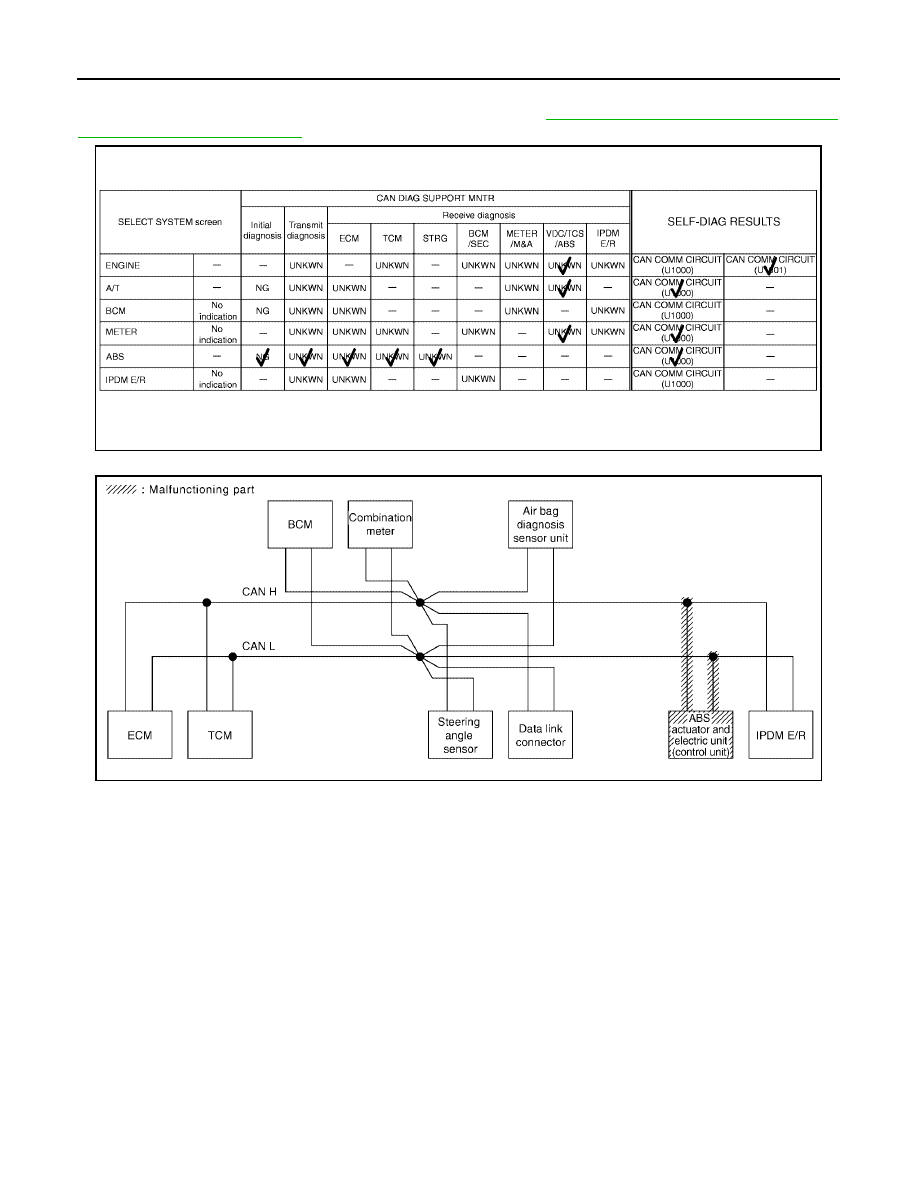

Case 9

Check ABS actuator and electric unit (control unit) circuit. Refer to

LAN-202, "ABS Actuator and Electric Unit

(Control Unit) Circuit Inspection"

 .

PKIC5634E

PKIC5408E

CAN SYSTEM (TYPE 1)

LAN-53

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

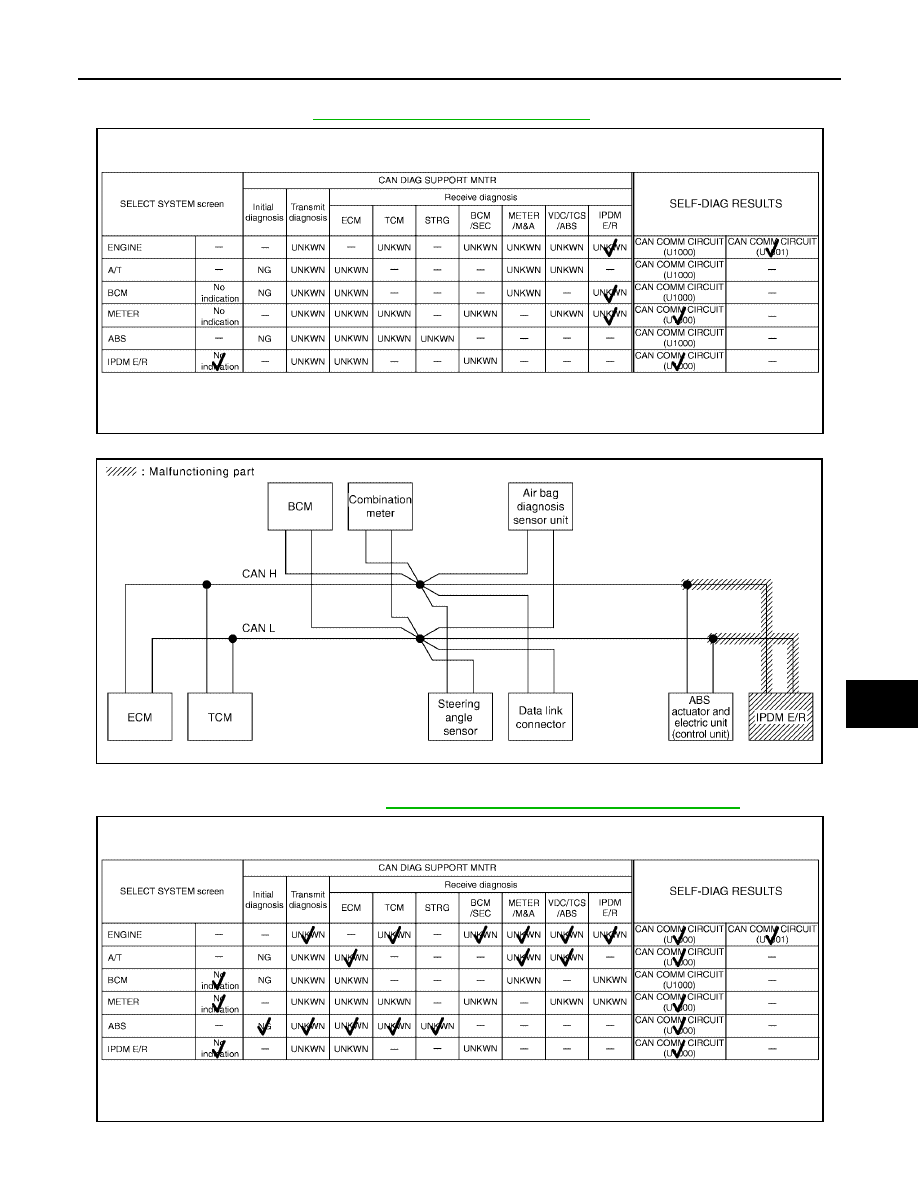

Case 10

Check IPDM E/R circuit. Refer to

LAN-203, "IPDM E/R Circuit Inspection"

 .

Case 11

Check CAN communication circuit. Refer to

LAN-203, "CAN Communication Circuit Inspection"

 .

PKIC5635E

PKIC5409E

PKIC5636E

LAN-54

[CAN]

CAN SYSTEM (TYPE 1)

2006 Pathfinder

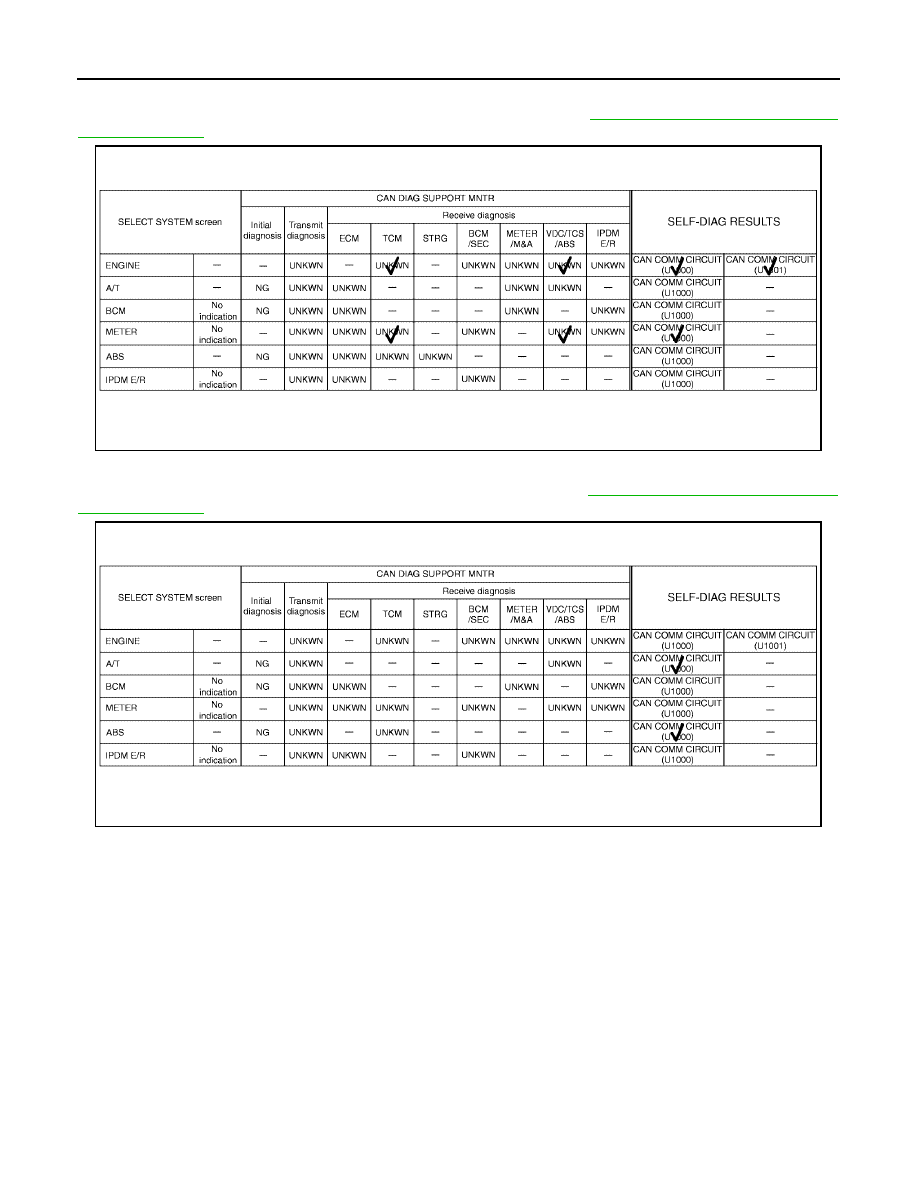

Case 12

Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer to

LAN-204, "IPDM E/R Ignition Relay

Circuit Inspection"

 .

Case 13

Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to

LAN-204, "IPDM E/R Ignition Relay

Circuit Inspection"

 .

PKIC5637E

PKIC5638E

CAN SYSTEM (TYPE 2)

LAN-55

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

CAN SYSTEM (TYPE 2)

PFP:23710

Component Parts and Harness Connector Location

UKS0053E

Refer to

LAN-25, "Component Parts and Harness Connector Location"

 .

Schematic

UKS0053F

Refer to

LAN-26, "Schematic"

 .

Wiring Diagram — CAN —

UKS0053G

Refer to

LAN-27, "Wiring Diagram — CAN —"

 .

LAN-56

[CAN]

CAN SYSTEM (TYPE 2)

2006 Pathfinder

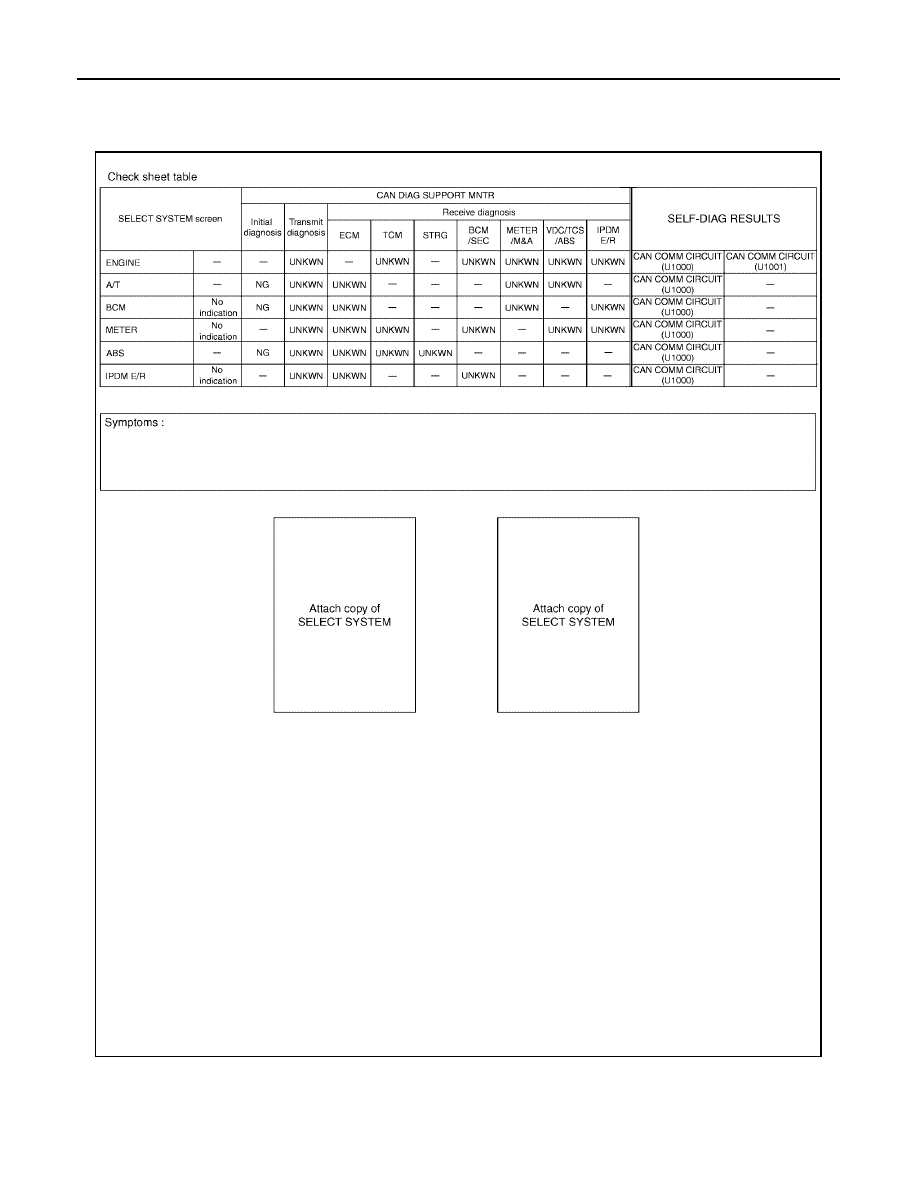

Check Sheet

UKS0053H

NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

PKIC5625E
