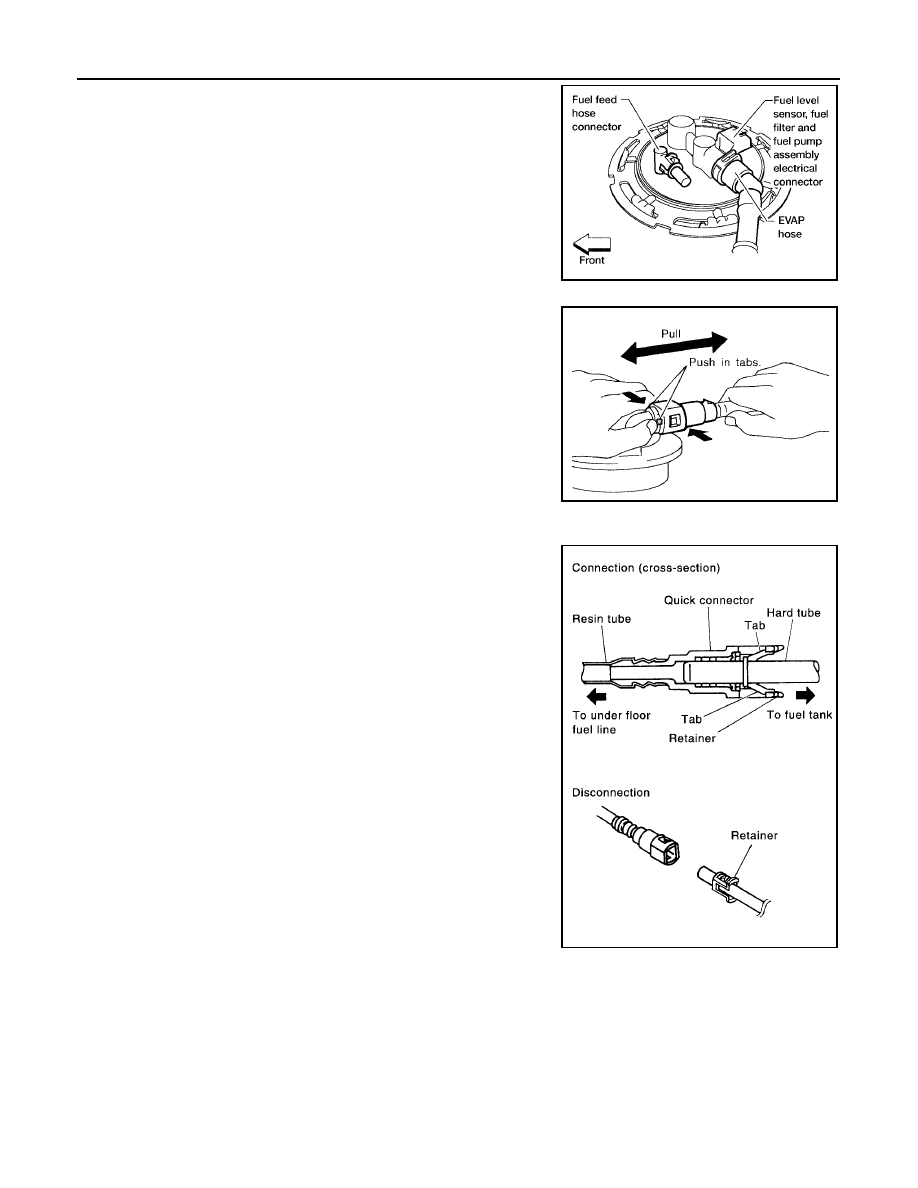

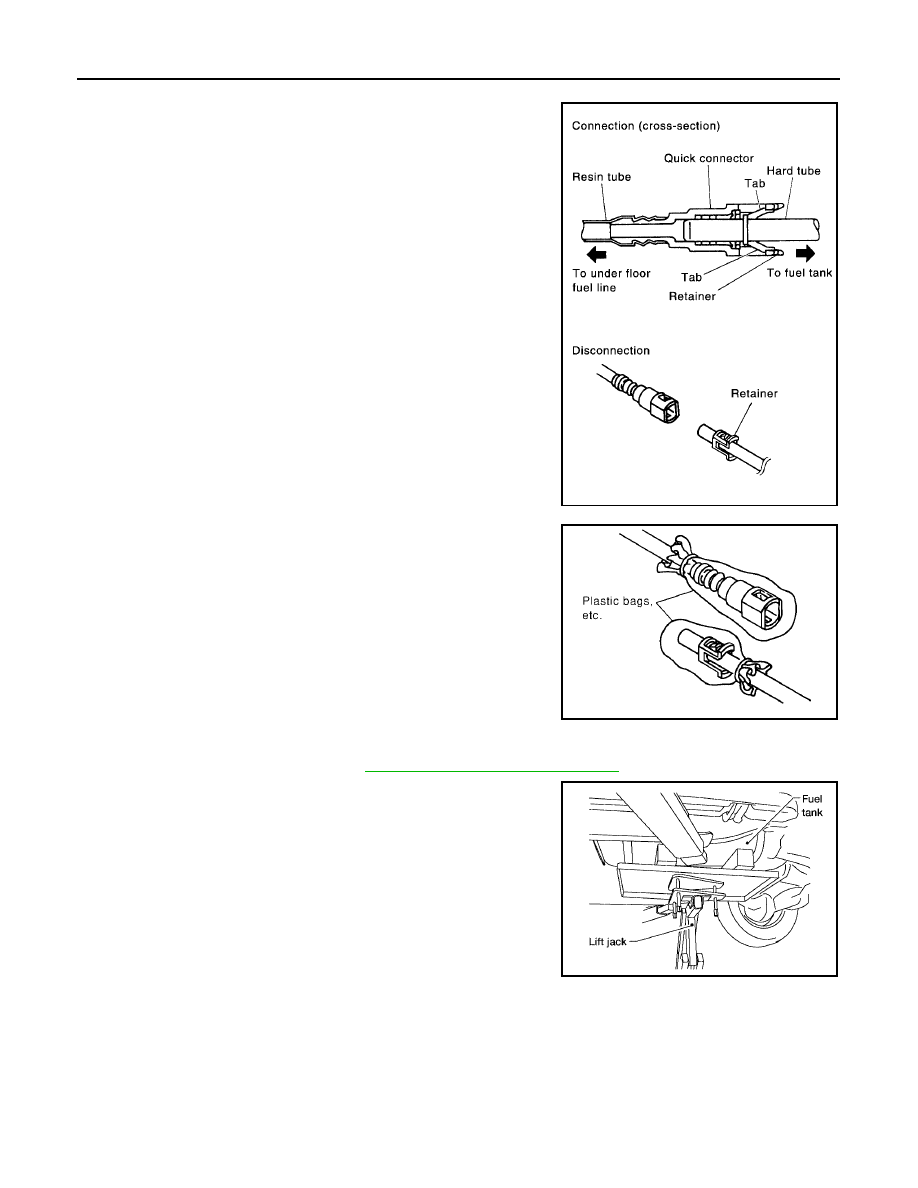

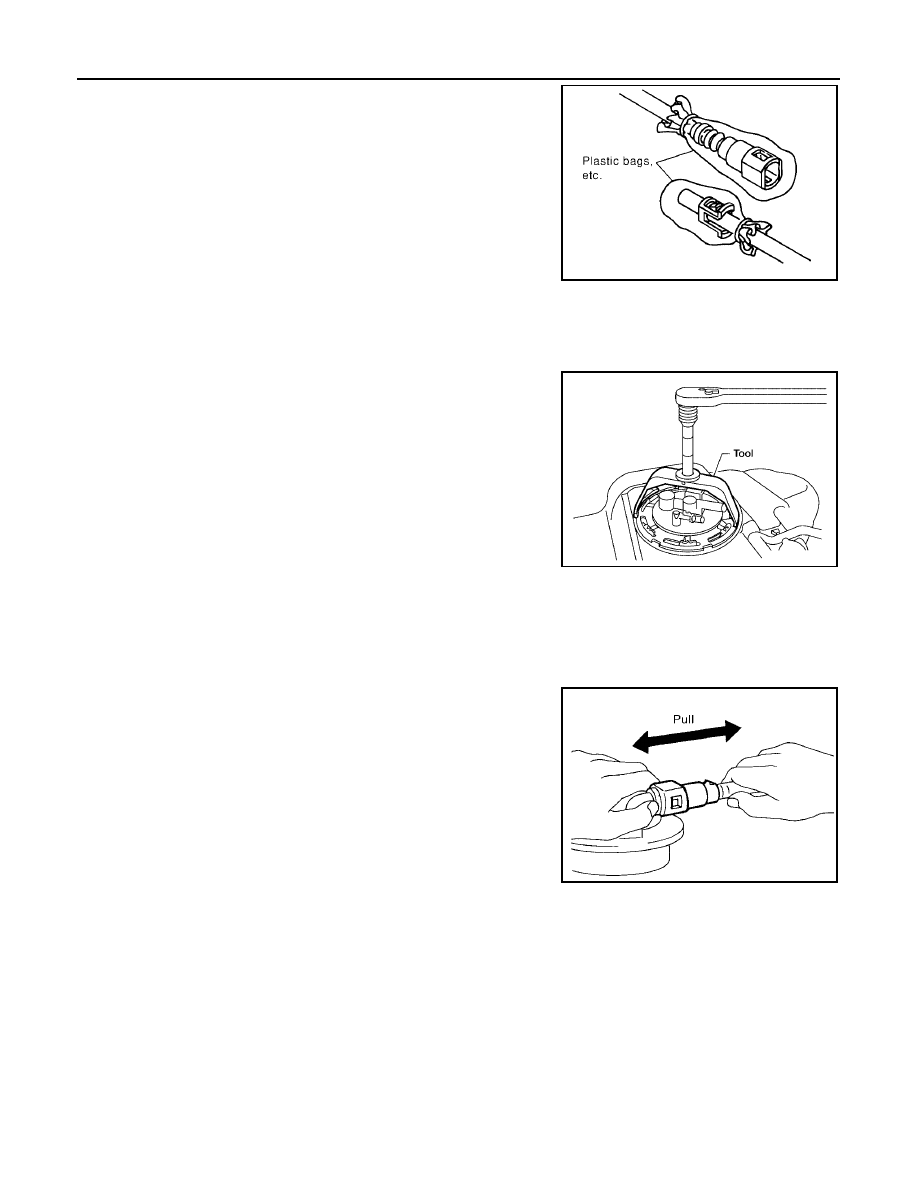

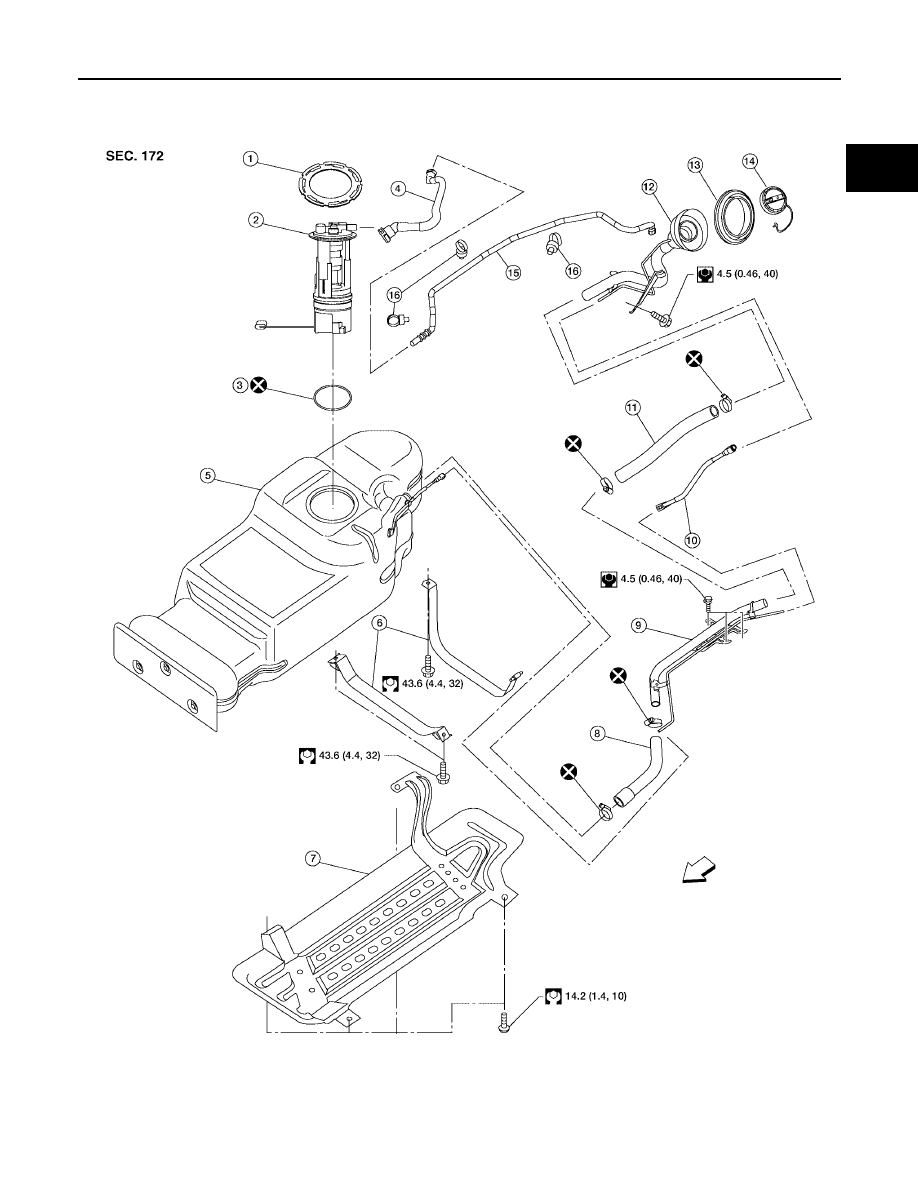

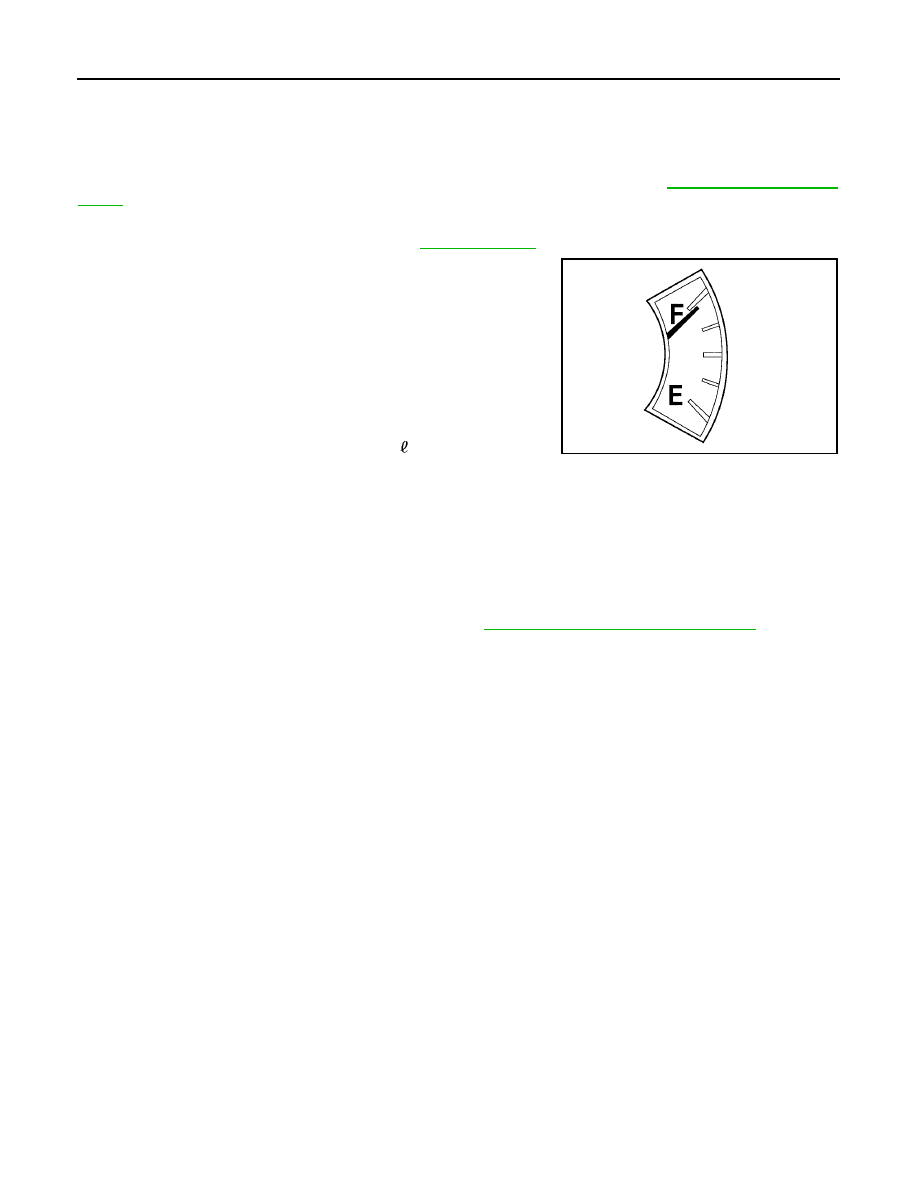

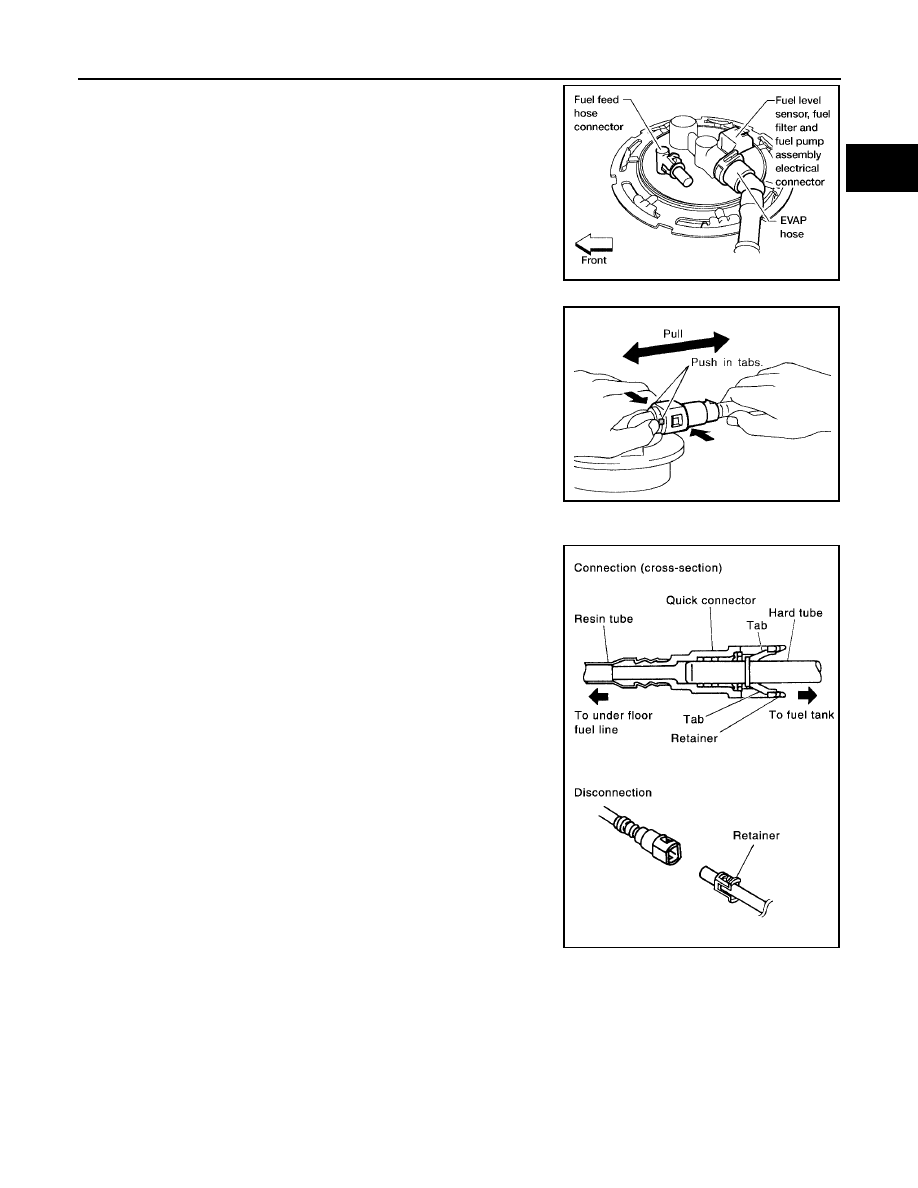

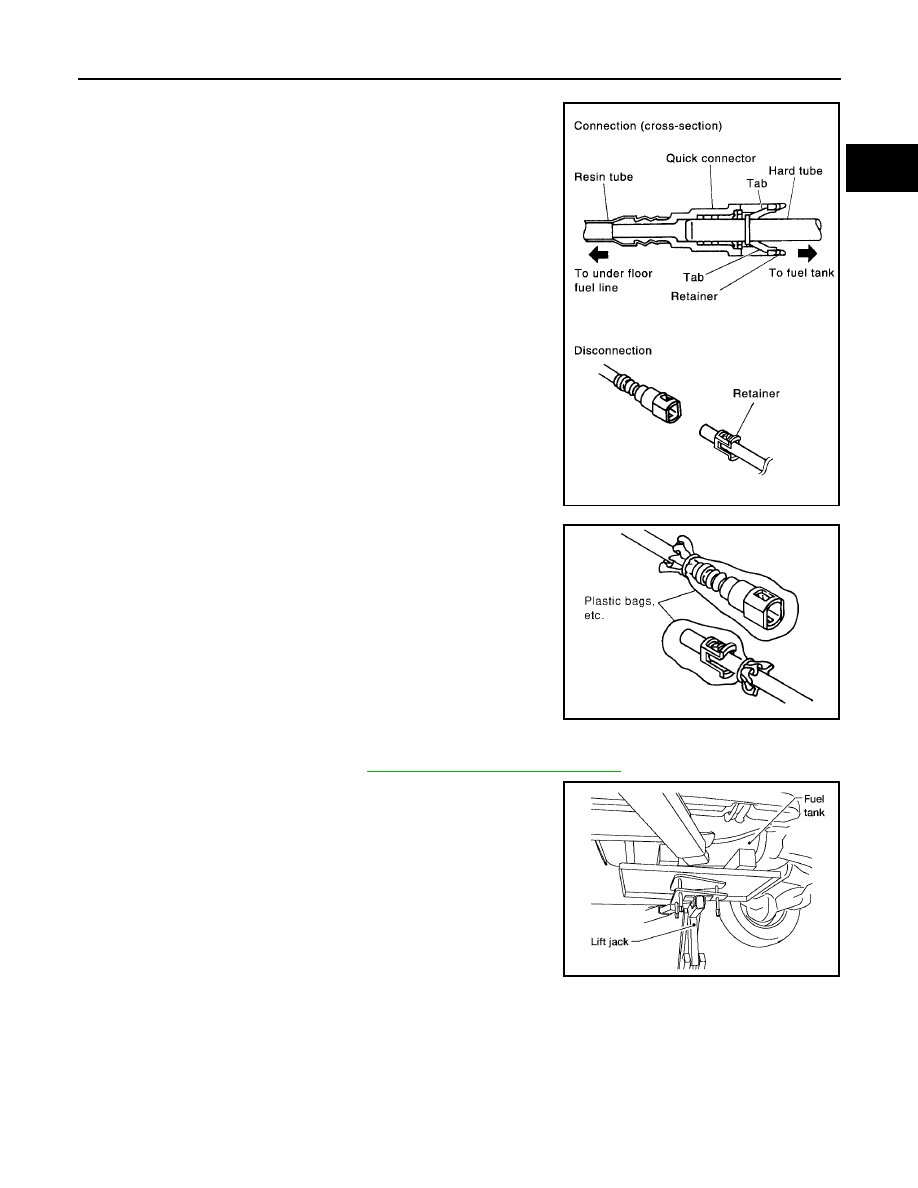

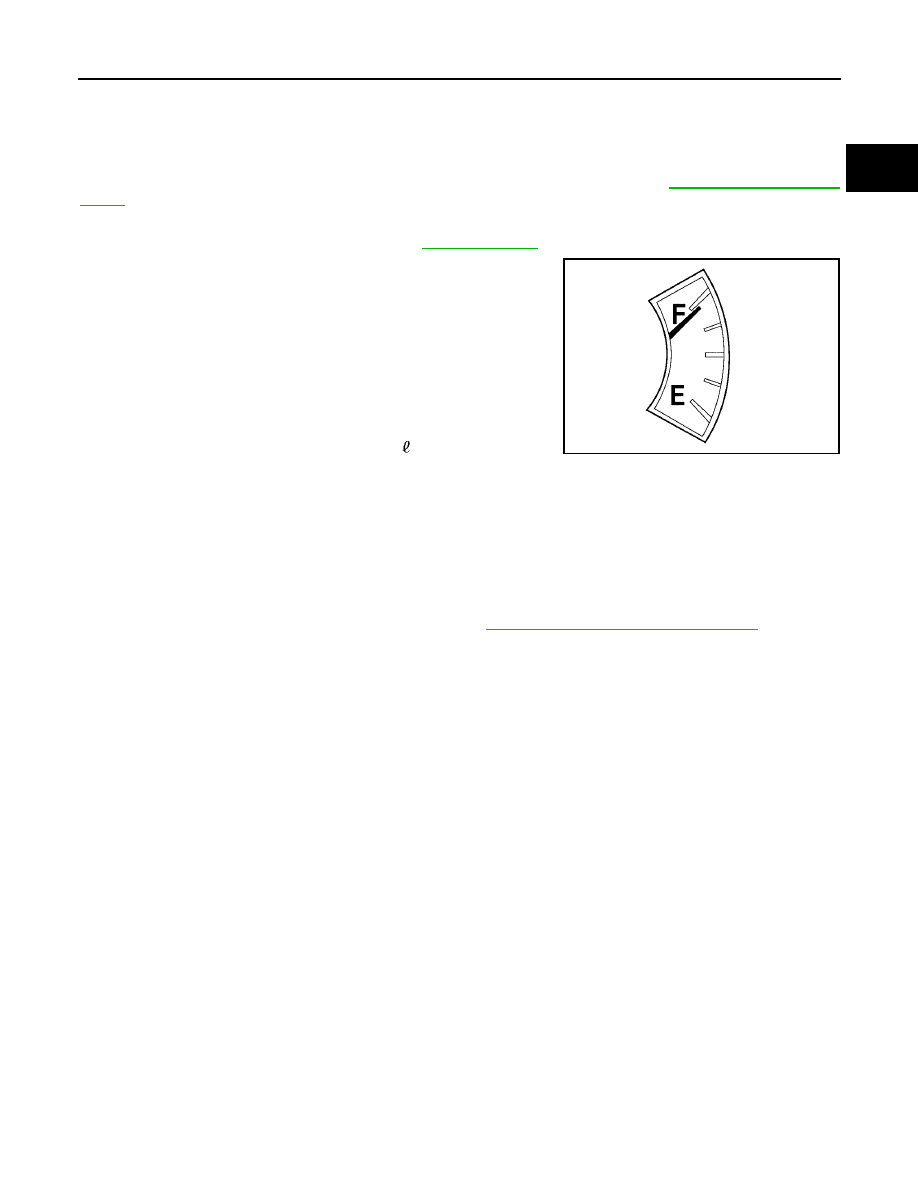

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY FL-7 C D E F G H I J K L M A FL 2006 Pathfinder REMOVAL WARNING: Follow the “General Precautions” before working on the fuel system. Refer to . 1. Remove the fuel filler cap to release the pressure from inside the fuel tank. 2. Remove the LH rear wheel and tire. Refer to 3. Check the fuel level on level gauge. If the fuel gauge indicates NOTE: ● As a guide, the fuel level reaches the fuel gauge position as ● If the fuel pump does not operate, use the following procedure to drain the fuel to the specified level. a. Insert a suitable hose of less than 15 mm (0.59 in) diameter into the fuel filler pipe through the fuel filler b. Remove the fuel filler pipe shield. c. Disconnect the fuel filler hose from the fuel filler pipe. d. Insert a suitable hose into the fuel tank through the fuel filler hose to drain the fuel from the fuel tank. 4. Release the fuel pressure from the fuel lines. Refer to EC-79, "FUEL PRESSURE RELEASE" . 5. Disconnect the battery negative terminal. 6. Disconnect the lower fuel filler hose from the fuel tank, the EVAP hose, and the vent pipe quick connector. ● Disconnect the fuel feed hose from the molded clip in the side of the fuel tank. Disconnect the quick connector as follows: ● Hold the sides of the connector, push in the tabs and pull out the tube. ● If the connector and the tube are stuck together, push and pull several times until they start to move. 13. Fuel filler hose grommet 14. Fuel filler cap 15. EVAP canister hose 16. clamp ⇐ Front WBIA0390E |
