SERVICE DATA AND SPECIFICATIONS (SDS)

FAX-13

C

E

F

G

H

I

J

K

L

M

A

B

FAX

2006 Pathfinder

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00030

Wheel Bearing

EDS003AF

Drive Shaft

EDS003AG

Boot Bands

EDS003LI

Unit: mm (in)

Axial end play limit

0.05 mm (0.002 in) or less

Drive shaft joint type

Final drive side

Rzeppa

Wheel side

Rzeppa

Grease

Quality

Genuine NISSAN Grease or equivalent

Capacity

Final drive side

120 - 140 g (4.23 - 4.94 oz)

Wheel side

115 - 135 g (4.01 - 4.76 oz)

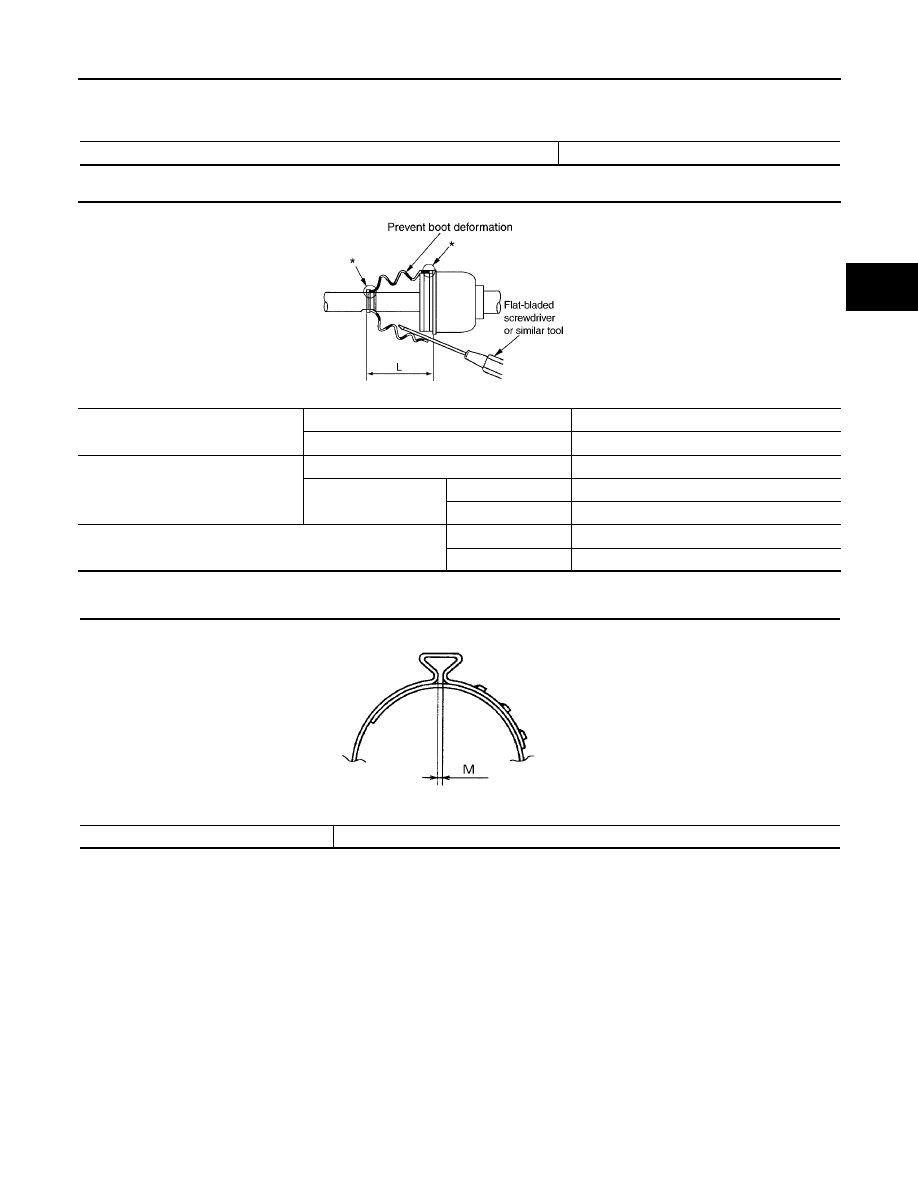

Boot installed length "L"

Final drive side

163.9 - 164.3 mm (6.45 - 6.47 in)

Wheel side

135.1 mm (5.32 in)

SDIA2493E

Dimension "M"

1.0 - 4.0 (0.39 - 1.57)

DSF0047D

FAX-14

SERVICE DATA AND SPECIFICATIONS (SDS)

2006 Pathfinder

FL-1

FUEL SYSTEM

B  ENGINE

CONTENTS

C

D

E

F

G

H

I

J

K

L

M

SECTION

A

FL

2006 Pathfinder

PRECAUTIONS .......................................................... 2

Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 2
General Precautions  ................................................ 2

PREPARATION ........................................................... 4

Special Service Tools  ............................................... 4
Commercial Service Tool  ......................................... 4

FUEL SYSTEM  ........................................................... 5

Checking Fuel Lines ................................................. 5

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND

FUEL PUMP ASSEMBLY  ........................................... 6

Removal and Installation  .......................................... 6

REMOVAL ............................................................. 7
INSTALLATION ................................................... 10
INSPECTION AFTER INSTALLATION ................ 10

FUEL TANK  .............................................................. 11

Removal and Installation  ........................................ 11

REMOVAL ........................................................... 12
INSTALLATION ................................................... 15
INSPECTION AFTER INSTALLATION ................ 15

SERVICE DATA AND SPECIFICATIONS (SDS)  ...... 16

Standard and Limit .................................................. 16

FL-2

PRECAUTIONS

2006 Pathfinder

PRECAUTIONS

PFP:00001

Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”

EBS00T2G

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

●

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

●

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

●

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

General Precautions

EBS00QUD

WARNING:

When replacing fuel line parts, be sure to observe the following.

●

Put a “CAUTION: FLAMMABLE” sign in the workshop.

●

Be sure to work in a well ventilated area and furnish the workshop with a CO

2

  fire extinguisher.

●

Do not smoke while servicing the fuel system. Keep open flames and sparks away from the work
area.

CAUTION:

●

Use gasoline required by the regulations for the octane rating number. Refer to

GI-5, "Precautions

for Fuel (Unleaded Premium Gasoline Recommended)"

 .

●

Before removing fuel line parts, carry out the following procedures:

–

Put drained fuel in an explosion-proof container and put the lid on securely. Keep the container in
safe area.

–

Release fuel pressure from the fuel lines. Refer to

EC-79, "FUEL PRESSURE RELEASE"

 .

–

Disconnect the battery negative terminal.

●

Always replace O-rings and clamps with new ones.

●

Do not kink or twist hoses when they are being installed.

●

Do not tighten hose clamps excessively to avoid damaging hoses.

●

Tighten high-pressure rubber hose clamp so that clamp end is 3 mm (0.12 in) from hose end.

●

Ensure that clamp screw does not contact adjacent parts.

PRECAUTIONS

FL-3

C

D

E

F

G

H

I

J

K

L

M

A

FL

2006 Pathfinder

●

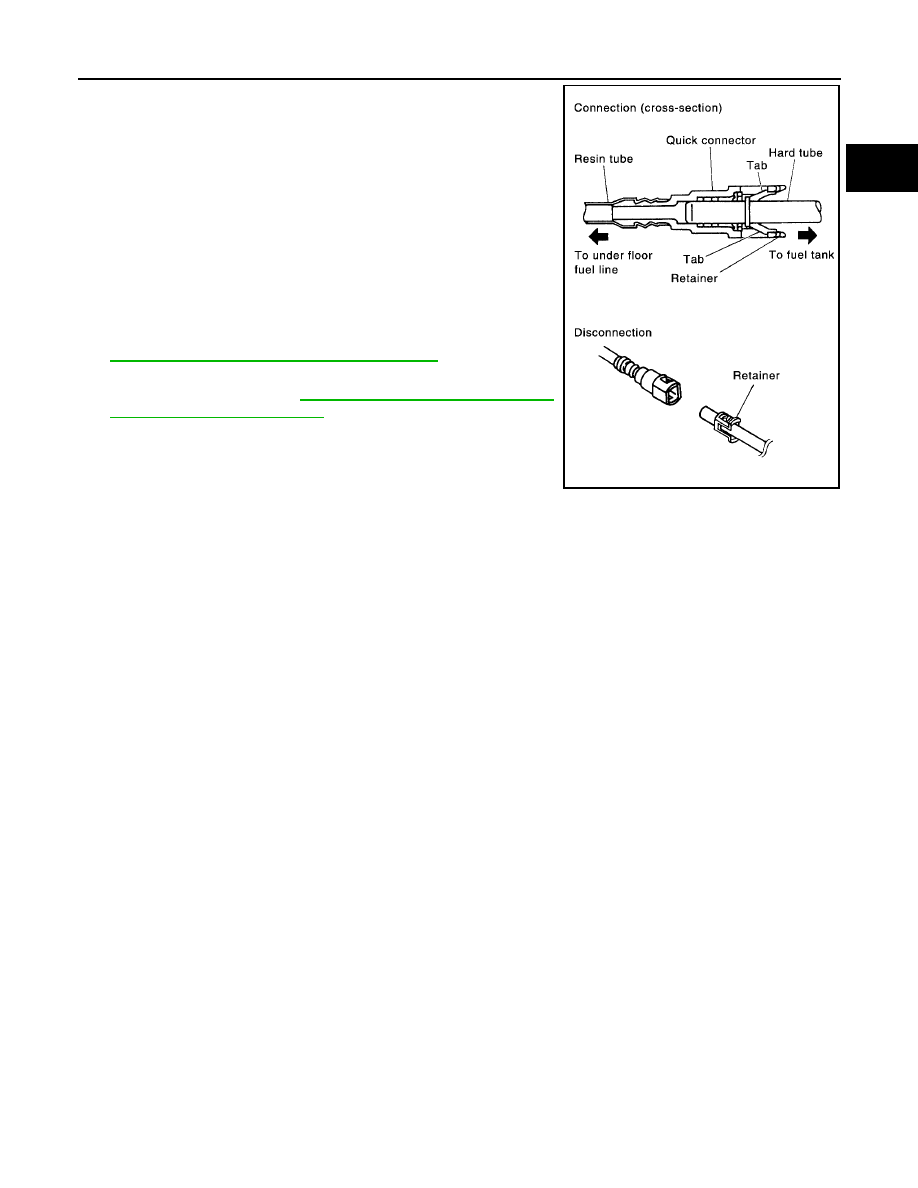

After connecting the fuel tube quick connectors, make sure
the quick connectors are secure.
Ensure that the connector and resin tube do not contact
any adjacent parts.

●

After installing tubes, make sure there is no fuel leakage at
connections in the following steps.

–

Apply fuel pressure to fuel lines with turning ignition switch
ON (with engine stopped). Then check for fuel leaks at con-
nections.

–

Start the engine and rev it up and check for fuel leaks at
connections.

●

Use only a Genuine NISSAN fuel filler cap as a replacement.
If an incorrect fuel filler cap is used, the MIL may come on.

●

For servicing “Evaporative Emission System” parts, refer to

EC-32, "EVAPORATIVE EMISSION SYSTEM"

 .

●

For servicing “On Board Refueling Vapor Recovery
(ORVR)” parts, refer to

EC-39, "ON BOARD REFUELING

VAPOR RECOVERY (ORVR)"

 .

PBIC1268E

FL-4

PREPARATION

2006 Pathfinder

PREPARATION

PFP:00002

Special Service Tools

EBS00QUA

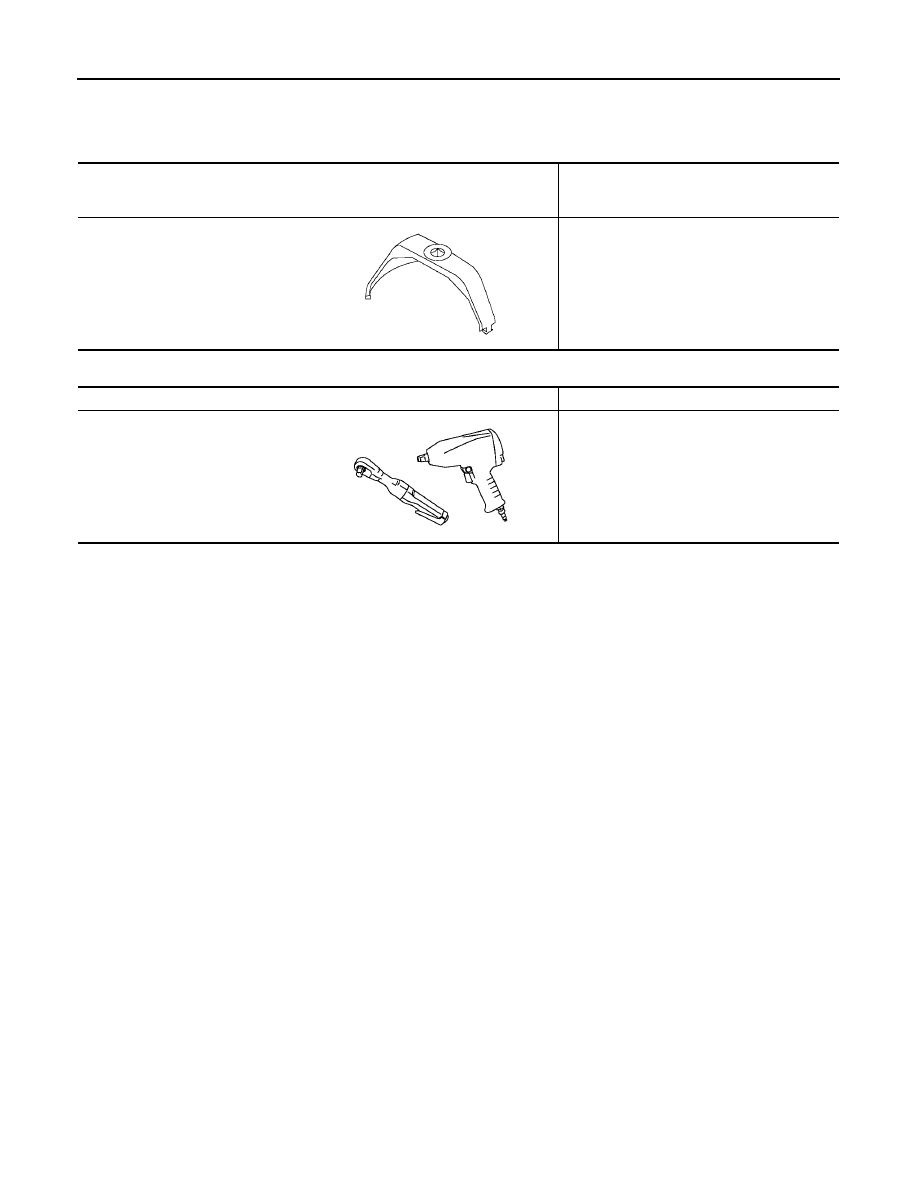

The actual shapes of the Kent-Moore tools may differ from those of the special tools illustrated here.

Commercial Service Tool

EBS00QUB

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-45722)
130 mm lock ring tool

Removing and installing fuel tank lock ring

LBIA0398E

Tool name

Description

Power tool

Loosening bolts and nuts

PBIC0190E

FUEL SYSTEM

FL-5

C

D

E

F

G

H

I

J

K

L

M

A

FL

2006 Pathfinder

FUEL SYSTEM

PFP:17503

Checking Fuel Lines

EBS00QUC

Inspect fuel lines, fuel filler cap and fuel tank for improper attach-
ment, leaks, cracks, damage, loose connections, chafing or deterio-
ration.
If necessary, repair or replace damaged parts.

SMA803A

FL-6

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

2006 Pathfinder

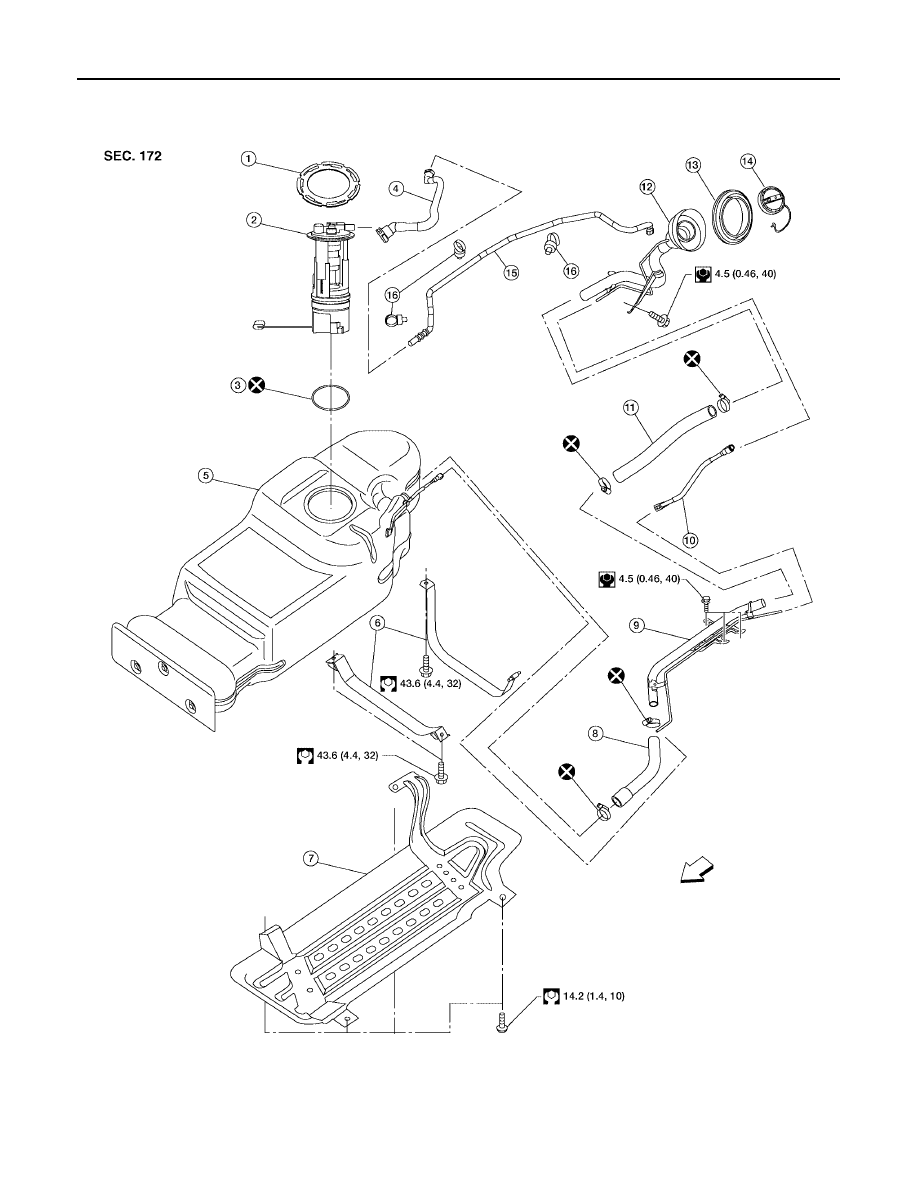

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

PFP:17042

Removal and Installation

EBS00QUE

1.

Lock ring

2.

Fuel level sensor, fuel filter, and fuel
pump assembly

3.

Fuel level sensor, fuel filter, and fuel
pump assembly O-ring

4.

EVAP hose

5.

Fuel tank

6.

Fuel tank straps

7.

Fuel tank shield

8.

Lower fuel filler hose

9.

Fuel filler pipe and vent pipe

10. Vent hose

11.

Upper fuel filler hose

12. Fuel filler pipe and cup

WBIA0730E
