DTC P1572 ASCD BRAKE SWITCH

EC-547

C

D

E

F

G

H

I

J

K

L

M

A

EC

2006 Pathfinder

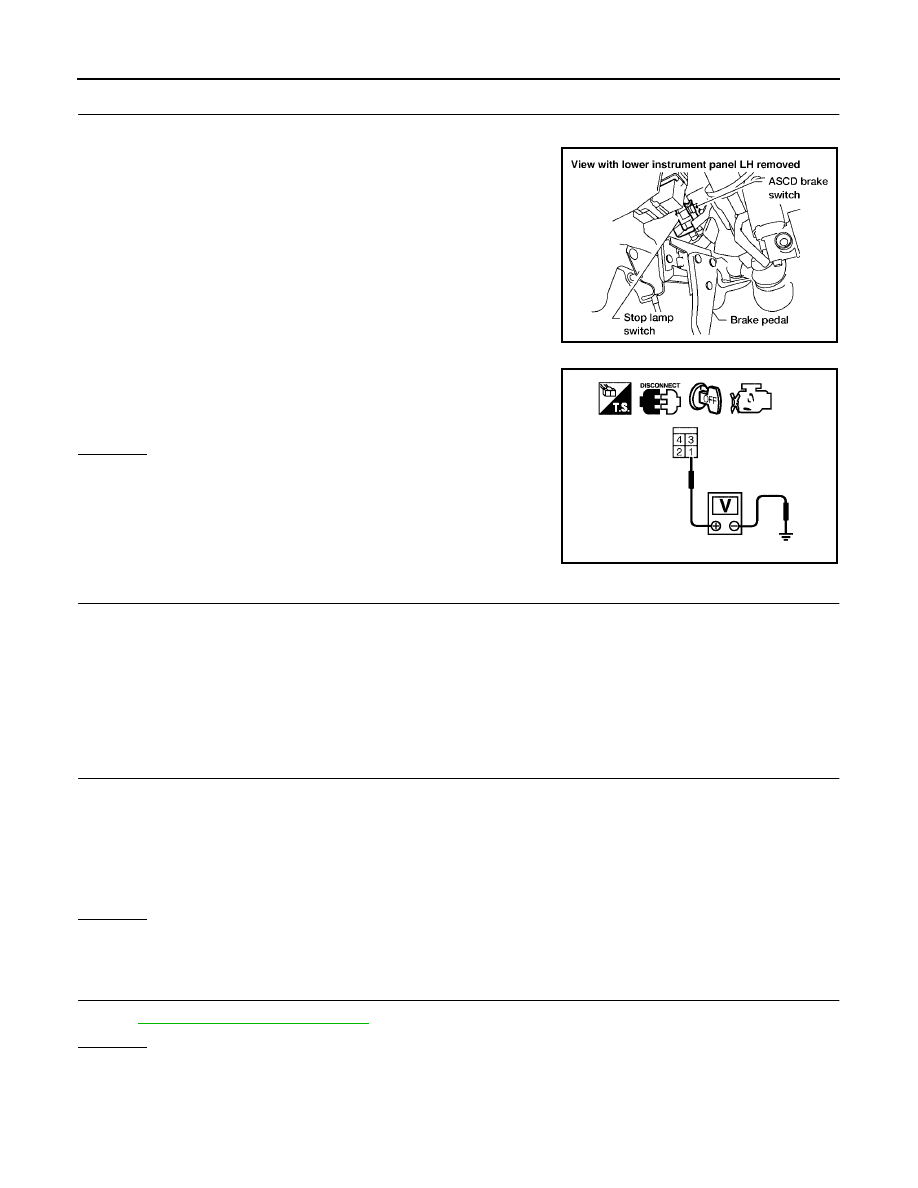

3.

CHECK ASCD BRAKE SWITCH POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect ASCD brake switch harness connector.

3.

Turn ignition switch ON.

4.

Check voltage between ASCD brake switch terminal 1 and
ground with CONSULT-II or tester.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 4.

4.

DETECT MALFUNCTIONING PART

Check the following.

●

Fuse block (J/B) connector E160

●

10A fuse

●

Harness for open or short between ASCD brake switch and fuse

>> Repair open circuit or short to ground in harness or connectors.

5.

CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between ECM terminal 108 and ASCD brake switch terminal 2.
Refer to Wiring Diagram.

4.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 6.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

6.

CHECK ASCD BRAKE SWITCH

Refer to

EC-549, "Component Inspection"

 .

OK or NG

OK

>> GO TO 11.

NG

>> Replace ASCD brake switch.

BBIA0560E

Voltage: Battery voltage

PBIB0857E

Continuity should exist.

EC-548

DTC P1572 ASCD BRAKE SWITCH

2006 Pathfinder

7.

CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect stop lamp switch harness connector.

3.

Check voltage between stop lamp switch terminal 1 and ground
with CONSULT-II or tester.

OK or NG

OK

>> GO TO 9.

NG

>> GO TO 8.

8.

DETECT MALFUNCTIONING PART

Check the following.

●

Fuse block (J/B) connector E160

●

10A fuse

●

Harness for open or short between stop lamp switch and battery

>> Repair open circuit or short to ground or short to power in harness or connectors.

9.

CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Disconnect ECM harness connector.

2.

Check harness continuity between ECM terminal 101 and stop lamp switch terminal 2.
Refer to Wiring Diagram.

3.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 10.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

10.

CHECK STOP LAMP SWITCH

Refer to

EC-549, "Component Inspection"

 .

OK or NG

OK

>> GO TO 11.

NG

>> Replace stop lamp switch.

BBIA0560E

Voltage: Battery voltage

PBIB1184E

Continuity should exist.

DTC P1572 ASCD BRAKE SWITCH

EC-549

C

D

E

F

G

H

I

J

K

L

M

A

EC

2006 Pathfinder

11.

CHECK INTERMITTENT INCIDENT

Refer to

EC-144, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

>> INSPECTION END

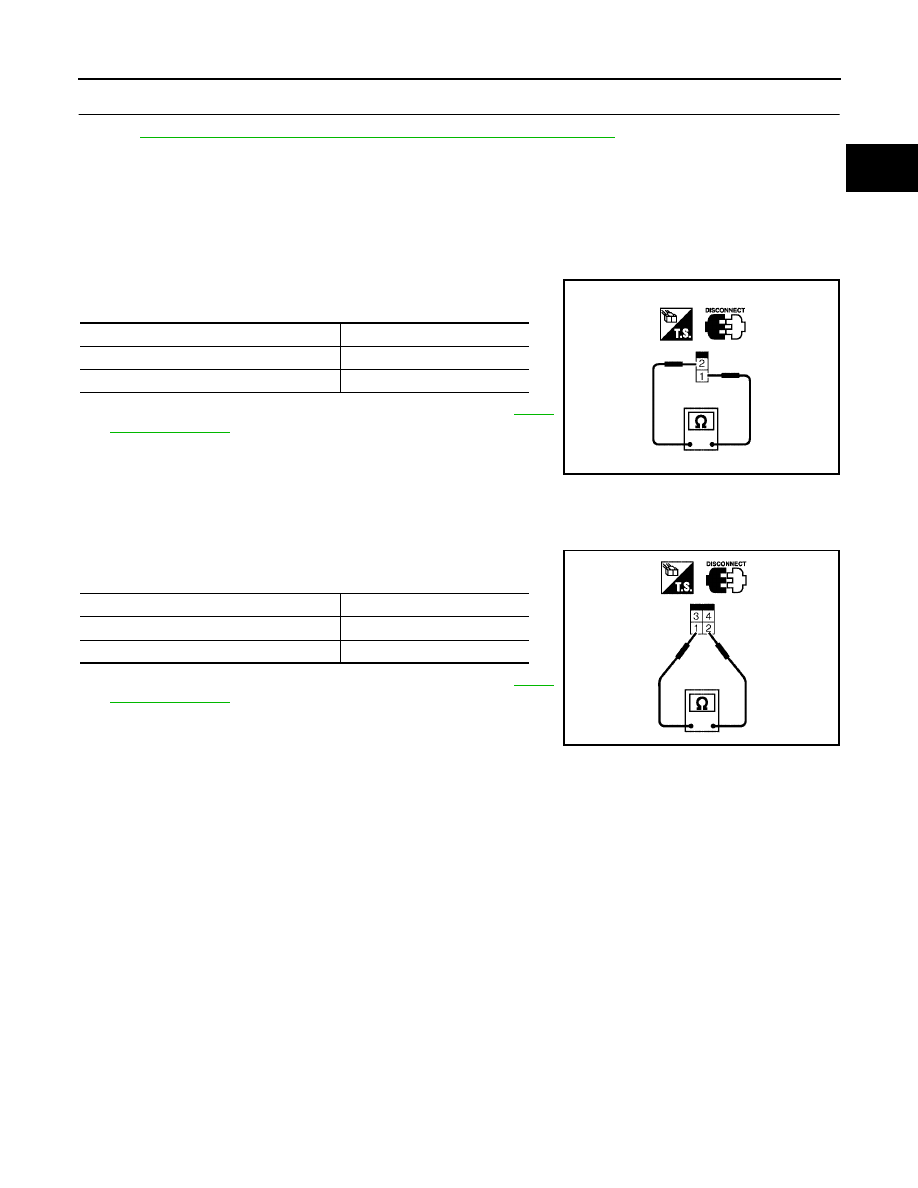

Component Inspection

UBS00KG8

ASCD BRAKE SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect ASCD brake switch harness connector.

3.

Check harness continuity between ASCD brake switch terminals
1 and 2 under the following conditions.

If NG, adjust ASCD brake switch installation, refer to

BR-6,

"BRAKE PEDAL"

 , and perform step 3 again.

STOP LAMP SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect stop lamp switch harness connector.

3.

Check harness continuity between stop lamp switch terminals 1
and 2 under the following conditions.

If NG, adjust stop lamp switch installation, refer to

BR-6,

"BRAKE PEDAL"

 , and perform step 3 again.

Condition

Continuity

When brake pedal: Fully released.

Should exist.

When brake pedal: Slightly depressed.

Should not exist.

SEC023D

Condition

Continuity

When brake pedal: Fully released.

Should not exist.

When brake pedal: Slightly depressed.

Should exist.

PBIB1185E

EC-550

DTC P1574 ASCD VEHICLE SPEED SENSOR

2006 Pathfinder

DTC P1574 ASCD VEHICLE SPEED SENSOR

PFP:31036

Component Description

UBS00KG9

The ECM receives two vehicle speed sensor signals via CAN communication line. One is sent from combina-
tion meter, and the other is from TCM (Transmission control module). The ECM uses these signals for ASCD
control. Refer to

EC-29, "AUTOMATIC SPEED CONTROL DEVICE (ASCD)"

   for ASCD functions.

On Board Diagnosis Logic

UBS00KGA

This self-diagnosis has the one trip detection logic.
The MIL will not light up for this diagnosis.

NOTE:

●

If DTC P1574 is displayed with DTC U1000, U1001, first perform the trouble diagnosis for DTC
U1000, U1001. Refer to

EC-153, "DTC U1000, U1001 CAN COMMUNICATION LINE"

 .

●

If DTC P1574 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010.
Refer to

EC-156, "DTC U1010 CAN COMMUNICATION"

 .

●

If DTC P1574 is displayed with DTC P0500, first perform the trouble diagnosis for DTC P0500.
Refer to

EC-461, "DTC P0500 VSS"

 .

●

If DTC P1574 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605.
Refer to

EC-476, "DTC P0605 ECM"

 .

DTC Confirmation Procedure

UBS00KGB

CAUTION:

Always drive vehicle at a safe speed.

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Step 3 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road test
is expected to be easier, it is unnecessary to lift the vehicle.

 WITH CONSULT-II

1.

Start engine.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Drive the vehicle at more than 40 km/h (25 MPH).

4.

If DTC is detected, go to

EC-551, "Diagnostic Procedure"

 .

 WITH GST

Follow the procedure “WITH CONSULT-II” above.

DTC No.

Trouble Diagnosis

Name

DTC Detecting Condition

Possible Cause

P1574
1574

ASCD vehicle speed
sensor

ECM detects a difference between two vehicle
speed signals is out of the specified range.

●

Harness or connectors
(The CAN communication line is open or
shorted.)

●

Combination meter

●

ABS actuator and electric unit (control unit)

●

Wheel sensor

●

TCM

●

ECM

SEF058Y

DTC P1574 ASCD VEHICLE SPEED SENSOR

EC-551

C

D

E

F

G

H

I

J

K

L

M

A

EC

2006 Pathfinder

Diagnostic Procedure

UBS00KGC

1.

CHECK DTC WITH TCM

Check DTC with TCM. Refer to

AT-44, "TROUBLE DIAGNOSIS"

 .

OK or NG

OK

>> GO TO 2.

NG

>> Perform trouble shooting relevant to DTC indicated.

2.

CHECK DTC WITH “ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)”

Refer to

BRC-12, "TROUBLE DIAGNOSIS"

  or

BRC-75, "TROUBLE DIAGNOSIS"

 .

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace.

3.

CHECK COMBINATION METER FUNCTION

Refer to

DI-4, "COMBINATION METERS"

 .

>> INSPECTION END

EC-552

DTC P1715 INPUT SPEED SENSOR (TURBINE REVOLUTION SENSOR)

2006 Pathfinder

DTC P1715 INPUT SPEED SENSOR (TURBINE REVOLUTION SENSOR)

PFP:31935

Description

UBS00P01

ECM receives turbine revolution sensor signal from TCM through CAN communication line. ECM uses this
signal for engine control.

CONSULT-II Reference Value in Data Monitor Mode

UBS00P02

Specification data are reference values.

On Board Diagnosis Logic

UBS00P03

NOTE:

●

If DTC P1715 is displayed with DTC U1000, U1001 first perform the trouble diagnosis for DTC
U1000, U1001. Refer to

EC-153, "DTC U1000, U1001 CAN COMMUNICATION LINE"

 .

●

If DTC P1715 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010.
Refer to

EC-156, "DTC U1010 CAN COMMUNICATION"

 .

●

If DTC P1715 is displayed with DTC P0335, first perform the trouble diagnosis for DTC P0335.
Refer to

EC-359, "DTC P0335 CKP SENSOR (POS)"

 .

●

If DTC P1715 is displayed with DTC P0340, P0345 first perform the trouble diagnosis for DTC
P0340, P0345. Refer to

EC-366, "DTC P0340, P0345 CMP SENSOR (PHASE)"

 .

●

If DTC P1715 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605.
Refer to

EC-476, "DTC P0605 ECM"

 .

The MIL will not lights up for this diagnosis.

Diagnostic Procedure

UBS00P04

1.

CHECK DTC WITH TCM

Check DTC with TCM. Refer to

AT-40, "ON BOARD DIAGNOSTIC (OBD) SYSTEM"

 .

OK or NG

OK

>> GO TO 2.

NG

>> Perform trouble shooting relevant to DTC indicated.

2.

REPLACE TCM

Replace TCM. Refer to

AT-44, "TROUBLE DIAGNOSIS"

 .

>> INSPECTION END

MONITOR ITEM

CONDITION

SPECIFICATION

I/P PULLY SPD

●

Vehicle speed: More than 20 km/h (12MPH)

Almost the same speed as the
tachometer indication

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P1715
1715

Input speed sensor
(Turbine revolution sen-
sor)
(TCM output)

Turbine revolution sensor signal is differ-
ent from the theoretical value calculated
by ECM from revolution sensor signal
and engine rpm signal.

●

Harness or connectors
(The CAN communication line is open or
shorted)

●

Harness or connectors
(Turbine revolution sensor circuit is open or
shorted)

●

TCM

DTC P1800 VIAS CONTROL SOLENOID VALVE

EC-553

C

D

E

F

G

H

I

J

K

L

M

A

EC

2006 Pathfinder

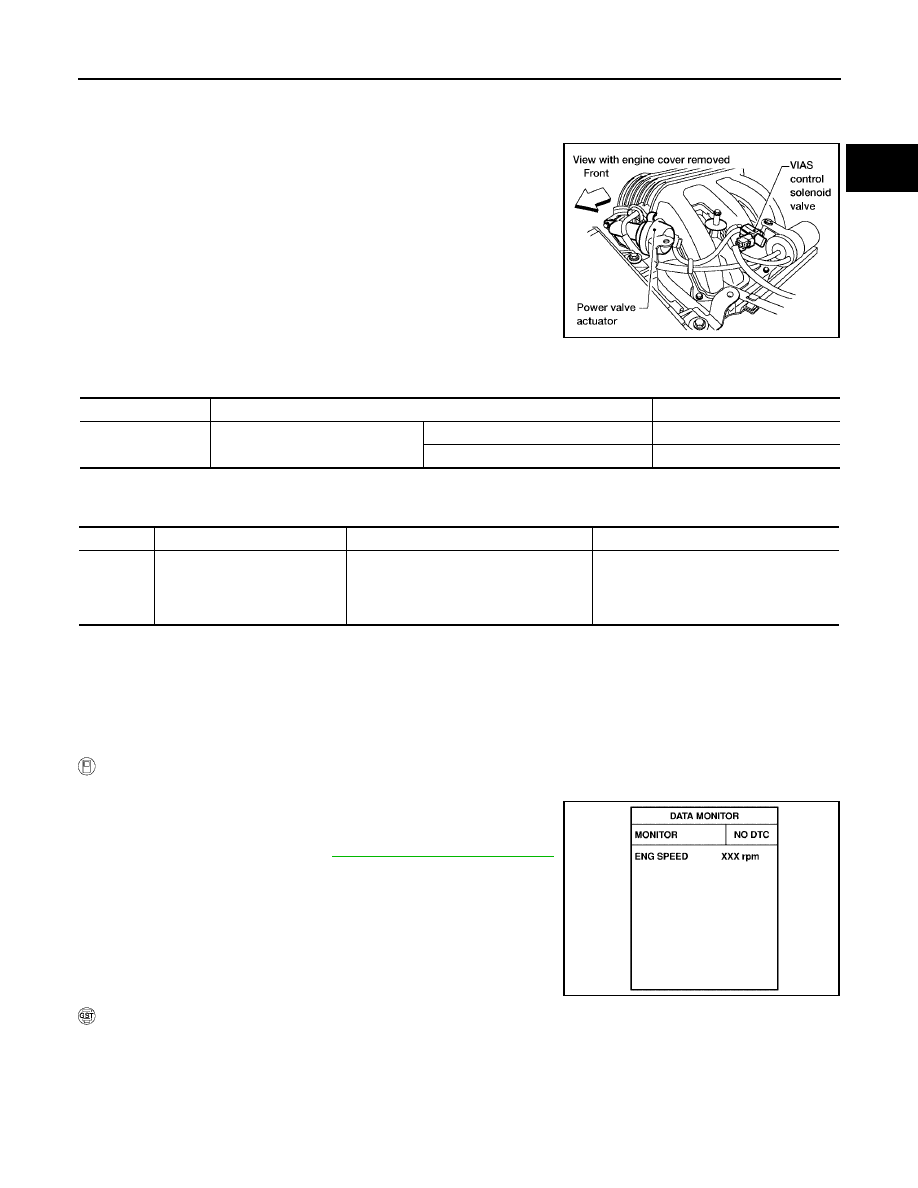

DTC P1800 VIAS CONTROL SOLENOID VALVE

PFP:14955

Component Description

UBS00KGK

The VIAS control solenoid valve cuts the intake manifold vacuum
signal for power valve control. It responds to ON/OFF signals from
the ECM. When the solenoid is off, the vacuum signal from the
intake manifold is cut. When the ECM sends an ON signal the coil
pulls the plunger downward and feeds the vacuum signal to the
power valve actuator.

CONSULT-II Reference Value in Data Monitor Mode

UBS00KGL

Specification data are reference values.

On Board Diagnosis Logic

UBS00KGM

The MIL will not light up for this self-diagnosis.

DTC Confirmation Procedure

UBS00KGN

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is between 11V at idle.

 WITH CONSULT-II

1.

Turn ignition switch ON.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Start engine and let it idle for at least 5 seconds.

4.

If 1st trip DTC is detected, go to

EC-555, "Diagnostic Procedure"

.

 WITH GST

Follow the procedure “WITH CONSULT-II” above.

BBIA0569E

MONITOR ITEM

CONDITION

SPECIFICATION

VIAS S/V

●

Engine: After warming up

2,200 - 3,300 rpm

ON

Except above conditions

OFF

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P1800
1800

VIAS control solenoid valve cir-
cuit

An excessively low or high voltage signal
is sent to ECM through the valve

●

Harness or connectors
(The solenoid valve circuit is open or
shorted.)

●

VIAS control solenoid valve

SEF058Y

EC-554

DTC P1800 VIAS CONTROL SOLENOID VALVE

2006 Pathfinder

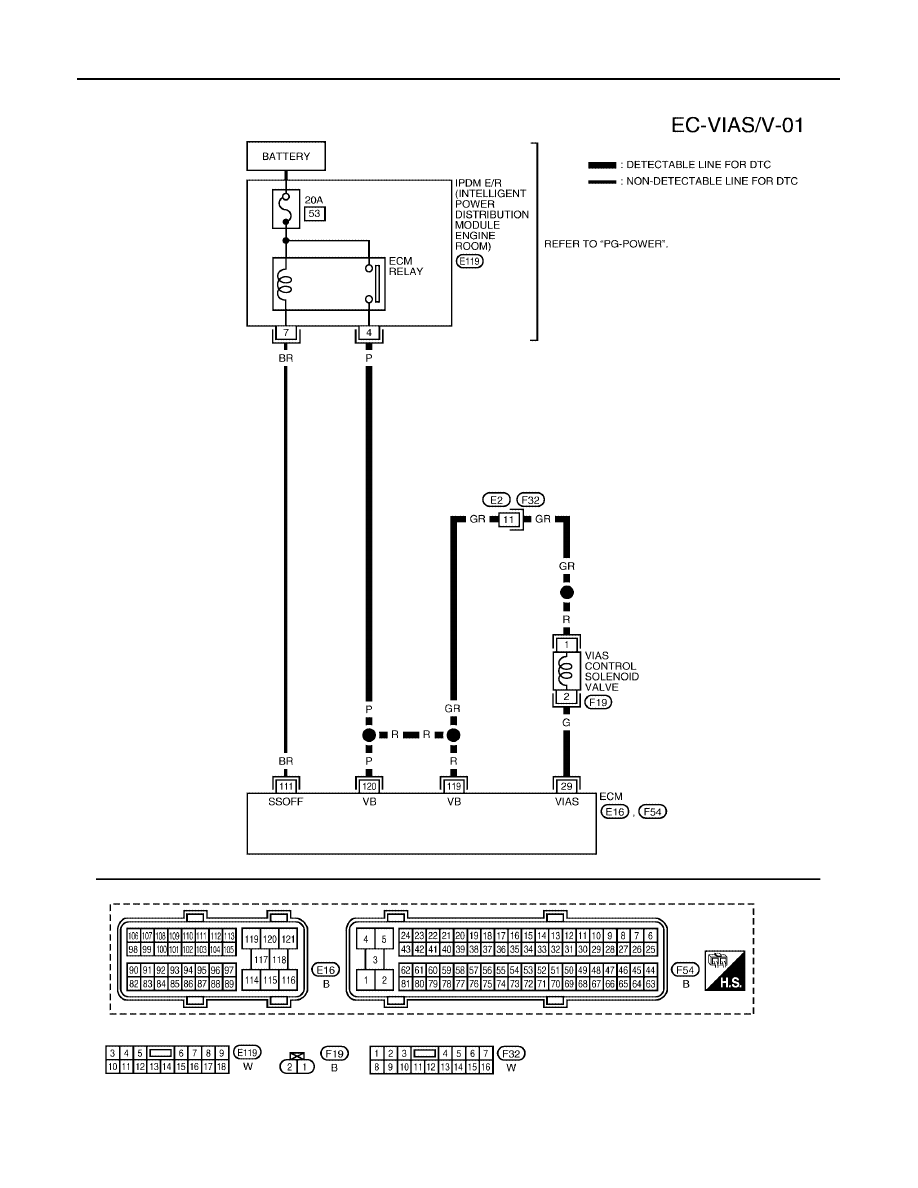

Wiring Diagram

UBS00KGO

BBWA1768E
